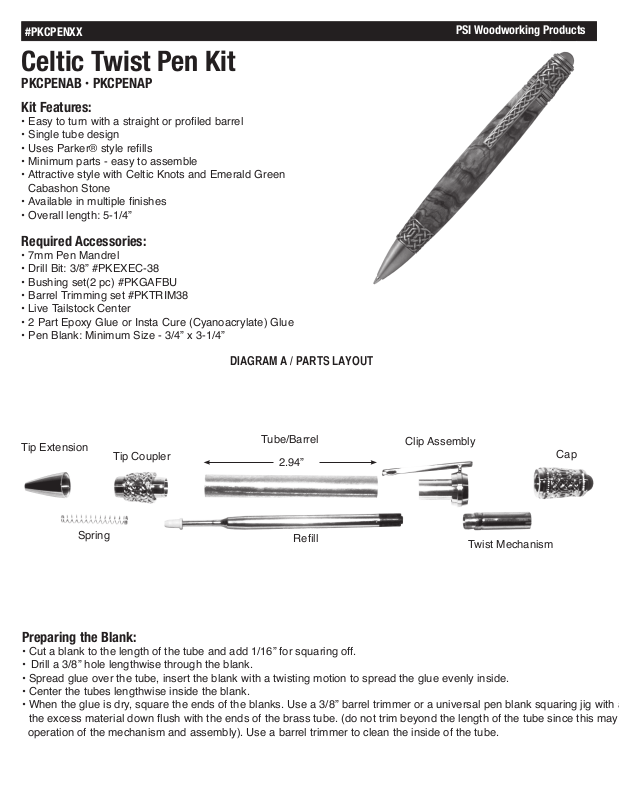

Page 1

#PKCPENXX

Celtic Twist Pen Kit

PKCPENAB • PKCPENAP

Kit Features:

•Easytoturnwithastraightorproledbarrel

•Singletubedesign

•UsesParker®stylerells

•Minimumparts-easytoassemble

•AttractivestylewithCelticKnotsandEmeraldGreen CabashonStone

•Availableinmultiplenishes

•Overalllength:5-1/4”

Required Accessories:

•7mmPenMandrel

•DrillBit:3/8”#PKEXEC-38

•Bushingset(2pc)#PKGAFBU

•BarrelTrimmingset#PKTRIM38

•LiveTailstockCenter

•2PartEpoxyGlueorInstaCure(Cyanoacrylate)Glue

•PenBlank:MinimumSize-3/4”x3-1/4”

PSI Woodworking Products

DIAGRAM A / PARTS LAYOUT

TipExtension

Spring

TipCoupler

Tube/Barrel

2.94”

Rell

ClipAssembly

Cap

TwistMechanism

Preparing the Blank:

•Cutablanktothelengthofthetubeandadd1/16”forsquaringoff.

• Drilla3/8”holelengthwisethroughtheblank.

•Spreadglueoverthetube,inserttheblankwithatwistingmotiontospreadtheglueevenlyinside.

•Centerthetubeslengthwiseinsidetheblank.

•Whentheglueisdry,squaretheendsoftheblanks.Usea3/8”barreltrimmerorauniversalpenblanksquaringjigwithapowerdiscsander.Take

theexcessmaterialdownushwiththeendsofthebrasstube.(donottrimbeyondthelengthofthetubesincethismayinterferewith

operationofthemechanismandassembly).Useabarreltrimmertocleantheinsideofthetube.

Page 2

#PKCPENXX

PSI Woodworking Products

HeadStock

EndBushing

7mmSpacer Bushings

DIAGRAM B / TURNING THE BLANKS

Blank

FinishedBarrel

EndBushing

KnurledNut

LiveCenter

Mandrel

7mmSpacer Bushings

Turning the Blank

•MountthebushingsandblanksaccordingtodiagramB.

•Threadontheknurlednutandhandtightentoholdallcomponentsinplace.

•Slidethetailstockupsnuglyagainstthemandrelshaftinsertingthelivecenterpointintothemandrel

dimple,lockinplace. 

• Handtightenthequilladjustmenttormupthemandrel.(DONOTovertighten,itcoulddamagethe

mandrel.

•Usingsharptools,turntheblankdownclosetothebushingdiameter.Turnthebarrel(straightortoa

proleofyourchoice)

• Sandtheblankdowntobeushwiththebushingsgraduallyincreasingthesandpapergrits.

• Finishthebarrelwithyourchoiceofpolish.Allowsufcienttimeforthepolishtocure.

Refertopolishinstructions.

Assembly

• LayoutpartsaccordingtodiagramA

•Screwthetipextensionoverthetipcoupler.

• Pressthetipcouplerwiththetipassembledintoeitherendofthebarrel.DONOTpressdirectlyon threads.

•Presstheclipassemblyintotheoppostieendofthebarrel.

•Screwonthemechanismintotheopeningattheclipassembly.

•Removetheprotectoroftherell,afxthespringoverthetipanddroptherellintotheopeningatthe

tipcoupler.

•Afxandpressinthecapoverthemechanismextension.

•Tochangetherellunscrewthecap/mechanismassemblyandreplace.

•Thepenoperatesbytwistingthecaptoextendorretracttherelltip.

Diagram C / Bushings #PKGAFBU

.525”

.345”

SAME

.248” Holes through
