SERIES

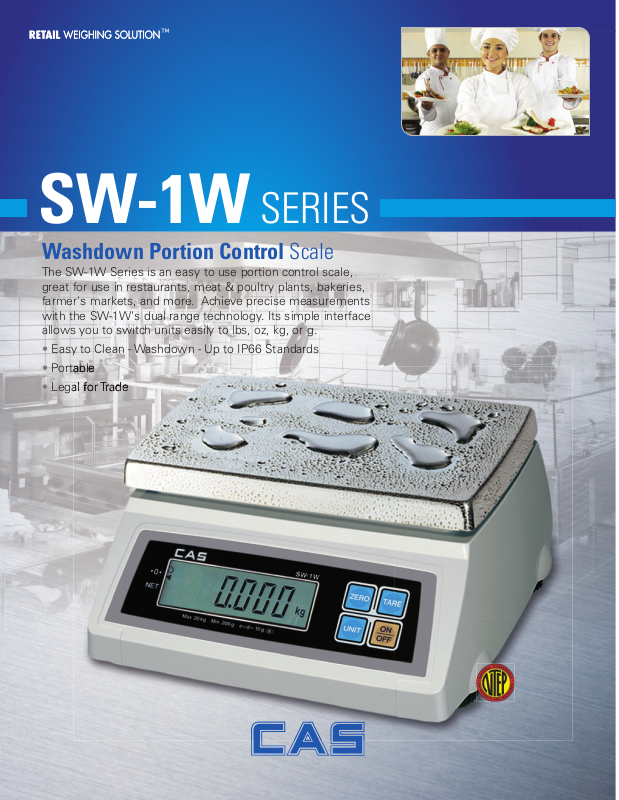

Washdown Portion Control Scale
The SW-1W Series is an easy to use portion control scale,
great for use in restaurants, meat & poultry plants, bakeries,
farmer's markets, and more. Achieve precise measurements
with the SW-1W's dual range technology. Its simple interface
allows you to switch units easily to lbs, oz, kg, or g.
• Easy to Clean - Washdown - Up to IP66 Standards
• Portable
• Legal for Trade
SW-1W
SERIES
|
Washdown Portion Control Scale
FEATURES
• Washdown to IP66 Standards
• AC or Battery Operated
• Large Easy to Read 1 Inch LCD Display
• Lb/g/kg/oz Switchable
• Precise Measurements with Dual Range Technology
•
Soft Touch Tactile Keyboard
• Stainless Steel Platter
•
Auto Power Off
• Warranty - 1 Year
WASHDOWN
The SW-1W is protected
from water, dirt and other
external agents, up to IP 66
Standards.
Use in any environment
where washdown cleaning
is necessary, from kitchens,
bakeries, cafeterias, delis,
and more.
SPECIFICATIONS
Model SW-10W SW-20W SW-50W
lb
Weighing
Capacity
Display Digit 5 Digit LCD (1 Inch)
Display Designators Stable, Zero, Net, Batt
Keys Zero, Tare, Unit, Power
Measurement Type Load Cell
Power Source
Power Consumption 0.25 W
Operating Time Alkaline Dry Battery: 1000 hr
Operating Temp -10°C ~ 40°C / 14°F ~ 104°F
Platter Size
(in/mm)
Dimensions (inch/mm) 11 (W) x 12.5 (D) x 5 (H) / 279 (W) x 318 (D) x 127 (H)
Product Weight 7.3 lbs / 3.3 kg
Approvals NTEP COC# 09-075
oz
kg
g
SW-1W
Lg Platter
4/10 lb 10/20 lb 25/50 lb
0.002/0.005 0.005/0.01 0.01/0.02
80/160 oz 200/400 oz 320/800 oz
0.05/0.1 0.1/0.2 0.2/0.5
2.5/5 kg 5/10 kg 10/20 kg
0.001/0.002 0.002/0.005 0.005/0.01
2500/5000 g 5,000/10,000 g 10,000/20,000 g
1/2 2/5 5/10
DC 9V (6 - "D" Size Batteries) / 9V AC Adapter Included
AC Adapter Not Washdown
9.75 (W) x 7.75 (D) / 248 (W) x 197 (D)
14 (W) x 12 (D) x 2 (H) / 356 (W) x 305 (D) x 51 (H)
OPTIONS
• Rear Display
• Large Platter
Large Platter
Rear Display Battery Compartment
99 Murray Hill Parkway
East Rutherford, NJ 07073
TEL: (201) 933-9002
FAX: (201) 933-9025
http://www.cas-usa.com
Specifications are subject to change for improvement without prior notice.
5
DIMENSIONS
Unit:inches/mm
12.5/318
11/279
9.75/248
5/127
7.75/195
12.5/318
