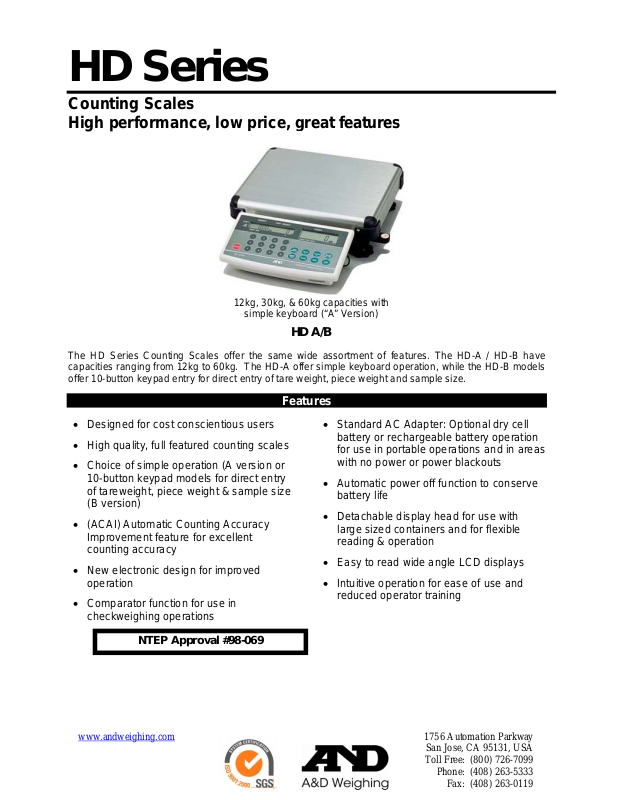

HD Series
Counting Scales
High performance, low price, great features
12kg, 30kg, & 60kg capacities with
simple keyboard (“A” Version)
The HD Series Counting Scales offer the same wide assortment of features. The HD-A / HD-B have
capacities ranging from 12kg to 60kg. The HD-A offer simple keyboard operation, while the HD-B models
offer 10-button keypad entry for direct entry of tare weight, piece weight and sample size.
• Designed for cost conscientious users
• High quality, full featured counting scales
• Choice of simple operation (A version or
10-button keypad models for direct entry
of tareweight, piece weight & sample size
(B version)
• (ACAI) Automatic Counting Accuracy
Improvement feature for excellent
counting accuracy
• New electronic design for improved
operation
• Comparator function for use in
checkweighing operations
NTEP Approval #98-069
HD A/B
Features
• Standard AC Adapter: Optional dry cell
• Automatic power off function to conserve
• Detachable display head for use with
• Easy to read wide angle LCD displays
• Intuitive operation for ease of use and
battery or rechargeable battery operation
for use in portable operations and in areas
with no power or power blackouts
battery life
large sized containers and for flexible
reading & operation
reduced operator training
www.andweighing.com
1756 Automation Parkway
San Jose, CA 95131, USA
Toll Free: (800) 726-7099
Phone: (408) 263-5333
Fax: (408) 263-0119
HD Series Specifications
Model HD-12KA HD-30KA HD-60KA HD-12KB HD-30KB HD-60KB
Kilogram (kg) 12kg x 2g 30kg x 5g 60kg x 10g 12kg x 2g 30kg x 5g 60kg x 10g
Decimal Pounds (lb) 30lb x 0.005lb 60lb x 0.01lb 120lb x 0.02lb 30lb x 0.005lb 60lb x 0.01lb 120lb x 0.02lb
Min. Unit Wt (1/30,000)
mode-selectable)
Min. Unit Wt (1/120,000
mode-selectable)
Sample Size 5, 10, 25, 50 or 100 pcs 5, 10, 25, 50, 100 pcs. or user selectable
Sensitivity Drift
Operating Temp. -10°C to 40°C (14°F to 104°F), less than 85% RH (No-condensing)
Linearity
Display
Power AC Adapter, six AM2 (C type) 1.5V dry batteries or rechargeable NiCd Battery Pack (AD-1681)
Battery Life
Pan Size
Dimensions
Weight Approximately 3kg / 6.6 lb.
Standard Accessories AC Adapter, Manual
Specifications are subject to change for improvement without notice
(mm) 300 (W) x 380 (D)
(inch) 11.81 (A) x 14.96 (P)
(mm) 411 (W) x 470 (D) x 120 (H)
(inch) 16.18 (W) x 18.50 (D) x 4.72 (H)
Options & Accessories:
• HD-03 Serial Interface
(RS-232C / Current Loop)
• HD-04 Comparator Output
• HD-05 20mA Serial Output
• HD-06 Carrying Handle
• AD-1681 Rechargeable Battery Pack
• AD-1191 Compact Printer
• AD-8118A Journal Printer
• AD-8118B Universal Printer
• AD-8121B Multi-Function Printer
Last Modified: 1/21/08
0.4 g 1g 2g 0.4g 1g 2g
0.1g 0.25g 0.5g 0.1g 0.25g 0.5g
20ppm/°C (5°C ∼ 35°C / 41°F ∼ 95°F)
±0.5g ±1g ±2g ±0.5g ±1g ±2g
LCD / 6 Digits,
17 mm / 0.67 inches (Height)
Approx. 100 hours continuous operation with manganese batteries, 200 with alkaline
20 hours with rechargeable NiCd Battery Pack, (AD-1681) at 20°C / 68°F
LCD / Weight & Unit Weight 5 Digits,
Piece Count Wt. 6 Digits, 17 mm / 0.67 (Height)
