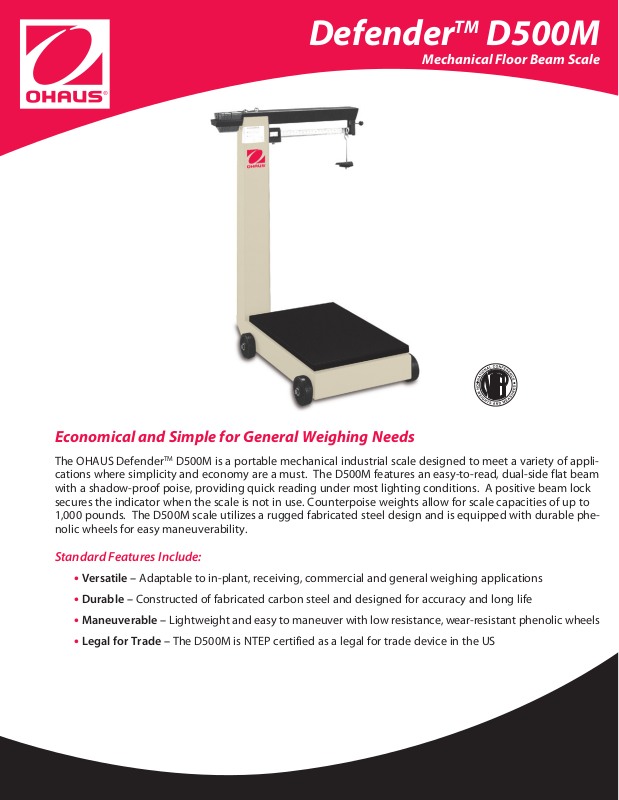

Defender
Mechanical Floor Beam Scale
TM
D500M
Economical and Simple for General Weighing Needs
The OHAUS DefenderTM D500M is a portable mechanical industrial scale designed to meet a variety of applications where simplicity and economy are a must. The D500M features an easy-to-read, dual-side flat beam
with a shadow-proof poise, providing quick reading under most lighting conditions. A positive beam lock
secures the indicator when the scale is not in use. Counterpoise weights allow for scale capacities of up to
1,000 pounds. The D500M scale utilizes a rugged fabricated steel design and is equipped with durable phenolic wheels for easy maneuverability.
Standard Features Include:
• Versatile – Adaptable to in-plant, receiving, commercial and general weighing applications
• Durable – Constructed of fabricated carbon steel and designed for accuracy and long life
• Maneuverable – Lightweight and easy to maneuver with low resistance, wear-resistant phenolic wheels
• Legal for Trade – The D500M is NTEP certified as a legal for trade device in the US
Defender
Specifications
Model D500M
Capacity x Readability 1,000 lb x 0.5 lb
NTEP Certified Resolution 1:2,000
Platform size 19.25 x 28.13 in
Beam Die-cast dual-side flat beam
Base Fabricated carbon steel
Poise Shadow-proof positive beam lock
Wheels 4 x 5 in diameter, phenolic
Counterpoise Weights Total 1,000 lb: 2 x 100 lb, 1 x 200 lb, 1 x 500 lb
Net Weight 113.5 lbs
Shipping Weight 124 lbs
Shipping Dimensions (W x D x H) 50.0 x 31.5 x 7.3 in
Outline Dimensions
TM
D500M Mechanical Beam Scale
31.63 in
803 mm
48.25 in
1,238 mm
28.13 in
8 in
714 mm
203 mm
19.25 in
489 mm
Approvals
NTEP CC No. 08-070
Quality: OHAUS quality management system registered to ISO 9001:2008
OHAUS CORPORATION
* 7 Campus Drive
Suite 310
Parsippany, NJ 07054 USA
Tel: 800.672.7722
973.377.9000
Fax: 973.944.7177
www.ohaus.com
With offices throughout Europe,
Asia, and Latin America
* ISO 9001
Registered Quality Management System
80774467_B © Copyright Ohaus Corporation
