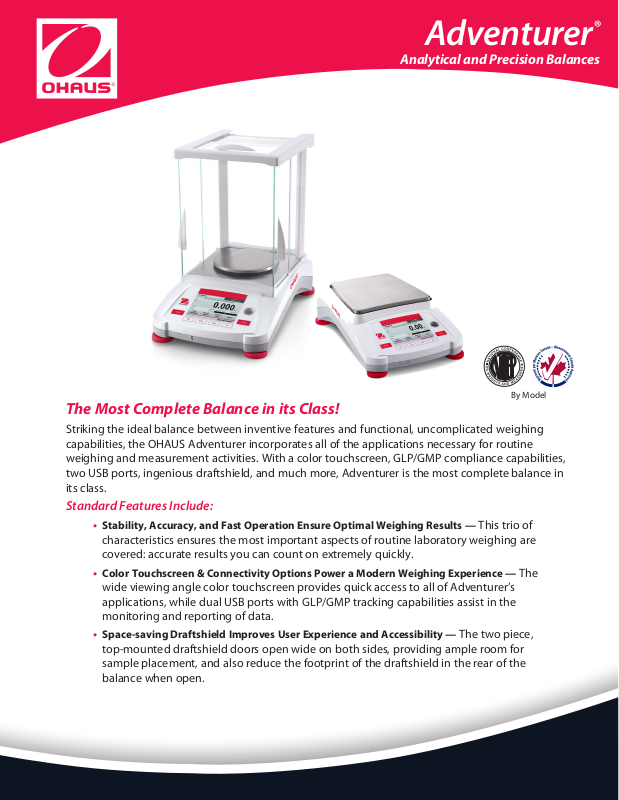

Adventurer®
Analytical and Precision Balances
By Model
The Most Complete Balance in its Class!
Striking the ideal balance between inventive features and functional, uncomplicated weighing
capabilities, the OHAUS Adventurer incorporates all of the applications necessary for routine
weighing and measurement activities. With a color touchscreen, GLP/GMP compliance capabilities,
two USB ports, ingenious draftshield, and much more, Adventurer is the most complete balance in
its class.
Standard Features Include:
• Stability, Accuracy, and Fast Operation Ensure Optimal Weighing Results — This trio of
characteristics ensures the most important aspects of routine laboratory weighing are
covered: accurate results you can count on extremely quickly.
• Color Touchscreen & Connectivity Options Power a Modern Weighing Experience — The
wide viewing angle color touchscreen provides quick access to all of Adventurer’s
applications, while dual USB ports with GLP/GMP tracking capabilities assist in the
monitoring and reporting of data.
• Space-saving Draftshield Improves User Experience and Accessibility — The two piece,
top-mounted draftshield doors open wide on both sides, providing ample room for
sample placement, and also reduce the footprint of the draftshield in the rear of the
balance when open.
Adventurer® Analytical and Precision Balances
Stability, Accuracy, and Fast Operation Ensure Optimal
Weighing Results in Routine Weighing Tasks
Weighing Performance
• Delivers stable and reliable weighing results for routine weighing tasks
Stabilization Time
• Adventurer’s fast stabilization time improves productivity in the laboratory
Calibration
• External Calibration
— Traditional calibration in which the operator manually calibrates the balance
with their choice of calibration weight value to ensure accuracy available on
every model.
• AutoCal™
— Select models feature OHAUS’ automatic internal calibration system that
performs routine maintenance by calibrating the balance daily.
Color Touchscreen Offers Easy and Fast Operation
of Adventurer’s Applications
• Operate and access Adventurer’s nine application modes and abundant
features that eliminate the need to do several manual calculations through the
modern color touchscreen
• Operators can wear laboratory gloves while utilizing the touchscreen,
eliminating the inconvenience and hazards associated with constantly putting
on and removing gloves
• In addition to the touchscreen, Adventurer also has six mechanical keys
that provide tactile feedback and allow the operator to perform repetitive
operations such as tare, zero, calibration, and print
Application Modes
Weighing
Determine the weight of items in
the selected unit of measure.
Dynamic Weighing
Weigh an unstable load. Scale
takes an average of weights over
a period of time.
Parts Counting
Count samples of uniform weight.
Density Determination
Determine density of solids or liquid.
With the weigh below hook, it’s
possible to perform specific gravity
tests for objects that cannot be
easily placed on the weighing pan.
Percent Weighing
Measure the weight of a sample
displayed as a percentage of a
pre-established Reference Weight.
Check Weighing
Compare the weight of a sample
against target limits.
Display Hold*
Manually holds the last stable
weight or highest weighing value
on the display.
*Only NTEP model(AXxxxN) will not have display hold
Totalization / Statistic
Measure cumulative weight of
multiple items. Cumulative total
may exceed balance capacity.
Formulation
For compounding and recipe making.
The number of components can range
from 2 to 50.
Equipped with the Connectivity and Functional Features
9.05 in.
230 mm
7.32 in.
186 mm
9.05 in.
230 mm
6.3 in.
160 mm
13.93 in.
354 mm
13.39 in.
340 mm
1 in.
25 mm
13.93 in.
354 mm
3.94 in.
100 mm
9.05 in.
230 mm
6.3 in.
160 mm
13.93 in.
354 mm
13.39 in.
340 mm
1 in.
25 mm
Required in Laboratories
Dual USB Ports
• A front USB host port is easily accessible and makes it simple to load data from the
balance on to a flash drive without having to reach around to the back or move the
balance
• A second USB device is located at the rear of the balance that can be used to connect
the balance to a PC
• The connectivity options help meet traceability requirements in traditional installations
Real Time Clock with GLP/GMP Data
• A real-time clock function keeps accurate time even during power loss and the GLP data capability has the ability to
record Sample name, Project names and Balance ID’s to help meet traceability and compliance requirements
Balance Profiles
• The cloning feature allows you to save user and application settings to a USB flash drive which can be easily used to
configure additional Adventurer balances
Below Minimum Sample Weight Indication
• When using the minimum weight feature, the display clearly indicates that your current sample weight is below your
defined minimum limit. Simply increase your sample weight to assure that your results are up to your standards
Space-saving Draftshield Designed to Improve User
Experience and Accessibility
• Draftshield doors are constructed of two glass panels, reducing the space
required on the lab bench when the doors are open
• Wide door entry provides unobstructed access and allows
larger weighing vessels to be easily placed on the pan, reducing the chance
of accidental spillage
• Easy to keep clean in order to ensure a safe workspace by minimizing
contamination
Outline Dimensions
7.32 in.
186 mm
9.05 in.
230 mm
6.3 in.
160 mm
13.93 in.
354 mm
1 in.
25 mm
9.05 in.
230 mm
0.1 and 1mg models 0.01 and 0.1g models
13.39 in.
340 mm
9.05 in.
230 mm
3.94 in.
100 mm
13.93 in.
354 mm
Adventurer® Analytical and Precision Balances
Model AX124 AX224 AX324 AX223 AX423 AX523 AX622 AX1502 AX2202 AX4202 AX5202 AX4201 AX8201
External Calibration AX124/E AX224/E — AX223/E AX423/E AX523/E AX622/E AX1502/E AX2202/E AX4202/E — AX4201/E AX8201/E
Certified Models
Capacity (g)
Readability d (g) 0.0001 0.001 0.01 0.1
Verification Interval* e (g) — 0.001 — 0.01 0.1 — — 1
Class* — I — II II — — II
Repeatability std (g) ±0.0001 ±0.001 ±0.01 ±0.1
Linearity (g)
Stabilization Time (sec) ≤3 ≤2 ≤1.5 ≤1.5
Sensitivity Drift (ppm/°C) 1.5 3 3 1.9 9
Typical Min-weight (g))
(USP, u=0.10%, k=2)
Optimized Min-weight (g)
(USP, u=0.10%, k=2)
SRP**≤0.41d
Weighing Units
Weighing Units,
Certified Models
Weighing Applications Weighing, Parts Counting, Percent Weighing, Check Weighing, Dynamic Weighing, Formulation, Density Determination, Totalization, Display Hold
Pan Size
Calibration All models feature external calibration. Models feature AutoCal™ internal calibration, except for AX.../E models
Tare Range To capacity by subtraction
Power Requirements
Display Type Full-Color Touchscreen WQVGA Graphic LCD
Display Size 4.3 in / 109 mm (diagonal)
Base Housing (W×H×D) 13.93 x 13.39 x 9.05 in / 354 × 340 × 230 mm 13.93 × 3.94 × 9.05 in / 354 × 100 × 230 mm
Communication
Temperature Range 50°F to 86°F/10°C to 30°C
Humidity Range Maximum relative humidity 80 % for temperatures up to 86°F/30°C
Storage Conditions 14°F/-10°C to 140°F/60°C at 10% to 90% relative humidity, non-condensing
Shipping Dimensions 20.0 × 15.4 × 20.9 in / 507 × 387 × 531 mm 22.0 × 15.5 × 11.9 in / 557 × 392 × 301 mm
Net Weight
Shipping Weight
— AX224N — AX223N/E
120 220 320 220 420 520 620 1,520 2,200 4,200 5,200 4,200 8,200
±0.0002 ±0.002 ±0.02 ±0.2
0.20g 0.20g 0.20g 2.0g 2.0g 2.0g 20.0g 20.0g 20.0g 20.0g 20.0g 200.0g 200.0g
0.082g 0.082g 0.082g 0.82g 0.82g 0.82g 8.2g 8.2g 8.2g 8.2g 8.2g 82g 82g
gram, milligram, mesgal, momme, Newton, ounce, pennyweight, Baht, carat, grain, pound, Tael (Hong Kong), Tael, (Singapore), Tael (Taiwan), tical, tola, troy ounce, custom (1)
ct, grain, g,
—
mg, oz, ozt,
dwt
Ø 3.5 in / 90 mm Ø 5.1 in / 130 mm 6.9 x 7.7 in / 175 x 195 mm
11.3 lb / 5.1 kg 12.8 lb / 5.8 kg 10.2 lb / 4.6 kg 10.2 lb / 4.6 kg 8.4 lb / 3.8 kg
17.2 lb / 7.8 kg 18.8 lb / 8.5 kg 14.4 lb / 6.5 kg 14.4 lb / 6.5 kg 12.6 lb / 5.7 kg
— —
*Certified models only
**The value for SRP is the standard deviation for n replicate weighing’s (n≥10)
Additional Features
RS232 interface, integral weigh below hook, full housing in-use cover, removable stainless steel pan,
die-cast metal bottom housing, security bracket, illuminated up-front level indicator, four adjustable
feet, software lockout menus, stability indicator, software overload/underload indicators, user
selectable environmental settings, audible indicator, user selectable brightness settings, auto dim,
touchscreen calibration, auto tare, user selectable operating language (nine)
Approvals
Metrology: NIST Handbook 44, Measurement Canada Weights and Measures Regulations (Class I, nmax
220000; Class II, nmax 52000)
Product Safety: CSA C22.2 No. 61010-1, UL 61010-1, IEC 61010-1
Electromagnetic Compatibility: FCC Part 15 Class A, ICES-001 Class A, IEC 61326-1 (emissions Class B,
immunity Industrial requirements)
Accessories
SF40A Impact Printer .................................. 30064203
Auxiliary Display ......................................80251396
Density Determination Kit ............................. 80253384
Cable, USB Interface (Type A to B) ..................... 83021085
Security Device (Laptop Lock) ......................... 80850043
RS232 Cable, PC 25 Pin ................................ 80500524
RS232 Cable, PC 9 Pin. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80500525
AX423N
AX423N/E
ct, grain, g, mg, oz, ozt,
AX523N/E AX622N/E AX1502N/E AX2202N/E AX4202N/E — — AX8201N/E
dwt, kg
AC Adapter Input: 100-240 VAC 0.3A 50-60 Hz
AC Adapter Output: 12 VDC 0.84A
ct, grain, g, oz, ozt, dwt, lb, kg — —
RS232, USB Device, USB Host
