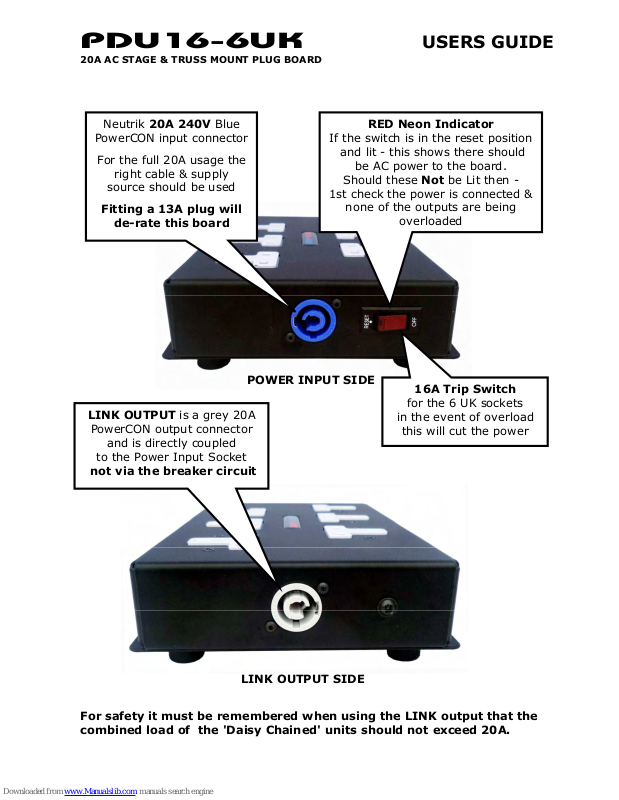

PDU16-6UK
USERS GUIDE
20A AC STAGE & TRUSS MOUNT PLUG BOARD
For safety it must be remembered when using the LINK output that the
combined load of the 'Daisy Chained' units should not exceed 20A.
POWER INPUT SIDE
LINK OUTPUT SIDE
RED Neon Indicator
If the switch is in the reset position
and lit - this shows there should
be AC power to the board.
Should these Not be Lit then -
1st check the power is connected &
none of the outputs are being
overload
ed
Neutrik 20A 240V Blue
PowerCON input connector
For the full 20A usage the
right cable & supply
source should be used
Fitting a 13A plug will
de-rate this board
16A Trip Switch
for the 6 UK sockets
in the event of overload
this will cut the power
LINK OUTPUT is a grey 20A
PowerCON output connector
and is directly coupled
to the Power Input Socket
not via the breaker circuit
2 + PDU16-6UK can linked via the though link outputs to give 12 or more remote
outputs with a TOTAL maximum working load of 20A
PLEASE NOTE THE MAIN INPUT SOCKET OF ANY CHAIN IS RATED
AT 20 AMPS
These boards are designed for indoor use and should
not be used in damp or wet conditions
Compliance All components used in this unit conform to current RoHS, CE & UL certification BS1363A, BS1362, SASO 2203
(EMI:EN55022 (CISPR22) Class B; EN61000-3-2,3 EMS:EN61000-4-2,3,4,5,6,8,11; Light industry level, criteria A)
Designed & Made in the UK by Penn Elcom Ltd
9-10 Parsons Road, Parsons Industrial Estate, Washington Tyne & Wear, NE37 1HB, UK
0191 416 1717 or www.penn-elcom.com
M10 fixing for G Clamp
mounting on bars or
trussing
Slots for Velcro ties or
cable tie mounting
Declaration of Conformity
The Manufacturer of the Products covered by this Declaration is
Made in the UK by Penn Elcom
9-10 Parsons Road, Parsons Industrial Estate,
Washington Tyne & Wear, NE37 1HB, UK
The Directives covered by this Declaration
89/336/EEC Electromagnetic Compatibility directive, as amended
73/23/EEC Low Voltage Equipment directive, amended by 93/68/EEC
The Products Covered by this Declaration
PDU16-6UK
20A MAX Stage & Truss Mount Professional UK Plug Board
Usable Voltage 110V-250 VAC 50-60Hz - Max Output Power: 5000W - Max Current: 20A
Input= Neutrik 20A PowerCON connector with a 16A Illuminated Breaker Switch.
Through Link Output = 20A Grey PowerCON connector directly coupled main input socket
Outputs = 6 UK type G sockets BS 1363/IEC 60083
with a Maximum Combined Load 16A through a 16A Breaker Switch
The Basis on which Conformity is being Declared
The manufacturer hereby declares under his sole responsibility that the products identified above comply
with the protection requirements of the EMC directive and with the principal elements of the safety
objectives of the Low Voltage Equipment directive, and that the following standards have been applied:
All components used in this conform to current RoHS, CE & UL certification
(EMI:EN55022 (CISPR22) Class B; EN61000-3-2,3 EMS:EN61000-4-2,3,4,5,6,8,11; Light industry level, criteria A)
The technical documentation required to demonstrate that the products meet the requirements of the Low Voltage
Equipment directive has been compiled and is available for inspection by the relevant enforcement authorities.
The CE mark was first applied in: 2018
Signed:
Authority: Technical Director (M Inst SCE)
Date: 01/10/2018
Attention!
The attention of the specifier, purchaser, installer, or user is drawn to special measures and limitations to use which
must be observed when these products are taken into service to maintain compliance with the above directives.
Details of these special measures and limitations to use are available on request and are also contained in the product manual.
E&OE
TRIP SWITCH APPENDIX
These products are fitted with thermal circuit breaker/power switches with indicator as a fail safe and should not be
used to determine excessive current drawer. These are not an RCD and do not function in the same way.
USERS OF THESE PDU'S SHOULD PRE-DETERMINE THE MAXIMUM SAFE LOAD AS INDICATED ON THE BACK OF THE UNIT.
PLEASE NOTE: An RCD is a safety switch that protects people from electrical shock; a circuit breaker protects the wiring
and electrical components attached to the unit.
In normal operation there will be peaks in the current draw and these switches allow for this, but will switch if the
overload is continuous.
Technical Specification
Calibration: Will continuously carry 100% of rating.
May trip between 101% and 134%,
(they must trip at 135% of rating within one hour at +25°C
See Chart)
Dielectric Strength: 1,500VAC (60 seconds).
Insulation Resistance: 100 megohms.
Maximum Operating Voltage: 250VAC, 50/60 Hz.
These switches have the following certification approvals:
UL 1077 , VDE 0642/EN60934, CCC & CE compliant.
Penn Elcom Ltd excepts no responsibility or liability for any equipment connected to this unit
