Relion 2908GT
Power Efficient Intel-based HPC Server Designed for Next-generation Datacenters
Technical Guide
Rev. 1.0
PENGUIN
COMPUTING
www.penguincomputing.com | 1-888-PENGUIN (736-4846) | twitter:@PenguinHPC
Relion 2908GT Chassis Manual
Copyright
© 2014,Penguin Computing. All rights reserved.
The trademarks mentioned in this manual are legally registered to their respective owners.
Disclaimer
Information in this manual is protected by copyright laws and is the property of Penguin Computing. Changes to the specifications and features in this manual may be made by Penguin Computing
without prior notice. No part of this manual may be reproduced, copied, translated, transmitted, or
published in any form or by any means without Penguin Computing's prior written permission.
Documentation Classifications
In order to assist in the use of this product, Penguin Computing provides the following types of documentations:
For detailed product information, carefully read the User's Manual.
For more information, visit our website at:
http://www.penguincomputing.com
Relion 2908GT Chassis Manual
Preface
Before using this information and the product it supports, please read the following general information.
1. This Service Guide provides you with all technical information relating to the BASIC CONFIGURATION decided for Penguin Computing’s “global” product offering. To better fit local
marketrequirements and enhance product competitiveness, your regional office MAY have
decided toextend the functionality of a machine (e.g. add-on card, modem, or extra memory
capability).These LOCALIZED FEATURES will NOT be covered in this generic service
guide. In suchcases, please contact your regional offices or the responsible personnel/
channel to provide youwith further technical details.
2. Please note WHEN ORDERING SPARE PARTS, you should check the most up-to-date informationavailable on your regional web or channel. For whatever reason, if a part number
change is made,it will not be noted in the printed Service Guide. For Penguin ComputingAUTHORIZED SERVICEPROVIDERS, your Penguin Computing office may have a DIFFERENT part number code to thosegiven in the FRU list of this printed Service Guide. You
MUST use the list provided by yourregional Penguin Computing office to order FRU parts
for repair and service of customer machines.
- 4 -
Relion 2908GT Chassis Manual
Table of Contents
Box Contents 7
Safety, Care and Regulatory Information 8
Chapter 1 Hardware Installation 11
1-1 Installation Precautions 11
1-2 Product Specifications 12

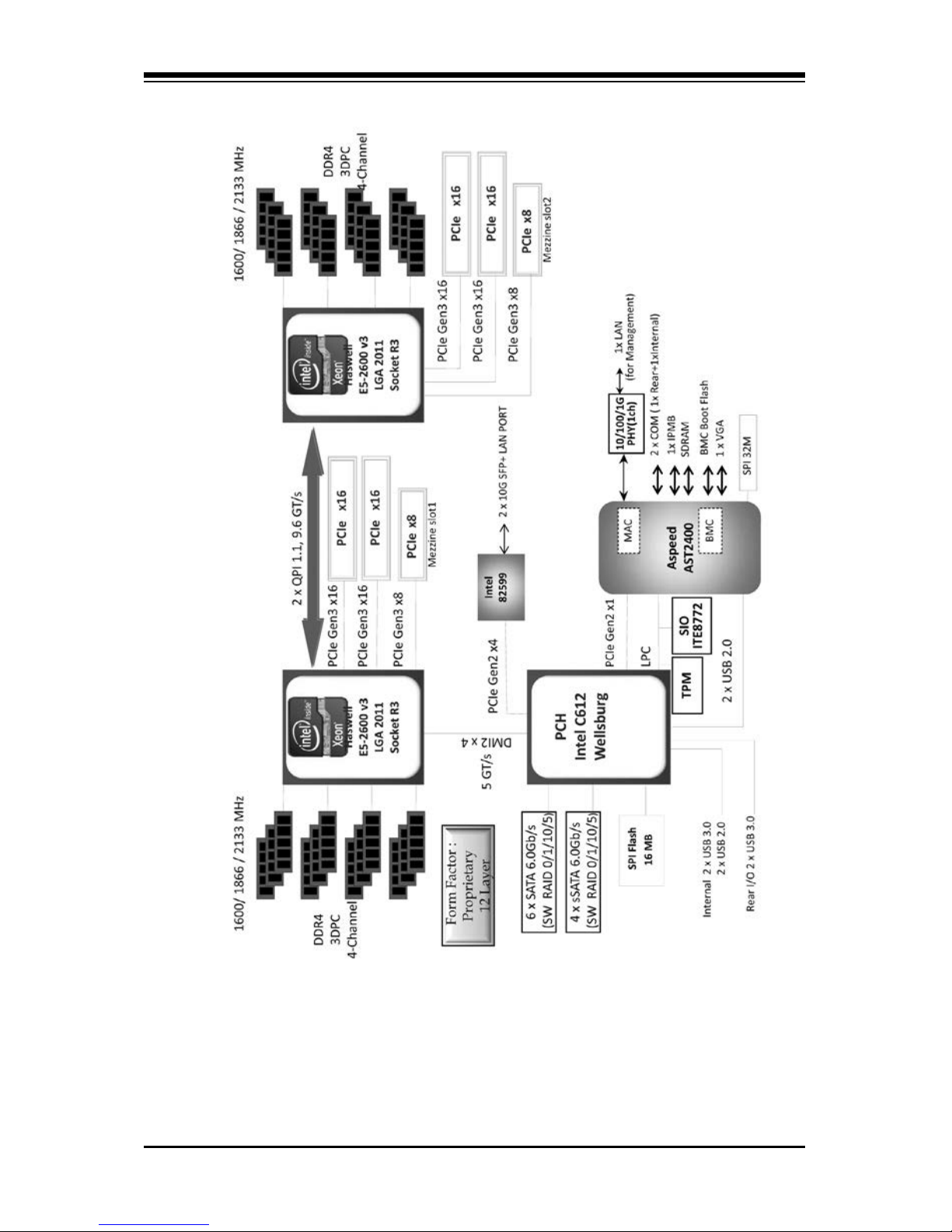

1-3 System Block Diagram 14
Chapter 2 System Hardware Installation 15

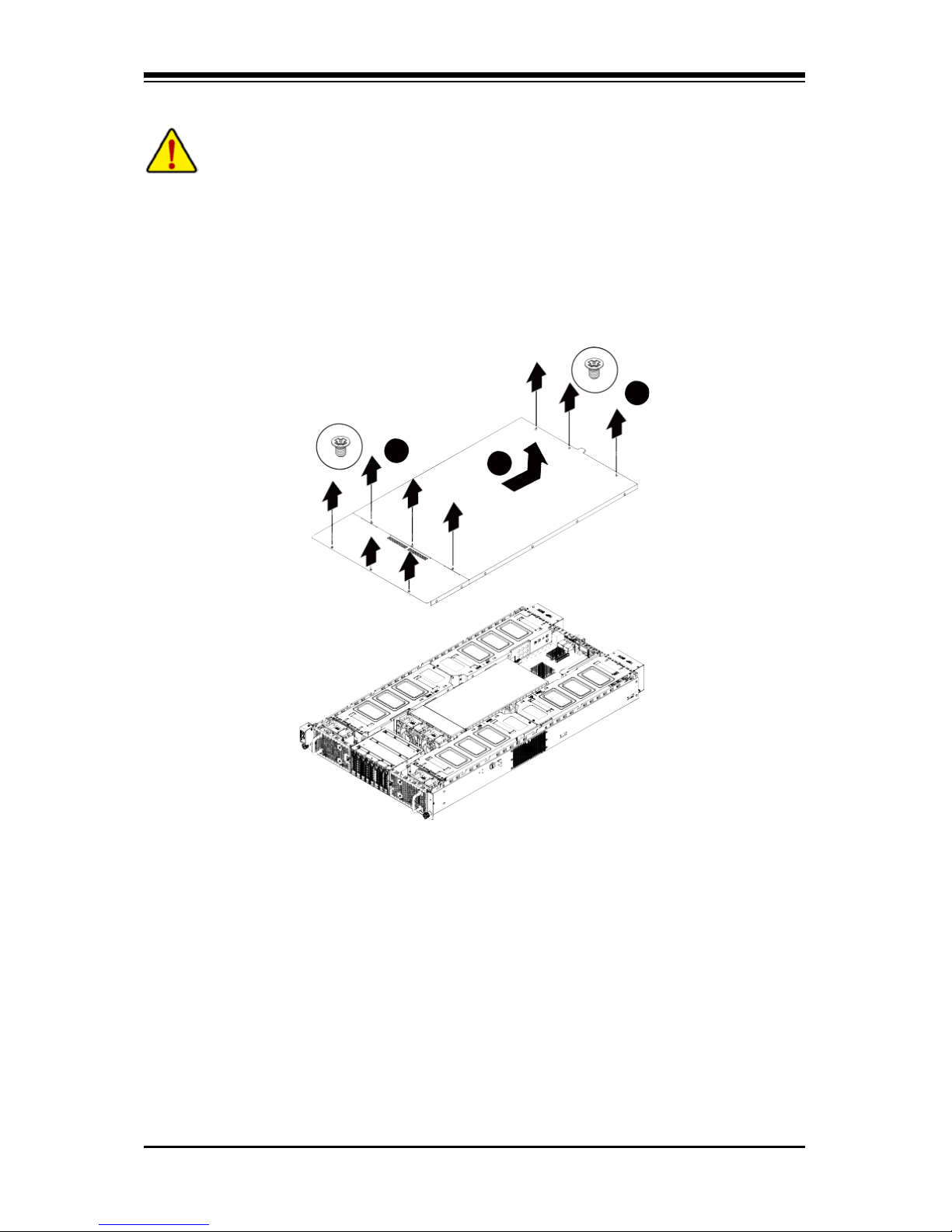

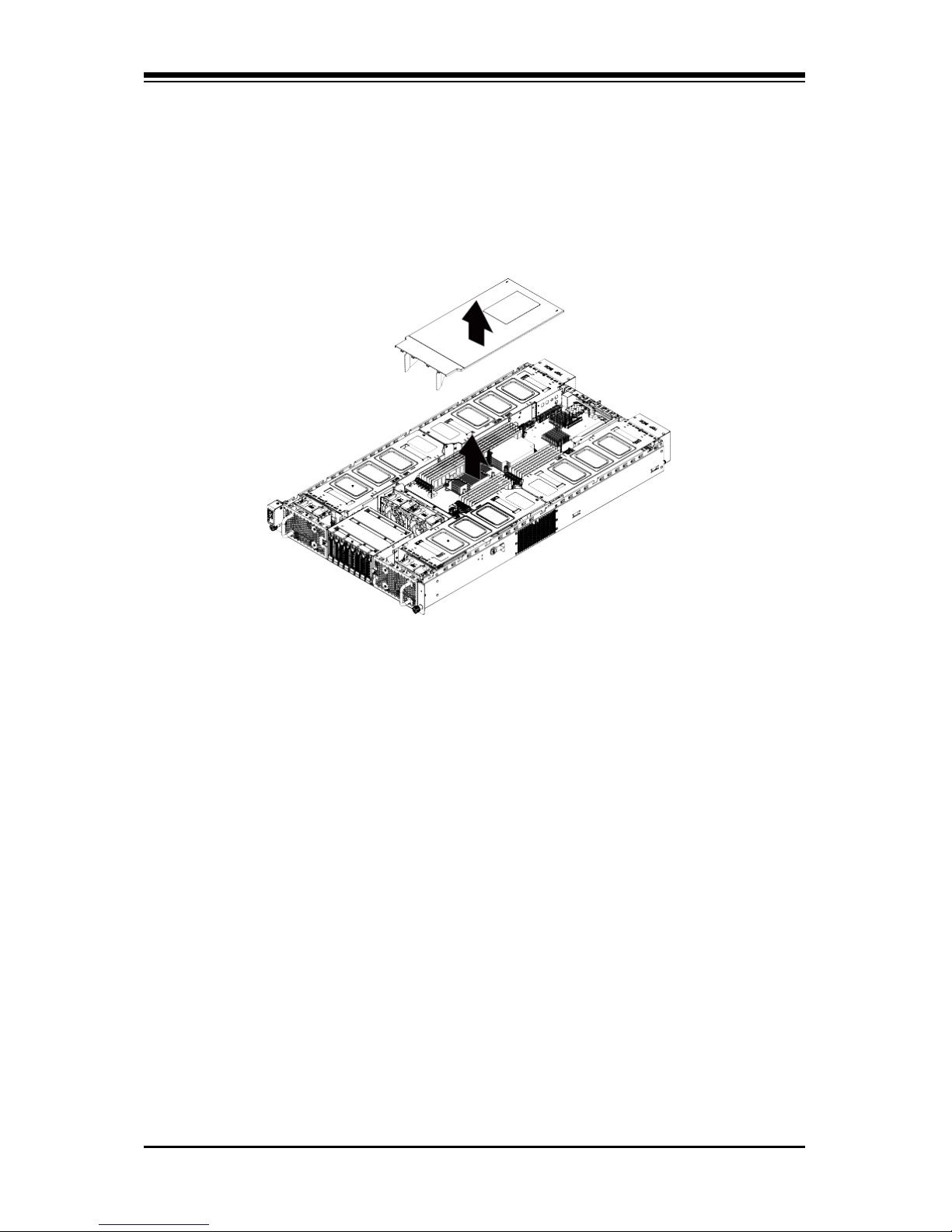

2-1 Removing Chassis Cover 16
2-2 Removing and Installing the Fan Duc t 17
2-3 Installing the CPU 18

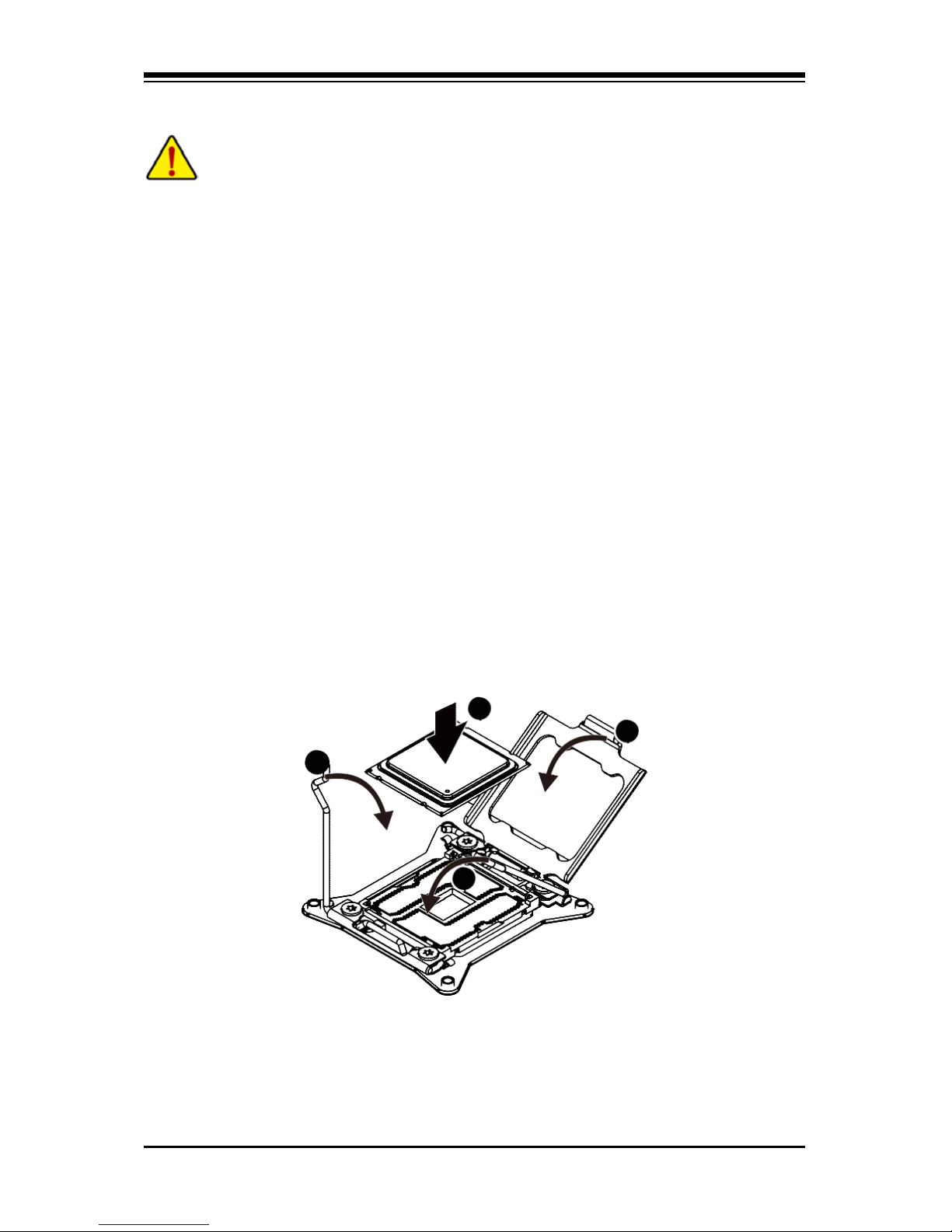

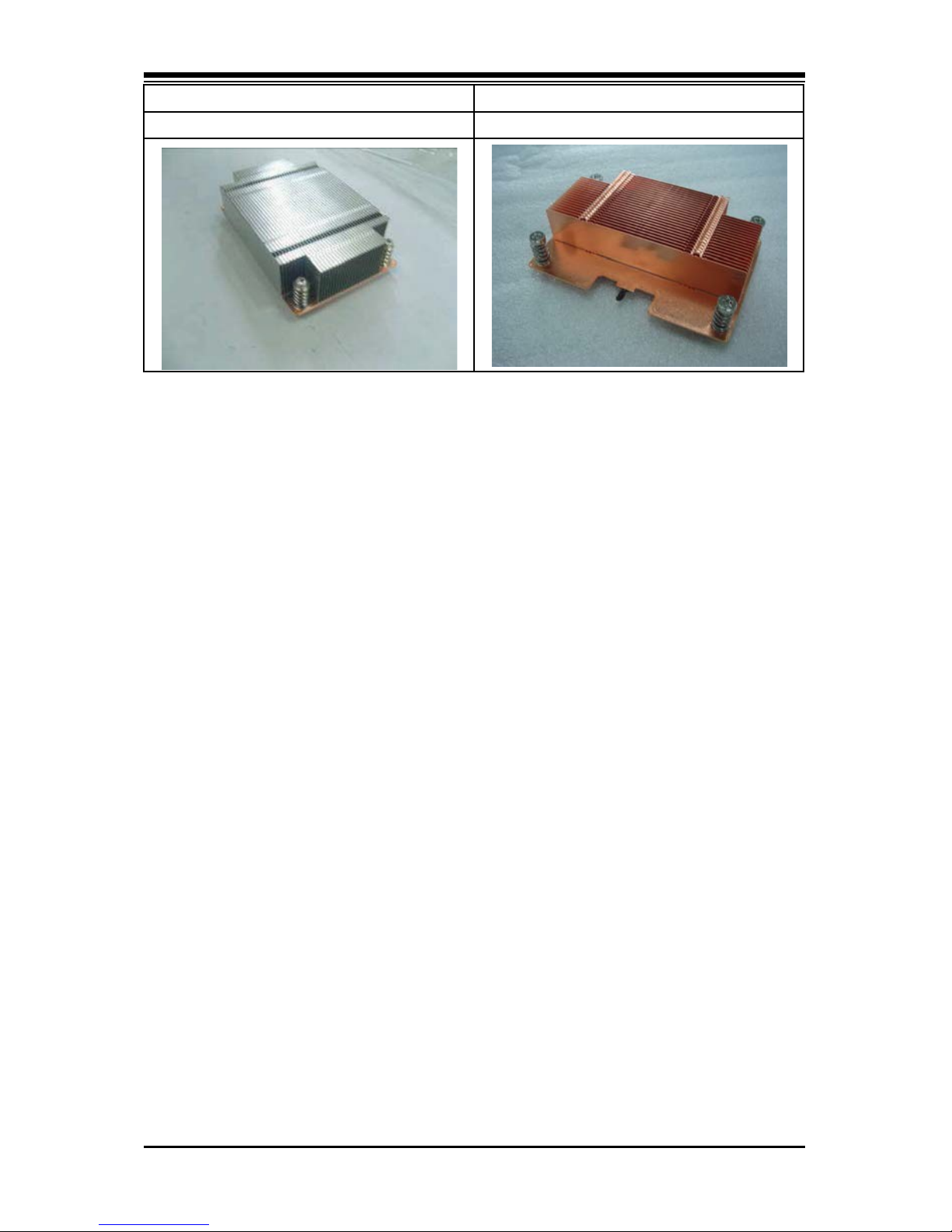

2-4 Installing the Heat Sink 19
2-5 Installing the Memory 21

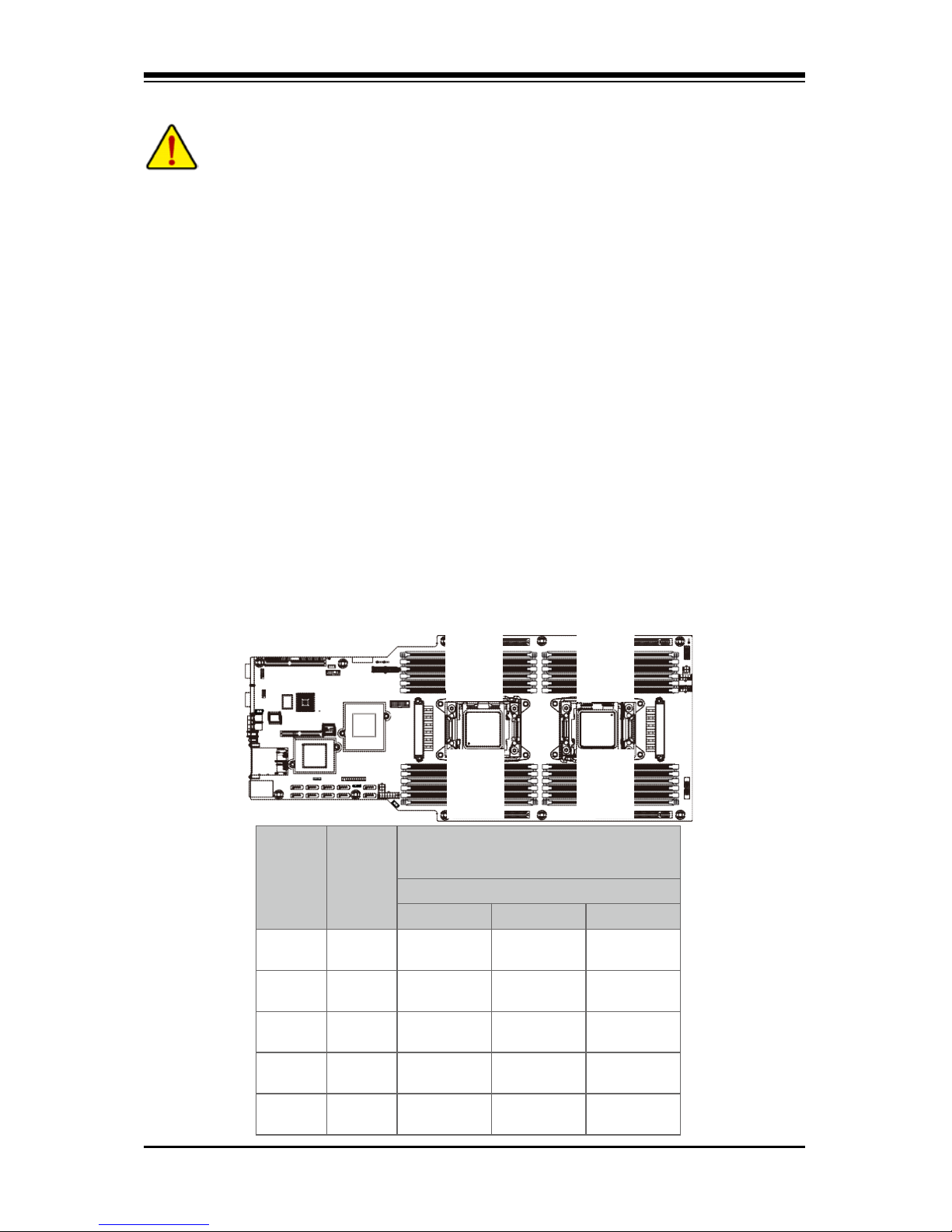

2-5-1 Triple Channel Memory Configuration 21

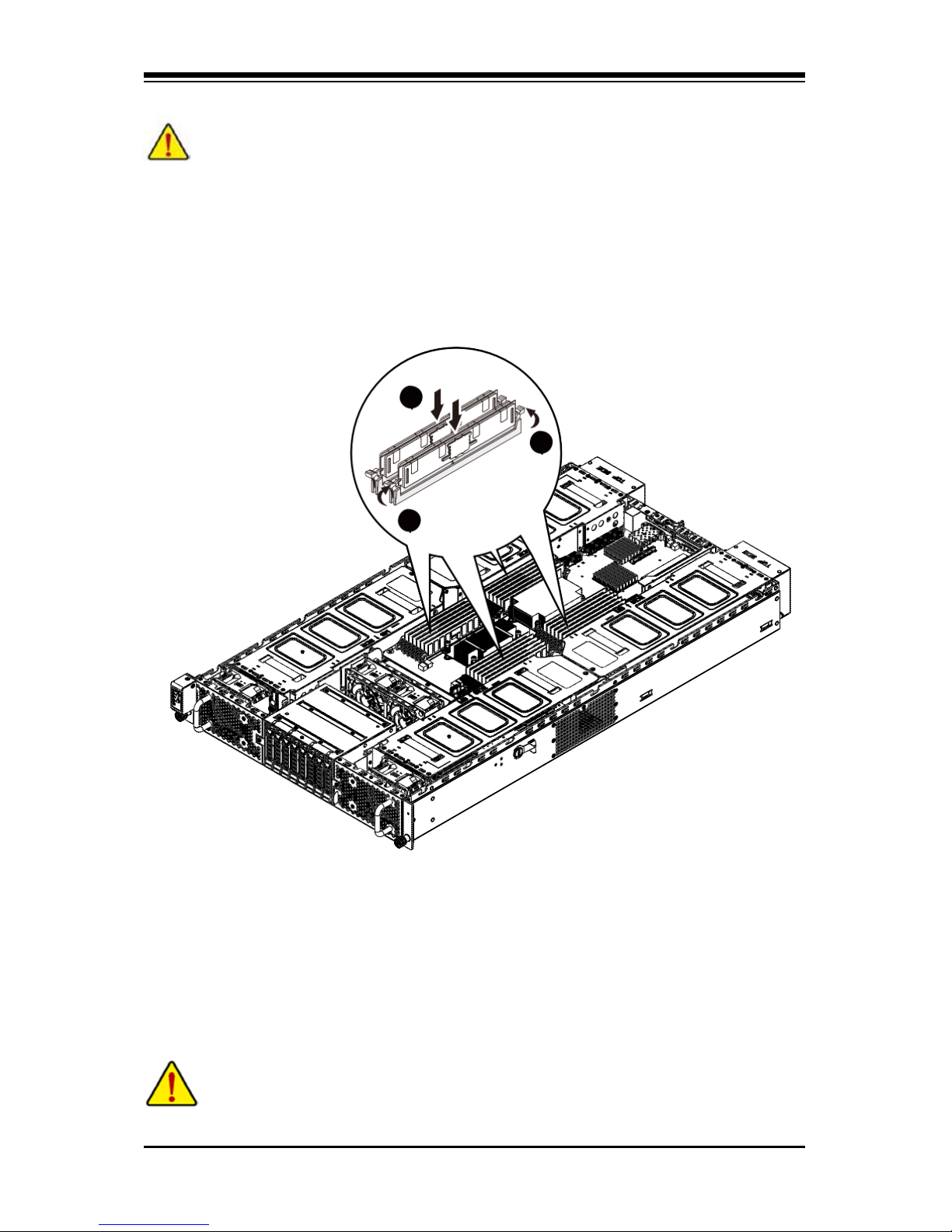

2-5-2 Installing a Memory 22

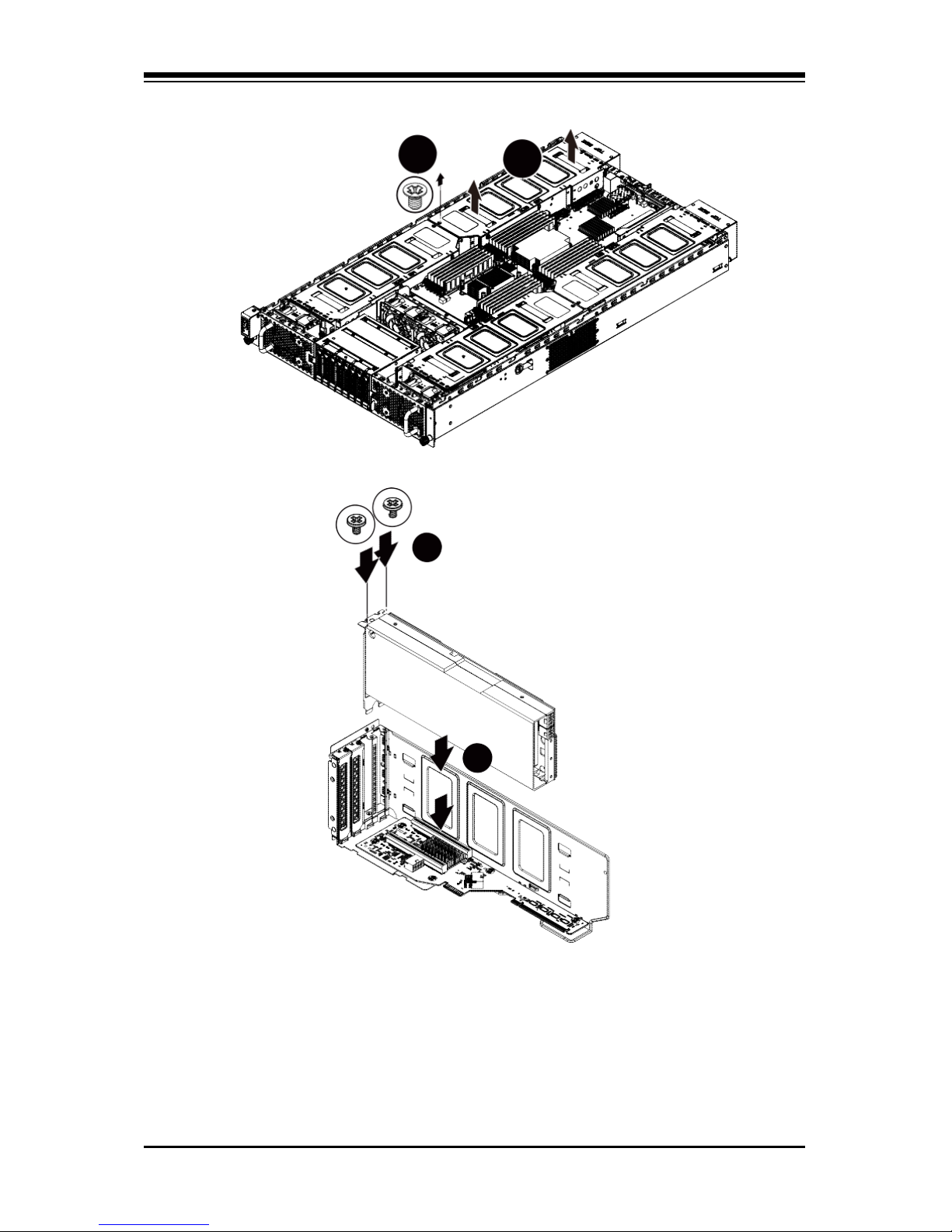

2-6 Installing the PCI Expansion Card 23

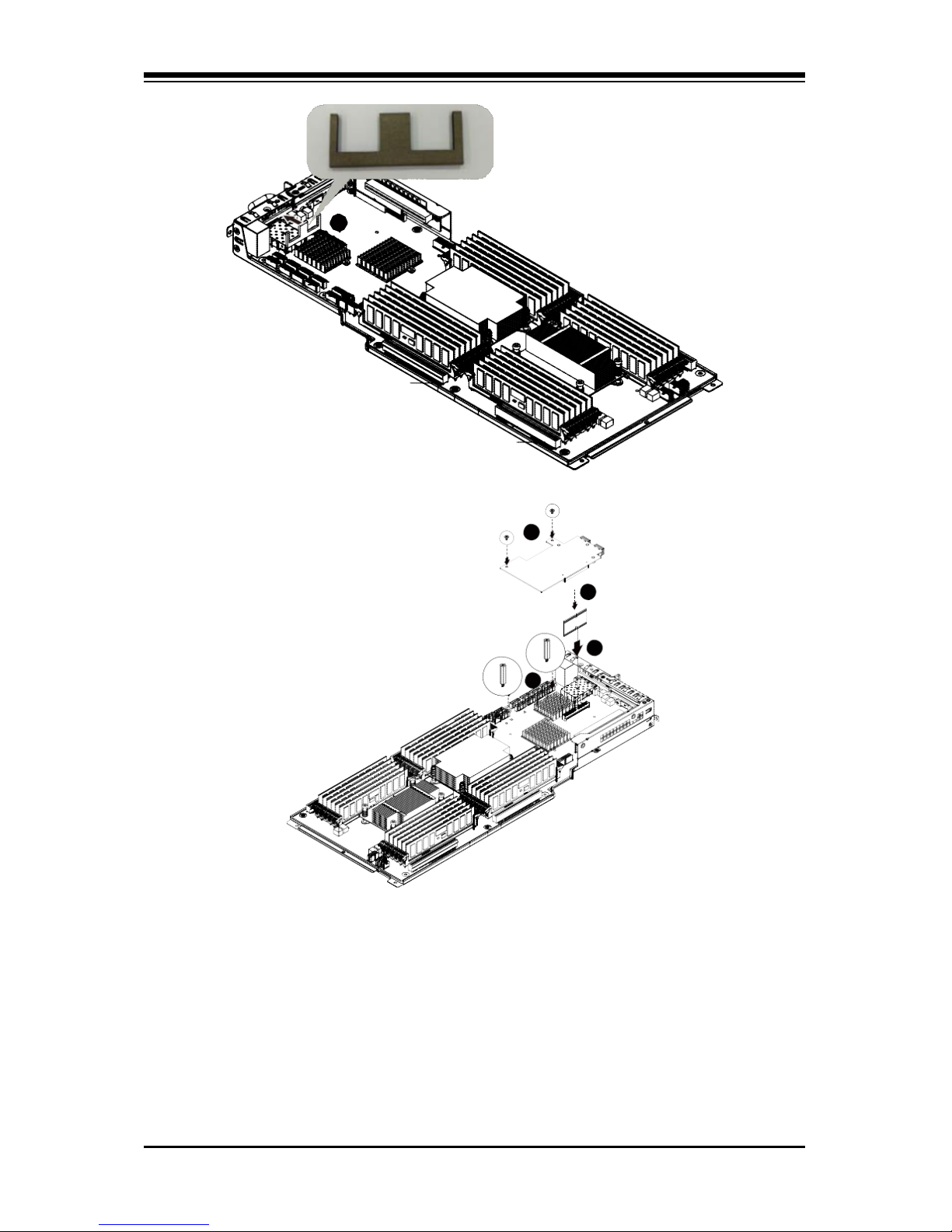

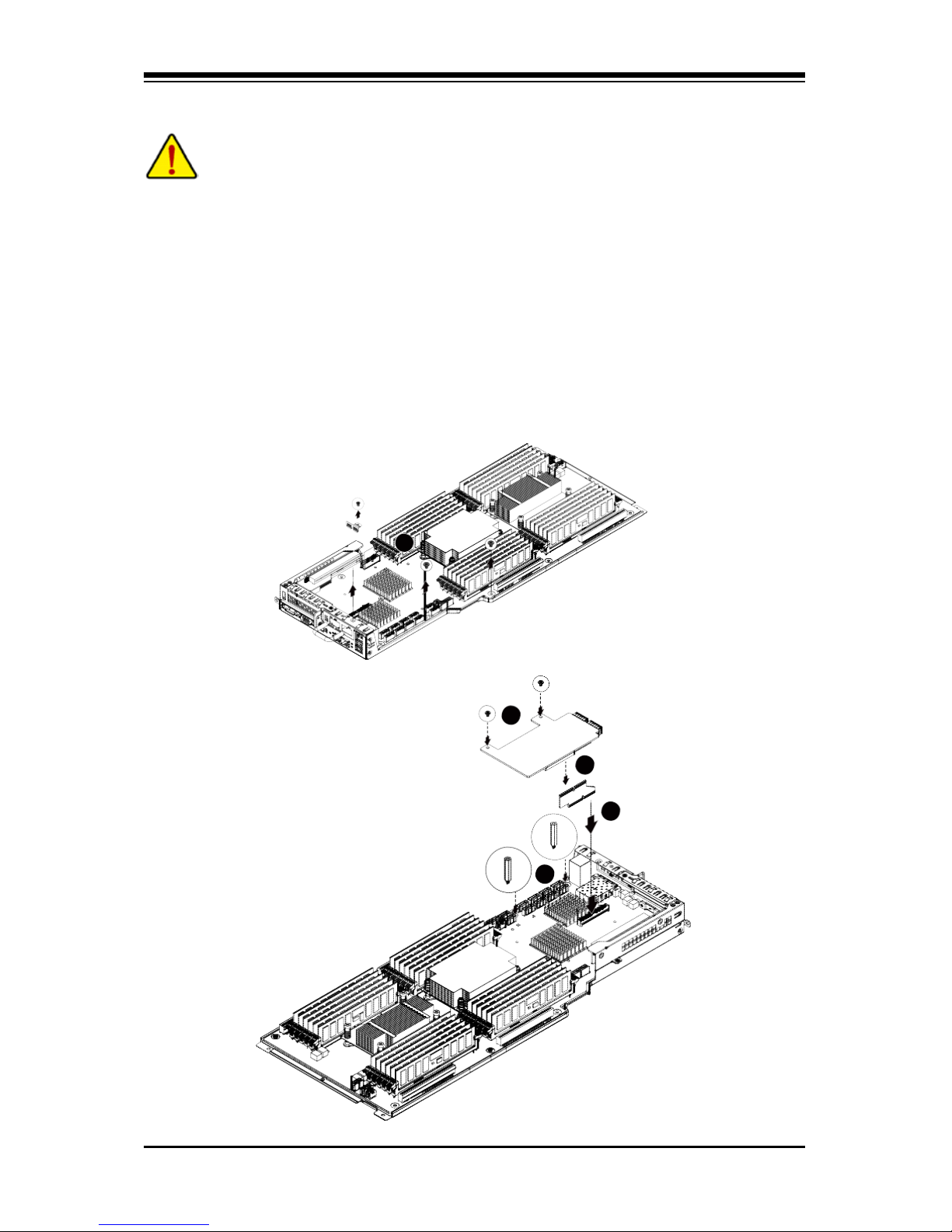

2-6-1 Installing Add-on Card (MNXE2/MEZZ_2/ Opti onal) 28
2-6-2 Installing Add-on Card (MLIZS/MEZZ_2/Optional) 29

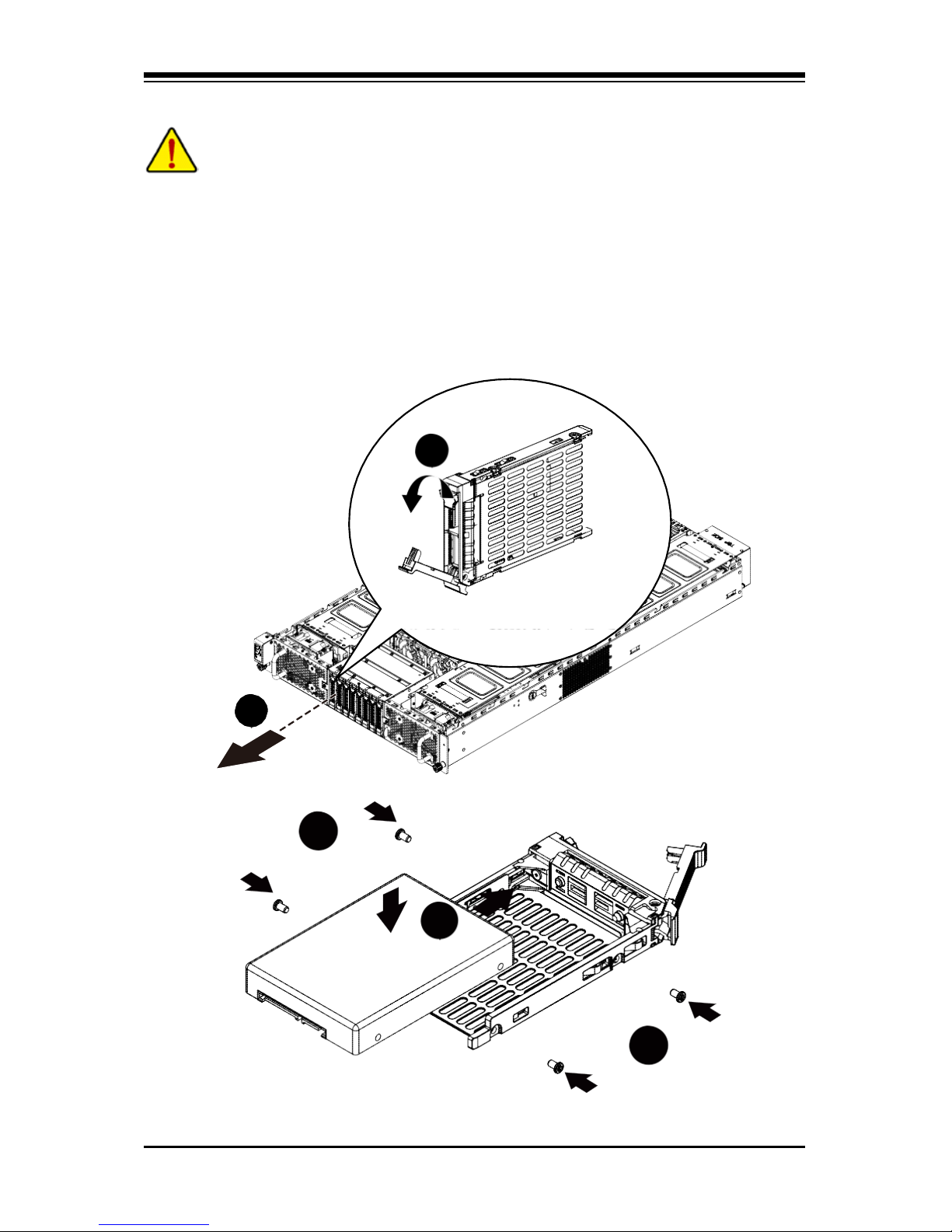

2-7 Installing the Hard Disk Drive 31

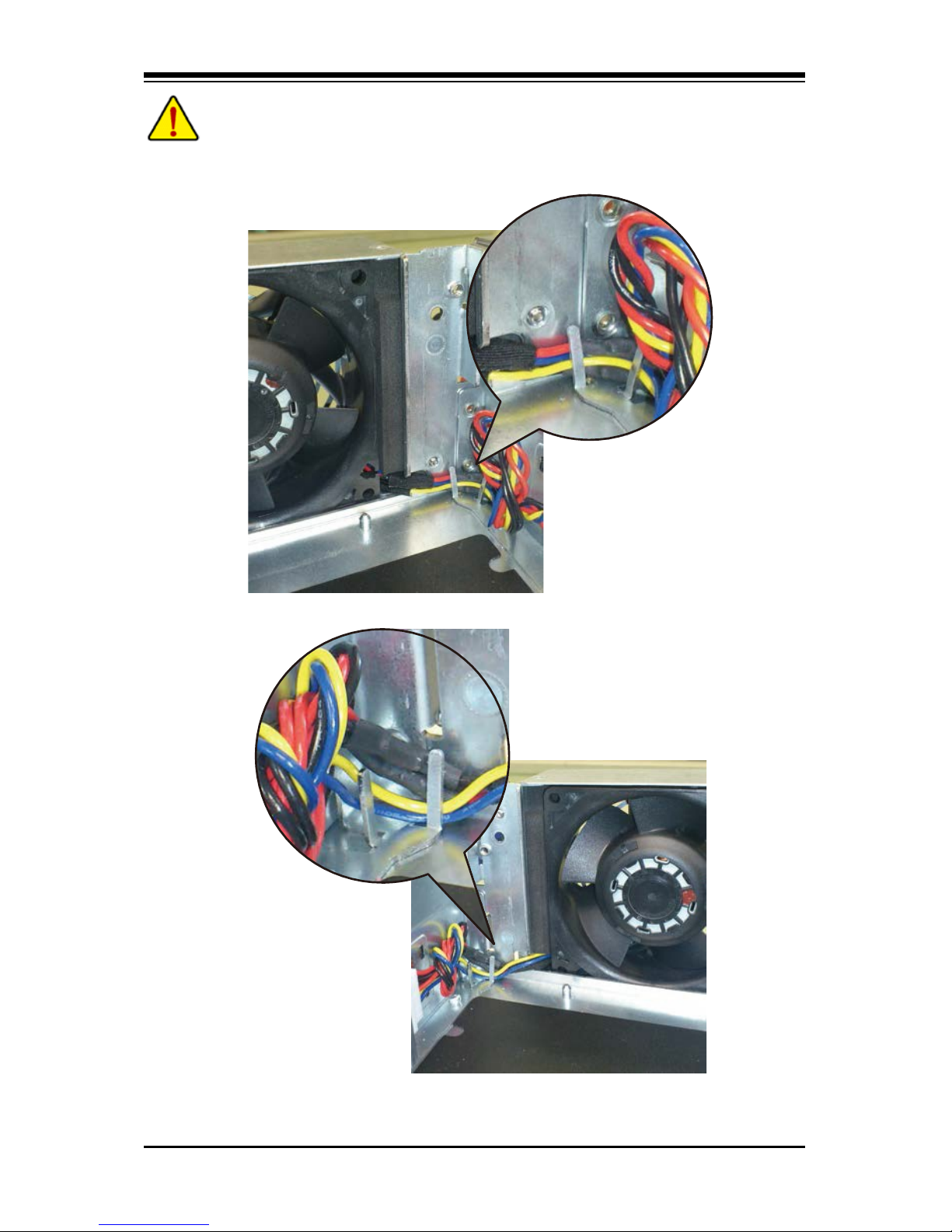

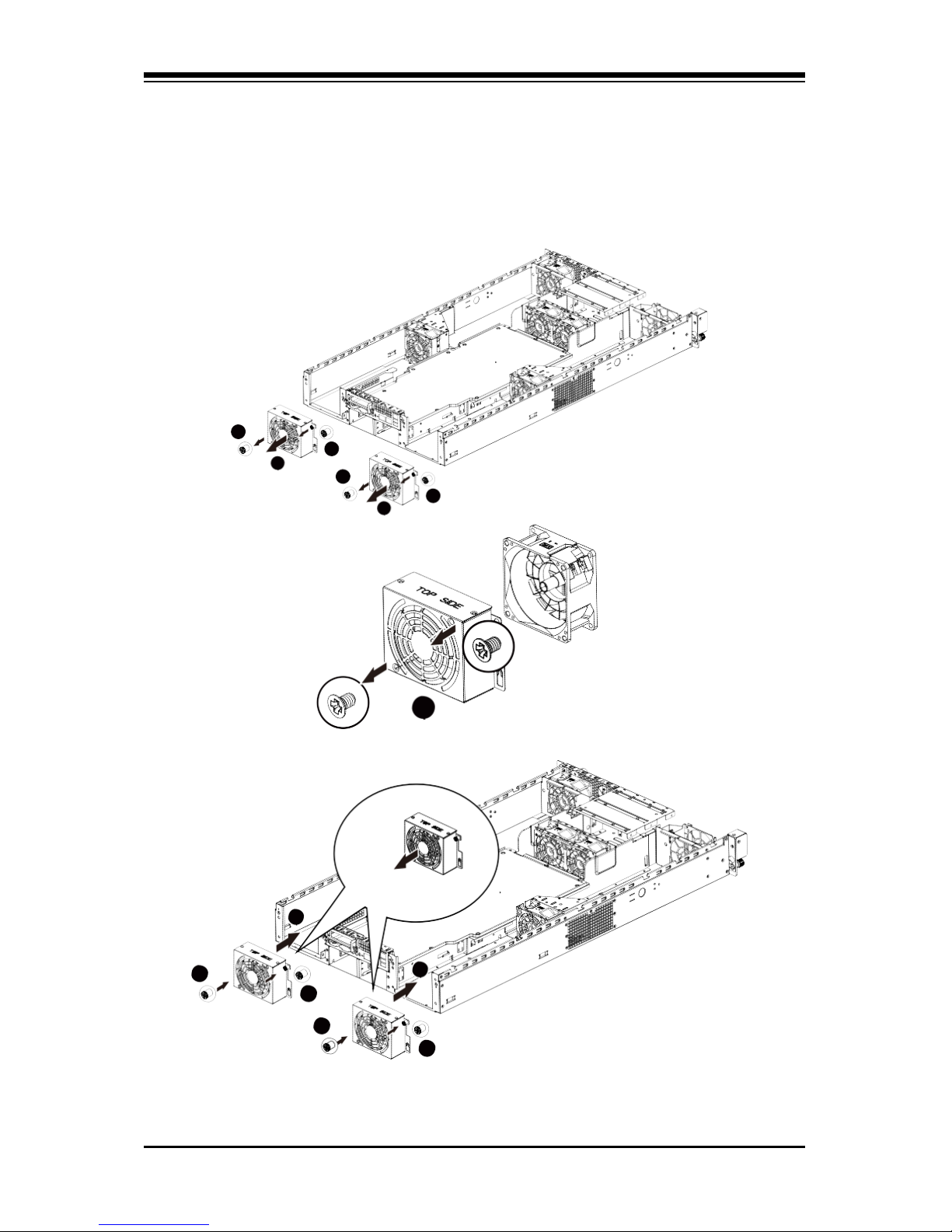

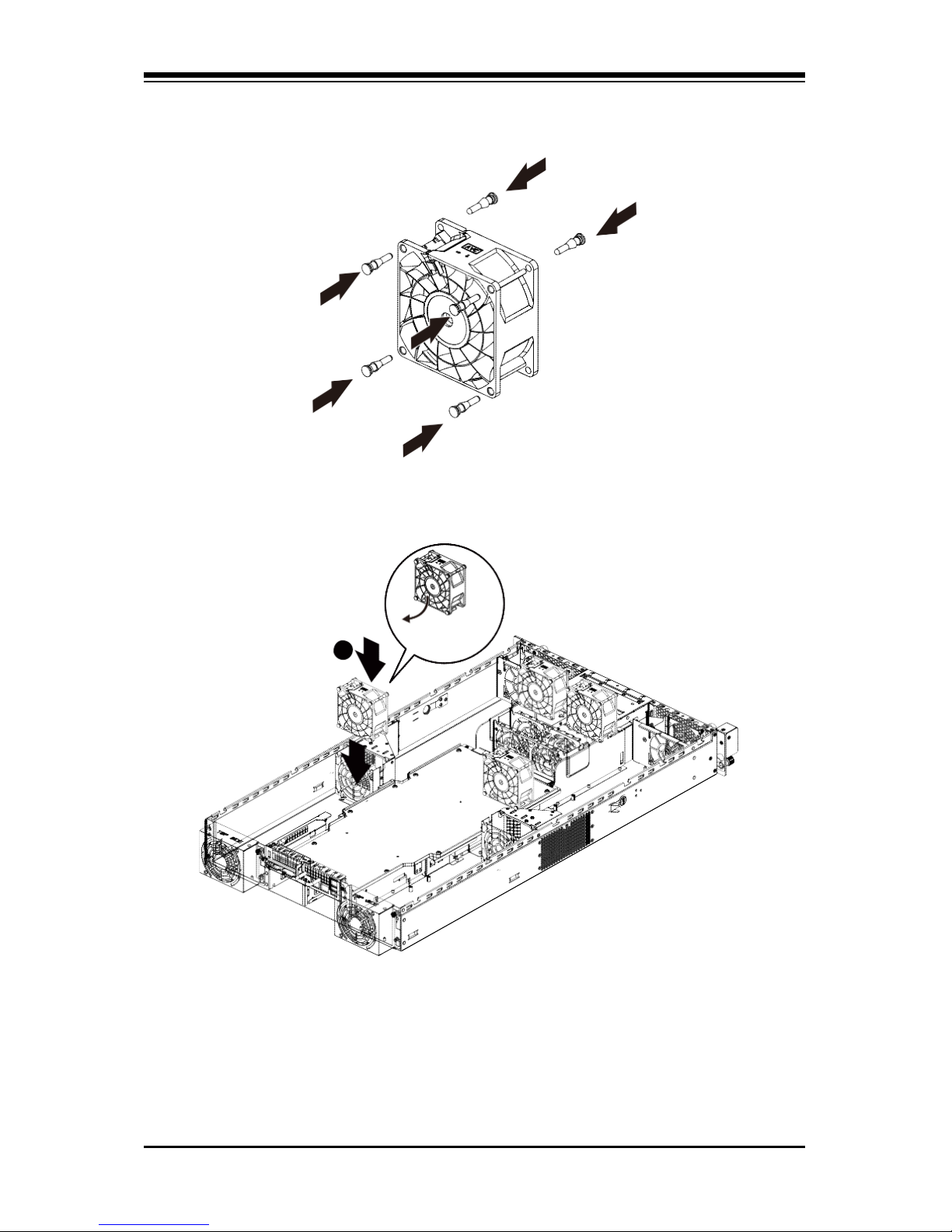

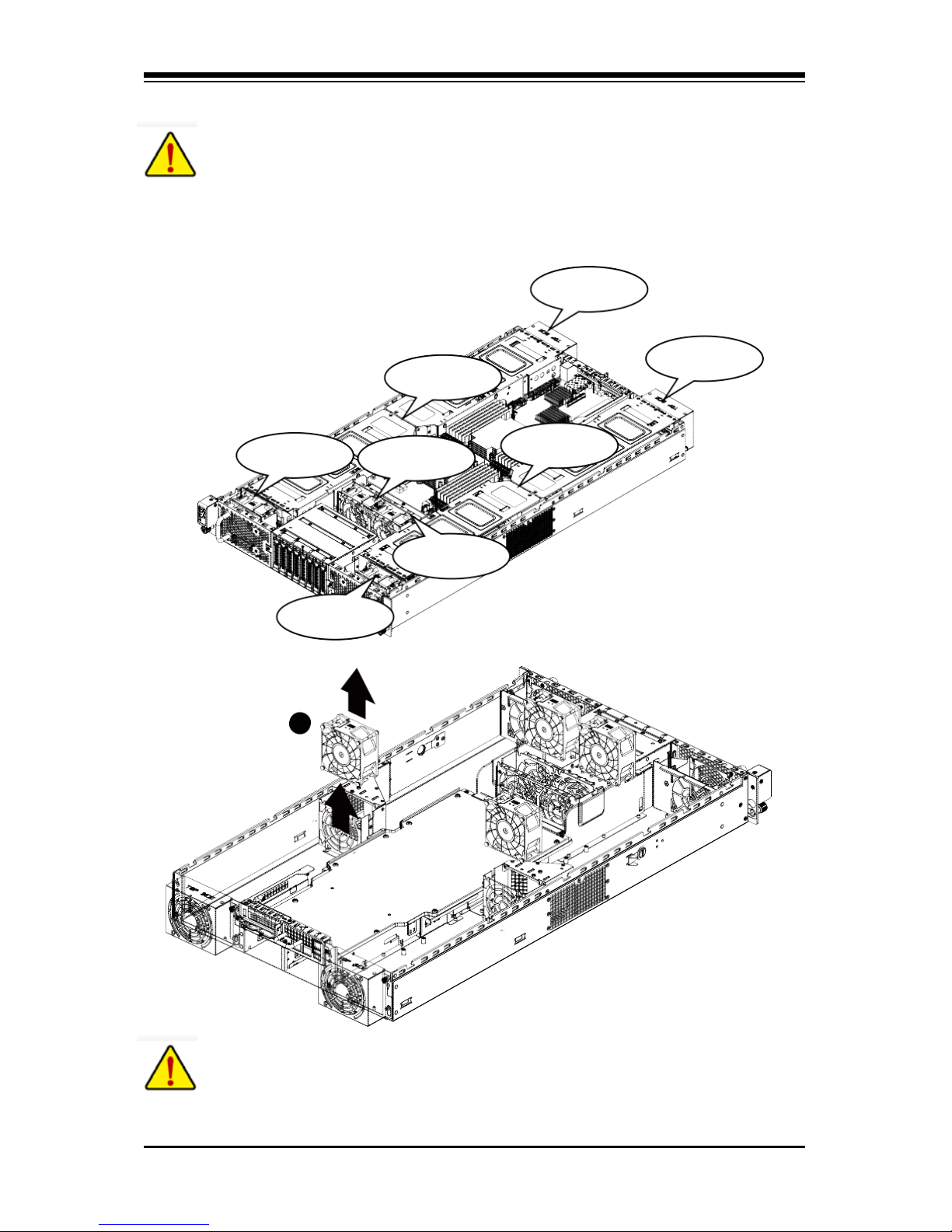

2-8 Replacing the FAN Assemblly 32
2-9 Replacing the Power Supply 37
Chapter 3 System Appearance 38
1Front View 38

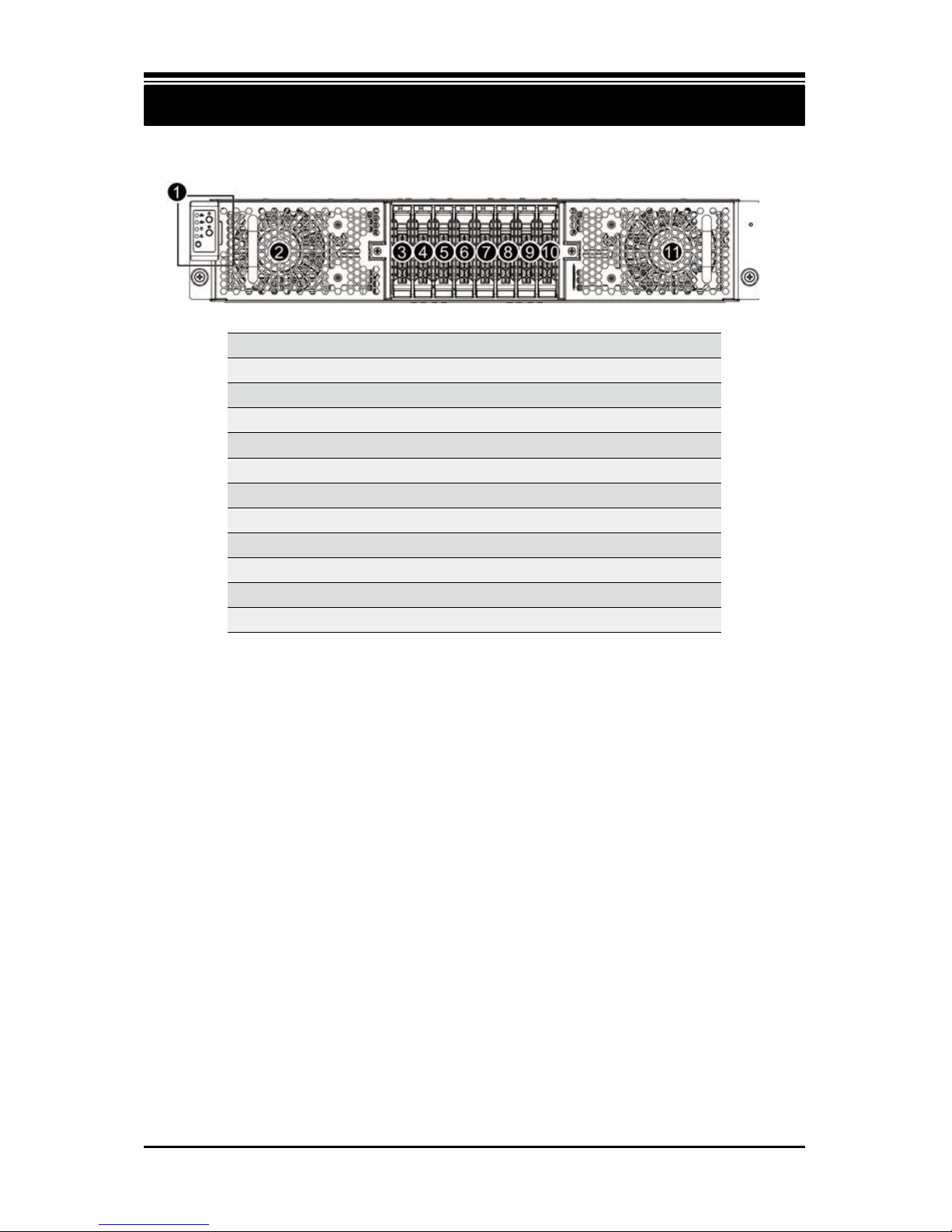

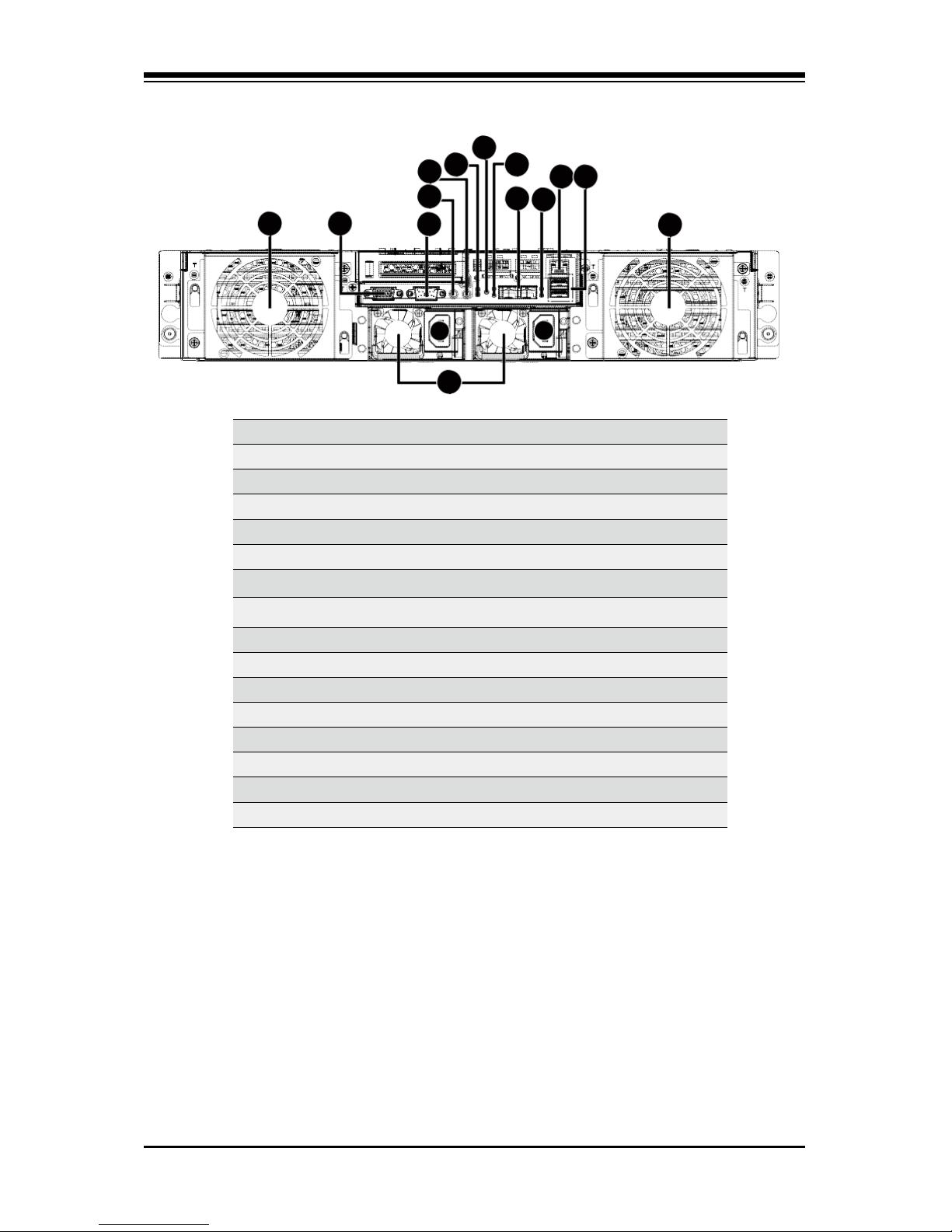

2Rear View 39
3-3 Front Panel LED and Buttons 40
3-4 Rear System Button and LEDs 41

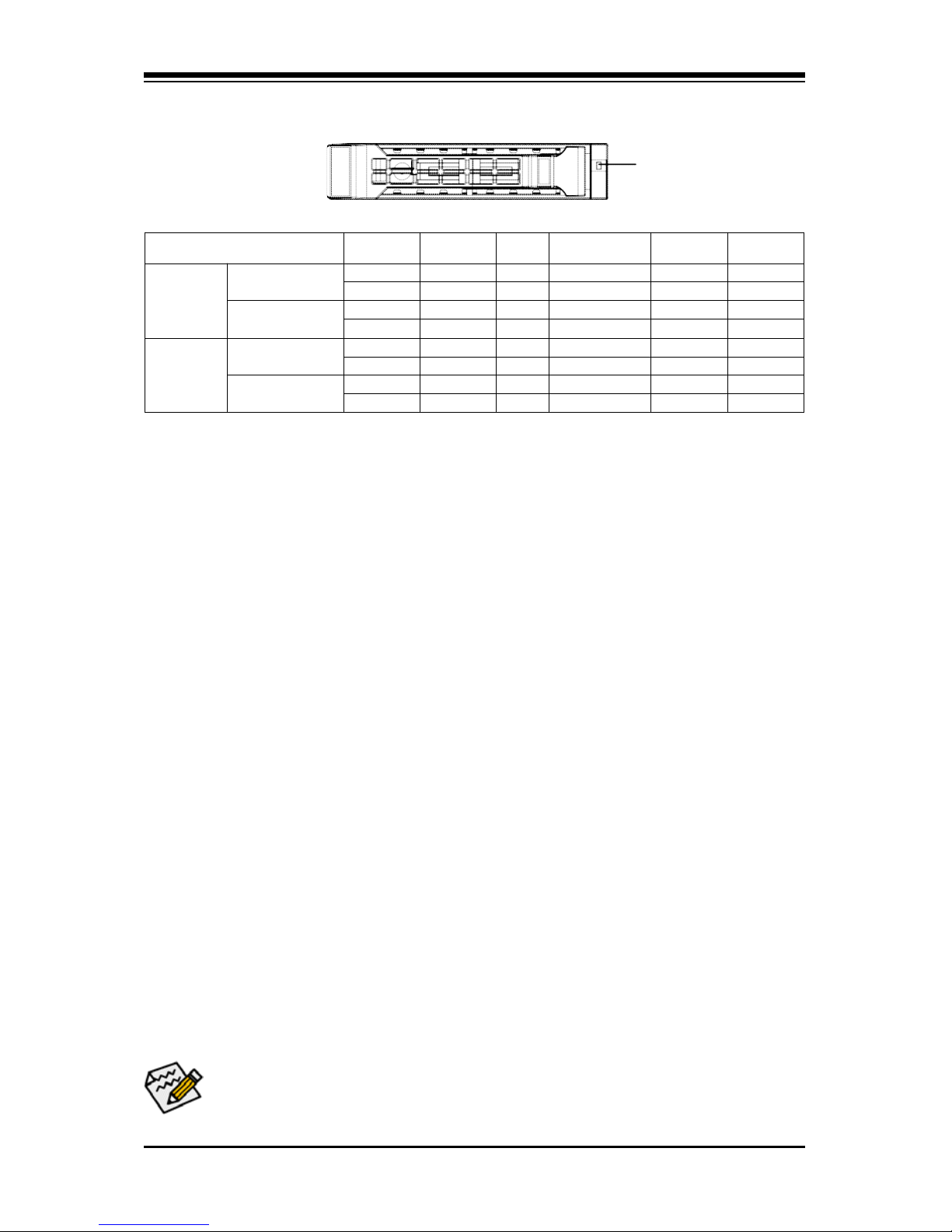

3-5 Hard Disk Drive LEDs 42
3-6 Hard Disk Back Plane Board Jumper Setting 43

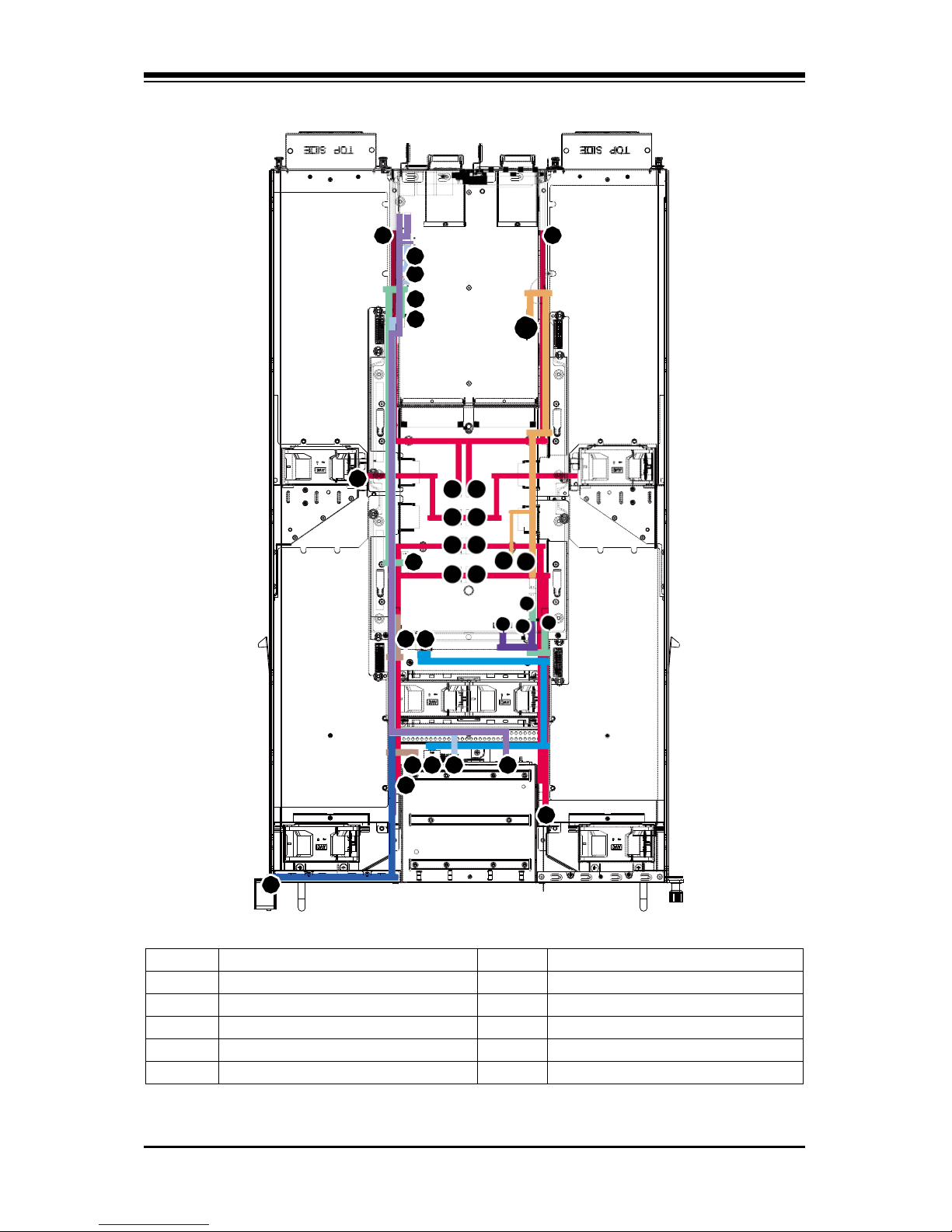

3-7 Cable Routing 44
Chapter 4 Motherboard Components 45

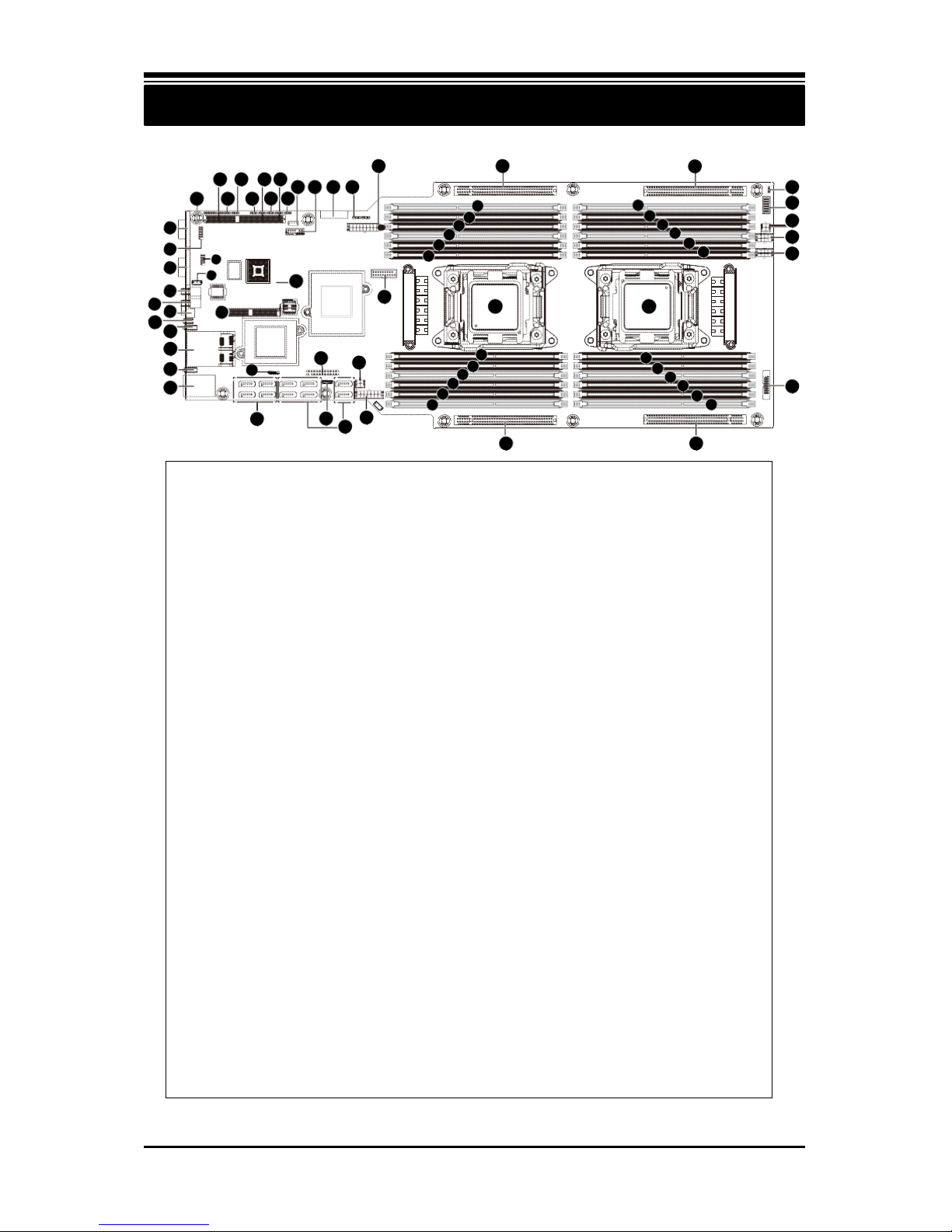

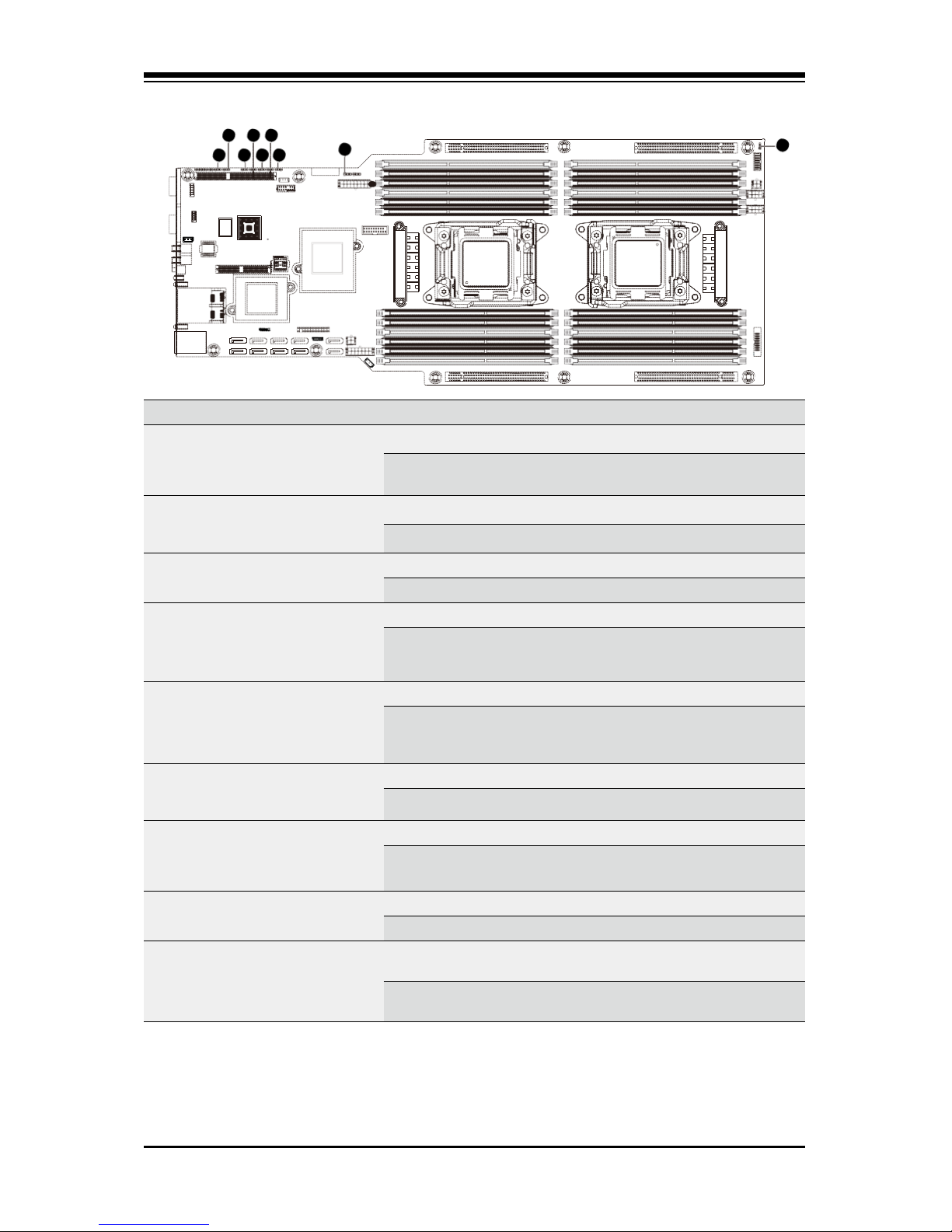

4-1 MG50-G20 Motherboard Components 45
4-2 Jumper Setting 48
Chapter 5 BIOS Setup 49

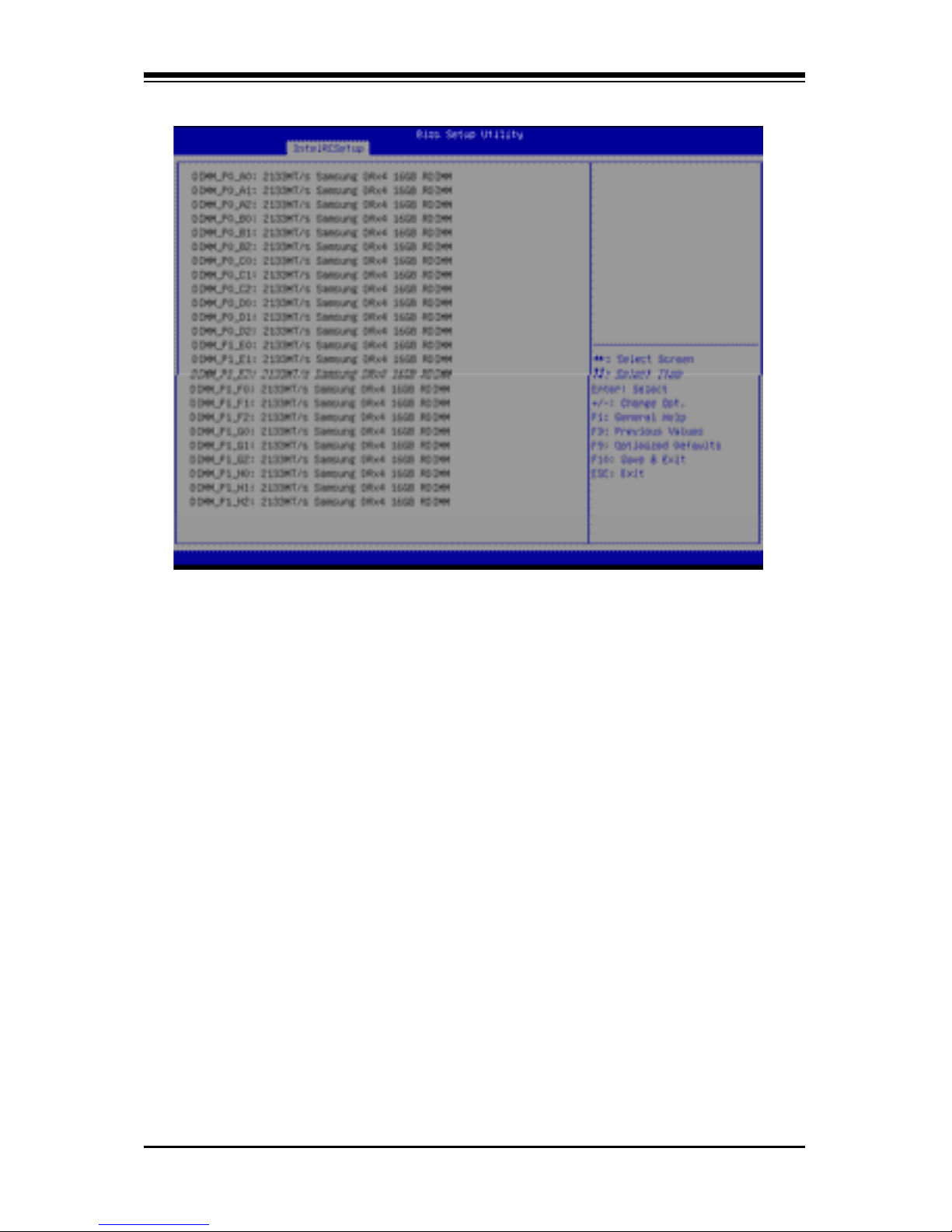

1Memory Topology 89
2 Memory Thermal 90
3Memory Map 91
5-3-5-4 Memory RAS Configuration 92
5-3-6 IIO Configuration 93

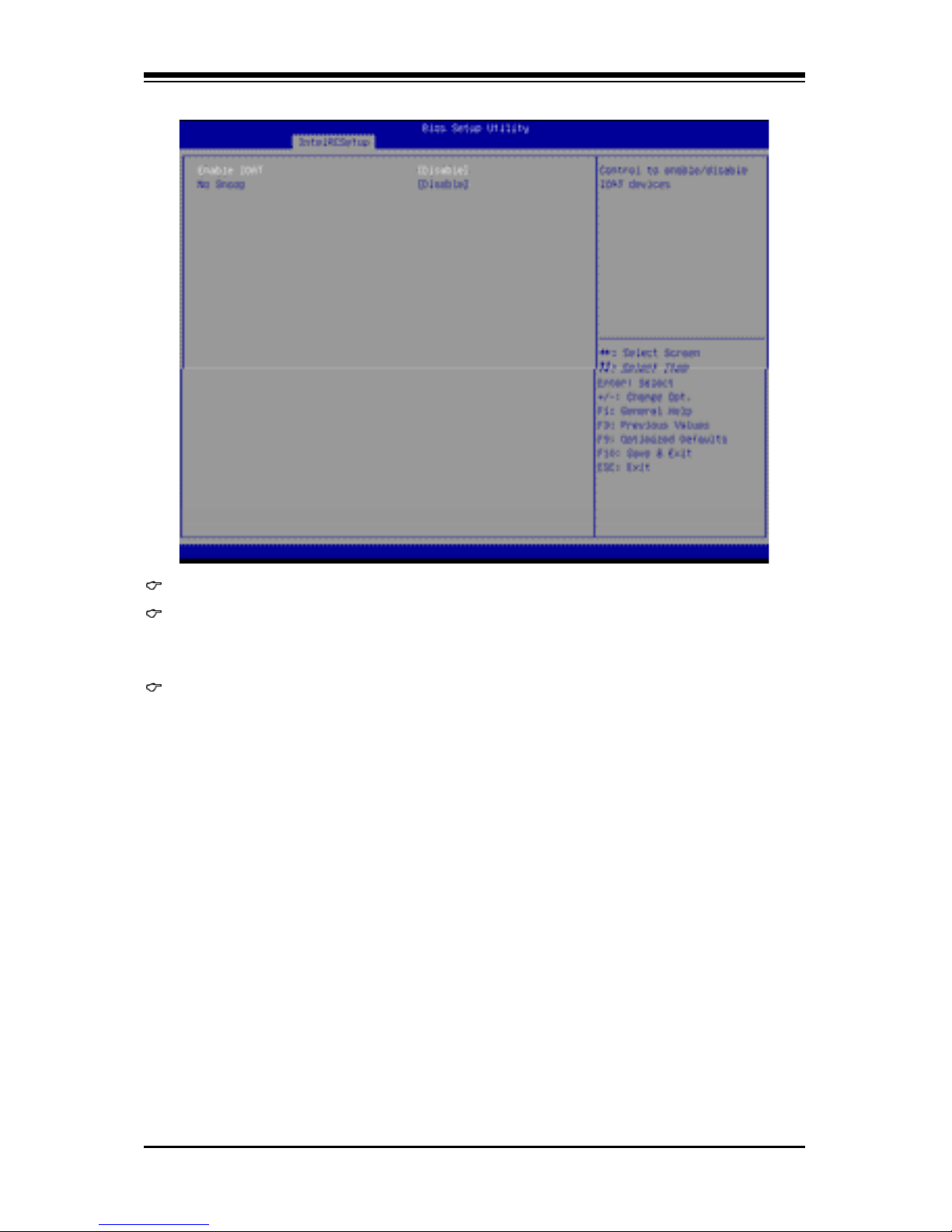

5-3-6-1 IOAT Configuration 94

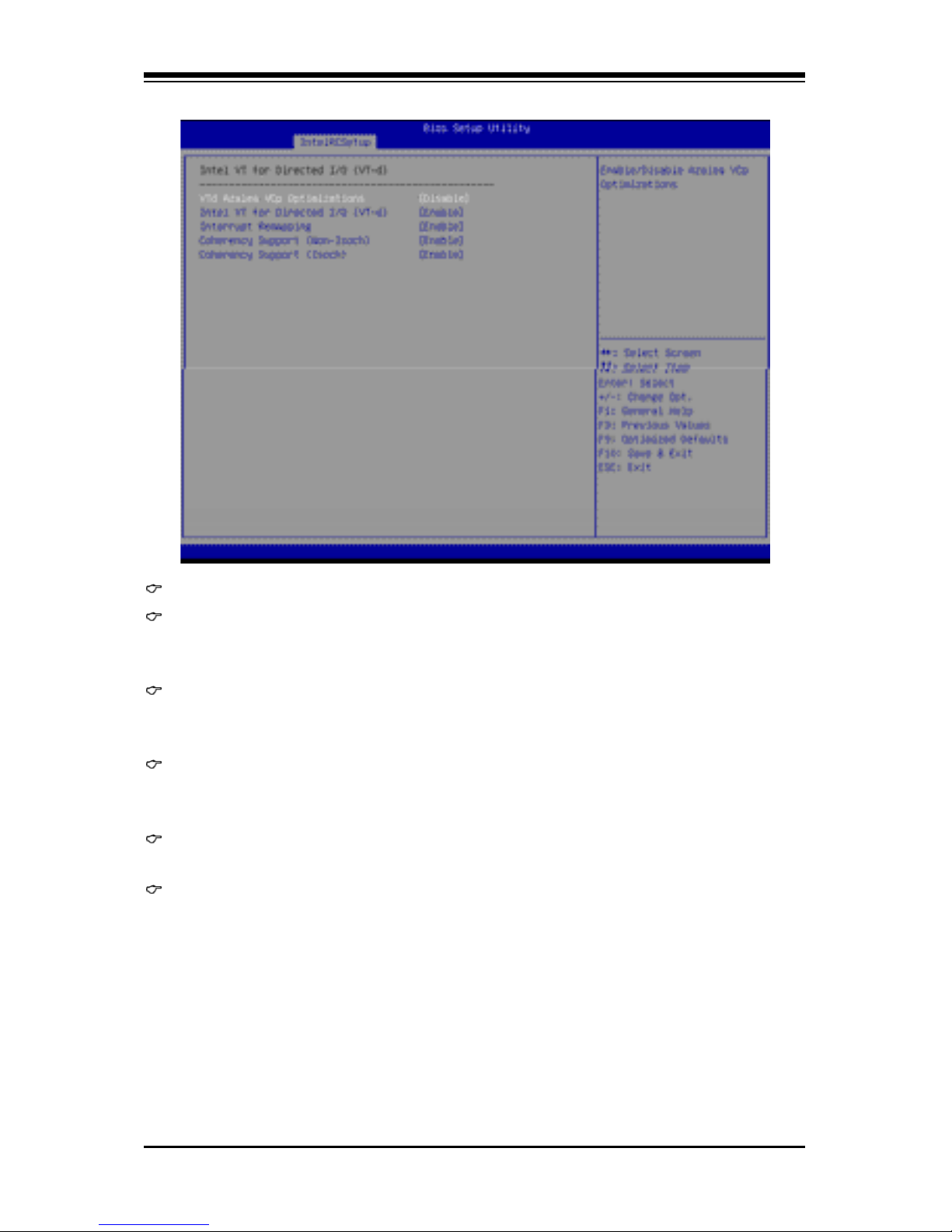

5-3-6-2 Intel VT for Directed I/O (VT-d) 95

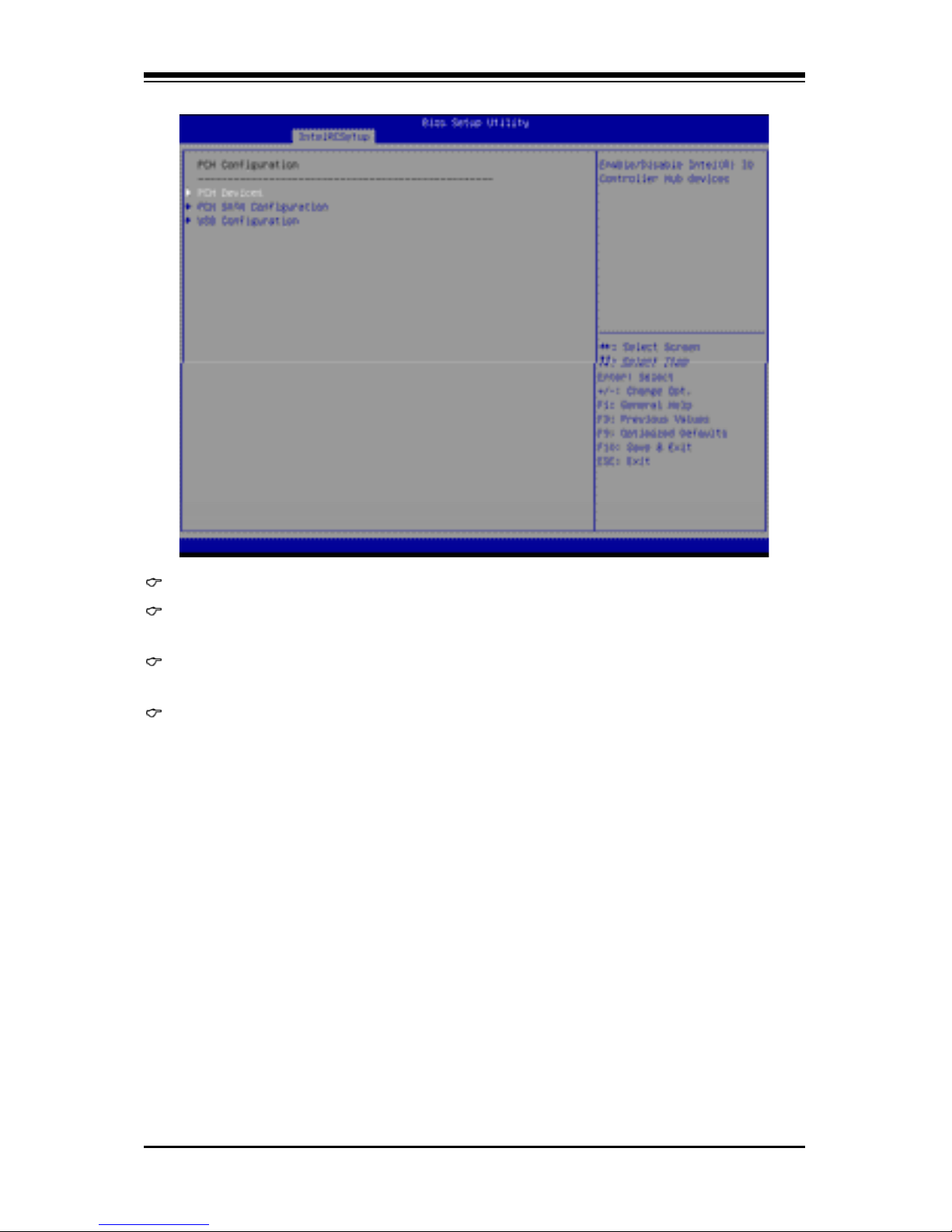

5-3-7 PCH Configuration 96
5-3-7-1 PCH Devices 97

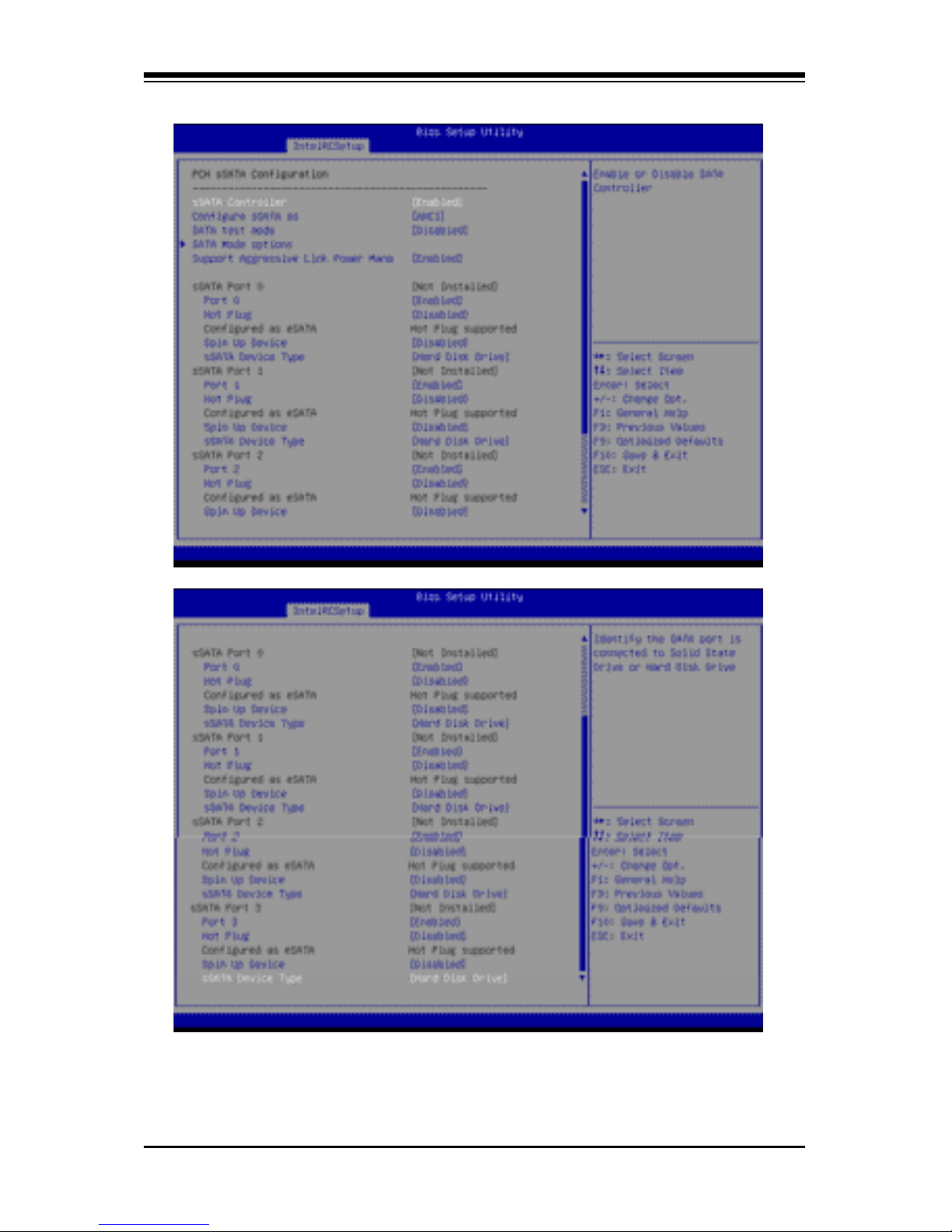

5-3-7-2 PCH sSATA Configuration 98
5-3-7-2-1 SATA Mode Options 101

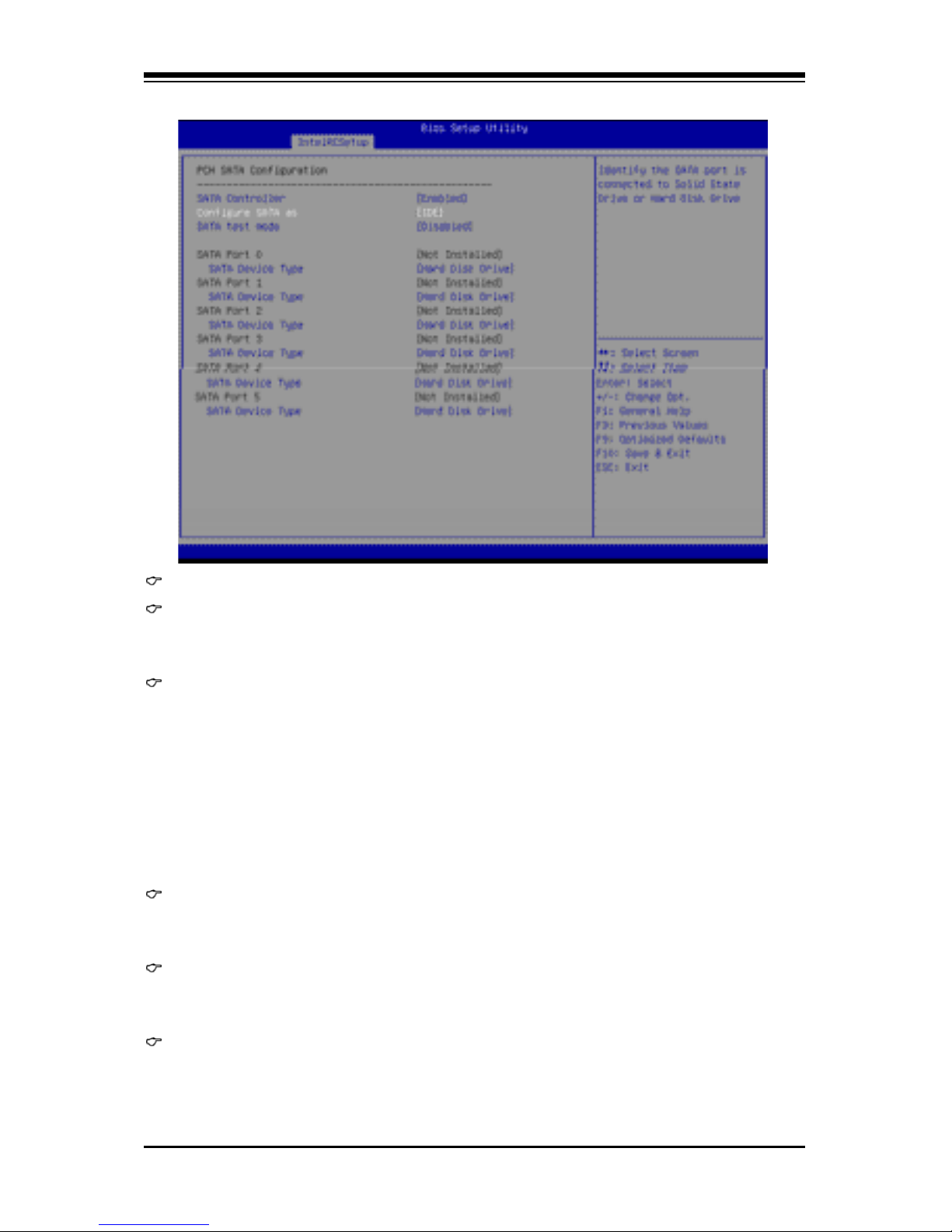

5-3-7-3 PCH SATA Configuration 103
5-3-7-3-1 SATA Mode Options 106
5-3-7-4 USB Configuration 108
8Miscellaneous Configuration 109
9Server ME Configuration 110
5-3-10 Runtime Error Logging 111
5-3-10-1 Whea Setting 112
5-3-10-2 Memory Error Enabling 113
- 5 -
5-2-3
5-2-4
5-2-5
5-2-6
5-2-7
5-2-8
5-9
Network Stack 63
CSM Configuration 64

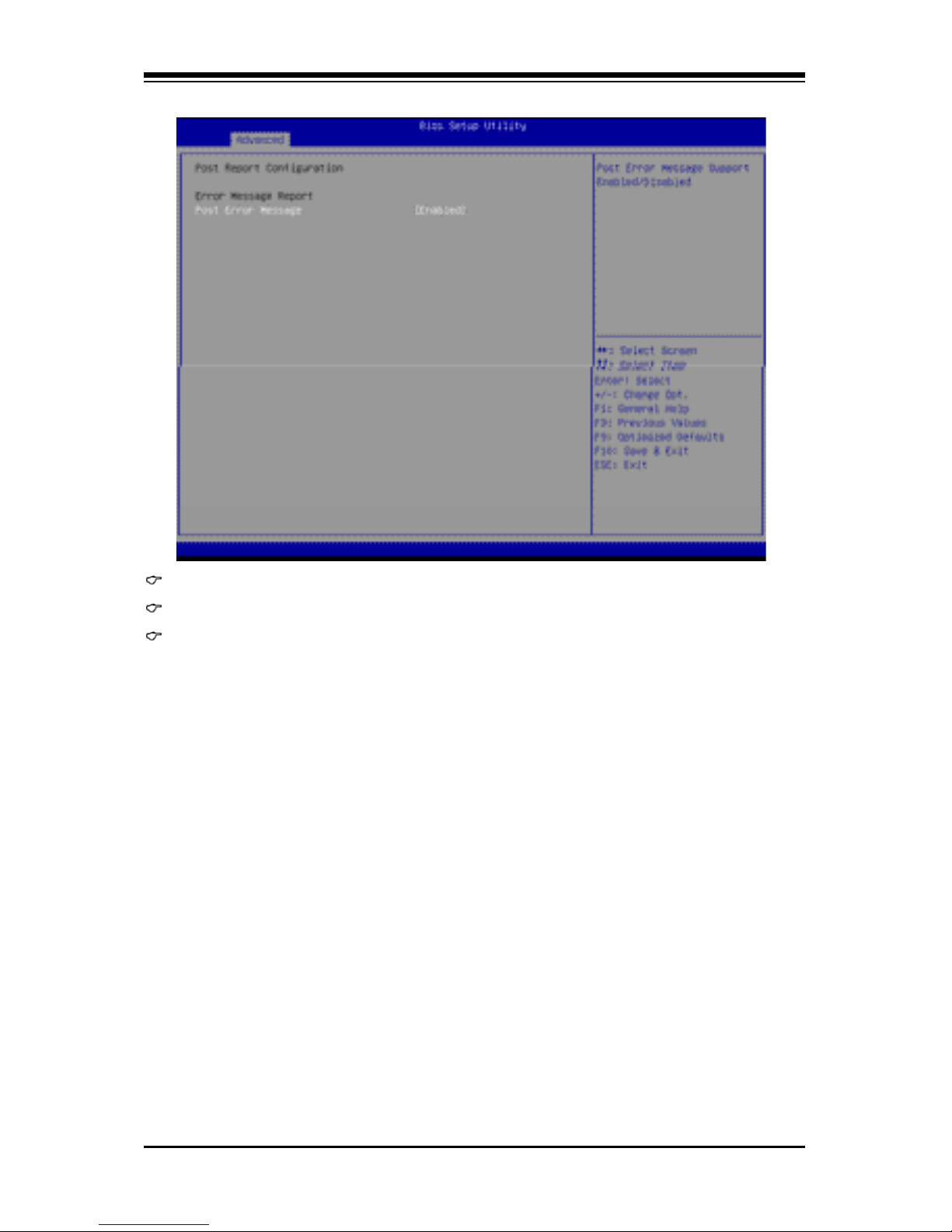

Post Report Configuration 66

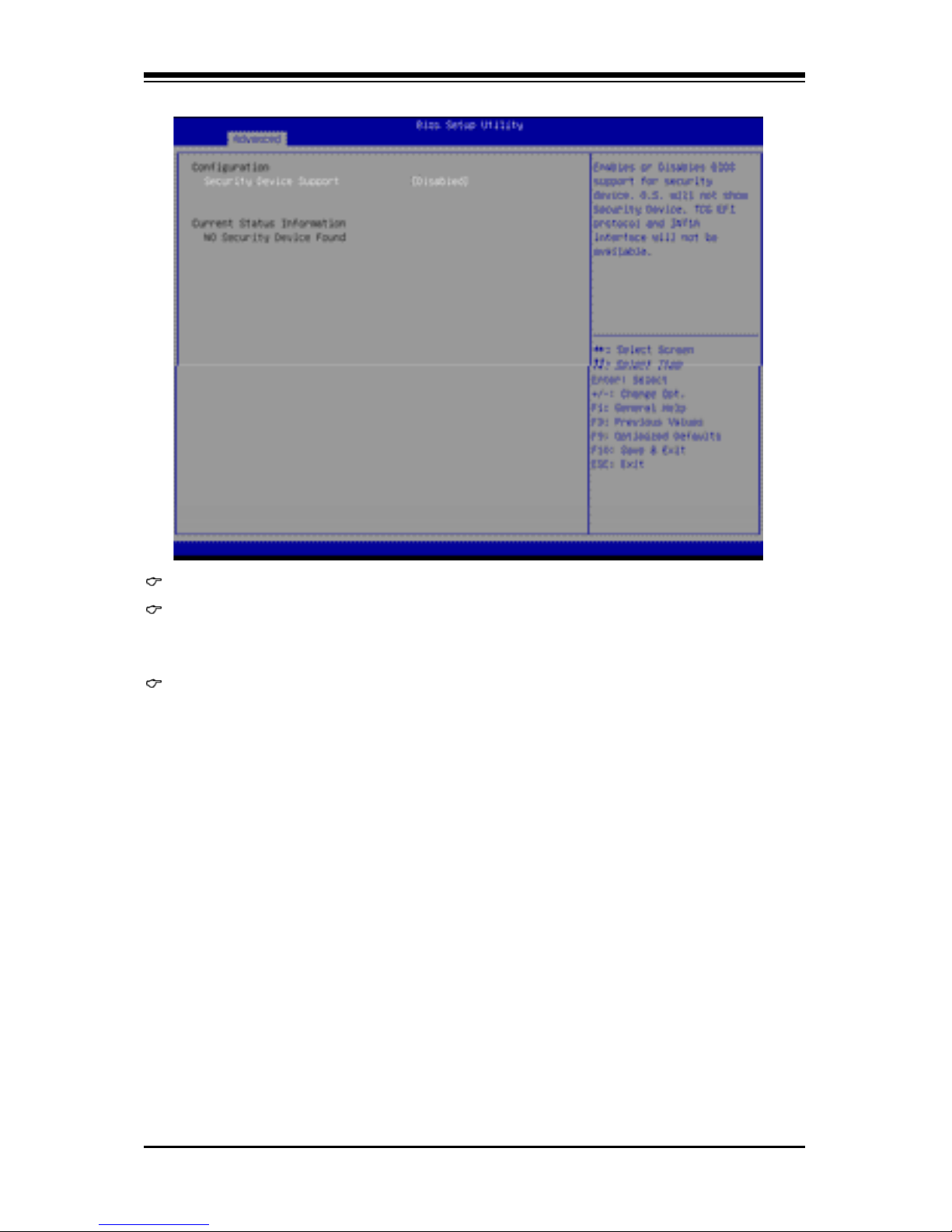

Trusted Computing 67

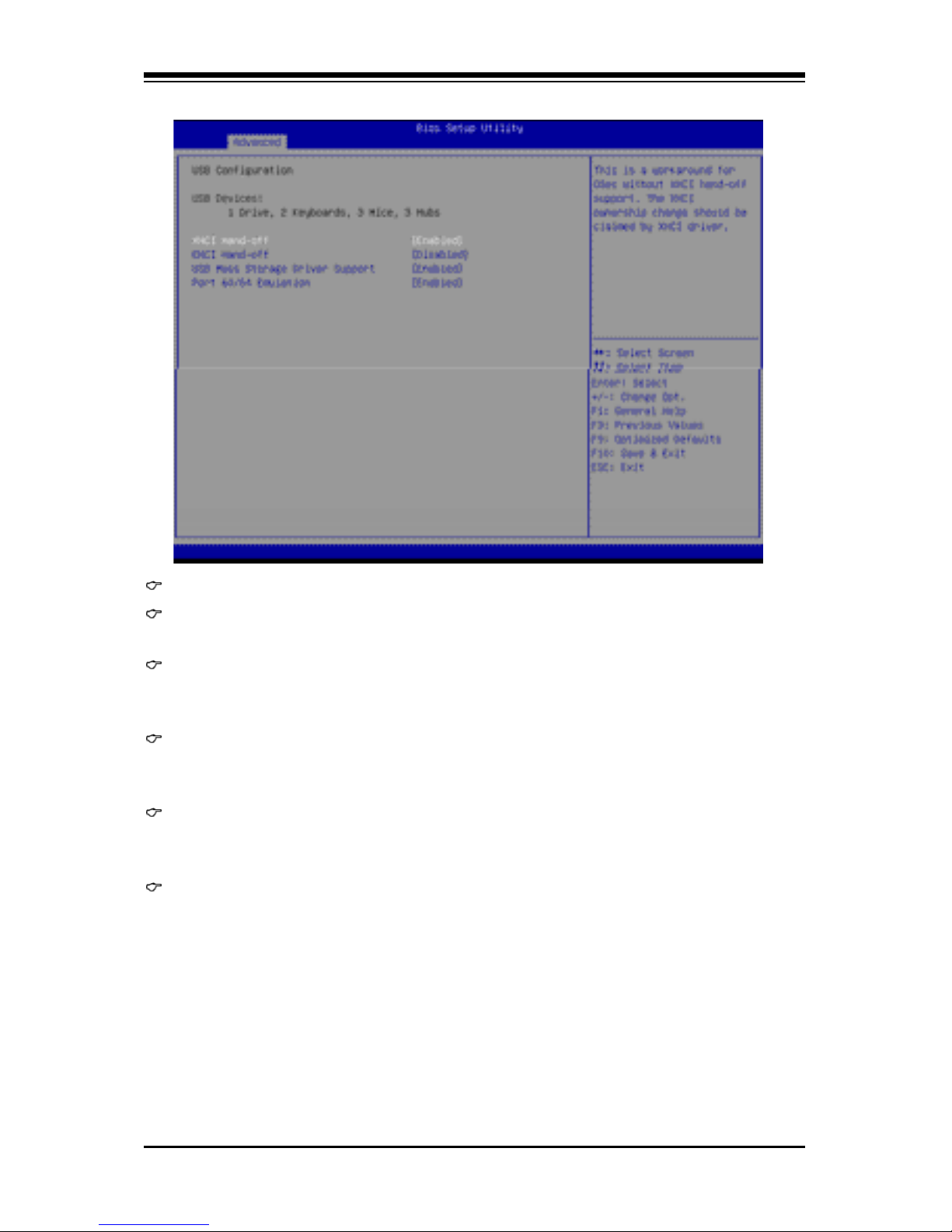

USB Configuration 68
Chipset Configuration 69

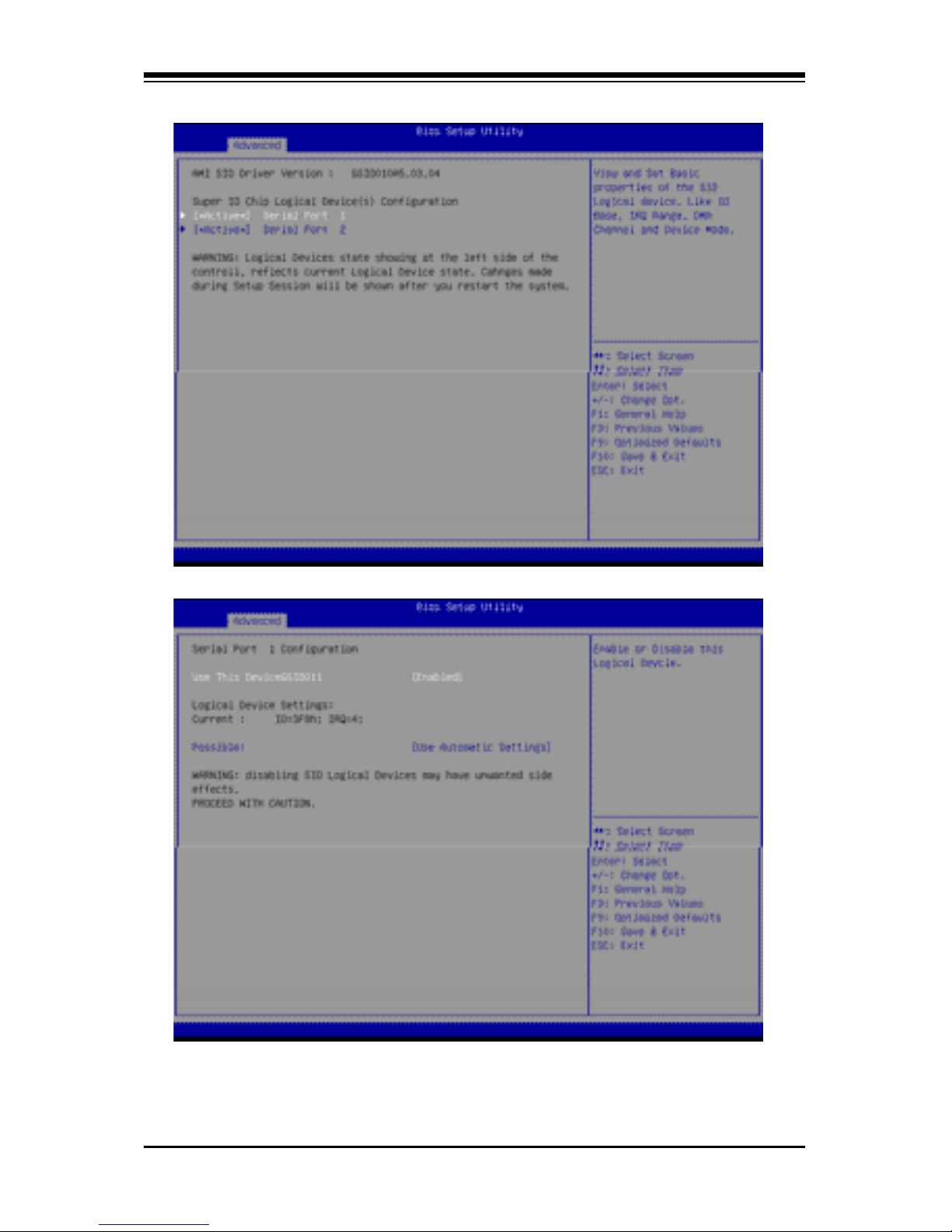

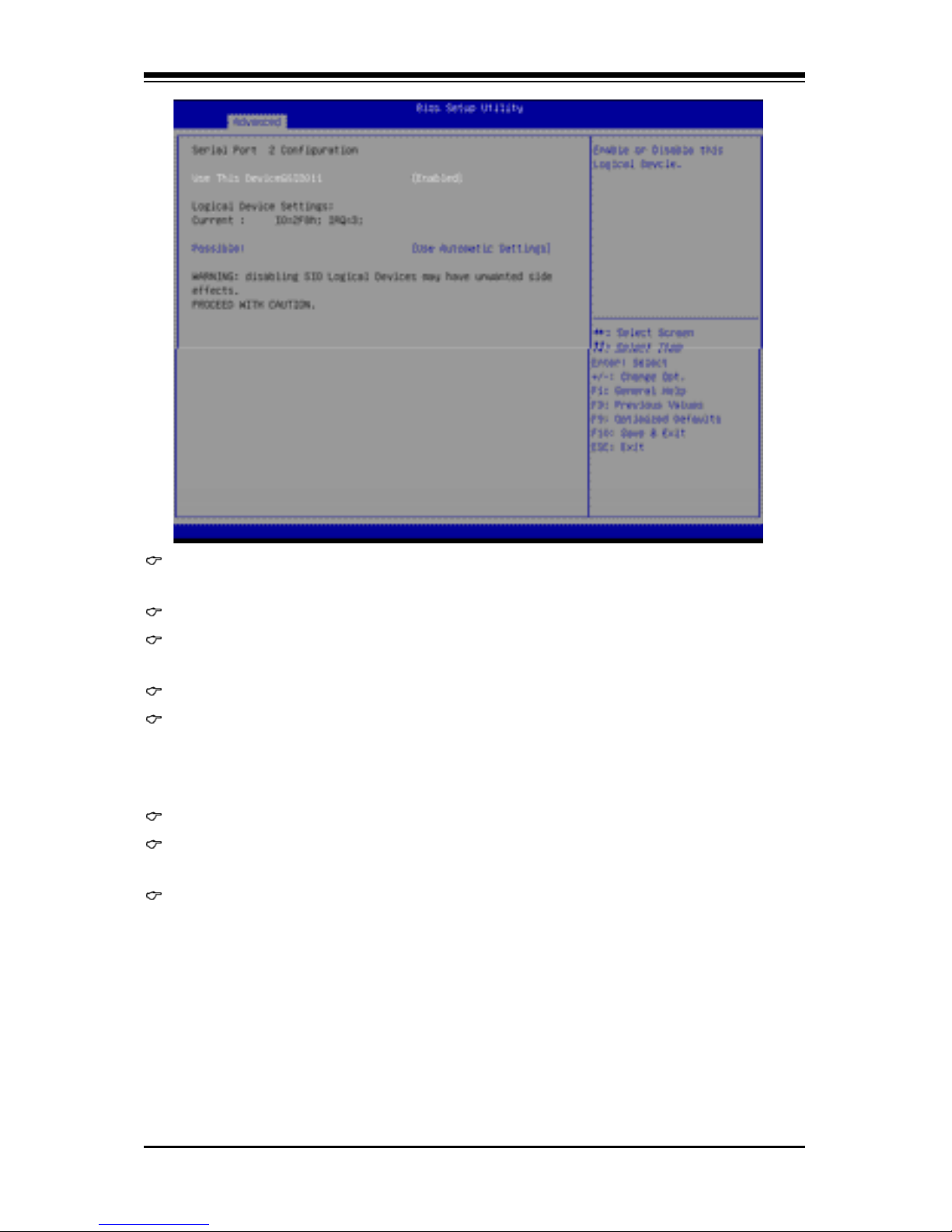

SIO Configuration 70

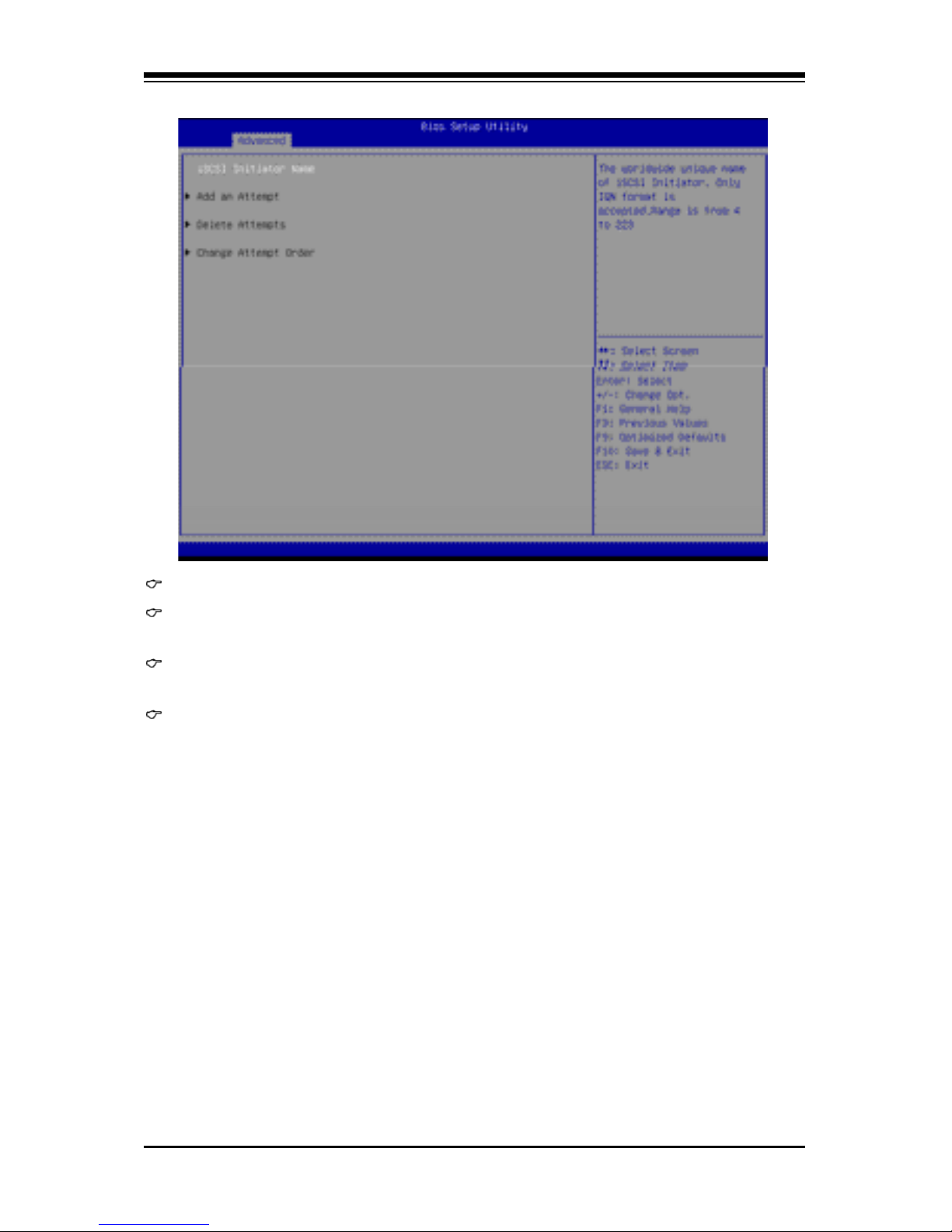

5-2-10 iSCSI Configuration 73

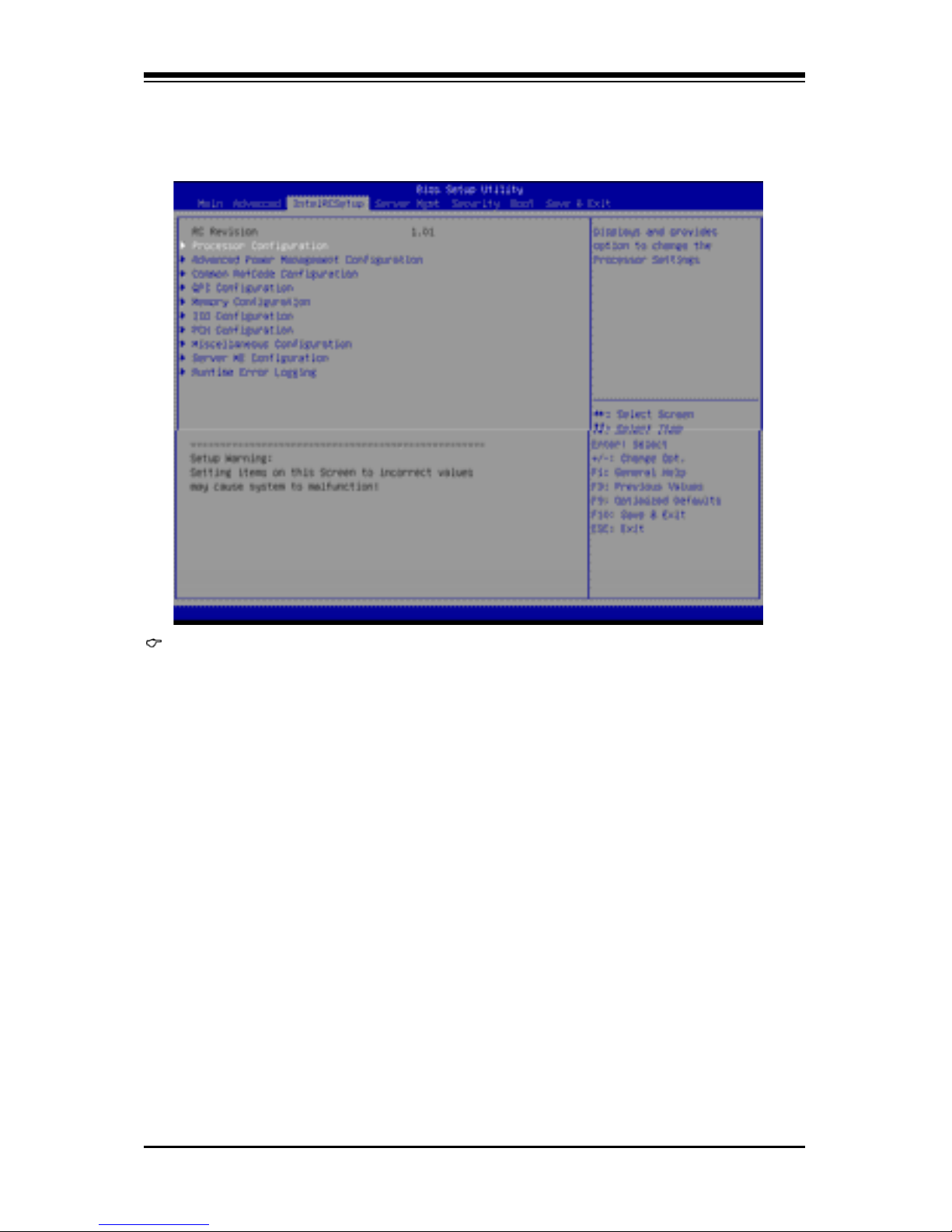

5-3 Intel RC Setup Menu 74

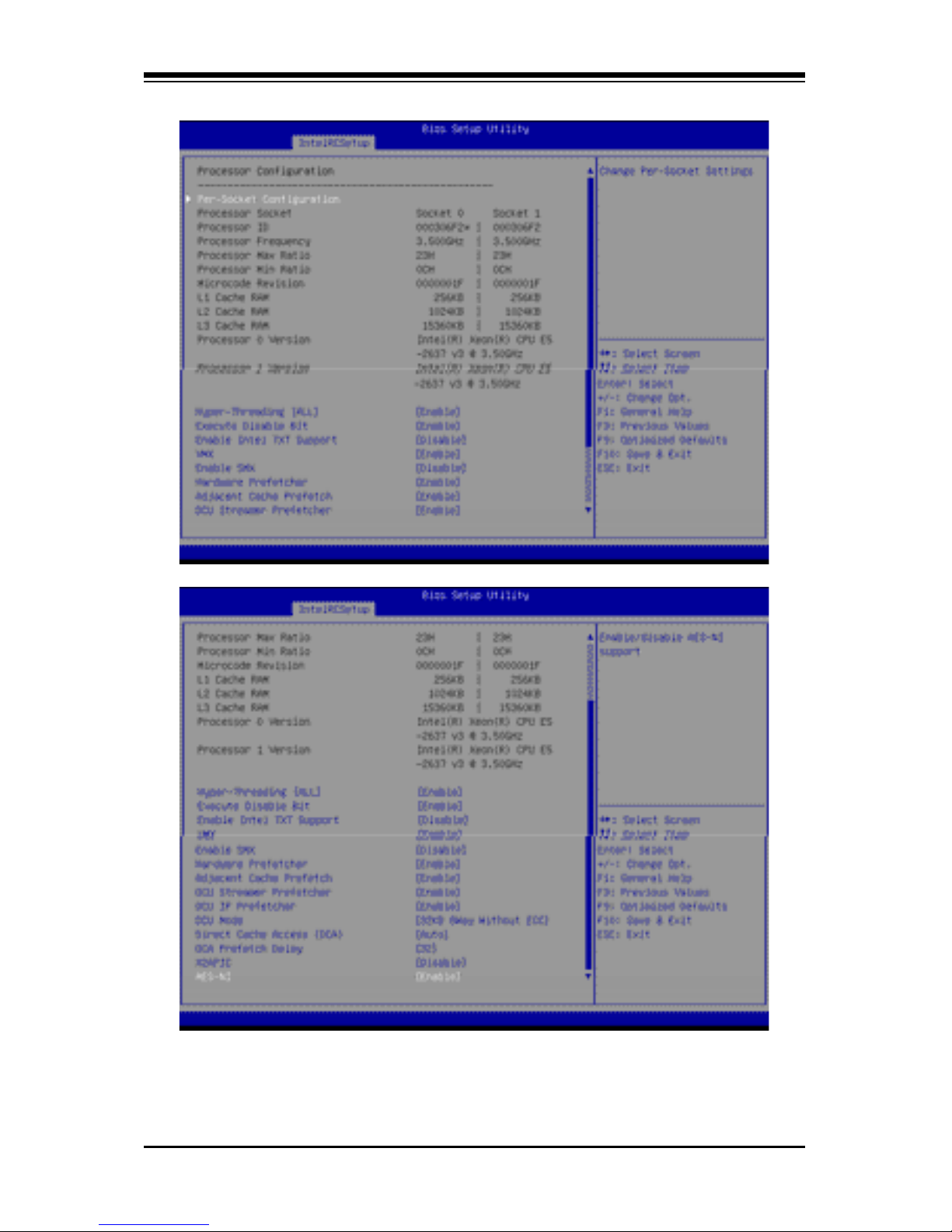

5-3-1 Processor Configuration 75
5-3-1-1 Pre-Socket Configuration 78

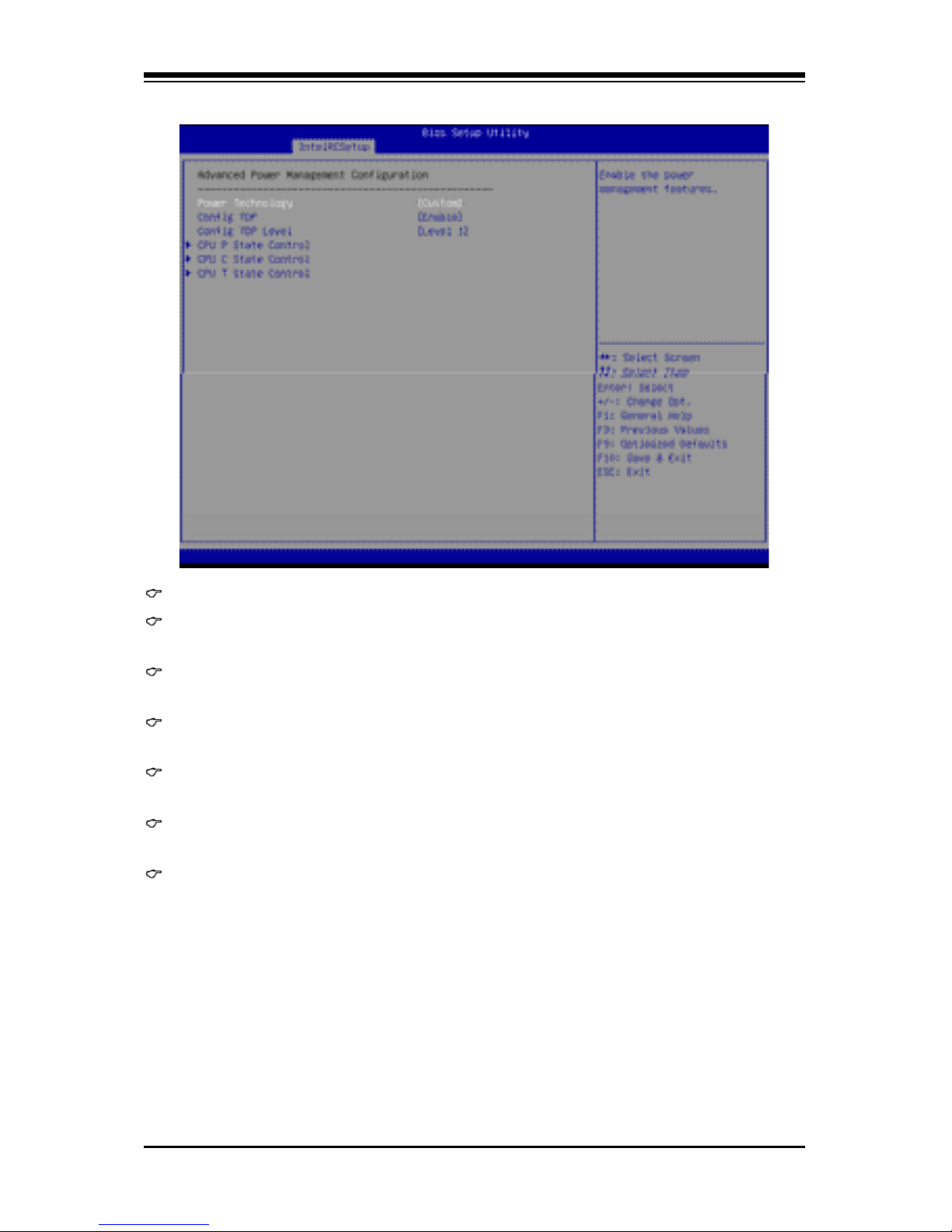

5-3-2 Advanced Power Management Configuration 80
5-3-2-1 CPU P State Control 81

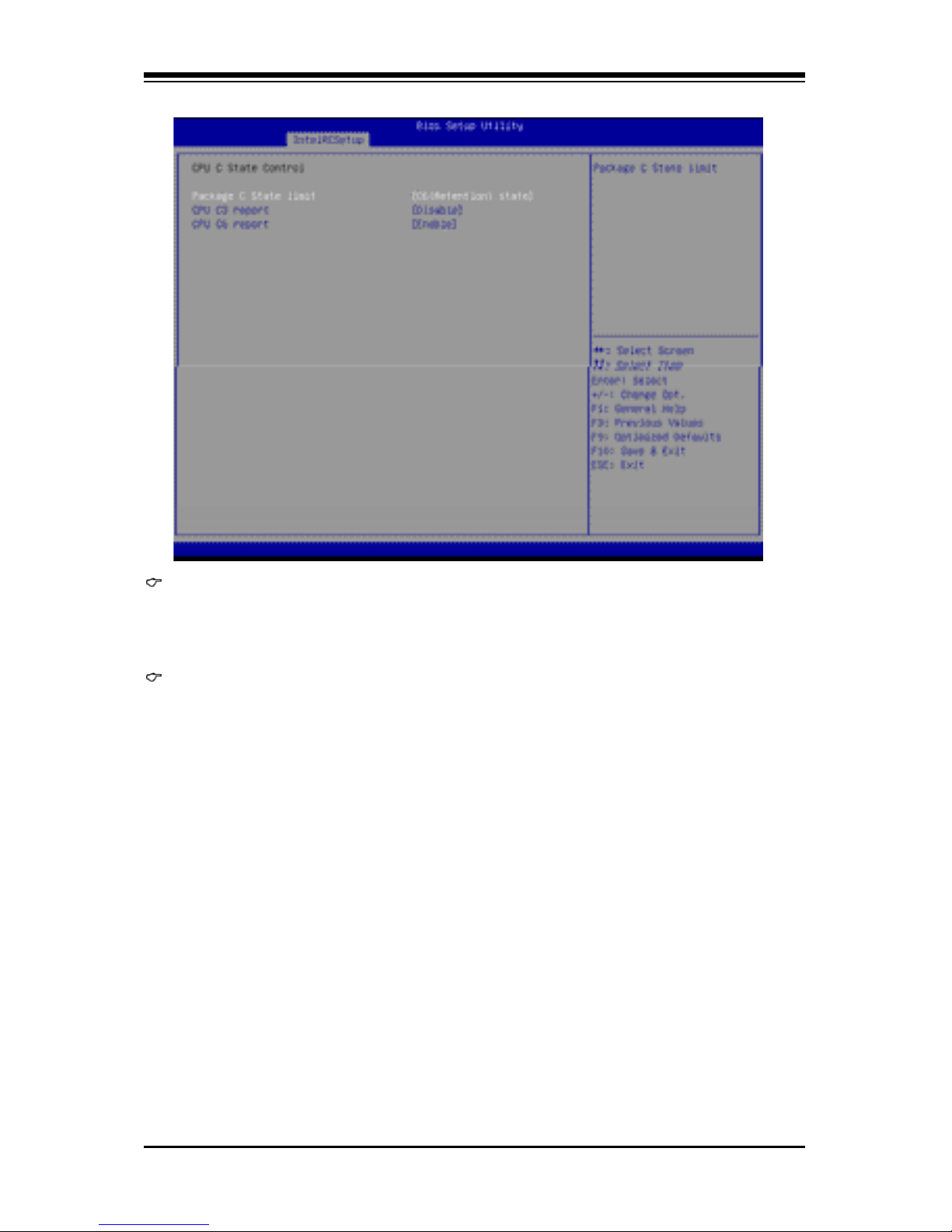

5-3-2-2 CPU C State Control 82

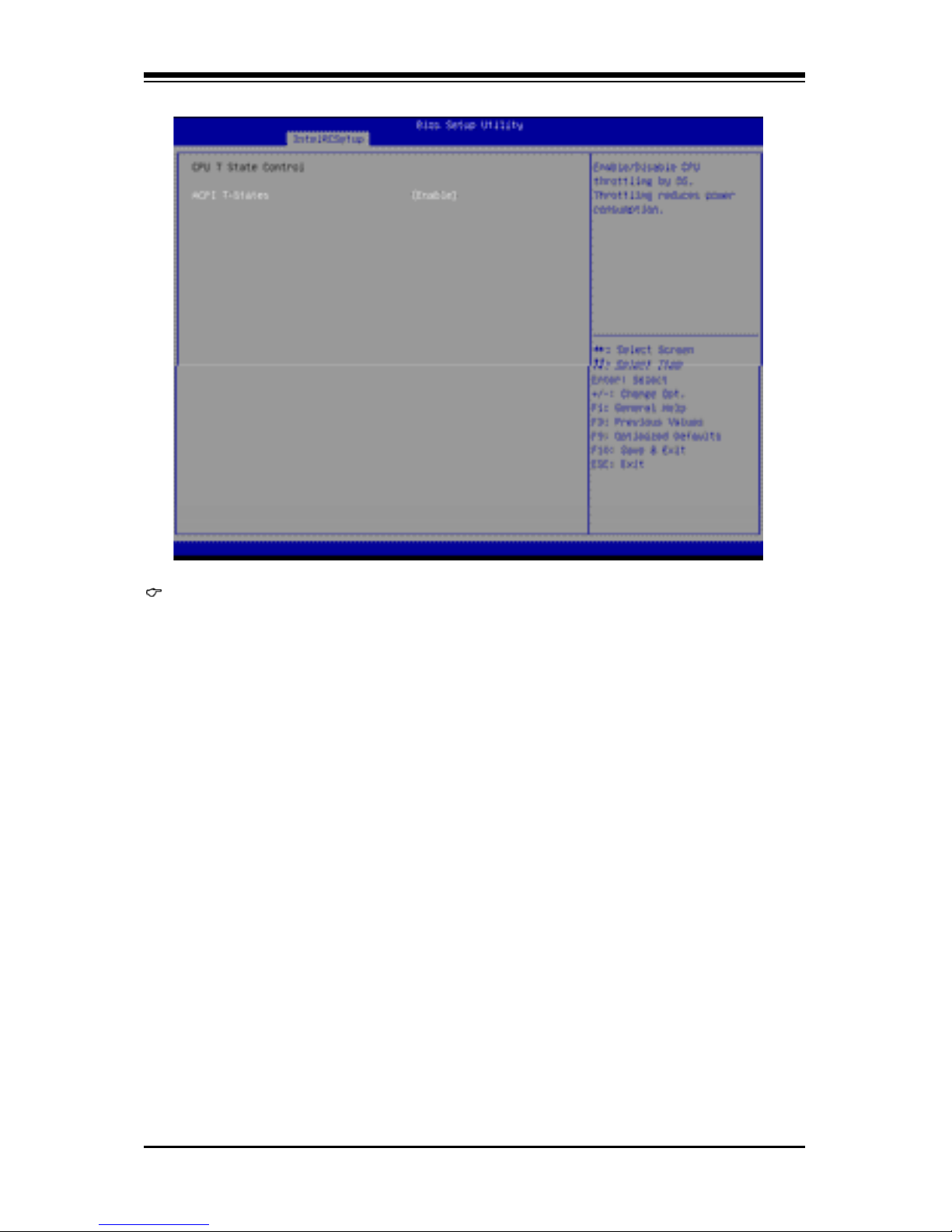

5-3-2-3 CPU T State Control 83
5-3-3
5-3-4
5-3-5
Common RefCode Configuration 84

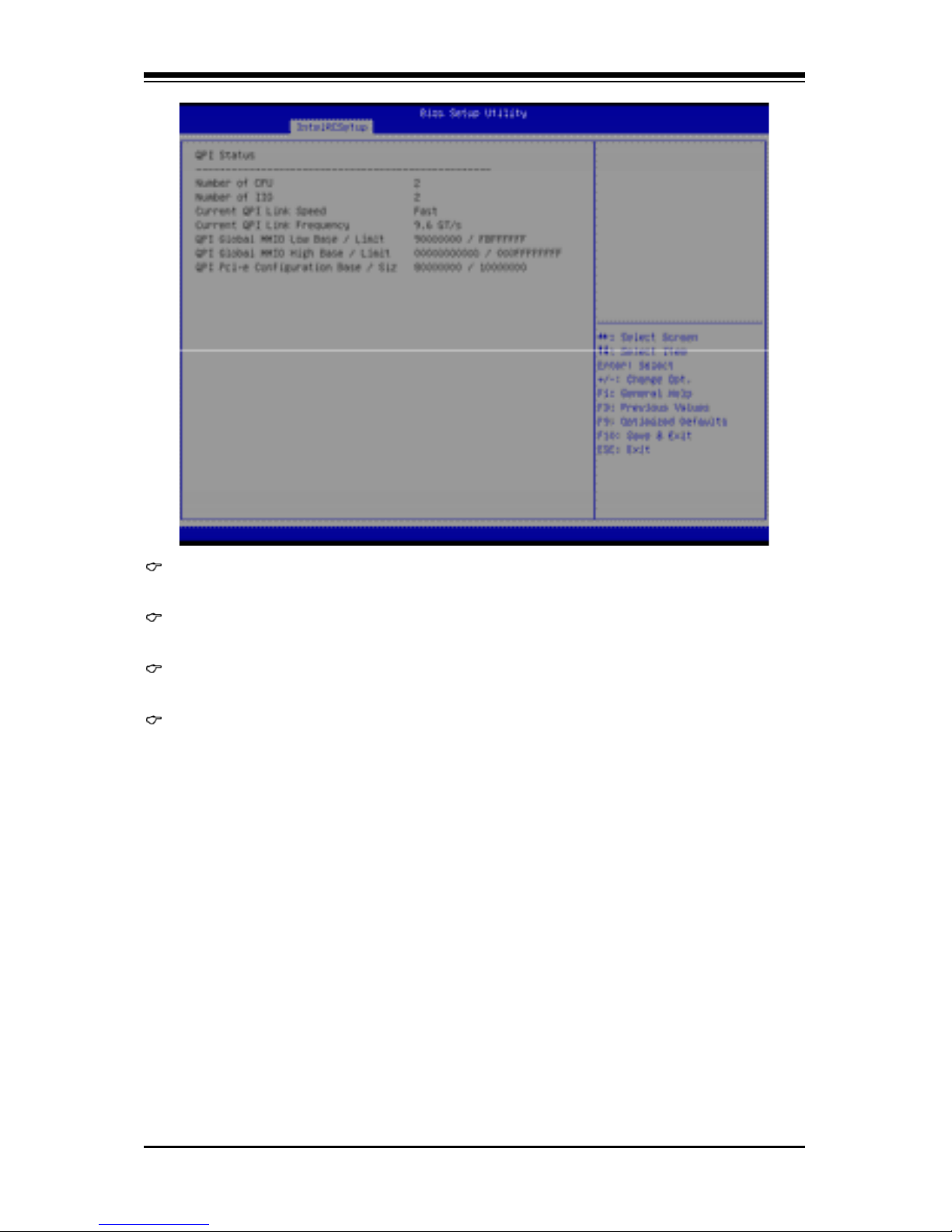

QPI Configuration 85

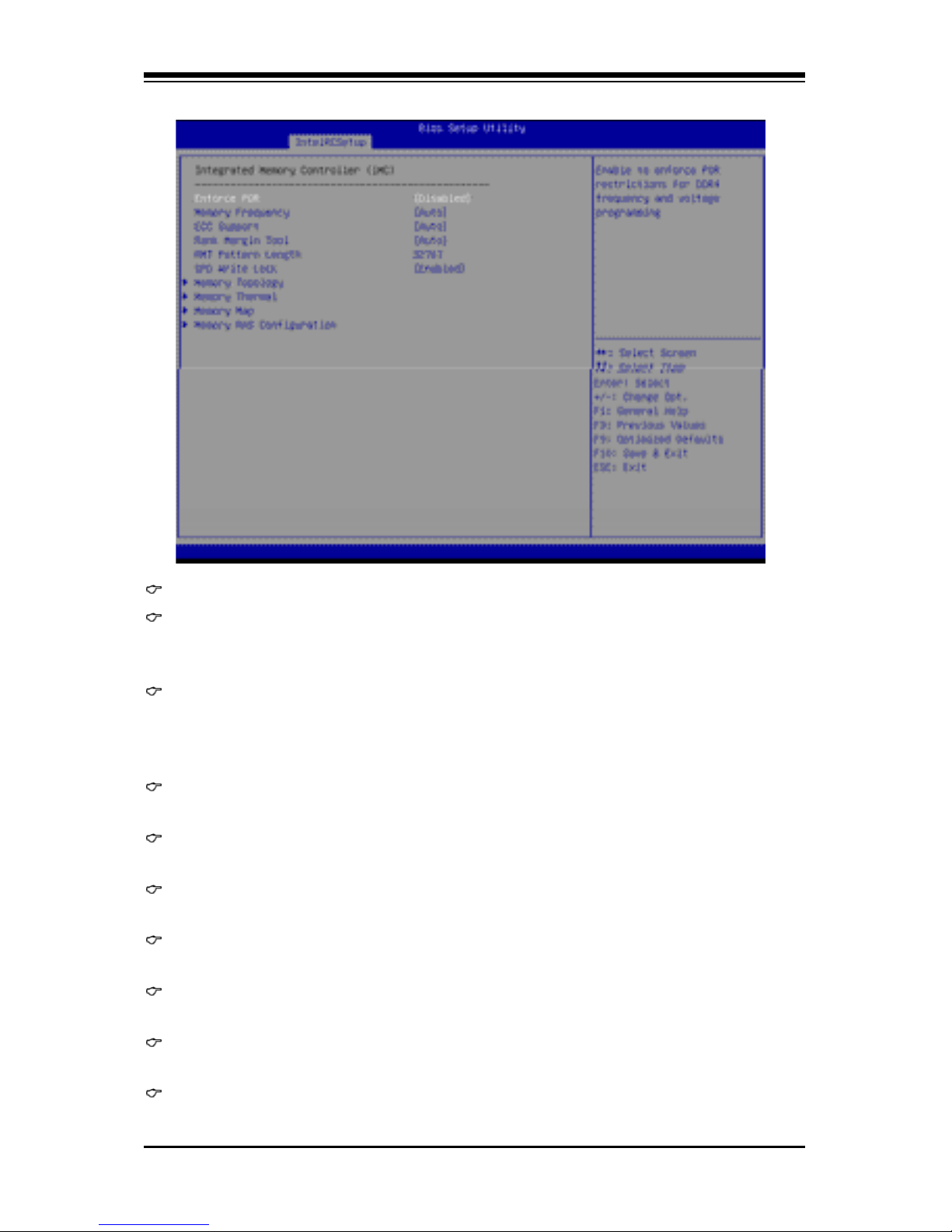

Memory Configuration 87
Relion 2908GT Chassis Manual

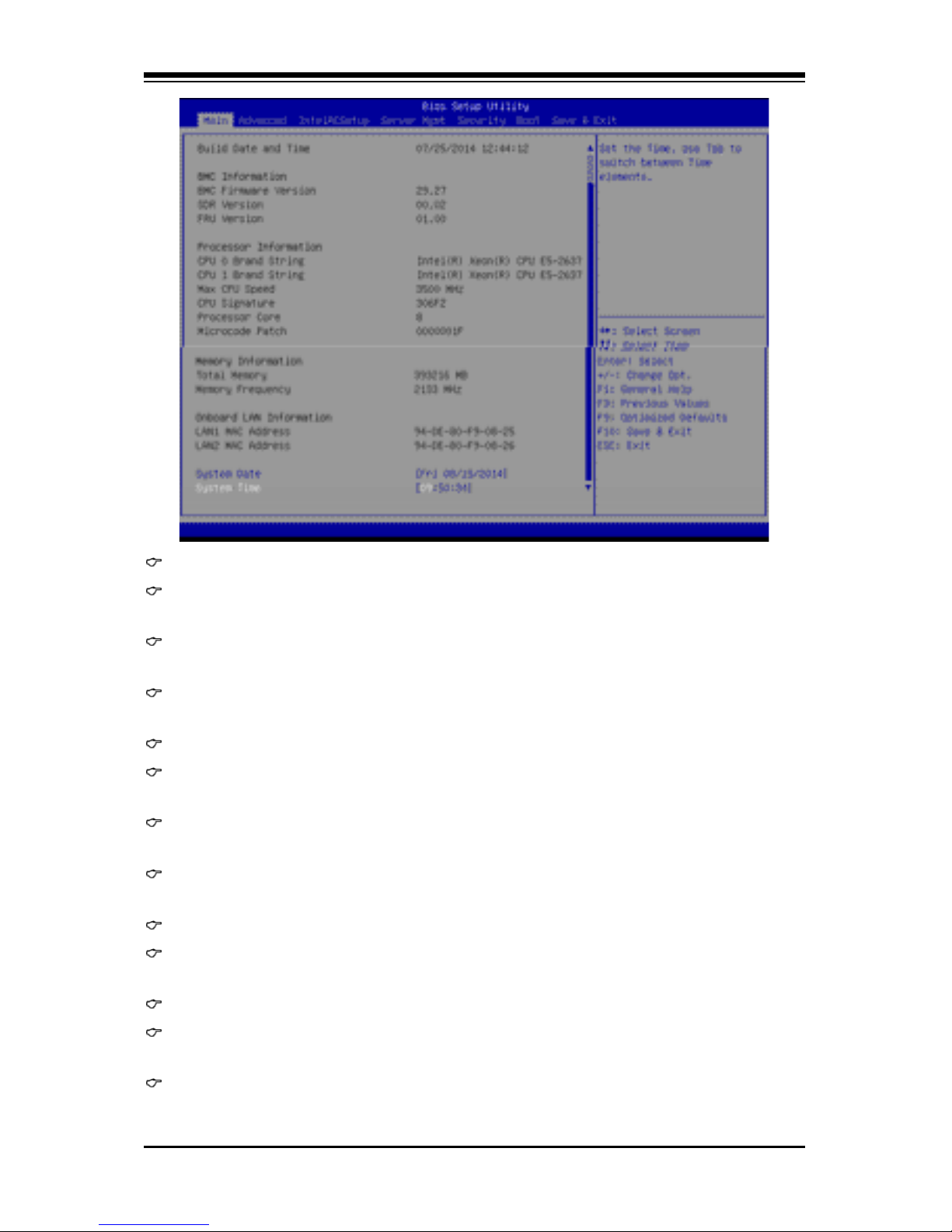

5-1 The Main Menu 51

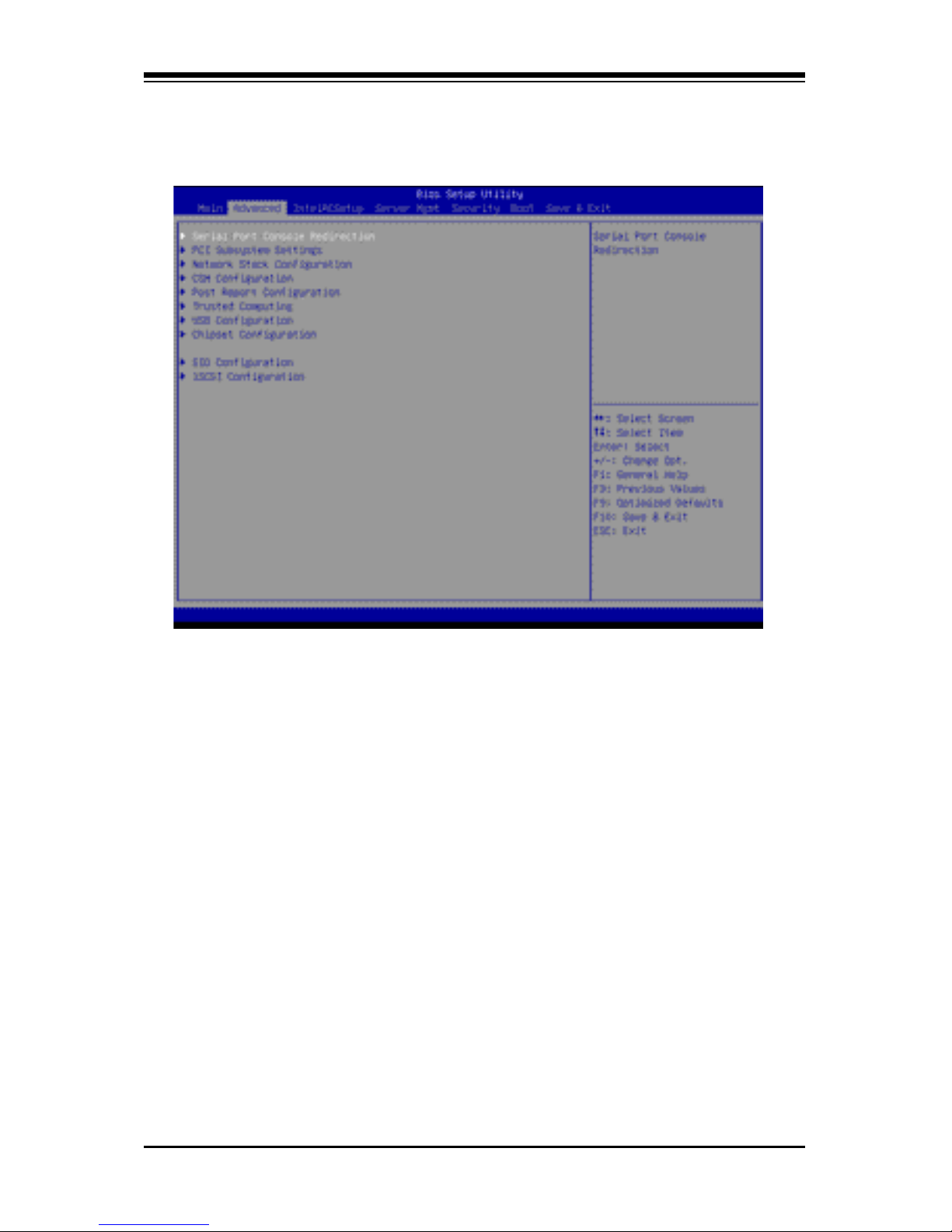

5-2 Advanced Menu 54

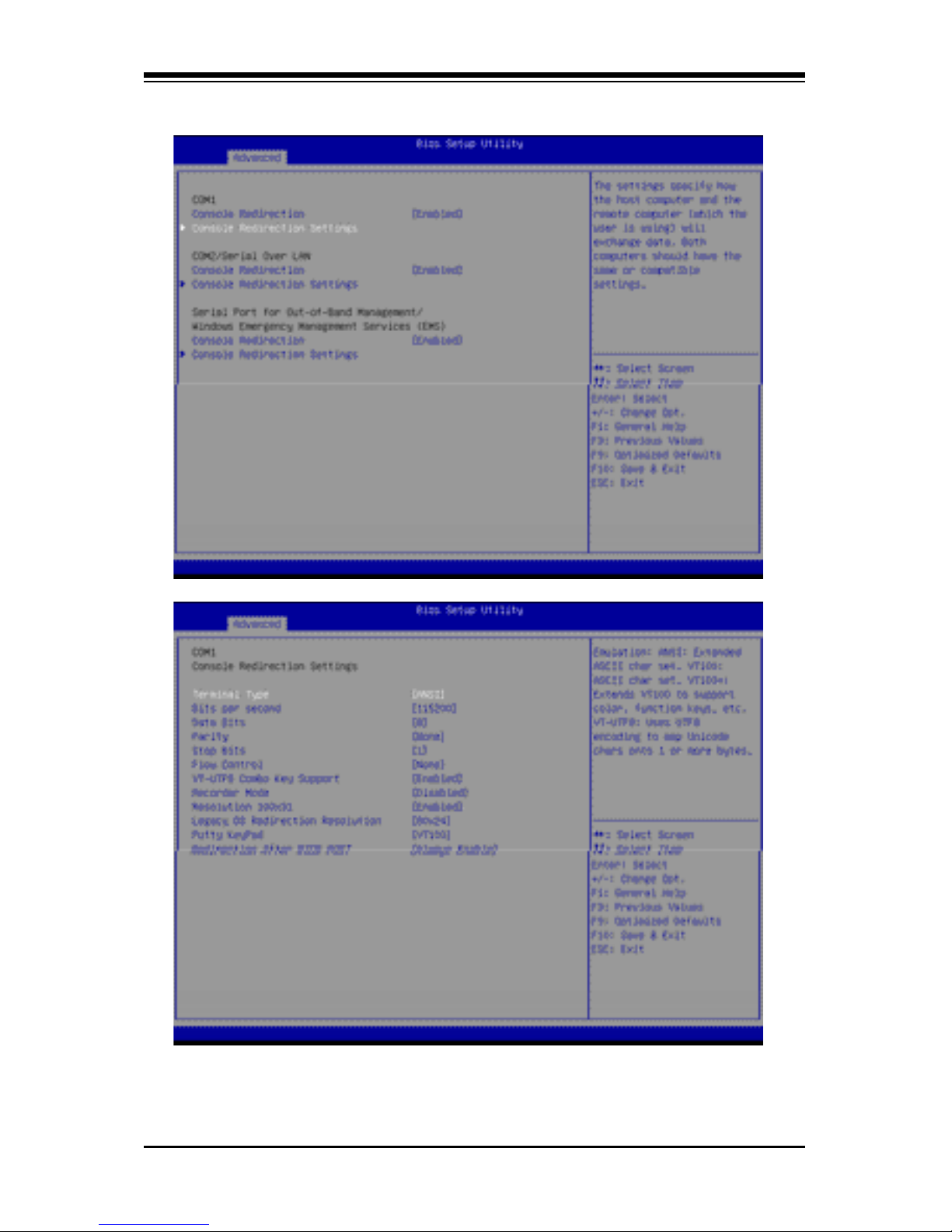

5-2-1 Serial Port Console Redirection 55

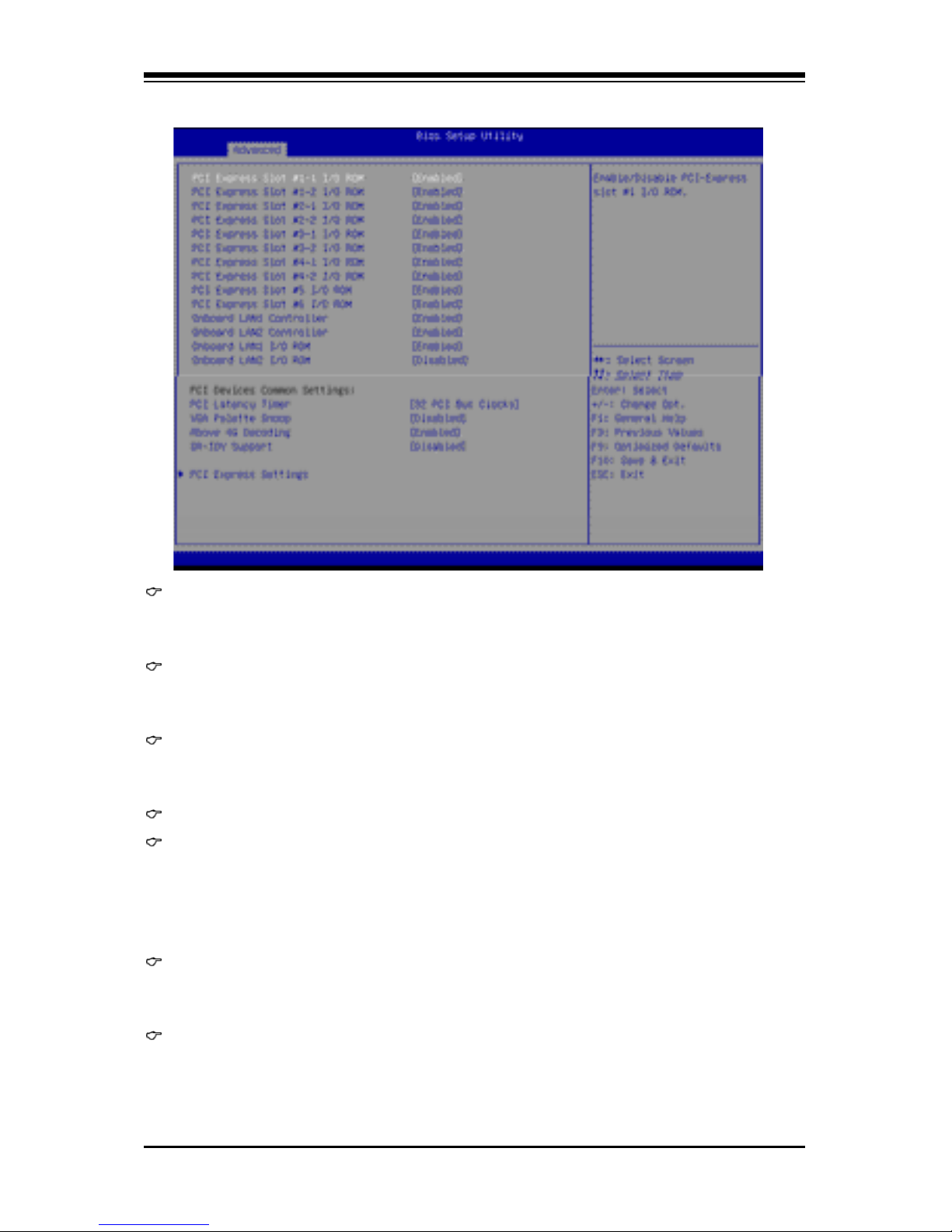

5-2-2 PCI Subsystem Settings 59

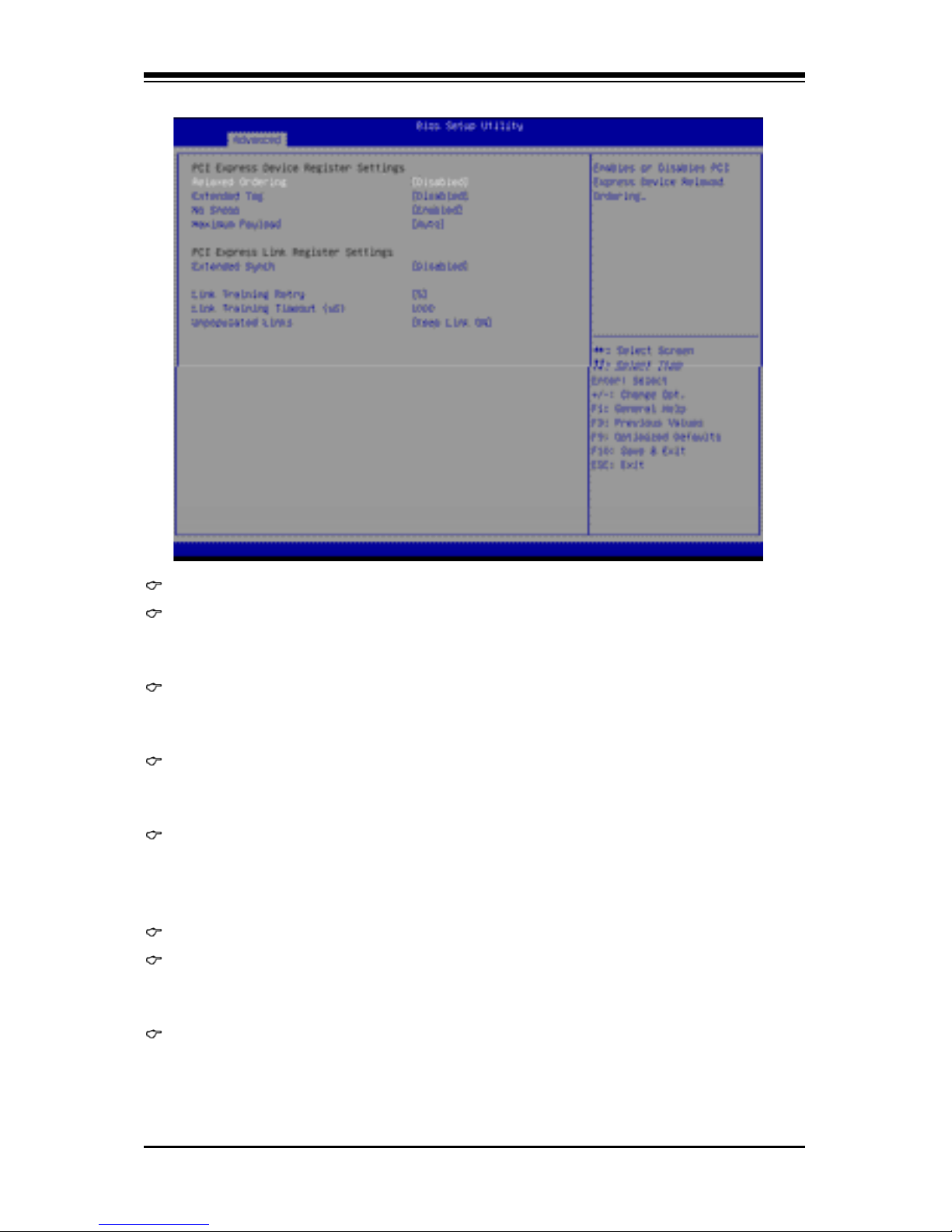

5-2-2-1 PCI Express Settings 61
- 6 -
5-4-1
5-4-2
5-4-3
System Event Log 117
View FRU Information 118
BMC network configuration 119
5 Security Menu 120
5-5-1 Secure Boot menu 121
5-5-1-1 Key Management 122
6 Boot Menu 124
7Save & Exit Menu 126
5-8 BIOS POST Codes 128
5-9 BIOS POST Beep code 132
5-9-1 PEI Beep Codes 132
5-9-2 DEX Beep Codes 132
5-10 BIOS Recovery Instruction 133
Relion 2908GT Chassis Manual
5-3-10-3 PCI/PCI Error Enabling 114
5-4 Server Management Menu 115
- 7 -
• The box contents above are for reference only and the actual items shall depend on the product package you obtain.
The box contents are subject to change without notice.
• T he motherboar d image is for reference only.
Relion 2908GT Chassis Manual
Box Contents
Relion 2908GT System
- 8 -
Safety, Care and Regulatory Informatio n
Important safety information
Read and follow all instructions marked on the product and in the documentation befor e you operateyour system. Retain all safety and operating instructions for future use.
• The product should be operated only from the type of power source indicated on the rating label.* If your
computer has a voltage selector switch, make sure that the switch is in the proper position foryour area.
The voltage selector switch is set at the factory to the correct voltage.
• The plug-socket combination must be accessible at all times because it serves as the main
disconnect- ing device.
• All product shipped with a three-wire electrical grounding-type plug only fits into a grounding-type
poweroutlet. This is a safety feature. The equipment grounding should be in accordance with local and
nationalelectrical codes. The equipment operates safely when it is used in accordance with its marked
electricalratings and product usage instructions
• Do not use this product near water or a heat source.* Set up the product on a stable work surface or so
as to ensure stability of the system.
• Openings in the case are provided for ventilation. Do not block or cover these openings. Make sure
youprovide adequate space around the system for ventilation when you set up your work area. Never
insertobjects of any kind into the ventilation openings.
• To avoid electrical shock, always unplug all power cables and modem cables from the wall outletsbefore
removing covers.
• Allow the product to cool before removing covers or touching internal components.
Precaution for Product with Laser Devices
Observe the following precautions for laser devices:
• Do not open the CD-ROM drive, make adjustments, or perform procedures on a laser device other
than those specified in the product's documentation.
• Only authorized service technicians shoul d repair laser devices.
Precaution for Product with Modems, Telecommunications, ot Local AreaNetwork Options
Observe the following precautions for laser devices:
• Do not connect or use a modem or telephone during a lightning storm. There may be a risk of
electri- calshock from lightning.
• To reduce the risk of fire, use only No. 26 AWG or larger telecommunicat ions line cord.
• Do not plug a modem or telephone cable into the network interface controller (NIC) receptacle.
• Disconnect the modem cable before opening a product enclosure, touching or installing internalcomponents, or touching an uninsulated modem cable or jack.
• Do not use a telephone line to report a gas leak while you are in the vicinity of the leak.
Relion 2908GT Chassis Manual
Relion 2908GT Chassis Manual
Federal Communications Commission (FCC) Statement
Warning
This is a class A product. In a domestic environment this product may cause radiointerferenceIn which case the user may be required to take adequate measures.
This equipment has been tested and found to comply with the limits for a Class A digital device,pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection againstharmful interference when the equipment is operated in a commercial environment. This equipmentgenerates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance withthe instruction manual, may
cause harmful interference to radio communications. Operation of thisequipment in a residential area is likely
to cause harmful interference in which case the user will berequired to correct the interference at his own expense.Properly shielded and grounded cables and connectors must be used in order to meet FCC emissionlimits. Neither the provider nor the manufacturer are responsible for any radio or television interferencecaused
by using other than recommended cables and connectors or by unauthorized changes ormodifications to this
equipment. Unauthorized changes or modifications could void
the user's authority tooperate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1)this device may not cause harmful interference, and
(2)this device must accept any interference received, including interference that may cause undesired operation.
Canadian Department of Communications Compliance Statement
This digital apparatus does not exceed the Class A limits for radio noise emissions from digitalapparatus as
set out in the radio interference regulations of Industry Canada.Le present appareil numerique n'emet pas
de bruits radioelectriques depassant les limites applicables auxappareils numeriques de Classe A prescrites
dans le reglement sur le brouillage radioelectrique edicte parIndustrie Canada.
Class A equipment
This device has been tested and found to comply with the limits for a class A digital device pursuantPart 15 of
the FCC Rules. These limits are designed to provide reasonable protection againstharmful interference when
the equipment is operated in a commercial environment. This equipmentgenerate, uses, and can radiate
radio frequency energy, and if not installed and used in accordancewith the instructions, may cause harmful
interference to radio communication. Operation of thisequipment in a residential area is likely to cause harmful interference, in which case the user will berequired to correct the interference at personal expence.
However, there is no guarantee that interference will not occur in a particular installation. If thisdevice does
cause harmful interference to radio or television reception, which can be determined bytuning the device off
and on, the user is encouraged to try to correct the interference by on or more ofthe following measures:
•
Reorient or relocate the receiving antenna
•
Increase the separation between the device and receiver
•
Connect the device into an outlet on a circuit different from that to which the receiver isconnected'Consult
the dealer or an experienced radi o/television technician for help.
- 9 -
- 10 -
Relion 2908GT Chassis Manual
WEEE Symbol Statement
The symbol shown below is on the product or on its packaging, which indicates that this product
must not be disposed of with other waste. Instead, the device should be taken to the waste
collection centers for activation of the treatment, collection, recycling and disposal procedure.
The separate collection and recycling of your waste equipment at the time of disposal will help to
conserve natural resources and ensure that it is recycled in a manner that protects human health
and the environment. For more information about where you can drop off your waste equipment for recycling,
please contact your local government office, your household waste disposal service or where you purchased
the product for details of environmentally safe recycling.
w When your electrical or electronic equipment is no longer useful to you, "take it back" to your local or
regional waste collection administration for recycling.
w If you need further assistance in recycling, reusing in your "end of life" product, you may contact us at the
Customer Care number listed in your
product's user's manual and we will be glad to help you with your
effort.
Battery Warning:
Incorrectly installing a battery or using incompatible battery may increase
the risk of ifre explosion. Replace the battery only with the same or equivalent type.
• Do not disassemble, crush, punchture batteries.
• Do not store or place your battery pack next to or in a heat source such as a fire, heatgenerating
appliance, can or exhaust vent. Heating battery cells to temperatures above 65
o
C (149oF) can
cause explosion or fire.
• Do not attempt to open or service batteries. Do not dispose of batteries in a fire or with household waste.
Hardware Installation - 11 -
Relion 2908GT Chassis Manual
1 Installation Precautions
The motherboard/system contain numerous delicate electronic circuits and components which
can become damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully
read the service guide and follow these procedures:
• Prior to installation, do not remove or break motherboard S/N (Serial Number) sticker or
warranty sticker prov ided by your dealer. These stickers are requir ed for warr anty
validation.
• Always remove the AC power by unplugging the power cord from the power outlet before
installing or removing the motherboard or other hardware components.
• When connecting hardware components to the internal connectors on the motherboard,
make sure they are connected tightly and secur ely.
• When handling the motherboard, avoid touching any metal leads or connector s.
• It is best to wear an electrostatic discharge (ESD) wrist strap when handling electronic
components such as a motherboard, CPU or memory. If you do not have an ESD wrist
strap, keep your hands dry and first touch a metal object to eliminate static electricity.
• Prior to installing the motherboard, please have it on top of an antistatic pad or within an
electrostatic shielding container.
• Before unplugging the power supply cable from the motherboard, make sure the power
supply has been turned off.
• Before turning on the power, make sure the power supply voltage has been set according to
the local voltage standard.
• Before using the product, please verify that all cables and power connectors of your
hardware components are connected.
• To prevent damage to the motherboard, do not allow screws to come in contact with the
motherboard circuit or its components.
• Make sure there are no leftover screws or metal components placed on the motherboard or
within the computer casing.
• Do not place the computer system on an uneven s ur fac e.
• Do not place the computer system in a high-temperature environment.
• Turning on the computer power during the installation process can lead to damage to
system components as w ell as physical harm to the user.
• If you are uncertain about any installation steps or have a problem related to the use of the
product, please consult a certified computer tec hnician.
Chapter 1 Hardware Installation
- 12 - Hardware Installation
Relion 2908GT Chassis Manual
1-2 Product Specifications
CPU Support for Intel® Xeon® E5-2600 V3 series processors in the LGA2011 package
L3 cache varies with CPU
Supports Dual QuickPath Interconnect up to 9.6GT/s
Enhanced Intel SpeedStep Technology (EIST)
Support Intel Virtualization Technology (VT)
Chipset
Intel
®
C612 (Wellsburg) Chipset
Memory 24 x 1.2V DDR4 DIMM sockets supporting up to 768GB RDIMM of system memory
24 x 1.2V DDR4 DIMM sockets supporting up to 1TB LRDIMM of system memory
Four channel memory architecture
DDR4 2133MHz RDIMM memory modules
DDR4 2133MHz LR-DIMM memory modules
Support for ECC RDIMM/LRDIMM memory modules
LAN Intel
®
82599ES supports dual 10G SFP+ ethernet LAN ports
1 x KVM management LAN port
Expansion Slot
8 x PCI Express x16 slots, running at x16 (Gen3/PCIE_1/PCIE_2/PCIE_3/
PCIE_4)
1 x PCI Express x16 slot, running at x8 (Gen3/MEZZ_1/Proprietary slot)
1 x PCI Express x8 slot, running at x8 (Gen3/MEZZ_2/Proprietary slot)
Onboard
Graphics
ASPEED
®
AST2400 supports 128MB DDR3 VRAM
Mass Storage 8 x 2.5” Hot-Swap SATA HDDs
Support for Intel IRSTe SATA RAID 0, RAID 1, RAID 5, RAID 10
System Fans
8 x 80x80x38mm 15000rpm
USB
Up to 4 USB 3.0 ports (2 on the back panel, 2 additional ports via the USB
brackets connected to the internal USB headers)
Internal
Connectors
1 x 18-pin main power connector
1 x 14-pin ATX 12V power connector
2 x 8-pin power connectors
2 x 4-pin 12V power connectors
10 x SATA 6Gb/s connectors
1 x Front panel header
1 x HDD back plane board header
1 x SATA SGPIO header
1 x sSATA SGPIO header
1 x Front VGA port header
1 x Serial port header
1 x USB 3.0 header
1 x TPM module connector
1 x RAID KEY header
1 x IPMB connector
* Penguin Computing reserves the right to make any changes to the product specifications and productrelated information without prior notice.
Hardware Installation - 13 -
Relion 2908GT Chassis Manual

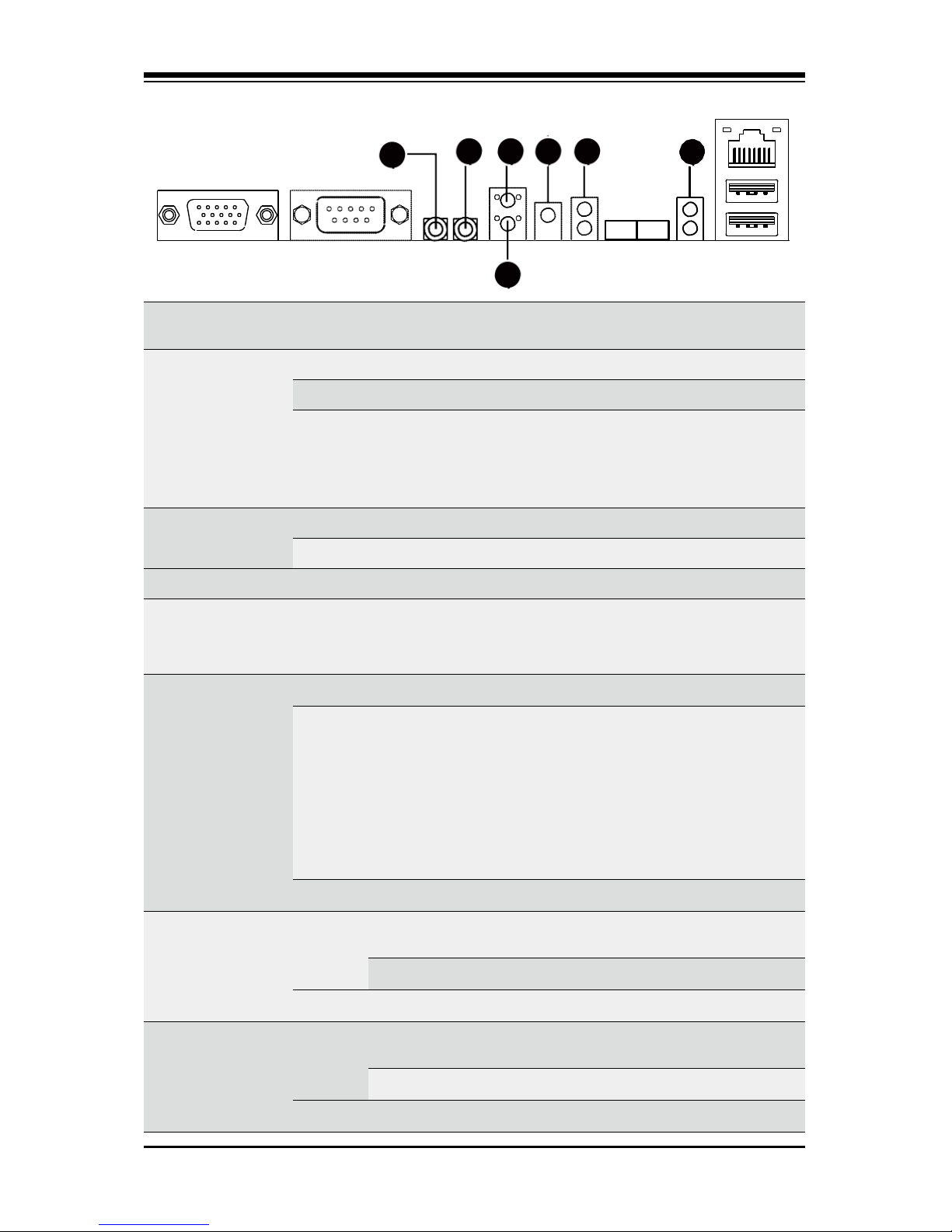

Rear Panel I/O 2 x USB 2.0/3.0 ports
2 x 10G SFP+ LAN ports
1 x 10/100/1000 dedicated management LAN port
1 x Serial port
1 x VGA port
1 x Power switch button
1 x ID switch button
1 x Reset button
1 x NMI button
1 x System status LED
2 x LAN Link/Active LED/1G/10G Speed LED (LAN1/LAN2)

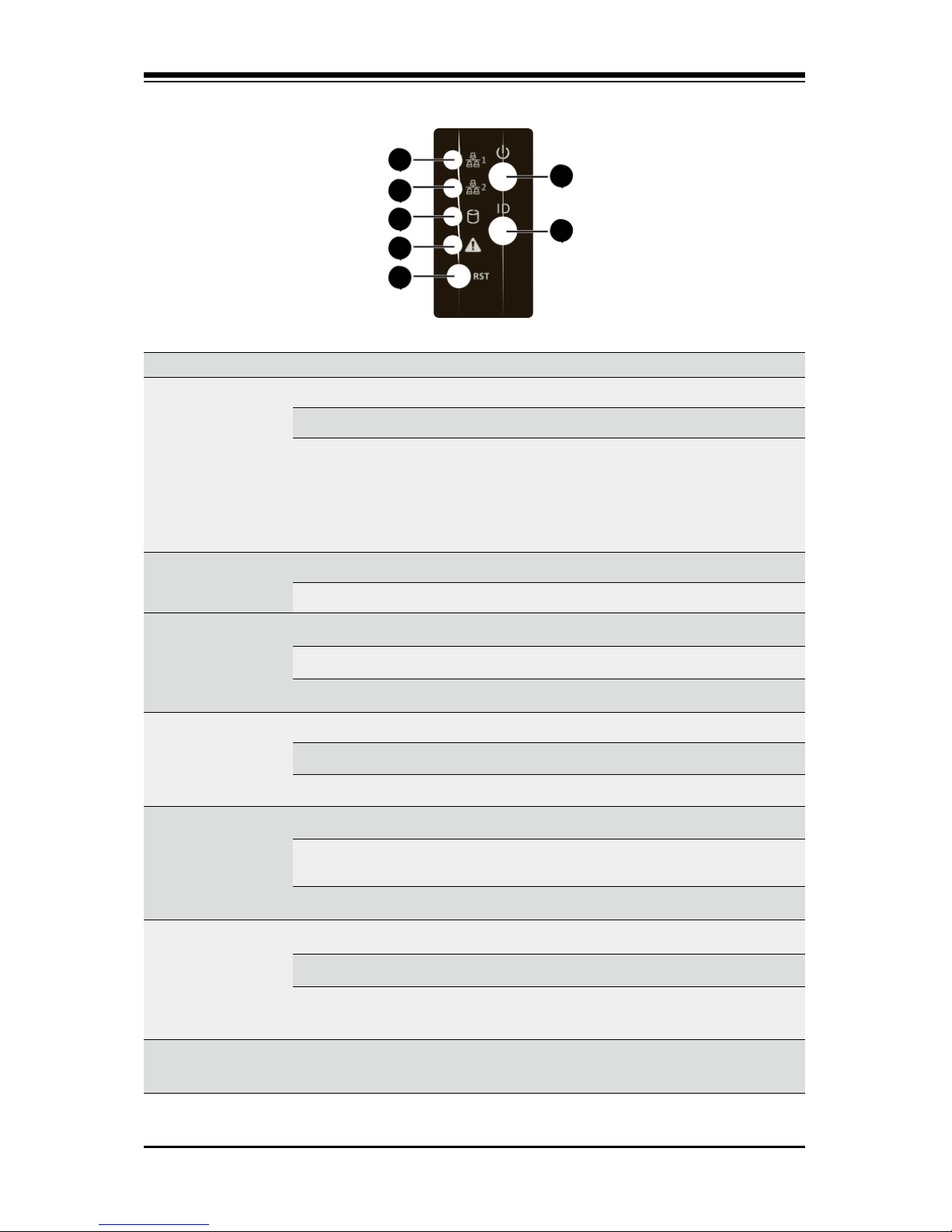

Front Panel
LED/Buttons
1 x Power button/LED
1 x ID button/LED
1 x Reset button
2 x LAN LED
1 x HDD Status LED
1 x System LED
I/O Controller
ASPEED
®
AST2400 BMC chip
Hardware
Monitor
System voltage detection
CPU/System temperature detection
BIOS
1 x 128 Mbit flash
AMI BIOS
Environment
Ambient
Temperature
Relative
Humidity
Operating Temperature: 10oC to 35oC
Non-operating Temperature: -40oC to 60oC
8-80% operating Humidity (Non-condensing)
20-95%Non-operating Humidity (Non-condensing)
System
Dimension
871Wx86Hx482D (mm)
Electrical
Power Supply
2 x Hot-plug 1U PSU 1600W at 80 plus Platinum level
AC input 100-127V: DC Output 1000W
AC input 200-240V: DC Output 1600W
Hardware Installation - 14 -
Relion 2908GT Chassis Manual
1-3 System Block Diagram
- 15 - Hardware Installation
Relion 2908GT Chassis Manual
Chapter 2 System Hardware Installation
Pre-installation Instructions
Perform the steps below before you open the server or before you remove or repl aceany
component.
• Back up all important system and data files before performing any hardwareconfiguration.
• Turn off the system and all the peripherals connected to it.
• Locate the pin one of the CPU. The CPU cannot be inserted if oriented incorrectly. (Or you may
locate the notches on both sides of the CPU and alignment keys on the CPU socket.)
• Apply an even and thin layer of thermal grease on the surface of the CPU.
• Do not turn on the computer if the CPU cooler is not installed, otherwise overheating and
damage of the CPU may occur.
• Set the CPU host frequency in accordance with the CPU specifications. It is not recommended
that the system bus frequency be set beyond hardware specifications since it does not meet the
standard requirements for the peripherals. If you wish to set the frequency beyond the standard
specifications, please do so according to your hardware specifications including the CPU,
graphics card, memory, hard drive, etc.
Hardware Installation - 16 -
Relion 2908GT Chassis Manual
1 Removing Chassis Cover
Before you remove or install the system cover
• Make sure the system is not turned on or connected to AC power.
Follow these instructions to remove the system cover:
1. Loosen and remove the screws securing the top cover.
2. Slide the back cover toward the rear of the chassis to disengage it.
2
1
1
- 17 - Hardware Installation
Relion 2908GT Chassis Manual
2-2 Removing and Installing the Fan Duct
Follow these instructions to remove/install the fan duct:
1. Lift up to remove the fan duct
2. To install the fan duct, align the fan duct with the guiding groove. Push down the fan duct into
chassis until its firmly seats
Hardware Installation - 18 -
Relion 2908GT Chassis Manual
3 Installing the CPU
Read the following guidelines before you begin to install the CPU:
• Make sure that the motherboard supports the CPU.
• Always turn off the computer and unplug the power cord from the power outlet before installing
the CPU to prevent hardware damage.
• Unplug all cables from the power outlets.
• Disconnect all telecommunication cables from their ports.
• Place the system unit on a flat and stable surface.
• Open the system according to the instructions.
WARNING!
Failure to properly turn off the server before you start installing components may cause serious
damage. Do not attempt the procedures described in t he following sections unless you are a
qualified service technician.
Follow these instructions to install the CPU:
1. Release then lift up the load lever.
2. Open the retention plate to expose the socket body.
3. Insert the CPU with the correct orientation.
4. Close the retention plate and close the lever to the locked position.
1
2
3
4
- 19 - Hardware Installation
Relion 2908GT Chassis Manual

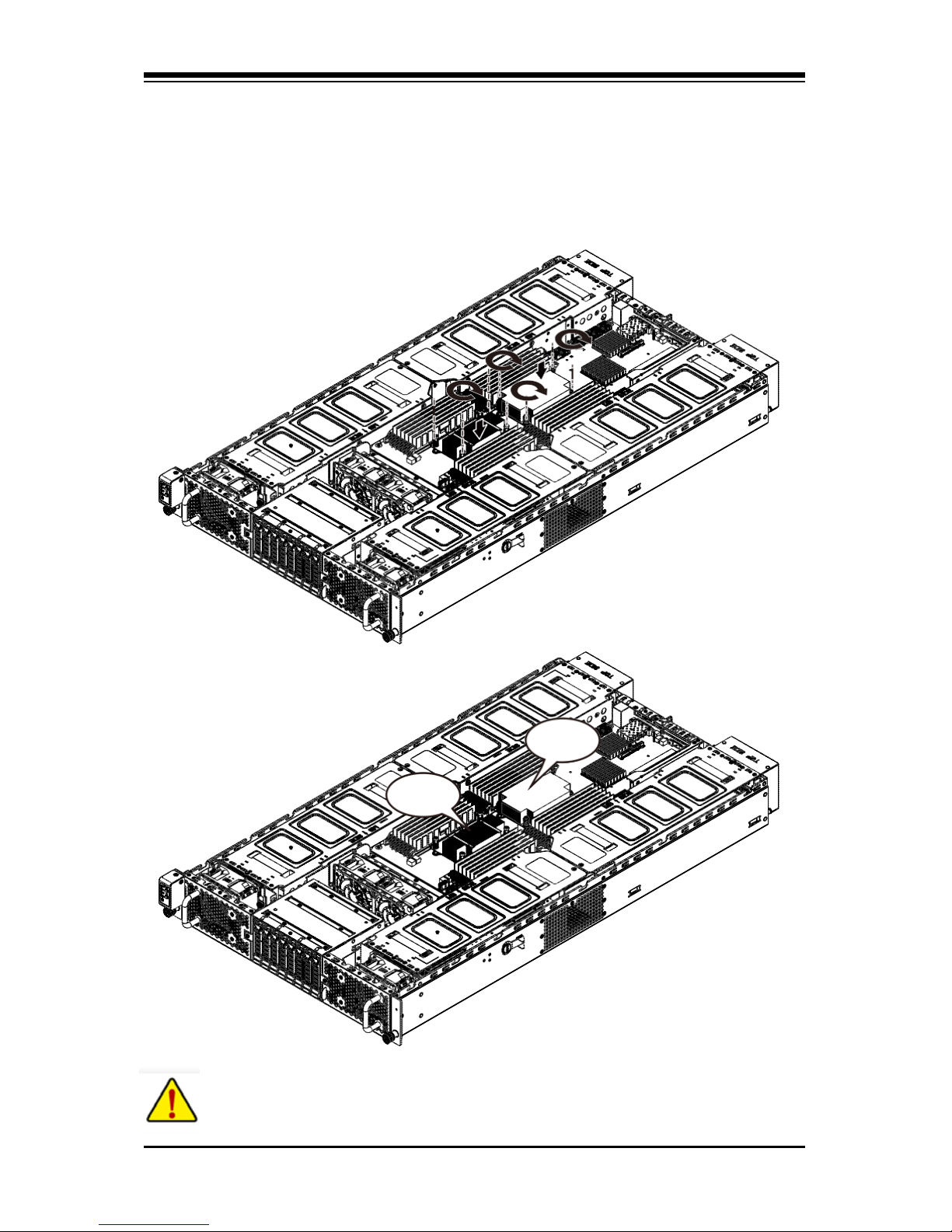

2-4 Installing the Heat Sink
Follow these instructions to install the heat sinks:
1. Apply thermal compound evenly on the top of the CPU.
2. Remove the protective cover from the underside of the heat sink.
3. Place the heat sink(s) on top of the CPU and tighten the four positioning screws.
CPU0 and CPU1 use the different CPU heat sinks. Please see the f ollowing table for installing
the correct CPU heat sink.
CPU0
CPU1
Hardware Installation - 20 -
Relion 2908GT Chassis Manual
CPU0 CPU1
P/N: 25ST1-523200-C1R P/N: 25ST1-443101-T4R
- 21 - Hardware Installation
Relion 2908GT Chassis Manual
5 Installing the Memory
Read the following guidelines before you begin to install the memory:
• Make sure that the motherboard supports the memory. It is recommended that memory of the
same capacity, brand, speed, and chips be used.
• Always turn off the computer and unplug the power cord from the power outlet before installing
the memory to prevent hardware damage.
• Memory modules have a foolproof design. A memory module can be installed in only one
direction. If you are unable to insert the memory, switch the direction.
2-5-1 Triple Channel Memory Configuration
The system provides 24 DDR4 memory sockets for per CPU and supports Triple Channel Technology. When
the memory is installed, the BIOS will automatically detect the specifications and capacity of the memory.
Enabling Triple Channel memory mode will be triple of the original memory bandwidth.
The twenty-four DDR4 memory sockets are divided into three channels each channel has two memory
sockets as following:
Channel 1: DIMM_P0_A0/DIMM_P0_A1/DIMM_P0_A2 (For pimary CPU);
DIMM_P1_E0/DIMM_P1_E1/DIMM_P1_E2 (For secondary CPU)
Channel 2: DIMM_P0_B0/DIMM_P0_B1/DIMM_P0_B2 (For pimary CPU);
DIMM_P1_F0/DIMM_P1_F1/DIMM_P1_F (For secondary CPU)
Channel 3: DIMM_P0_C0/DIMM_P0_C1/DIMM_P0_C2 (For pimary CPU);
DIMM_P1_G0/DIMM_P1_G1/DIMM_P1_G2 (For secondary CPU)
Channel 4: DIMM_P0_D0/DIMM_P0_D1/DIMM_P0_D2 (For pimary CPU);
DIMM_P1_H0/DIMM_P1_H1/DIMM_P1_H2 (For secondary CPU)
DIMM_P0_B2
DIMM_P0_B1
DIMM_P0_B0
DIMM_P0_A2
DIMM_P0_A1
DIMM_P0_A0
DIMM_P1_H2
DIMM_P1_H1
DIMM_P1_H0
DIMM_P1_G2
DIMM_P1_G1
DIMM_P1_G0
DIMM_P1_E0
DIMM_P1_E1
DIMM_P1_E2
DIMM_P1_F0
DIMM_P1_F1
DIMM_P1_F2
DIMM_P0_C0
DIMM_P0_C1
DIMM_P0_C2
DIMM_P0_D0
DIMM_P0_D1
DIMM_P0_D2
Type
Ranks Per
DIMM and
Data Width
Speed (MT/s);
Slot Per Channel (SPC) and DIMM Per Channel (DPC)
3 Slot Per Channel
1DPC 2DPC 3DPC
RDIMM SRx4 2133 1866 1600
RDIMM SRx8 2133 1866 1600
RDIMM DRx8 2133 1866 1600
RDIMM DRx4 2133 1866 1600
LRDIMM QRx4 2133 2133 1600
Hardware Installation - 22 -
Relion 2908GT Chassis Manual
2 Installing a Memory
Before installing a memory module, make sure to turn off the computer and unplug the power
cord from the power outlet to prevent damage to the memory module.
Be sure to install DDR3 DIMMs on this motherboard.
Follow these instructions to install the Memory:
1. Insert the DIMM memory module vertically into the DIMM slot, and push it down.
2. Close the plastic clip at both edges of the DIMM slots to lock the DIMM module.
3. Reverse the installation steps when you want to remove the DIMM module.
1
2
2
When only one DIMM is used, it must be populated in memory slot0 first.
Memory populated sequence must be followed with slot0/slot1/slot2.
System will not boot normally with incorrect populated sequence .
- 23 - Hardware Installation
Relion 2908GT Chassis Manual

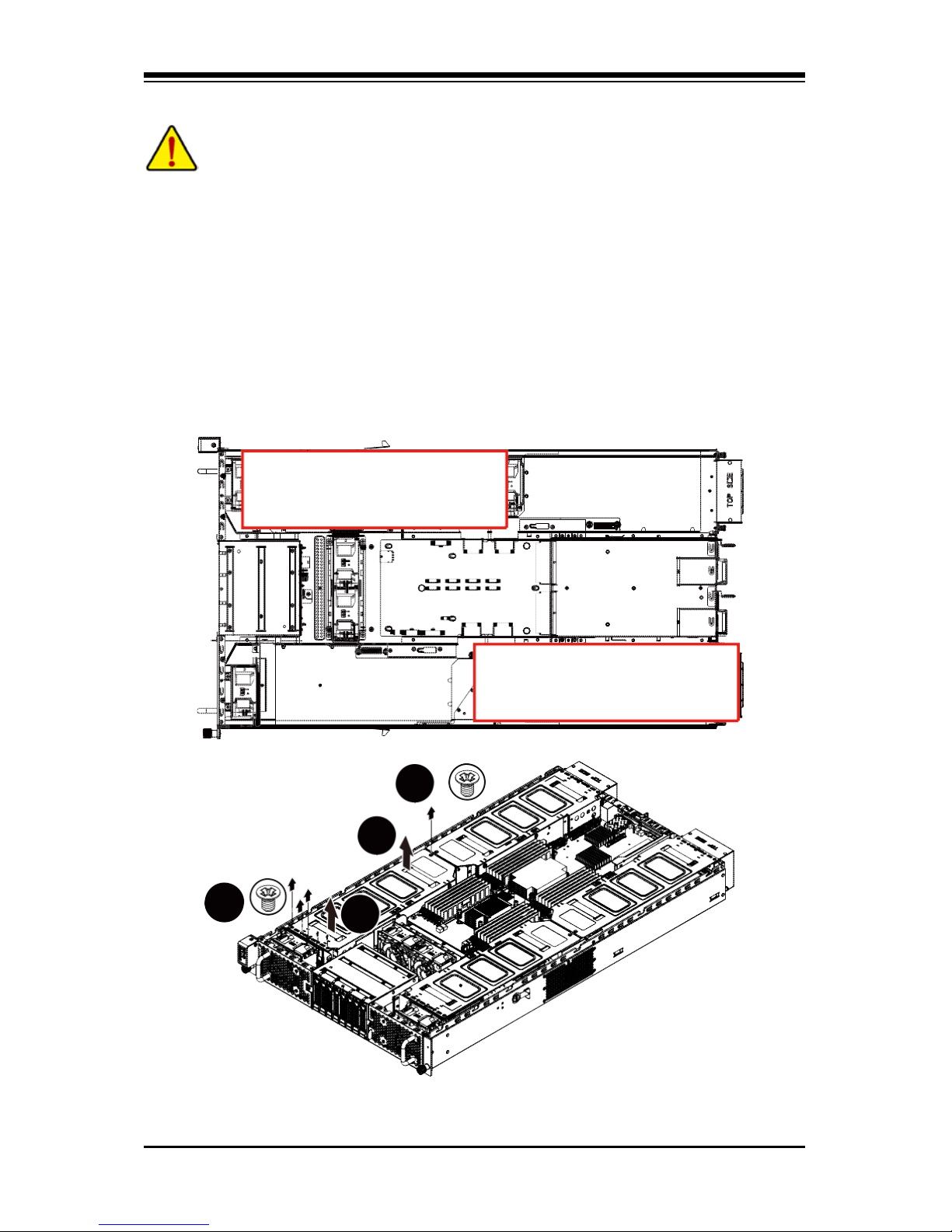

6 Installing the PCI Expansion Card
• Voltages can be present within the server whenever an AC power source is connected. This
voltage is present even when the main power switch is in the off position. Ensure that the system
is powered-down and all power sources have been disconnected from the server prior to installing
a PCI card.
Failure to observe these warnings could result in personal injury or damage to equipment.

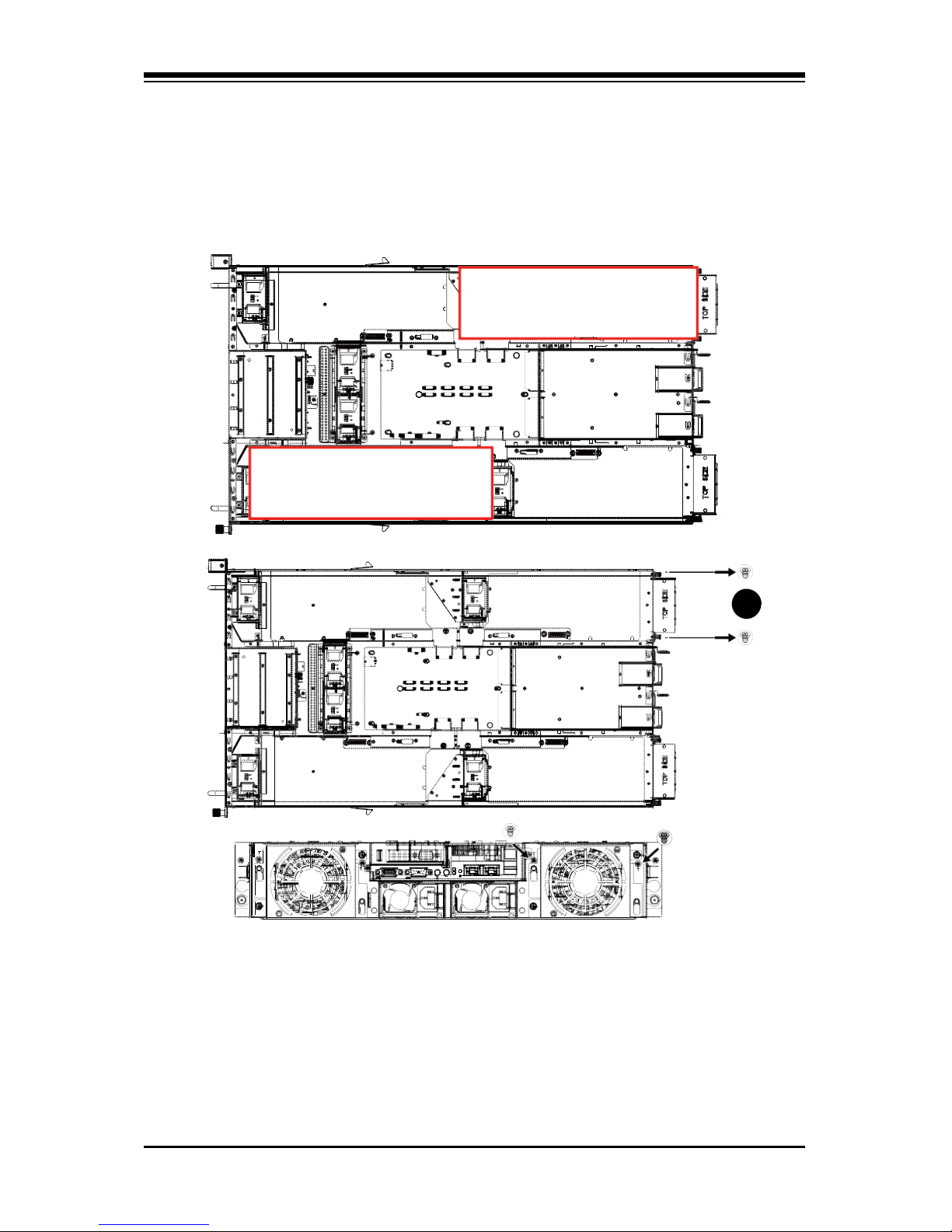

For GPU0/GPU1/GPU6/GPU7
Follow these instructions to install PCI Expansion card:
1. Loosen and remove the screws securing the PCI cage.
2. Pull the two plastic handles to lift up the PCI cage from the system.
3. Insert the card into the selected slot and secure the expansion car d with screw.
Make sure that the card is properly seated.
4. Secure the PCI expansion cards in place with screws.
Front Rear
Top: GPU Card #6 (Slot 1)
Bottom: GPU Card #7 (Slot 2)
Top: GPU Card #0 (Slot 1)
Bottom: GPU Card #1 (Slot 2)
1
2
2
1
- 24 - Hardware Installation

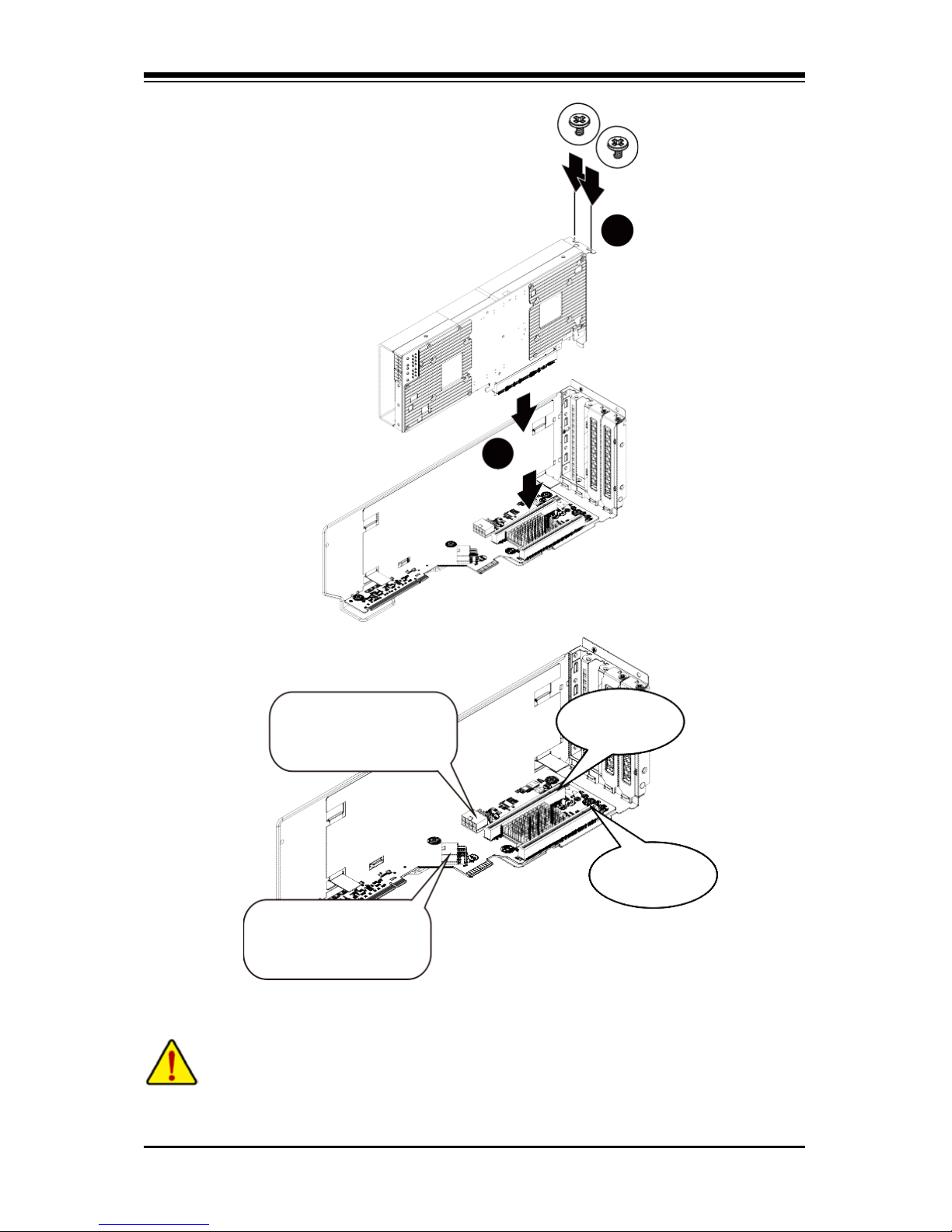

Relion 2908GT Chassis Manual

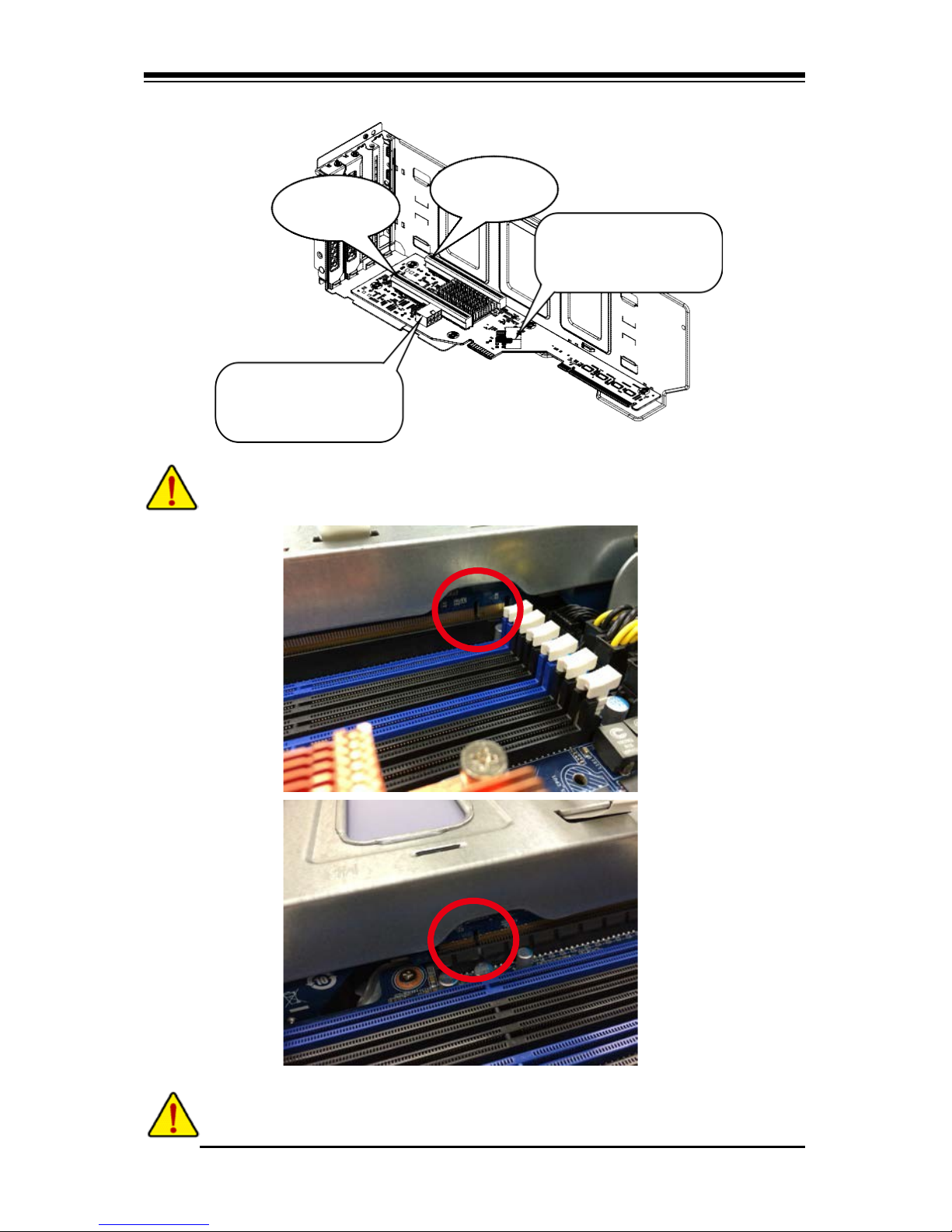

PCIE_2
(Slot 2)
2 x 3 Power cable
2 x 4 Power cable
For Slot 2
• If the GPGPU card supports 225W, connect 2 x 4 power cable.
• If the GPGPU card supports 300W, connect 2 x 4 and 2 x 3 power cables.
3
4
2 x 3 Power cable
2 x 4 Power cable
For Slot 1
PCIE_1
(Slot 1)
- 25 - Hardware Installation
Relion 2908GT Chassis Manual
For GPU2/GPU3/GPU4/GPU5
Follow these instructions to install PCI Expansion card:
1. Loosen and remove the screws securing the PCI cage.
2. Pull the two plastic handles to lift up the PCI cage from the system.
3. Insert the card into the selected slot and secure the expansion car d with screw.
Make sure that the card is properly seated.
4. Secure the PCI expansion cards in place with screws.
Top: GPU Card #5 (Slot 2)
Bottom: GPU Card #4 (Slot 1)
Front Rear
Top: GPU Card #3 (Slot 2)
Bottom: GPU Card #2 (Slot 1)
Front Rear
1
Hardware Installation - 26 -
Relion 2908GT Chassis Manual
2
1
3
4
Hardware Installation - 27 -
Relion 2908GT Chassis Manual
• If the GPGPU card supports 225W, connect 2 x 4 power cable.
• If the GPGPU card supports 300W, connect 2 x 4 and 2 x 3 power cables.
2 x 3 Power cable
2 x 4 Power cable
For Slot 1
• Please insert the PCI cage into the selected slot with the correct orientation. See illustrated below
for instruction.
PCIE_1
(Slot 1)
PCIE_2
(Slot 2)
2 x 3 Power cable
2 x 4 Power cable
For Slot 2
Hardware Installation - 28 -
Relion 2908GT Chassis Manual

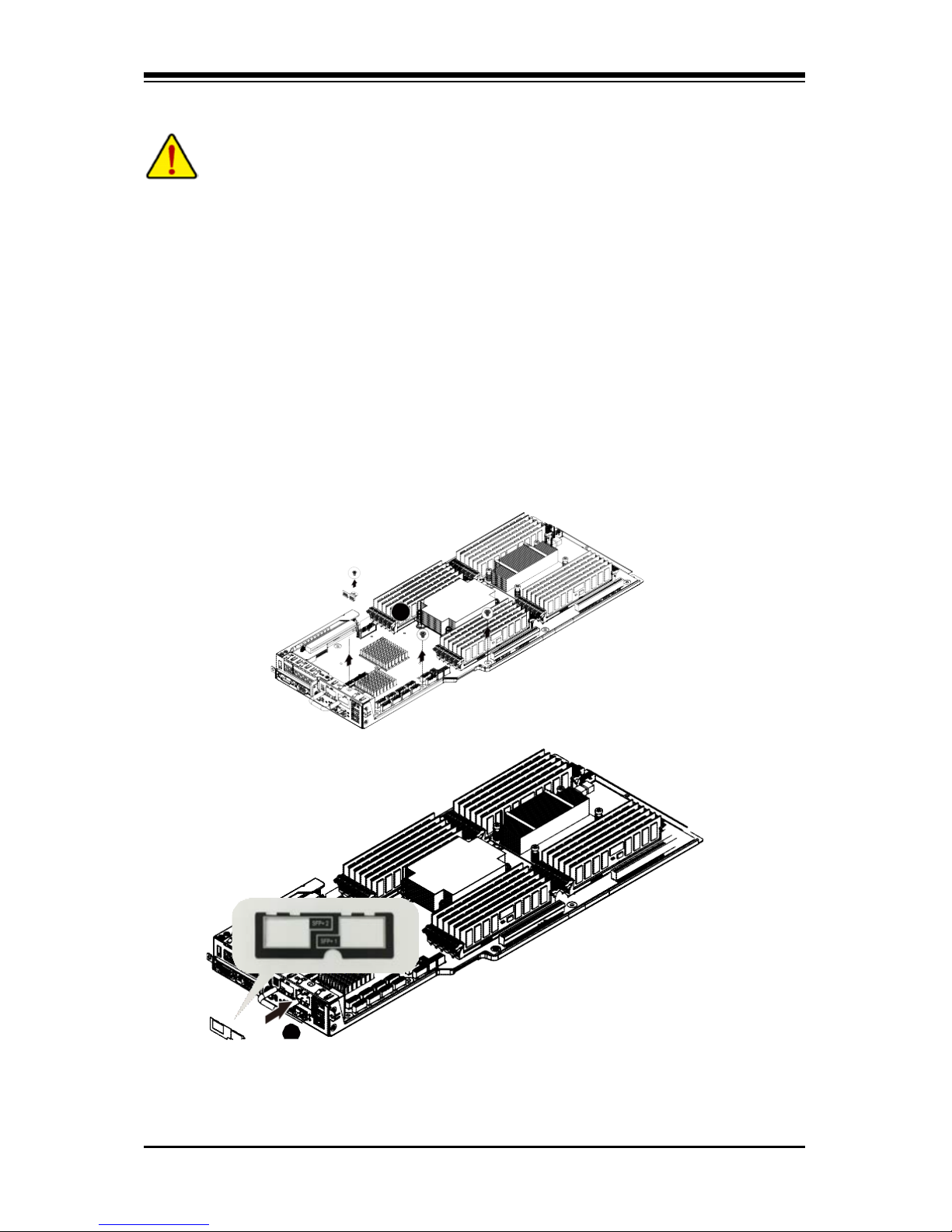

1 Installing Add-on Card (MNXE2/MEZZ_2/Optional)
• Voltages can be present within the server whenever an AC power source is connected. This
voltage is present even when the main power switch is in the off position. Ensure that the system
is powered-down and all power sources have been disconnected from the server prior to installing
a PCI card.
Failure to observe these warnings could result in personal injury or damage to equipment.
Follow these instructions to install Add-on card:
1. Remove the rear bracket.
2. Secure the stand-off on the motherboard with screws.
3. Attach the interposer card to the add-on card.
4. Insert the add-on card into the selected slot (MEZZ_2)and secure the card with screws. Make sure
that the card is properly seated.
5. Secure the add-on card in place with screws.
5
3
4
2
1
Hardware Installation - 29 -
Relion 2908GT Chassis Manual
2 Installing Add-on Card (MLIZS/MEZZ_2/Optional)
• Voltages can be present within the server whenever an AC power source is connected. This
voltage is present even when the main power switch is in the off position. Ensure that the system
is powered-down and all power sources have been disconnected from the server prior to installing
a PCI card.
Failure to observe these warnings could result in personal injury or damage to equipment.
Follow these instructions to install Add-on card:
1. Remove the rear bracket.
2. Attach the mylar in the direction of the arrow.
3. Insert the gasket in the direction of the arrow.
4. Secure the stand-off on the motherboard with screws.
5. Attach the interposer card to the add-on card.
6. Insert the add-on card into the selected slot (MEZZ_2)and secure the card with screws. Make sure
that the card is properly seated.
7. Secure the add-on card in place with screws.
1
2
Hardware Installation - 30 -
Relion 2908GT Chassis Manual
3
7
5
6
4
Hardware Installation - 31 -
Relion 2908GT Chassis Manual
7 Installing the Hard Disk Drive
Read the following guidelines before you begin to install the Hard disk drive:
• Take note of the drive tray orientation before sliding it out.
• The tray will not fit back into the bay if inserted incorrectly.
• Make sure that the HDD is connected to the HDD connector on the backplane.
Follow these instructions to install the Hard disk drive:
1. Press the release button.
2. Pull the locking lever to remove the HDD tray.
3. Slide hard disk into blank.
4. Secure the hard drive to the tray with four (4) screws as shown. Do not over tighten thescrews.
Slide the blank into the bay until it locks into place.
1
2
4
3
4
- 32 - Hardware Installation
Relion 2908GT Chassis Manual
8 Replacing the FAN Assemblly
CAUTION!
Before you remove or install the system fan cage, take the steps:
• Make sure the system is not turned on or connected to the AC power.
• Disconnect all necessary cable connections. Failure to observe these warnings could result in
personal injury or damage to the equipment.
GPU56E_FAN
GPU12E_FAN
GPU56_FAN
CAUTION!
• 225W GPGPU Cards x 8 and SATA HDDs x 8 are opeating under 35oC.
• 300W GPGPU Cards x 8 and SATA HDDs x 8 are opeating under 30oC.
GPU12_FAN
SYS_FAN2
SYS_FAN1
GPU34_FAN
GPU78_FAN
1
Hardware Installation - 33 -
Relion 2908GT Chassis Manual
3
Airflow
direction
- 34 - Hardware Installation
Relion 2908GT Chassis Manual

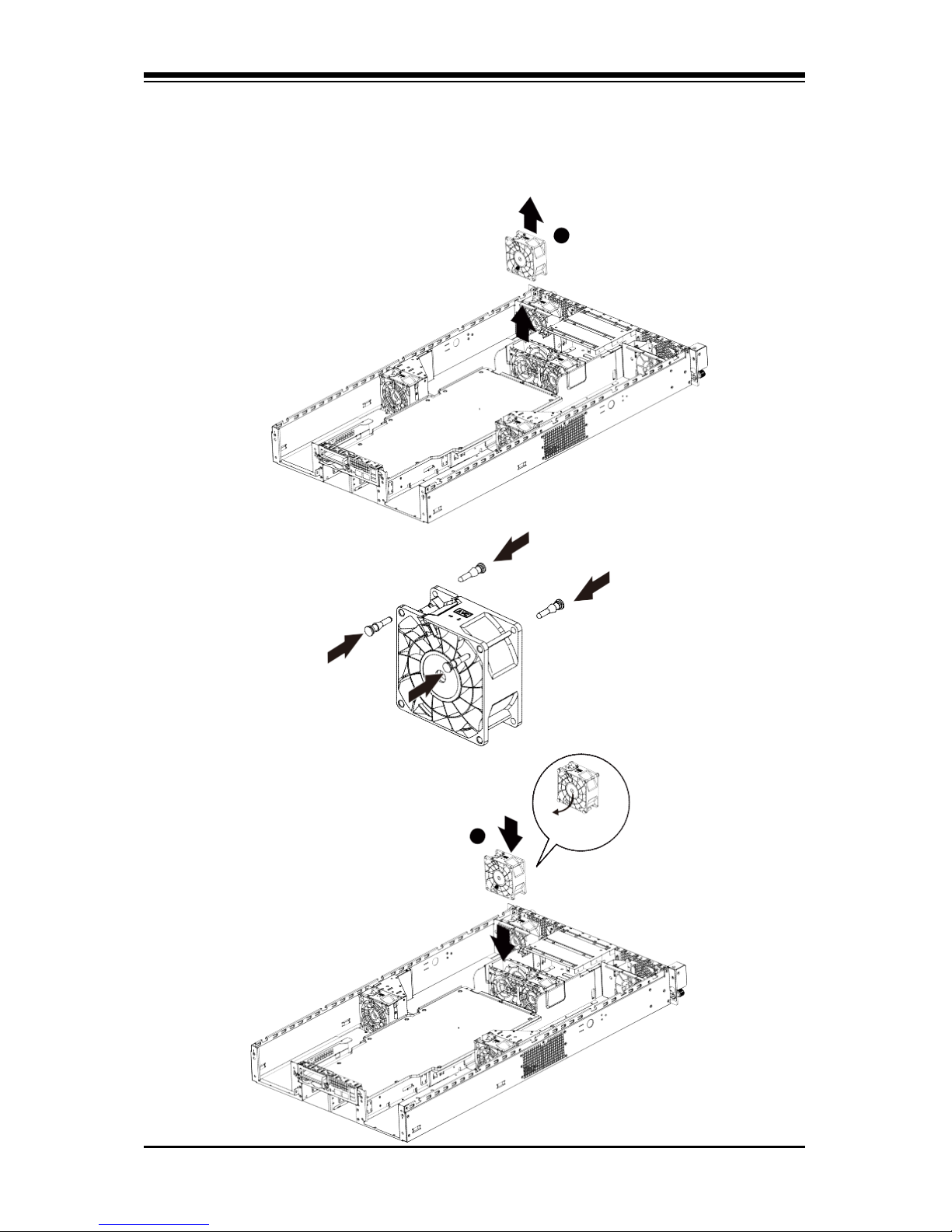

For SYS_FAN1/SYS_FAN2
Follow these instructions to replace the fan assembly:
1. Disconnect fan cable. Lift up the fan assembly from the chassis.
2. Attach the four rubbers on the system fan.
3. Reverse the previous step to install the replacement fan assembl y.
1
3
Airflow
direction
Hardware Installation - 35 -
Relion 2908GT Chassis Manual
For GPU12E_FAN/GPU56E_FAN (Smar t Fan)
Follow these instructions to replace the fan assembly:
1. Loosen and remove the screws securing the fan cage.
2. Remove the fan cage out of the system.
3. Loosen and remove the screws securing the fan.
4. Reverse the previous step to install the replacement fan assembl y.
1
1
1
2
2
1
3
5
5
5
Airflow direction
4
4
5
- 36 - Hardware Installation
Relion 2908GT Chassis Manual
CAUTION!
• To avoid fan cable damages, please make sure the fan cables are firmly seated in the groove.
Hardware Installation - 37 -
Relion 2908GT Chassis Manual

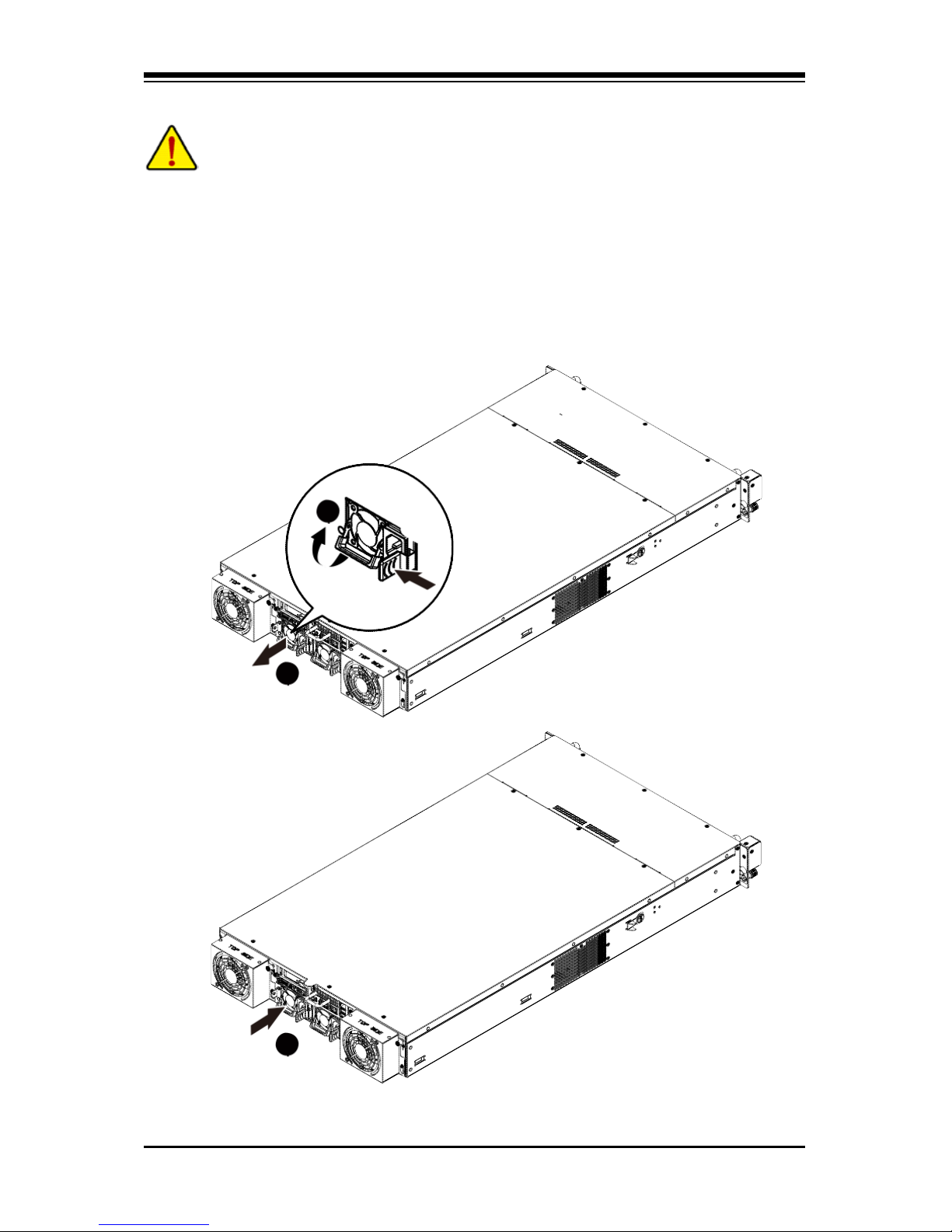

9 Replacing the Power Supply
CAUTION!
• In order to reduce the risk of injury from electric shock, disconnect AC power from the power
supply before removing it from the system.
Follow these instructions to replace the power supply:
1. Disconnect all power cables.
2. Pull up the power supply handle and press the retaining clip on the right side of the power supply
along the direction of the arrow. At the same time, pull out the power supply by using its handle.
3. Insert the replacement power supply firmly into the chassis. Connect the AC power cord to the
replacement power supply.
1
2
3
- 38 - Hardware Installation
Relion 2908GT Chassis Manual
Chapter 3 System Appearance
3-1 Front View
No. Decription
1. Front panel LED and buttons
2. System fan (GPU78_FAN)
3. 2.5-inch hard disk drive #1
4. 2.5-inch hard disk drive #2
5. 2.5-inch hard disk drive #3
6. 2.5-inch hard disk drive #4
7. 2.5-inch hard disk drive #5
8. 2.5-inch hard disk drive #6
9. 2.5-inch hard disk drive #7
10. 2.5-inch hard disk drive #8
11. System fan (GPU34_FAN)
Hardware Installation - 39 -
Relion 2908GT Chassis Manual
3-2 Rear View
No. Decription
1.
System fan (GPU12E_FAN)
2.
VGA port
3.
Serial port
4.
Power button/LED
5.
ID switch button
6.
Reset button (top)/NMI button (buttom)
7.
System status LED
8.
LAN1 Active/Link (top)/Speed (buttom)LEDs
9.
Dual 10G SFP+ LAN port
10.
LAN2 Active/Link (top)/Speed (buttom)LEDs
11.
10/100/1000 Server management LAN port
12.
USB 3.0 ports
13.
System fan (GPU56E_FAN)
14.
Power supply module cord socket
15.
Power supply fan
1 2
5
4
3
11
12
13
14 14
15
6
7
8
9
10
- 40 - Hardware Installation
Relion 2908GT Chassis Manual
3-3 Front Panel LED and Buttons
1
2
3
4
5
6
7
No. Name Color Status Description
Power button
1.
and LED
Green Solid On System is powered on.
Green Blink System is in ACPI S1 state (sleep mode)
• System is not powered on or in ACPI
S5
state (power off)
N/A Off
• System is in ACPI S4 state (hibernate
mode)
2.
ID Button
and LED
Blue Solid On System identification is active.
N/A Off System identification is disabled.
3.
LAN1
Activity LED
Green
Solid On Link between system and network
Green Blink Network access
N/A Off Disconnect/Idle
4.
LAN2
Activity LED
Green
Solid On Link between system and network
Green Blink Network access
N/A Off Disconnect/Idle
5.
HDD
Activity LED
Green Solid On HDD access
Green/ Blink
AMber Alternately
HDD rebuilding
Green Solid On HDD access
6.
System
Status LED
Green Solid On Running or normal operation
Amber Solid On There is at least one sensor that has critical alter.
N/A Off System is not ready.
7. Reset Button Press the button to reset the system.
Hardware Installation - 41 -
Relion 2908GT Chassis Manual
3-4 Rear System Button and LEDs
1
2 3 5 6
4
7
No. Name Color Status
Critical
Description
Event
Power button
1. and LED
Green Solid On N/A System is powered on
Green Blink N/A System is in ACPI S1 state (sleep mode)
N/A Off
• System is not powered on or in ACPI
S5
state (power off)
N/A
• System is in ACPI S4 state
(hibernate mode)
ID Button
2.
and LED
Blue Solid On N/A System identification is active.
N/A Off N/A System identification is disabled.
3. Reset Button Press the button to reset the system.
4. NMI button
Press the button server generates a NMI to the
processor if the multiple-bit ECC errors occur,
which effectively halt the server.
System
5.
Status LED
Green Solid On N/A Running or normal operation
Amber Solid On
There is at least one sensor that has critical
alter.When the LED is solid on, check the
following:
Yes • Power module failure
• System fan failure
• Power supply voltage issue
• System temperature/voltage issue
N/A Off N/A System is not ready.
LAN1 Active/
6.
Link LED
Green Solid On
Link between system and network
N/A
or no access
Blink N/A Data transmission or receiving is occurring
N/A Off
N/A No data transmission or receiving is occurring
LAN2 Active/
7.
Link LED
Green Solid On
Link between system and network
N/A
or no access
Blink N/A Data transmission or receiving is occurring
N/A Off
N/A No data transmission or receiving is occurring
- 42 - Hardware Installation
Relion 2908GT Chassis Manual
3-5 Hard Disk Drive LEDs
LED
NOTE!
(*1) Depend on HBA/Utility Spec.
(*2) Blink cycle depend on HDD’s activity signal.
(*3) If HDD is pulled out during rebuilding, Disk status of this HDD is regarded as
fault. (*4) Blink frequncy about : 2 Hz
RAID Color Locate
HDD
Fault
Rebuilding HDD Access
HDD Present
(No Access)
No RAID
configuration
(via HBA, PCH)
Disk LED
(LED on Back Panel)
Green On (*1) Off Blink (*2) Off
Amber Off Off Off Off
Removed HDD Slot
(LED on Back Panel)
Green On (*1) Off --- --Amber Off Off --- ---
RAID
configuration
(via HW RAID
Card or SW
RAID Card)
Disk LED Green On Off Alternately Blink (*2) Off
Amber Off On (Low speed @ 2Hz) Off Off
Removed HDD Slot
(Back Panel)
Green On Off (*3) --- --Amber Off On (*3) --- ---
Hardware Installation - 43 -
Relion 2908GT Chassis Manual

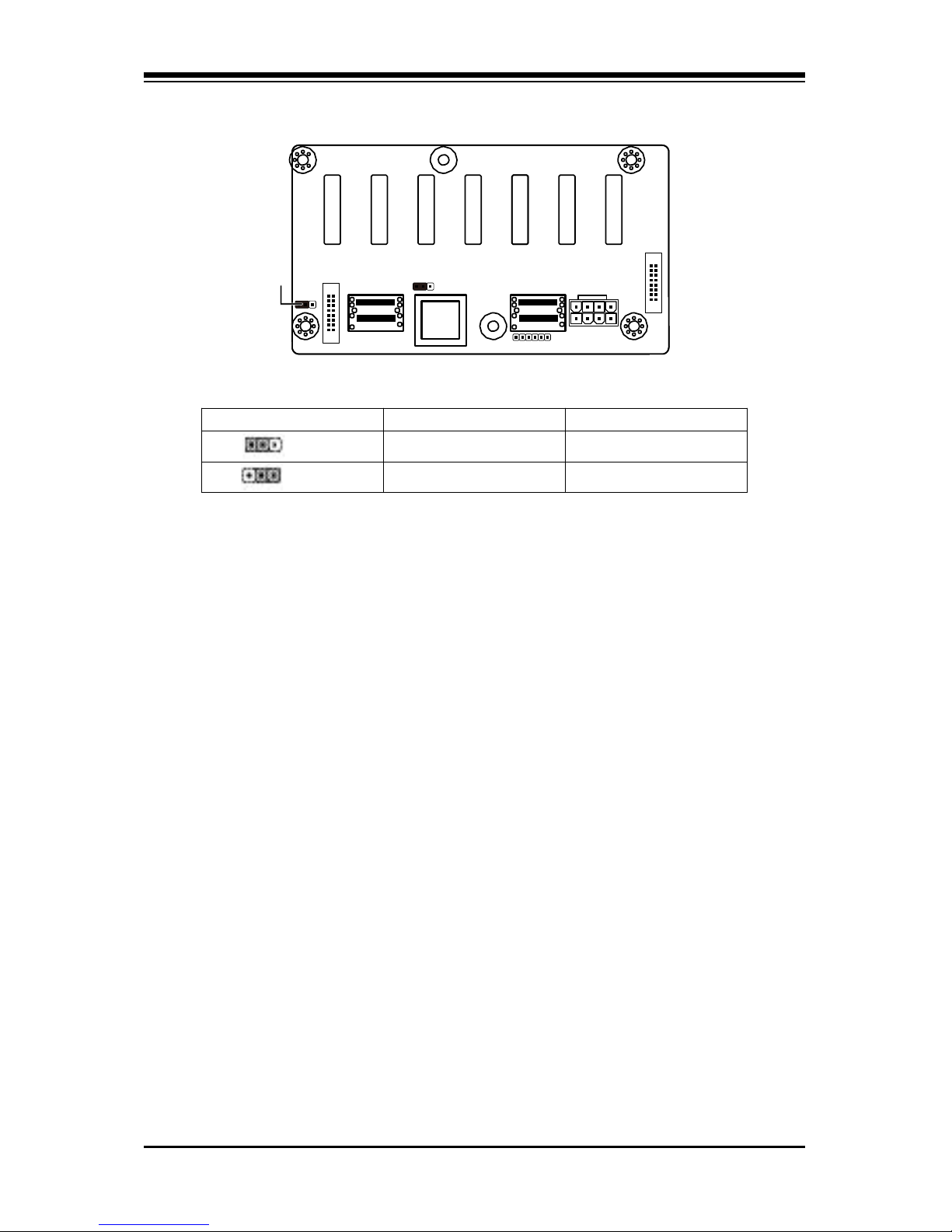

3-6 Hard Disk Back Plane Board Jumper Setting
SAS_4-7
SAS_0-3
BPB_PWR
BPB_CN_2
BPB_CN_2
A_SEL
B_SEL
A_SEL B_SEL
1-2Close SATA_HDD SATA_HDD
2-3 Close SAS_HDD SAS_HDD
- 44 - Hardware Installation
Relion 2908GT Chassis Manual
3-7 Cable Routing
1
1
1
6
5
4
2
2
7 8 5 6
7 8
9 9
9 9
9 9
9 9
9
9
3
10
10
3
8
9
9
4
No. Suggest Cable No. Suggest Cable
1. System main power cable 2. CPU 0 12V power cable
3. CPU 1 12V power cable 4. Front panel cable
5. Mini SAS cable #1 6. Mini SAS cable #2
7. HDD back plane board cable 8. HDD back plane board power cable
9. System fan power cable 10. M/B to PDB signal cable
Hardware Installation - 45 -
Relion 2908GT Chassis Manual
Chapter 4 Motherboard Components
4-1 MG50-G20 Motherboard Components
Item
1 VGA_1
2 F_VGA
3 COM2
4 IPMB
5 COM1
6 SW_PWR
7 SW_ID
8 MEZZ_2
9 SW_RST_NMI
10 LED_STA
11 LED_LAN1
12 SFP+_1_2
Code Description
Rear VGA port
Front VGA header
Front serial port header
IPMB connector
Rear serial port
Power button/LED
ID switch button
Mezzine slot 2 (x8 slot/Proprietary/Running at x8)
Reset button (top)/NMI button (buttom)
System status LED
LAN1 Active/Link (top)/Speed (buttom)LEDs
Dual SFP+ LAN ports
13 LED_LAN2 LAN2 Active/Link (top)/Speed (buttom)LEDs
14USB3_MLAN
15SSATA_SGP 16
SSATA0/1/2/3
17 FP_1
18 SATA_SGP
19 SATA0/1/2/3/4/5
20 ATX1_2
21 F_USB3
22 ATX1_1
23 DIMM_P0_A0
24 DIMM_P0_A1
25 DIMM_P0_A2
BMC management LAN port (top)/USB 3.0 ports
(buttom)
sSATA SGPIO header
sSATA 6Gb/s connectors
Front panel header (primary)
SATA SGPIO header
SATA 6Gb/s connectors
4 pin power connector
USB 3.0 header
14 pin power connector
Channel 1 slot 0 (for primary CPU)
Channel 1 slot 1 (for primary CPU)
Channel 1 slot 2 (for primary CPU)
2
5
6
7
9
10
1
3
4
8
11
12
13
14
16
17
18
223
29 30
38
39
44
43
42
41
40
45
59 52
63 62 61 60
72 70 68 66 64
71 69 67 65
73
21
31
20
15
23
24
25
28
27
26
58
57
56
55
53
54
37
36
35
34
33
32
46
47
48
49
50
51
19
- 46 - Hardware Installation
Relion 2908GT Chassis Manual
26 DIMM_P0_B0 Channel 2 slot 0 (for primary CPU)
27 DIMM_P0_B1 Channel 2 slot 1 (for primary CPU)
28 DIMM_P0_B2 Channel 2 slot 2 (for primary CPU)
29 CPU0 Intel LGA2011 Socket R (Primary CPU)
30 CPU1 Intel LGA2011 Socket R (Secondary CPU)
31 PCIE_3 PCI-E slot 3 (x16 slot)
32 DIMM_P1_H2 Channel 4 slot 2 (for secondary CPU)
33 DIMM_P1_H1 Channel 4 slot 1 (for secondary CPU)
34 DIMM_P1_H0 Channel 4 slot 0 (for secondary CPU)
35 DIMM_P1_G2 Channel 3 slot 2 (for secondary CPU)
36 DIMM_P1_G1 Channel 3 slot 1 (for secondary CPU)
37 DIMM_P1_G0 Channel 3 slot 0 (for secondary CPU)
38 PCIE_4 PCI-E slot 4 (x16 slot)
39 BP_1 HDD back plane board header
40 ATX2_2 8 pin power connector
41 ATX2_1 8 pin power connector
42 ATX2_3 4 pin power connector
43 FP_2 Front panel hearder (secondary)
44 PMBUS_SEL PMBus Power Select jumper
45 PCIE_2 PCI-E slot 2 (x16 slot)
46 DIMM_P1_F2 Channel 2 slot 2 (for secondary CPU)
47 DIMM_P1_F1 Channel 2 slot 1 (for secondary CPU)
48 DIMM_P1_F0 Channel 2 slot 0 (for secondary CPU)
49 DIMM_P1_E2 Channel 1 slot 2 (for secondary CPU)
50 DIMM_P1_E1 Channel 1 slot 1 (for secondary CPU)
51 DIMM_P1_E0 Channel 1 slot 0 (for secondary CPU)
52 PCIE_1 PCI-E slot 1 (x16 slot)
53 DIMM_P0_C0 Channel 3 slot 0 (for primary CPU)
54 DIMM_P0_C1 Channel 3 slot 1 (for primary CPU)
55 DIMM_P0_C2 Channel 3 slot 2 (for primary CPU)
56 DIMM_P0_D0 Channel 4 slot 0 (for primary CPU)
57 DIMM_P0_D1 Channel 4 slot 1 (for primary CPU)
58 DIMM_P0_D2 Channel 4 slot 2 (for primary CPU)
59 SSI_2X9P 18 pin main power connector
60 CLR_CMOS Clear CMOS jumper
61 BAT Battery socket
62 TPM TPM module connector
63 SW_RAID Software RAID Key jumper
64 S3_MASK S3 Power On Select jumper
65 BIOS_WP BIOS write protect jumper
66 BIOS_PWD Clearing Supervisor Password jumper
67 ME_RCVR ME recovry jumper
68 BMC_FRB Force to Stop FRB Timer jumper
69 BIOS_RCVR BIOS recovery jumper
- 47 - Hardware Installation
Relion 2908GT Chassis Manual
70 ME_UPDATE ME update jumper
71 CASE_OPEN Chassis intrusion header
72 MEZZ_1 Mezzine slot 1 (x16 slot/Proprietary/Running at x8)
73 LED_BMC
BMC firmware readiness LED
On: BMC frmware is initial
Blinking: BMC frmware is ready
Off: System is powered off
Hardware Installation - 48 -
Relion 2908GT Chassis Manual
4-2 Jumper Setting
8 6 4
1
2
9 7 5 3
No. Jumper Code Jumper Setting
PMBUS_SEL
1. (PMBus Power
Select Jumper)
1-2 Close: PMBus connects to PCH.
2-3 Close: PMBus connects to BMC. (Default setting)
2.
CLR_CMOS
(Clearing CMOS Jumper)
1-2 Close: Normal operation (Default setting)
2-3 Close: Clear CMOS data
3.
S3_MASK (S3 Power
On Select Jumper)
1-2 Close: Stop an initial power on when BMC is not ready.
2-3 Close: Keep initial power on. (Default setting)
BIOS_WP
4. (BIOS Write Protect
Jumper)
1-2 Close: Normal operation. (Default setting)
2-3 Close: Enable BIOS write protect function.
BIOS_PWD
5. (Clearing Supervisor
Password Jumper)
1-2 Close: Normal operation (Default setting)
2-3 Close: Clear supervisor password.
6.
ME_RCVR
(ME Recovery Jumper)
1-2 Close: Normal operation (Default setting)
2-3 Close: ME recovery mode.
BMC_FRB
7. (Force to Stop FRB
Timer Jumper)
1-2 Close: Normal operation (Default setting)
2-3 Close: Force to Stop FRB Timer.
8.
BIOS_RCVR
(BIOS Recovery Jumper)
1-2 Close: Normal operation (Default setting)
2-3 Close: BIOS recovery mode.
9.
ME_UPDATE
(ME recovery Jumper)
1-2 Close: ME recovery mode.
2-3 Close: Normal operation. (Default setting)
- 49 - BIOS Setup
Relion 2908GT Chassis Manual
BIOS (Basic Input and Output System) records hardware parameters of the system in the EFI on the
motherboard. Its major functions include conducting the Power-On Self-Test (POST) during system startup,
saving system parameters and loading operating system, etc. BIOS includes a BIOS Setup program that
allows the user to modify basic system configuration settings or to activate certain system features. When the
power is turned off, the battery on the motherboard supplies the necessary power to the CMOS to keep the
configuration values in the CMOS.
To access the BIOS Setup program, press the <F2> key during the POST when the power is turned on.
Chapter 5 BIOS Setup
• BIOS flashing is potentially risky, if you do not encounter problems of using the current BIOS
version, it is recommended that you don't flash the BIOS. To flash the BIOS, do it with
caution. Inadequate BIOS flashing may result in system malfunction.
• It is recommended that you not alter the default settings (unless you need to) to prevent system
instability or other unexpected results. Inadequately altering the settings may result in system's
failure to boot. If this occurs, try to clear the CMOS values and reset the board to default values.
(Refer to the Exit section in this chapter or introductions of the battery/clearing CMOS jumper in
Chapter 1 for how to clear the CMOS values.)
BIOS Setup Program Function Keys
<f ><
g >
Move the selection bar to select the screen
<h><i
>
Move the selection bar to select an item
<+> Increase the numeric value or make changes
<-> Decrease the numeric value or make changes
<Enter> Execute command or enter the submenu
<Esc>
Main Menu: Exit the BIOS Setup program
Submenus: Exit current submenu
<F1> Show descriptions of general help
<F3> Restore the previous BIOS settings for the current submenus
<F9> Load the Optimized BIOS default settings for the current submenus
<F10> Save all the changes and exit the BIOS Setup program
BIOS Setup - 50 -
Relion 2908GT Chassis Manual
Main
This setup page includes all the items in standard compatible BIOS.
Advanced
This setup page includes all the items of AMI BIOS special enhanced features.
(ex: Aut o detect fan and temperature status, automatically configure hard disk parameters. )
Intel RC Setup
This setup page includes all the submenu options for configuring the function of processor, network,
North Bridge, South Bridge, and System event logs.
Server Management
Server additional features enabled/disabled setup menus.
Security
Change, set, or disable supervisor and user password. Configuration supervisor password allows you to
restrict access to the system and BIOS Setup.
A superviso r password allows you to make changes in BIOS Setup.
A user password only allows you to view the BIOS settings but not to make changes.
Boot
This setup page provides items for configuration of boot sequence.
Exit
Save all the changes made in the BIOS Setup program to the CMOS and exit BIOS Setup. (Pressing
<F10> can also carry out this task.)
Abandon all changes and the previous settings remain in effect. Pressing <Y> to the confirmation
message will exit BIOS Setup. (Pressing <Esc> can also carry out this task.)
- 51 - BIOS Setup
Relion 2908GT Chassis Manual
1 The Main Menu
Once you enter the BIOS Setup program, the Main Menu (as shown below) appear s on the screen. Use
arrow keys to move among the items and press <Enter> to accept or enter other sub-menu.
Main Menu Help
The on-screen description of a highlighted setup option is displayed on the bottom line of the Main Menu.
Submenu Help
While in a submenu, press <F1> to display a help screen (General Help) of function keys available for the
menu. Press <Esc> to exit the help screen. Help for each item is in the Item Help block on the right side
of the submenu.
• When the system is not stable as usual, select the Restore Defaults item to set your system to
its defaults.
• The BIOS Setup menus described in this chapter are for reference only and may differ by BIOS
version.
BIOS Information
Porject Name
Display the project name information.
Porject Version
Display version number of the BIOS setup utility.
BIOS Build Date and Time
Displays the date and time when the BIOS setup utility was created.
BMC Information
BMC Firmware Version
Display version number of the Firmware setup utility.
SDR Version
Display the SDR version information.
FRU Version
Display the FRU version information.
Processor Information
CPU Brand String/Max CPU Speed/CPU Signature/Processors Core/Microcode Patch
Displays the technical specifications for the installed processor.
Memory Information
Total Memory
Display the total memory size of the installed memory.
Memory Frequency
Display the frequency information of the installed memory.
BIOS Setup - 52 -
Relion 2908GT Chassis Manual
- 53 - BIOS Setup
Relion 2908GT Chassis Manual
Onboard LAN Information
LAN1/LAN2 MAC Address
Display LAN1/LAN2 MAC address information.
System Date
Set the date following the weekday-month-day- year format.
System Time
Set the system time following the hour-minute- second format.
BIOS Setup - 54 -
Relion 2908GT Chassis Manual
5-2 Advanced Menu
The Advanced menu display submenu options for configuring the function of various hardware components.
Select a submenu item, then press Enter to access the related submenu screen.
- 55 - BIOS Setup
Relion 2908GT Chassis Manual
5-2-1 Serial Port Console Redirection
BIOS Setup - 56 -
Relion 2908GT Chassis Manual
- 57 - BIOS Setup
(Note) Advanced items prompt when this item is defined.
Relion 2908GT Chassis Manual
COM1/COM2/Serial Over LAN Console Redirection Settings
Console Redirection
(Note)
Select whether to enable console redirection for specified device. Console redirection enables users to
manage the system from a remote location.
Options available: Enabled/Disabled. Default setting is Disabled.
Console Redirection Settings
Terminal Type
Select a terminal type to be used for console redirection.
Options available: VT100/VT100+/ANSI /VT-UTF8. Default setting is ANSI.
Bits per second
Select the baud rate for console redirection.
Options available: 9600/19200/38400/57600/115200. Default setting is 115200.
Data Bits
Select the data bits for console redirection.
Options available: 7/8. Default setting is 8.
Parity
A parity bit can be sent with the data bits to detect some transmission errors.
Even: parity bi is 0 if the num of 1's in the data bits is even.
Odd: parity bit is 0 if num of 1's in the data bits is odd.
Mark: parity bit is always 1. Space: Parity bit is always 0.
Mark and Space Parity do not allow for error detection.
Options available: None/Even/Odd/Mark/Space. Default setting is None.
Flow Control
Flow control can prevent data loss from buffer overflow. When sending data, if the receiving buffers are
full, a 'stop' signal can be sent to stop the data flow. Once the buffers are empty, a 'start' signal can be
sent to re-start the flow. Hardware flow control uses two wires to send start/stop signals.
Options available: None/Hardware RTS/CTS. Default setting is None.
Stop Bits
Stop bits indicate the end of a serial data packet. (A start bit indicates the beginning). The standard
setting is 1 stop bit. Communication with slow devices may require more than 1 stop bit.
Options available: 1/2. Default setting is 1.
VT-UTF8 Combo Key Support
(Note)
Enable/Disable VT-UTF8 Combo Key Support.
Options available: Enabled/Disabled. Default setting is Enabled.
Recorder Mode
(Note)
When this mode enabled, only text will be send. This is to capture Terminal data.
Options available: Enabled/Disabled.
Resolution 100x31
(Note)
Enables or disables extended terminal resolution. Default setting is Enabled.
Options available: Enabled/Disabled.
(Note) Advanced items prompt when this item is defined.
BIOS Setup - 58 -
Relion 2908GT Chassis Manual
Legacy OS Redirection Resolution
(Note)
On Legacy OS, the number of Rows and Columns supported redirection.
Options available: 80x24/80X25. Default setting is 80x24.
Putty KeyPad
(Note)
Select function FunctionKey and KeyPad on Putty.
Options available: VT100/LINUX/XTERMR6/SCO/ESCN/VT400. Default setting is VT100.
Redirection After BIOS POST
(Note)
This option allows user to enable console redirection after O.S has loaded.
Options available: Always Enable/Boot Loader. Default setting is Always Enable.
Out-of-Bnad Mgmt Port
Microsoft Windows Emerency Management Service (EMS) allows for remote management of a Windows
Server OS through a serial port.
Options available: COM1/COM2. Default setting is COM1.
- 59 - BIOS Setup
Relion 2908GT Chassis Manual
5-2-2 PCI Subsystem Settings
PCI Express Slot #1-1/#1-2/#2-1/#2-2/#3-1/#3-2/#4-1/#4-2/#5/#6 I/O ROM
When enabled, This setting will initialize the device expansion ROM for the related PCI-E slot.
Options available: Enabled/Disabled. Default setting is Enabled.
Onboard LAN#1/#2 Controller
Enable/Disable onboard LAN devices.
Options available: Enabled/Disabled. Default setting is Enabled.
Onboard LAN #1/#2 I/O ROM
Enable/Disable onboard LAN devices and initialize device expansion ROM.
Options available: Enabled/Disabled. Default setting is Disabled.
PCI Devices Common Settings
PCI Latency Timer
Val ue to be programmed into PCI Latency Timer Register.
Options available: 32 PCI Bus Clocks/64 PCI Bus Clocks/96 PCI Bus Clocks/128 PCI Bus Clocks/160
PCI Bus Clocks/192 PCI Bus Clocks/224 PCI Bus Clocks/248 PCI Bus Clocks/.
Default setting is 32 PCI Bus Clocks.
VGA Palette Snoop
Enable/Disable VGA Palette Tegisters Snooping.
Options available: Enabled/Disabled. Default setting is Disabled.
Above 4G Decoding
Enable/Disable Above 4G Decoding.
Options available: Enabled/Disabled. Default setting is Enabled.
BIOS Setup - 60 -
Relion 2908GT Chassis Manual
SR-IOV Support
If system has SR-IOV capable PCIe Devices, this option enables or disables Single Root IO
Virtualization Support.
Options available: Enabled/Disabled. Default setting is Disabled.
PCI Express Settings
Press [Enter] for configuration of advanced items.
- 61 - BIOS Setup
Relion 2908GT Chassis Manual
5-2-2-1 PCI Express Settings
PCI Express Device Register Settings
Relaxed Ordering
Enable/DIsable PCI Express Device Relaxed Ordering feature.
Options available: Enabled/Disabled. Default setting is
Disabled.
Extended Tag
Wnen this feature is enabled, the system will allow device to use 8-bit Tag field as a requester.
Options available: Enabled/Disabled. Default setting is Disabled.
No Snoop
Enable/Disable PCI Express Device No Snoop option.
Options available: Enabled/Disabled. Default setting is Enabled.
Maximum Playload
Set maximum playload for PCI Express Device or allow system BIOS to select the value.
Options available: Auto/128 Bytes/256 Bytes/512 Bytes/1024 Bytes/2048 Bytes/4096 Bytes.
Default setting is Auto.
PCI Express Link Register Settings
Extended Synch
Wnen this feature is enabled, the system will allow generation of Extended Synchronization patterns.
Options available: Enabled/Disabled. Default setting is Disabled.
Link Training Retry
Define the number of Retry Attempts software wil take to retrain the link if previous training attempt was
unsuccessful. Press <+> / <-> keys to increase or decrease the desired val ues.
BIOS Setup - 62 -
Relion 2908GT Chassis Manual
Link Training Timeout (us)
Define the number of Microseconds software will wait before polling 'Link Training' bit in Link Status
register. Press <+> / <-> keys to increase or decrease the desired values. Value rang is from 10 to
10000 us.
Unpopulated Links
When this item is set to 'Disable Link, the system will operate power save feature for those unpopulated
PCI Express links.
Options available: Keep Link ON/ Disable Link. Default setting is Keep Link ON.
(Note) This item appears when Network Stack is set to Enabled.
- 63 - BIOS Setup
Relion 2908GT Chassis Manual
5-2-3 Network Stack
Network stack
Enable/Disable UEFI network stack.
Options available: Enabled/DIsabled. Default setting is Disabled.
Ipv4 PXE Support
(Note)
Enable/Disable Ipv4 PXE feature.
Options available: Enabled/DIsabled. Default setting is Enabled.
Ipv6 PXE Support
(Note)
Enable/Disable Ipv6 PXE feature.
Options available: Enabled/DIsabled. Default setting is Enabled.
PXE boot wait time
(Note)
Press <+> / <-> keys to increase or decrease the desired values.
Media detect time
(Note)
Press <+> / <-> keys to increase or decrease the desired values.
BIOS Setup - 64 -
Relion 2908GT Chassis Manual
5-2-4 CSM Configuration
Compatibility Support Module Configuration
CSM Support
Enable/Disable Compatibility Support Module (CSM) support.
Options available: Enabled/Disabled. Default setting is Enabled.
CSM16 Module Version
Display CSM Module version information.
Gate20 Active
Upon Request: GA20 can be disabled using BIOS services.
Always: Do not allow disabling GA20; this option is useful when any RT code is executed above 1MB.
Options available: Upon Request/Always. Default setting is Upon Request.
Option ROM Messages
Option ROM Messages.
Options available: Force BIOS/Keep Current. Default setting is Force BIOS.
INT19 Endless Retry
Enabled: Al lowed headless retry boot
Options available: Enabled/Disabled. Default setting is Enabled.
Boot option filter
Determines which devices system will boot to.
Options available: UEFI and Legacy/Legacy only/UEFI only. D e fa u lt setting is UEFI and Legacy.
- 65 - BIOS Setup
Relion 2908GT Chassis Manual
Option ROM execution
Network
Controls the execution UEFI and Legacy PXE OpROM.
Options available: Do not launch/UEFI/Legacy. Default setting is Legacy.
Storage
Controls the execution UEFI and Legacy Storage OpR O M .
Options available: Do not launch/UEFI/Legacy. Default setting is Legacy.
Video
Controls the execution UEFI and Legacy Vi deo O pR O M .
Options available: Do not launch/UEFI/Legacy. Default setting is Legacy.
Other PCI devices
Determines OpROM execution policy for devices other than network, Storage, or Video.
Options available: UEFI/Legacy. Default setting is UEFI.
BIOS Setup - 66 -
Relion 2908GT Chassis Manual
5-2-5 Post Report Configuration
Post Report Configuration
Error Message Report
Post Error Message
Enable/Disable Info Error Message support.
Options available: Enabled/Disabled. Default setting is Enabled.
- 67 - BIOS Setup
Relion 2908GT Chassis Manual
5-2-6 Trusted Computing
Configuration
Security Device Support
Select Enabled to activate TPM support feature.
Options available: Enabled/Disabled. Default setting is Disabled.
Current Status Information
Display current TPM status information.
(Note) This item is present only if you attach USB types of device.
BIOS Setup - 68 -
Relion 2908GT Chassis Manual
5-2-7 USB Configuration
USB Configuration
USB Devices:
Display the USB devices connected to the system.
XHCI Hand-off
Enable/Disable XHCI (USB 3.0) Hand-off support.
Options available: Enabled/Disabled. Default setting is Enabled.
EHCI Hand-off
Enable/Disable EHCI (USB 2.0) Hand-off function.
Options available: Enabled/Disabled. Default setting is Disabled.
USB Mass Storage Driver Support
(Note)
Enable/Disable USB Mass Storage Driver Support.
Options available: Enabled/Disabled. Default setting is Enabled.
Port 60/64 Emulation
Enable I/O port 60h/64h emulation support. This should be enabled for the complete USB Keyboard
Legacy support for non-USB aware OS.
Options available: Enabled/Disabled. Default setting is Enabled.
(Note) When the power policy is controlled by BMC, please wait for 15-20 seconds for BMC to save the
last power state.
- 69 - BIOS Setup
Relion 2908GT Chassis Manual

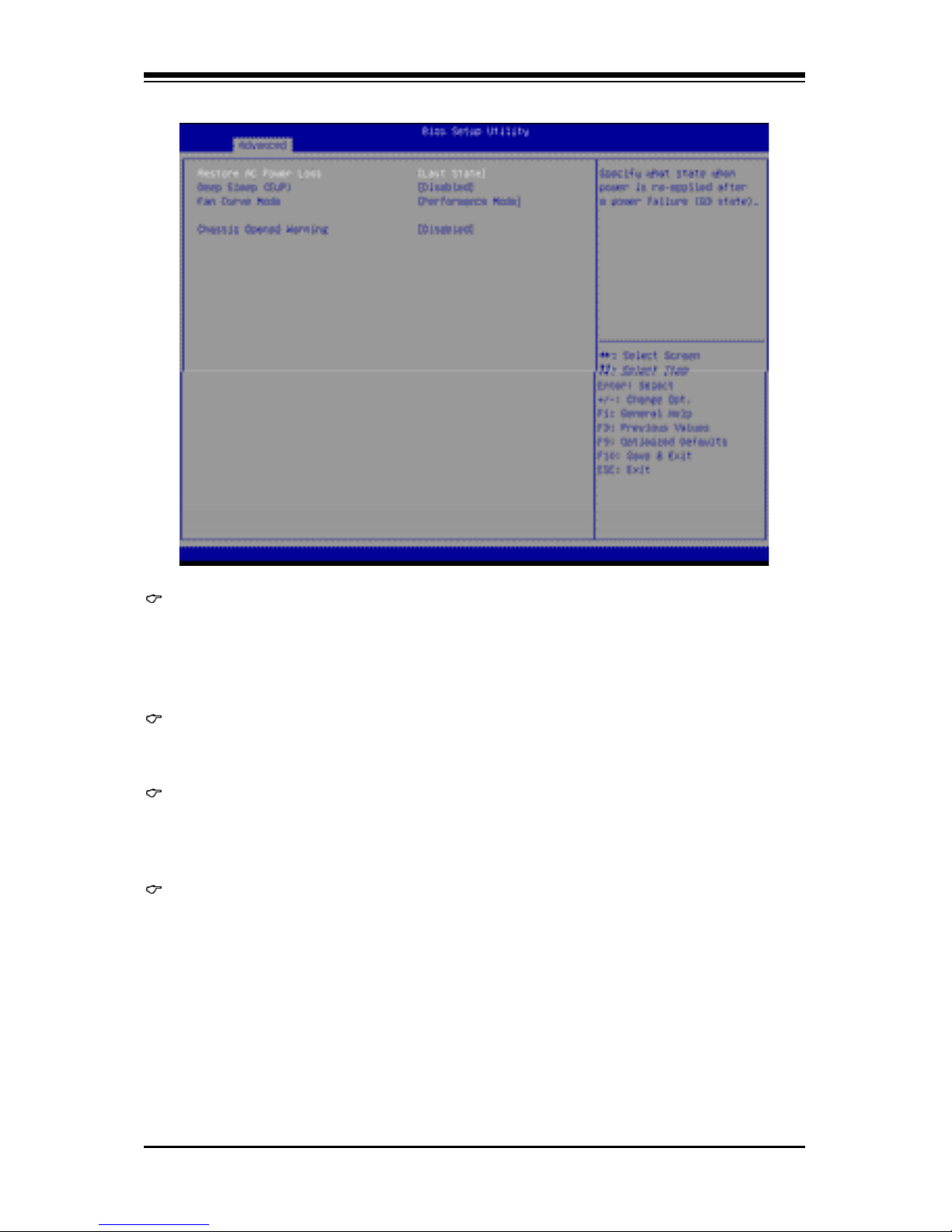

5-2-8 Chipset Configuration
Restore on AC Power Loss
(Note)
Defines the power state to resume to after a system shutdown that is due to an interruption in AC power.
When set to Last State, the system will return to the active power state prior to shutdown. When set to
Stay Off, the system remains off after power shutdown.
Options available: Last State/Stay Off/Power On. The default setting depends on the BMC setting.
Deep Sleep (EuP)
Enable/Disable Deep Sleep mode.
Options available: Enabled/Disabled. Default setting is Disabled.
Fan Curve Mode
Configure ystem fan curve mode
Options available: Full Dpeed Mode/Performance ModeBalanced m ode/Energy Saving Mode.
Default setting is Performance Mode.
Chassis Opened Warning
Enable/Disable Chassis intrusion alter funtion.
Options available: Enabled/Disabled. Default setting is Enabled.
BIOS Setup - 70 -
Relion 2908GT Chassis Manual
5-9 SIO Configuration
- 71 - BIOS Setup
Relion 2908GT Chassis Manual
AMI SIO Driver Version
Display the AMI SIO driver version information.
Super IO Chip Logical Device(s) Configuration
[*Active*] Serial Port 1/2
Press [Enter] for confuguration of advanced i tems.
Serial Port 1 Configuration
Use This Device
When enabled allows you to configure the serial port 1 settings. When set to Disabled, displays no
configuration for the serial port.
Options available: Enabled/Disabled. Default setting is Enabled.
Logical Device Settings:
Current:
Display the Serial Port 1 base I/O addressand IRQ.
Possible:
Configure Serial Port 1 base I/O addressand IRQ.
Option available:
Use Automatic Settings
BIOS Setup - 72 -
Relion 2908GT Chassis Manual
IO=3F8h; IRQ=4; DMA;/
IO=3F8h; IRQ=3,4,5,7,9,10,11,12; DMA;/
IO=2F8h; IRQ=3,4,5,7,9,10,11,12; DMA;/
IO=3E8h; IRQ=3,4,5,7,9,10,11,12;
DMA;/ IO=2E8h; IRQ=3,4,5,7,9,10,11,12;
DMA;.
Default setting is Use Automatic Settings.
Serial Port 2 Configuration
Use This Device
When enabled allows you to configure the serial port 2 settings. When set to Disabled, displays no
configuration for the serial port.
Options available: Enabled/Disabled. Default setting is Enabled.
Logical Device Settings:
Current:
Display the Serial Port 2 base I/O addressand IRQ.
Possible:
Configure Serial Port 2 base I/O addressand IRQ.
Option available:
Use Automatic Settings/
IO=2F8h; IRQ=3; DMA;/
IO=3F8h; IRQ=3,4,5,7,9,10,11,12; DMA;/
IO=2F8h; IRQ=3,4,5,7,9,10,11,12; DMA;/
IO=3E8h; IRQ=3,4,5,7,9,10,11,12;
DMA;/ IO=2E8h; IRQ=3,4,5,7,9,10,11,12;
DMA;/
Default setting is Use Automatic Settings.
- 73 - BIOS Setup
Relion 2908GT Chassis Manual
5-2-10 iSCSI Configuration
iSCSI Initiator Name
Add an Attempts
Press [Enter] for configuration of advanced items.
Delete Attempts
Press [Enter] for configuration of advanced items.
Change Attempt Order
Press [Enter] for configuration of advanced items.
BIOS Setup - 74 -
Relion 2908GT Chassis Manual
5-3 Intel RC Setup Menu
Intel RC Setup menu displays submenu options for configuring the function of North Bridge and South Bridge.
Select a submenu item, then press Enter to access the related submenu screen.
RC Revision
Display Intel RC version information.
- 75 - BIOS Setup
Relion 2908GT Chassis Manual
5-3-1 Processor Configuration
Relion 2908GT Chassis Manual
Processor Configuration
Pre-Socket Configuration
Press [Enter] for configuration of advanced items.
Processor Socket/Processor ID / Pr ocesso r F r equen cy/P r ocessor Max Raito/
Processor Min Raio/Microcode Revision/L1 Cache RAM/L2 Cache RAM/L3 Cache RAM/
Processor 0/1Version
Displays the technical specifications for the installed processor.
Hyper-Threading [All]
The Hyper Threading Technology allows a single processor to execute two or more separate
threads concurrently. When hyper-t hrea ding is enabled, multi-threaded software applications can
execute their threads, thereby improving performance.
Options available: Enabled/Disabled. Default setting is Enabled.
Execute Disable Bit
When enabled, the processor prevents the execution of code in data-only memory pages. This provides
some protection against buffer overflow attacks.
When disabled, the processor will not restrict code execution in any memory area. This makes the
processor more vulnerable to buffer overflow attacks.
Options available: Enabled/Disabled. Default setting is Enabled.
Enable Intel TXT Support
Enable/Disable Intel Tr usted E xecution Technolog y support function.
Options available: Enabled/Disabled. Default setting is Disabled.
VMX (Vanderpool Technology)
Enable/Disable Vanderpool Technology. This will take effect after rebooting the system.
Options available: Enabled/Disabled. Default setting is Enabled.
Enable SMX (Intel Safer Mode Extensions Technology)
Enable/Disblae Intel Safer Mode Extensions (SMX) support function.
Options available: Enabled/Disabled. Default setting is Disabled.
Hardware Prefetcher
Select whether to enable the speculative prefetch unit of the processor.
Options available: Enabled/Disabled. Default setting is Enabled.
Adjacent Cache Line Prefetch
When enabled, cache lines are fetched in pairs. When disabled, only the required cache line is fetched.
Options available: Enabled/Disabled. Default setting is Enabled.
DCU Streamer Prefetch
Enable prefetch of next L1 Data line based upon multiple loads in same cache line.
Options available: Enabled/Disabled. Default setting is Enabled.
DCU IP Prefetch
Enable prefetch of next L1 Data line based upon sequential load history.
Options available: Enabled/Disabled. Default setting is Enabled.
DCU Mode
Configure DCU mode.
Options available: 32KB 8Way Without ECC/16KB 4Way With ECC. Default setting is 32KB 8Way
Without ECC.
BIOS Setup - 76 -
- 77 - BIOS Setup
Relion 2908GT Chassis Manual
Direct Cache Access (DCA)
Options available: Auto/Enabled/Disabled. Default setting is Auto.
DCA Prefetch Delay
Options available: Disabled/8/16/24/32/40/48/56/64/72/80/88/96/104/112. Default setting is 32.
X2APIC
Options available: Enabled/Disabled. Default setting is Disabled.
AES-NI
Enable/Disable AES-NI (Intel Advanced Encr ypt ion Standar d New Instructi ons) suppor t f unct ion.
Options available: Enabled/Disabled. Default setting is Enabled.
BIOS Setup - 78 -
Relion 2908GT Chassis Manual

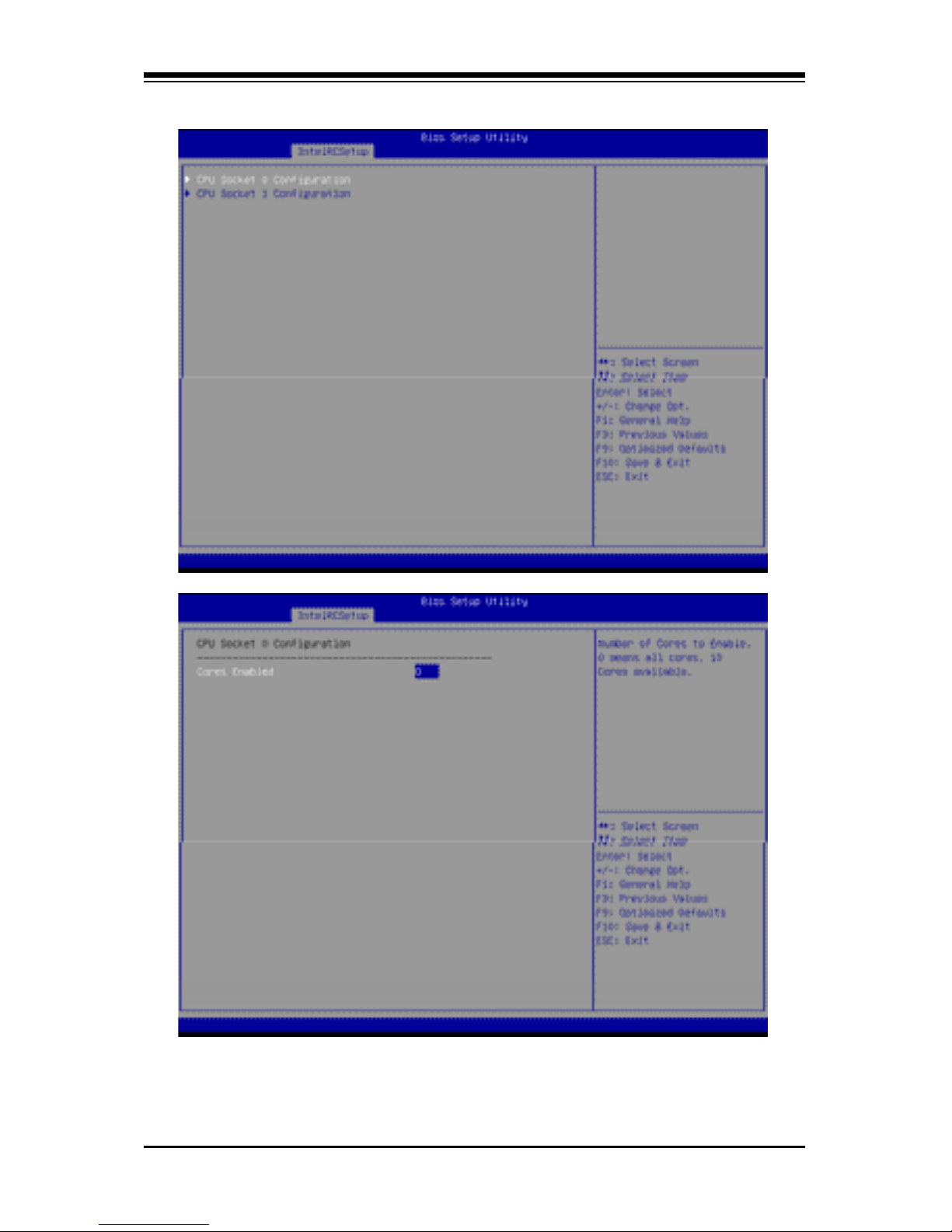

5-3-1-1 Pre-Socket Configuration
- 79 - BIOS Setup
Relion 2908GT Chassis Manual

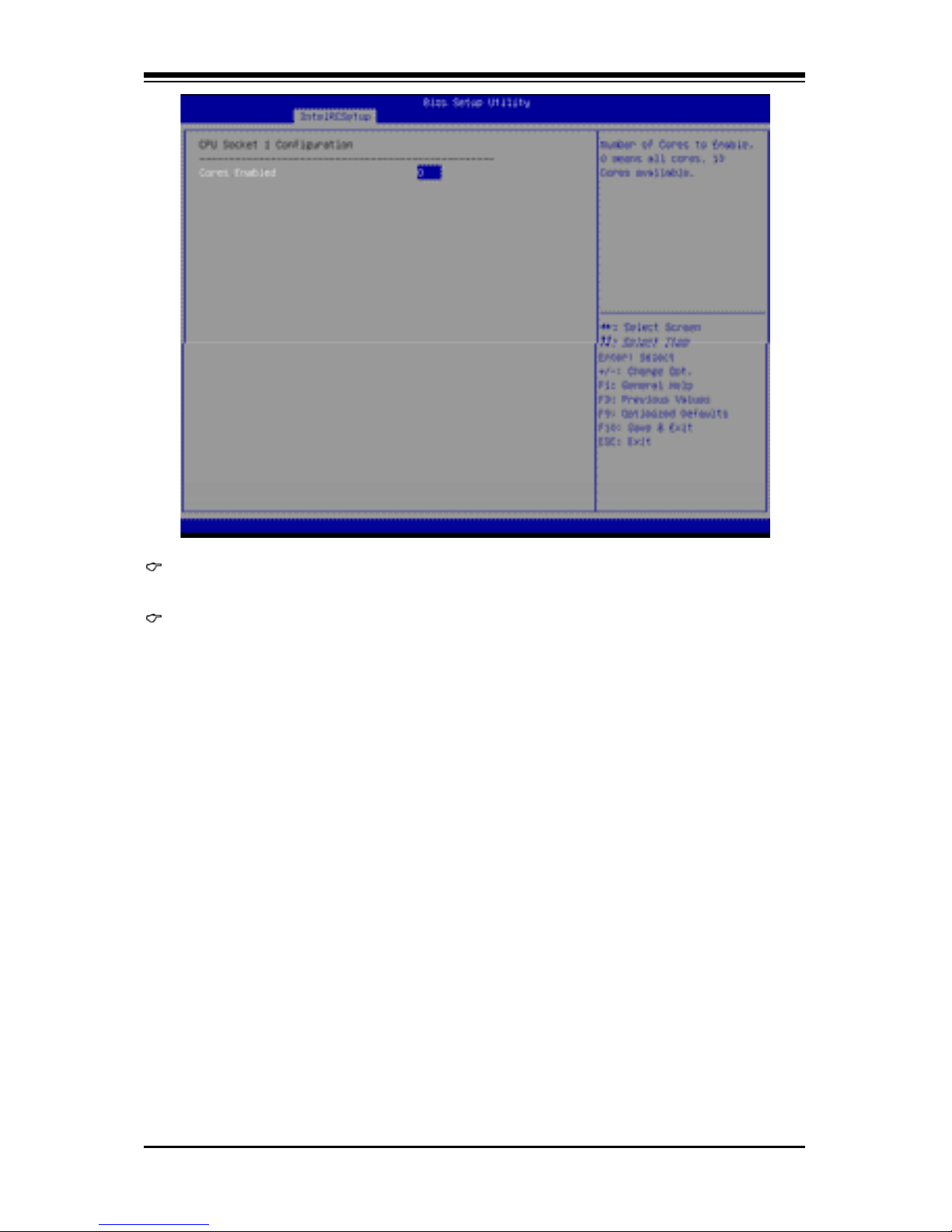

CPU Socket 0/1 Configuration
Press [Enter] for configuration of advanced items.
Cores Enabled (for CPU socket 0/1)
Number of Cores to enable. 0 means all cores. 14 Cores is available. Press the numeric keys to adjust
desired values.
BIOS Setup - 80 -
Relion 2908GT Chassis Manual
5-3-2 Advanc ed P ower Manageme nt Configurati on
Advanced Power Management Configuration
Power Technology
Option available:Disable/Energy Efficient/Custom. Default setting is Custom.
Config TDP
Options available: Enabled/Disabled. Default setting is Enabled.
Config TDP Level
Options available: Nominal. Default setting is Nominal.
CPU P State Control
Press [Enter] for configuration of advanced items.
CPU C State Control
Press [Enter] for configuration of advanced items.
CPU T State Control
Press [Enter] for configuration of advanced items.
- 81 - BIOS Setup
Relion 2908GT Chassis Manual
5-3-2-1 CPU P State Control
EIST (P-State)
Conventional Intel SpeedStep Technology switches both voltage and frequency in tandem between high
and low levels in response to processor load.
Options available: Enabled/Disabled. Default setting is Enabled.
Turbo Mode
When this item is enabled, tje processor will automatically ramp up the clock speed of 1-2 of its
processing cores to improve its performance.
When this item is disabled, the processor will not overclock any of its core.
Options available: Enabled/Disabled. Default setting is Enabled.
P-state coordination
In HW_ALL mode, the processor hardware is responsible for coordinating the P-state among logical
processors dependencies. The OS is responsible for keeping the P-state request up to date on all
logical processors.
In SW_ALL mode, the OS Power Manager is responsible for coordinating the P-state among logical
processors with dependencies and must initiate the transition on all of those Logical Processors.
In SW_ANY mode, the OS Power Manager is responsible for coordinating the P-state among logical
processors with dependencies and may initiate the transition on any of those Logical Processors.
Options available: HW_ALL/SW_ALL/SW_ANY. Default setting is HW_ALL.
BIOS Setup - 82 -
Relion 2908GT Chassis Manual
5-3-2-2 CPU C State Control
Package C State Limit
Configure state for the C-State package limit.
Options available: C0/C1 state/C2 state/C6(non Retention) state/C6(Retention) state.
Default setting is C6(non Retention) st ate.
CPU C3/C6 Report
Allows you to determine whether to let the CPU enter C3/C6 mode in system halt state. When enabled,
the CPU core frequency and voltage will be reduced during system halt state to decrease power
consumption. The C3/C6 state is a more enhanced power-saving state than C1.
Options available: Enabled/Disabled.
Default setting for C3 is Disabled; default setting for C6 is Enabled.
- 83 - BIOS Setup
Relion 2908GT Chassis Manual
5-3-2-3 CPU T State Control
ACPI T-States
Enable/Disable CPU throttling by OS. Thort tling reduces power comsumption.
Options available: Enabled/Disabled. Default setting is Enabled.
BIOS Setup - 84 -
Relion 2908GT Chassis Manual
5-3-3 Commo n RefCode Configuration
Common RefCode Configuration
Isoc Mode
Options available: Enabled/Disabled. Default setting is Disabled.
Numa (Non-Uniform Memory Access)
Options available: Enabled/Disabled. Default setting is Enabled.
- 85 - BIOS Setup
Relion 2908GT Chassis Manual

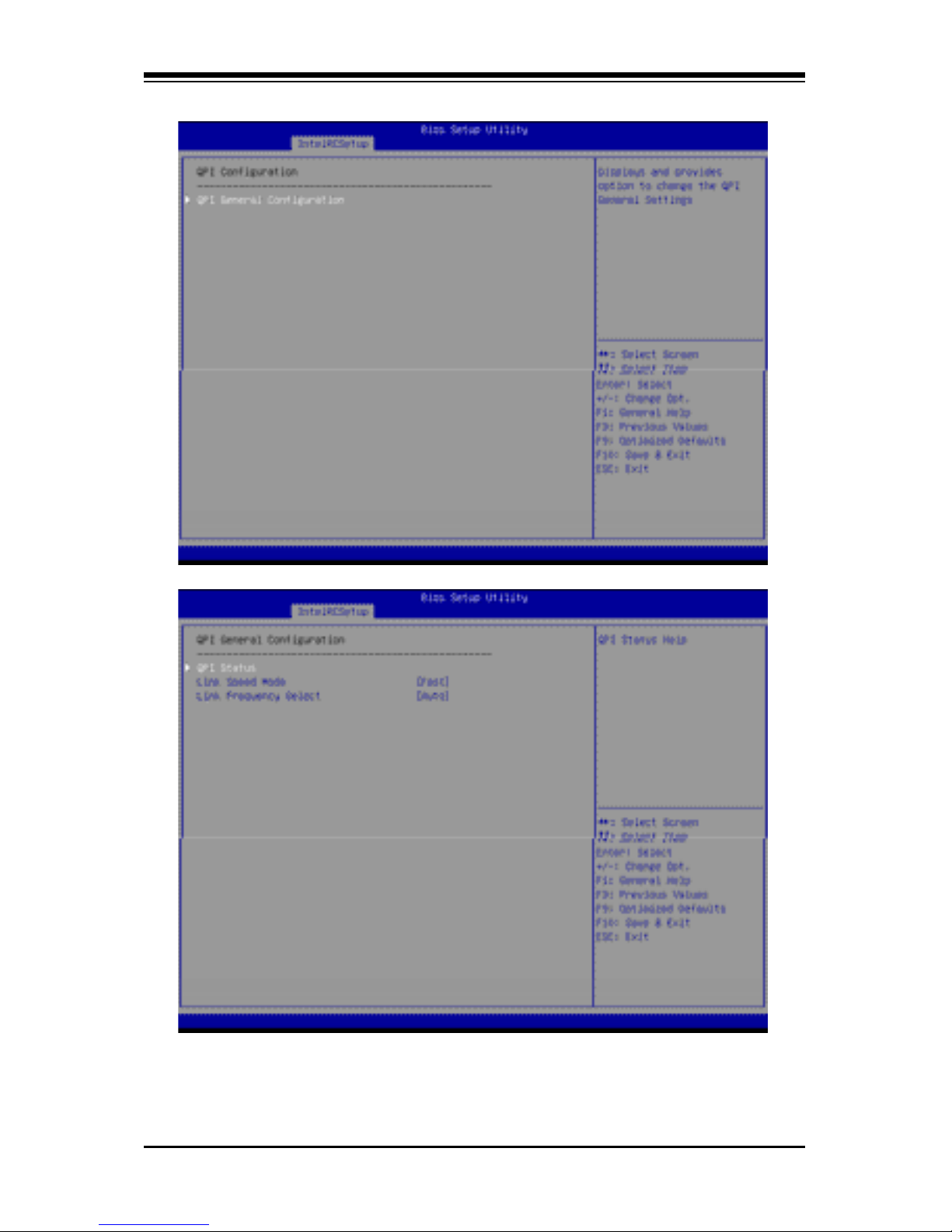

5-3-4 QPI Configuration
BIOS Setup - 86 -
Relion 2908GT Chassis Manual
QPI General Configuration
Press [Enter] for configuration of advanced items.
QPI Status
Press [Enter] to view QPI status.
Link Speed Mode
Options available: Slow/Fast. Default setting is Fast.
Link Frequency Select
Options available: 6.4GB/s/8.0GB/s/9.6GB/s/Auto/Auto Limited. Default setting is Auto.
- 87 - BIOS Setup
Relion 2908GT Chassis Manual
5-3-5 Memory Configuration
Integrated Memory Controller (iMC)
Enforce POR
Enable to enforce POR restrictions for DDR4 frequency and voltage programming.
Options available: Enabled/Disabled. Default setting is Enabled.
Memory Frequency
Configure memory frequency.
Options available: Auto/1333/1400/1600/1800/1867/2000/2133.
Default setting is Auto.
ECC Support
Options available: Auto/Disabled/Enabled. Default setting is Auto.
Rank Margin Tool
Options available: Auto/Disabled/Enabled. Default setting is Auto.
RMT Pattern Length
Display RMT Pattern Length.
SPD Write Lock
Options available: Enabled/Disabled. Default setting is Enabled.
Memory Topology
Press [Enter] for configuration of advanced items.
Memory Thermal
Press [Enter] for configuration of advanced items.
Memory Map
Press [Enter] for configuration of advanced items.
BIOS Setup - 88 -
Relion 2908GT Chassis Manual
Memory RAS Configuration
Press [Enter] for configuration of advanced items.
- 89 - BIOS Setup
Relion 2908GT Chassis Manual
5-3-5-1 Memory Topology
BIOS Setup - 90 -
Relion 2908GT Chassis Manual

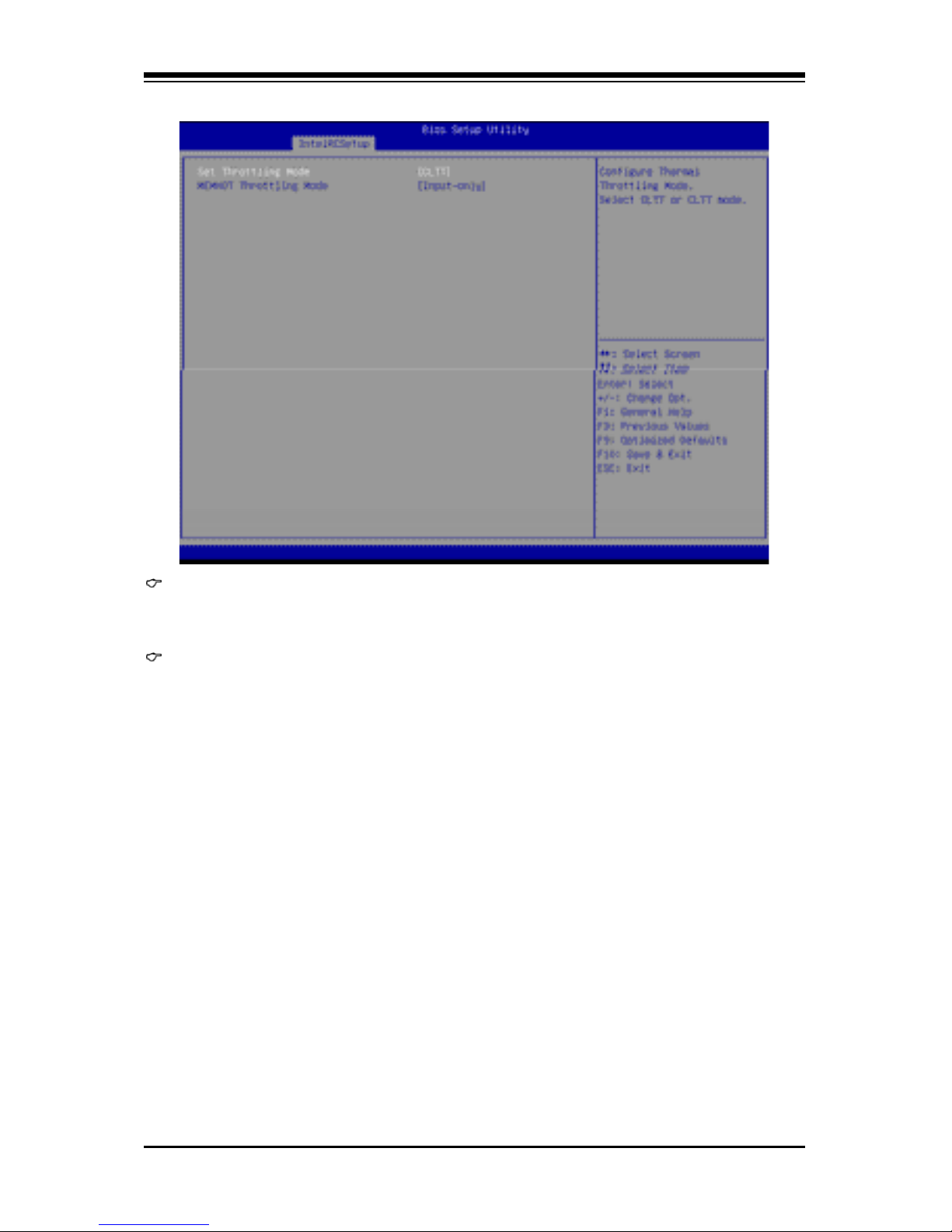

5-3-5-2 Memory Thermal
Set Throttling
Configure Thermal Throttling Mode. Select OLTT or CLTT mode.
Options available: Disabled/OLTT/CLTT. Default setting is CLTT.
MEMHOT Throttling Mode
Options available: Disabled/Output-only/Input-only. Default setting is Input-only.
- 91 - BIOS Setup
Relion 2908GT Chassis Manual

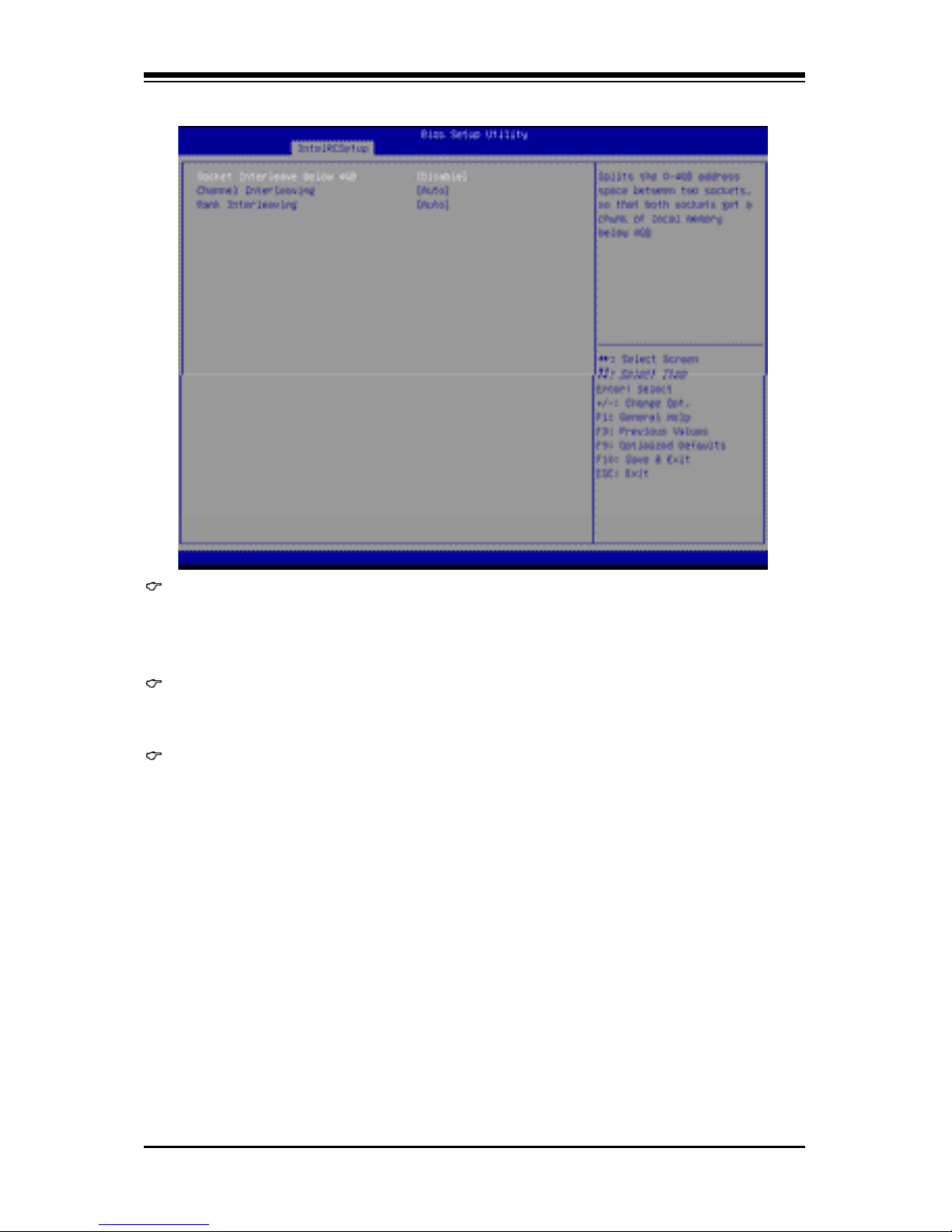

5-3-5-3 Memory Map
Socket Interleave Below 4GB
Splits the 0-4GB address space between two sockets, so that both sockets get a chunk of local memory
below 4GB.
Options available: Disabled/Enabled. Default setting is Disabled.
Channel Interleaving
Options available: Auto/1-way Interleave/2-way Interleave/3-way Int er leave/ 4-way I nter leave.
Default setting is Auto.
Rank Interleaving
Options available: Auto/1-way Interleave/2-way Interleave/4-way Int er leave/ 8-way I nter leave.
Default setting is Auto.
BIOS Setup - 92 -
Relion 2908GT Chassis Manual
5-3-5-4 Memory RAS Configuration
RAS Mode
Enable/Disable RAS modes. Enabling Sparing and Mirroring is not supported. When this item is set to
enabled, Sparing will be selected.
Options available: Disable/Mirror/Lockstep Mode. Default setting is Disabled.
Lockstep x4 DIMMs
Options available: Auto/Disabled/Enabled. Default setting is Disabled.
Lockstep Rank Sparing
Options available: Auto/Disabled/Enabled. Default setting is Disabled.
Correctable Error Threshold
Press <+> / <-> keys to increase or decrease the desired values.
- 93 - BIOS Setup
Relion 2908GT Chassis Manual

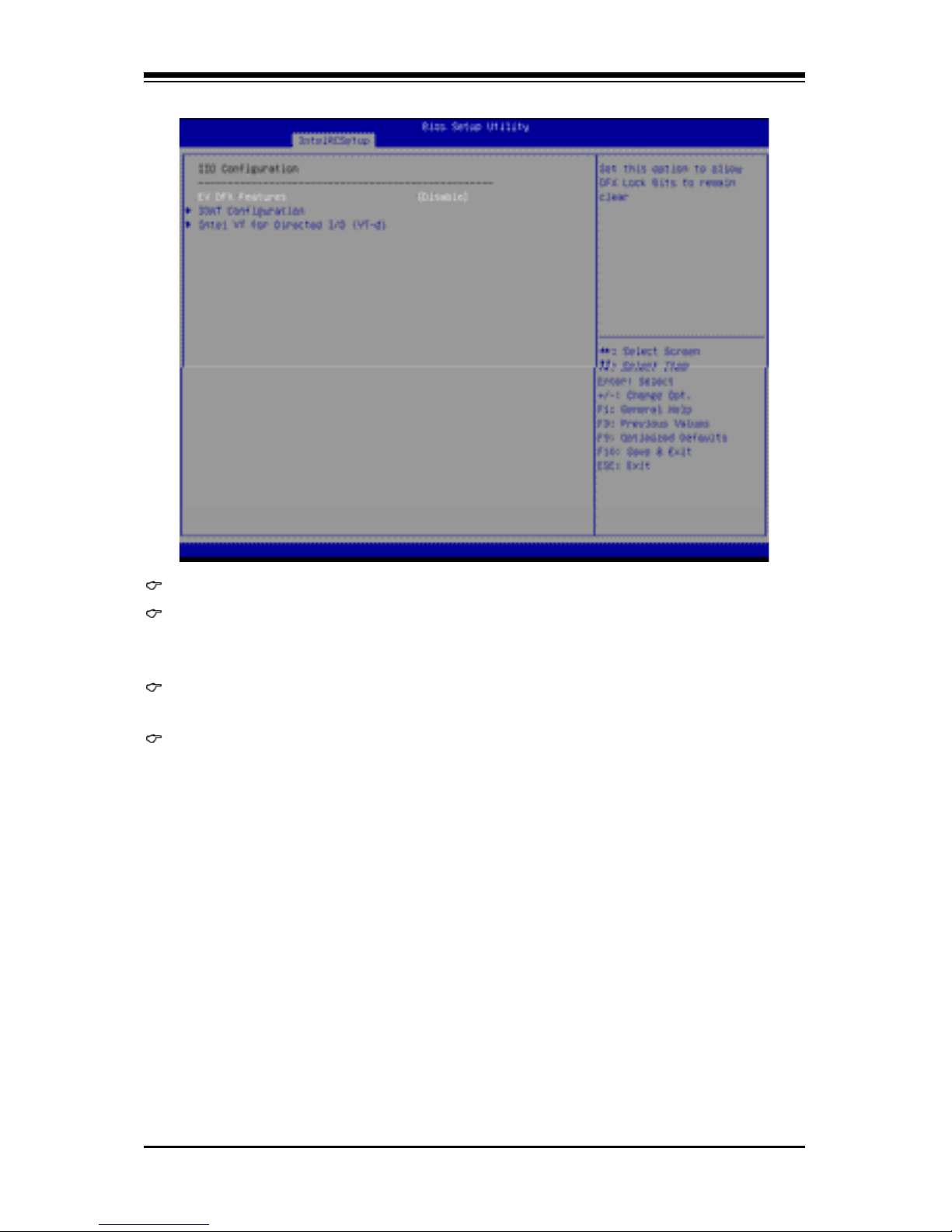

5-3-6 IIO Configuration
IIO Configuration
EV DFX Features
Set this option to allow DFX Lock Bits to remain clear.
Options available: Enabled/Disabled. Default setting is Disabled.
IOAT Configuration
Press [Enter] for configuration of advanced items.
Intel VT for Directed I/O (VT-d)
Press [Enter] for configuration of advanced items.
BIOS Setup - 94 -
Relion 2908GT Chassis Manual
5-3-6-1 IOAT Configurati on
IOAT Configuration
Enable IOAT
Control to enable/disable IOAT (Intel I/O Acceleration Technology) device.
Options available: Enabled/Disabled. Default setting is Disabled.
No Snoop
Enable/Disable PCI Express Device No Snoop option.
Options available: Enabled/Disabled. Default setting is Disabled.
- 95 - BIOS Setup
Relion 2908GT Chassis Manual
5-3-6-2 Intel VT for Directed I/O (VT-d)
Intel VT for Directed I/O (VT-d)
VT-d Azalea VCp Optimizations
Enable/Disable Azalea VCp optimizations.
Options available: Enabled/Disabled. Default setting is Disabled.
Intel VT for Directed I/O (VT-d)
Enable/Disable Intel VT for Directed I/O (VT-d) support function.
Options available: Enabled/Disabled. Default setting is Enabled.
Interrupt Remapping
Enable/Disable interrupt remapping support function.
Options available: Enabled/Disabled. Default setting is Enabled.
Coherency Suuport (Non-Isoch)
Options available: Enabled/Disabled. Default setting is Enabled.
Coherency Suuport (Isoch)
Options available: Enabled/Disabled. Default setting is Enabled.
BIOS Setup - 96 -
Relion 2908GT Chassis Manual
5-3-7 PCH Configuration
PCH Configuration
PCH Devices
Press [Enter] for configuration of advanced items.
PCH SATA Configuration
Press [Enter] for configuration of advanced items.
USB Configuration
Press [Enter] for configuration of advanced items.
- 97 - BIOS Setup
Relion 2908GT Chassis Manual

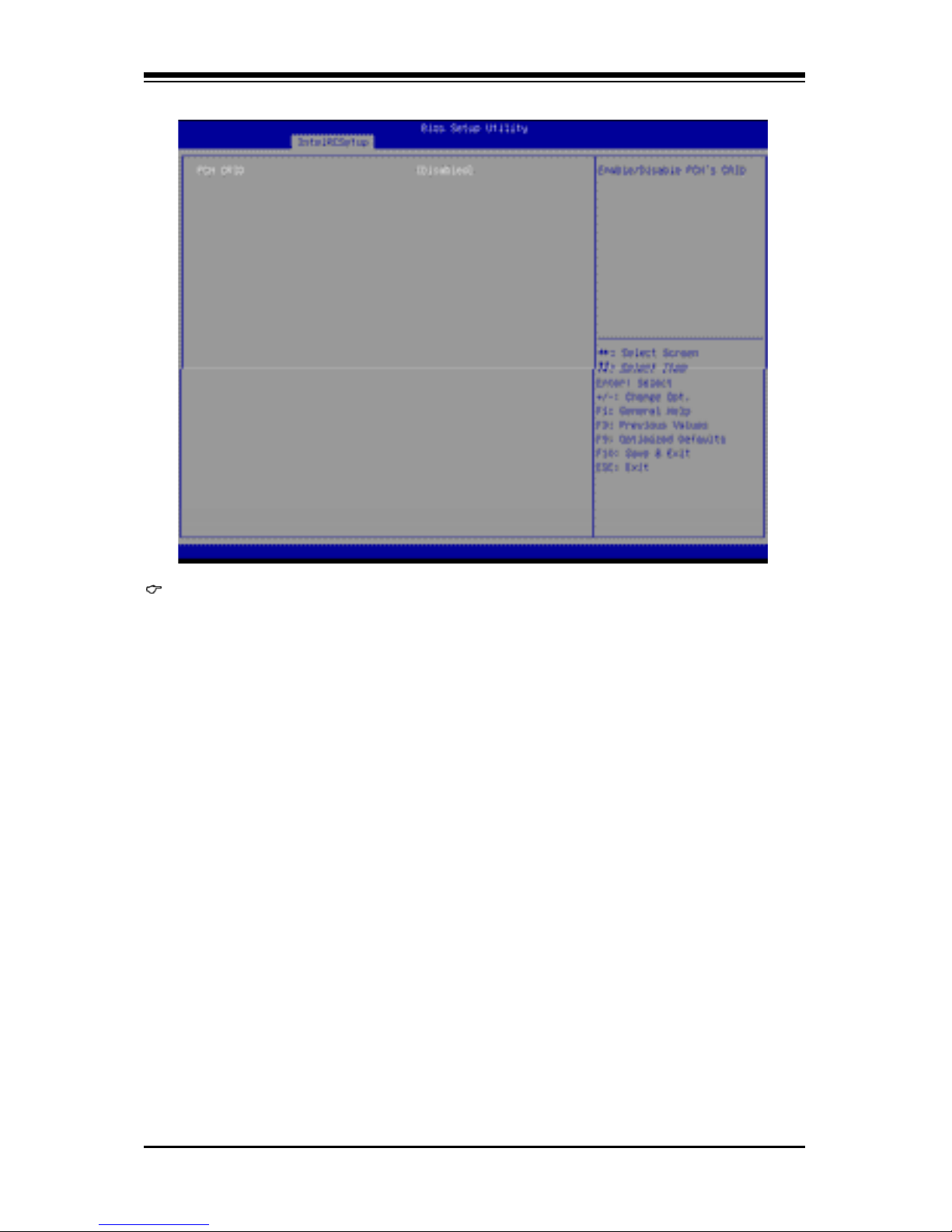

5-3-7-1 PCH Devices
PCH CRID
Enable/Disable Intel Compatible Revision ID.
Options available: Enabled/Disabled. Default setting is Disabled.
BIOS Setup - 98 -
Relion 2908GT Chassis Manual
5-3-7-2 PCH sSATA Configuration
- 99 - BIOS Setup
Relion 2908GT Chassis Manual
When SATA Type is set to IDE
PCH sSATA Configuration
sSATA Controller(s)
Enable/Disable sSATA controller.
Options available: Enabled/Disabled. Default setting is Enabled.
Configure sSATA as
Coonfigure on chip SATA type.
IDE Mode: When set to IDE, the SATA controller disables its RAID and AHCI functions and runs in the
IDE emulation mode. This is not allowed to access RAID setup utility.
RAID Mode: When set to RAID, the SATA controllerenables both its RAID and AHCI functions. You will
be allows access the RAID setup utility at boot time.
ACHI Mode: When set to AHCI,the SATA controller enables its AHCI functionality. Then the RAID
function is disabled and cannot be access the RAID setup utilit y at boot time.
Options available: IDE /R A ID/ACHI/Disabled. Default setting is ACHI.
SATA Test Mo de
Enable/Disable SATA Tes t Mode.
Options available: Enabled/Disabled. Default setting is Disabled.
sSATA RSTe Boot Info
(Note 1)
Enable/Disable SATA RSTe Boot Informati on.
Options available: Enabled/Disabled. Default setting is Enabled.
SATA Mode options
(Note 2)
Press [Enter] for configuration of advanced items.
(Note 1) Only Supported When HDD is in RAID Mode.
(Note 2) Only Supported When HDD is in AHCI or RAID Mode.
(Note) Only Supported When HDD is in AHCI or RAID Mode.
BIOS Setup - 100 -
Relion 2908GT Chassis Manual
Support Aggressive Link Power Mana
(Note)
Enable PCH to aggressively enter link power state.
Options available: Enabled/Disabled. Default setting is Enabled.
Alternate Device ID on RAID
Enable /Disable Alternate Device ID on RAID mode.
Options available: Enabled/Disabled. Default setting is Disabled.
Please note that this option appears when HDD is in RAID Mode.
SATA Port 0/1/2/3
The category identifies sSATA type of hard disk that are installed in the computer.
System will automatically detect HDD type.
Port 0/1/2/3
Enable/Disable Port 0/1/2/3 device.
Options available: Enabled/Disabled. Default setting is Enabled.
Hot Plug (for Port 0/1/2/3)
(Note)
Enable/Disable HDD Hot-Plug function.
Options available: Enabled/Disabled. Default setting is Disabled.
Configured as eSATA
(Note)
Display Hot-Plug supported information.
Spin Up Device (for Port 0/1/2/3)
(Note)
On an edge detect from 0 to 1, the PCH starts a COM reset initialization to the device.
Options available: Enabled/Disabled. Default setting is Disabled.
SATA Device Type
Select sSATA device type.
Options available: Hard Disk Drive/Solid State Drive. Default setting is Hard Disk Drive.
