Penguin Computing Relion 900, R270-B2O, R270-C3C Technical Manual

Relion 900

Power Efficient Intel-based HPC Server Designed for Next- generation Datacenters

Technical Guide
Rev. 1.0

PENGUIN

COMPUTING

www.penguincomputing.com | 1-888-PENGUIN (736-4846) | twitter:@PenguinHPC

R130-134
R130-234

Dual LGA2011 sockets R3 motherboard for Intel® E5-2600 V3 series processors

Service Guide

Rev. 1.0

Copyright

© 2014 GIGA-BYTE TECHNOLOGY CO., LTD. All rights reserved.
The trademarks mentioned in this manual are legally registered to their respective owners.

Disclaimer

Information in this manual is protected by copyright laws and is the property of GIGABYTE.
Changes to the specifications and features in this manual may be made by GIGABYTE
without prior notice. No part of this manual may be reproduced, copied, translated, transmitted, or
published in any form or by any means without GIGABYTE's prior written permission.

Documentation Classications

In order to assist in the use of this product, GIGABYTE provides the following types of documentations:



For detailed product information, carefully read the User's Manual.

For more information, visit our website at:

http://b2b.gigabyte.com

You are a professional?

Get an access to our complete source of sales, marketing & technical materials at:

http://reseller.b2b.gigabyte.com

https://www.facebook.com/gigabyteserver

Preface

Before using this information and the product it supports, please read the following general infor­mation.

1. This Service Guide provides you with all technical information relating to the BASIC CON-

FIGURATION decided for GIGABYTE’s “global” product offering. To better t local market-

requirements and enhance product competitiveness, your regional ofce MAY have decided

toextend the functionality of a machine (e.g. add-on card, modem, or extra memory capabil­ity).These LOCALIZED FEATURES will NOT be covered in this generic service guide. In

suchcases, please contact your regional ofces or the responsible personnel/channel to

provide youwith further technical details.

2. Please note WHEN ORDERING SPARE PARTS, you should check the most up-to-date
informationavailable on your regional web or channel. For whatever reason, if a part num­ber change is made,it will not be noted in the printed Service Guide. For GIGABYTE-AU-

THORIZED SERVICEPROVIDERS, your GIGABYTE ofce may have a DIFFERENT part

number code to thosegiven in the FRU list of this printed Service Guide. You MUST use the

list provided by yourregional GIGABYTE ofce to order FRU parts for repair and service of

customer machines.

- 4 -

Table of Contents

Box Contents ...................................................................................................................7

Safety, Care and Regulatory Information ........................................................................8

Chapter 1 Hardware Installation ...................................................................................11

1-1 Installation Precautions .................................................................................. 11

1-2 Product Specications ....................................................................................12

1-3 System Block Diagram ...................................................................................15

Chapter 2 System Hardware Installation ......................................................................16

2-1 Removing Chassis Cover ...............................................................................17

2-2 Removing and Installing the Fan Duct ...........................................................18

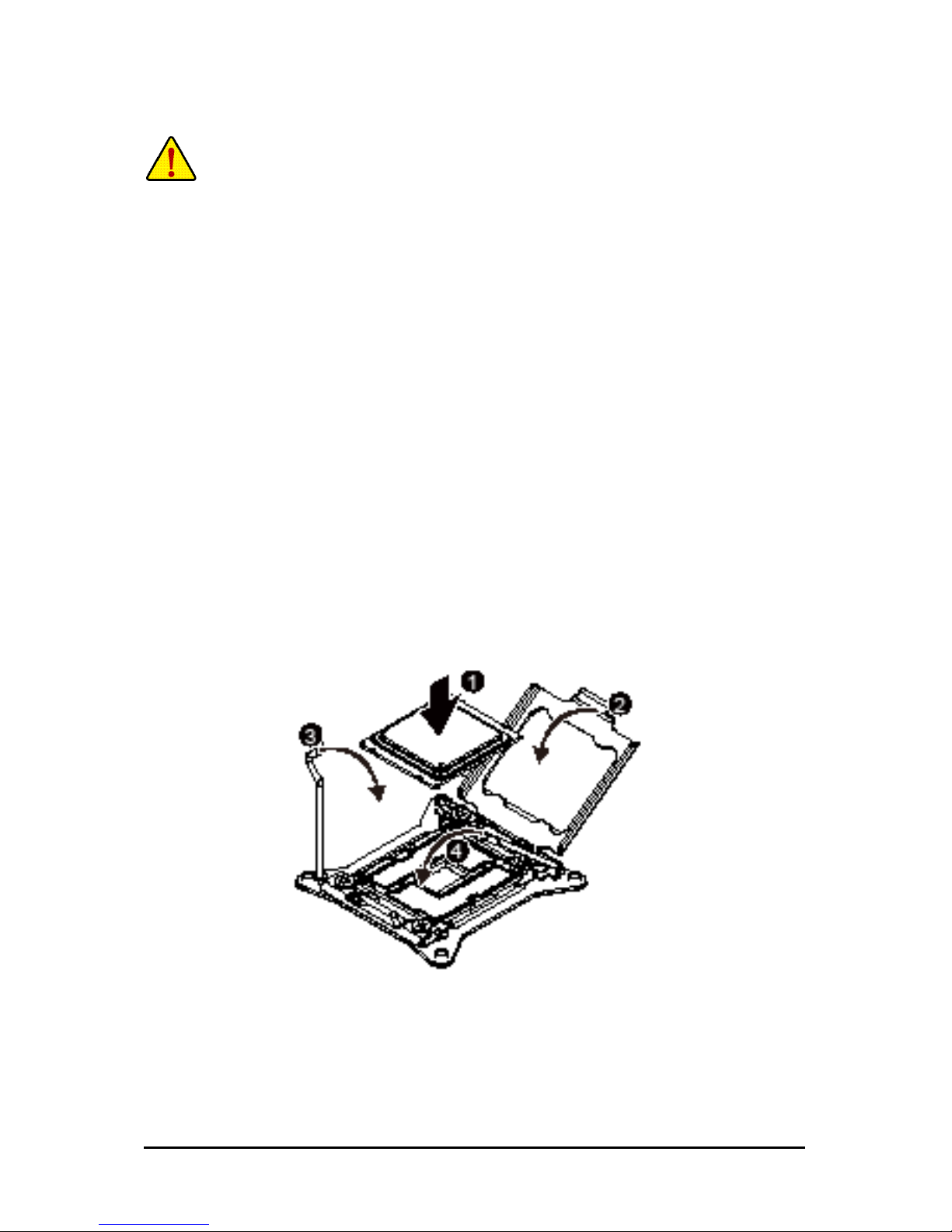

2-3 Installing the CPU .........................................................................................19

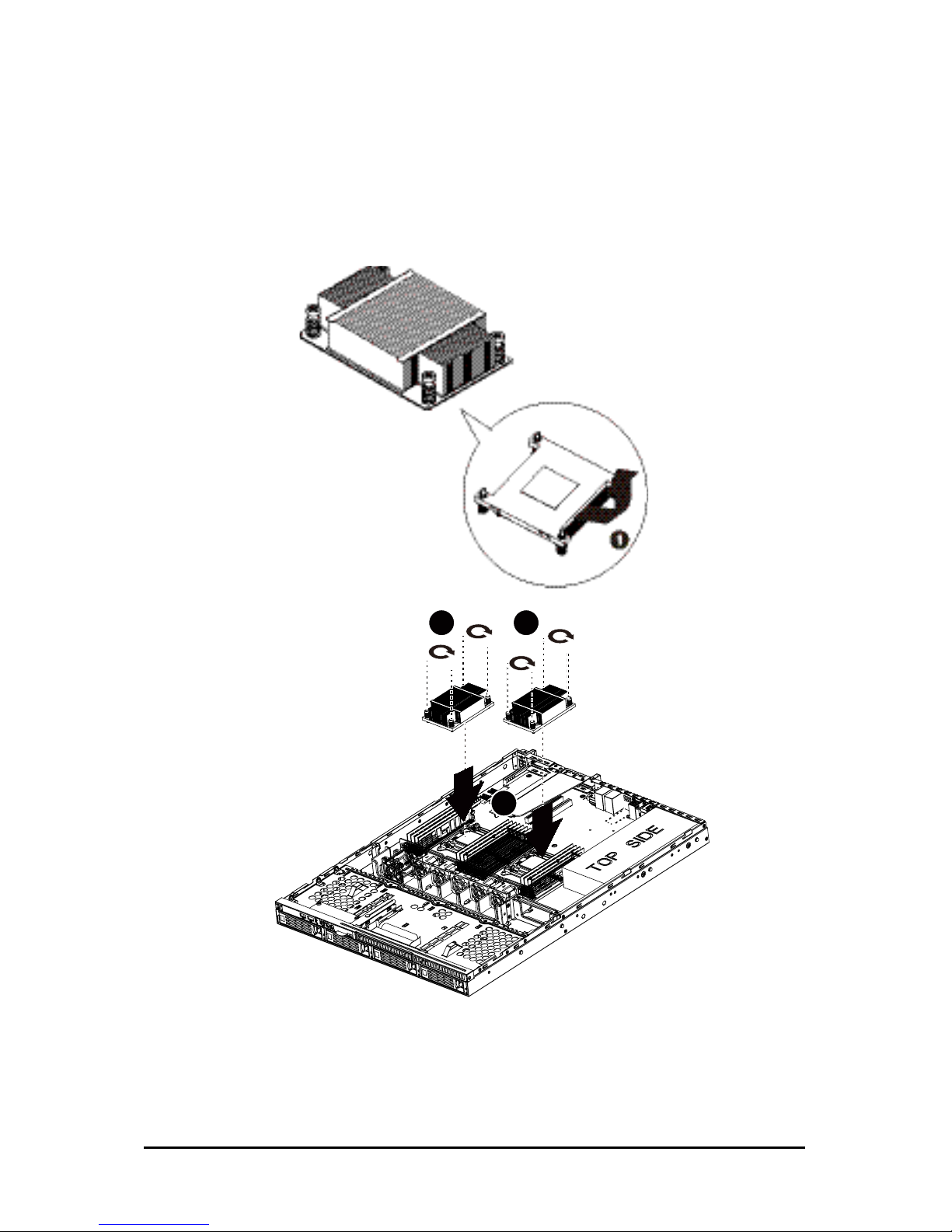

2-4 Installing the Heat Sink .................................................................................20

2-5 Installing the Memory .....................................................................................21

2-5-1 Four Channel Memory Conguration .....................................................................21

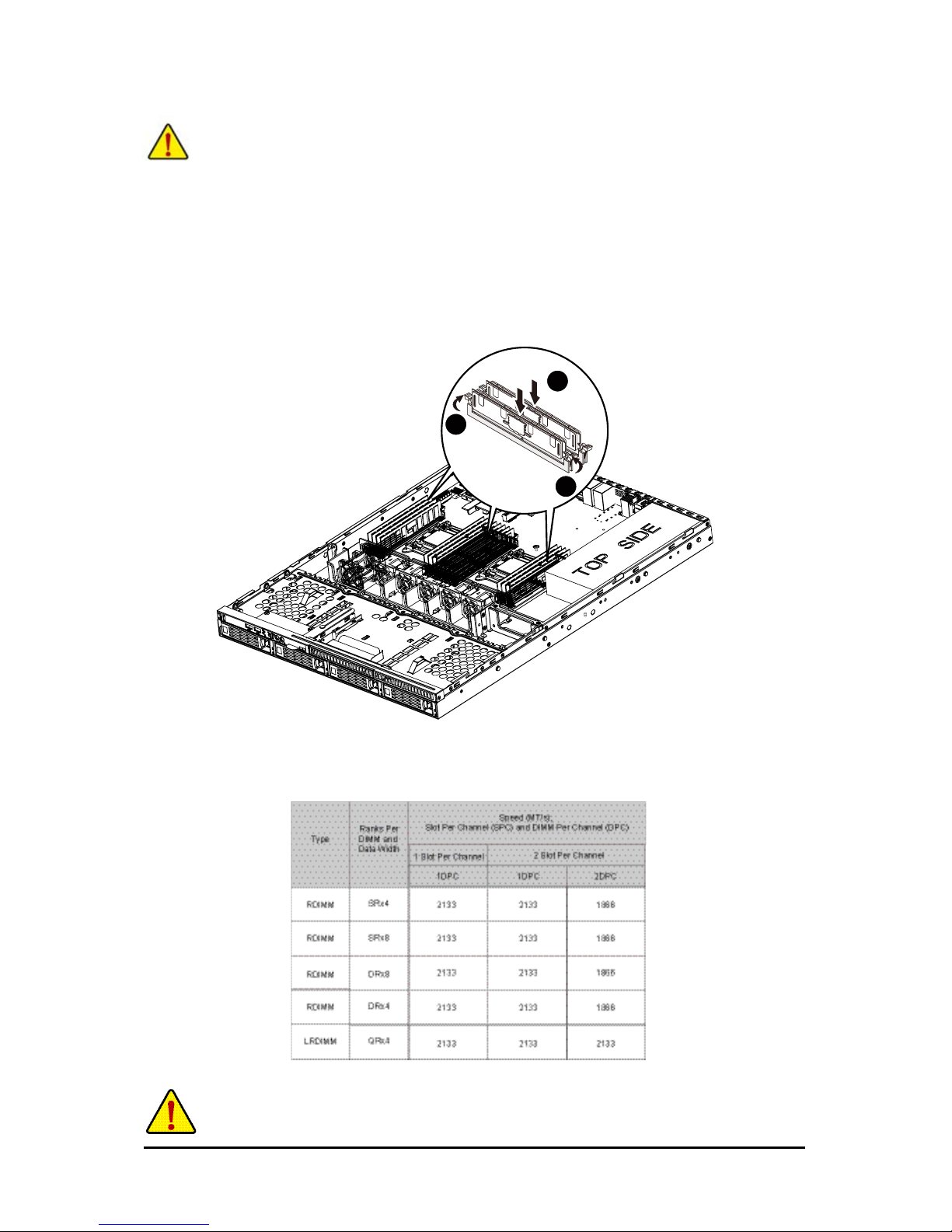

2-5-2 Installing a Memory ...............................................................................................22

2-5-3 DIMM Population T able ..........................................................................................22

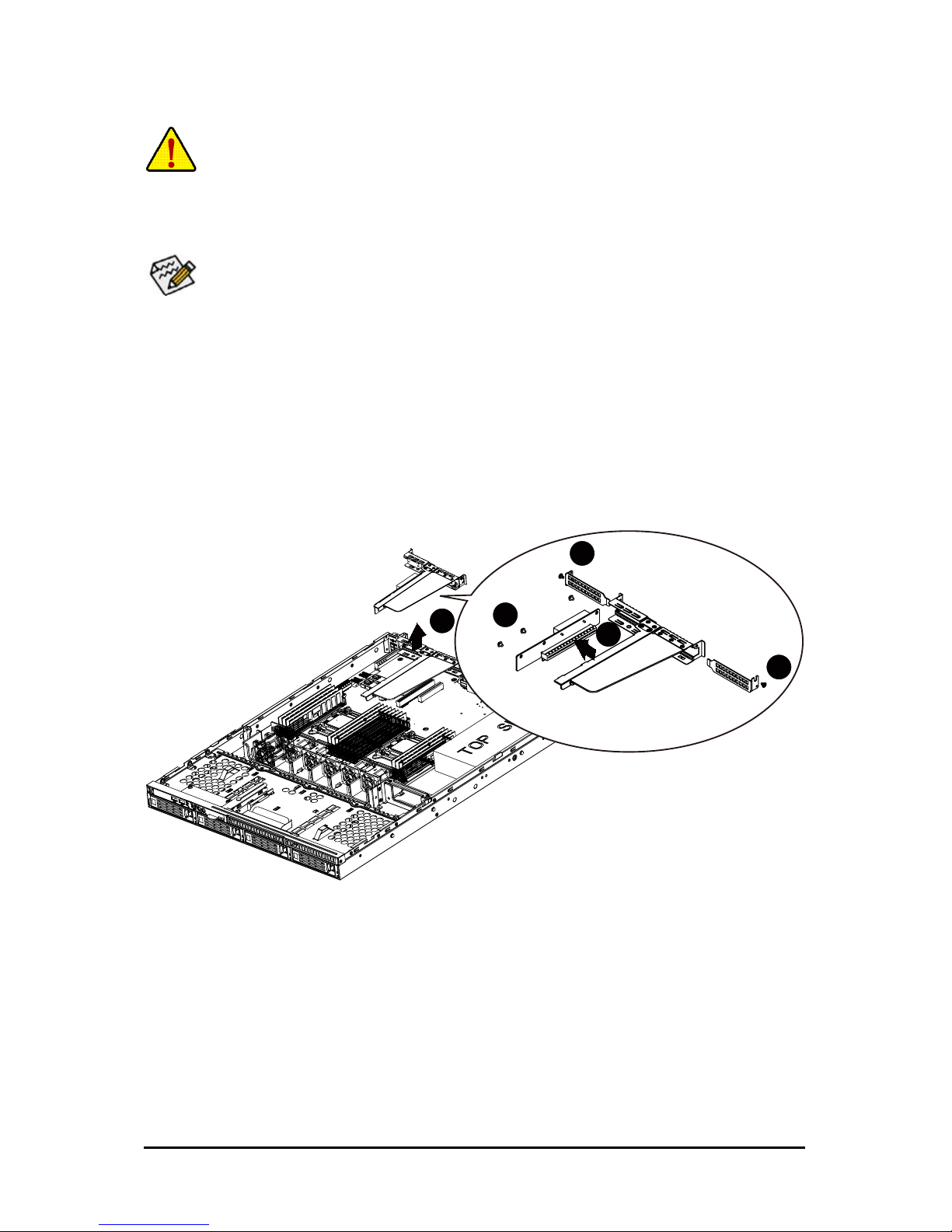

2-6 Installing the PCI Expansion Card .................................................................23

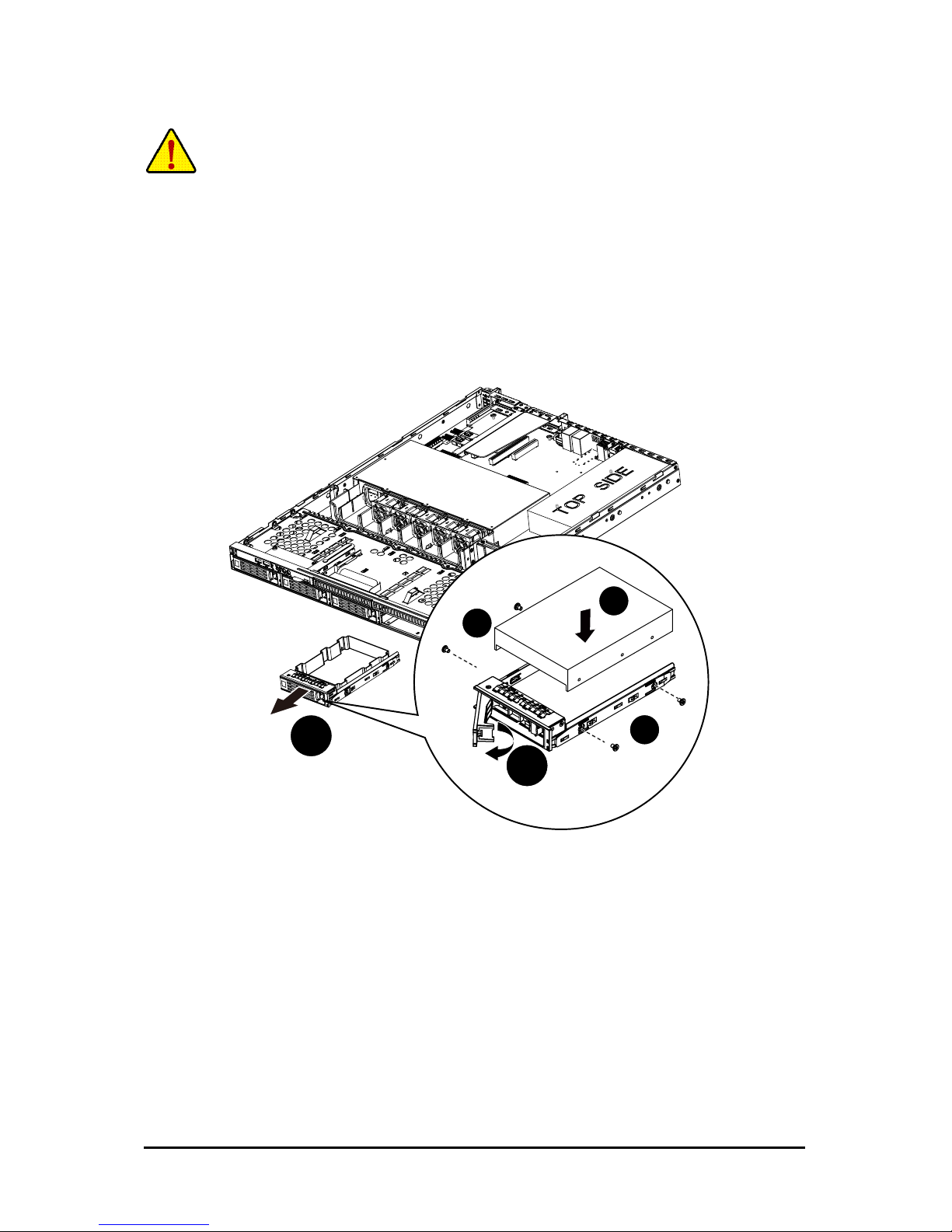

2-7 Installing the Hard Disk Drive .........................................................................24

2-8 Replacing the FAN Assemblly ........................................................................25

2-9 Replacing the Power Supply ..........................................................................26

Chapter 3 System Appearance .....................................................................................27

3-1 Front View ......................................................................................................27

3-2 Rear View .......................................................................................................28

3-3 Front Panel LED and Buttons ........................................................................29

3-4 Rear System LAN LEDs .................................................................................31

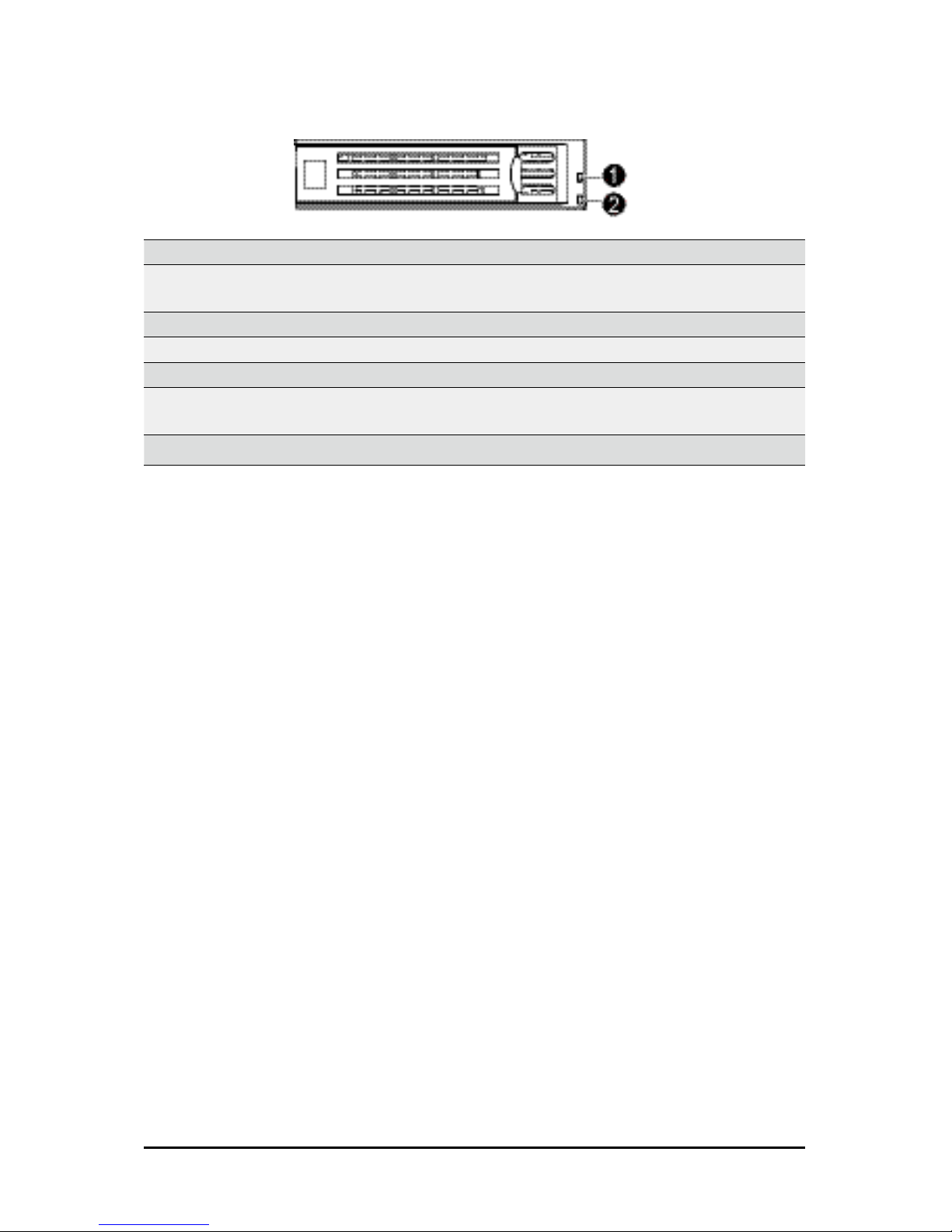

3-5 Hard Disk Drive LEDs ....................................................................................32

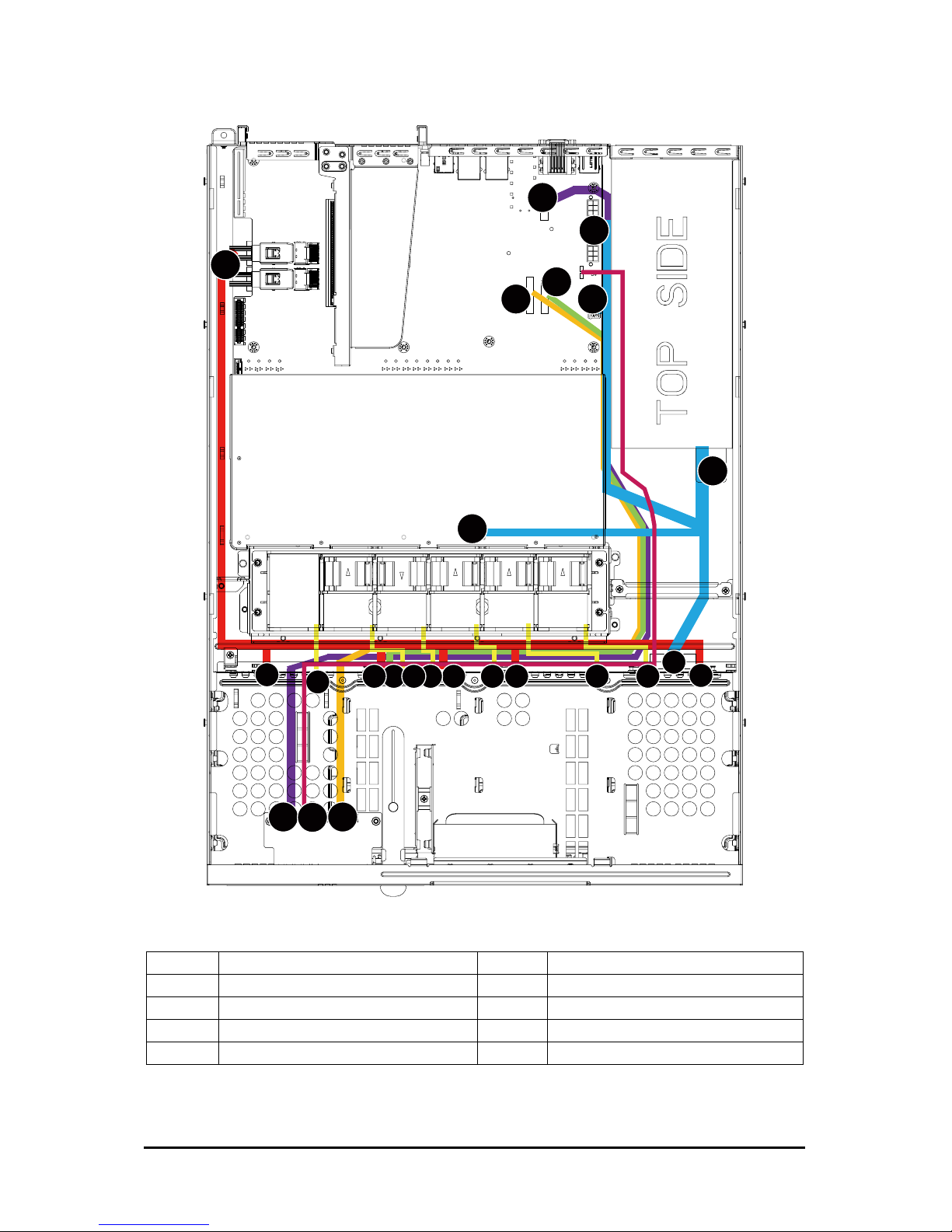

3-6 Cable Routing ................................................................................................33

Chapter 4 Motherboard Components ...........................................................................34

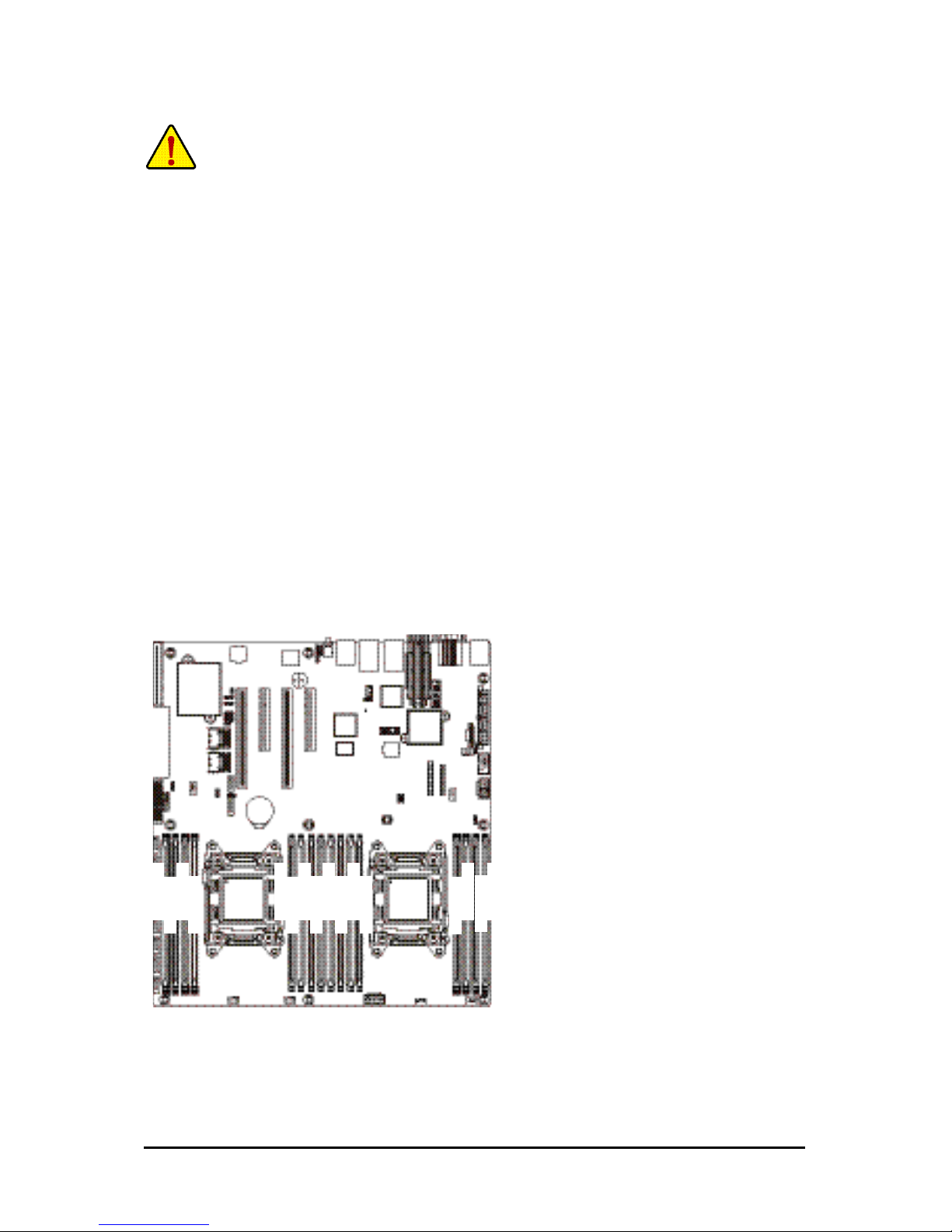

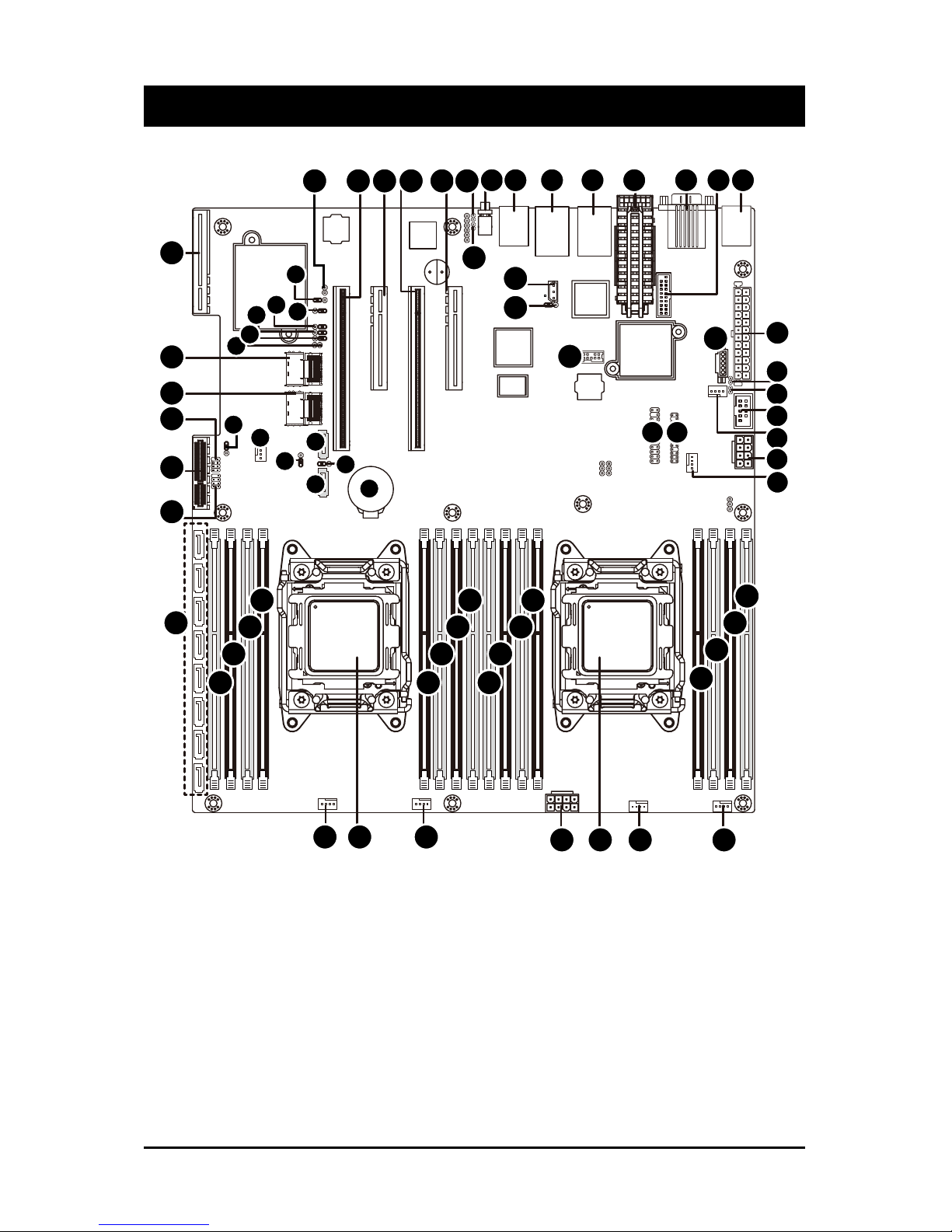

4-1 MD60-SC1/MD60-SC2 Motherboard Components ........................................34

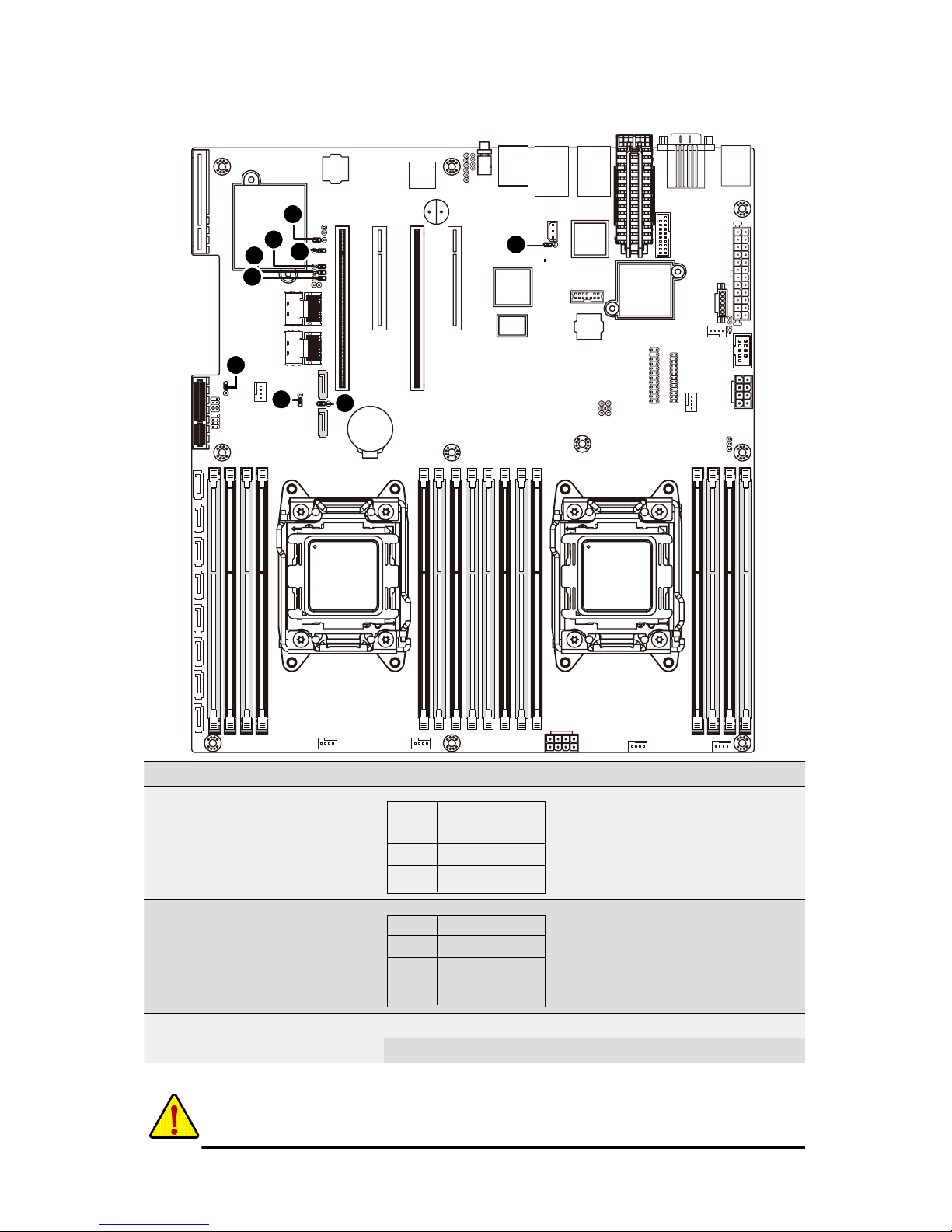

4-2 Jumper Setting ..............................................................................................37

4-3 Back Plane Boad Components ......................................................................39

4-3-1 Back Plane BoadJ2/J3 Jumper Setting ..........................................................40

Chapter 5 BIOS Setup ..................................................................................................41

- 5 -

5-1 The Main Menu ..............................................................................................43

5-2 Advanced Menu .............................................................................................46

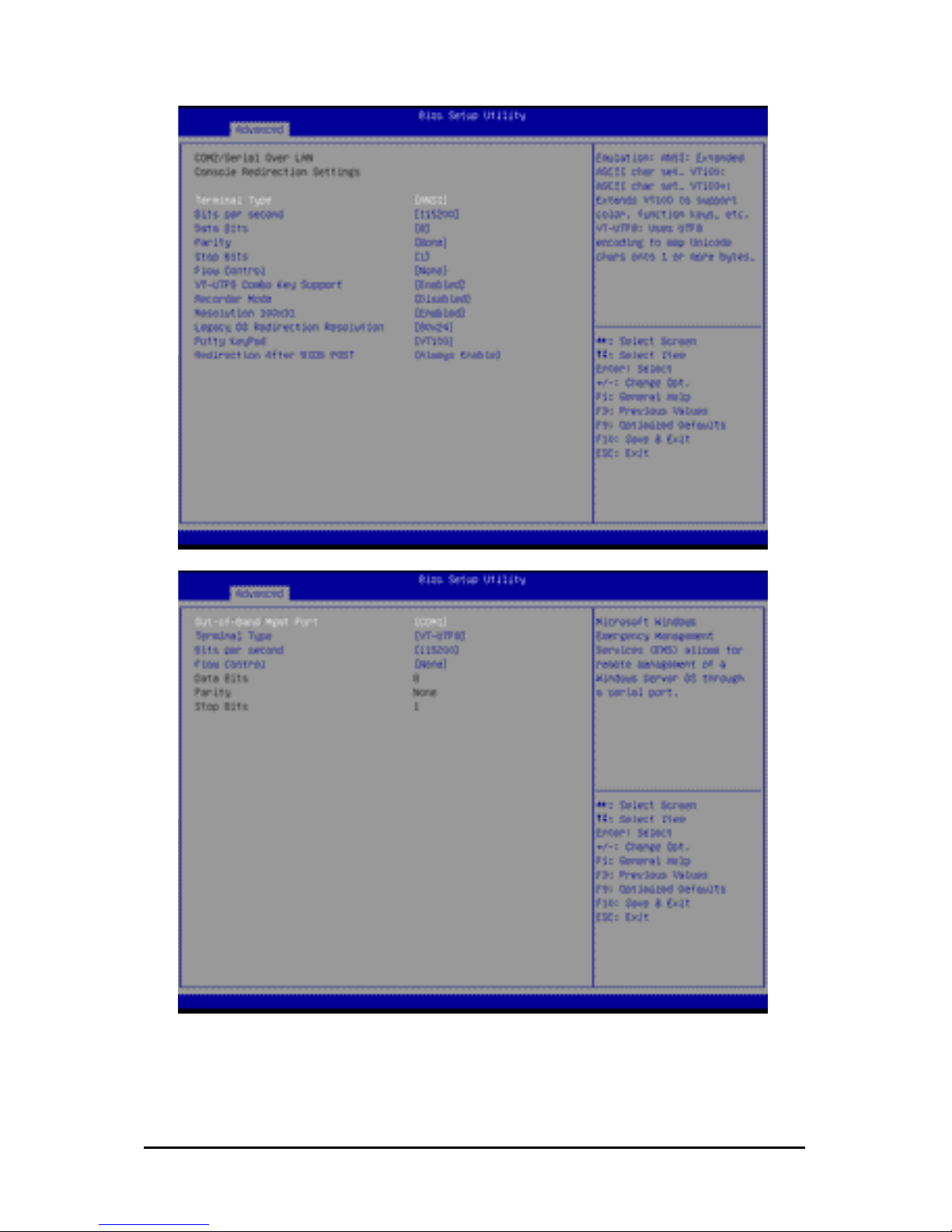

5-2-1 Serial Port Console Redirection .............................................................................47

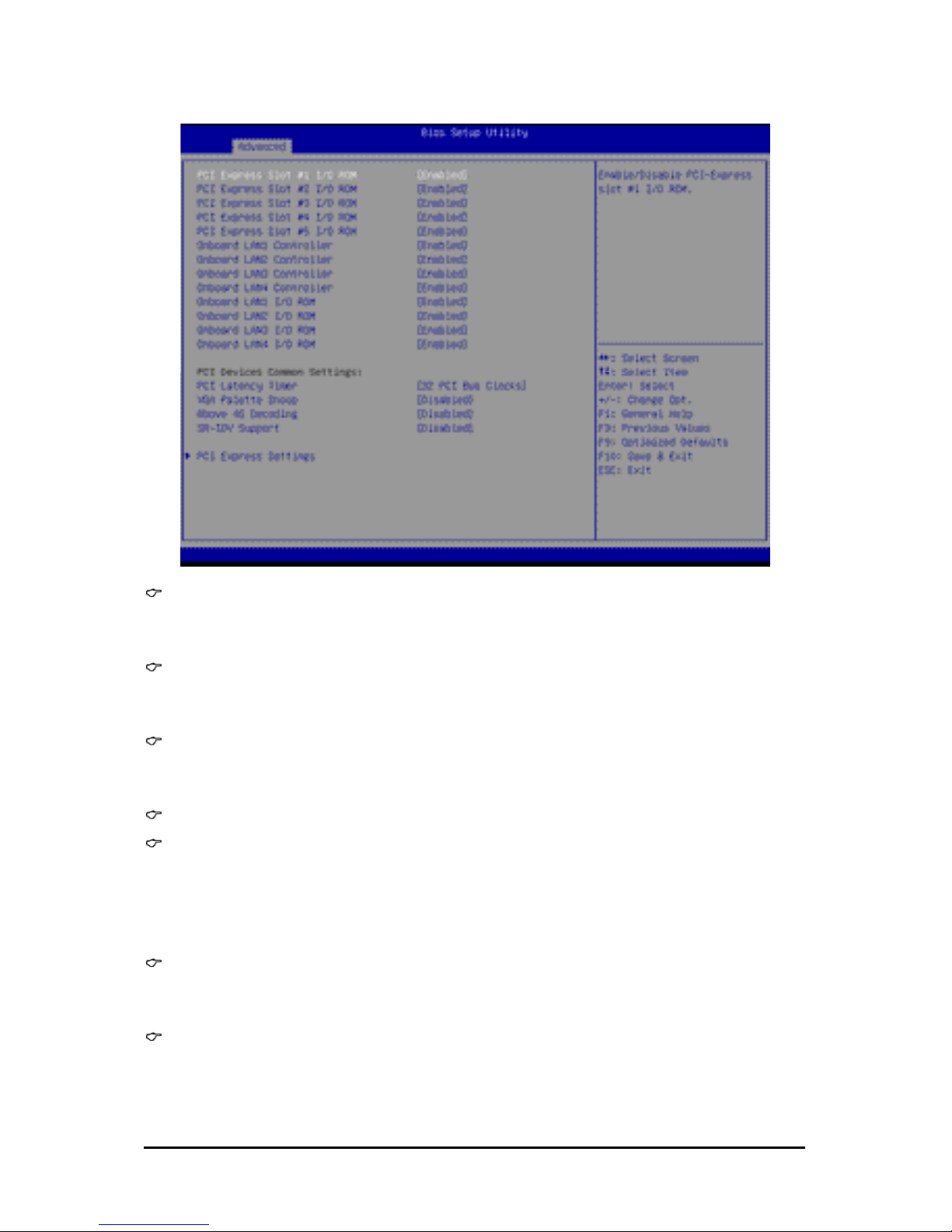

5-2-2 PCI Subsystem Settings .........................................................................................51

5-2-2-1 PCI Express Settings ..............................................................................................53

5-2-3 Network Stack ........................................................................................................55

5-2-4 CSM Conguration .................................................................................................56

5-2-5 Post Report Conguration ......................................................................................58

5-2-6 Trusted Computing .................................................................................................59

5-2-7 USB Conguration ..................................................................................................60

5-2-8 Chipset Conguration .............................................................................................61

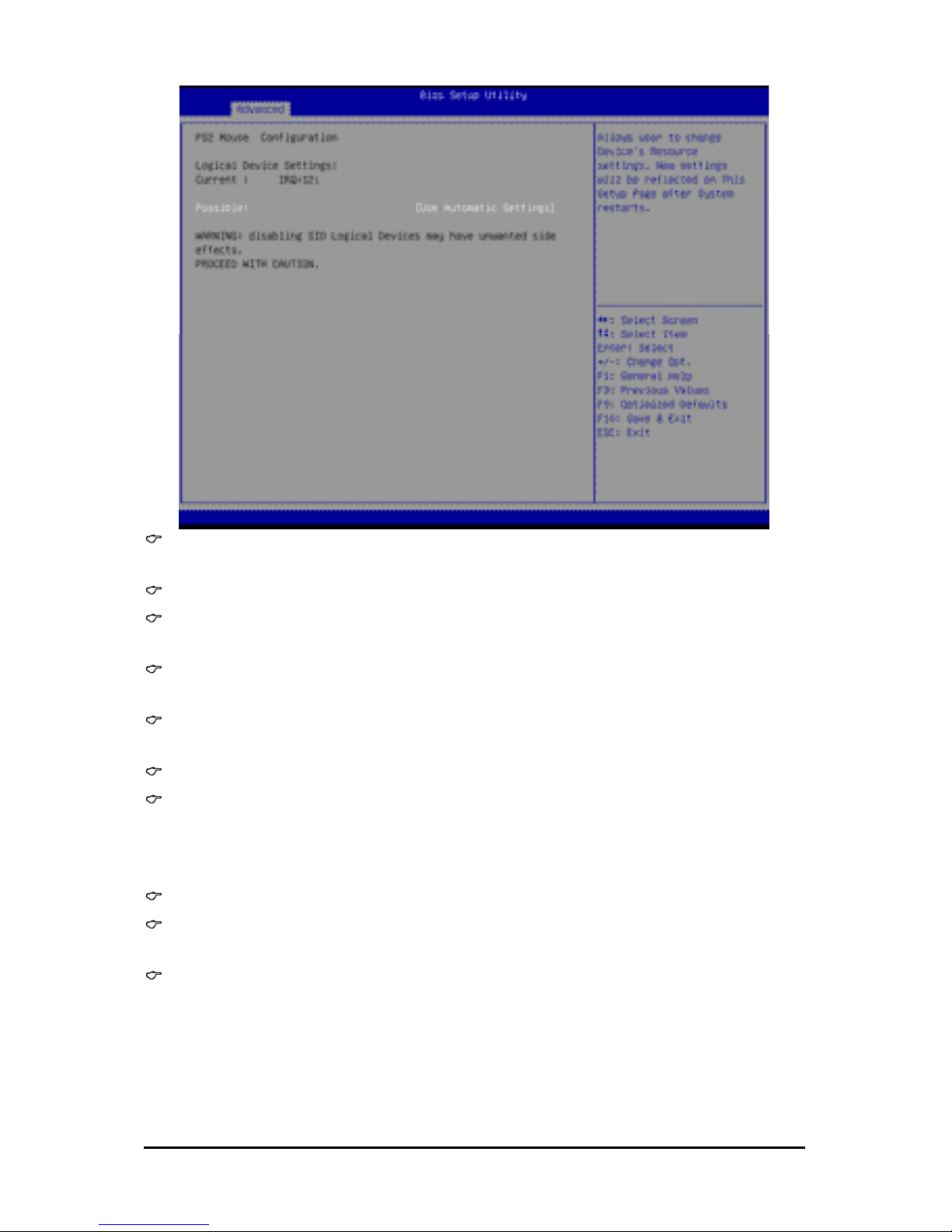

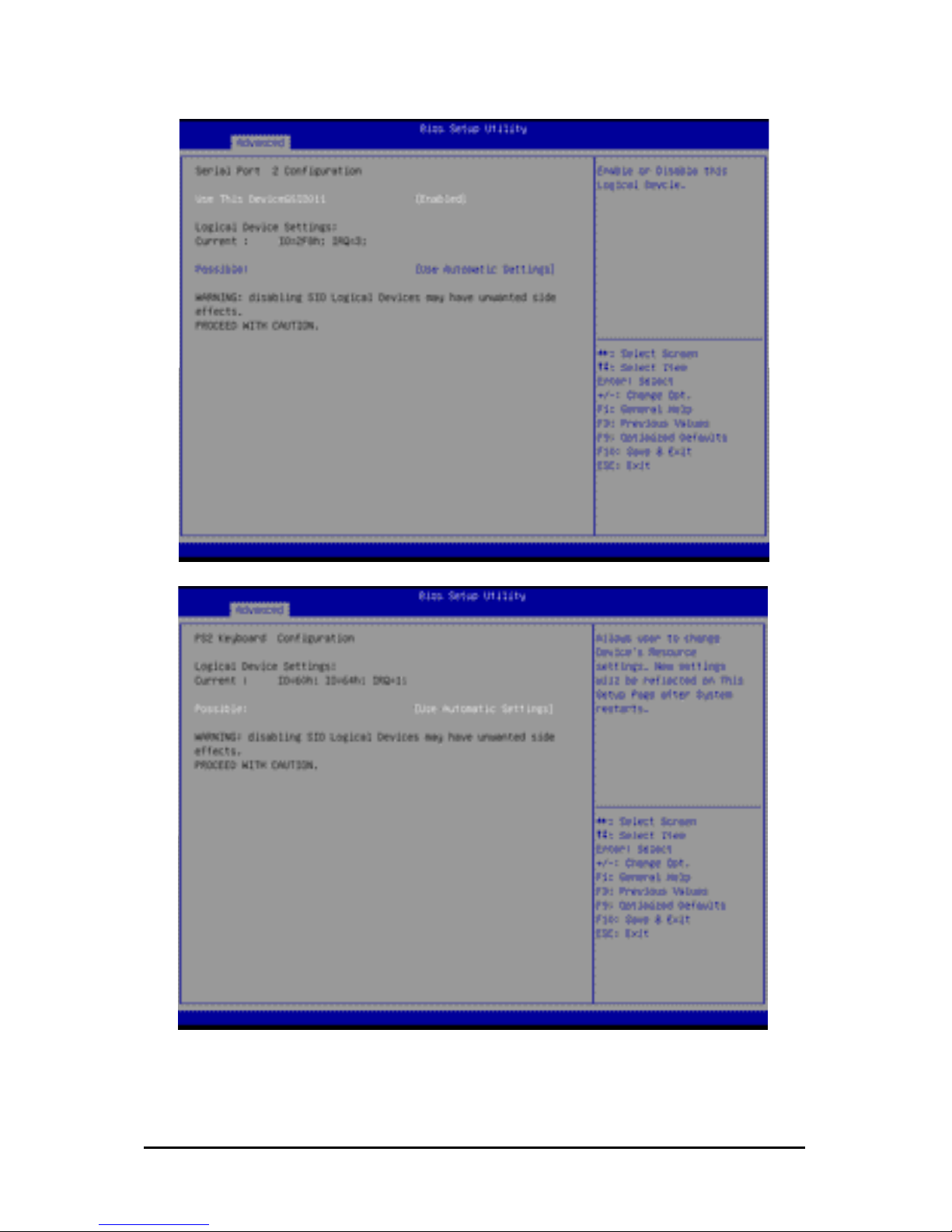

5-9 SIO Conguration ...................................................................................................62

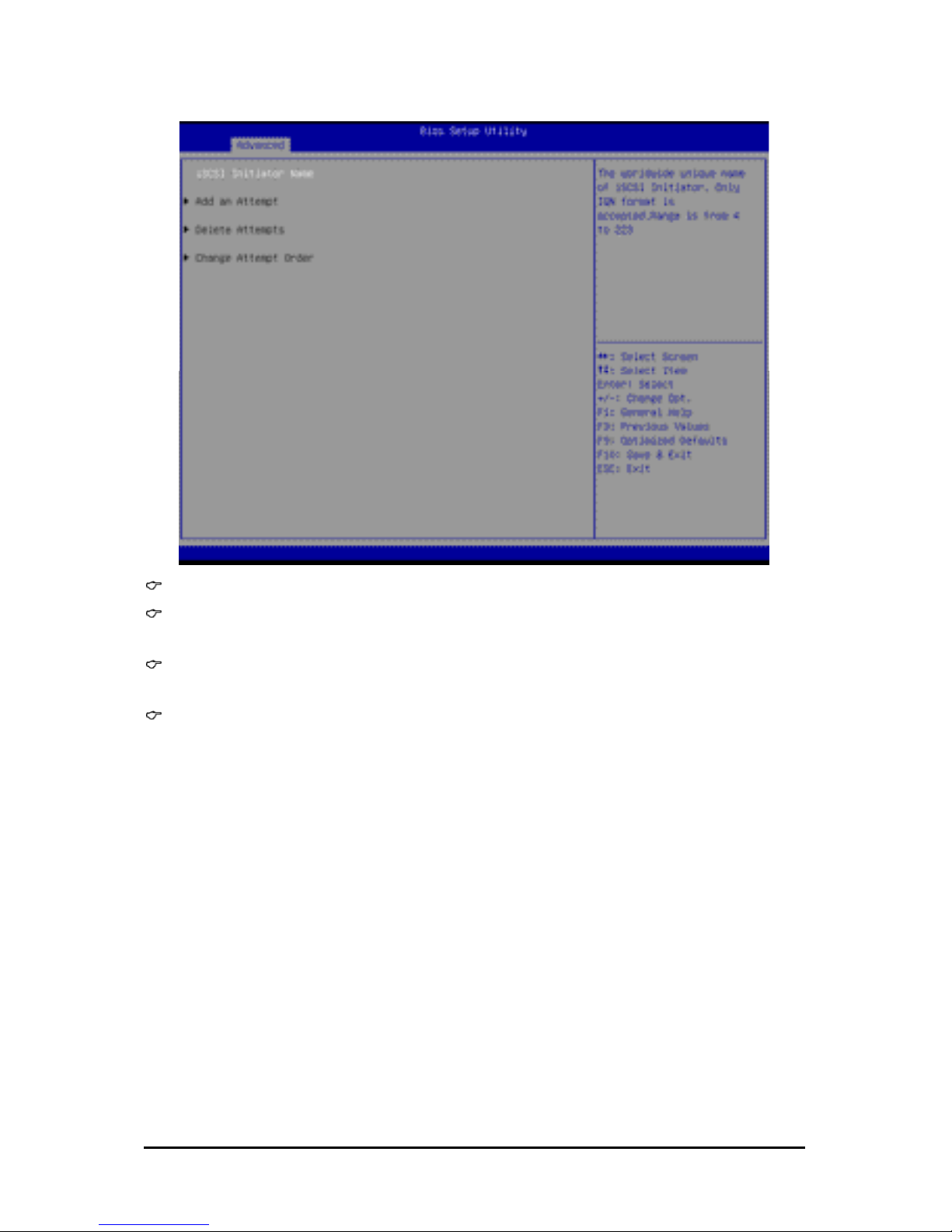

5-2-10 iSCSI Conguration ................................................................................................66

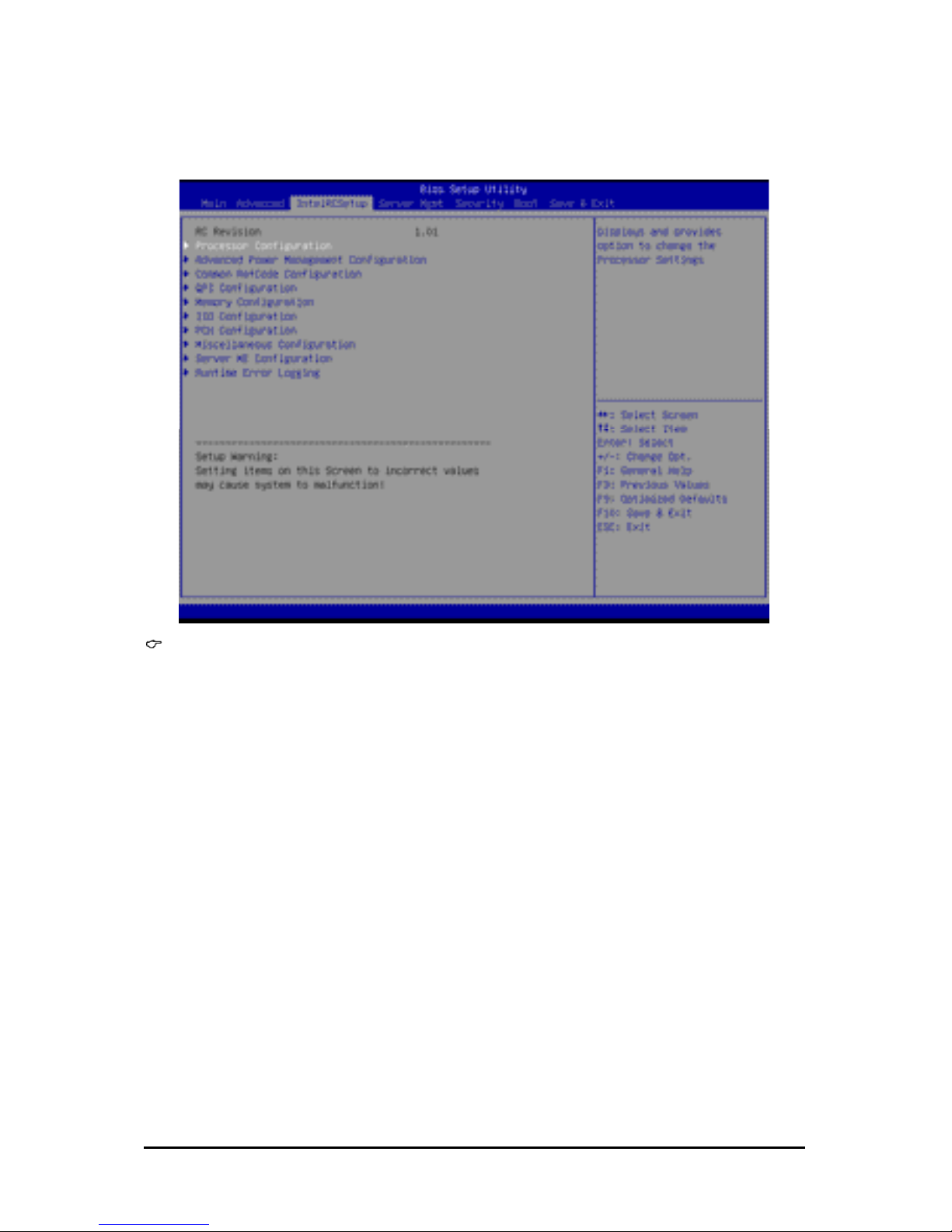

5-3 Intel RC Setup Menu ......................................................................................67

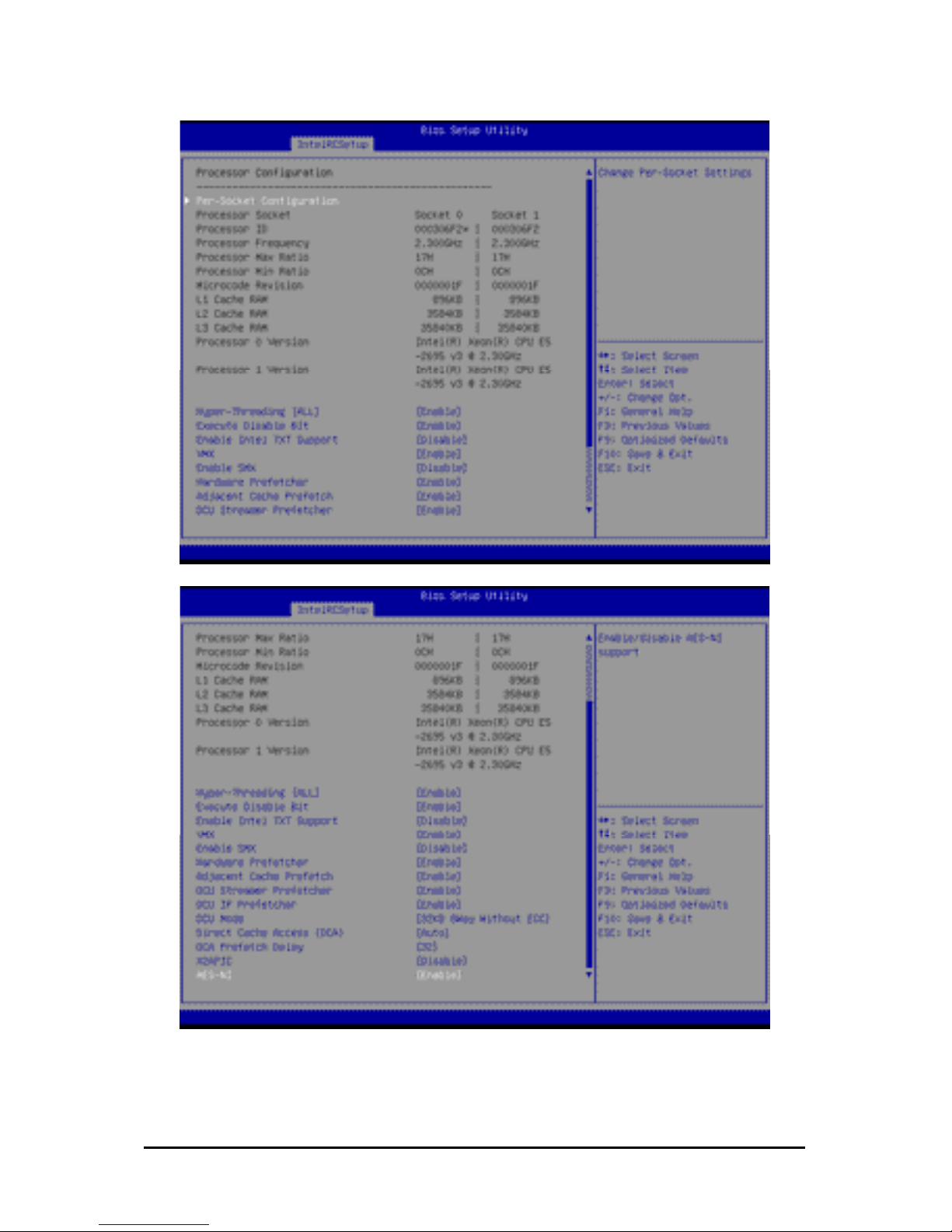

5-3-1 Processor Conguration .........................................................................................68

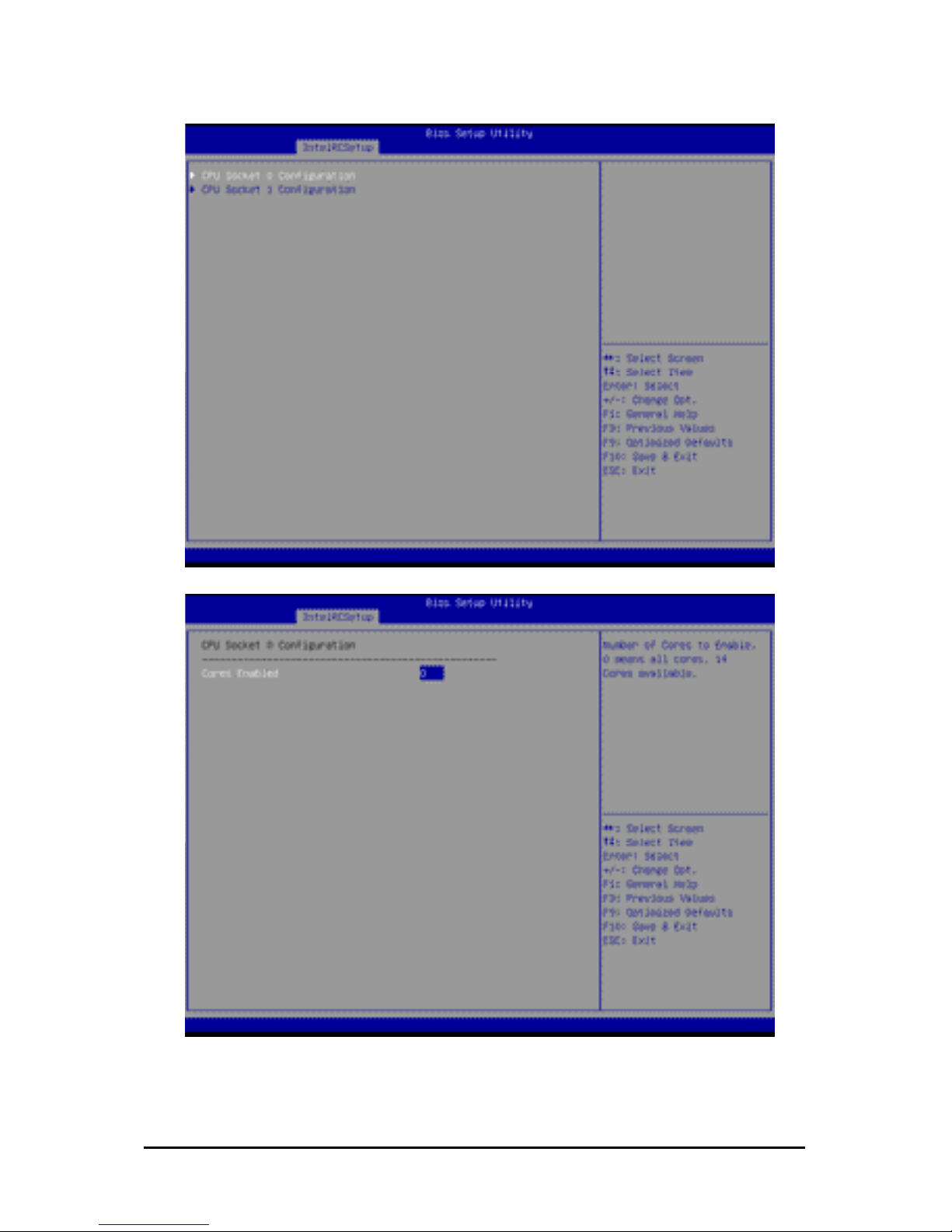

5-3-1-1 Pre-Socket Conguration .......................................................................................71

5-3-2 Advanced Power Management Conguration ........................................................73

5-3-2-1 CPU P State Control ...............................................................................................74

5-3-2-2 CPU C State Control ..............................................................................................75

5-3-2-3 CPU T State Control ...............................................................................................76

5-3-3 Common RefCode Conguration ...........................................................................77

5-3-4 QPI Conguration ...................................................................................................78

5-3-5 Memory Conguration ............................................................................................80

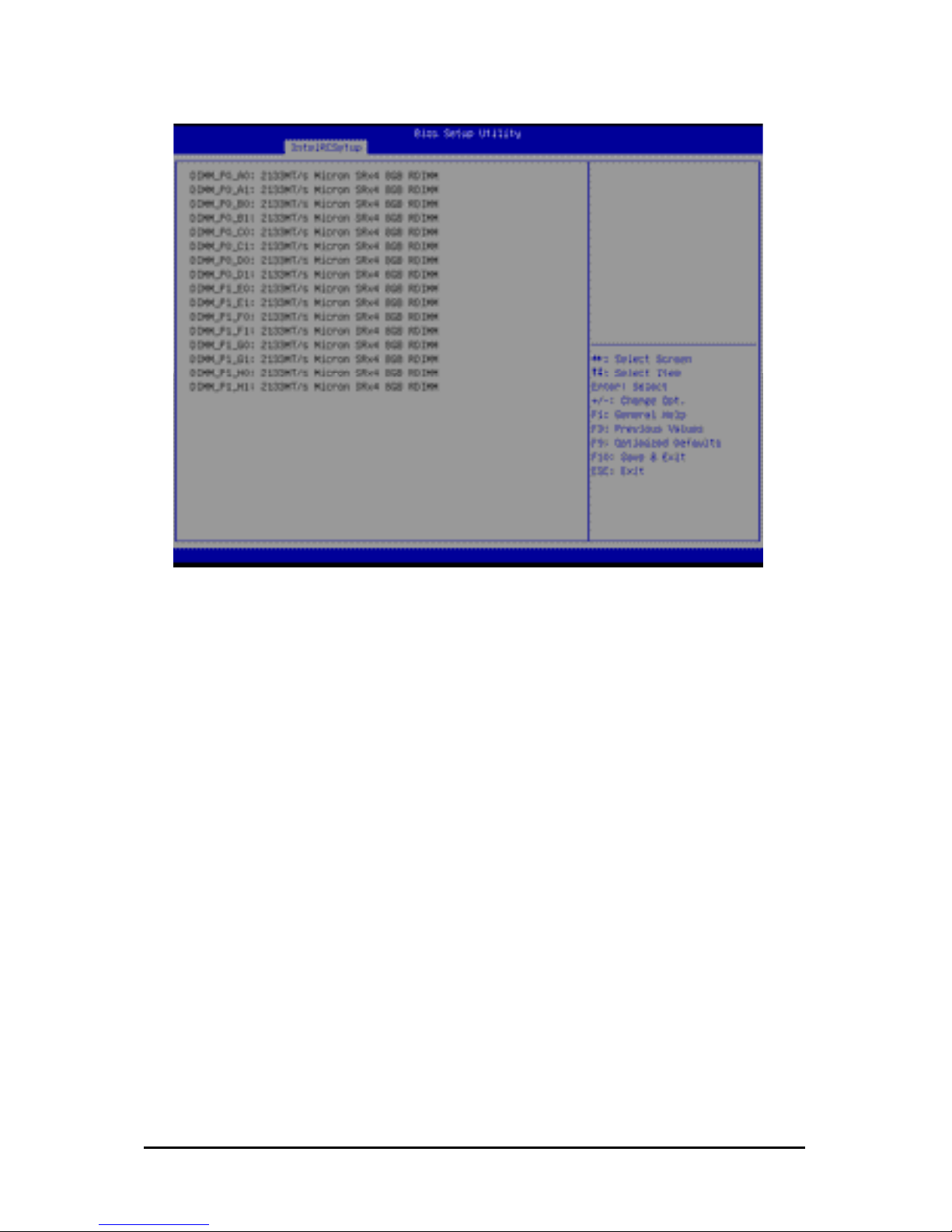

5-3-5-1 Memory Topology ...................................................................................................82

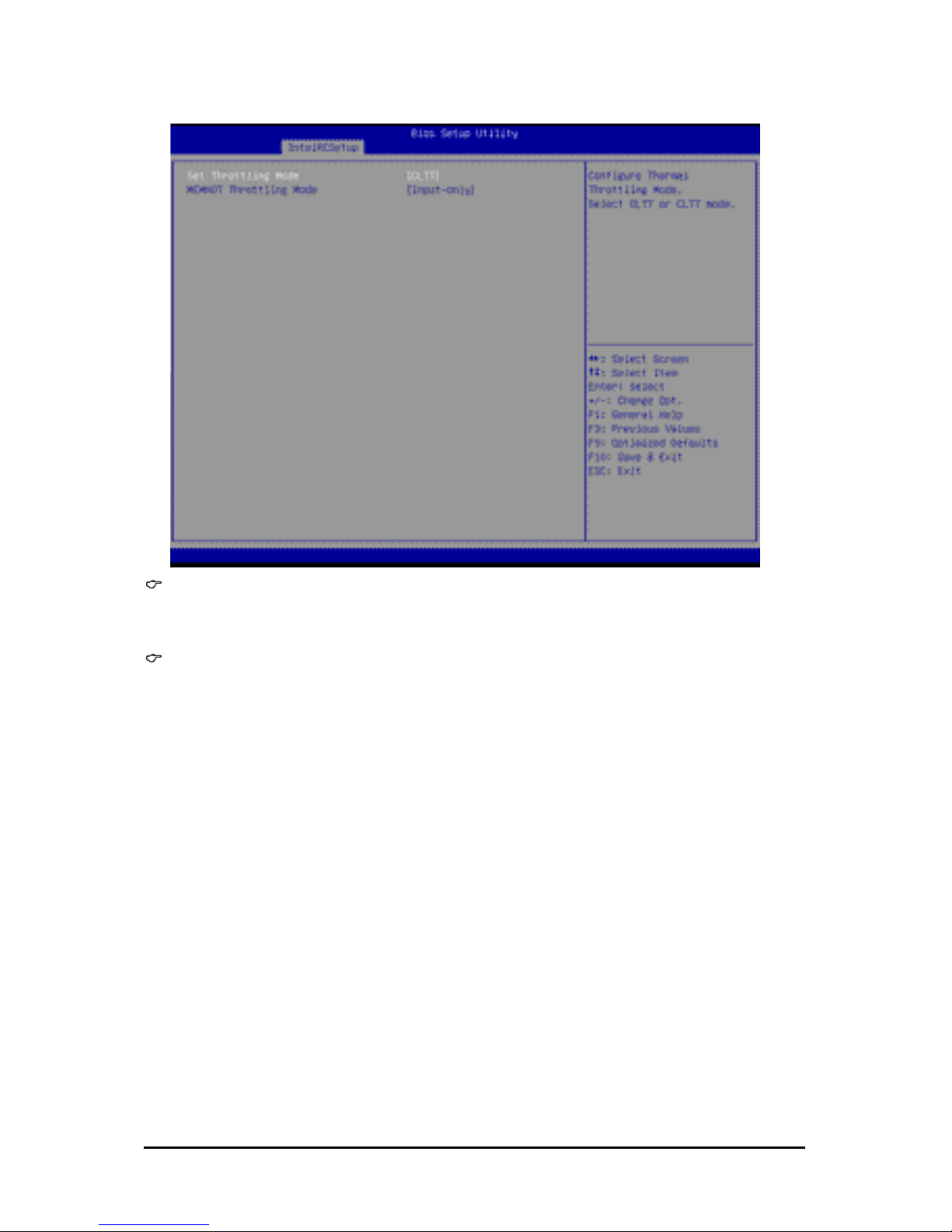

5-3-5-2 Memory Thermal ....................................................................................................83

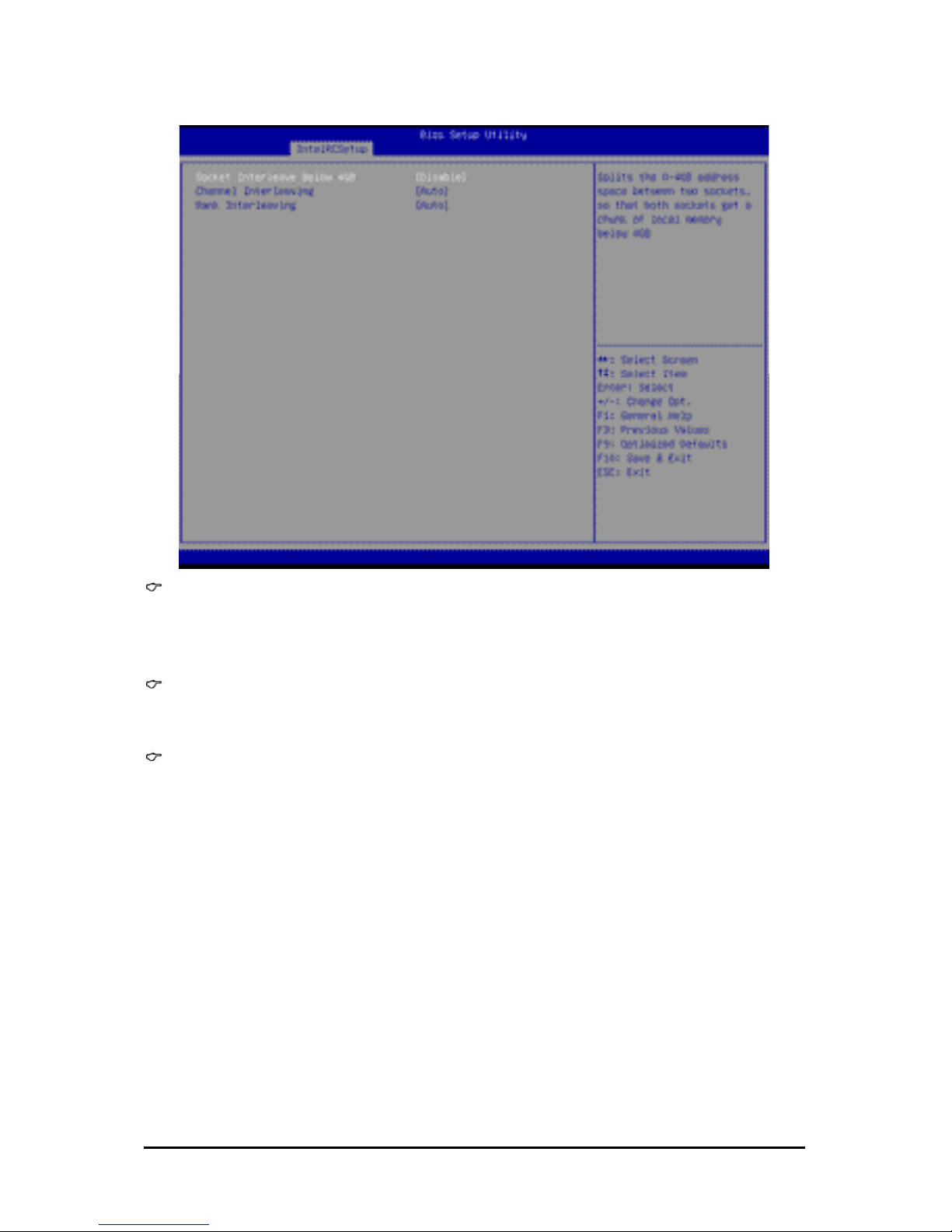

5-3-5-3 Memory Map ...........................................................................................................84

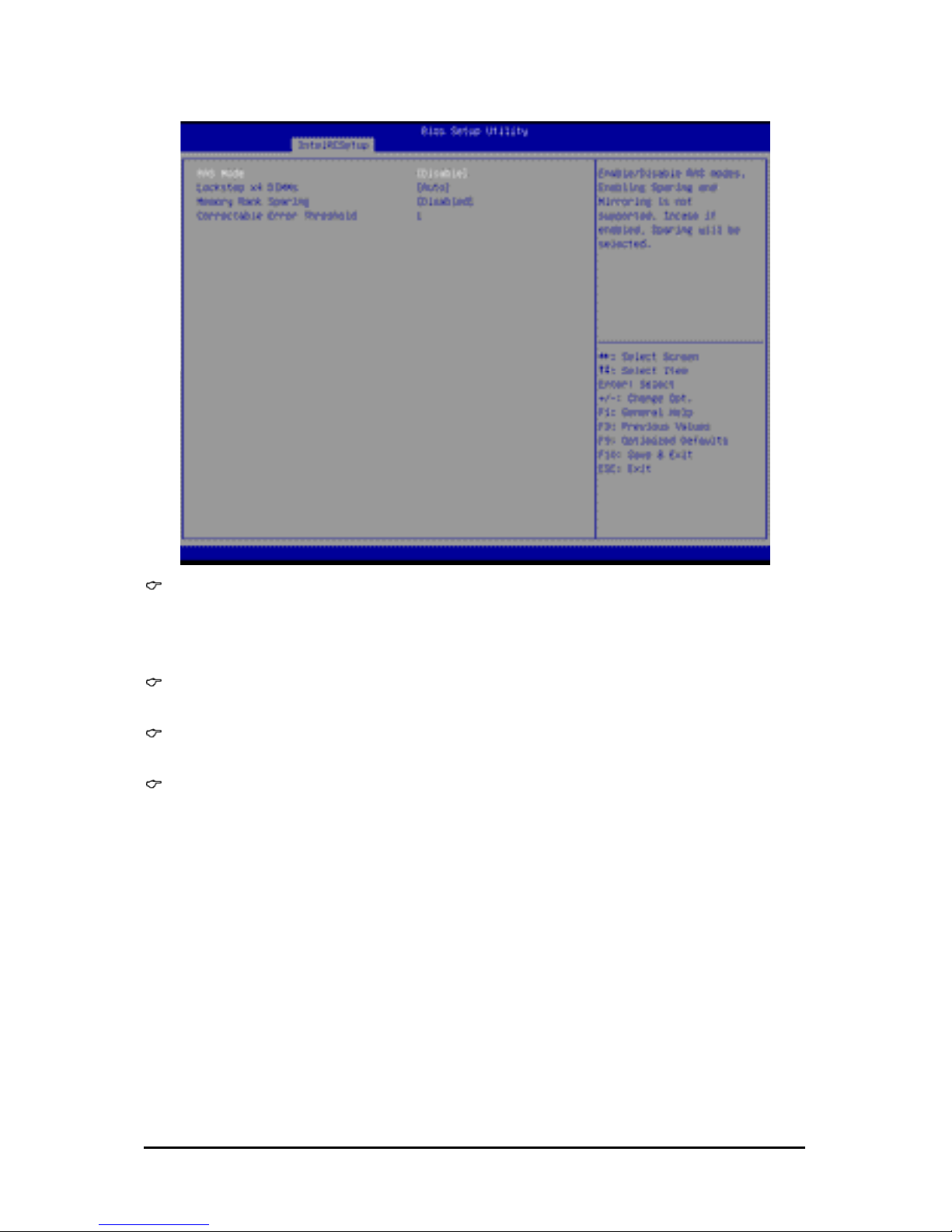

5-3-5-4 Memory RAS Conguration ....................................................................................85

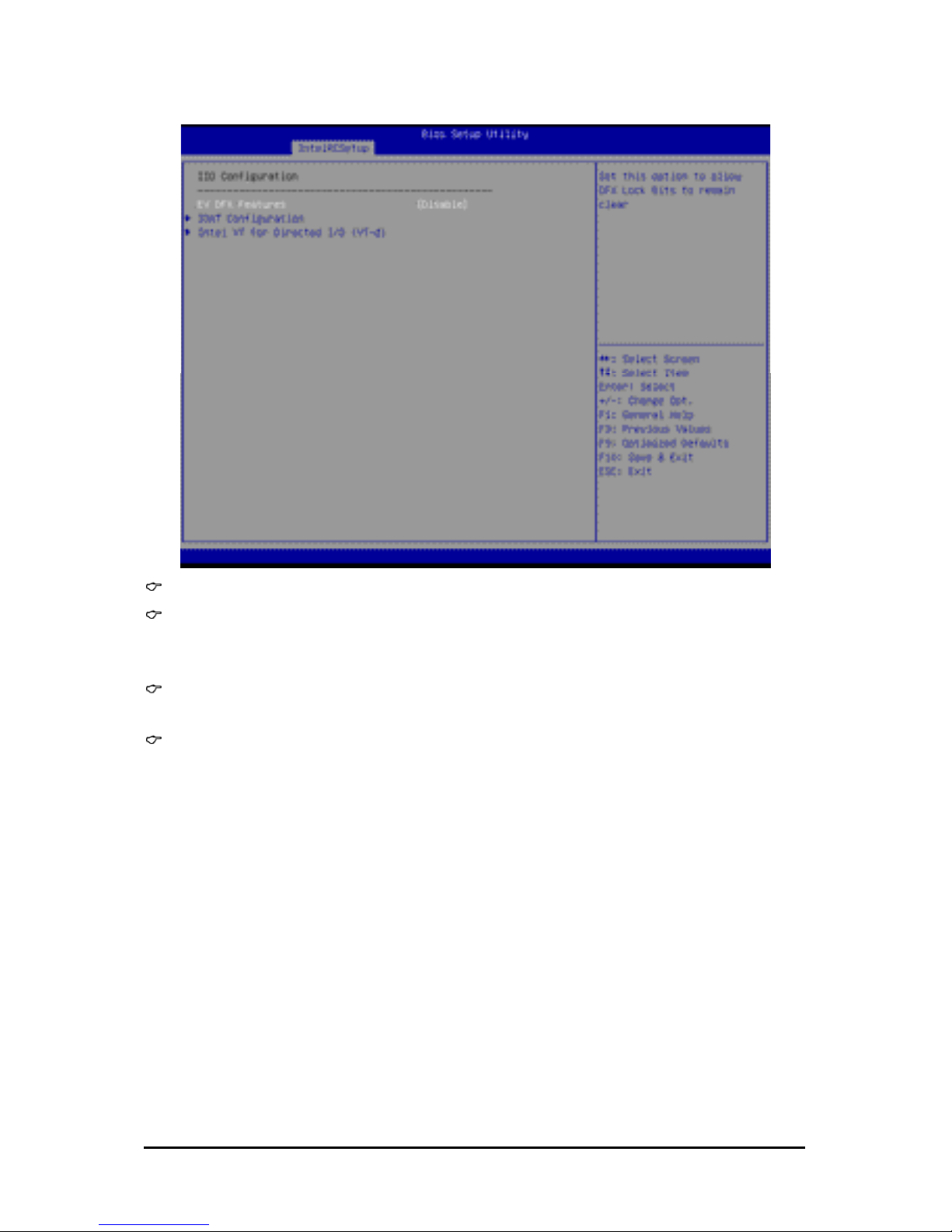

5-3-6 IIO Conguration ....................................................................................................86

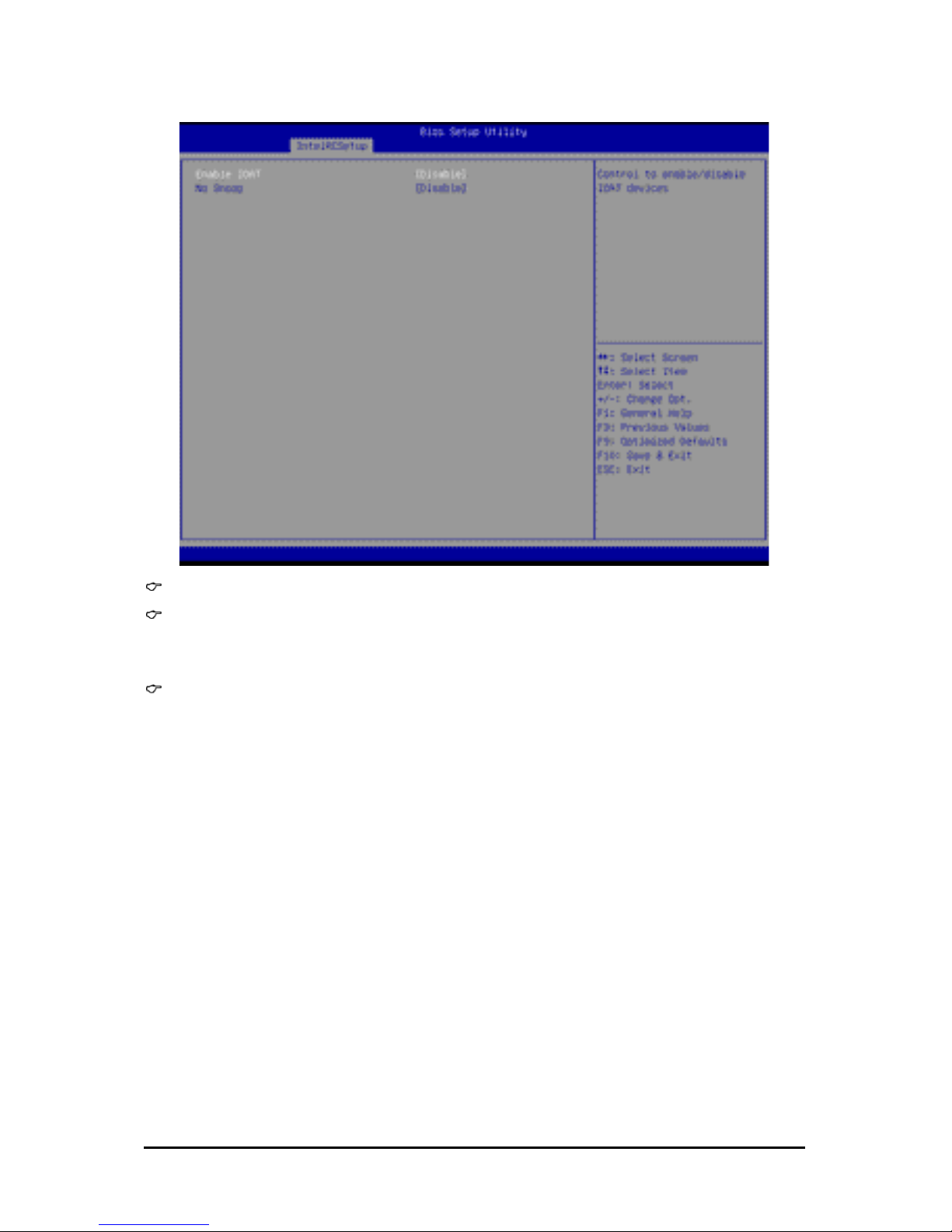

5-3-6-1 IOAT Conguration .................................................................................................87

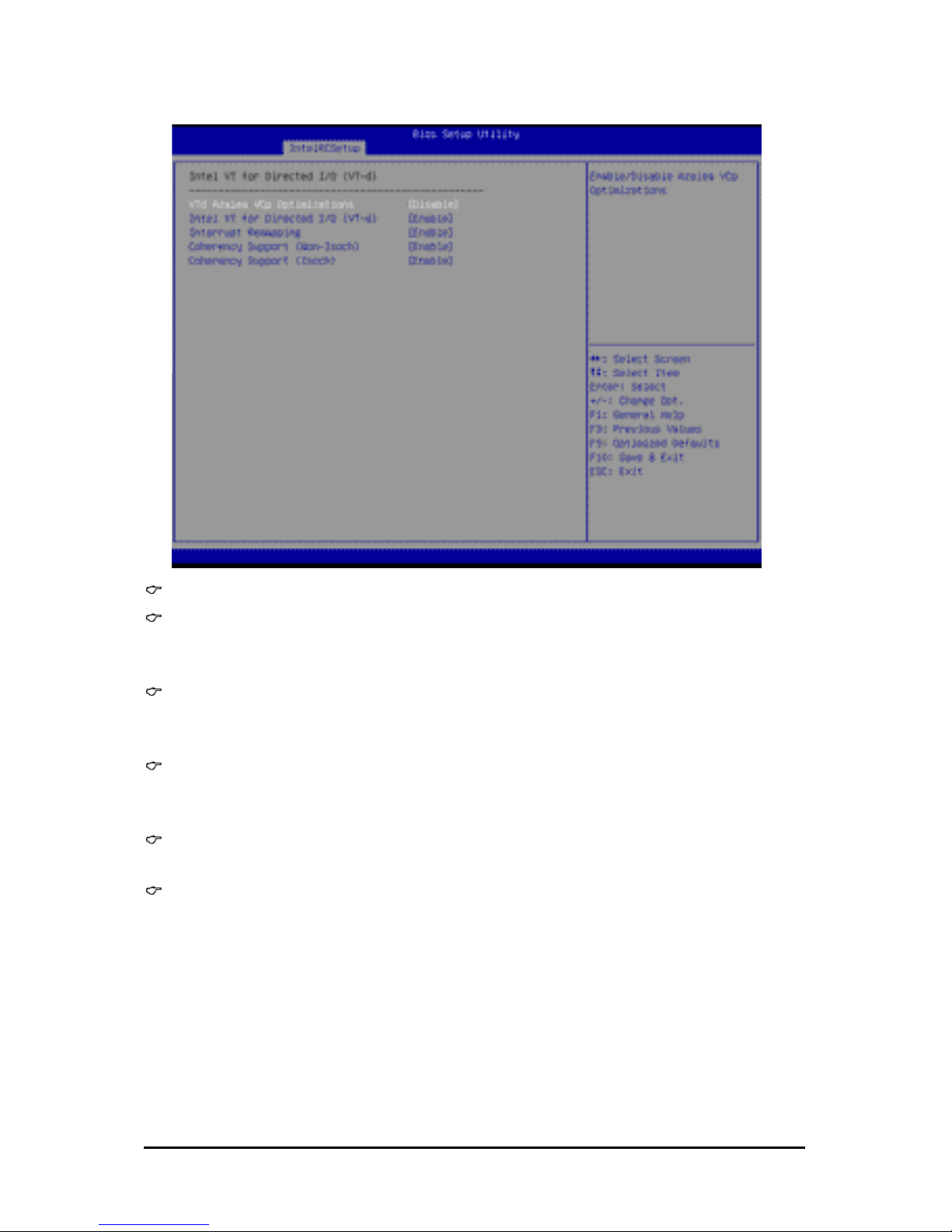

5-3-6-2 Intel VT for Directed I/O (VT-d) ..............................................................................88

5-3-7 PCH Conguration .................................................................................................89

5-3-7-1 PCH Devices ..........................................................................................................90

5-3-7-2 PCH sSATA Conguration ......................................................................................91

5-3-7-2-1 SATA Mode Options ..............................................................................................94

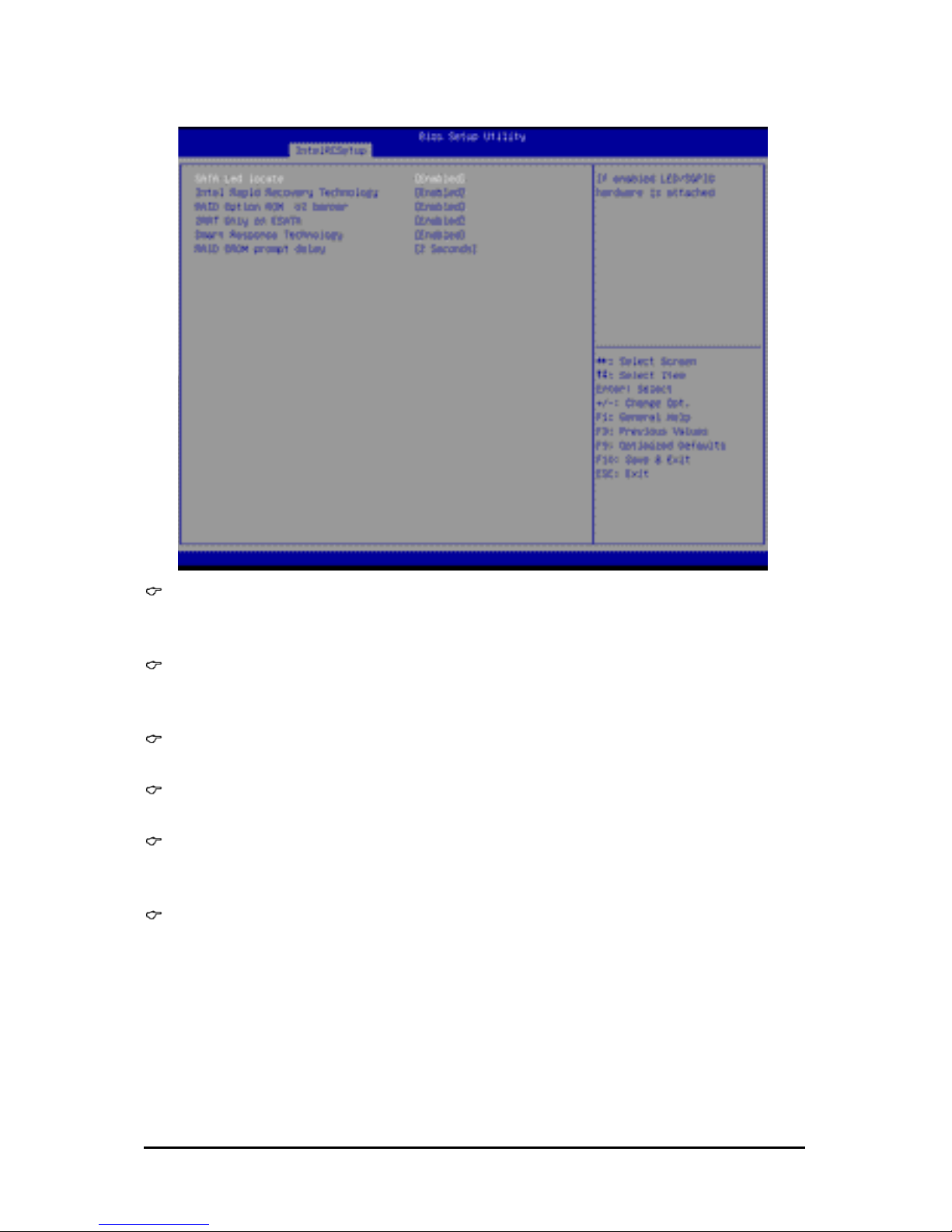

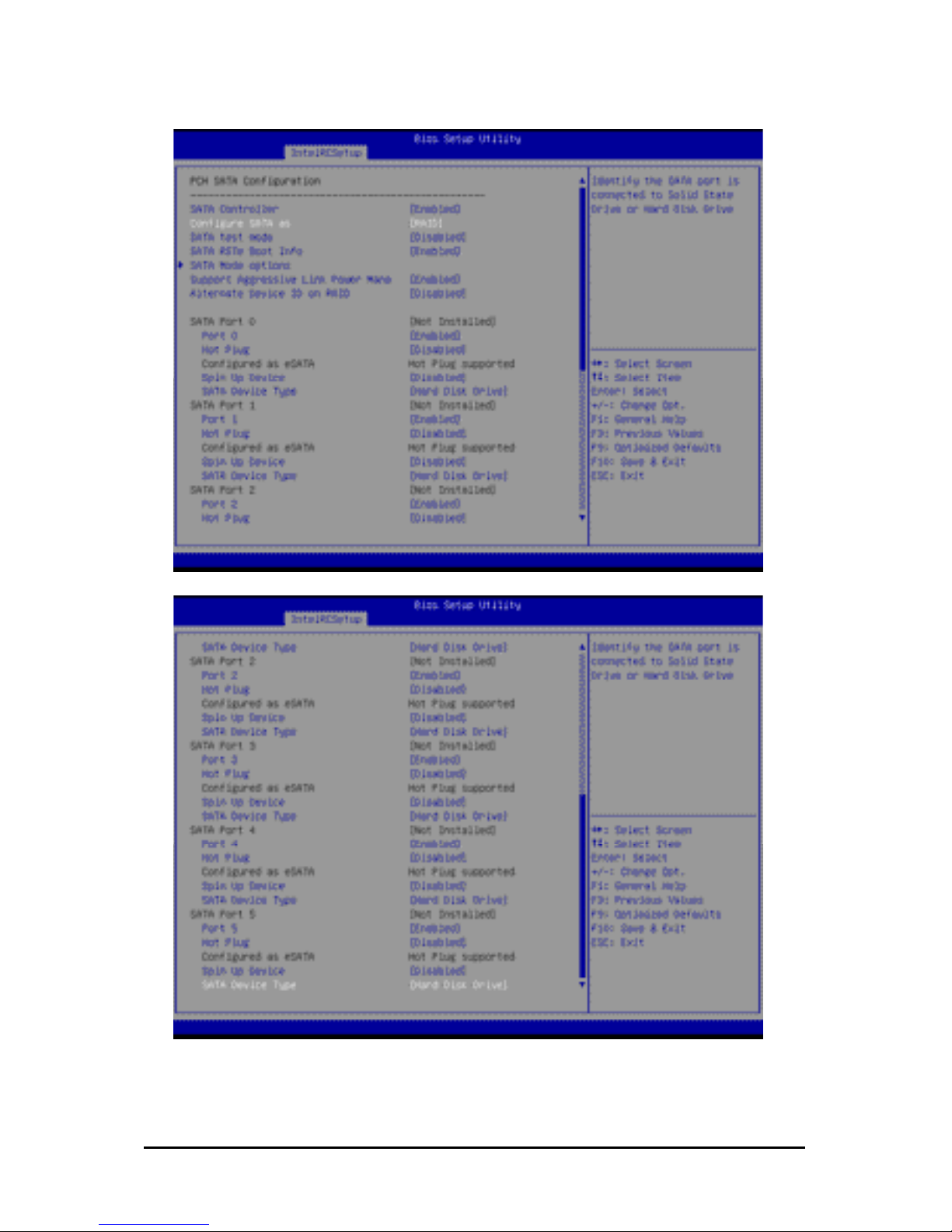

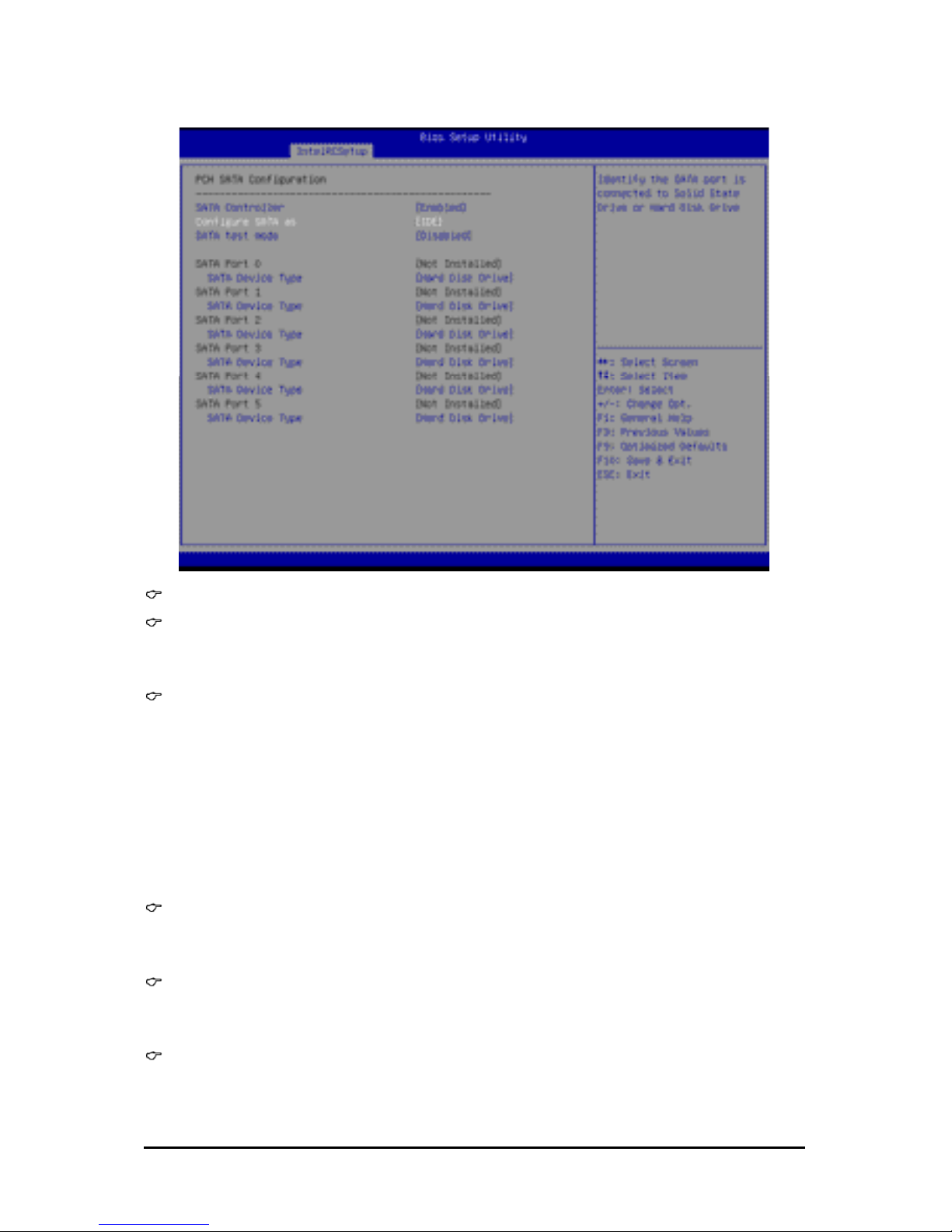

5-3-7-3 PCH SATA Conguration ........................................................................................96

5-3-7-3-1 SATA Mode Options ..............................................................................................99

5-3-7-4 USB Conguration ................................................................................................101

5-3-8 Miscellaneous Conguration ................................................................................102

5-3-9 Server ME Conguration ......................................................................................103

5-3-10 Runtime Error Logging .........................................................................................104

5-3-10-1 Whea Setting ........................................................................................................105

5-3-10-2 Memory Error Enabling .........................................................................................106

- 6 -

5-3-10-3 PCI/PCI Error Enabling .........................................................................................107

5-4 Server Management Menu ...........................................................................108

5-4-1 System Event Log ................................................................................................110

5-4-2 View FRU Information ..........................................................................................111

5-4-3 BMC network conguration ..................................................................................112

5-5 Security Menu .............................................................................................. 113

5-5-1 Secure Boot menu ...............................................................................................114

5-5-1-1 Key Management

...............................................................................................115

5-6 Boot Menu .................................................................................................... 117

5-7 Save & Exit Menu ......................................................................................... 119

5-8 BIOS POST Codes ......................................................................................121

5-9 BIOS POST Beep code ................................................................................125

5-9-1 PEI Beep Codes ...................................................................................................125

5-9-2 DEX Beep Codes .................................................................................................125

5-10 BIOS Recovery Instruction ...........................................................................126

- 7 -

Box Contents

R130-134 System
Driver CD

• The box contents above are for reference only and the actual items shall depend on the pro du ct packag e you ob ta in.
The box contents are subject to change without notice.

• The motherboard image is for reference only.

- 8 -

Safety, Care and Regulatory Information

Important safety information

Read and follow all instructions marked on the product and in the documentation before you operateyour sys­tem. Retain all safety and operating instructions for future use.

• The product should be operated only from the type of power source indicated on the rating label.* If your
computer has a voltage selector switch, make sure that the switch is in the proper position foryour area.
The voltage selector switch is set at the factory to the correct voltage.

• The plug-socket combination must be accessible at all times because it serves as the main disconnect­ing device.

• All product shipped with a three-wire electrical grounding-type plug only fits into a grounding-type
poweroutlet. This is a safety feature. The equipment grounding should be in accordance with local and
nationalelectrical codes. The equipment operates safely when it is used in accordance with its marked
electricalratings and product usage instructions

• Do not use this product near water or a heat source.* Set up the product on a stable work surface or so
as to ensure stability of the system.

• Openings in the case are provided for ventilation. Do not block or cover these openings. Make sure
youprovide adequate space around the system for ventilation when you set up your work area. Never
insertobjects of any kind into the ventilation openings.

• To avoid electrical shock, always unplug all power cables and modem cables from the wall outletsbefore
removing covers.

• Allow the product to cool before removing covers or touching internal components.

Precaution for Product with Laser Devices

Observe the following precautions for laser devices:

• Do not open the CD-ROM drive, make adjustments, or perform procedures on a laser device other than

those specied in the product's documentation.

• Only authorized service technicians should repair laser devices.

Precaution for Product with Modems, Telecommunications, ot Local AreaNetwork Options

Observe the following precautions for laser devices:

• Do not connect or use a modem or telephone during a lightning storm. There may be a risk of electri­calshock from lightning.

• To reduce the risk of re, use only No. 26 AWG or larger telecommunications line cord.

• Do not plug a modem or telephone cable into the network interface controller (NIC) receptacle.

• Disconnect the modem cable before opening a product enclosure, touching or installing internalcompo­nents, or touching an uninsulated modem cable or jack.

• Do not use a telephone line to report a gas leak while you are in the vicinity of the leak.

- 9 -

Federal Communications Commission (FCC) Statement
Warning
This is a class A product. In a domestic environment this product may cause radiointerfer­enceIn which case the user may be required to take adequate measures.

This equipment has been tested and found to comply with the limits for a Class A digital device,pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection againstharmful interfer­ence when the equipment is operated in a commercial environment. This equipmentgenerates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance withthe instruction manual, may
cause harmful interference to radio communications. Operation of thisequipment in a residential area is likely
to cause harmful interference in which case the user will berequired to correct the interference at his own ex­pense.Properly shielded and grounded cables and connectors must be used in order to meet FCC emission­limits. Neither the provider nor the manufacturer are responsible for any radio or television interferencecaused

by using other than recommended cables and connectors or by unauthorized changes ormodications to this

equipment. Unauthorized changes or modications could void the user's authority tooperate the equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired opera­tion.

Canadian Department of Communications Compliance Statement

This digital apparatus does not exceed the Class A limits for radio noise emissions from digitalapparatus as
set out in the radio interference regulations of Industry Canada.Le present appareil numerique n'emet pas
de bruits radioelectriques depassant les limites applicables auxappareils numeriques de Classe A prescrites
dans le reglement sur le brouillage radioelectrique edicte parIndustrie Canada.

Class A equipment

This device has been tested and found to comply with the limits for a class A digital device pursuantPart 15 of
the FCC Rules. These limits are designed to provide reasonable protection againstharmful interference when
the equipment is operated in a commercial environment. This equipmentgenerate, uses, and can radiate
radio frequency energy, and if not installed and used in accordancewith the instructions, may cause harmful
interference to radio communication. Operation of thisequipment in a residential area is likely to cause harm­ful interference, in which case the user will berequired to correct the interference at personal expence.

However, there is no guarantee that interference will not occur in a particular installation. If thisdevice does
cause harmful interference to radio or television reception, which can be determined bytuning the device off
and on, the user is encouraged to try to correct the interference by on or more ofthe following measures:

• Reorient or relocate the receiving antenna

• Increase the separation between the device and receiver

• Connect the device into an outlet on a circuit different from that to which the receiver isconnected'Consult

the dealer or an experienced radio/television technician for help.

- 10 -

Battery Warning:

Incorrectly installing a battery or using incompatible battery may increase

the risk of ifre explosion. Replace the battery only with the same or equivalent type.

• Do not disassemble, crush, punchture batteries.

• Do not store or place your battery pack next to or in a heat source such as a re, heatgenerating

appliance, can or exhaust vent. Heating battery cells to temperatures above 65

o

C (14 9oF) ca n

cause explosion or re.

• Do not attempt to open or service batteries. Do not dispose of batteries in a re or with house­hold waste.

WEEE Symbol Statement

The symbol shown below is on the product or on its packaging, which indicates that this product
must not be disposed of with other waste. Instead, the device should be taken to the waste
collection centers for activation of the treatment, collection, recycling and disposal procedure.
The separate collection and recycling of your waste equipment at the time of disposal will help to
conserve natural resources and ensure that it is recycled in a manner that protects human health

and the environment. For more information about where you can drop off your waste equipment for recycling,

please contact your local government ofce, your household waste disposal service or where you purchased

the product for details of environmentally safe recycling.

w

When your electrical or electronic equipment is no longer useful to you, "take it back" to your local or

regional waste collection administration for recycling.

w

If you need further assistance in recycling, reusing in your "end of life" product, you may contact us at the

Customer Care number listed in your product's user's manual and we will be glad to help you with your
effort.

- 11 -

Hardware Installation

1-1 Installation Precautions

The motherboard/system contain numerous delicate electronic circuits and components which
can become damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully
read the service guide and follow these procedures:

• Prior to installation, do not remove or break motherboard S/N (Serial Number) sticker or
warranty sticker provided by your dealer. These stickers are required for warranty validation.

• Always remove the AC power by unplugging the power cord from the power outlet before
installing or removing the motherboard or other hardware components.

• When connecting hardware components to the internal connectors on the motherboard,
make sure they are connected tightly and securely.

• When handling the motherboard, avoid touching any metal leads or connectors.

• It is best to wear an electrostatic discharge (ESD) wrist strap when handling electronic
components such as a motherboard, CPU or memory. If you do not have an ESD wrist

strap, keep your hands dry and rst touch a metal object to eliminate static electricity.

• Prior to installing the motherboard, please have it on top of an antistatic pad or within an
electrostatic shielding container.

• Before unplugging the power supply cable from the motherboard, make sure the power
supply has been turned off.

• Before turning on the power, make sure the power supply voltage has been set according to
the local voltage standard.

• Before using the product, please verify that all cables and power connectors of your
hardware components are connected.

• To prevent damage to the motherboard, do not allow screws to come in contact with the
motherboard circuit or its components.

• Make sure there are no leftover screws or metal components placed on the motherboard or
within the computer casing.

• Do not place the computer system on an uneven surface

.

• Do not place the computer system in a high-temperature environment.

• Turning on the computer power during the installation process can lead to damage to
system components as well as physical harm to the user.

• If you are uncertain about any installation steps or have a problem related to the use of the

product, please consult a certied computer technician.

Chapter 1 Hardware Installation

Hardware Installation

- 12 -

1-2 ProductSpecications

Motherboard  R130-134: MD60-SC1

 R130-234: MD60-SC2

CPU  Support for Intel® Xeon® E5-2600 V3 series processors in the LGA2011 package

 L3 cache varies with CPU
 Supports Dual QuickPath Interconnect up to 9.6GT/s
 Enhanced Intel SpeedStep Technology (EIST)

 Support Intel Virtualization Technology (VT)
Chipset  Intel® C612 Express (Wellsburg) Chipset
Memory  16 x 1.2V D DR4 DIMM soc kets suppor ting up to 512GB R DIMM of system

memory
 1 6 x 1.2V DDR4 DIMM sockets supporting up to 1TB LRDIMM of system memory
 Four channel memory architecture
 Supports DDR4 2133MHz RDIMM memory modules
 Supports DDR4 2133MHz LR-DIMM memory modules
 Support for ECC RDIMM/LRDIMM memory modules

LAN  Intel® I350 supports 10/100/1000 Mbps (R130-134 Only)

 Intel® 82599ES 10GbE LAN controller with QSFP+ (R130-234 Only)
 1 x Management LAN 10/100/1000Mpbs LAN port

Expansion Slot
(R130-134)

 2 x PCI Express x8 slots

Expansion Slot
(R130-234)

 2 x PCI Express x16 slot, running at x16 (Gen3/PCIE_1/PCIE_3)
 2 x PCI Express x8 slot, running at x8 (Gen3/PCIE_2/PCIE_4)
 1 x PCI Express x8 slot, ( Gigabyte extension slot/RAID_SLOT1/RAID_SLOT2/

GEN3)
 2 x PCI Express x8 slots

Onboard
Graphics

 ASPEED

®

AST2400 supports 16MB DDR3 VRAM

Mass Storage  4 x 3.5” Hot-Swap SATA/SAS HDDs

 2 x SATA3 6Gb/s connectors (SATA4/SATA5/Option)
 Support for Intel RSTe SATA RAID 0, RAID 1, RAID 10
 8 x SASGb/s connectors (SAS0/SAS1/SAS2/SAS3/SAS4/SAS5/SAS6/SAS7;

Activating SAS ports with Gigabyte extension card
 2 x Mini-SAS connectors (8 additional SATA3 ports (6Gb/s)

System Fans  6 x 40x40x56mm Front: 16000rpm/Rear: 15400rpm
USB  Up to 8 USB 3.0 ports (6 on the rear panel I/O, 2 at the front panel/R130-134)

 Up to 4 USB 3.0 ports (2 on the rear panel I/O, 2 at the front panel/R130-234)

- 13 -

Hardware Installation

Internal
Connectors

 1 x 24-pin ATX main power connector
 2 x 8-pin ATX 12V power connector
 2 x Mini-SAS connectors (SATA3 6Gb/s signal)
 8 x SAS connectors
 2 x SATA3 6Gb/s connectors
 1 x PMBus header
 2 x CPU fan headers
 5 x System fan headers
 1 x Front panel header
 1 x HDD Back plane borad header
 1 x USB 3.0 header
 1 x TPM module connector
 1 x Serial port connector
 2 x SAS SPGIO headers
 1 x IPMB connector

Rear Panel I/O
(R130-134)

 6 x USB 3.0 ports
 3 x RJ-45 ports (1 x 10/100/1000 Mbps dedicated management LAN port)
 1 x COM port
 1 x VGA port
 1 x PS/2 connector

Rear Panel I/O
(R130-234)

 2 x USB 3.0 ports
 1 x QSPF LAN port
 1 x RJ-45 port (10/100/1000 Mbps dedicated management LAN port)
 1 x COM port
 1 x VGA port
 1 x PS/2 connector

Front Panel
LED/Buttons

 1 x Power button/LED
 1 x NMI button
 1 x ID Switch button/LED
 1 x Reset button
 2 x LAN LED
 1 x System status LED
 1 x HDD status LED

I/O Controller  ASPEED® AST2400 BMC chip
Hardware

Monitor

 System voltage detection
 CPU/System temperature detection
 CPU/System fan speed detection
 CPU/System fan speed control

* Whether the CPU/system fan speed control function is supported will depend on

the CPU/system cooler you install.

BIOS  1 x 128 Mbit ash

 AMI BIOS

Hardware Installation

- 14 -

Environment
Ambient
Temperature

Relative
Humidity

 Operating Temperature: 5oC to 35oC
 Non-operating Temperature: 0oC to 50oC

 10-80% operating Humidity at 30oC

System
Dimension

 444Wx43.5Hx615D (mm)

Electrical
Power Supply

 Fixed 1U PSU 600W 100-240VAC at 80 plus gold level

* GIGABYTE reserves the right to make any changes to the product specications and product-related information

without prior notice.

- 15 -

Hardware Installation

1-3 System Block Diagram

Hardware Installation

- 16 -

Chapter 2 System Hardware Installation

Pre-installation Instructions
Perform the steps below before you open the server or before you remove or replaceany
component.

• Back up all important system and data les before performing any hardwareconguration.

• Turn off the system and all the peripherals connected to it.

• Locate the pin one of the CPU. The CPU cannot be inserted if oriented incorrectly. (Or you may

locate the notches on both sides of the CPU and alignment keys on the CPU socket.)

• Apply an even and thin layer of thermal grease on the surface of the CPU.

• Do not turn on the computer if the CPU cooler is not installed, otherwise overheating and

damage of the CPU may occur.

• Set the CPU host frequency in accordance with the CPU specications. It is not recommended

that the system bus frequency be set beyond hardware specications since it does not meet the

standard requirements for the peripherals. If you wish to set the frequency beyond the standard
specifications, please do so according to your hardware specifications including the CPU,
graphics card, memory, hard drive, etc.

- 17 -

Hardware Installation

2-1 Removing Chassis Cover

Before you remove or install the system cover

• Make sure the system is not turned on or connected to AC power.

Follow these instructions to remove the system cover:

1. Loosen and remove the thumbscrew securing the front chassis cover.

2. Press the the indentation located at two sides of the cover.

3. Slide the cover horizontally to the back and remove the cover in the direction of the arrow.

Hardware Installation

- 18 -

2-2 Removing and Installing the Fan Duct

Follow these instructions to remove/install the fan duct:

1. Lift up to remove the fan duct

2. To install the fan duct, align the fan duct with the guiding groove. Push down the fan duct into

chassis until its rmly seats

- 19 -

Hardware Installation

2-3 Installing the CPU

Read the following guidelines before you begin to install the CPU:

• Make sure that the motherboard supports the CPU.

• Always turn off the computer and unplug the power cord from the power outlet before installing

the CPU to prevent hardware damage.

• Unplug all cables from the power outlets.

• Disconnect all telecommunication cables from their ports.

• Place the system unit on a at and stable surface.

• Open the system according to the instructions.

WARNING!
Failure to properly turn off the server before you start installing components may cause serious
damage. Do not attempt the procedures described in the following sections unless you are a

qualied service technician.

Follow these instructions to install the CPU:

1. Raise the metal locking lever on the socket.

2. Remove the plastic covering on the CPU socket.Insert the CPU with the correct orientation. The

CPU only ts in one orientation.

3. Replace the metal cover.

4. Push the metal lever back into locked position.

Hardware Installation

- 20 -

Follow these instructions to install the heat sinks:

1. Apply thermal compound evenly on the top of the CPU. Remove the protective cover from the
underside of the heat sink.

2. Place the heat sink(s) on top of the CPU.

3. Tighten the four positioning screws.

2-4 Installing the Heat Sink

2

3 3

- 21 -

Hardware Installation

2-5 Installing the Memory

2-5-1 FourChannelMemoryConguration

This motherboard provides sixteen DDR4 memory sockets and supports Four Channel Technology. After

the memory is installed, the BIOS will automatically detect the specications and capacity of the memory.

Enabling Four Channel memory mode will be four times of the original memory bandwidth.
The four DDR4 memory sockets are divided into four channels each channel has two memory sockets as
following:
Channel 1: DIMM_P0_A0/DIMM_P0_A1 (For pimary CPU)/
DIMM_P1_E0/DIMM_P1_E1 (For secondary CPU)
Channel 2: DIMM_P0_B0/DIMM_P0_B1 (For pimary CPU)
DIMM_P1_F0/DIMM_P1_F1 (For secondary CPU)
Channel 3: DIMM_P0_C0/DIMM_P0_C1 (For pimary CPU)
DIMM_P1_G0/DIMM_P1_G1 (For secondary CPU)
Channel 4: DIMM_P0_D0/DIMM_P0_D1 (For pimary CPU)
DIMM_P1_H0/DIMM_P1_H1 (For secondary CPU)

Read the following guidelines before you begin to install the memory:

• Make sure that the motherboard supports the memory. It is recommended that memory of the

same capacity, brand, speed, and chips be used.

• Always turn off the computer and unplug the power cord from the power outlet before installing

the memory to prevent hardware damage.

• Memory modules have a foolproof design. A memory module can be installed in only one

direction. If you are unable to insert the memory, switch the direction.

DIMM_P1_G0

DIMM_P1_G1

DIMM_P1_H0

DIMM_P1_H1

DIMM_P0_A0

DIMM_P0_B0

DIMM_P0_A1

DIMM_P0_B1

DIMM_P0_D1

DIMM_P0_C1

DIMM_P0_D0

DIMM_P0_C0

DIMM_P1_E1

DIMM_P1_E0

DIMM_P1_F1

DIMM_P1_F0

Hardware Installation

- 22 -

2-5-2 Installing a Memory

2-5-3 DIMM Population Table

Before installing a memory module, make sure to turn off the computer and unplug the power
cord from the power outlet to prevent damage to the memory module.
Be sure to install DDR4 DIMMs on this motherboard.

Follow these instructions to install the Memory:

1. Insert the DIMM memory module vertically into the DIMM slot, and push it down.

2. Close the plastic clip at both edges of the DIMM slots to lock the DIMM module.

3. Reverse the installation steps when you want to remove the DIMM module.

WhenonlyoneDIMMisused,itmustbepopulatedinmemoryslot0rst.

Memory populated sequence must be followed with slot0/slot1.
System will not boot normally with incorrect populated sequence.

1

2

2

- 23 -

Hardware Installation

2-6 Installing the PCI Expansion Card

• Voltages can be present within the server whenever an AC power source is connected. This

voltage is present even when the main power switch is in the off position. Ensure that the
system is powered-down and all power sources have been disconnected from the server prior to
installing a PCI card.

Failure to observe these warnings could result in personal injury or damage to equipment.

• The PCI riser assembly does not include a riser card or any cabling as standard. To install a PCI

card, a riser card must be installed.

Follow these instructions to PCI Expansion card:

1. Lift the riser bracket slightly.

2. Turn around the riser bracket and loosen the PCI bracket screws.

3. Attach the mini PCI card slot to the riser bracket.

4. Securing the mini PCI card with three screws.

5. Orient the PCI card with the riser guide connector and push into the slot until the PCI card sits in the
PCI card connector.

6. To install the riser bracket follow the instructions for removing the riser bracket in the reverse order.

1

2

2

4

3

Hardware Installation

- 24 -

2-7 Installing the Hard Disk Drive

Read the following guidelines before you begin to install the Hard disk drive:

• Take note of the drive tray orientation before sliding it out.

• The tray will not t back into the bay if inserted incorrectly.

• Make sure that the HDD is connected to the HDD connector on the backplane.

Follow these instructions to install the Hard disk drive:

1. Press the release button.

2. Pull the locking lever to remove the HDD tray. Remove the HDD dummy cover.

3. Slide hard disk into blank.

4. Secure the hard drive to the tray with four (4) screws as shown. Do not over tighten thescrews.

5. Slide the blank into the bay until it locks into place.

1

2

3

4

4

- 25 -

Hardware Installation

2-8 Replacing the FAN Assemblly

Follow these instructions to replace the fan assembly:

1. Lift up the fan assembly from the chassis.

2. Reverse the previous step to install the replacement fan assembly.

Hardware Installation

- 26 -

2-9 Replacing the Power Supply

Follow these instructions to replace the power supply:

1. Disconnect the three power cables.

2. Remove the four screws securing on the power supply.

3. Lift the power supply out of the chassis in the direction of the arrow.

4. Insert the replacement power supply rmly into the chassis. Connect the AC power cord to the
replacement power supply.

- 27 -

Hardware Installation

Chapter 3 System Appearance

3-1 Front View

No. Decription

1.

HDD bays

2. Front USB 3.0 ports

3. Front Panel LEDs and buttons

4. ID button and LED

5. Power button and LED

• Please Go to Chapter 3-3 Front Panel LED and Buttons for detail description of function LEDs.

1

2 3

4 5

1 1 1

Hardware Installation

- 28 -

3-2 Rear View

No. Decription

1. Power supply module cord socket

2. USB 3.0 ports

3. PS/2 Keyboard and Mouse connector

4. Serial port

5. VGA port

6. RJ-45 LAN ports

7. 10/100/1000 Server management LAN port

8. USB 3.0 ports

9. ID switch button

10. Low-prole riser card bay

No. Decription

1. Power supply module cord socket

2. USB 3.0 ports

3. PS/2 Keyboard and Mouse connector

4. Serial port

5. VGA port

6. QSFP LAN port

7. 10/100/1000 Server management LAN port

8. ID switch button

9. Low-prole riser card bay

1 2 3 4 5 687

10

9

1 2 3 4 5 6

9

87

R130-134

R130-234

- 29 -

Hardware Installation

3-3 Front Panel LED and Buttons

No. Name Color Status Critical

Event

Description

1

System
Status LED

Green

Solid On N/A System is operating normally.

Blink N/A

Degrade condition, may
indicates the following:

• CPU failure

• DIMM killed

Amber

Solid On Yes

Critical condition, may indicates the following:

• Power module failure

• System fan failure

• Power supply voltage issue

• System temperature/voltage issue

Blink N/A

Non-critical condition, may
indicates the following:

• Redundant power module failure

• Temperature and voltage issue

• Chassis intrusion

N/A Off N/A

System is not ready.
May indicate the following:

• POST error

• NMI error

• Processor or terminator missing

2.

HDD Status
LED

Green

On N/A HDD locate

Blink N/A HDD access

Amber On N/A HDD fault
Green/

Amber

Blink N/A HDD rebuilding

N/A Off N/A

• No HDD access

• No HDD fault

1

2

3 5

4 6 7 8

R130-134

R130-234

1

2

3

54

6 7 8

Hardware Installation

- 30 -

3.

LAN1 Active/
Link LED

Green

Solid On N/A

Link between system and network
or no access

Green Blink N/A Data transmission or receiving is occurring

N/A Off N/A

No data transmission or
receiving is occurring

4.

LAN2 Active/
Link LED

Green

Solid On N/A

Link between system and network
or no access

Green Blink N/A Data transmission or receiving is occurring

N/A Off N/A

No data transmission or
receiving is occurring

5.

NMI button

Press the button server generates a NMI to the
processor if the multiple-bit ECC errors occur,
which effectively halt the server.

6

Reset Button Press the button to reset the system.

8.

ID Button
and LED

Blue Solid On N/A System identication is active.

N/A Off N/A System identication is disabled.

9.

Power button
and LED

Green Solid On N/A System is powered on
Green Blink N/A System is in ACPI S1 state (sleep mode)

N/A Off N/A

• System is not powered on or in ACPI S5
state (power off)

• System is in ACPI S4 state
(hibernate mode)

- 31 -

Hardware Installation

3-4 Rear System LAN LEDs

21

43

43

43

43

R130-134

R130-234

No. Name Color Status Description

1.

Port 1 Link/
Activity LED
(1000/10G
LAN Port)

Green

On

Link between system and network
or no access

Blink Data transmission or receiving is occurring

Off No data transmission or receiving is occurring

2.

Port 1 Link/
Activity LED
(1000/10G
LAN Port)

Green

On

Link between system and network
or no access

Blink Data transmission or receiving is occurring

Off No data transmission or receiving is occurring

3.

1GbE
Speed LED

Yellow On 1 Gbps data rate
Green On 100 Mbps data rate

N/A Off 10 Mbps data rate

4.

1GbE
Link/
Activity LED

Green

On Link between system and

network or no access

Blink Data transmission or receiving is occurring

N/A Off No data transmission or receiving is occurring

Hardware Installation

- 32 -

3-5 Hard Disk Drive LEDs

No Description Multi Color LEDs

LED Active

Green

LED Active

Amber

1 HDD Access Blink Off

HDD Locate On Off
HDD Failure Off On
HDD connected and rebuilding data

Blink

Blink

(Alternative)

2 Reserve

- 33 -

Hardware Installation

3-6 Cable Routing

PSU

4

6

1

3

3

2

3

4

5

2

1

1

1

1

5 366 36

66

3

7

No. Suggest Cable No. Suggest Cable

1. System main power cable 2. Front panel USB 3.0 cable

3. SATA/SAS HDD cable 4. Front switch cable/Front LED cable

5. HDD back plane board power cable 6. System fan power cable

7. QSFP LAN LED cable

Hardware Installation

- 34 -

Chapter 4 Motherboard Components

4-1 MD60-SC1/MD60-SC2 Motherboard Components

1 2 3 4 5 6 7 8

9

10

11
12
13
14

15

1617

18

21

22

23242526

19

20

29

30

27

28

36 3537

33

34

31

32

40

41

42

43

44

45

47

49

50

51

56

57

58

59

60

61

48

46

52

53

54

55

62 63 64

65

66 67

68

69
70

71

38

39

- 35 -

Hardware Installation

Item Code Description

1 SW_ID ID switch button
2 MLAN BMC Management LAN port
3 USB3_LAN1 LAN1 port (top) / USB 3.0 ports (bottom)/

R130-134 Only

4 USB3_LAN2 LAN2 port (top) / USB 3.0 ports (bottom)/

R130-134 Only
5 QSFP_CAGE QSFP LAN port/R130-234 Only
6 COM1_VGA Serial port (top)/VGA port (buttom)
7 F_USB3 USB 3.0 header
8 PS2_USB3 PS/2 connector (top)/USB 3.0 ports (buttom)
9 ATX1 24 pin main power connector

10 PMBUS PMBus connector
11 LAN4_ACT LAN4 active LED header (QSFP Port #2)
12 LAN3_ACT LAN3 active LED header (QSFP Port #1)
13 COM2 Serial port cable header
14 SYS_FAN5 System fan connector#5
15 P12V_AUX2 8 pin power connector (for secondary CPU)
16 BP_1 HDD back plane board header
17 FP_1 Front panel header
18 CPU1_FAN CPU1 fan connector (for Secondary CPU)
19 DIMM_P1_E0 Channel 1 slot 0 (for secondary CPU)
20 DIMM_P1_E1 Channel 1 slot 1 (for secondary CPU)
21 DIMM_P1_F0 Channel 2 slot 0 (for secondary CPU)

22 DIMM_P1_F1 Channel 2 slot 1 (for secondary CPU)

23 SYS_FAN4 System fan connector#4
24 SYS_FAN3 System fan connector#3
25 CPU1 Intel LGA2011 Socket R3 (Secondary CPU)
26 P12V_AUX1 8 pin power connector (for primary CPU)
27 DIMM_P1_H1 Channel 4 slot 1 (for secondary CPU)
28 DIMM_P1_H0 Channel 4 slot 0 (for secondary CPU)
29 DIMM_P1_G1 Channel 3 slot 1 (for secondary CPU)

30 DIMM_P1_G0 Channel 3 slot 0 (for secondary CPU)

31 DIMM_P0_A0 Channel 1 slot 0 (for primary CPU)
32 DIMM_P0_A1 Channel 1 slot 1 (for primary CPU)
33 DIMM_P0_B0 Channel 2 slot 0 (for primary CPU)

34 DIMM_P0_B1 Channel 2 slot 1 (for primary CPU)

35 SYS_FAN2 System fan connector#2
36 CPU0 Intel LGA2011 Socket R3 (Primary CPU)
37 SYS_FAN1 System fan connector#1
38 DIMM_P0_D1 Channel 4 slot 1 (for primary CPU)
39 DIMM_P0_D0 Channel 4 slot 0 (for primary CPU)

Hardware Installation

- 36 -

40 DIMM_P0_C1 Channel 3 slot 1 (for primary CPU)
41 DIMM_P0_C0 Channel 3 slot 0 (for primary CPU)

42 SAS0~7

SAS 6Gb/s connectors (Gigabyte extension card

required)
43 SAS_SGP2 SAS SGPIO header#2
44 RAID_SLOT2 PCI Express x4 slot (Proprietary slot)
45 BAT Battery socket
46 SATA_DOM4 SATA port 4 DOM support jumper
47 SATA5 SATA 3 6Gb/s connector
48 SATA4 SATA 3 6Gb/s connector
49 SATA_DOM5 SATA port 5 DOM support jumper
50 CPU0_FAN CPU0 fan connector (for Primary CPU)
51 CLR_CMOS Clear CMOS jumper
52 SAS_SGP1 SAS SGPIO header#1
53 MINI_CN1 Mini-SAS cable connector#1 supports SATA3 6Gb/s
54 MINI_CN2 Mini-SAS cable connector#2 supports SATA3 6Gb/s
55 RAID_SLOT1 PCI Express x8 slot
56 CASE_OPEN Case open intrusion alert header
57 ME_UPDATE ME update jumper
58 BIOS_PWD Clearing Supervisor Password jumper
59 BIOS_RCVR BIOS recovery jumper
60 ME_RCVR ME recovery jumper
61 S3_MASK S3 Power On Select jumper
62 SW_RAID Intel/LSI Software RAID Key jumper
63 PCIE_1 PCI Express x16 slot
64 PCIE_2 PCI E xp re ss x8 s lo t (Shar ed b an dw id th w it h

PCIE_3)
65 PCIE_3 PCI Express x16 slot
66 PCIE_4 PCI Express x8 slot
67 MLAN_LINK BMC Management LAN port link LED header
68 MLAN_ACT BMC Management LAN port active LED header
69 IPMB IPMB connector
70 BMC_FRB Force to Stop FRB Timer jumper
71 TPM TPM module connector

CAUTION! If a SATA type hard drive is connected to the motherboard, please ensure the jumper is
closed and set to 2-3 pins (Default setting), in order to reduce any risk of hard disk damage. Please

refer to Page 37 for SATA_DOM4 and SATA_DOM5 jumper setting instruction.

- 37 -

Hardware Installation

4-2 Jumper Setting

No. Jumper Code Jumper Setting

1.

SATA_DOM4 (SATA
port 4 DOM Jumper)

Pin No. Denition

1 P5V
2 SATA4 Pin7

3 GND

2.

SATA_DOM5
(SATA 5 DOM Jumper)

Pin No. Denition

1 P5V
2 SATA5 Pin7

3 GND

3.

CLR_CMOS
(Clearing CMOS Jumper)

1-2 Close: Normal operation (Default setting)
2-3 Close: Clear CMOS data

4

5

6

7

8

9

1

2

3

CAUTION! If a SATA type hard drive is connected to the system, please ensure the jumper is
closed and set to 2-3 pins (Normal mode), in order to reduce any risk of hard disk damage.

Hardware Installation

- 38 -

No.

Jumper Code Jumper Setting

4.

ME_UPDATE
(ME Update Jumper)

1-2 Close: Normal operation (Default setting)
2-3 Close: ME recovery mode.

5.

BIOS_PWD
(Clearing Supervisor
Password Jumper)

1-2 Close: Normal operation. (Default setting)
2-3 Close: Skip supervisor password.

6.

BIOS_RCVR
(BIOS Recovery Jumper)

1-2 Close: Normal operation (Default setting)
2-3 Close: BIOS recovery mode.

7.

ME_RCVR
(ME Recovery Jumper)

1-2 Close: Normal operation (Default setting)
2-3 Close: ME recovery mode.

8.

S3_MASK (S3 Power
On Select Jumper)

1-2 Close: Stop an initial power on when BMC is not ready.
2-3 Close: Keep initial power on. (Default setting)

9.

BMC_FRB
(Force to Stop FRB
Timer Jumper)

1-2 Close: Normal operation (Default setting)
2-3 Close: Force to Stop FRB Timer

Hardware Installation

- 39 -

4-3 Back Plane Boad Components

Item Code Description

1 FAN1 System fan connector #1
2 FAN2 System fan connector #2
3 FAN3 System fan connector #3
4 FAN4 System fan connector #4
5 FAN5 System fan connector #5
6 FAN6 System fan connector #6
7 FAN7 System fan connector #7
8 FAN8 System fan connector #8

9 FAN9 System fan connector #9
10 FAN10 System fan connector #10
11 FAN11 System fan connector #11
12 FAN12 System fan connector #12
13 J4 Dene HDD Type jumper

1-2 Close: SAS
2-3 Close: SATA

14 J3 SATA/LSI/SCU Switch jumper*

Please refer to the following table for jumper

15 J2 SATA/LSI/SCU Switch jumper*

Please refer to the following table for jumper

16 J1 Test LED jumper

1-2 Cose: Test mode

2-3 Close: Normal operation
17 SAS1 SAS connector #1
18 BPB_CON_TP1 Back Plane board connector
19 SAS2 SAS connector #2
20 SGPIO1 SGPIO connector
21 CD-ROM_PWR CD-ROM power connector
22 SAS3 SAS connector #3
23 SAS4 SAS connector #4

Hardware Installation

- 40 -

J2 J3

LSI, SCU 2-3 Close 2-3 Close

SATA 2-3 Close 1-2 Close

4-3-1 Back Plane BoadJ2/J3 Jumper Setting

- 41 - BIOS Setup

BIOS (Basic Input and Output System) records hardware parameters of the system in the EFI on the
motherboard. Its major functions include conducting the Power-On Self-Test (POST) during system startup,
saving system parameters and loading operating system, etc. BIOS includes a BIOS Setup program that

allows the user to modify basic system conguration settings or to activate certain system features. When the

power is turned off, the battery on the motherboard supplies the necessary power to the CMOS to keep the

conguration values in the CMOS.

To access the BIOS Setup program, press the <F2> key during the POST when the power is turned on.

Chapter 5 BIOS Setup

• BIOS ashing is potentially risky, if you do not encounter problems of using the current BIOS

version, it is recommended that you don't ash the BIOS. To ash the BIOS, do it with caution.
Inadequate BIOS ashing may result in system malfunction.

• It is recommended that you not alter the default settings (unless you need to) to prevent system
instability or other unexpected results. Inadequately altering the settings may result in system's
failure to boot. If this occurs, try to clear the CMOS values and reset the board to default values.
(Refer to the Exit section in this chapter or introductions of the battery/clearing CMOS jumper in
Chapter 1 for how to clear the CMOS values.)

BIOS Setup Program Function Keys

<f><g> Move the selection bar to select the screen
<h><i> Move the selection bar to select an item
<+> Increase the numeric value or make changes
<-> Decrease the numeric value or make changes
<Enter> Execute command or enter the submenu
<Esc> Main Menu: Exit the BIOS Setup program
Submenus: Exit current submenu
<F1> Show descriptions of general help
<F3> Restore the previous BIOS settings for the current submenus
<F9> Load the Optimized BIOS default settings for the current submenus
<F10> Save all the changes and exit the BIOS Setup program

BIOS Setup - 42 -



Main

This setup page includes all the items in standard compatible BIOS.



Advanced

This setup page includes all the items of AMI BIOS special enhanced features.

(ex: Auto detect fan and temperature status, automatically congure hard disk parameters.)



Intel RC Setup

This setup page includes all the submenu options for conguring the function of processor, network,

North Bridge, South Bridge, and System event logs.



Server Management

Server additional features enabled/disabled setup menus.



Security

Change, set, or disable supervisor and user password. Conguration supervisor password allows you to

restrict access to the system and BIOS Setup.
A supervisor password allows you to make changes in BIOS Setup.
A user password only allows you to view the BIOS settings but not to make changes.



Boot

This setup page provides items for conguration of boot sequence.



Exit

Save all the changes made in the BIOS Setup program to the CMOS and exit BIOS Setup. (Pressing

<F10> can also carry out this task.)
Abandon all changes and the previous settings remain in effect. Pressing <Y> to the confirmation

message will exit BIOS Setup. (Pressing <Esc> can also carry out this task.)

- 43 - BIOS Setup

5-1 The Main Menu

Once you enter the BIOS Setup program, the Main Menu (as shown below) appears on the screen. Use
arrow keys to move among the items and press <Enter> to accept or enter other sub-menu.

Main Menu Help

The on-screen description of a highlighted setup option is displayed on the bottom line of the Main Menu.

Submenu Help

While in a submenu, press <F1> to display a help screen (General Help) of function keys available for the
menu. Press <Esc> to exit the help screen. Help for each item is in the Item Help block on the right side of

the submenu.

• When the system is not stable as usual, select the Restore Defaults item to set your system to
its defaults.

• The BIOS Setup menus described in this chapter are for reference only and may differ by BIOS
version.

BIOS Setup - 44 -

BIOS Information
Porject Name

Display the project name information.

Porject Version

Display version number of the BIOS setup utility.

BIOS Build Date and Time

Displays the date and time when the BIOS setup utility was created.

BMC Information
BMC Firmware Version

Display BMC rmware version information.

SDR Version

Display the SDR version information.

FRU Version

Display the FRU version information.

Processor Information
CPU Brand String/Max CPU Speed/CPU Signature/Processors Core/Microcode Patch

Displays the technical specications for the installed processor.

Memory Information
Total Memory

Display the total memory size of the installed memory.

Memory Frequency

Display the frequency information of the installed memory.

- 45 - BIOS Setup

Onboard LAN Information
LAN1/LAN2/LAN3/LAN4 MAC Address (#3 & #4 for R130-234 Only)

Display LAN1/LAN2/LAN/LAN4 MAC address information.

System Date

Set the date following the weekday-month-day- year format.

System Time

Set the system time following the hour-minute- second format.

BIOS Setup - 46 -

5-2 Advanced Menu

The Advanced menu display submenu options for conguring the function of various hardware components.

Select a submenu item, then press Enter to access the related submenu screen.

- 47 - BIOS Setup

5-2-1 Serial Port Console Redirection

BIOS Setup - 48 -

- 49 - BIOS Setup

(Note) Advanced items prompt when this item is dened.

COM1/COM2/Serial Over LAN Console Redirection Settings
Console Redirection

(Note)

Select whether to enable console redirection for specied device. Console redirection enables users to

manage the system from a remote location.

Options available: Enabled/Disabled. Default setting is Disabled.

Console Redirection Settings
Terminal Type

Select a terminal type to be used for console redirection.
Options available: VT100/VT100+/ANSI /VT-UTF8. Default setting is ANSI.

Bits per second

Select the baud rate for console redirection.
Options available: 9600/19200/38400/57600/115200. Default setting is 115200.

Data Bits

Select the data bits for console redirection.
Options available: 7/8. Default setting is 8.

Parity

A parity bit can be sent with the data bits to detect some transmission errors.
Even: parity bi is 0 if the num of 1's in the data bits is even.
Odd: parity bit is 0 if num of 1's in the data bits is odd.
Mark: parity bit is always 1. Space: Parity bit is always 0.
Mark and Space Parity do not allow for error detection.
Options available: None/Even/Odd/Mark/Space. Default setting is None.

Stop Bits

Stop bits indicate the end of a serial data packet. (A start bit indicates the beginning). The standard
setting is 1 stop bit. Communication with slow devices may require more than 1 stop bit.
Options available: 1/2. Default setting is 1.

Flow Control

Flow control can prevent data loss from buffer overow. When sending data, if the receiving buffers are

full, a 'stop' signal can be sent to stop the data ow. Once the buffers are empty, a 'start' signal can be
sent to re-start the ow. Hardware ow control uses two wires to send start/stop signals.

Options available: None/Hardware RTS/CTS. Default setting is None.

VT-UTF8 Combo Key Support

(Note)

Enable/Disable VT-UTF8 Combo Key Support.
Options available: Enabled/Disabled. Default setting is Enabled.

Recorder Mode

(Note)

When this mode enabled, only text will be send. This is to capture Terminal data.

Options available: Enabled/Disabled.
Default setting is Disabled.

Resolution 100x31

(Note)

Enables or disables extended terminal resolution. Default setting is Enabled.
Options available: Enabled/Disabled.

BIOS Setup - 50 -

Legacy OS Redirection Resolution

(Note)

On Legacy OS, the number of Rows and Columns supported redirection.
Options available: 80x24/80X25. Default setting is 80x24.

Putty KeyPad

(Note)

Select function FunctionKey and KeyPad on Putty.
Options available: VT100/LINUX/XTERMR6/SCO/ESCN/VT400. Default setting is VT100.

Redirection After BIOS POST

(Note)

This option allows user to enable console redirection after O.S has loaded.
Options available: Always Enable/Boot Loader. Default setting is Always Enable.

Out-of-Bnad Mgmt Port

Microsoft Windows Emerency Management Service (EMS) allows for remote management of a Windows

Server OS through a serial port.

Options available: COM1/COM2. Default setting is COM1.

(Note) Advanced items prompt when this item is dened.

- 51 - BIOS Setup

5-2-2 PCI Subsystem Settings

PCI Express Slot #1/#2/#3/#4/#5 I/O ROM

When enabled, This setting will initialize the device expansion ROM for the related PCI-E slot.

Options available: Enabled/Disabled. Default setting is Enabled.

Onboard LAN#1/#2/#3/#4 Controller (#3 & #4 for R130-234 Only)

Enable/Disable onboard LAN devices.
Options available: Enabled/Disabled. Default setting is Enabled.

Onboard LAN #1/#2/#3/#4 I/O ROM (#3 & #4 for R130-234 Only)

Enable/Disable onboard LAN devices and initialize device expansion ROM.
Options available: Enabled/Disabled. Default setting is Enabled.

PCI Devices Common Settings
PCI Latency Timer

Value to be programmed into PCI Latency Timer Register.
Options available: 32 PCI Bus Clocks/64 PCI Bus Clocks/96 PCI Bus Clocks/128 PCI Bus Clocks/160

PCI Bus Clocks/192 PCI Bus Clocks/224 PCI Bus Clocks/248 PCI Bus Clocks/.

Default setting is 32 PCI Bus Clocks.

VGA Palette Snoop

Enable/Disable VGA Palette Tegisters Snooping.

Options available: Enabled/Disabled. Default setting is Disabled.

Above 4G Decoding

Enable/Disable Above 4G Decoding.

Options available: Enabled/Disabled. Default setting is Disabled.

BIOS Setup - 52 -

SR-IOV Support

If system has SR-IOV capable PCIe Devices, this option enables or disables Single Root IO

Virtualization Support.

Options available: Enabled/Disabled. Default setting is Disabled.

PCI Express Settings

Press [Enter] for conguration of advanced items.

- 53 - BIOS Setup

5-2-2-1 PCI Express Settings

PCI Express Device Register Settings
Relaxed Ordering

Enable/DIsable PCI Express Device Relaxed Ordering feature.
Options available: Enabled/Disabled. Default setting is Disabled.

Extended Tag

Wnen this feature is enabled, the system will allow device to use 8-bit Tag eld as a requester.

Options available: Enabled/Disabled. Default setting is Disabled.

No Snoop

Enable/Disable PCI Express Device No Snoop option.
Options available: Enabled/Disabled. Default setting is Enabled.

Maximum Playload

Set maximum playload for PCI Express Device or allow system BIOS to select the value.
Options available: Auto/128 Bytes/256 Bytes/512 Bytes/1024 Bytes/2048 Bytes/4096 Bytes.
Default setting is Auto.

PCI Express Link Register Settings
Extended Synch

Wnen this feature is enabled, the system will allow generation of Extended Synchronization patterns.

Options available: Enabled/Disabled. Default setting is Disabled.

Link Training Retry

Dene the number of Retry Attempts software wil take to retrain the link if previous training attempt was

unsuccessful.

Options available: Disabled/2/3/5.Default setting is 5.

BIOS Setup - 54 -

Link Training Timeout (us)

Dene the number of Microseconds software will wait before polling 'Link Training' bit in Link Status

register. Press <+> / <-> keys to increase or decrease the desired values. Value rang is from 10 to
10000 us.

Unpopulated Links

When this item is set to 'Disable Link, the system will operate power save feature for those unpopulated

PCI Express links.

Options available: Keep Link ON/ Disable Link. Default setting is Keep Link ON.

- 55 - BIOS Setup

5-2-3 Network Stack

Network stack

Enable/Disable UEFI network stack.
Options available: Enabled/DIsabled. Default setting is Disabled.

Ipv4 PXE Support

(Note)

Enable/Disable Ipv4 PXE feature.
Options available: Enabled/DIsabled. Default setting is Enabled.

Ipv6 PXE Support

(Note)

Enable/Disable Ipv6 PXE feature.
Options available: Enabled/DIsabled. Default setting is Enabled.

PXE boot wait time

(Note)

Press <+> / <-> keys to increase or decrease the desired values.

Media detect time

(Note)

Press <+> / <-> keys to increase or decrease the desired values.

(Note) This item appears when Network Stack is set to Enabled.

BIOS Setup - 56 -

5-2-4 CSMConguration

CompatibilitySupportModuleConguration

CSM Support

Enable/Disable Compatibility Support Module (CSM) support.
Options available: Enabled/Disabled. Default setting is Enabled.

CSM16 Module Version

Display CSM Module version information.

Gate20 Active

Upon Request: GA20 can be disabled using BIOS services.
Always: Do not allow disabling GA20; this option is useful when any RT code is executed above 1MB.

Options available: Upon Request/Always. Default setting is Upon Request.

Option ROM Messages

Option ROM Messages.
Options available: Force BIOS/Keep Current. Default setting is Force BIOS.

INT19 Endless Retry

Enabled: Allowed headless retry boot
Options available: Enabled/Disabled. Default setting is Enabled.

Bootoptionlter

Determines which devices system will boot to.
Options available: UEFI and Legacy/Legacy only/UEFI only. Default setting is UEFI and Legacy.

- 57 - BIOS Setup

Option ROM execution
Network

Controls the execution UEFI and Legacy PXE OpROM.
Options available: Do not launch/UEFI/Legacy. Default setting is Legacy.

Storage

Controls the execution UEFI and Legacy Storage OpROM.
Options available: Do not launch/UEFI/Legacy. Default setting is Legacy.

Video

Controls the execution UEFI and Legacy Video OpROM.
Options available: Do not launch/UEFI/Legacy. Default setting is Legacy.

Other PCI devices

Determines OpROM execution policy for devices other than network, Storage, or Video.
Options available: UEFI/Legacy. Default setting is UEFI.

BIOS Setup - 58 -

5-2-5 PostReportConguration

 PostReportConguration

Error Message Report
Post Error Message

Enable/Disable Info Error Message support.
Options available: Enabled/Disabled. Default setting is Enabled.

- 59 - BIOS Setup

5-2-6 Trusted Computing

 Conguration

Security Device Support

Select Enabled to activate TPM support feature.
Options available: Enabled/Disabled. Default setting is Disabled.

Current Status Information

Display current TPM status information.

BIOS Setup - 60 -

5-2-7 USBConguration

 USBConguration

USB Devices:

Display the USB devices connected to the system.

XHCI Hand-off

Enable/Disable XHCI (USB 3.0) Hand-off support.

Options available: Enabled/Disabled. Default setting is Enabled.

EHCI Hand-off

Enable/Disable EHCI (USB 2.0) Hand-off function.

Options available: Enabled/Disabled. Default setting is Disabled.

USB Mass Storage Driver Support

(Note)

Enable/Disable USB Mass Storage Driver Support.
Options available: Enabled/Disabled. Default setting is Enabled.

Port 60/64 Emulation

Enable I/O port 60h/64h emulation support. This should be enabled for the complete USB Keyboard

Legacy support for non-USB aware OS.

Options available: Enabled/Disabled. Default setting is Enabled.

(Note) This item is present only if you attach USB types of device.

- 61 - BIOS Setup

5-2-8 ChipsetConguration

Restore on AC Power Loss

(Note)

Denes the power state to resume to after a system shutdown that is due to an interruption in AC power.

When set to Last State, the system will return to the active power state prior to shutdown. When set to

Stay Off, the system remains off after power shutdown.

Options available: Last State/Stay Off/Power On. The default setting depends on the BMC setting.

Deep Sleep (EuP)

Enable/Disable Deep Sleep mode.
Options available: Enabled/Disabled. Default setting is Disabled.

Fan Curve Mode

Congure ystem fan curve mode

Options available: Full Dpeed Mode/Performance ModeBalanced mode/Energy Saving Mode.
Default setting is Performance Mode.

Chassis Opened Warning

Enable/Disable Chassis intrusion alter funtion.
Options available: Enabled/Disabled. Default setting is Disabled.

(Note) When the power policy is controlled by BMC, please wait for 15-20 seconds for BMC to save the

last power state.

BIOS Setup - 62 -

5-9 SIOConguration

- 63 - BIOS Setup

BIOS Setup - 64 -

AMI SIO Driver Version

Display the AMI SIO driver version information.

 SuperIOChipLogicalDevice(s)Conguration

[*Active*] Serial Port 1/2

Press [Enter] for confuguration of advanced items.

[*Active*] PS2 Keyboard

Press [Enter] for confuguration of advanced items.

[*Active*] PS2 Mouse

Press [Enter] for confuguration of advanced items.

 SerialPort1Conguration

Use This Device

When enabled allows you to congure the serial port 1 settings. When set to Disabled, displays no
conguration for the serial port.

Options available: Enabled/Disabled. Default setting is Enabled.

Logical Device Settings:
Current:

Display the Serial Port 1 base I/O addressand IRQ.

Possible:

Congure Serial Port 1 base I/O addressand IRQ.

Option available:
Use Automatic Settings

IO=3F8h; IRQ=4; DMA;/
IO=3F8h; IRQ=3,4,5,7,9,10,11,12; DMA;/
IO=2F8h; IRQ=3,4,5,7,9,10,11,12; DMA;/
IO=3E8h; IRQ=3,4,5,7,9,10,11,12; DMA;/

- 65 - BIOS Setup

IO=2E8h; IRQ=3,4,5,7,9,10,11,12; DMA;

Default setting is Use Automatic Settings.

 SerialPort2Conguration

Use This Device

When enabled allows you to congure the serial port 2 settings. When set to Disabled, displays no
conguration for the serial port.

Options available: Enabled/Disabled. Default setting is Enabled.

Logical Device Settings:
Current:

Display the Serial Port 2 base I/O addressand IRQ.

Possible:

Congure Serial Port 2 base I/O addressand IRQ.

Option available:
Use Automatic Settings/

IO=2F8h; IRQ=3; DMA;/
IO=3F8h; IRQ=3,4,5,7,9,10,11,12; DMA;/
IO=2F8h; IRQ=3,4,5,7,9,10,11,12; DMA;/
IO=3E8h; IRQ=3,4,5,7,9,10,11,12; DMA;/
IO=2E8h; IRQ=3,4,5,7,9,10,11,12; DMA;/

Default setting is Use Automatic Settings.

 PS2KeyboardConguration

Logical Device Settings:
Current:

Display the PS2 keyboard base I/O addressand IRQ.

Possible:

Congure PS2 keyboard base I/O addressand IRQ.
Option available: Use Automatic Settings/IO=60h; IO=64h; IRQ=1.

Default setting is Use Automatic Settings.

 PS2MouseConguration

Logical Device Settings:
Current:

Display the PS2 mouse base I/O addressand IRQ.

Possible:

Congure PS2 nouse base I/O addressand IRQ.

Option available: Use Automatic Settings/IRQ=12;. Default setting is Use Automatic Settings.

BIOS Setup - 66 -

5-2-10 iSCSIConguration

iSCSI Initiator Name
Add an Attempts

Press [Enter] for conguration of advanced items.

Delete Attempts

Press [Enter] for conguration of advanced items.

Change Attempt Order

Press [Enter] for conguration of advanced items.

- 67 - BIOS Setup

5-3 Intel RC Setup Menu

Intel RC Setup menu displays submenu options for conguring the function of North Bridge and South Bridge.

Select a submenu item, then press Enter to access the related submenu screen.

RC Revision

Display Intel RC version information.

BIOS Setup - 68 -

5-3-1 ProcessorConguration

- 69 - BIOS Setup

 ProcessorConguration

 Pre-SocketConguration

Press [Enter] for conguration of advanced items.

Processor Socket/Processor ID/Processor Frequency/Processor Max Raito/
Processor Min Raio/Microcode Revision/L1 Cache RAM/L2 Cache RAM/L3 Cache RAM/
Processor 0/1Version

Displays the technical specications for the installed processor.

Hyper-Threading [All]

The Hyper Threading Technology allows a single processor to execute two or more separate

threads concurrently. When hyper-threading is enabled, multi-threaded software applications can

execute their threads, thereby improving performance.
Options available: Enabled/Disabled. Default setting is Enabled.

Execute Disable Bit

When enabled, the processor prevents the execution of code in data-only memory pages. This provides

some protection against buffer overow attacks.

When disabled, the processor will not restrict code execution in any memory area. This makes the

processor more vulnerable to buffer overow attacks.

Options available: Enabled/Disabled. Default setting is Enabled.

Enable Intel TXT Support

Enable/Disable Intel Trusted Execution Technology support function.

Options available: Enabled/Disabled. Default setting is Disabled.

VMX (Vanderpool Technology)

Enable/Disable Vanderpool Technology. This will take effect after rebooting the system.
Options available: Enabled/Disabled. Default setting is Enabled.

Enable SMX (Intel Safer Mode Extensions Technology)

Enable/Disblae Intel Safer Mode Extensions (SMX) support function.
Options available: Enabled/Disabled. Default setting is Disabled.

Hardware Prefetcher

Select whether to enable the speculative prefetch unit of the processor.
Options available: Enabled/Disabled. Default setting is Enabled.

Adjacent Cache Line Prefetch

When enabled, cache lines are fetched in pairs. When disabled, only the required cache line is fetched.
Options available: Enabled/Disabled. Default setting is Enabled.

DCU Streamer Prefetch

Enable prefetch of next L1 Data line based upon multiple loads in same cache line.
Options available: Enabled/Disabled. Default setting is Enabled.

DCU IP Prefetch

Enable prefetch of next L1 Data line based upon sequential load history.
Options available: Enabled/Disabled. Default setting is Enabled.

DCU Mode

Congure DCU mode.
Options available: 32KB 8Way Without ECC/16KB 4Way With ECC. Default setting is 32K B 8Way

Without ECCC.

BIOS Setup - 70 -

Direct Cache Access (DCA)

Options available: Auto/Enabled/Disabled. Default setting is Auto.

DCA Prefetch Delay

Options available: Disabled/8/16/24/32/40/48/56/64/72/80/88/96/104/112. Default setting is 32.

X2APIC

Options available: Enabled/Disabled. Default setting is Disabled.

AES-NI

Enable/Disable AES-NI (Intel Advanced Encryption Standard New Instructions) support function.
Options available: Enabled/Disabled. Default setting is Enabled.

- 71 - BIOS Setup

5-3-1-1Pre-SocketConguration

BIOS Setup - 72 -

 CPUSocket0/1Conguration

Press [Enter] for conguration of advanced items.

Cores Enabled (for CPU socket 0/1)

Number of Cores to enable. 0 means all cores. 14 Cores is available. Press the numeric keys to adjust

desired values.

- 73 - BIOS Setup

5-3-2 AdvancedPowerManagementConguration

 AdvancedPowerManagementConguration

Power Technology

Option available:Disable/Energy Efcient/Custom. Default setting is EnergyEfcient.

 CongTDP

Options available: Enabled/Disabled. Default setting is Disabled.

CPU P State Control

Press [Enter] for conguration of advanced items.

CPU C State Control

Press [Enter] for conguration of advanced items.

CPU T State Control

Press [Enter] for conguration of advanced items.

BIOS Setup - 74 -

5-3-2-1 CPU P State Control

EIST (P-State)

Conventional Intel SpeedStep Technology switches both voltage and frequency in tandem between high
and low levels in response to processor load.
Options available: Enabled/Disabled. Default setting is Enabled.

Turbo Mode

When this item is enabled, tje processor will automatically ramp up the clock speed of 1-2 of its

processing cores to improve its performance.

When this item is disabled, the processor will not overclock any of its core.

Options available: Enabled/Disabled. Default setting is Enabled.

P-state coordination

In HW_ALL mode, the processor hardware is responsible for coordinating the P-state among logical

processors dependencies. The OS is responsible for keeping the P-state request up to date on all
logical processors.

In SW_ALL mode, the OS Power Manager is responsible for coordinating the P-state among logical

processors with dependencies and must initiate the transition on all of those Logical Processors.

In SW_ANY mode, the OS Power Manager is responsible for coordinating the P-state among logical

processors with dependencies and may initiate the transition on any of those Logical Processors.
Options available: HW_ALL/SW_ALL/SW_ANY. Default setting is HW_ALL.

- 75 - BIOS Setup

5-3-2-2 CPU C State Control

Package C State Limit

Congure state for the C-State package limit.
Options available: C0/C1 state/C2 state/C6(non Retention) state/C6(Retention) state.
Default setting is C6(non Retention) state.

CPU C3/C6 Report

Allows you to determine whether to let the CPU enter C3/C6 mode in system halt state. When enabled,

the CPU core frequency and voltage will be reduced during system halt state to decrease power

consumption. The C3/C6 state is a more enhanced power-saving state than C1.
Options available: Enabled/Disabled.
Default setting for C3 is Disabled; default setting for C6 is Enabled.

BIOS Setup - 76 -

5-3-2-3 CPU T State Control

ACPI T-States

Enable/Disable CPU throttling by OS. Thorttling reduces power comsumption.
Options available: Enabled/Disabled. Default setting is Enabled.

- 77 - BIOS Setup

5-3-3 CommonRefCodeConguration

 CommonRefCodeConguration

Isoc Mode

Options available: Auto/Enabled/Disabled. Default setting is Auto.

Numa (Non-Uniform Memory Access)

Options available: Enabled/Disabled. Default setting is Enabled.

BIOS Setup - 78 -

5-3-4 QPIConguration

- 79 - BIOS Setup

 QPIGeneralConguration

Press [Enter] for conguration of advanced items.

QPI Status

Press [Enter] to view QPI status.

Link Speed Mode

Options available: Slow/Fast. Default setting is Fast.

Link Frequency Select

Options available: 6.4GB/s/8.0GB/s/9.6GB/s/Auto/Auto Limited. Default setting is Auto.

BIOS Setup - 80 -

5-3-5 MemoryConguration

Integrated Memory Controller (iMC)
Enforce POR

Enable to enforce POR restrictions for DDR4 frequency and voltage programming.
Options available: Enforce POR/Disabled/Enforce Stretch Goals. Default setting is Enforce POR.

Memory Frequency

Congure memory frequency.

Options available: Auto/1333/1400/1600/1800/1867/2000/2133.
Default setting is Auto.

ECC Support

Options available: Auto/Disabled/Enabled. Default setting is Auto.

Rank Margin Tool

Options available: Auto/Disabled/Enabled. Default setting is Auto.

RMT Pattern Length

Display RMT Pattern Length.

SPD Write Lock

Options available: Enabled/Disabled. Default setting is Enabled.

Memory Topology

Press [Enter] for conguration of advanced items.

Memory Thermal

Press [Enter] for conguration of advanced items.

- 81 - BIOS Setup

Memory Map

Press [Enter] for conguration of advanced items.

 MemoryRASConguration

Press [Enter] for conguration of advanced items.

BIOS Setup - 82 -

5-3-5-1 Memory Topology

- 83 - BIOS Setup

5-3-5-2 Memory Thermal

Set Throttling Mode

Congure Thermal Throttling Mode. Select OLTT or CLTT mode.

Options available: Disabled/CLTT Mode. Default setting is CLTT Mode.

MEMHOT Throttling Mode

Options available: Disabled/Output-only/Input-only. Default setting is Input-only.

BIOS Setup - 84 -

5-3-5-3 Memory Map

Socket Interleave Below 4GB

Splits the 0-4GB address space between two sockets, so that both sockets get a chunk of local memory

below 4GB.

Options available: Disabled/Enabled. Default setting is Disabled.

Channel Interleaving

Options available: Auto/1-way Interleave/2-way Interleave/3-way Interleave/4-way Interleave.
Default setting is Auto.

Rank Interleaving

Options available: Auto/1-way Interleave/2-way Interleave/4-way Interleave/8-way Interleave.
Default setting is Auto.

- 85 - BIOS Setup

5-3-5-4MemoryRASConguration

RAS Mode

Enable/Disable RAS modes. Enabling Sparing and Mirroring is not supported. When this item is set to

enabled, Sparing will be selected.
Options available: Disable/Mirror/Lockstep Mode. Default setting is Disabled.

Lockstep x4 DIMMs

Options available: Auto/Disabled/Enabled. Default setting is Auto.

Memory Rank Sparing

Options available: Disabled/Enabled. Default setting is Disabled.

Correctable Error Threshold

Press <+> / <-> keys to increase or decrease the desired values.

BIOS Setup - 86 -

5-3-6 IIOConguration

 IIOConguration

EV DFX Features

Set this option to allow DFX Lock Bits to remain clear.
Options available: Enabled/Disabled. Default setting is Disabled.

 IOATConguration

Press [Enter] for conguration of advanced items.

Intel VT for Directed I/O (VT-d)

Press [Enter] for conguration of advanced items.

- 87 - BIOS Setup

5-3-6-1IOATConguration

 IOATConguration

Enable IOAT

Control to enable/disable IOAT (Intel I/O Acceleration Technology) device.
Options available: Enabled/Disabled. Default setting is Disabled.

No Snoop

Enable/Disable PCI Express Device No Snoop option.
Options available: Enabled/Disabled. Default setting is Disabled.

BIOS Setup - 88 -

5-3-6-2 Intel VT for Directed I/O (VT-d)

Intel VT for Directed I/O (VT-d)
VT-d Azalea VCp Optimizations

Enable/Disable Azalea VCp optimizations.
Options available: Enabled/Disabled. Default setting is Disabled.

Intel VT for Directed I/O (VT-d)

Enable/Disable Intel VT for Directed I/O (VT-d) support function.
Options available: Enabled/Disabled. Default setting is Enabled.

Interrupt Remapping

Enable/Disable interrupt remapping support function.
Options available: Enabled/Disabled. Default setting is Enabled.

Coherency Suuport (Non-Isoch)

Options available: Enabled/Disabled. Default setting is Enabled.

Coherency Suuport (Isoch)

Options available: Enabled/Disabled. Default setting is Enabled.

- 89 - BIOS Setup

5-3-7 PCHConguration

 PCHConguration

PCH Devices

Press [Enter] for conguration of advanced items.

 PCHsSATAConguration

Press [Enter] for conguration of advanced items.

 PCHSATAConguration

Press [Enter] for conguration of advanced items.

 USBConguration

Press [Enter] for conguration of advanced items.

BIOS Setup - 90 -

5-3-7-1 PCH Devices

PCH CRID

Enable/Disable Intel Compatible Revision ID.
Options available: Enabled/Disabled. Default setting is Disabled.

- 91 - BIOS Setup

5-3-7-2PCHsSATAConguration

BIOS Setup - 92 -

 PCHsSATAConguration

sSATA Controller(s)

Enable/Disable sSATA controller.
Options available: Enabled/Disabled. Default setting is Enabled.

 ConguresSATAas

Coongure on chip SATA type.
IDE Mode: When set to IDE, the SATA controller disables its RAID and AHCI functions and runs in the

IDE emulation mode. This is not allowed to access RAID setup utility.

RAID Mode: When set to RAID, the SATA controllerenables both its RAID and AHCI functions. You will

be allows access the RAID setup utility at boot time.

ACHI Mode: When set to AHCI,the SATA controller enables its AHCI functionality. Then the RAID

function is disabled and cannot be access the RAID setup utility at boot time.

Options available: IDE/RAID/ACHI/Disabled. Default setting is ACHI.

SATA Test Mode

Enable/Disable SATA Test Mode.
Options available: Enabled/Disabled. Default setting is Disabled.

SATA Mode options

(Note)

Press [Enter] for conguration of advanced items.

Support Aggressive Link Power Mana

(Note)

Enable PCH to aggressively enter link power state.
Options available: Enabled/Disabled. Default setting is Enabled.

When SATA Type is set to IDE

(Note) Only Supported When HDD is in AHCI or RAID Mode.

- 93 - BIOS Setup

Alternate Device ID on RAID

Enable /Disable Alternate Device ID on RAID mode.
Options available: Enabled/Disabled. Default setting is Disabled.
Please note that this option appears when HDD is in RAID Mode.

sSATA Port 0/1/2/3

The category identies sSATA type of hard disk that are installed in the computer.
System will automatically detect HDD type.

Port 0/1/2/3

Enable/Disable Port 0/1/2/3 device.
Options available: Enabled/Disabled. Default setting is Enabled.

Hot Plug (for Port 0/1/2/3)

(Note)

Enable/Disable HDD Hot-Plug function.
Options available: Enabled/Disabled. Default setting is Disabled.

 ConguredaseSATA

(Note)

Display Hot-Plug supported information.

Spin Up Device (for Port 0/1/2/3)

(Note)

On an edge detect from 0 to 1, the PCH starts a COM reset initialization to the device.
Options available: Enabled/Disabled. Default setting is Disabled.

sSATA Device Type

Select sSATA device type.

Options available: Hard Disk Drive/Solid State Drive. Default setting is Hard Disk Drive.

(Note) Only Supported When HDD is in AHCI or RAID Mode.

BIOS Setup - 94 -

5-3-7-2-1 SATA Mode Options

SATA LED locate

When this option is enabled, LED/SGPIO hardware is attached.

Options available: Enabled/Disabled. Default setting is Enabled.

When SATA Type is set to IDE/AHCI Mode

- 95 - BIOS Setup

When SATA Type is set to RAID Mode

SATA LED locate

When this option is enabled, LED/SGPIO hardware is attached.

Options available: Enabled/Disabled. Default setting is Enabled.

Intel Rapid Recovery Technology

Enable/Disable Intel Rapid Recovery Technology support function.
Options available: Enabled/Disabled. Default setting is Enabled.

RAID Option ROM UI banner

Options available: Enabled/Disabled. Default setting is Enabled.

IRRT Only on ESATA

Options available: Enabled/Disabled. Default setting is Enabled.

Smart Response Technology

Enable/Disable Intel Smart Response Technology support function.
Options available: Enabled/Disabled. Default setting is Enabled.

RAID OROM prompt delay

Options available: 2 Seconds/4 Seconds/6 Seconds/8 Seconds. Default setting is 2 Seconds.

BIOS Setup - 96 -

5-3-7-3PCHSATAConguration

- 97 - BIOS Setup

 PCHSATAConguration

SATA Controller(s)

Enable/Disable sSATA controller.
Options available: Enabled/Disabled. Default setting is Enabled.

 ConguresSATAas

Coongure on chip SATA type.
IDE Mode: When set to IDE, the SATA controller disables its RAID and AHCI functions and runs in the

IDE emulation mode. This is not allowed to access RAID setup utility.

RAID Mode: When set to RAID, the SATA controllerenables both its RAID and AHCI functions. You will

be allows access the RAID setup utility at boot time.

ACHI Mode: When set to AHCI,the SATA controller enables its AHCI functionality. Then the RAID

function is disabled and cannot be access the RAID setup utility at boot time.

Options available: IDE/RAID/ACHI/Disabled. Default setting is ACHI.

SATA Test Mode

Enable/Disable SATA Test Mode.
Options available: Enabled/Disabled. Default setting is Disabled.

SATA RSTe Boot Info

(Note 1)

Enable/Disable SATA RSTe Boot Information.
Options available: Enabled/Disabled. Default setting is Enabled.

SATA Mode options

(Note 2)

Press [Enter] for conguration of advanced items.

When SATA Type is set to IDE

(Note 1) Only Supported When HDD is in RAID Mode.
(Note 2) Only Supported When HDD is in AHCI or RAID Mode.

BIOS Setup - 98 -

Support Aggressive Link Power Mana

(Note)

Enable PCH to aggressively enter link power state.
Options available: Enabled/Disabled. Default setting is Enabled.

Alternate Device ID on RAID

Enable /Disable Alternate Device ID on RAID mode.
Options available: Enabled/Disabled. Default setting is Disabled.
Please note that this option appears when HDD is in RAID Mode.

sSATA Port 0/1/2/3/4/5

The category identies sSATA type of hard disk that are installed in the computer.
System will automatically detect HDD type.

Port 0/1/2/3/4/5

Enable/Disable Port 0/1/2/3 device.
Options available: Enabled/Disabled. Default setting is Enabled.

Hot Plug (for Port 0/1/2/3/4/5)

(Note)

Enable/Disable HDD Hot-Plug function.
Options available: Enabled/Disabled. Default setting is Disabled.

 ConguredaseSATA

(Note)

Display Hot-Plug supported information.

Spin Up Device (for Port 0/1/2/3/4/5)

(Note)

On an edge detect from 0 to 1, the PCH starts a COM reset initialization to the device.
Options available: Enabled/Disabled. Default setting is Disabled.

sSATA Device Type

Select sSATA device type.

Options available: Hard Disk Drive/Solid State Drive. Default setting is Hard Disk Drive.

(Note) Only Supported When HDD is in AHCI or RAID Mode.

- 99 - BIOS Setup

5-3-7-3-1 SATA Mode Options

SATA LED locate

When this option is enabled, LED/SGPIO hardware is attached.

Options available: Enabled/Disabled. Default setting is Enabled.

When SATA Type is set to IDE/AHCI Mode
