Niveus 4904GT

Technical Guide Rev. 1.0

PENGUIN

COMPUTING

www.penguincomputing.com | 1-888-PENGUIN (736-4846) | twitter:@PenguinHPC

The information in this User’s Manual has been carefully reviewed and is believed to be accurate. The vendor assumes no responsibility for any inaccuracies that may be contained in this document, makes no commitment to update or to keep current the information in this manual, or to notify any person or organization of the updates. Please Note: For the most up-to-date version of this

manual, please see our web site at www.penguincomputing.com.

Penguin Computing reserves the right to make changes to the product described in this manual at any time and without notice. This product, including software and documentation, is the property of Penguincomputing and/or its licensors, and is supplied only under a license. Any use or reproduction of this product is not allowed, except as expressly permitted by the terms of said license.

IN NO EVENT WILL PENGUIN COMPUTING BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL, SPECULATIVE OR CONSEQUENTIAL DAMAGES ARISING FROM THE USE OR INABILITY TO USE THIS PRODUCT OR DOCUMENTATION, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. IN PARTICULAR, PENGUIN COMPUTING SHALL NOT HAVE LIABILITY FOR ANY HARDWARE, SOFTWARE, OR DATA STORED OR USED WITH THE PRODUCT, INCLUDING THE COSTS OF REPAIRING, REPLACING, INTEGRATING, INSTALLING OR RECOVERING SUCH HARDWARE, SOFTWARE, OR DATA.

Any disputes arising between manufacturer and customer shall be governed by the laws of Santa Clara County in the State of California, USA. The State of California, County of Santa Clara shall be the exclusive venue for the resolution of any such disputes. Penguin Computing's total liability for all claims will not exceed the price paid for the hardware product.

FCC Statement: This equipment has been tested and found to comply with the limits for a Class A digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the manufacturer’s instruction manual, may cause harmful interference with radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case you will be required to correct the interference at your own expense.

California Best Management Practices Regulations for Perchlorate Materials: This Perchlorate warning applies only to products containing CR (Manganese Dioxide) Lithium coin cells. “Perchlorate Material-special handling may apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate”

WARNING: Handling of lead solder materials used in this product may expose you to lead, a chemical known to the State of California to cause birth defects and other reproductive harm.

Manual Revision 1.0 Release Date: December 12, 2014

Unless you request and receive written permission from Penguin Computing, you may not copy any part of this document.

Information in this document is subject to change without notice. Other products and companies referred to herein are trademarks or registered trademarks of their respective companies or mark holders.

Printed in the United States of America

Preface

About this Manual

This manual is written for professional system integrators and PC technicians. It provides information for the installation and use of the server. Installation and maintainance should be performed by experienced technicians only.

Please refer to the server specications page on our Web site for updates on

supported memory, processors and operating systems (www.penguincomputing.

com).

Notes

If you have any questions, please contact our support team at:

support@penguincomputing.com This manual may be periodically updated without notice. Please check the Penguin

Computing Web site for possible updates to the manual revision level.

Warnings

Special attention should be given to the following symbols used in this manual.

Warning! Indicates high voltage may be encountered when performing a procedure.

Warning! Indicates important information given to prevent equipment/ property damage or personal injury.

Niveus 4904GT User's Guide

Contents

Chapter 1 Introduction ..............................................................................1-1

1-1 Overview .........................................................................................................1-1

1-2 Serverboard Features .....................................................................................1-2

Processors ......................................................................................................1-2

Memory ...........................................................................................................1-2

SATA ..............................................................................................................1-2

PCI Expansion Slots .......................................................................................1-2

Rear I/O Ports .................................................................................................1-2

IPMI .................................................................................................................1-2

1-3 Chassis Features ............................................................................................1-3

System Power .................................................................................................1-3

Hard Drive/Drive Bays ....................................................................................1-3

Control Panel ..................................................................................................1-3

Cooling System ...............................................................................................1-3

Mounting Rails (optional) ................................................................................1-3

1-4 GPU Subsystem ............................................................................................1-4

GPU Kit ...........................................................................................................1-4

1-5 Contacting Penguincomputing ........................................................................1-6

Chapter 2 Rack Installation .....................................................................2-1

2-1 Unpacking the System ....................................................................................2-1

2-2 Preparing for Setup .........................................................................................2-1

Choosing a Setup Location .............................................................................2-1

2-3 Warnings and Precautions ..............................................................................2-2

Rack Precautions ............................................................................................2-2

General Server Precautions ............................................................................2-2

Rack Mounting Considerations .......................................................................2-3

Ambient Operating Temperature ................................................................ 2-3

Sufcient Airow .........................................................................................2-3

Circuit Overloading .....................................................................................2-3

Reliable Ground .........................................................................................2-3

2-4 Procedure for Rack Mounting ........................................................................2-4

Removing the Tower Top Cover and Feet ...................................................... 2-4

Identifying the Sections of the Rack Rails ......................................................2-6

Installing the Chassis Handles and Inner Rails ..............................................2-7

Installing the Outer Rails onto the Rack .........................................................2-8

Sliding the Chassis onto the Rack Rails .........................................................2-9

2-5 Tower Conguration Instructions ...................................................................2-10

Preface

Chapter 3 System Interface ......................................................................3-1

3-1 Overview .........................................................................................................3-1

3-2 Control Panel Buttons .....................................................................................3-2

3-3 Control Panel LEDs ........................................................................................3-2

3-4 Drive Carrier LEDs ..........................................................................................3-3

3-5 Power Supply LEDs ........................................................................................3-4

Chapter 4 Standardized Warning Statements for AC Systems

About Standardized Warning Statements .......................................................4-1

Warning Denition ...........................................................................................4-1

Installation Instructions ....................................................................................4-4

Circuit Breaker ................................................................................................4-5

Power Disconnection Warning ........................................................................4-6

Equipment Installation .....................................................................................4-8

Restricted Area ................................................................................................4-9

Battery Handling ............................................................................................4-10

Redundant Power Supplies (if applicable to your system) ...........................4-12

Backplane Voltage (if applicable to your system) .........................................4-13

Comply with Local and National Electrical Codes ........................................4-14

Product Disposal ...........................................................................................4-15

Hot Swap Fan Warning (if applicable to your system) .................................4-16

Power Cable and AC Adapter ......................................................................4-18

Chapter 5 Advanced Serverboard Setup ................................................5-1

5-1 Handling the Serverboard ...............................................................................5-1

Precautions .....................................................................................................5-1

Unpacking .......................................................................................................5-1

5-2 Connecting Cables ..........................................................................................5-2

Connecting Data Cables .................................................................................5-2

Connecting Power Cables ..............................................................................5-2

Connecting the Control Panel .........................................................................5-2

5-3 I/O Ports ..........................................................................................................5-3

5-4 Installing the Processor and Heatsink ............................................................5-4

Installing an LGA 2011 Processor ...................................................................5-4

Installation and Removal of the Heatsink .......................................................5-7

5-5 Installing Memory ............................................................................................5-8

Memory Support ............................................................................................5-8

Processor & Memory Module Population Conguration ............................ 5-9

Populating LRDIMM and RDIMM ECC Memory Modules .......................5-10

5-6 Installing PCI Expansion Cards ....................................................................5-10

5-7 Serverboard Details ......................................................................................5-12

Niveus 4904GT User's Guide

5-8 Connector Denitions ...................................................................................5-15

Power Connections .......................................................................................5-15

Control Panel Connections ...........................................................................5-15

Other Connectors ..........................................................................................5-18

5-9 Jumper Settings ............................................................................................5-23

5-10 Onboard Indicators ........................................................................................5-26

5-11 SATA Ports ....................................................................................................5-27

5-12 Onboard Battery ............................................................................................5-28

Chapter 6 Advanced Chassis Setup ........................................................6-1

6-1 Static-Sensitive Devices ..................................................................................6-2

Precautions .....................................................................................................6-2

6-2 Control Panel ..................................................................................................6-2

Control Panel Orientation ................................................................................6-3

6-3 Conguring Drives ...........................................................................................6-5

Conguring the 5.25" Drive Bays ....................................................................6-5

Additional Hard Drives ..............................................................................6-8

Installing Drives in the Default HDD Bays ......................................................6-9

6-4 System Cooling ..............................................................................................6-11

System Fan Failure ........................................................................................6-11

Replacing System Fans .................................................................................6-11

Installing the GPU Kit ....................................................................................6-13

6-5 Power Supply ................................................................................................6-19

Replacing the Power Supply .........................................................................6-19

Power Supply Connections ...........................................................................6-20

Chapter 7 BIOS .........................................................................................7-1

7-1 Introduction ......................................................................................................7-1

Starting BIOS Setup Utility ..............................................................................7-1

How To Change the Conguration Data .........................................................7-2

Starting the Setup Utility .................................................................................7-2

7-2 Main Setup ......................................................................................................7-2

7-3 Advanced Setup Congurations......................................................................7-4

7- 4 Event Logs .................................................................................................... 7-31

7-5 IPMI ...............................................................................................................7-33

7-6 Security Settings ...........................................................................................7-35

7-7 Boot Settings .................................................................................................7-36

7-8 Save & Exit ...................................................................................................7-38

Appendix A BIOS Error Beep Codes ..................................................... A-1

Preface

Appendix B System Specications ........................................................ B-1

Niveus 4904GT User's Guide

Notes

Chapter 1

Introduction

1-1 Overview

The workstation Niveus 4904gt is comprised of two main subsystems: the SC747BTQ-R2K02B 4U/Tower chassis and the X10DRG-Q dual Intel Xeon processor serverboard. Please refer to our web site for information on operating

systems that have been certied for use with the system (www.penguincomputing.

com).

In addition to the serverboard and chassis, various hardware components have been included with the workstation, as listed below:

• SATA accessories:

One HD backplane (BPN-SAS-747TQ) Eight 3.5" hard disk drive carriers (MCP-220-00094-0B) Three 5.25" drive trays (MCP-220-00073-0B)

• Cooling

Four 92x38 mm middle fans (FAN-0138L4, FAN-0114L4) Two 80x38 mm rear exhaust fans (FAN-0082L4) Two 4U active CPU heatsinks (SNK-P0050AP4)

Optional

• One 4U 17.2" width rack rail set (MCP-290-00059-0B)

• SC747B GPU / Add-on Card Dummy Assembly (2 Slots), Single Pack (MCP-

240-00096-0N)

• GPU Kit that includes two rear fans and one air shroud (MCP-320-74701-0N-

KIT)

• HDD conversion tray, hotswap Gen. 6 3.5" to 2.5" (MCP-220-93801-0B)

For support, email support@penguincomputing.com.

Chapter 1: Introduction

1-1

1-2

Niveus 4904GT User's Manual

1-2 Serverboard Features

At the heart of the Niveus 4904GT workstation lies the X10DRG-Q, a dual processor serverboard based on the Intel C612 Express chipset. Below are the main features

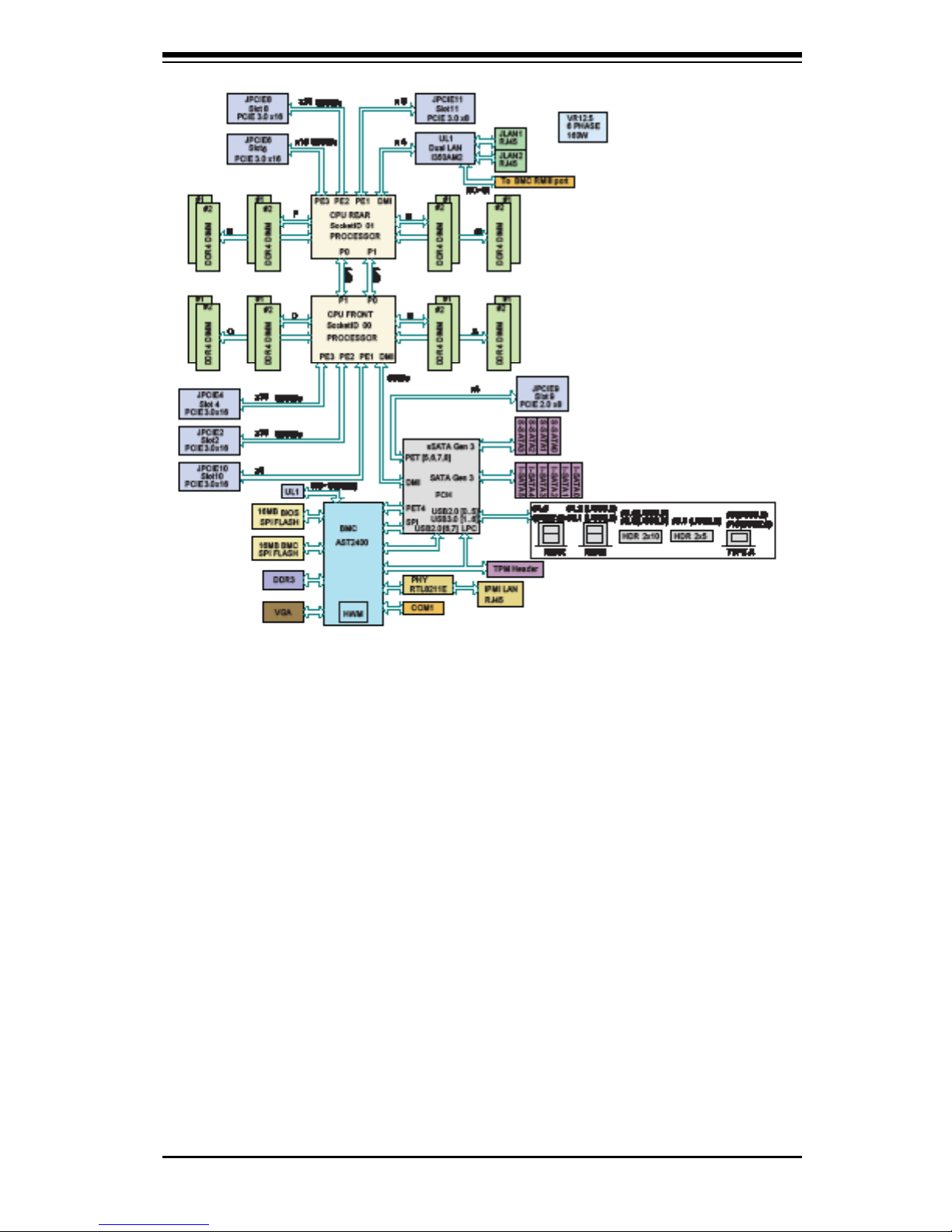

of the serverboard. (See Figure 1-1 for a block diagram of the chipset).

Processors

The system supports two Intel Xeon E5-2600 v3 Series processors in

Dual Socket R3 (LGA 2011). Please refer to the serverboard description pages on

the Penguin Computing web site for a complete listing of supported processors.

Memory

The system has sixteen DDR4 DIMM slots that can support up to 1 TB ECC LRDIMM or 512 GB ECC RDIMM. Memory type is 2133/1866/1600MHz ECC DDR4 SDRAM

72-bit. See Chapter 5 for details.

SATA

A SATA controller is integrated into the chipset to provide a ten-port SATA 3.0 subsystem, which is RAID 0, 1, 5 and 10 supported. The SATA drives are hotswappable units.

Note: The op erati ng system you u se must h ave RA ID sup por t to ena ble th e hotswap cap abilit y and R A ID func tio n of the Se rial ATA drive s.

PCI Expansion Slots

The serverboard has four PCI-E 3.0 x16, two PCI-E 3.0 x8 (one in x16) and one PCI-E 2.0 x4 (in x8) slots for a total of seven PCI expansion slots.

Rear I/O Ports

The I/O ports include one COM port, a VGA (monitor) port, two USB 3.0 ports and two USB 2.0 ports, a dedicated IPMI LAN port and two Gb Ethernet LAN ports.

IPMI

IPMI (Intelligent Platform Management Interface) is a hardware-level interface specication that provides remote access, monitoring and administration for Penguin Computing workstation platforms. IPMI allows administrators to view a workstation’s

hardware status remotely, receive an alarm automatically if a failure occurs, and power cycle a system that is non-responsive.

1-3

Chapter 1: Introduction

1-3 Chassis Features

The following is a general outline of the main features of the SC747BTQ-R2K02B chassis.

System Power

The chassis includes a 2000 W high-efciency, hoto-plug, redundant (1+1) power

supply consisting of two power supply modules. In the unlikely event a power supply module fails, replacement is simple.

Hard Drive/Drive Bays

The chassis features eight drive bays for SATA drives. These drives are hot

-swappable. Once set up correctly, these drives can be removed without powering down the workstation.

The SC747B chassis also provides three 5.25” peripheral drive bays for oppy drives, DVD/CD drives, or additional hard drives.

Control Panel

The control panel on the workstation provides you with system monitoring and

control. LEDs indicate system power, HDD activity, network activity, system

overheat, UID and power supply failure. A main power button and a system reset button are also included.

Cooling System

The chassis accepts four system fans and two rear exhaust fans. System fans are powered from the serverboard. These fans are 4U high and are powered by 4-pin connectors.

Mounting Rails (optional)

The system can be placed in a rack for secure storage and use.

1-4

Niveus 4904GT User's Manual

1-4 GPU Subsystem

The Niveus 4904GT is a massively parallel-processing, quad-GPU server with

support for up to four NVIDIA Tesla GPUs (such as Kepler K10, K20, K20X, K40,

K80) and Xeon Phi Coprocessor GPUs, placing this system at the forefront of today's GPU computing solutions.

Refer to the NVIDIA web site (www.nvidia.com) or the Intel website (www.intel.com)

for details on these GPUs

GPU Kit

When using passive GPUs with this system, you must use the GPU add-on kit,

MCP-320-74701-0N-KIT. This kit consists of one mylar air shroud to concentrate air ow to the GPU and two fans with cages that can be attached to the back of

the chassis to provide the required cooling for passive GPUs.

1-5

Chapter 1: Introduction

Figure 1-1. Intel C612 Express Chipset:

System Block Diagram

Note: This is a general block diagram. Please see Chapter 5 for details.

1-6

Niveus 4904GT User's Manual

1-5 Contacting Penguin Computing

Headquarters

Address: Penguin Computing

45800 Northport Loop West

Fremont, CA 94538 U.S.A. Tel: +1 (888) 736-4846 Fax: +1 (415) 954-2899 Email: marketing@penguincomputing.com (General Information)

support@penguincomputing.com (Technical Support)

Website: www.penguincomputing.com

2-1

Chapter 2: Rack Intallation

Chapter 2

Rack Installation

This chapter provides instructions for preparing and mounting your chassis in a

rack. By default, the chassis is shipped congured as a tower. The tower top cover

and bottom feet must be removed to mount in a rack. Also, the control panel/drive module should be rotated 90 degrees. See Chapter 6 for this procedure.

2-1 Unpacking the System

You should inspect the box the chassis was shipped in and note if it was damaged in any way. If the chassis itself shows damage, le a damage claim with the carrier who delivered it.

Mounting rails are optional for this system. Be sure you have received the correct rail kit for your server.

2-2 Preparing for Setup

Decide on a suitable location for the rack unit that will hold your chassis. It should be a clean, dust-free area that is well ventilated. Avoid areas where heat, electrical noise and electromagnetic elds are generated. A nearby grounded power outlet.

is required

Choosing a Setup Location

• Leave at least 25 inches clearance in front of the rack to open the front door

completely.

• Leave approximately 30 inches of clearance in the back of the rack to allow

for sufcient airow and access for servicing.

• It should be a restricted access location, such as a dedicated equipment room

or a service closet.

Niveus 4904GT User's Guide

2-2

2-3 Warnings and Precautions

Rack Precautions

• Ensure that the leveling jacks on the bottom of the rack are fully extended to

the oor with the full weight of the rack resting on them.

• In single rack installations, stabilizers should be attached to the rack.

• In multiple rack installations, the racks should be coupled together.

• Always make sure that the rack is stable before extending a component from

the rack.

• Only one chassis should be extended from the rack at a time. Extending two

or more chassis simultaneously may cause the rack to become unstable.

• When initially installing the server to a rack, test that the rail locking tabs en-

gage to prevent the server from being overextended. Have a rack lift in place as a precaution in case the test fails.

• In any instance of pulling the system from the rack, always use a rack lift and

follow all associated safety precautions.

General Server Precautions

• Review the electrical and general safety precautions that came with the com-

ponents you are adding to your chassis.

• Determine the placement of each component in the rack before you install the

rails.

• Install the heaviest server components on the bottom of the rack rst, and

then work upward.

• Use a regulating uninterruptible power supply (UPS) to protect the server from

power surges, voltage spikes and to keep your system operating in case of a power failure.

• Allow the hot-swappable hard drives and power supply modules to cool be-

fore touching them.

• Always keep the rack's front door and all panels and components on the serv-

ers closed when not servicing to maintain proper cooling.

2-3

Chapter 2: Rack Intallation

Rack Mounting Considerations

Ambient Operating Temperature

If installed in a closed or multi-unit rack assembly, the ambient operating temperature of the rack environment may be greater than the ambient temperature of the room. Therefore, consideration should be given to installing the equipment in an

environment compatible with the manufacturer’s maximum rated ambient temperature (TMRA).

Sufcient Airow

Equipment should be mounted into a rack so that the amount of airow required

for safe operation is not compromised.

Circuit Overloading

Consideration should be given to the connection of the equipment to the power

supply circuitry and the effect that any possible overloading of circuits might have

on overcurrent protection and power supply wiring. Appropriate consideration of equipment nameplate ratings should be used when addressing this concern.

Reliable Ground

A reliable ground must be maintained at all times. To ensure this, the rack itself

should be grounded. Particular attention should be given to power supply connections other than the direct connections to the branch circuit (i.e. the use of power strips, etc.).

Warning: To prevent bodily injury when mounting or servicing this unit in a

rack, you must take special precautions to ensure that the system remains

stable. The following guidelines are provided to ensure your safety:

• This unit should be mounted at the bottom of the rack if it is the only unit in

the rack.

• When mounting this unit in a partially lled rack, load the rack from the bottom

to the top with the heaviest component at the bottom of the rack.

• If the rack is provided with stabilizing devices, install the stabilizers before

mounting or servicing the unit in the rack.

• Slide rail mounted equipment is not to be used as a shelf or a work space.

Niveus 4904GT User's Guide

2-4

2-4 Procedure for Rack Mounting

This section provides information on installing a 4U chassis into a rack. There are a variety of rack units on the market, so the assembly procedure may differ slightly. Also refer to the installation instructions for your rack unit.

The tower top cover and bottom feet must be removed to mount in a rack. Also,

the control panel/drive module should be rotated 90 degrees. See Chapter 6 for this procedure.

Removing the Tower Top Cover and Feet

The chassis is shipped with the tower top cover and feet installed. Both must be

removed for before installing the rails.

Removing the Tower Top Cover

1. Locate the chassis cover lock (blue lever) at the rear of the chassis cover.

2. Slide the chassis cover lock to the right and push chassis cover forward.

3. Lift the chassis top cover off the chassis.

Removing the Chassis Feet

1. Place the chassis on its side with the chassis side cover facing upward.

2. Remove the screw holding the chassis foot in place.

3. The foot lock is a tab located in the center of the foot that prevents the foot from

sliding. Using a at head screwdriver, gently lift the foot lock upward and slide the foot toward the rear of the chassis.

2-5

Chapter 2: Rack Intallation

Chassis Cover

Chassis Foot

Chassis Cover Lock

Figure 2-1. Removing the Feet and Chassis Top Cover

Niveus 4904GT User's Guide

2-6

Figure 2-2. Identifying the Inner Rails and Chassis Handles

Chassis Handle

Inner Rails

Warning: Do not pick up the server with the front handles. They are de-

signed to pull the system from a rack only.

Identifying the Sections of the Rack Rails

The chassis package includes two rail assemblies. Each assembly consists of three

sections: An inner rail that secures directly to the chassis, an outer rail that secures

to the rack, and a middle rail which extends from the outer rail. These assemblies are specically designed for the left and right side of the chassis.

2-7

Chapter 2: Rack Intallation

Installing the Chassis Handles and Inner Rails

Installing the Inner Rails

1. Locate the chassis handles and handle screws.

2. Align the chassis handle with the front of the chassis and secure with the three

chassis handle screws.

3. Repeats steps 1 and 2 with the other handle.

4. Locate the inner rails and screws in the shipping package.

5. Align the inner rails against the chassis, as shown. Conrm that the rails are

ushed against the edge of the chassis.

6. Tighten the screws. Do not over-tighten.

7. Repeat steps 5 and 6 with the other inner rail.

Figure 2-3. Installing the Inner Rack Rails

Niveus 4904GT User's Guide

2-8

Figure 2-4. Extending and Mounting the Outer Rails

Installing the Outer Rails onto the Rack

Installing the Outer Rails

1. Press upward on the locking tab at the rear end of the middle rail.

2. Push the middle rail back into the outer rail.

3. Hang the hooks on the front of the outer rail onto the square holes on the front

of the rack. If desired, use screws to secure the outer rails to the rack.

4. Pull out the rear of the outer rail, adjusting the length until it just ts within the posts of the rack.

5. Hang the hooks of the rear section of the outer rail onto the square holes on the rear of the rack. Take care that the proper holes are used so the rails are level.

If desired, use screws to secure the rear of the outer rail to the rear of the rack.

6. Repeat for the other outer rail.

Stability hazard. The rack stabilizing mechanism must be in place, or the rack must be bolted to the oor before you slide the unit out for servicing. Failure to stabilize the rack can cause the rack to tip over.

Do not use a two post "telco" type rack.

2-9

Chapter 2: Rack Intallation

Figure 2-5. Installing into a Rack

Sliding the Chassis onto the Rack Rails

Warning: Use a lift to hold the system while installing. Please follow safety

recommendations printed on the rails.

Installing the Chassis into a Rack

1. Extend the outer rails as illustrated above.

2. Align the inner rails of the chassis with the outer rails on the rack.

3. Slide the inner rails into the outer rails, keeping the pressure even on both sides. When the chassis has been pushed completely into the rack, it should click into the locked position.

4. Optional screws may be used to hold the front of the chassis to the rack.

Note: The gure above is for illustrative purposes only. Always install servers to the bottom of the rack rst.

Caution: Do not pick up the server with the front handles. They are designed

to pull the system from a rack only.

Niveus 4904GT User's Guide

2-10

2-5 Tower Conguration Instructions

The 4U chassis is shipped with the tower top cover and feet pre-installed. To use the

chassis as a desktop server, no other installation is required. Use the instructions in this section if you have converted the chassis for rack use and need to return

the chassis to tower orientation.

Converting to Tower Conguration

1. Remove the rack mount handles.

2. Align the tower top cover post with the corresponding holes on the top of the chassis and place the cover on the chassis. The cover should hang over the front of the chassis approximately one-half inch.

3. Slide the chassis cover toward the rear of the chassis to lock the cover into place.

4. Place each chassis foot in place.

5. Secure each foot to the chassis with the screws.

Add the Tower

Top Cover

Add the

Chassis Feet

Figure 2-6. Adding Chassis Feet and the Top Cover

Remove the Rack Mount

Chassis Handles

Chapter 3: System Interface

3-1

Chapter 3

System Interface

3-1 Overview

The chassis includes the following user interface elements:

• A control panel on the front that includes power buttons and status monitoring

lights

• Status lights on externally accessible hard drives

• Status lights for the power supply

Figure 3-1. Control Panel

3-2

Niveus 4904GT User's Manual

3-2 Control Panel Buttons

The chassis includes two push-buttons that control power to the system.

Power: The main power switch is used to apply or remove power from the power supply to the server. Turning off system power with this button removes the main power but maintains standby power. To perform many maintenance tasks, you must unplug system before servicing.

Reset: The reset button is used to reboot the system

3-3 Control Panel LEDs

There are ve LEDs that provide status information about the system.

HDD: Indicates IDE channel activity on the hard drive when ashing.

NIC1: Indicates network activity on LAN1 when ashing.

NIC2: Indicates network activity on LAN2 when ashing.

Chapter 3: System Interface

3-3

Information LED: Alerts operator of several states, as noted in the table below.

Information LED

Status Description

Continuously on and red

An overheat condition has occured.

(This may be caused by cable congestion.) Blinking red (1Hz) Fan failure, check for an inoperative fan. Blinking red (0.25Hz) Power failure, check for a non-operational power supply.

Solid blue

Local UID has been activated. Use this function to locate

the server in a rack mount environment. Blinking blue

Remote UID is on. Use this function to identify the

server from a remote location.

Power Fail: Indicates a power failure to the system's power supply units.

3-4 Drive Carrier LEDs

The chassis includes externally accessible SAS/SATA drives. Each drive carrier displays two status LEDs on the front of the carrier.

• Green: When illuminated, this LED indicates drive activity. It blinks on and off

when that particular drive is being accessed This function is controlled by the backplane.

• Red: When illuminated, this LED indicates a drive failure. You should be notied

by your system management software.

3-4

Niveus 4904GT User's Manual

3-5 Power Supply LEDs

On the rear of the power supply module, an LED displays the status.

• Solid Green: When illuminated, indicates that the power supply is on.

• Solid Amber: When illuminated, indicates the power supply is plugged in and

turned off, or the system is off but in an abnormal state.

• Blinking Amber: When blinking, this system power supply temperature has

reached 63°C. The system will automatically power-down when the power supply temperature reaches 70°C and restart when the power supply temperature goes below 60°C.

4-1

Chapter 4: Warning Statements for AC Systems

Chapter 4

Standardized Warning Statements for AC Systems

About Standardized Warning Statements

The following statements are industry standard warnings, provided to warn the user of situations which have the potential for bodily injury. Should you have questions

or experience difculty, contact Penguin Computing's Technical Support department for assistance. Only certied technicians should attempt to install or congure

components.

Read this chapter in its entirety before installing or conguring components in the Penguin Computing chassis. Some warnings may not apply for your system.

Warning!

This warning symbol means danger. You are in a situation that could cause bodily injury. Before you work on any equipment, be aware of the hazards involved with electrical circuitry and be familiar with standard practices for preventing accidents.

Warning Denition

警告の定義

この警告サインは危険を意味します。

人身事故につながる可能性がありますので、いずれの機器でも動作させる前に、

電気回路に含まれる危険性に注意して、標準的な事故防止策に精通して下さい。

此警告符号代表危险。

您正处于可能受到严重伤害的工作环境中。在您使用设备开始工作之前，必须充分意识到触电的危险，并熟练掌握防止事故发生的标准工作程序。请根据每项警告结尾的声明号码找到此设备的安全性警告说明的翻译文本。

此警告符號代表危險。

您正處於可能身體可能會受損傷的工作環境中。在您使用任何設備之前，請注意觸電的危險，並且要熟悉預防事故發生的標準工作程序。請依照每一注意事項後的號碼找到相關的翻譯說明內容。

4-2

Niveus 4904GT User's Manual

Warnung

WICHTIGE SICHERHEITSHINWEISE

Dieses Warnsymbol bedeutet Gefahr. Sie benden sich in einer Situation, die zu Verletzungen führen kann. Machen Sie sich vor der Arbeit mit Geräten mit den Gefahren elektrischer Schaltungen und den üblichen Verfahren zur Vorbeugung vor Unfällen vertraut. Suchen Sie mit der am Ende jeder Warnung angegebenen

Anweisungsnummer nach der jeweiligen Übersetzung in den übersetzten

Sicherheitshinweisen, die zusammen mit diesem Gerät ausgeliefert wurden.

BEWAHREN SIE DIESE HINWEISE GUT AUF.

INSTRUCCIONES IMPORTANTES DE SEGURIDAD

Este símbolo de aviso indica peligro. Existe riesgo para su integridad física. Antes

de manipular cualquier equipo, considere los riesgos de la corriente eléctrica y

familiarícese con los procedimientos estándar de prevención de accidentes. Al nal de cada advertencia encontrará el número que le ayudará a encontrar el texto

traducido en el apartado de traducciones que acompaña a este dispositivo.

GUARDE ESTAS INSTRUCCIONES.

IMPORTANTES INFORMATIONS DE SÉCURITÉ

Ce symbole d'avertissement indique un danger. Vous vous trouvez dans une

situation pouvant entraîner des blessures ou des dommages corporels. Avant de travailler sur un équipement, soyez conscient des dangers liés aux circuits électriques et familiarisez-vous avec les procédures couramment utilisées pour

éviter les accidents. Pour prendre connaissance des traductions des avertissements gurant dans les consignes de sécurité traduites qui accompagnent cet appareil, référez-vous au numéro de l'instruction situé à la n de chaque avertissement.

CONSERVEZ CES INFORMATIONS.

4-3

Chapter 4: Warning Statements for AC Systems

4-3

안전을 위한 주의사항

경고!

이 경고 기호는 위험이 있음을 알려 줍니다. 작업자의 신체에 부상을 야기 할 수 있는 상태에 있게 됩니다. 모든 장비에 대한 작업을 수행하기 전에 전기회로와 관련된 위험요소들을 확인하시고 사전에 사고를 방지할 수 있도록 표준 작업절차를 준수해 주시기 바랍니다.

해당 번역문을 찾기 위해 각 경고의 마지막 부분에 제공된 경고문 번호를

참조하십시오

BELANGRIJKE VEILIGHEIDSINSTRUCTIES

Dit waarschuwings symbool betekent gevaar. U verkeert in een situatie die lichamelijk letsel kan veroorzaken. Voordat u aan enige apparatuur gaat werken,

dient u zich bewust te zijn van de bij een elektrische installatie betrokken risico's

en dient u op de hoogte te zijn van de standaard procedures om ongelukken te

voorkomen. Gebruik de nummers aan het eind van elke waarschuwing om deze te

herleiden naar de desbetreffende locatie.

BEWAAR DEZE INSTRUCTIES

4-4

Niveus 4904GT User's Manual

Installation Instructions

Warning!

Read the installation instructions before connecting the system to the power source.

Warnung Vor dem Anschließen des Systems an die Stromquelle die Installationsanweisungen

lesen.

¡Advertencia!

Lea las instrucciones de instalación antes de conectar el sistema a la red de alimentación.

Attention

Avant de brancher le système sur la source d'alimentation, consulter les directives d'installation.

設置手順書

システムを電源に接続する前に、設置手順書をお読み下さい。

시스템을 전원에 연결하기 전에 설치 안내를 읽어주십시오.

Waarschuwing Raadpleeg de installatie-instructies voordat u het systeem op de voedingsbron

aansluit.

警告将此系统连接电源前,请先阅读安装说明。

警告將系統與電源連接前，請先閱讀安裝說明。

4-5

Chapter 4: Warning Statements for AC Systems

Circuit Breaker

Warning!

This product relies on the building's installation for short-circuit (overcurrent) protection. Ensure that the protective device is rated not greater than: 250 V, 20 A.

サーキット・ブレーカー

この製品は、短絡（過電流）保護装置がある建物での設置を前提としています。

保護装置の定格が250 V、20 Aを超えないことを確認下さい。

Warnung

Dieses Produkt ist darauf angewiesen, dass im Gebäude ein Kurzschlussbzw. Überstromschutz installiert ist. Stellen Sie sicher, dass der Nennwert der Schutzvorrichtung nicht mehr als: 250 V, 20 A beträgt.

¡Advertencia!

Este equipo utiliza el sistema de protección contra cortocircuitos (o sobrecorrientes) del edicio. Asegúrese de que el dispositivo de protección no sea superior a: 250 V, 20 A.

Attention

Pour ce qui est de la protection contre les courts-circuits (surtension), ce produit dépend de l'installation électrique du local. Vériez que le courant nominal du dispositif de protection n'est pas supérieur à :250 V, 20 A.

警告此产品的短路(过载电流)保护由建筑物的供电系统提供,确保短路保护设备的额定电流不大于250V,20A。

警告此產品的短路(過載電流)保護由建築物的供電系統提供,確保短路保護設備的額定電流不大於250V,20A。

4-6

Niveus 4904GT User's Manual

Power Disconnection Warning

電源切断の警告

システムコンポーネントの取り付けまたは取り外しのために、シャーシー内部にアクセスするには、

システムの電源はすべてのソースから切断され、電源コードは電源モジュールから取り外す必要があります。

警告

在你打开机箱并安装或移除内部器件前,必须将系统完全断电,并移除电源线。

警告

在您打開機殼安裝或移除內部元件前，必須將系統完全斷電，並移除電源線。

Warnung

Das System muss von allen Quellen der Energie und vom Netzanschlusskabel

getrennt sein, das von den Spg.Versorgungsteilmodulen entfernt wird, bevor es

auf den Chassisinnenraum zurückgreift, um Systemsbestandteile anzubringen oder

zu entfernen.

Warning!

The system must be disconnected from all sources of power and the power cord

removed from the power supply module(s) before accessing the chassis interior to

install or remove system components.

경고!

이 제품은 전원의 단락(과전류)방지에 대해서 전적으로 건물의 관련 설비에 의존합니다. 보호장치의 정격이 반드시 250V(볼트), 20A(암페어)를 초과하지 않도록 해야 합니다.

Waarschuwing

Dit product is afhankelijk van de kortsluitbeveiliging (overspanning) van uw electrische installatie. Controleer of het beveiligde aparaat niet groter gedimensioneerd is dan 220V, 20A.

4-7

Chapter 4: Warning Statements for AC Systems

¡Advertencia!

El sistema debe ser disconnected de todas las fuentes de energía y del cable eléctrico quitado de los módulos de fuente de alimentación antes de tener acceso

el interior del chasis para instalar o para quitar componentes de sistema.

Attention

Le système doit être débranché de toutes les sources de puissance ainsi que de son cordon d'alimentation secteur avant d'accéder à l'intérieur du chassis pour

installer ou enlever des composants de systéme.

경고!

시스템에 부품들을 장착하거나 제거하기 위해서는 섀시 내부에 접근하기 전에 반드시 전원 공급장치로부터 연결되어있는 모든 전원과 전기코드를 분리해주어야 합니다.

Waarschuwing Voordat u toegang neemt tot het binnenwerk van de behuizing voor het installeren

of verwijderen van systeem onderdelen, dient u alle spanningsbronnen en alle

stroomkabels aangesloten op de voeding(en) van de behuizing te verwijderen

4-8

Niveus 4904GT User's Manual

Equipment Installation

機器の設置

トレーニングを受け認定された人だけがこの装置の設置、交換、またはサービスを許可されています。

Warning!

Only trained and qualied personnel should be allowed to install, replace, or service

this equipment.

Warnung

Das Installieren, Ersetzen oder Bedienen dieser Ausrüstung sollte nur geschultem, qualiziertem Personal gestattet werden.

¡Advertencia!

Solamente el personal calicado debe instalar, reemplazar o utilizar este equipo.

Attention

Il est vivement recommandé de confier l'installation, le remplacement et la maintenance de ces équipements à des personnels qualiés et expérimentés.

경고!

훈련을 받고 공인된 기술자만이 이 장비의 설치, 교체 또는 서비스를 수행할 수 있습니다.

警告只有经过培训且具有资格的人员才能进行此设备的安装、更换和维修。

警告只有經過受訓且具資格人員才可安裝、更換與維修此設備。

4-9

Chapter 4: Warning Statements for AC Systems

アクセス制限区域このユニットは、アクセス制限区域に設置されることを想定しています。アクセス制限区域は、特別なツール、鍵と錠前、その他のセキュリティの手段を用いての

み出入りが可能です。

Warning!

This unit is intended for installation in restricted access areas. A restricted access area can be accessed only through the use of a special tool, lock and key, or other

means of security. (This warning does not apply to workstations).

Restricted Area

Waarschuwing Deze apparatuur mag alleen worden geïnstalleerd, vervangen of hersteld door

geschoold en gekwaliceerd personeel.

Warnung

Diese Einheit ist zur Installation in Bereichen mit beschränktem Zutritt vorgesehen. Der Zutritt zu derartigen Bereichen ist nur mit einem Spezialwerkzeug, Schloss und

Schlüssel oder einer sonstigen Sicherheitsvorkehrung möglich.

¡Advertencia!

Esta unidad ha sido diseñada para instalación en áreas de acceso restringido. Sólo puede obtenerse acceso a una de estas áreas mediante la utilización de una

herramienta especial, cerradura con llave u otro medio de seguridad.

Attention

Cet appareil doit être installée dans des zones d'accès réservés. L'accès à une zone d'accès réservé n'est possible qu'en utilisant un outil spécial, un mécanisme

de verrouillage et une clé, ou tout autre moyen de sécurité.

警告此部件应安装在限制进出的场所，限制进出的场所指只能通过使用特殊工具、锁和钥匙或其它安全手段进出的场所。

警告此裝置僅限安裝於進出管制區域，進出管制區域係指僅能以特殊工具、鎖頭及鑰匙或其他安全方式才能進入的區域。

4-10

Niveus 4904GT User's Manual

Battery Handling

Warning!

There is the danger of explosion if the battery is replaced incorrectly. Replace the battery only with the same or equivalent type recommended by the manufacturer.

Dispose of used batteries according to the manufacturer's instructions

경고!

이 장치는 접근이 제한된 구역에 설치하도록 되어있습니다. 특수도구, 잠금 장치 및 키, 또는 기타 보안 수단을 통해서만 접근 제한 구역에 들어갈 수 있습니다.

Waarschuwing Dit apparaat is bedoeld voor installatie in gebieden met een beperkte toegang.

Toegang tot dergelijke gebieden kunnen alleen verkregen worden door gebruik te maken van speciaal gereedschap, slot en sleutel of andere veiligheidsmaatregelen.

電池の取り扱い

電池交換が正しく行われなかった場合、破裂の危険性があります。交換する電池はメーカーが推奨する型、または同等のものを使用下さい。使用済電池は製造元の指示に従

って処分して下さい。

警告电池更换不当会有爆炸危险。请只使用同类电池或制造商推荐的功能相当的电池更换原有电池。请按制造商的说明处理废旧电池。

警告電池更換不當會有爆炸危險。請使用製造商建議之相同或功能相當的電池更換原有電池。請按照製造商的說明指示處理廢棄舊電池。

4-11

Chapter 4: Warning Statements for AC Systems

Warnung

Bei Einsetzen einer falschen Batterie besteht Explosionsgefahr. Ersetzen Sie die Batterie nur durch den gleichen oder vom Hersteller empfohlenen Batterietyp. Entsorgen Sie die benutzten Batterien nach den Anweisungen des Herstellers.

Attention

Danger d'explosion si la pile n'est pas remplacée correctement. Ne la remplacer

que par une pile de type semblable ou équivalent, recommandée par le fabricant.

Jeter les piles usagées conformément aux instructions du fabricant.

¡Advertencia!

Existe peligro de explosión si la batería se reemplaza de manera incorrecta. Reemplazar la batería exclusivamente con el mismo tipo o el equivalente recomendado por el fabricante. Desechar las baterías gastadas según las

instrucciones del fabricante.

경고!

배터리가 올바르게 교체되지 않으면 폭발의 위험이 있습니다. 기존 배터리와 동일하거나 제조사에서 권장하는 동등한 종류의 배터리로만 교체해야 합니다. 제조사의 안내에 따라 사용된 배터리를 처리하여 주십시오.

Waarschuwing

Er is ontplofngsgevaar indien de batterij verkeerd vervangen wordt. Vervang de

batterij slechts met hetzelfde of een equivalent type die door de fabrikant aanbevolen

wordt. Gebruikte batterijen dienen overeenkomstig fabrieksvoorschriften afgevoerd

te worden.

4-12

Niveus 4904GT User's Manual

Warnung

Dieses Gerät kann mehr als eine Stromzufuhr haben. Um sicherzustellen, dass der Einheit kein trom zugeführt wird, müssen alle Verbindungen entfernt werden.

¡Advertencia!

Puede que esta unidad tenga más de una conexión para fuentes de alimentación. Para cortar por completo el suministro de energía, deben desconectarse todas las

conexiones.

Attention

Cette unité peut avoir plus d'une connexion d'alimentation. Pour supprimer toute tension et tout courant électrique de l'unité, toutes les connexions d'alimentation doivent être débranchées.

Redundant Power Supplies (if applicable to your system)

Warning!

This unit might have more than one power supply connection. All connections must be removed to de-energize the unit.

冗長電源装置

このユニットは複数の電源装置が接続されている場合があります。

ユニットの電源を切るためには、すべての接続を取り外さなければなりません。

警告此部件连接的电源可能不止一个，必须将所有电源断开才能停止给该部件供电。

警告此裝置連接的電源可能不只一個，必須切斷所有電源才能停止對該裝置的供電。

4-13

Chapter 4: Warning Statements for AC Systems

Backplane Voltage (if applicable to your system)

バックプレーンの電圧システムの稼働中は危険な電圧または電力が、バックプレーン上にかかっています。

修理する際には注意ください。

警告当系统正在进行时，背板上有很危险的电压或能量，进行维修时务必小心。

警告當系統正在進行時，背板上有危險的電壓或能量，進行維修時務必小心。

Warnung

Wenn das System in Betrieb ist, treten auf der Rückwandplatine gefährliche Spannungen oder Energien auf. Vorsicht bei der Wartung.

¡Advertencia!

Cuando el sistema está en funcionamiento, el voltaje del plano trasero es peligroso.

Tenga cuidado cuando lo revise.

Attention

Lorsque le système est en fonctionnement, des tensions électriques circulent sur le fond de panier. Prendre des précautions lors de la maintenance.

Warning!

Hazardous voltage or energy is present on the backplane when the system is

operating. Use caution when servicing.

경고!

이 장치에는 한 개 이상의 전원 공급 단자가 연결되어 있을 수 있습니다. 이 장치에 전원을 차단하기 위해서는 모든 연결 단자를 제거해야만 합니다.

Waarschuwing Deze eenheid kan meer dan één stroomtoevoeraansluiting bevatten. Alle

aansluitingen dienen verwijderd te worden om het apparaat stroomloos te maken.

4-14

Niveus 4904GT User's Manual

Comply with Local and National Electrical Codes

Warning!

Installation of the equipment must comply with local and national electrical codes.

地方および国の電気規格に準拠機器の取り付けはその地方および国の電気規格に準拠する必要があります。

Warnung

Die Installation der Geräte muss den Sicherheitsstandards entsprechen.

¡Advertencia!

La instalacion del equipo debe cumplir con las normas de electricidad locales y

nacionales.

경고!

시스템이 동작 중일 때 후면판 (Backplane)에는 위험한 전압이나 에너지가 발생 합니다. 서비스 작업 시 주의하십시오.

Waarschuwing

Een gevaarlijke spanning of energie is aanwezig op de backplane wanneer het

systeem in gebruik is. Voorzichtigheid is geboden tijdens het onderhoud.

警告

设备安装必须符合本地与本国电气法规。

警告

設備安裝必須符合本地與本國電氣法規。

4-15

Chapter 4: Warning Statements for AC Systems

Product Disposal

Warning!

Ultimate disposal of this product should be handled according to all national laws and regulations.

Attention

L'équipement doit être installé conformément aux normes électriques nationales

et locales.

경고!

현 지역 및 국가의 전기 규정에 따라 장비를 설치해야 합니다.

Waarschuwing Bij installatie van de apparatuur moet worden voldaan aan de lokale en nationale

elektriciteitsvoorschriften.

製品の廃棄

この製品を廃棄処分する場合、国の関係する全ての法律・条例に従い処理する必要があります。

警告本产品的废弃处理应根据所有国家的法律和规章进行。

警告本產品的廢棄處理應根據所有國家的法律和規章進行。

Warnung

Die Entsorgung dieses Produkts sollte gemäß allen Bestimmungen und Gesetzen des Landes erfolgen.

4-16

Niveus 4904GT User's Manual

Waarschuwing De uiteindelijke verwijdering van dit product dient te geschieden in overeenstemming

met alle nationale wetten en reglementen.

¡Advertencia! Al deshacerse por completo de este producto debe seguir todas las leyes y

reglamentos nacionales.

Attention

La mise au rebut ou le recyclage de ce produit sont généralement soumis à des lois et/ou directives de respect de l'environnement. Renseignez-vous auprès de l'organisme compétent.

Warning!

The fans might still be turning when you remove the fan assembly from the chassis.

Keep ngers, screwdrivers, and other objects away from the openings in the fan assembly's housing.

Hot Swap Fan Warning (if applicable to your system)

ファン・ホットスワップの警告

シャーシから冷却ファン装置を取り外した際、ファンがまだ回転している可能性がありま

す。ファンの開口部に、指、ドライバー、およびその他のものを近づけないで下さい。

警告当您从机架移除风扇装置，风扇可能仍在转动。小心不要将手指、螺丝起子和其他物品太靠近风扇

경고!

이 제품은 해당 국가의 관련 법규 및 규정에 따라 폐기되어야 합니다.

4-17

Chapter 4: Warning Statements for AC Systems

Warnung

Die Lüfter drehen sich u. U. noch, wenn die Lüfterbaugruppe aus dem Chassis genommen wird. Halten Sie Finger, Schraubendreher und andere Gegenstände von den Öffnungen des Lüftergehäuses entfernt.

¡Advertencia!

Los ventiladores podran dar vuelta cuando usted quite ell montaje del ventilador

del chasis. Mandtenga los dedos, los destornilladores y todos los objetos lejos de las aberturas del ventilador

Attention Il est possible que les ventilateurs soient toujours en rotation lorsque vous retirerez

le bloc ventilateur du châssis. Prenez garde à ce que doigts, tournevis et autres

objets soient éloignés du logement du bloc ventilateur.

경고!

섀시로부터 팬 조립품을 제거할 때 팬은 여전히 회전하고 있을 수 있습니다. 팬 조림품 외관의 열려있는 부분들로부터 손가락 및 스크류드라이버, 다른 물체들이 가까이 하지 않도록 배치해 주십시오.

Waarschuwing

Het is mogelijk dat de ventilator nog draait tijdens het verwijderen van het ventilatorsamenstel uit het chassis. Houd uw vingers, schroevendraaiers

en eventuele andere voorwerpen uit de buurt van de openingen in de ventilatorbehuizing.

警告當您從機架移除風扇裝置，風扇可能仍在轉動。小心不要將手指、螺絲起子和其他物品太靠近風扇。

4-18

Niveus 4904GT User's Manual

Warning!

When installing the product, use the provided or designated connection cables,

power cables and AC adaptors. Using any other cables and adaptors could cause a malfunction or a re. Electrical Appliance and Material Safety Law prohibits the use of UL or CSA -certied cables (that have UL/CSA shown on the code) for any other electrical devices than products designated by Penguin Computing only.

Power Cable and AC Adapter

Warnung

Bei der Installation des Produkts, die zur Verfügung gestellten oder benannt Anschlusskabel, Stromkabel und Netzteile. Verwendung anderer Kabel und Adapter kann zu einer Fehlfunktion oder ein Brand entstehen. Elektrische Geräte und Material Safety Law verbietet die Verwendung von UL-oder CSA-zertizierte Kabel, UL oder CSA auf der Code für alle anderen elektrischen Geräte als Produkte von Penguin Computing nur bezeichnet gezeigt haben.

¡Advertencia!

Al instalar el producto, utilice los cables de conexión previstos o designados, los cables y adaptadores de CA. La utilización de otros cables y adaptadores podría ocasionar un mal funcionamiento o un incendio. Aparatos Eléctricos y la Ley de Seguridad del Material prohíbe el uso de UL o CSA cables certicados que tienen UL o CSA se muestra en el código de otros dispositivos eléctricos que los productos designados por Penguin Computing solamente.

電源コードとACアダプター

製品を設置する場合、提供または指定された接続ケーブル、電源コードとACアダプターを使用下さい。他のケーブルやアダプタを使用すると故障や火災の原因になることがあ

ります。電気用品安全法は、ULまたはCSA認定のケーブル(UL/CSEマークがコードに表

記)を Penguin Computing が指定する製品以外に使用することを禁止しています。

警告安装此产品时,请使用本身提供的或指定的连接线,电源线和电源适配器.使用其它线材或适配器可能会引起故障或火灾。除了Penguin Computing 所指定的产品,电气用品和材料安全法律规定禁止使用未经UL或CSA认证的线材。(线材上会显示UL/CSA 符号)。

警告

4-19

Chapter 4: Warning Statements for AC Systems

Attention

Lors de l'installation du produit, utilisez les bables de connection fournis ou désigné. L'utilisation d'autres cables et adaptateurs peut provoquer un dysfonctionnement

ou un incendie. Appareils électroménagers et de loi sur la sécurité Matériel interdit

l'utilisation de UL ou CSA câbles certiés qui ont UL ou CSA indiqué sur le code pour tous les autres appareils électriques que les produits désignés par Penguin Computing seulement.

경고!

제품을 설치할 때에는 제공되거나 지정된 연결케이블과 전원케이블, AC어댑터를 사용해야 합니다. 그 밖의 다른 케이블들이나 어댑터들은 고장 또는 화재의 원인이 될 수 있습니다. 전기용품안전법 (Electrical Appliance and Material Safety Law)은 슈퍼마이크로에서 지정한 제품들 외에는 그 밖의 다른 전기 장치들을 위한 UL또는 CSA에서 인증한 케이블(전선 위에 UL/CSA가 표시)들의 사용을 금지합니다.

Waarschuwing Bij het installeren van het product, gebruik de meegeleverde of aangewezen kabels,

stroomkabels en adapters. Het gebruik van andere kabels en adapters kan leiden tot een storing of een brand. Elektrisch apparaat en veiligheidsinformatiebladen wet verbiedt het gebruik van UL of CSA gecerticeerde kabels die UL of CSA die op de code voor andere elektrische apparaten dan de producten die door Penguin Computing alleen.

4-20

Niveus 4904GT User's Manual

Notes

Chapter 5: Advanced Serverboard Setup

5-1

Chapter 5

Advanced Serverboard Setup

This chapter covers the steps required to connect cables and describes all jumpers and connections. A layout and quick reference chart are included in this chapter for

your reference. Always close the chassis when you have nished working on the system to maintain optimal cooling.

5-1 Handling the Serverboard

Electrostatic Discharge (ESD) can damage electronic com ponents. To prevent damage to any printed circuit boards (PCBs), it is important to handle them very carefully (see previous chapter). To prevent the serverboard from bending, keep one hand under the center of the board to support it when handling. The following measures are generally sufcient to protect your equipment from electric static discharge.

Precautions

• Use a grounded wrist strap designed to prevent Electrostatic Discharge (ESD).

• Touch a grounded metal object before removing any board from its antistatic bag.

• Handle a board by its edges only; do not touch its components, peripheral chips,

memory modules or gold contacts.

• When handling chips or modules, avoid touching their pins.

• Put the serverboard, add-on cards and peripherals back into their antistatic

bags when not in use.

• For grounding purposes, make sure your computer chassis provides excellent

conductivity between the power supply, the case, the mounting fasteners and

the serverboard.

Unpacking

The serverboard is shipped in antistatic packaging to avoid electrical static discharge. When unpacking the board, make sure the person handling it is static

protected.

5-2

Niveus 4904GT User's Manual

5-2 Connecting Cables

Several cables need to be connected from the chassis to the serverboard. These

include the data cables for the peripherals and control panel and the power cables.

Connecting Data Cables

The cables used to transfer data from the peripheral devices have been carefully

routed to prevent them from blocking the ow of cooling air that moves through the system from front to back. If you need to disconnect any of these cables, you should take care to keep them routed as they were originally after reconnecting them (make sure the red wires connect to the pin 1 locations). The following data cables (with their locations noted) should be connected. (See the serverboard layout for connector locations.)

• SATA drive data cables (S-SATA 0-3, I-SATA 0-3 )

• Control Panel cable (JF1)

Important! Make sure the the cables do not come into contact with the fans.

Connecting Power Cables

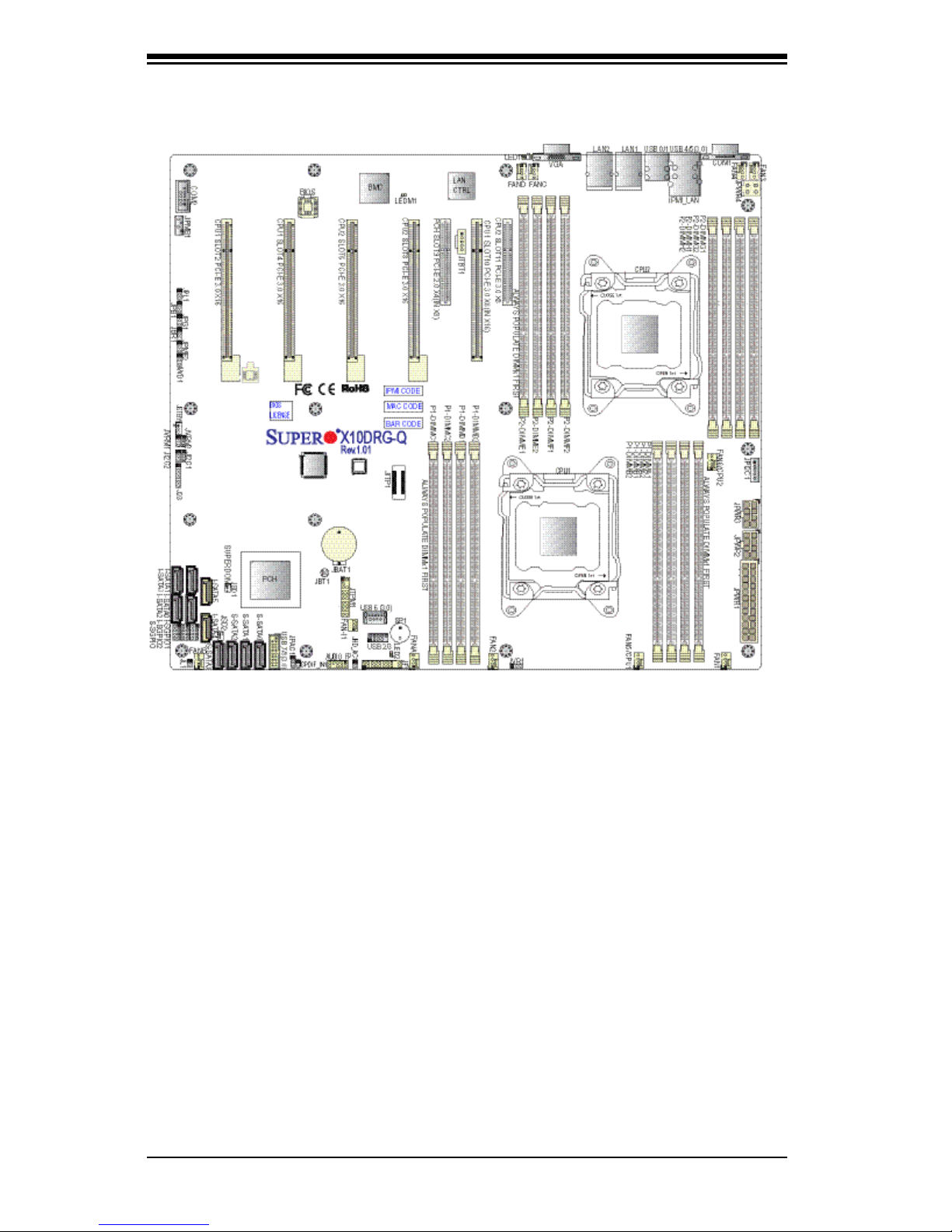

The X10DRG-Q has a 24-pin power supply connector (JPW1) for connection to the ATX power supply. In addition, there are two 8-pin secondary power connectors (JPW2, JPW3) and a 4-pin connector. The 4-pin connection is optional but recommended. See Section 5-8 for power connector pin denitions.

Caution: To avoid damaging your serverboard and components, please use a power supply that supports a 24-pin, two 8-pin and one 4-pin power connectors. Be sure to connect the 24-pin and the 8-pin power connectors to your power supply for adequate power delivery to your system. The 4-pin connector is optional, however, Penguin Computing recommends that this connector also be plugged in for optimal

power delivery.

Connecting the Control Panel

JF1 contains header pins for the front control panel connectors. All wires have been bundled into a single ribbon cable to simplify this connection. Make sure the red wire plugs into pin 1 as marked on the board. The other end connects to the Control Panel PCB board, located just behind the system status LEDs on the chassis.

Chapter 5: Advanced Serverboard Setup

5-3

Rear I/O Ports

1. COM1 Port 2. USB 3.0 Port 4

3. USB 3.0 Port 5 4. IPMI Dedicated LAN

5. USB 2.0 Port 0 6. USB 2.0 Port 1

7. Gigabit LAN 1 8. Gigabit LAN 2

9. VGA (blue) 10. UID Switch

5-3 I/O Ports

Figure 5-1. Rear I/O Ports

5-4

Niveus 4904GT User's Manual

5-4 Installing the Processor and Heatsink

Notes:

• Always remove the power cord before adding, removing or changing a CPU.

• When receiving a serverboard without a processor pre-installed, make sure that

the plastic CPU socket cap is in place and none of the socket pins are bent; otherwise, contact your retailer immediately.

• If you buy a CPU separately, use only an Intel-certied, multi-directional heatsink.

• Avoid placing direct pressure to the top of the processor package.

• Install the processor into the CPU socket before installing the heatsink.

• Refer to the Penguin Computing web site for updates on CPU support.

Installing an LGA 2011 Processor

Release

the lever labeled "Open 1st"

Installing a CPU

1. There are two levers on the LGA 2011 socket. First press and release the

load lever labeled "Open 1st".

Release

the lever labeled "Close 1st"

2. Press the second load lever labeled "Close 1st" to release the load plate

from its locked position.

Chapter 5: Advanced Serverboard Setup

5-5

3. With the second lever fully

retracted, gently push down on the "Open 1st" lever to loosen the load plate. Lift the load plate with your ngers to open it completely.

4. Pop the plastic cap marked "Warning" out of the load plate.

5. Holding the CPU carefully above the socket, orient the CPU so that all keys and edges will t the

socket.

Caution: You can only install the CPU into the socket in one direction. Make sure that the CPU is properly inserted into the socket before closing the load plate. If it does not close properly, do not force it as it may damage your CPU. Instead, open the load plate again and double-check that the CPU is aligned properly.

Open the load

plate.

6. Carefully lower the CPU straight down into the socket. Do not

move the CPU horizontally, and

do not rub the pins of the socket.

This may damage the CPU or the

socket.

5-6

Niveus 4904GT User's Manual

8. Make sure the locking mechanism on the "Close 1st" lever catches the lip of the load plate. Close and lock the "Close 1st" lever.

Push down and lock

the

lever labeled "Open 1st"

Push down and lock the

lever labeled "Close 1st".

9. Close and lock the "Open 1st" lever.

Engage the lip of the load plate and locking portion of

the lever."

7. With the "Close 1st" lever fully retracted, gently close the load

plate.

Gently close

the load plate.

Chapter 5: Advanced Serverboard Setup

5-7

Installing the Heatsink

Do not apply any thermal grease to the heatsink or the CPU die;

the required amount has already been applied

1. Place the heatsink on top

of the CPU so that the four mounting holes are aligned

with those on the retention mechanism.

2. Screw in two diagonal screws

until just snug. Do not overtighten the screws, which may damage the CPU.)

3. Fully tighten all four screws.

Installation and Removal of the Heatsink

Removing the Heatsink

Note: We do not recommend removing the CPU or the heatsink. If you do need to remove the heatsink, please follow the instructions below to prevent damage to the CPU or the CPU socket.

1. Unplug the power cord from the power supply.

2. Unscrew and remove the heatsink screws, starting by loosening each a little at a time.

3. Hold the heatsink and gently wriggle it to loosen it from the CPU. (Do not use excessive force!)

4. Once the heatsink is loosened, remove it from the CPU.

5. Clean the surface of the CPU and the heatsink to get rid of the old thermal grease. Reapply the proper amount of thermal grease before re-installing the

heatsink.

5-8

Niveus 4904GT User's Manual

5-5 Installing Memory

Caution: Exercise extreme care when installing or removing DIMM modules to

prevent damage.

Installing Memory Modules

1. Insert the desired number of DIMMs into the memory slots, starting with P1-

DIMMA1. For best memory performance, please install memory modules of the

same type and same speed on the memory slots as indicated on the tables below.

2. Insert each DIMM module vertically into its slot. Pay attention to the notch along

the bottom of the module to avoid installing incorrectly (see Figure 5-3).

3. Gently press down on the DIMM module until it snaps into place in the slot. Repeat for all modules.

Figure 5-2. DIMM Installation

To Instal l: Insert module

vert ic ally a nd pre ss down until it snaps into

place. Pay attention to the alignment notch at

the bottom.

To Remove: Use your thumbs to

gently push the release

tabs near both ends of the module. This should release it from the slot.

Top View of Slot

Release Tab Release Tab

Note: Notch should align with the

receptive key point on the slot.

Notch Notch

Front View

Memory Support

The X10DRG-Q serverboard supports up to 1 TB of 288-pin registered (RDIMM) DDR4 ECC 1333/1600/1866/2133 MHz in 16 slots. DIMM sizes up to 64GB @ 1.2V. Can be used. See the following table for memory installation. For the latest memory updates, please refer to the Penguin Computing website.

Chapter 5: Advanced Serverboard Setup

5-9

Processor & Memory Module Population Conguration

For memory to work properly, follow the tables below for memory population.

Processors and their Corresponding Memory Modules

CPU# Corresponding DIMM Modules CPU 1

P1-

DIMMA1

P1DIMMB1

P1DIMMC1

P1-

DIMMD1

P1-

DIMMA2

P1DIMMB2

P1DIMMC2

P1-

DIMMD2

CPU2

P2-

DIMME1

P2-

DIMMF1

P2DIMMG1

P2-

DIMMH1

P2-

DIMME2

P2-

DIMM F2

P2DIMMG2

P2-

DIMMH2

Processor and Memory Module Population for Optimal Performance

Number of CPUs+DIMMs

CPU and Memory Population Conguration Table

(For memory to work properly, please follow the instructions below.)

1 CPU & 2 DIMMs

CPU1 P1-DIMMA1/P1-DIMMB1

1 CPU & 4 DIMMs

CPU1 P1-DIMMA1/P1-DIMMB1, P1-DIMMC1/P1-DIMMD1

1 CPU & 5~8 DIMMs

CPU1 P1-DIMMA1/P1-DIMMB1, P1-DIMMC1/P1-DIMMD1 + Any memory pairs in P1DIMMA2/P1-DIMMB2/P1-DIMMC2/P1-DIMMD2 slots

2 CPUs & 4 DIMMs

CPU1 + CPU2 P1-DIMMA1/P1-DIMMB1, P2-DIMME1/P2-DIMMF1

2 CPUs & 6 DIMMs

CPU1 + CPU2 P1-DIMMA1/P1-DIMMB1/P1-DIMMC1/P1-DIMMD1, P2-DIMME1/P2-DIMMF1

2 CPUs & 8 DIMMs

CPU1 + CPU2 P1-DIMMA1/P1-DIMMB1/P1-DIMMC1/P1-DIMMD1, P2-DIMME1/P2-DIMMF1/P2DIMMG1/P2-DIMMH1

2 CPUs & 9~16 DIMMs

CPU1/CPU2 P1-DIMMA1/P1-DIMMB1/P1-DIMMC1/P1-DIMMD1, P2-DIMME1/P2-DIMMF1/P2DIMMG1/P2-DIMMH1 + Any memory pairs in P1, P2 DIMM slots

2 CPUs & 16 DIMMs

CPU1/CPU2 P1-DIMMA1/P1-DIMMB1/P1-DIMMC1/P1-DIMMD1, P2-DIMME1/P2-DIMMF1/ P2-DIMMG1/P2-DIMMH1,P1-DIMMA2/P1-DIMMB2/P1-DIMMC2/P1-DIMMD2, P2DIMME2/P2-DIMMF2/P2-DIMMG2/P2-DIMMH2

Notes:

• For optimal memory performance, please install DIMM modules in pairs (w/even

number of DIMMs installed).

• All channels in a system will run at the fastest common frequency.

5-10

Niveus 4904GT User's Manual

Populating LRDIMM and RDIMM ECC Memory Modules

Note: For the memory modules to work properly, install DIMM modules of the same type, same speed and same operating frequency. Mixing of RDIMMs, UDIMMs or LRDIMMs is not allowed. Do not install both ECC and Non-ECC memory modules

on the same serverboard.

5-6 Installing PCI Expansion Cards

The system supports PCI Express cards and up to four double-width GPU cards.

• Four PCI-E 3.0 x16 slots (Slot2/Slot4: supported by CPU1, Slot6/Slot8:

supported by CPU2)

• One PCI-E 2.0 x4 in x8 slot with TBT support (Slot9: supported by Intel PCH)

• One PCI-E 3.0 x8 in x16 slot (Slot10: supported by CPU1)

• One PCI-E 3.0 x8 slot (Slot11: supported by CPU2)

Chapter 5: Advanced Serverboard Setup

5-11

Press the Middle of

the Release Tab

Lift the

Release Tab

Figure 5-3. Expansion Card Port

Installing an Expansion Card

1. Locate the release tab on the top of the PCI slot bracket. Gently apply pressure

to the middle of the release tab to unlock the PCI slot bracket.

2. Pull the release tab upward.

3. Remove the screw holding the bracket in place and pull the bracket from the

chassis.

4. Install your PCI card or other add-on card into the PCI slot bracket and

serverboard.

5. Push the PCI bracket release tab down until it locks into place with an audible "click".

6. Secure the PCI card with the screw previously removed from the chassis.

7. Repeat this process with each PCI card you want to install into the chassis.

5-12

Niveus 4904GT User's Manual

Figure 5-4. X10DRG-Q Layout

(not drawn to scale)

5-7 Serverboard Details

Notes:

• "■" indicates the location of "Pin 1".

• Jumpers/LED Indicators not indicated are for internal testing only.

Chapter 5: Advanced Serverboard Setup

5-13

Connectors

Connectors Description

Audio_FP High Denition (HD) 7.1-channel audio header for front

access

Battery (JBT1) Onboard CMOS battery (See Chpt. 3 for used battery

disposal)

COM1/COM2 Back-panel COM Port 1/Serial Port 2 for front access FAN 1/2/3/4/5/6,

FAN A/B/C/D

CPU/system cooling fan headers (Fans 1-6, Fans A-D)

(Fan 5: CPU Fan1, Fan 6: CPU Fan2) JF1 Front_Panel_Control header JIPMB1 4-pin external BMC I

C header for IPMI card support

(shared with NVMe devices & SGPIO connections) JL1 Chassis intrusion header JP1

C1 Power 12C System Management Bus (Power SMB) header JPWR1 24-pin ATX main power connector JPWR2/JPWR3 12V 8-pin power connectors JPWR4 4-Pin power connector JSPDIF_IN1 Sony/Philips Digital InterFace (SPDIF) audio input header

for front access

JSD1/JSD2 Power connector SATA DOM JSTBY1 Standby power connector JTBT1 GPIO (General-Purpose I/O) Header for Thunderbolt Add-

on card

JTPM1 TPM (Trusted Platform Module)/Port 80 header JVR1 VRM 1

C (SMBus) to CPU header LAN1/LAN2 G-bit Ethernet (GLAN) ports 1/2 IPMI_LAN IPMI_Dedicated LAN support by the Aspeed controller SP1 Internal buzzer/speaker (I-)SATA 0-3 Intel SATA 3.0 connectors (0-3) from Intel PCH (I-)SATA 4/5 Intel SATA SuperDOM connectors (I-SATA4/5) from

Intel PCH (S)-SATA0-3 SATA connectors (0-3) from Intel SCU I-SGPIO1/2 Serial_Link General-Purpose I/O (SGPIO) headers for

I-SATA connections (I-SGPIO1 for I-SATA0-3, I-SGPIO2

for I-SATA4/5) S-SGPIO Serial_Link General-Purpose I/O (SGPIO) headers for

S-SATA connections (S-SATA0-3) supported by Intel SCU (CPU1) SLOT2/4 PCI-Exp. 3.0 x16 Slot2/Slot4 supported by CPU1 (CPU2) SLOT6/8 PCI-Exp. 3.0 x16 Slot6/Slot8 supported by CPU2 (PCH) SLOT9 PCI-Exp. 2.0 x4 in x8 slot with TBT support (from Intel PCH)

5-14

Niveus 4904GT User's Manual

(CPU1) SLOT10 PCI-Exp. 3.0 x8 in x16 slot supported by CPU1 (CPU2) SLOT11 PCI-Exp. 3.0 x8 slot supported by CPU2 (BP) USB 0/1 (2.0) Backpanel USB 2.0 ports 0/1 (BP) USB 4/5 (3.0) Backpanel USB 3.0 ports 4/5 (FP) USB 2/3 (2.0) USB 2.0 connections 2/3 header for front access (FP) USB 6 (3.0) Type A USB 3.0 connector 6 for front access (FP) USB 7/8 (3.0) USB 3.0 connections 7/8 header for front access VGA Backpanel VGA port

Jumpers

Jumper

Description Default Setting

JBT1 Clear CMOS See Chapter 2 JHD_AC1 AC'97/HD (High Denition) Audio Select On (HD Enabled) JI

C1/JI2C2 System Management Bus (I2C) to PCI-E

Slots

Pins 1-2 (Normal)

JPAC1 Front Panel Audio Enable Pins 1-2 (Enabled) JPB1 BMC Enable Pins 1-2 (Enabled) JPG1 VGA Enable Pins 1-2 (Enabled) JPL1 GLAN1/GLAN2 Enable Pins 1-2 (Enabled) JPME2 Manufacturer (ME) Mode Select Pins 1-2 (Normal) JWD1 Watch-Dog Timer Enable Pins 1-2 (Reset)

LED Indicators

LED Description State Status

LED1 Rear UID LED Blue: On Unit Identied

LED2 Onboard PWR LED On System Power On LEDM1 BMC Heartbeat LED Green: Blinking BMC Normal

Chapter 5: Advanced Serverboard Setup

5-15

5-8 Connector Denitions

Power Connections

A 24-pin main power supply connector(JPW1), two 8-pin CPU PWR connectors (JPW2/ JPW3) and a 4-pin PWR connector (JPW4)

are provided on the serverboard. These

power connectors meet the SSI EPS 12V specication. All these power connectors

must be connected to your power supply to ensure adequate power supply to your

system. See the table on the right for pin denitions.

Caution: To avoid damaging your serverboard and components, please use a power supply that supports a 24-pin, two 8-pin and one 4-pin power connectors. Be sure to connect the 24-pin and the 8-pin

power connectors to your power supply for adequate power delivery to your system.

The 4-pin connector is optional, however, Penguin computing recommends that this connector also be plugged in for optimal

power delivery.

24-pin Main Power

Connector Pin Denitions

Pin# Denition Pin # Denition

13 +3.3V 1 +3.3V 14 -12V 2 +3.3V

15 COM 3 COM 16 PS_ON 4 +5V 17 COM 5 COM 18 COM 6 +5V 19 COM 7 COM

20 Res (NC) 8 PWR_OK

21 +5V 9 5VSB 22 +5V 10 +12V

23 +5V 11 +12V 24 COM 12 +3.3V

Required Connections

12V 8-pin

PWR Pin

Denitions

Pins Denition

1~ 4 Ground

5~8 +12V

12V 4-pin

PWR Pin

Denitions

Pins Denition

1/2 Ground

3/4 +12V

Figure 5-5. Control Panel Header Pins

Control Panel Connections

5-16

Niveus 4904GT User's Manual

NIC1/NIC2 LED Indicators

The NIC (Network Interface Controller) LED connection for GLAN port 1 is located on pins 11 and 12 of JF1, and the LED connection for GLAN Port 2 is on Pins 9 and 10. Attach the NIC LED

cables here to display network activity.

Refer to the table on the right for pin denitions.

GLAN1/2 LED Pin

Denitions (JF1)

Pin# Denition

9 Vcc

10 NIC 2 LED

11 Vcc 12 NIC 1 LED

Overheat (OH)/Fan Fail/PWR Fail/ UID LED

Connect an LED cable to pins 7 and 8 of Front Control Panel to use the Overheat/Fan Fail/Power Fail and UID LED connections. The Red LED on pin 7 provides warnings of overheat, fan failure or power failure. The Blue LED on pin 8 works as the front panel UID LED indicator. The Red LED takes precedence over the Blue LED by default. Refer to the table on the right for pin denitions.

OH/Fan Fail/ PWR Fail/Blue_

UID LED Pin Denitions (JF1)

Pin# Denition 7 Red_LED-Cathode/OH/Fan Fail/

Power Fail5.5V.SB

8 Blue_UID LED

OH/Fan Fail/PWR Fail

LED Status (Red LED)

State Denition

Off Normal

On Overheat Flashing Fan Fail

NMI Button

The non-maskable interrupt button

header is located on pins 19 and 20 of JF1. Refer to the table on the right for pin denitions.

NMI Button Pin

Denitions (JF1)

Pin# Denition 19 Control

20 Ground

Power LED

The Power LED connection is located on pins 15 and 16 of JF1. Refer to the table on the right for pin denitions.

Power LED Pin

Denitions (JF1)

Pin# Denition

15 3.3V 16 PWR LED

HDD LED

The HDD LED connection is located on pins 13 and 14 of JF1. Attach a cable here to indicate HDD activity. See the table on the right for pin denitions.

HDD LED Pin

Denitions (JF1)

Pin# Denition

13 3.3V Standby 14 HD Active

Chapter 5: Advanced Serverboard Setup

5-17

Power Fail LED

The Power Fail LED connection is located on pins 5 and 6 of JF1. Refer to the table on the right for pin denitions.

PWR Fail LED

Pin Denitions

(JF1)

Pin# Denition

5 3.3V 6 PWR Supply Fail

Reset Button

The Reset Button connection is located on pins 3 and 4 of JF1. Attach it to a

hardware reset switch on the computer

case. Refer to the table on the right for pin denitions.

Reset Button

Pin Denitions

(JF1)

Pin# Denition

3 Reset

4 Ground

Power Button

The Power Button connection is located on pins 1 and 2 of JF1. Momentarily contacting both pins will power on/off

the system. This button can also be

congured to function as a suspend button (with a setting in the BIOS - See Chapter 5). To turn off the power when the system is in suspend mode, press the button for 4 seconds or longer. Refer to the table on the right for pin denitions.

Power Button

Pin Denitions

(JF1)

Pin# Denition

1 Signal 2 Ground

5-18

Niveus 4904GT User's Manual

Serial Ports

Two COM connections (COM1 & COM2) are located on the serverboard. COM1 is located on the rear I/O panel. COM2, located close to PCI-E CPU1 Slot1, provides front access support. See the table on the right for pin denitions.

Serial COM Ports

Pin Denitions

Pin # Denition Pin # Denition

1 DCD 6 DSR 2 RXD 7 RTS

3 TXD 8 CTS 4 DTR 9 RI 5 Ground 10 N/A

Universal Serial Bus (USB)

Two USB 3.0 ports (USB 4/5) and two USB 2.0 ports (USB 0/1) are located on the I/O back panel. In addition, two internal USB headers provide two USB 3.0 connections (USB 7/8) and two USB 2.0 connections (USB 2/3) for front panel support. A Type A USB

3.0 connector (USB 6) are also located

on the motherboard for front access.

(Cables are not included). See the tables on the right and below for pin denitions.

NC = No Connection

Other Connectors

Front Panel USB (3.0) 7/8,

USB (3.0) 6

Pin Denitions

Pin # Denition Pin # Denition 1 +5V 2 +5V

3 USB_PN2 4 USB_PN3

5 USB_PP2 6 USB_PP3 7 Ground 8 Ground 9 Key 10 Ground

Front Panel USB (2.0) 2/3

Pin Denitions

Pin# Denition Pin# Denition

1 +5V 5 +5V 2 USB_PN1 6 USB_PN0

3 USB_PP1 7 USB_PP0

4 Ground 8 Ground

Ethernet Ports

Two Ethernet ports (LAN1, LAN2) are located on the I/O back panel. These Ethernet ports support Gigabit LAN connections. In addition, an IPMI_ Dedicated LAN is located above USB ports 4/5 on the backplane. All Ethernet ports accept RJ45 type cables.

Chapter 5: Advanced Serverboard Setup

5-19

Unit Identier Switch

A Unit Identifier (UID) switch and two LED Indicators are located on

the serverboard. The UID switch is

located next to LAN2 port on the rear I/O panel. The rear UID LED (LED3) is located next to the UID Switch. The front control panel UID LED is connnected with JF1. When you press the UID switch, both rear UID LED and front UID LED Indicators are turned on. Press the UID switch again to turn off both LED Indicators. These UID indicators provide easy identication

of a system unit that may be in need of service.

Note: UID can also be triggered using IPMI on the serverboard. For more information, refer to the IPMI User's Guide posted on our Website.

UID Switch

Pin Denitions

Pin# Denition

1 Ground 2 Ground

3 Button In

4 Ground

Video Connection

A Video (VGA) port is located next to LAN port 2 on the I/O back panel.

Fan Header

Pin Denitions

Pin# Denition

1 Ground 2 +12V

3 Tachometer

4 PWR Modulation

(Available for 4-pin fans only)

Fan Headers

There are eleven system/CPU fan headers (Fans 1~6, Fans A~D and Fan 11) on the serverboard. All these 4-pin fans headers are backward compatible with traditional 3-pin fans. However, fan speed control is available for 4-pin fans only. The fan speeds

are controlled by firmware thermal

management in IPMI. See the table on the right for pin denitions.

5-20

Niveus 4904GT User's Manual

Internal Speaker

The Internal Speaker (SP1) provides

audible indications for various beep

codes. See the table on the right for pin denitions. Refer to the layout below for the location of the internal buzzer.

Internal Buzzer

Pin Denition

Pin# Denitions

Pin 1 Pos. (+) Beep In

Pin 2 Neg. (-) Alarm Speaker

TPM/Port 80 Header

A Trusted Platform Module/Port 80 header, located at JTPM1, provides TPM support and Port 80 connection.

Use this header to enhance system

performance and data security. See the table on the right for pin denitions.

TPM/Port 80 Header

Pin Denitions

Pin # Denition Pin # Denition 1 LCLK 2 GND

3 LFRAME# 4 <(KEY)>

5 LRESET# 6 +5V (X) 7 LAD 3 8 LAD 2 9 +3.3V 10 LAD1 11 LAD0 12 GND

13 SMB_CLK4 14 SMB_DAT4

15 +3V_DUAL 16 SERIRQ 17 GND 18 CLKRUN# (X) 19 LPCPD# 20 LDRQ# (X)

I-SGPIO1/2 & S-SGPIO Headers

Three SGPIO (Serial Link General Purpose Input/Output) headers are provided. I-SGPIO1 supports I-SATA 0-3, I-SGPIO2 supports I-SATA 4/5. S-SGPIO is used for S-SATA 0-3. See the table on the right for pin denitions.

Note: NC= No Connection

I-SGPIO1/2 & S-SGPIO

Headers

Pin Denitions

Pin# Denition Pin Denition 1 NC 2 NC 3 Ground 4 Data

5 Load 6 Ground 7 Clock 8 NC

Standby Power Header

The +5V Standby Power header is located at JSTBY1 on the motherboard. See the table on the right for pin denitions. (You must also have a card with a Standby Power connector and a cable to use this feature.)

Standby PWR

Pin Denitions

Pin# Denition

1 +5V Standby 2 Ground

3 No Connection

Chapter 5: Advanced Serverboard Setup

5-21

Chassis Intrusion

A Chassis Intrusion header is located at JL1 on the serverboard. Attach an

appropriate cable from the chassis to inform you of a chassis intrusion when the chassis is opened.

Chassis Intrusion

Pin Denitions

Pin# Denition

1 Intrusion Input 2 Ground

SMBus for IPMI

A 4-pin external BMC System Management Bus (I2C) header for IPMI

2.0 with support of NVMe (Non-Volatile Memory Express) and SGPIO (SerialLink General Purpose I/O) is located at JIPMB1. Connect an appropriate cable here to use the IPMB I2C connection with NVMe and SGPIO support on

your system.

IPMB Header

Pin Denitions

Pin# Denition

1 Data 2 Ground

3 Clock

4 No Connection

Power SMB (I2C) Connector

Power System Management Bus (I2C) connector (JPI2C1) monitors power supply, fan and system temperatures. See the table on the right for pin denitions.

PWR SMB

Pin Denitions

Pin# Denition

1 Clock 2 Data

3 PMBUS_Alert

4 Ground 5 +3.3V

SATA DOM Power Connectors

Two power connectors for SATA DOM (Disk_On_Module) devices are located at JSD1/JSD2. Connect appropriate

cables here to provide power support

for your Serial Link DOM devices.

DOM PWR

Pin Denitions

Pin# Denition

1 +5V 2 Ground

3 Ground

5-22

Niveus 4904GT User's Manual

Front Panel Audio Header

Front Panel Audio header is located at AUDIO_FP. Connect a cable to

this header to use front panel audio

device. To use the FP Audio for '97 Audio, close pins 1~2 of jumper JPAC1. To use this header for High Denition Audio, close pins 1~2 of jumper JHD_AC1.

SPDIF_In Header

A SPDIF-In (Sony/Philips Digital Interface In) header is located at JPSPDIF_In. Connect a cable to this header to use an SPDIF device.

10-in Audio

Pin Denitions

Pin# Signal

1 Microphone_Left 2 Audio_Ground

3 Microphone_Right 4 Audio_Detect

5 Line_2_Right 6 Ground 7 Jack_Detect

8 Key 9 Line_2_Left

10 Ground

Chapter 5: Advanced Serverboard Setup

5-23

5-9 Jumper Settings

Explanation of Jumpers

To modify the operation of the

serverboard, jumpers can be used to choose between optional settings. Jumpers create shorts between two pins to change the function of the connector. Pin 1 is identified with

a square solder pad on the printed

circuit board. See the serverboard layout pages for jumper locations.

Note: On a two-pin jumper, "Closed"

means the jumper is on both pins and

"Open" means the jumper is either on

only one pin or completely removed.

CMOS Clear

JBT1 is used to clear CMOS (which will also clear any passwords). Instead of pins, this jumper consists of contact pads to prevent accidentally clearing the contents of CMOS.

To clear CMOS,

1. First power down the system and unplug the power cord(s).

2. With the power disconnected, short the CMOS pads with a metal object such as a small screwdriver.

3. Remove the screwdriver (or shorting device).

4. Reconnect the power cord(s) and power on the system.

Note: Do not use the PW_ON connector to clear CMOS.

LAN1/2 Enable/Disable

Change the setting of jumper JPL1 to enable or disable the LAN1/LAN2

Ethernet ports on the serverboard.

See the table on the right for jumper settings. The default setting is enabled.

LAN1/2 Enable/Disable Jumper Settings

Jumper Setting Denition Pins 1-2 Enabled Pins 2-3 Disabled

5-24

Niveus 4904GT User's Manual

VGA Enable/Disable

JPG1 allows you to enable or disable the VGA port. The default position is on pins 1 and 2 to enable VGA. See the table on the right for jumper settings.

VGA Enable/Disable Jumper Settings

Jumper Setting Denition Pins 1-2 Enabled Pins 2-3 Disabled

Watch Dog Enable/Disable

JWD controls the Watch Dog function. Watch Dog is a system monitor that

can reboot the system when a software

application hangs. Jumping pins 1-2

will cause WD to reset the system if

an application hangs. Jumping pins 2-3 will generate a non-maskable interrupt signal for the application that hangs. See the table on the right for jumper settings. Watch Dog must also be enabled in BIOS.

Watch Dog Jumper Settings

Jumper Setting Denition

Pins 1-2 Reset

Pins 2-3 NMI Open Disabled

BMC Enable

Jumper JPB1 is used to enable or disable the embedded AST2400 BMC (Baseboard Management Controller) to provide IPMI 2.0/KVM support on the serverboard. See the table on the right for jumper settings.

BMC Enable Jumper Settings

Jumper Setting Denition

Pins 1-2 BMC Enable

(Default)

Pins 2-3 Disabled

AC'97/HD Audio Select Jumper Settings

Jumper Setting Denition

On HD Audio (Default)

Off AC'97

AC'97/HD Select

Jumper JHC_AC1 allows you to select High-Denition (HD) audio or AC'97 audio. The default setting is on to use HD audio the connection. See the table on the right for jumper settings.

Chapter 5: Advanced Serverboard Setup

5-25

ME Mode Select Jumper Settings

Jumper Setting Denition 1-2 Normal (Default) 2-3 Manufacture Mode

Manufacturer Mode Select

Close pins 2 and 3 of Jumper JPME2 to bypass SPI flash security and

force the system to operate in the

Manufacturer mode, which will allow the user to ash the system rmware from a host server for system setting modications. See the table on the right for jumper settings.

I2C Bus to PCI-Exp. Slots

Use Jumpers JI2C1 and JI2C2 to connect the System Management Bus (I2C) to PCI-Express slots to improve PCI performance. These two jumpers

must be set at the same time. The

default setting is on pins 2-3 to disable

the connection for normal operations.

See the table on the right for jumper settings.

I2C for PCI-E slots

Jumper Settings

Jumper Setting Denition Pins 1-2 Enabled

Pins 2-3 Disabled (Default)

Audio Enable

Jumper JPAC1 allows the user to enable the front audio (AUDIO_FP) connector. The default setting is on

pins 1-2 to enable the connection.

See the table on the right for jumper settings.

FP Audio Enable Jumper Settings

Jumper Setting Denition 1-2 Enabled (Default) 2-3 Disabled

5-26

Niveus 4904GT User's Manual

GLAN LEDs

There are two GLAN ports on the serverboard. An additional IPMI dedicated LAN port is also located above the USB 0/1 ports on the backpanel. Each Gigabit Ethernet LAN port has two LEDs. The yellow LED indicates activity, while the Link LED may be green, amber or off to indicate the speed of the connection. See the tables at right for more information.

Note: IPMI dedicated LAN does not operate at 1 Gbps.

5-10 Onboard Indicators

GLAN Link Indicator

LED Settings

LED Color Denition

Off No Connection or

10 Mbps

Green 100 Mbps Amber 1 Gbps

GLAN Activity Indicator

LED Settings

Color Denition Green ashing Active

Activity LED Link LED

Onboard Power LED

An Onboard Power LED is located at LED2 on the serverboard. When this LED is on, the system is on. Be sure to turn off the system and unplug the power cord before removing or installing components. See the tables at right for more information.

Onboard PWR LED Indicator

LED Settings

LED Color Denition

Off System Off (PWR cable

not connected)

Green System On

Green: Flashing Quickly

ACPI State

IPMI Dedicated LAN LEDs

In addition to LAN 1/LAN 2, an IPMI dedicated LAN is located on the I/O Backplane of the motherboard. The amber LED on the right indicates activity, while the green LED on

the left indicates the speed of the

connection. See the table on the right

for more information.

Link LED Activity LED

IPMI LAN

IPMI LAN Link LED (Left) &

Activity LED (Right)

Color/State Denition

Link (Left) Green: Solid 100 Mbps

Amber: Solid 1 Gbps

Activity (Right) Orange:

Blinking

Active

Chapter 5: Advanced Serverboard Setup

5-27

5-11 SATA Ports

Serial ATA

Pin Denitions

Pin# Denition

1 Ground 2 TX_P

3 TX_N

4 Ground

5 RX_N 6 RX_P 7 Ground

Serial ATA 3.0 Ports

There are ten SATA 3.0 (I-SATA 0-5 & S-SATA 0-3). I-SATA ports are supported by the Intel PCH C612, and S-SATA ports are supported by the Intel SCU chip. I-SATA 4/5 support SuperDOMs, which are SATA DOM (Device-on-Module) devices

with power supply supported. These

SATA ports provide serial-link signal connections, which are faster than the connections of Parallel ATA. See the table on the right for pin denitions.

BMC Heartbeat LED

A BMC Heartbeat LED is located at LEDM1. When LEDM1 is blinking, BMC functions nor mally. See the table at right for more information.

BMC Heartbeat

LED Status

Color/State Denition

Green: Blinking

BMC: Normal

5-28

Niveus 4904GT User's Manual

5-12 Onboard Battery

Please handle used batteries carefully. Do not damage the battery in any way; a damaged battery may release hazardous materials into the environment. Do not discard a used battery in the garbage or a public landll. Please comply with the regulations set up by your local hazardous waste management agency to dispose

of your used battery properly.

Figure 5-8. Installing the Onboard Battery

Chapter 5: Advanced Serverboard Setup

5-29

Notes

5-30

Niveus 4904GT User's Manual

Chapter 6: Advanced Chassis Setup

6-1

Figure 6-1. Chassis: Front and Rear Views

Front

Control

Panel

Front Lock

Cover

PCI Card

Slots

Power Supplies

I/O Shield

Peripheral

Drives

Figure 6-2. Chassis in Rack Mount Mode

Chapter 6

Advanced Chassis Setup

This chapter covers the steps required to install components and perform maintenance on the SC747BTQ-R2K02B chassis. The only tool required is a Phillips screwdriver.

Your system may require the installation of processors, memory, drives or expansion cards. Other procedures presented in this chapter are for maintenance or replacement.

6-2

Niveus 4904GT User's Manual

6-1 Static-Sensitive Devices

Electrostatic Discharge (ESD) can damage electronic com ponents. To prevent damage to any printed circuit boards (PCBs), it is important to handle them very carefully.

The following measures are generally sufcient to protect your equipment from

ESD damage:

Precautions

• Use a grounded wrist strap designed to prevent static discharge.

• T ouch a grounded metal object before removing any board from its antistatic bag.

• Handle a board by its edges only; do not touch its components, peripheral chips,

memory modules or gold contacts.

• When handling chips or modules, avoid touching their pins.

• Put the serverboard, add-on cards and peripherals back into their antistatic

bags when not in use.

• For grounding purposes, make sure your computer chassis provides excellent

conductivity between the power supply, the case, the mounting fasteners and the serverboard.

6-2 Control Panel

The front control panel helps monitor and control the system. It is located on the front of the chassis and must be connected to the JF1 connector on the serverboard. A ribbon cable has bundled these wires together to simplify the connection. Connect the cable from JF1 on the serverboard to the appropriate header on the Control Panel PCB (printed circuit board). Make sure the red wire plugs into pin 1 on both

connectors. Pull all excess cabling out of the airow path.

The control panel LEDs inform you of system status. See "Chapter 3: System Interface" for details on the LEDs and the control panel buttons. Details on JF1 can be found in "Chapter 5: Advanced Serverboard Installation."

Chapter 6: Advanced Chassis Setup

6-3

Control Panel Orientation

The server can be congured for either tower or server rack orientation. It is shipped

in tower mode and can be immediately used as desktop server. To use it in a rack, rotate the module that contains the control panel and the three drive trays (#1 in Figure 6-3) 90 degrees.

Figure 6-3. Chassis in Tower Mode (Default Conguration)

Default Hard Disk

Drive Bays

5.25" Drive Trays

Control Panel

Control Panel/

Drive Module

Figure 6-4. Chassis in Rack Mount Mode

Control Panel/

Drive Module

6-4

Niveus 4904GT User's Manual

Module Release

Lever

Control

Panel/

Drive Module in Rack

Mount

Orientation

Figure 6-5. Rotating the Control Panel/Drive Module

Rotating the Control Panel/Drive Module for Rack Mounting

1. Open the chassis cover.

2. Locate the control panel/drive module and disconnect any cables from the module to any component in the chassis.

3. Push the module release lever to unlock the module. (Figure 6-5)

4. Grasp the external edges of the module and pull the unit from the chassis.

5. Rotate the module 90 degrees so that the control panel is on top.

6. Reinsert the module into the chassis and reconnect the cables.

Caution: Use caution when working around the backplane. Do not touch the backplane with any metal objects and make sure no ribbon cables touch the backplane or obstruct

the holes, which aid in proper airow.

Chapter 6: Advanced Chassis Setup

6-5

6-3 ConguringDrives

The default conguration includes eight hot-swap hard disk drives plus three full size

drive trays for removable media drives or additional hard disk drives.

Conguringthe5.25"DriveBays

The control panel/drive module includes three 5.25" drive bays under the front

control panel. It can be set up in a variety of congurations to suit the user's needs.

• Three peripheral drives, such as CD, DVD, or oppy

• Additional xed hard drives in an individual bay

• A combination of the above

• A mobile rack with ve additional 3.5" hot-swap hard drives

Installing a Hard Drive into a Drive Tray

1. Open the chassis cover.

2. Locate the drive tray and pull the tray release tab for the slot.

3. Push the drive tray toward the front of the chassis (Figure 6-6).

Figure 6-6. Remove Drive Tray

Drive Tray

Release Tabs

6-6

Niveus 4904GT User's Manual

Figure 6-7. Add a Hard Drive to the Drive Tray

Hard Drive

Drive Tray

4. Place the hard drive in the drive tray. The hard drive may not completely ll the tray (Figure 6-7).

5. Secure the hard drive to the tray with four screws from the bottom.

6. Slide the drive tray into the chassis until the tray clicks into place.

Caution: When the server is operating, all the drive trays should remain in the drive

bays to maintain proper cooling airow.

Chapter 6: Advanced Chassis Setup

6-7

4. Remove the rails from the drive tray by removing two screws from each side. (Figure 6-7)

5. Attach the rails to a DVD drive, CD drive, oppy drive, or other peripheral. The

rails should t any standard sized peripheral.

6. Slide the drive into the chassis until it clicks into place.

Drive Rails

Drive Tray

Figure 6-8. Removing Rails from the Drive Tray

Adding Peripheral Drives to the Drive Bays

Replace a drive tray with a peripheral drive.

1. Open the chassis cover.

2. Locate the release tab for the drive tray where you want to place the peripheral drive (Figure 6-8).

3. Push the drive tray toward the front of the chassis.

6-8

Niveus 4904GT User's Manual

Additional Hard Drives

The chassis accepts a CSE-M35BP mobile rack in place of the three bays just

under the control panel. This conguration yields a total of thirteen hot-swap hard

drives and no peripheral drives.

Installing the M35 Mobile Rack

1. Open the chassis cover.

2. Press the drive tray release tabs (Figure 6-6).

3. Push all three drive trays forward and out of the chassis

4. Remove the six drive tray rails (Figure 6-9).

Figure 6-9. Add Rails to the Mobile Rack

(Two shown as an example; install six.)

Mobile Rack

Rails

5. Install all six rails onto the mobile rack. Each rail requires two screws. Make sure the arrow on the rail points toward the front of the chassis (Figure 5-8).

6. Slide the mobile rack into the chassis.

Chapter 6: Advanced Chassis Setup

6-9

Installing Drives in the Default HDD Bays

Hard drives in the eight default HDD bays are mounted in drive carriers to simplify

their installation and removal. These carriers also help promote proper airow for

the drive bays.

Installing Hard Drives

1. Press the release button to extend the drive carrier handle.

2. Using the handle, pull the drive carrier out by the handle. The drive is hotswappable; there are no cables to disconnect (Figure 6-10).

Figure 6-10. Open the Drive Carrier Release Handle

Drive Carrier Handle

Release Button

6-10

Niveus 4904GT User's Manual

Figure 6-11. Installing the Hard Drive

Figure 6-12. Securing Drive

5. Secure the hard drive to the carrier using four screws (Figure 6-12).

6. Insert the hard drive and carrier into the chassis. Press the hard drive release button to extend the drive carrier handle.

7. Close the handle to lock the drive carrier into place.

Drive Carrier

SAS/SATA Drive

3. Remove the screws holding the drive carrier to the dummy drive.

4. Place a hard drive in the drive carrier (Figure 6-11).

Chapter 6: Advanced Chassis Setup

6-11

6-4 System Cooling

Heavy-duty fans provide cooling for the chassis. Four fans are located in the midsection of the chassis, two fans are located in the rear, and two optional fans can be mounted on the external rear of the chassis.

The internal fans come pre-installed to the chassis. Each fan is hot-swappable and can be replaced without removing any connections.

System Fan Failure

Fan speed is controlled by system temperature through IPMI. If a fan fails, the remaining fans will ramp up to full speed. Replace any failed fan at your earliest convenience with the same type and model (the system can continue to run with a failed fan).

Replacing System Fans

The chassis contains two types of system fans: mid-system fans and rear system fans.

Replacing Mid-System Fans (FAN-0114L4 and FAN-0138L4)

1. Determine which fan has failed. Because the fans are hot-swappable, the system does not need to be powered-down.

2. Press the fan release tab and lift the failed fan from the chassis. Mid fans must be pulled straight out of the chassis (see Figure 6-13). Part numbers: top two fans are FAN-0114L4 and bottom two are FAN-0138L4.

3. Place the new fan into the vacant space in the housing while making sure the arrows on the top of the fan (indicating air direction) point in the same direction as the arrows on the other fans. As soon as the fan is connected, it will begin working.

Replacing the Rear System Fan (FAN-0082L4)

1. Determine which fan has failed.

2. Press the rear fan release tab (see Figure 6-13).

3. Pull the fan away from the chassis by pulling out the top rst.

4. Place the new fan in the chassis, inserting the bottom of the fan rst.

5. Push the fan fully into the housing until the fan clicks into place.

6-12

Niveus 4904GT User's Manual

Figure 6-14. Rear System Chassis Fans

Figure 6-13. Mid-System Chassis Fans

Rear Fan Release

Tab

FAN-0082L4

Mid Fan

Release Tab

FAN-0138L4

FAN-0114L4

Chapter 6: Advanced Chassis Setup

6-13

Installing the GPU Kit

When using passive GPUs, you must use the GPU cooling kit, MCP-320-74701-0NKIT. This kit consists of two fans with brackets that can be attached to the back of

the chassis and one mylar air shroud to concentrate air ow to the GPUs.

Installing External Rear Fans

1. Power down the system, disconnect the power cords from the rear of the power supplies and open the chassis cover.

2. Insert the feet on the bottom of the external rear fan into the corresponding slots on the bottom of the fan bracket.

3. Push the top of the fan into the bracket until it clicks into the locked position.

Figure 6-15. External Rear Fan Bracket Mounting Pin Placement

Place Bracket Mounting

Pins Here

Run Fan Wiring Here

Align with Mounting

Holes and Place Screw

Here

Insert Fan Feet into Mounting

Holes Here

Align with Mounting Holes and

Place Screw Here

6-14

Niveus 4904GT User's Manual

4. Place two metal mounting pins into the holes in the chassis at the base of the PCI slots in the position where the fan is to be located. Tighten these pins to the rear window using pliers.

5. Place the external rear fan bracket with the fan over the mounting pins.

6. Align the holes at the top of the external rear fan bracket with the corresponding holes at the top of the PCI slot and secure the bracket with two screws.

Figure 6-16. Placing the External Rear Fan and Bracket on the Chassis

Mounting Screws

Mounting Pins

Chapter 6: Advanced Chassis Setup

6-15

7. Remove the PCI slot snap latch to allow the fan cable access.

a. Determine which PCI slot aligns with the slot in the top of the fan bracket. b. Open the PCI slot snap latch by pressing downward on the latch to open it. c. With the latch open, press inward against one side of the latch to release its hinge pin from the hinge mounting hole in chassis. d. Gently move the hinge latch from side to side until it slips out of both hinge mounting holes and remove it from the chassis.

8. Slide the fan cable into the slot at the top of the external rear fan bracket.

9. Route the cable through the open latch slot and into the chassis.

10. For neatness, the plastic latch clip may be reinstalled in the latch slot if desired. Additionally, the cable may be routed along the top of the PCI slots and concealed by closing the latch of each slot over the cable.

11. Plug the fan power connector at the end of the fan cable into the motherboard header.

Figure 6-17. PCI Slot Latches

6-16

Niveus 4904GT User's Manual

12. If you do not ll all the GPU slots, install a PCI card dummy (part number MCP-

240-00096-0N). This facilitates proper air ow for the GPUs.

13. Install the GPU air shroud. (Figure 6-19)

14. Close the chassis, reconnect the power cord and power up the server.

Figure 6-18. Dummy GPU for Air Flow

Chapter 6: Advanced Chassis Setup

6-17

Figure 6-19. GPU Kit Air Shroud Installed

6-18

Niveus 4904GT User's Manual

Figure 6-20. External Fans

Replacing External Fans

External fans can be replaced during system operation.

1. Visually inpect the fans to determine which one has failed.

2. Press the release tab on the top of the fan and pull the fan from the bracket. See Figure 6-15.

3. Push the new fan into the bracket. Insert the bottom of the fan rst, then snap in the top of the fan. Make sure the arrows on the top of the fan indicating air direction point toward the rear. The fan activates once it is mounted..

FAN-0148L4

Chapter 6: Advanced Chassis Setup

6-19

6-5 Power Supply

This chassis features an auto-switching power supply . This enables it to automatically sense and operate at a 100v to 240v input voltage. An amber light will be illuminated when the power is off. An green light indicates that the power supply is operating.

Replacing the Power Supply

With a redundant power supply, the system automatically switches to the second

power supply if the rst should fail.

Replacing the Power Supply

1. The power cords attach in the rear of the chassis. Remove the cord that corresponds to the module to be replaced.

2. On the front of the chassis, push the release button on the power supply module. (Figure 6-21)

3. Pull the power supply out using the handle provided.

4. Replace the failed power module with the same model. Push the new module into the power bay until you hear a click.

5. Replace the AC power cord.

Figure 6-21. Power Supply Release Button

Release Button

6-20

Niveus 4904GT User's Manual

Power Supply Cables

Name Qty Connects to: Description

20-pin or 24-pin power cable

1 Serverboard

20-pin or 24-pin power cable provides electricity to the serverboard. and has twenty to twenty-four yellow, black, gray, red, orange, green and blue wires.

HDD (Hard Drive) power cable

2 Backplane

Each cable has three connectors (two Hard Drive [HDD] and one Floppy Drive [FDD]). Attach the HDD connectors to the backplane.

8-pin serverboard cable 1 Serverboard

Provides power to the serverboard CPU. This cable has two black and two yellow wires.

4-pin serverboard cable 1 Serverboard

Provides power to PCI expansion card. This cable has two black and two yellow wires.

5-pin SMBus power cable (small)

1 Serverboard

Allows the SM (System Management) bus to monitor power supply

2-pin INT cable 1 Serverboard

Intrusion detection cable allows the system to log when the workstation chassis has been opened.

Power Supply Connections

Connect each of the following cables, as required, by your serverboard manufacturer . In some instances, some cables may not need to be connected. Some cables may not be available with your model.

Chapter 6: Advanced Chassis Setup

6-21

Notes

Chapter 7: AMI BIOS

7-1

Chapter 7

BIOS

7-1 Introduction

This chapter describes the AMI BIOS Setup utility for the X10DRG-Q. It also provides the instructions on how to navigate the AMI BIOS Setup utility screens. The AMI ROM BIOS is stored in a Flash EEPROM and can be easily updated.

Starting BIOS Setup Utility

To enter the AMI BIOS Setup utility screens, press the <Del> key while the system is booting up.

Note: In most cases, the <Del> key is used to invoke the AMI BIOS setup screen. There are a few cases when other keys are used, such as <F3>, <F4>, etc.

Each main BIOS menu option is described in this manual. The Main BIOS setup menu screen has two main frames. The left frame displays all the options that can

be congured. Grayed-out options cannot be congured. Options in blue can be congured by the user. The right frame displays the key legend. Above the key

legend is an area reserved for a text message. When an option is selected in the left frame, it is highlighted in white. Often a text message will accompany it.

Note: The AMI BIOS has default text messages built in. The manufacturer retains the option to include, omit, or change any of these text messages.

The AMI BIOS Setup utility uses a key-based navigation system called "hot keys." Most of the AMI BIOS setup utility "hot keys" can be used at any time during setup navigation. These keys include <F3>, <F4>, <Enter>, <ESC>, arrow keys, etc.

Note 1: Options printed in Bold are default settings. Note 2: <F3> is used to load optimal default settings. <F4> is used to save

the settings and exit the setup utility.

Penguin Computing Niveus 4904GT Technical Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
