Arctica 4806xp switch Installation Guide Chapter 1 Introduction
1. Introduction
1.1.Product Brief
1.1.1.Overview
Arctica 4806xp switch is the ne xt generatio n of 10 Gb Etherne t routing swi tches. Arctica 4806xp switch is based on 10Gb switching technology. It is particularly designed for
40Gb server of data center to fe tch in the scene in high consistenc y. It provides the cogent network sustentation for 10Gb connecting to 10Gb scheme in data center and
distripark network with the charac teristic of high re liability, multiple redundancy, high consistency and flexible convergence proportion.
Arctica 4806xp:

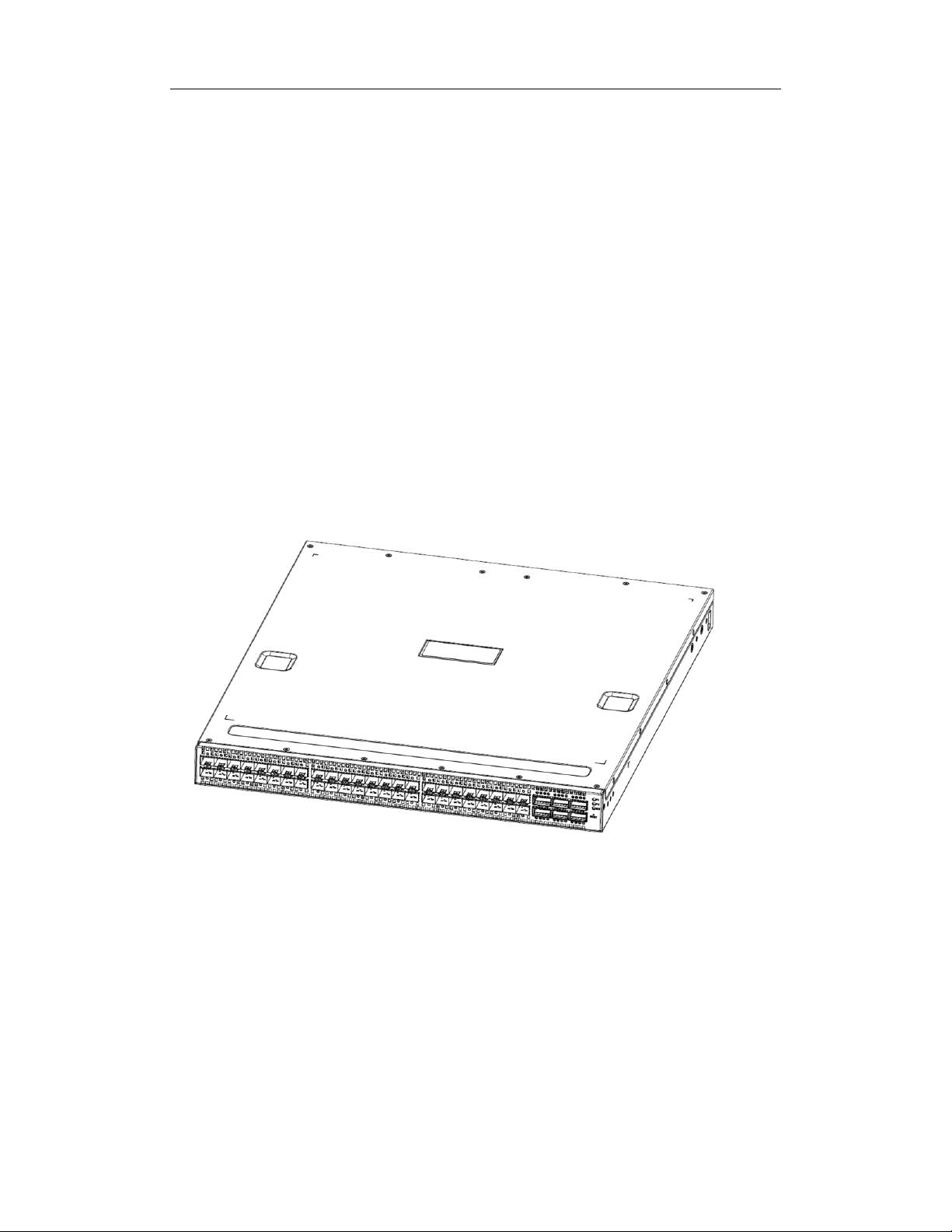

Figure 1-1 Arctica 4806xp Switch
Arctica 4806xp switch with advanced intelligent and secure features, can serve ideally as distribution layer switches for campus networks, enterprise networks and IP metropolitan networks; as well as core layer switches for small and medium-sized networks.
1.1.2.Features and Benefits
◇ Various Interfaces
1
Page 5
Arctica 4806xp switch Installation Guide Chapter 1 Introduction
Arctica 4806xp switch provides 48 10Gb SFP+ and 6 40Gb QSFP+ ports. Each
QSFP+ port can be split into 4 10Gb SFP+ ports.
◇ Support 10Gb Ethernet
10Gb Ethernet which adopts full-duplex technology instead of low-speed, half-duplex
CSMA/CD protocol, is a big leap in the evolution of Ethernet. 10Gb Ethernet can be deployed in star or ring topologies. With 10Gb Ethernet, Arctica 4806xp switch provide
broad bandwidth and powerful processing capacity. It is suitable for metropolitan networks and wide area networks. Using Arctica 4806xp switch, users can simplify network
structures and reduce cost of network construction.
◇ Networking Protocols
Arctica 4806xp switch supports 802.1d/w/s, 802.1Q, 802.1p, 802.3ad, 802.3x,
GVRP, DHCP and SNTP etc. The switch also supports comprehensively the multicast
protocols such as IGMP, DVMRP and PIM. Moreover, Arctica 4806xp switch supports
RIPv1/2, OSPF and IPv6. All these protocols supported enable Arctica 4806xp switch to
meet the requirements of complex network constructions.
◇ ACL
Arctica 4806xp switch supports comprehensively ACL policies. The traffic can be
classified by source/destination IP addresses, source/destination MAC addresses, IP
protocols, TCP/UDP, IP precedence, time ranges and To S. And various policies can be
conducted to forward the traffic. By implementing ACL policies, users can filter the virus
packets such as “Worm.Blaster”, “Worm.Sasser” and “Red Code” etc. Arctica 4806xp
switch also supports IEEE802.1x port based access authentication, which can be deployed with RADIUS, to ensure the port level security an d block illegal users.
◇ QoS
Arctica 4806xp switch fully supports DiffServ Module. Users can specify a queue
bandwidth on each port. WRR/SP/SWRR scheduling is also supported. Arctica 4806xp
supports the port security. Users can deploy trusted CoS, DSCP, IP precedence and port
priority. User can also modify packets’ DSCP and COS values. The traffic can be classified by port, VLAN, DSCP, IP precedence and ACL table. User can also modify packets’
DSCP and IP precedence values. Users can specify different bandwidths for
voice/data/video to customize different qualities of service.
◇ 3D-SMP Ready
Arctica 4806xp is up to the mustard of Self-defending security region management
strategy according to Netware. It is supported interaction with some security system such
as firewall, IDS, etc. It can defense the virus and aggress effectively from the extranet
and internet. Thus enhance the security and stability of the network-wide.
◇ Perfect Web Management.
Arctica 4806xp supports SNMP, In-band and Out-of band Management, CLI and
2
Page 6
Arctica 4806xp switch Installation Guide Chapter 1 Introduction
WEB interface and RMON. It can mail the correlative sensitive information to the administrator abide by SMTP protocol. Arctica 4806xp supports SSH protocol, ensure the configuration management security of the switch . It is adopted the we b management s ystem
‘LinkManager’ for unified managemen t expediently and compactly.
◇ MPLS Ready
Arctica 4806xp supports MPLS VPN which be used to metropolitan area network
and wide area network and processes the hardware wire speed forward. It is a box
switch that IPv6 and MPLS implement high-performance wire speed forward at the same
time, and provides more help for building the grand IP network.
Arctica 4806xp supports LDP function and MPLS VPN (it can access the public network), and it can be deployed as PE and P.
1.2.Description of Hardware
1.2.1.Front Panel
1. Front Panel Diagram
The front panel descriptions of Arctica 4806xp switch in the following table.
Table 1-1 The front panel descriptions of Arctica 4806xp switch
Type SFP+ port QSFP+ port
Arctica 4806xp
The front panel of Arctica 4806xp is shown below:

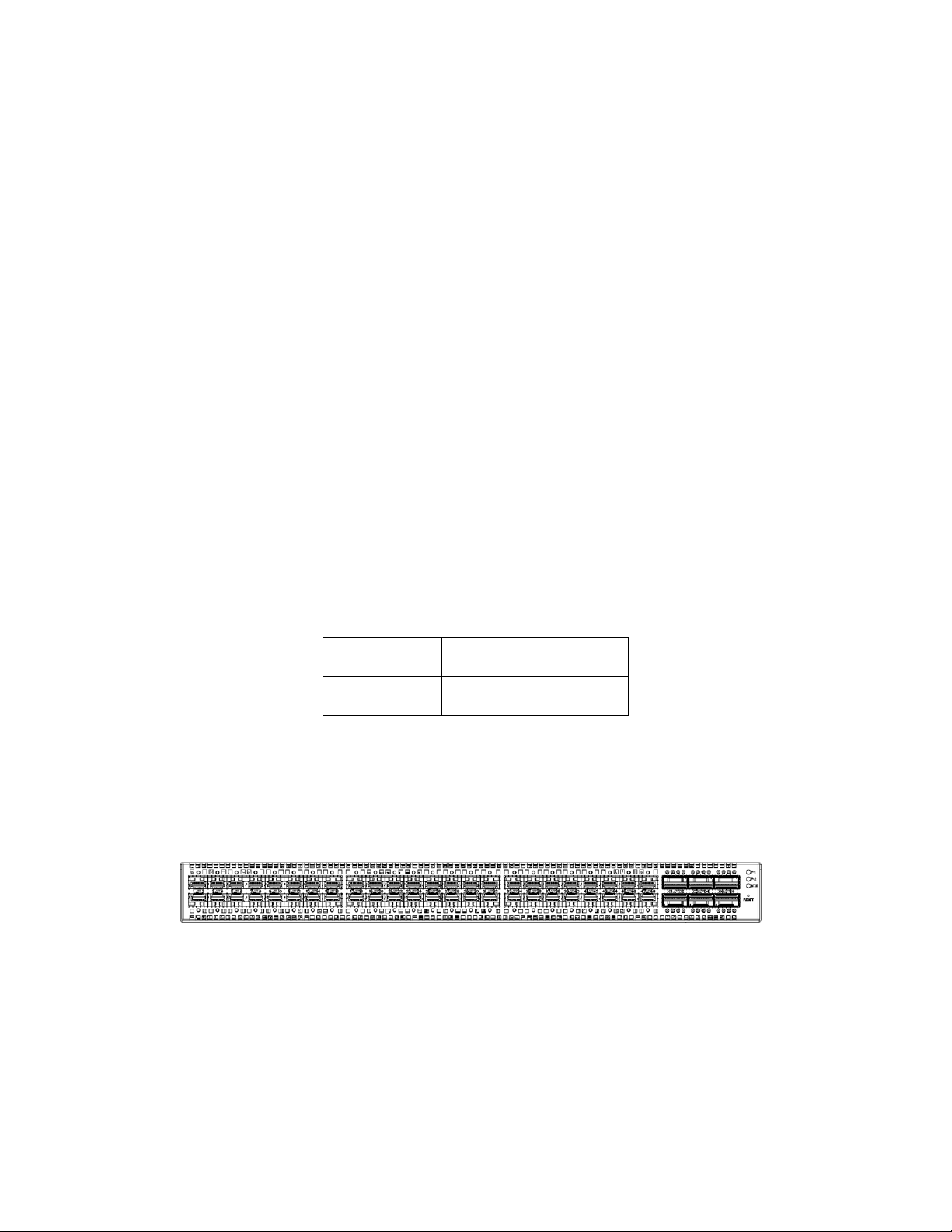

Figure 1-2 Front Panel of Arctica 4806xp
48 6
2. Console description
Arctica 4806xp switch provide a RJ-45 serial console port, the user perform the local
and telnet configuration through this port.
The console port supports asynchronous mode, set the data bit as 8, the stop bit as
3
Page 7
Arctica 4806xp switch Installation Guide Chapter 1 Introduction
1, the parity bit as none, the default baud rate as 115200bps.
1.2.2.Back Panel
The back panel of Arctica 480 6xp includes 2 alternating current of 220V power mod ule (it provides redundancy backups), 4 fan rabbets and 1 rear pa nel card
Table 1-2 The descriptions of rear panel card
Type
Arctica 4806xp
10/100/1000Base-T
Console port
ETHERNET port
1 1 1
USB2.0 inter-
face

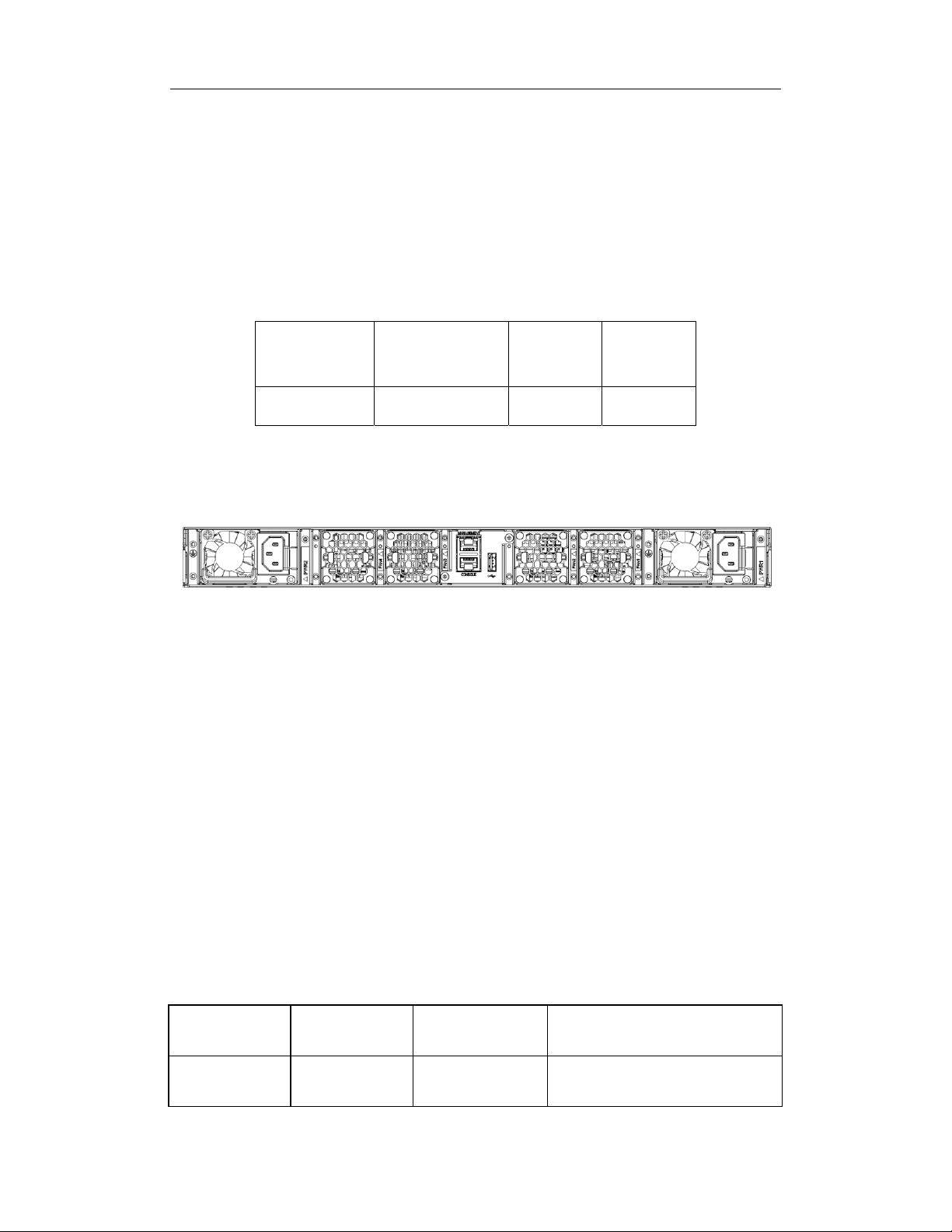

Fig
1-3
Back panel of
Arctica 4806xp
Caution！
The USB port on rear panel card only support data transmission, does not
support USB power supply
The rear panel card does not support hot plug.
The replacement of rear panel card must be operated by a professional.
1.3.Status LEDs
The indicator light on front panel of Arctica 4806xp has 48 SFP+ ports and 24
QSFP+ port indicator light, 2 power supply ind icator light and system automatic diagnoses LED. They are shown below and described in the following table.
Table 1-3 Th e explanation of indicator light of front panel
Indicator light
Power supply
indicator light
Front panel sign State Meanings
P-1/P-2
Green light always on
4
Power supply module move
normally.
Page 8
Arctica 4806xp switch Installation Guide Chapter 1 Introduction
System status
indicate LED
START
Table 1-4 The explanation of indicator light of rear panel
Indicator light
Fan module
indicator light
Rear panel sign State Meanings
Fan1/FAN2/FA
N3/FAN4
Put out
Green light always on
No power supply or make a mistake.
The system is power on and
running normally.
Put out The system is power off.
Green light always on
Red light always
on
Fan module move normally.
No fan module or fan speed is 0
Put out Fan module is power off
Table 1-5 The explanation of the port indicator light
Indicator light
Green light
ETHERNET port
Wink
Link light (left)
Put out There is no data transmitting on port.
Yellow light
always on
ETHERNET port
Green light
Activity light (right)
always on
Put out No connection or fail to connect.
Green light
always on
Indicator light of
SFP+ port
Amber light
always on
Wink The port is transmitting data.
Panel sign State
The port is transmitting data.
The port is configured at 10M/100M speed
The port is configured at 1000M speed
The port is under the connection state of 10G.
The port is under the connection state of 1G.
Put out No connection or fail to connect.
5
Page 9
Arctica 4806xp switch Installation Guide Chapter 1 Introduction
Indicator light of
QSFP+ port
Green light
always on
Amber light
always on
Wink The port is transmitting data.
Red light always on
Put out No connection or fail to connect.
The port is under the connection state of 40G.
The port is under the connection state of 4x10G.
There is fault on the port.
1.4.Port Description
Arctica 4806xp provides 48 10Gb SFP+ ports and 6 40Gb QSFP+ ports.
REDSTONE D2060 switch support the following SFP transceivers:
● SFP-SX-L transceiver
● SFP-LX-L transceiver
● SFP-LX-20-L 20 km transceiver
● SFP-LX-40 40 km mid distance transceiver
● SFP-LH-70-L 70 km long distance transceiver
● SFP-LH-120-L 120 km long distance transceiver
● SFP-GT 1000 Base-T SFP interface cards module
Each port description in the following:
Table 1-6 Arctica 4806xp port description
Port mode Spec
RJ-45 port
QSFP+
Arctica 4806xp provides 6 QSFP+ ports and supports the QSFP+ cable. It enhances
the flexibility of the network. User can select the cables in the table 1-5 according to the
demand.
10/100/1000Mbps auto negotiation
MDI/MDI-X cable mode auto negotiation
● 40GBASE-CR4 transceiver
Copper, 7m
● 40GBASE-SR4 transceiver
850nm, MMF, OM3/OM4, 100m
6
Page 10
Arctica 4806xp switch Installation Guide Chapter 1 Introduction
Table 1-7
Type
40G QSFP+ Cable
QSFP+ to 4Xsfp+ Cable
QSFP to QSFP Cable
Cables supported by Arctica 4806xp
Manufacturer
Tyco 2053638-3 30AWG, 3.0m
Amphenol 582410007 30AWG, 3.0m
Molex
1.5.Power Supply Module
1.5.1.460W Power Module
Model
747571051 30AWG, 0.5m
747571101 30AWG, 1.0m
747571301 30AWG, 3.0m
Standard

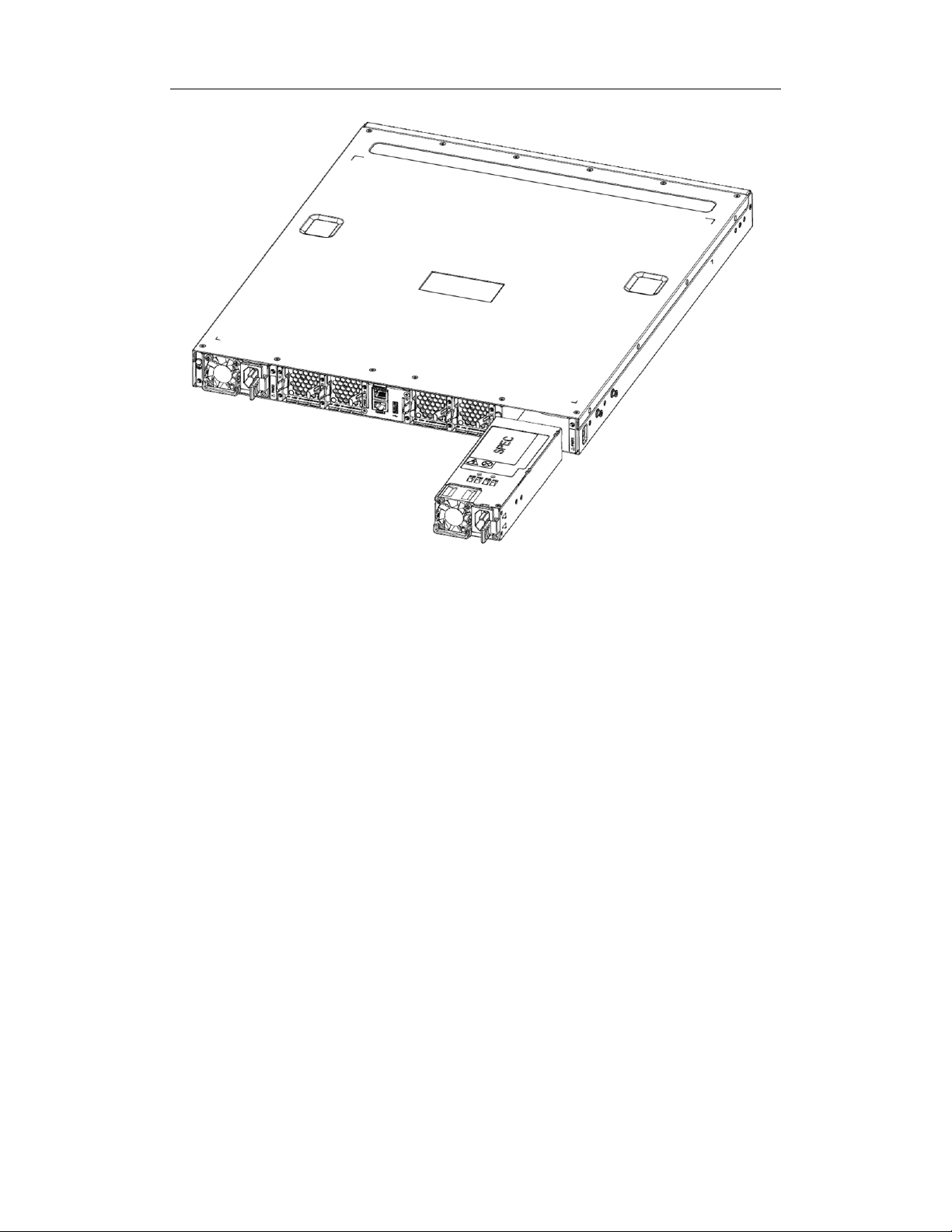

The following picture is the power supply module of Arctica 4806xp. The whole ap-
pearance sketch map is below:

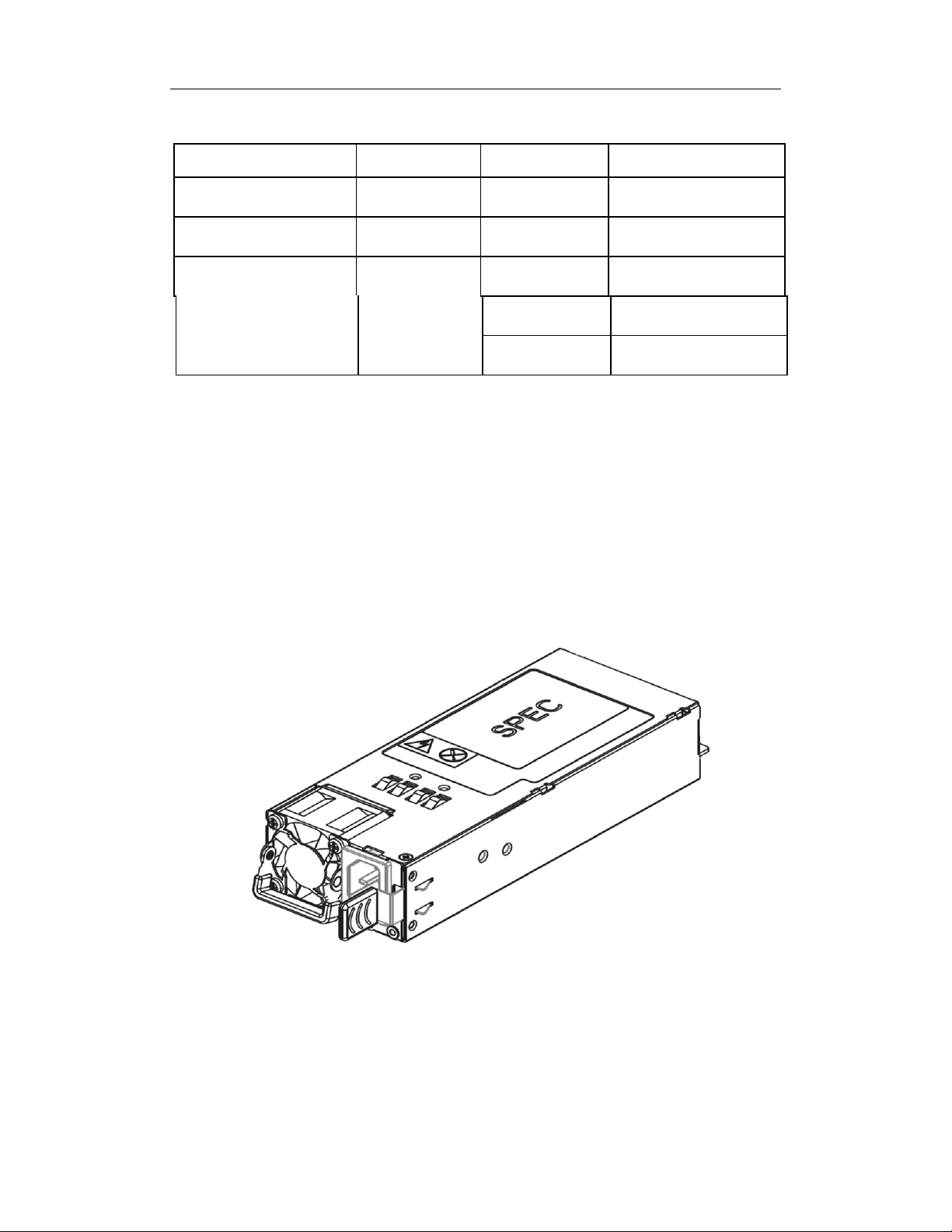

Fig 1-4 The sketch map of PSM
Arctica 4806xp switch have two PSM, it provides redundancy backups. It provides
airflow front to back and airflow back to front 2 options
The maximum power is 460W, the import is 100VAC~240VAC and the export is 12V
+/- 5%. There is a fan and a handle for sticking in or pulling out the module on the back
7
Page 11
Arctica 4806xp switch Installation Guide Chapter 1 Introduction
of the power supply. The power supply module supports the hot plug.
1.5.2.550W Power Module
Arctica 4806xp switch also can have two 550W power modules in standard configu-
ration, it provides redundancy backups. It only provides airflow front to back mode.
The maximum power is 550W, the import is 100VAC~240VAC and the export is 12V
+/- 5%. There is a fan and a handle for sticking in or pulling out the module on the back
of the power supply. The power supply module supports the hot plug.
Caution！
460W and 550W power modules can not be mix used.
Different airflow power modules can not be mix used.
1.6.Fan Module
The following picture is the fan module of Arctica 4806xp. The whole appearance
sketch map is below:

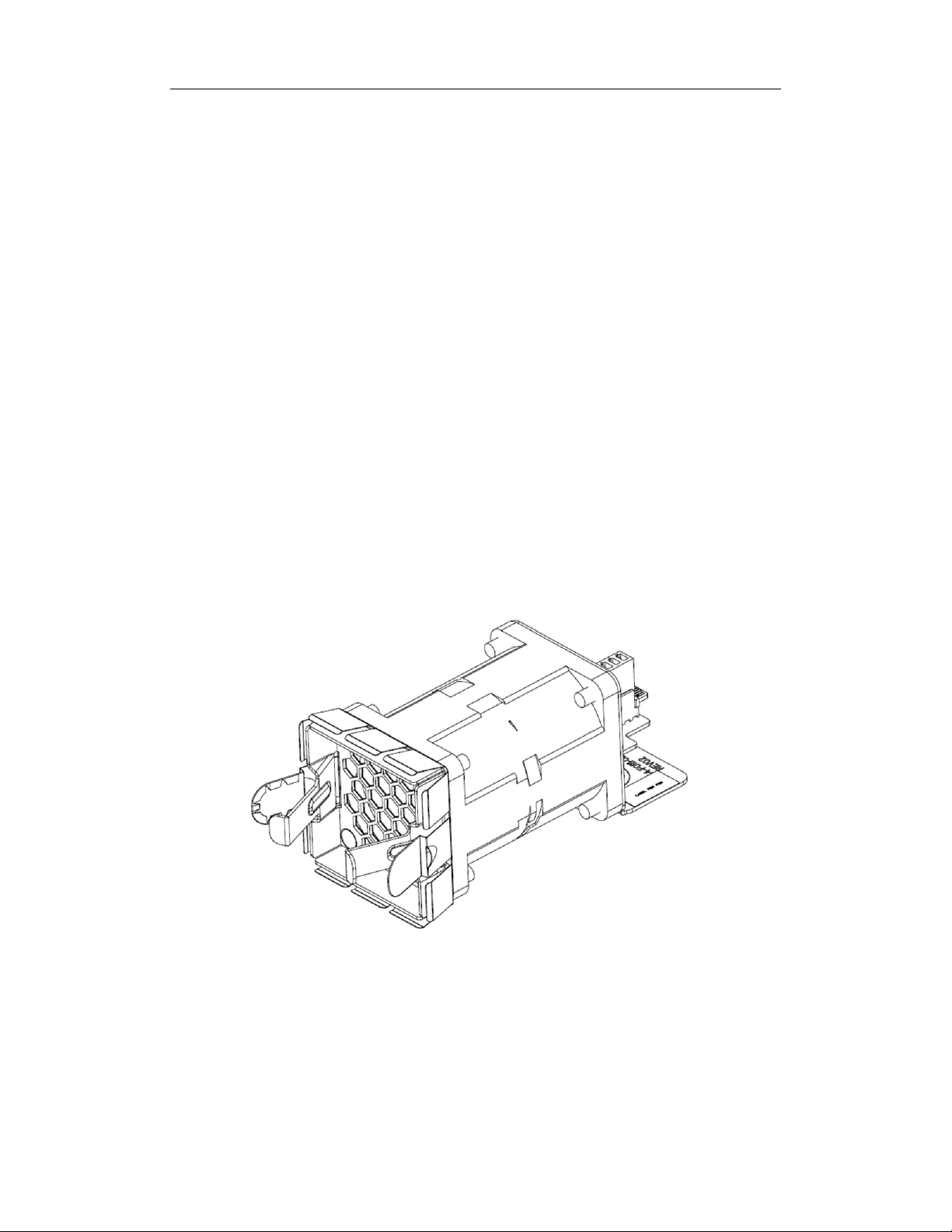

Fig 1-5 The sketch map of F a n module
Arctica 4806xp switch has 4 Fan modules in standard configuration. The rotate speed
of fan adjusts itself adapt to the system temperature. It provides airflow front to back and
airflow back to front 2 options.
Caution！
8
Page 12
Arctica 4806xp switch Installation Guide Chapter 1 Introduction
A
Different airflow fan modules can not be mix used.
Power modules’ airflow must be same with fan modules’.
1.7.System Specifications
Table 1-8 System Specifications of Arctica 4806xp
Type
Attribute
Dimension(W * H * D) (mm) 433.8 * 44 * 550
Weight 10.133 kg
Fixed Port 48 SFP+ ports; 6 QSFP+ ports
Management Port 1 RJ-45 serial console port
Power Input 100~240VAC(50~60Hz) 2.8A~5.6
System Consumption <400W
Operating Temperature 0°C~40°C
Storage Temperature -40°C~75°C
Operating Relative Humidity 10%~90%, no condensate
Storage Relative Humidity 5%~95%, no condensate
Arctica 4806xp
9
Page 13
Arctica 4806xp switch Installation Guide Chapter 2 Installation Notice
2. Installation Notice
To ensure the proper operation of Arctica 4806xp and your physical security, please
read carefully the following installation guide.
2.1.Environmental Requirements
■ The switch must be installed in a clean area. Otherwise, the switch may be damaged
by electrostatic adherence.
■ Maintain the temperature within 0 to 40 °C and the humidity within 10% to 90%, non-
condensing.
■ The switch must be put in a dry and cool place. Leave sufficient spacing around the
switch for good air circulation.
■ The switch must work in the range of AC power input: 100 ~
■ The switch must be well grounded in order to avoid ESD damage and physical injury
of people.
■ The switch should avoid the sunlight perpendicular incidence. Keep the switch away
from heat sources and strong electromagnetic interfere nce so urces.
■ The switch must be mounted to a standard 19’’ rack or placed on a clean level desk-
top.
240VAC (50/60Hz).
2.1.1.Dust and Particles
Dust is harmful to the safe operation of Arctica 4806xp. Dust can lead to electrostatic
adherence, especially likely under low relative humidity, causing poor contact of metal
connectors or contacts. Electrostatic adherence will result in not only reduced product
lifespan, but also increased chance of communication failures. The recommended value
for dust content and particle diameter in the site is shown below:
Max Diameter (µm) 0.5 1 3 5
Max Density
(particles/m³)
Table 2-1 Environmental Req uirements: Dust
In addition, salt, acid and sulfide in the air are also harmful to the switch. Such harmful gases will aggravate metal corrosion and the aging of some parts. The site should
avoid harmful gases, such as SO
5
1.4×10
7×105 2.4×105 1.3×105
, H2S, NO2, NH3 and Cl2, etc. The table below details
2
1
Page 14
Arctica 4806xp switch Installation Guide Chapter 2 Installation Notice
y
the threshold value.
Gas Average (mg/m³) Max (mg/m³)
SO2 0.2 1.5
H2S 0.006 0.03
NO2 0.04 0.15
NH3 0.05 0.15
Cl2 0.01 0.3
Table 2-2 Environmen tal Req uirements: Particles
2.1.2.Temperature and Humidity
Although the switch is designed to use 4 fans, the site should still maintain a desirable temperature and humidity. High-humidity conditions can cause electrical resistance
degradation or even electric leakage, degradation of mechanical properties and corrosion
of internal components. Extreme low relative humidity may cause the insulation spacer to
contract, making the fastening screw insecure. Furthermore, in dry environments, static
electricity is liable to be produced and cause harm to internal circuits. Temperature extremes can cause reduced reliability and premature aging of insulation materials, thus
reducing the switch’s working lifespan. In the hot summer, it is recommended to use airconditioners to cool down the site. And the cold winter, it is recommenced to use heaters.
The recommended temperature and humidity are shown below:
Temperature Relativehumidit
Long term condition Short term condition Long term condition Short term condition
15 ~ 30°C 0 ~ 40°C 40 ~ 65% 10 ~ 90%
Table 2-3 Environmental Requirements: Temperature and Humidity
Caution!
A sample of ambient temperature and humidity should be taken at 1.5m above the
2
Page 15
Arctica 4806xp switch Installation Guide Chapter 2 Installation Notice
floor and 0.4m in front of the switch rack, with no protective panel covering the front and
rear of the rack. Short term working cond itions refer to a maximum of 48 hou rs of continued operation and an annual cumulative total of less than 15 days. Formidable operation
conditions refers to the ambient temperature and relative humidity value that may occur
during an air-conditioning system failure, and normal operation conditions should be recovered within 5 hours.
2.1.3.Power Supply
Before powering on the power supply, please check the power input to ensure proper grounding of the power supply system. The input source for the switch should be reliable and secure; a voltage adaptor can be used if necessary. The building’s circuit protection system should include in the circuit a fuse or circu it-brea ke r of no greater than 24 0 V,
5A. It is recommended to use a UPS for more reliable power supplying. .
Caution!
1. Improper power supply system grounding, extreme fluctuation of the input source,
and transients (or spikes) can result in larger error rate, or even hardware dama ge!
2. Disconnect power supply cords before servicing!
2.1.4.Preventing Electrostatic Discharge Damage
Static electric discharges can cause damage to internal circuits, even the entire
switch. Follow these guidelines for avoiding ESD damage:
■ Ensure proper earth grounding of the device;
■ Perform regular cleaning to reduce dust;
■ Maintain proper temperature and humidity;
■ Always wear an ESD wrist strap and antistatic uniform when in contact with circuit
boards.
2.1.5.Anti-interference
All sources of interference, whether from the device/system itself or the outside environment, will affect operations in various ways, such as capacitive coupling, inductive
coupling, electromagnetic radiation, common impedance (including the grounding system) and cables/lines (power cables, signal lines, and output lines). The following should
be noted:
■ Precautions should be taken to prevent power source int err uptions;
■ Provide the system with a dedicated grounding, rather than sharing the grounding
3
Page 16
Arctica 4806xp switch Installation Guide Chapter 2 Installation Notice
with the electronic equipment or lightning protection devices;
■ Keep away from high power radio transmitters, radar transmitters, and high frequen-
cy strong circuit devices;
■ Provide electromagnetic shielding if necessary.
2.1.6.Rack Configuration
The dimensions of the Arctica 4806xp is designed to be mounted on a standard 19’’
rack, please ensure good ventilation for the rack.
■ Every device in the rack will generate heat during operation, therefore vent and fans
must be provided for an enclosed rack, and devices should not be stacked closely.
■ When mounting devices in an open rack, care should be taken to prevent the rack
frame from obstructing the switch ventilation openings. Be sure to check the posi-
tioning of the switch after installation to avoid the aforementioned.
Caution！
If a standard 19’’ rack is not available, the Arctica 4806xp can be placed on a clean
level desktop, leave a clearance of 100mm around the switch for ventilation, and do not
place anything on top of the switch.
2.2.Installation Notice
■ Read through the installation instruction carefully before operating on the system.
Make sure the installation materials and tools are prepared. And make sure the in-
stallation site is well prepared.
■ During the installation, users must use the brackets and screws provided in the ac-
cessory kit. Users should use the proper tools to perform the installation. Users
should always wear antistatic uniform and ESD wrist straps. Users should use
standard cables and connecters.
■ After the installation, users should clean the site. Before powering on the switch, us-
ers should ensure the switch is well grounded. Users should maintain the switch
regularly to extend the lifespan of the switch.
■ Statement indicating that a readily accessible disconnect device shall be incorpo-
rated in the building installation wiring.
2.3.Security Warnings
■ When using SFP/SFP+/QSFP+ transceiver, do not stare directly at the fiber bore
when the switch is in operation. Otherwise the laser may hurt your eyes.
■ Do not attempt to conduct the operations whic h can damag e the s witch or whi ch can
cause physical injury.
■ Do not install, move or disclose the switch and its modules when the switch is in op-
eration.
■ Do not open the switch shell.
4
Page 17
Arctica 4806xp switch Installation Guide Chapter 2 Installation Notice
■ Do not drop metals into the switch. It can cause short-circuit.
■ Do not touch the power plug and power socket.
■ Do not place the tinder near the switch.
■ Do not configure the switch alone in a dangerous situation,
■ Use standard power sockets which have overload and leakage protection.
■ Inspect and maintain the site and the switch regula rl y.
■ Have the emergence power switch on the site. In case of emergence, switch off the
power immediately.
Caution!
Potential risk include: Electric leakage, Power supply arcing, Power line breakage,
Imperfect earth, Overload circuit and Electrical short circuit. If electric shock, fire, electrical short circuit occurs, please cut off the electricity supply and alarm rapidly. Rescue the
injured person in the contingency under inherently safe, give the injured person proper
first aid treatment according to the injury state, and seek help from the Medical Emergency using various ways.
5
Page 18
Arctica 4806xp switch Installation Guide Chapter3 Device Installation
3. Device Installation
3.1.Installation Preparation
3.1.1.Verify the Package Contents
Please unpack the shipping package and verify carefully the contents inside.
3.1.2.Required Tools and Utilities
The required tools and utilities are shown below:
■ Cross screwdrivers
■ Flat-blade screwdriver
■ ESD wrist strap
■ Antistatic uniform
Caution!
Users should prepare the required tools and utilities by themselves.
3.2.Device Installation
3.2.1.Installing the Switch

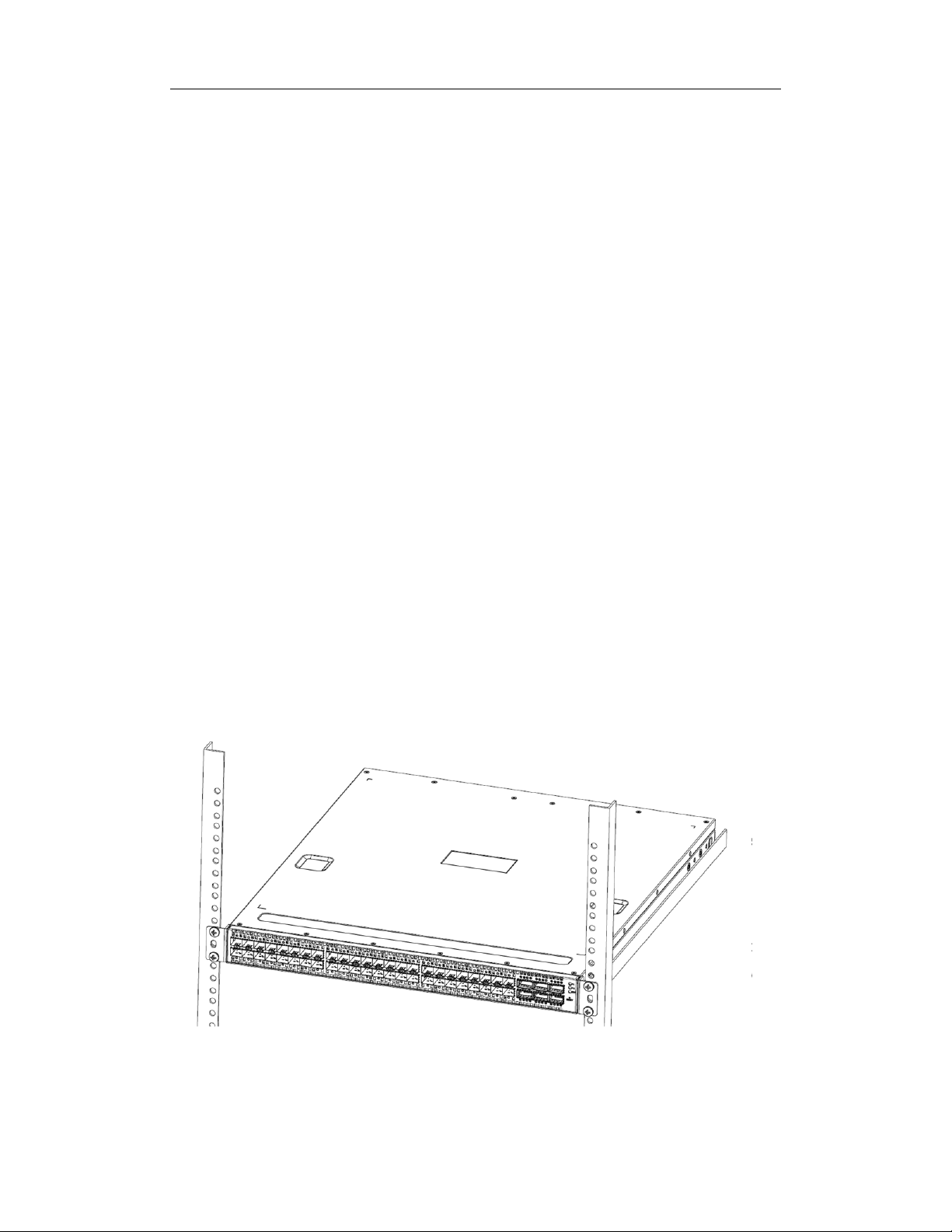

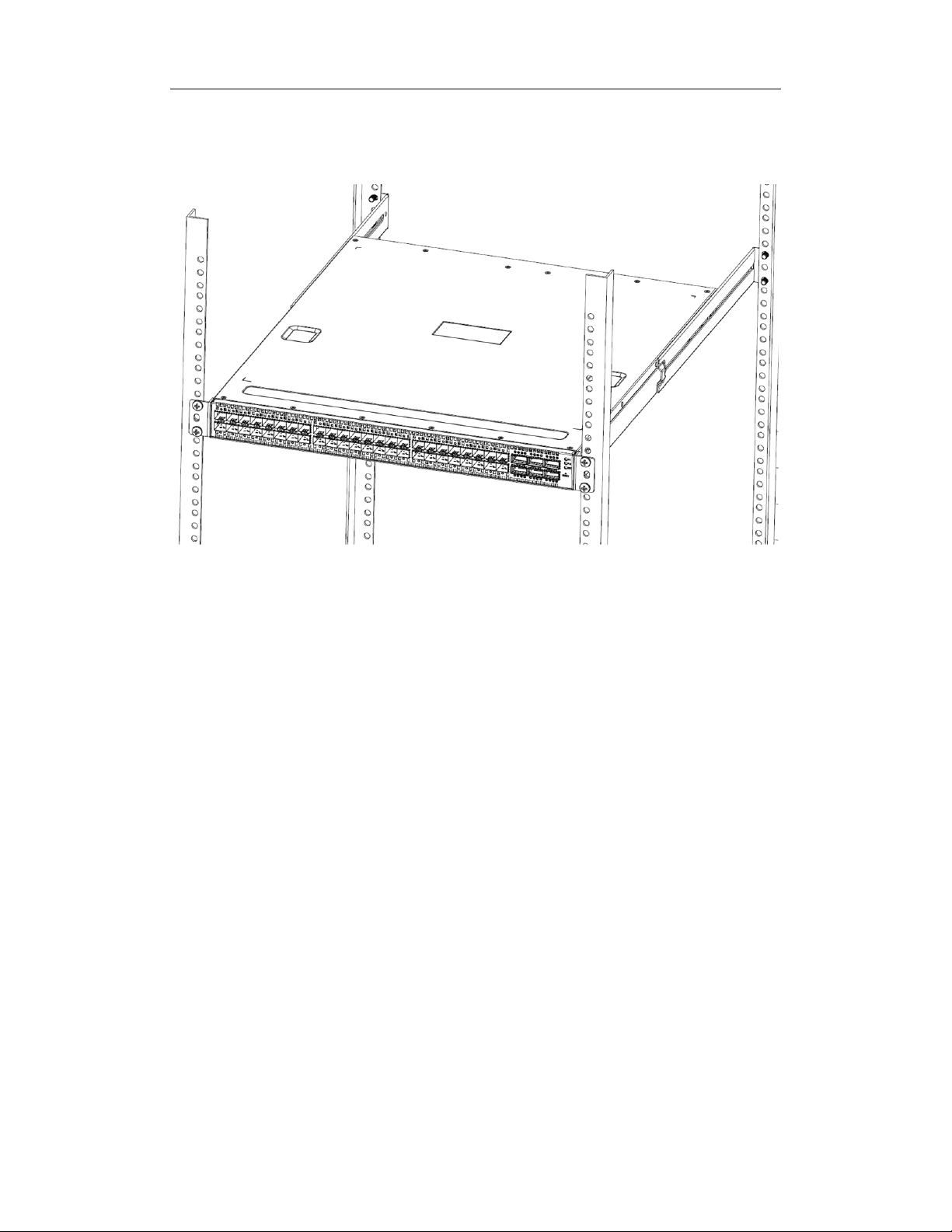

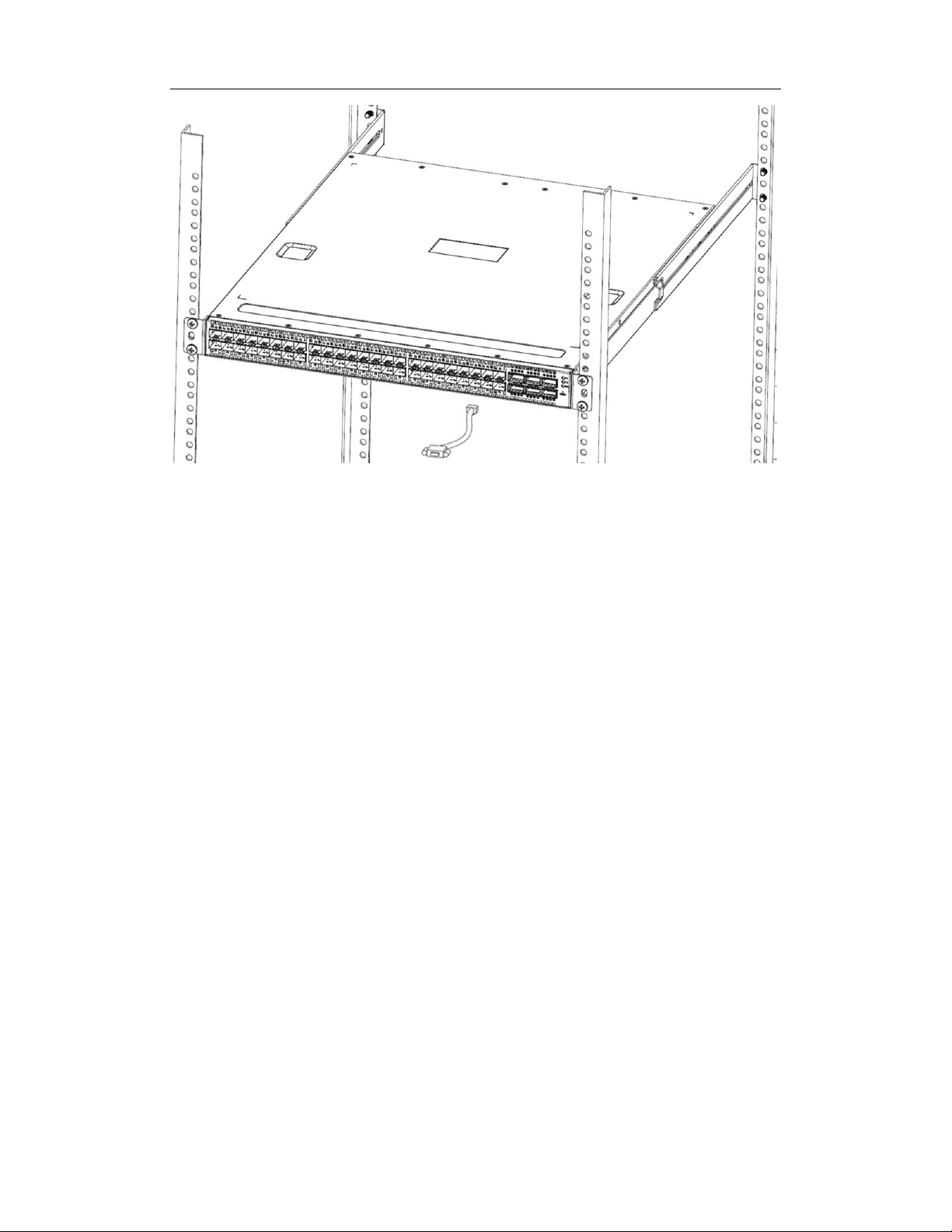

Figure 3-1 Arctica 4806xp switch install sketch map on the rack using stock
Please mount Arctica 4806xp on the 19’’ rack as below:
1. Attach the 2 brackets on the Arctica 4806xp with screws provided in the accessory
kit.
2. Put the machine on the stock of the rack when installing because the machine is
quite heavy.
3. Put the bracket-mounted switch smoothly i nto a standard 19’’ rack. Fasten the Arctica
4806xp to the rack with the screws provided. Leave enough space around the switch
for good air circulation.
Caution!
The brackets are used to fix the switch on the rack. They can’t serve as a bearing.
Please place a rack shelf und er the switch. Do not place anything on top of the switch.
1
Page 19
Arctica 4806xp switch Installation Guide Chapter3 Device Installation
Do not block the blowholes on the switch to ensure the proper operation of the switch.
The figure of back horn iron installation is as below:

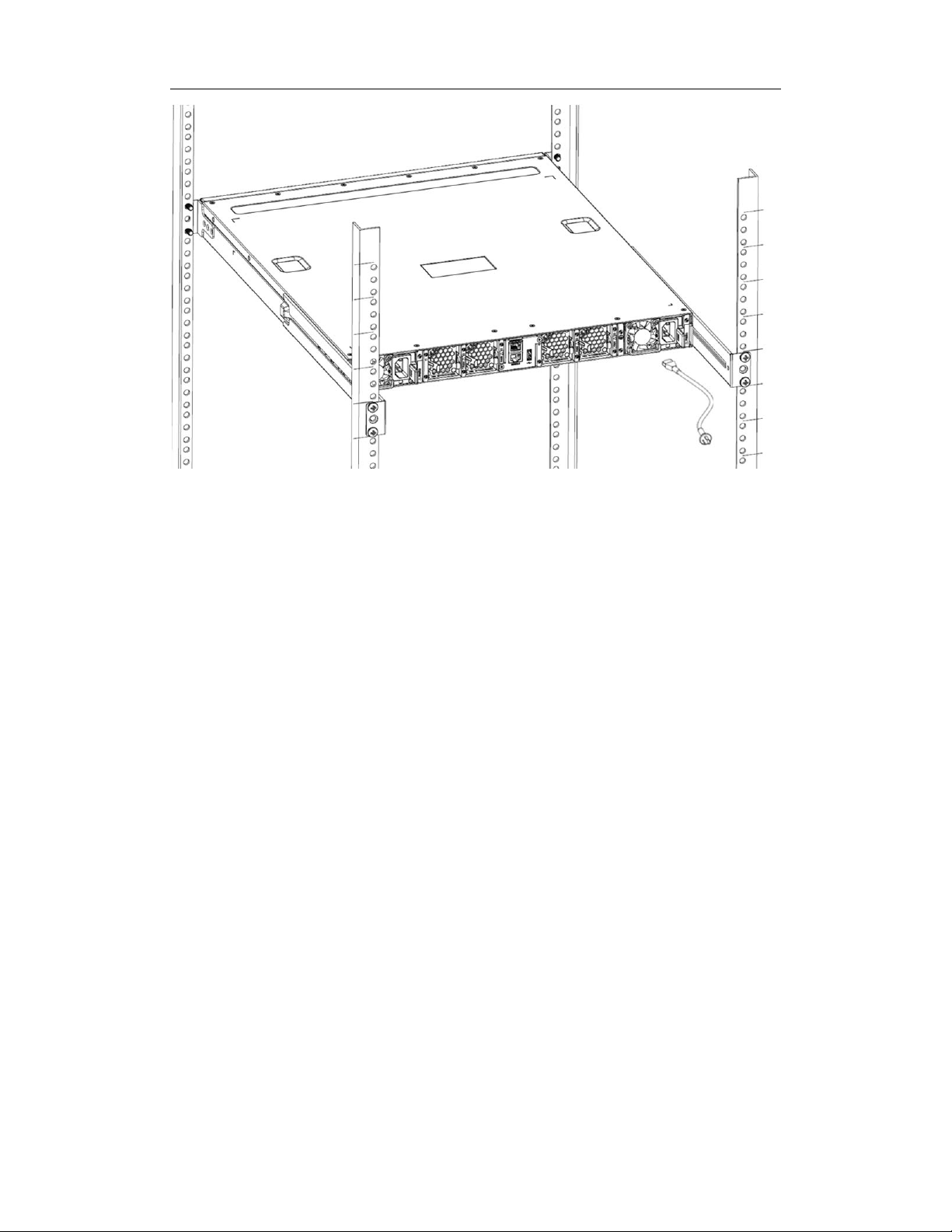

Figure 3-2 The figure of Arctica 4806xp switch installing on the rack by using the front
and back horn iron
3.2.2.Installing the Power Supply Module
Arctica 4806xp switch supports 2 power supplies.
2
Page 20
Arctica 4806xp switch Installation Guide Chapter3 Device Installation

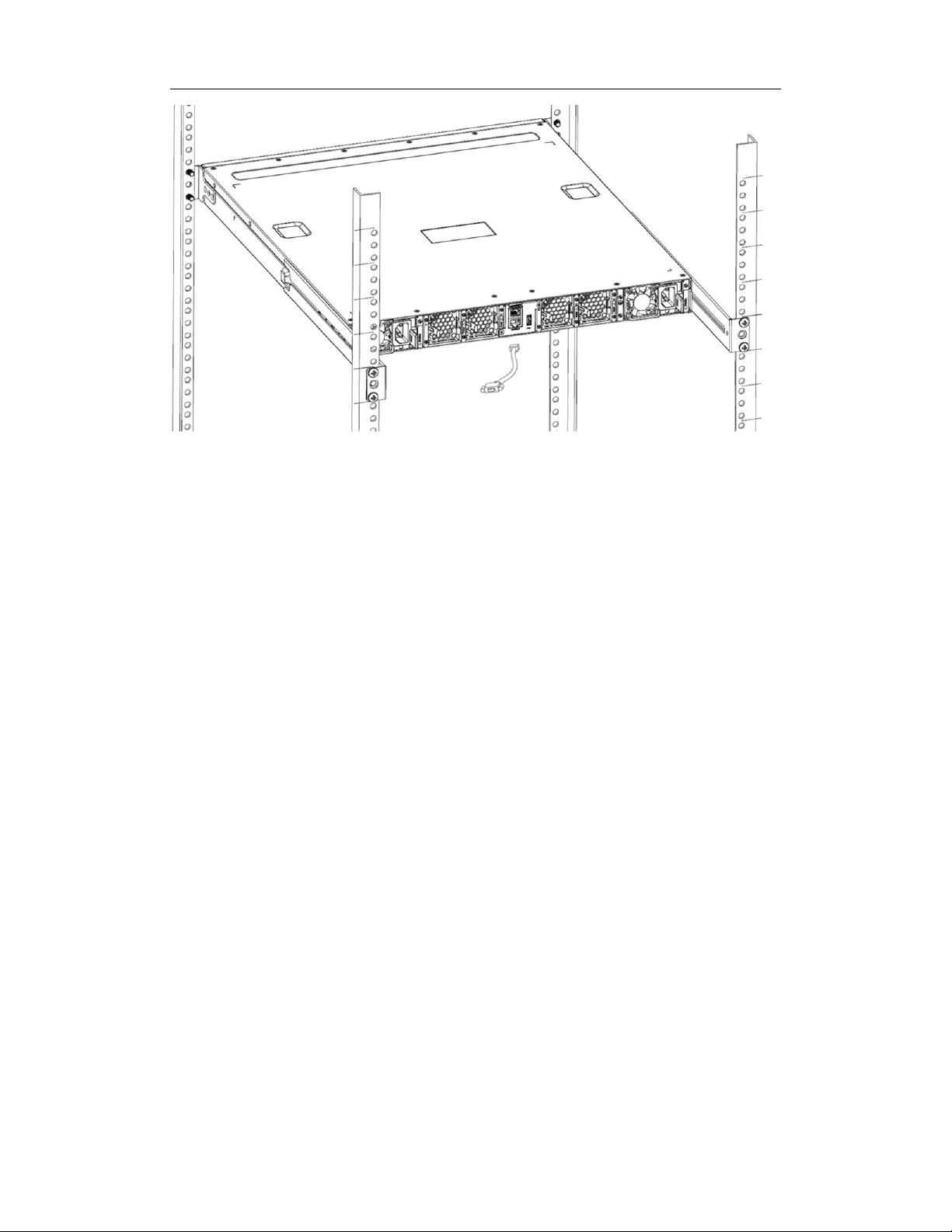

Figure 3-3 The figure of Arctica 4806xp switch power supply installing
Please install the power supply module according to the following approach:
1. The golden finger is entad and aim at the power supply rabbet of the machine to
insert to the end downwards. You can hear the lock sound of “click”.
2. Force the board on the side of AC cable bore to the direction of fan when taking
out the power supply module. And draw the power supply forth.
3.2.3.Installing the Fan
Arctica 4806xp switch has 4 fans in standard configuration.
3
Page 21
Arctica 4806xp switch Installation Guide Chapter3 Device Installation

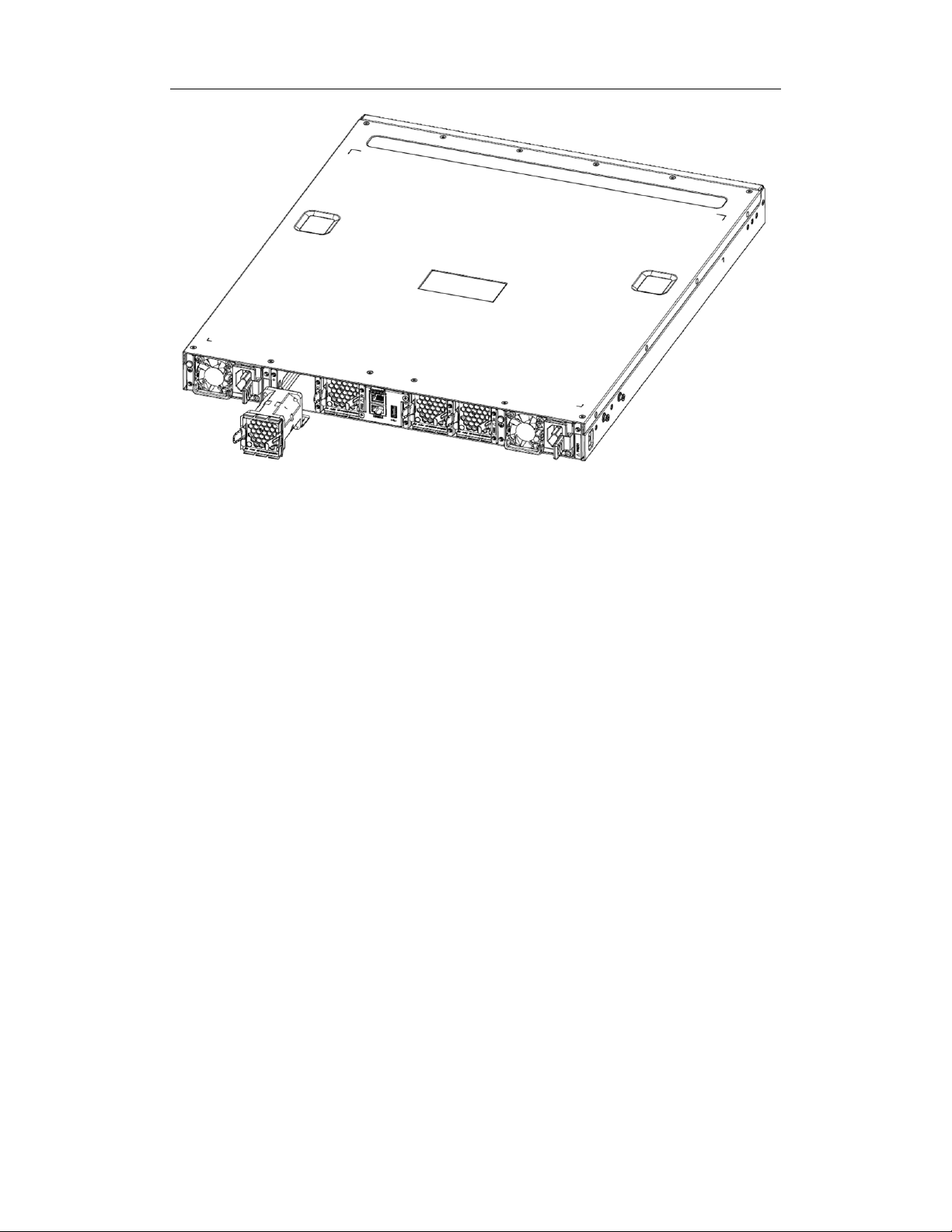

Figure 3-4 The figure of Arctica 4806xp switch installing the fan
Please install the fan module a ccording to the following approach:
1. The golden finger is inward and adown and aim at the fan rabbet of the back
machine flatly to the end. You can hear the lock sound of “click”.
2. Pinch the sheet metal inward and draw the fan module forth when taking out it.
Caution!
The sheet metal edge of fan is thin, please watch your fingers when pinch, press, in-
sert and pull it.
WARNING! - Hazardous moving parts. Keep away from moving fan blades.
3.2.4.Connecting Console
Arctica 4806xp provides a serial console port.
4
Page 22
Arctica 4806xp switch Installation Guide Chapter3 Device Installation
Figure 3-5 Connecting Console to Arctica 4806xp 10Gb Routing switch
The connection procedure is listed below:
1. Find the console cable provided in the accessory kit. Attach the console cable end to
console port of the switch.
2. Connect the other side of the console cable to a character terminal (PC).
3. Power on the switch and the character terminal. Configure the switch through the
character terminal .
3.2.5.SFP/SFP+/QSFP+ Transceiver Installation
Arctica 4806xp provides 48 SPF+ and 6 QSFP+ ports.
The procedure for installing the SFP/SFP+/QSFP+ transceiver is shown below:
Step 1: Put on a ESD wrist strap (or antistatic gloves)
Step 2: Insert the SFP/SFP+/QSFP+ transceiver to the guide rail inside the
SFP/SFP+/QSFP+ port. Do not put the SFP/SFP+/QSFP++ transceiver up-side-down.
Step 3: Push the SFP/SFP+/QSFP+ transceiver along the guide rail gently until you feel
the transceiver snap into place at the bottom of the SFP/SFP+/QSFP+ port.
Note: the SFP/SFP+/QSFP+ transceiver is hot swappable.
Caution!
Do not stare directly at the 2 fiber bore in the SFP/SFP+/QSFP+ transceiver when
the switch is in operation, otherwise the laser may hurt your eyes.
3.2.6.Copper Cable/Fiber Cable Connection
5
Page 23
Arctica 4806xp switch Installation Guide Chapter3 Device Installation
Copper cables should be connected as below:
Step 1: Insert one end of the Ethernet cable to the RJ-45 Ethernet port in the switch copper port;
Step 2: Insert the other end of the Ethernet cable to the RJ-45 Ethernet port of other device;
Step 3: Check all status indicators for the corresponding ports; a lighted LED indicates
that the link has been established, otherwise the link is not ready and the cable should be
examined.
Caution!
Please verify the sign above the port to ensure using the right port. Connecting to wrong
ports might damage the switch.
Fiber cables should be connected as below:
Step 1: Remove the protective plug from the SFP/SFP+/QSFP+ fiber transceiver bore;
Remove the protective cap from one end of the fiber cable. Keep the fiber end clean and
neat.
Step 2: Attach one end of the fiber cable to the SFP/SFP+/QSFP+ transceiver, and attach
the other end to the transceiver of the corresponding devi ce s.
Note: The SFP/SFP+/QSFP+ transceiver’s TX port should be connected to the RX port of
the corresponding device, and vice versa.
Step 3: Check the fiber port status indicator, a lighted LED indicates that the link has
been established; otherwise the link is not ready and should be examined.
Caution!
Please verify the sign above the port to ensure using the other ports. Connecting to
wrong ports might damage the transceiver or the other ports. When connecting other devices through a fiber cable to the switch, the output power of the fiber cable must not exceed the maximum received power of the corresponding modules. Otherwise, it will damage the fiber transceiver. Do not stare at the fiber bore when the switch is in operation.
That may hurt your eyes.
6
Page 24
Arctica 4806xp switch Installation Guide Chapter3 Device Installation
Figure 3-6 Connect the DAC cable to Arctica 4806xp switch
The connection approach of DAC cable is below:
1. Connect the two side of DAC cable to SFP/SFP+/QSFP+ transceiver of Arctica
4806xp switch.
2. Check out the indicator light state of the light port. If LINK light is bright, it means
the link is connection. If LINK light puts out, it means the lines have trouble and
please check out the line connection.
3.2.7.AC Power Supply Connection
Arctica 4806xp uses 220VAC power supply by default. Please read the power input
specification for the detailed information.
7
Page 25
Arctica 4806xp switch Installation Guide Chapter3 Device Installation
Figure 3-7 Connect the power supply cable to the Arctica 4806xp switch
AC Power supply connection procedure is described as below:
1. Insert one end of the power cable provided in the accessory kit into power source
socket, and the other end to the power socket (with overload and leakage protection).
2. Check the power status indicator in the front panel of the switch. The corresponding
PWR indicator should light. Arctica 4806xp is self-adjustable for the input voltage. As
soon as the input voltage is in the range printed on the switch surface, the switch can
operate correctly.
3. When the switch is powered on, it executes self-test procedure and startups.
Caution!
The input voltage must be within the required range, otherwise the switch can be
damaged or malfunction. Do not o pen the switch shell without permission. It can cause
physical injury.
Disconnect all power supply cords before servicing.
3.2.8.Earthing Cable Connection
8
Page 26
Arctica 4806xp switch Installation Guide Chapter3 Device Installation
Figure 3-8 Connect the earthing cable to the Arctica 4806xp switch
Please connect the earthing cable according to the following approach:
1. Cover one side of the earthing cable to the earthing pillar of the back panel.
2. Take out the screw from accessories, put and screw down the fixed nut on the earthing pillar of the switch,.
3. Connect another side of the earthing cable to the earthing side.
Caution!
The unit shall be permanently connected to earth.
3.2.9.Checking the Switch
Whether the used power corresponds to the power of the sig n.
Whether the ground cable is connected.
Whether the Console cable connect to power cable correctly.
If there are cables at the outside, please ensure the cable is well connected with the
lightning protection devices.
9
Loading...
