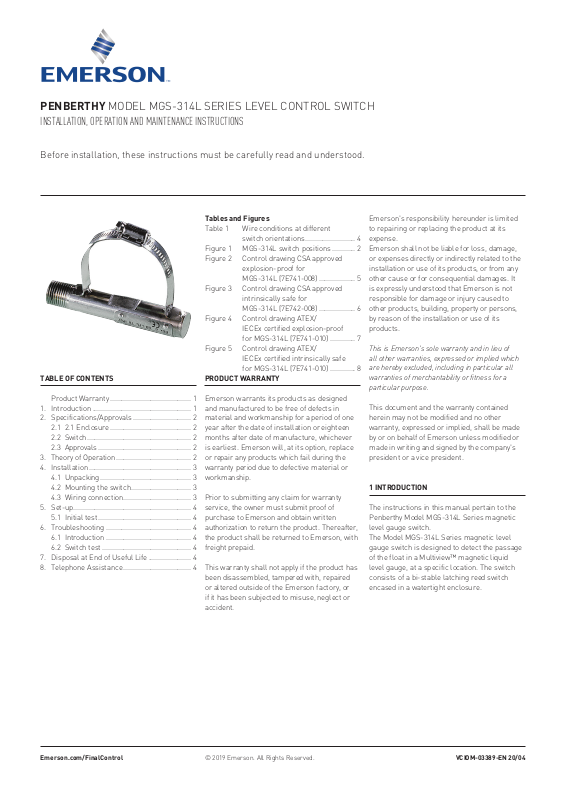

PENBERTHY MODEL MGS-314L SERIES LEVEL CONTROL SWITCH
INSTALLATION, OPERATION AND MAINTENANCE INSTRUCTIONS
Before installation, these instructions must be carefully read and understood.
TABLE OF CONTENTS
Product Warranty .......................................... 1
1. Introduction ................................................... 1
2. Specifications/Approvals .............................. 2
2.1 2.1 Enclosure .......................................... 2
2.2 Switch ...................................................... 2
2.3 Approvals ................................................ 2
3. Theory of Operation ....................................... 2
4. Installation ..................................................... 3
4.1 Unpacking ............................................... 3
4.2 Mounting the switch ............................... 3
4.3 Wiring connection................................... 3
5. Set-up ............................................................. 4
5.1 Initial test ................................................ 4
6. Troubleshooting ............................................ 4
6.1 Introduction ............................................ 4
6.2 Switch test .............................................. 4
7. Disposal at End of Useful Life ...................... 4
8. Telephone Assistance ................................... 4
Tables and Figures
Table 1 Wire conditions at different
switch orientations .......................... 4
Figure 1 MGS-314L switch positions ............ 2
Figure 2 Control drawing CSA approved
explosion-proof for
MGS-314L (7E741-008) ................... 5
Figure 3 Control drawing CSA approved
intrinsically safe for
MGS-314L (7E742-008) ................... 6
Figure 4 Control drawing ATEX/
IECEx certified explosion-proof
for MGS-314L (7E741-010) ............. 7
Figure 5 Control drawing ATEX/
IECEx certified intrinsically safe
for MGS-314L (7E741-010) ............. 8
PRODUCT WARRANTY
Emerson warrants its products as designed
and manufactured to be free of defects in
material and workmanship for a period of one
year after the date of installation or eighteen
months after date of manufacture, whichever
is earliest. Emerson will, at its option, replace
or repair any products which fail during the
warranty period due to defective material or
workmanship.
Prior to submitting any claim for warranty
service, the owner must submit proof of
purchase to Emerson and obtain written
authorization to return the product. Thereafter,
the product shall be returned to Emerson, with
freight prepaid.
This warranty shall not apply if the product has
been disassembled, tampered with, repaired
or altered outside of the Emerson factory, or
if it has been subjected to misuse, neglect or
accident.
Emerson's responsibility hereunder is limited
to repairing or replacing the product at its
expense.
Emerson shall not be liable for loss, damage,
or expenses directly or indirectly related to the
installation or use of its products, or from any
other cause or for consequential damages. It
is expressly understood that Emerson is not
responsible for damage or injury caused to
other products, building, property or persons,
by reason of the installation or use of its
products.
This is Emerson's sole warranty and in lieu of
all other warranties, expressed or implied which
are hereby excluded, including in particular all
warranties of merchantability or fitness for a
particular purpose.
This document and the warranty contained
herein may not be modified and no other
warranty, expressed or implied, shall be made
by or on behalf of Emerson unless modified or
made in writing and signed by the company's
president or a vice president.
1 INTRODUCTION
The instructions in this manual pertain to the
Penberthy Model MGS-314L Series magnetic
level gauge switch.
The Model MGS-314L Series magnetic level
gauge switch is designed to detect the passage
of the float in a Multiview™ magnetic liquid
level gauge, at a specific location. The switch
consists of a bi-stable latching reed switch
encased in a watertight enclosure.
Emerson.com/FinalControl © 2019 Emerson. All Rights Reserved. VCIOM-03389-EN 20/04
PENBERTHY MODEL MGS-314L SERIES LEVEL CONTROL SWITCH
INSTALLATION, OPERATION AND MAINTENANCE INSTRUCTIONS
2 SPECIFICATIONS/APPROVALS
2.1 Enclosure
Watertight (Type 4) and Explosion-Proof (Type 7) 316 STS housing
2.2 Switch
Output:
MGS-314L Series: SPDT (Form C) switch output: 1 AMP Maximum Switching Current, 150 VDC
Maximum Switching Voltage non-inductive load, 25 Watts - Maximum power
Repeatability: Better than 0.032" (0.81 mm)
Response time: <100 milliseconds
Operating temperature: -40°F to 225°F (-40°C to 107°C) with third party approvals
Ambient temperature: -4°F to 104°F (-20°C to 40°C) with third party approvals
Dead band: 0.5" (13 mm)
2.3 Approvals
MGS-314L-C
CSA Approved Ex d
Explosion-proof for: Division 1;
Class I; Groups B, C, D
Class II; Groups E, F, G
Class III; Type 4
When installed in accordance with control
drawing 7E741-008 (Figure 2)
MGS-314L-C
CSA Approved
Intrinsically safe for: Division 1;
Class I; Groups B, C, D
Class II; Groups E, F, G
Class III; Type 4
When installed in accordance with control
drawing 7E742-008 (Figure 3)
MGS-314L-A
ATEX and IECEx approved by CSA
Flame-proof for: Ex db IIB T5 Gb
1 A Max or 150Vdc Max
*Must use suitably certified minimum Ex db IIB
conduit seal
When installed in accordance with control
drawing 7E741-010 (Figure 4)
3 THEORY OF OPERATION
While reading the theory of operation refer to
Figure 1 for the location of the components.
The description is based on a side view.
With the liquid level below the switch, the reed
should be at position 'A'. The reed is held in
this position by a magnetized stop. As the float
ascends and passes the switch, it induces a
magnetic field in the reed. The reed is coupled
to the float and moves with it until contact with
the opposite stop is made. The magnetized
stop then holds the reed in its new position.
The movement of the reed causes the switch to
change state.
As the float descends with the liquid level it
passes the switch and the process described is
reversed. This returns the switch to its original
state.
MGS-314L-A
ATEX and IECEx approved by CSA
Intrinsically safe for: Ex ia IIC T5 Ga
When installed in accordance with control
drawing 7E742-010 (Figure 5)
FIGURE 1
MGS-314L switch positions
Position A Position B
2
PENBERTHY MODEL MGS-314L SERIES LEVEL CONTROL SWITCH
INSTALLATION, OPERATION AND MAINTENANCE INSTRUCTIONS
4 INSTALLATION
4.1 Unpacking
Upon receiving the Model MGS-314L Series
magnetic level gauge switch, check all
components carefully for damage incurred in
shipping. If damage is evident or suspected,
do not attempt installation. Notify the carrier
immediately and request a damage inspection.
Check each item against the packing list.
4.2 Mounting the switch
Due to shipping vibration, is possible the switch
will not be in the 'normal' position for proper
operation. If this occurs, simply cycle the
float past the switch once. This will initialize it
automatically.
1. Measure the distance from the top of the
indicating scale, on the magnetic level
gauge,
to the top of the communicating
chamber. Record this distance.
2. Loosen the clamps holding the indicating
scale to the communicating chamber.
3. Open the mounting band supplied with the
Model MGS-314L Series.
4.
Place the
communicating chamber. The cut out in
the switch housing should contact the
communicating chamber. Place the mounting
band around the chamber and under the
indicator housing. For optimum performance
the cut out should be parallel and the switch
housing perpendicular to the communicating
chamber.
5. Loosely tighten the mounting band. Move
the Model MGS-314L Series either up or
down to the desired position and tighten the
band.
6. The switch must be mounted within the
indication range for the magnetic gauge.
The mounting band for the switch should
be a minimum of 1 inch (25 mm) inside the
indication range. This will insure sufficient
float movement to operate the switch.
7.
If more than one switch is used on a
single magnetic gauge, the minimum
recommended distance between mounting
bands is 2 inches
8. Adjust the position of the indicating scale so
that the distance from the tip of the scale
to the top of the communicating chamber
is the same as in step 1. Tighten the
clamps holding the indicating scale to the
communicating chamber.
Model
MGS-314L Series on the
(51 mm).
4.3 Wiring connection
1. If you are using conduit for the switch wiring
use conduit seal with a drain or a drip-loop
to prevent condensate from entering the
housing. Condensate can cause electrical
shorts. (Theswitch housing has a ½" NPT-M
connection for the wiring conduit)
Note: attach conduit prior to mounting
switch on communicating chamber to relieve
mounting stresses.
2. We recommend using aluminum or austenitic
stainless steel conduit and nipple, to the
conduit opening of the switch housing.
This will give you an accessible point to
terminate the control wires. DO NOT USE any
ferromagnetic material such as: carbon steel,
duplex, 400 Series stainless steel or cast iron.
3
PENBERTHY MODEL MGS-314L SERIES LEVEL CONTROL SWITCH
INSTALLATION, OPERATION AND MAINTENANCE INSTRUCTIONS
5 SET-UP
SAFETY INSTRUCTIONS
Do not apply power to the switch while performing these tests.
5.1 Initial test
Use an ohmmeter to verify the following conditions
TABLE 1 - Wire conditions at different switch orientations
Wire color
Model Switch orientation
Switch at position 'A'
MGS-314L Series
If these conditions do not exist, go to Section 6
(liquidlevelbelow switch)
Switch at position 'B'
(liquidlevelabove switch)
Black Red Blue
Common Open Closed
Common Closed Open
6 TROUBLESHOOTING
6.1 Introduction
Your Penberthy magnetic level gauge switch
is designed to give you years of unattended
service. However, failure of electrical equipment
can occur. Sound maintenance practices
require periodic inspection of the instrument to
ensure it is in good working order.
SAFETY INSTRUCTIONS
Do not apply power to the switch while performing
these tests.
6.2 Switch test
With the switch at position 'A' use an ohmmeter
to verify the conditions in Section 5.1. Using a
magnet, move the switch to position 'B'. If the
switch still doesn't change state, it is defective.
Go to Section 8.
7 DISPOSAL AT END OF USEFUL LIFE
Penberthy Model MGS-314L Series level
control switches are used in a variety of fluid
applications. By following the appropriate
federal and industry regulations, the user
must determine the extent of preparation and
treatment the switch must incur before their
disposal. A Material Safety Data Sheet (MSDS)
may be required before disposal services
accept certain components.
Metal, glass and polymers should be recycled
whenever possible. Refer to order and
relevant technical data sheets for materials of
construction.
8 TELEPHONE ASSISTANCE
If you are having difficulty with your
Model
MGS-314L Series level control switch,
notify your local Penberthy distributor or call the
factory direct (956) 430-2500. To help us assist
you more effectively, please have as much of the
following information as possible when you call:
• Instrument model number
• Name of the company from whom you
purchased the switch
• Invoice number and date
• Process material
• Operating process temperature
• Brief description of the problem
• Troubleshooting procedures that failed
If attempts to solve your problem fail, you may
be requested to return your instrument to the
factory for intensive testing. You must obtain
a return authorization (R.A.) number from
Emerson prior to returning your unit.
Failure to do so will result in the unit being
returned to you without being tested freight
collect. To obtain a R.A. number gather the
following additional information;
• Reason for return
• Person to contact at your company
• 'Ship-to' address
We recommend that you return the entire unit
for testing. There will be a minimum charge
applied for evaluation of non-warranty units.
You will be contacted before we repair the unit
if there will be any additional charges in excess
of the minimum. If you return a unit that is
covered by the warranty, but is not defective,
the minimum charge will apply.
4
PENBERTHY MODEL MGS-314L SERIES LEVEL CONTROL SWITCH
INSTALLATION, OPERATION AND MAINTENANCE INSTRUCTIONS
FIGURE 2
Control drawing CSA approved explosion-proof for MGS-314L (7E741-008)
CONTROL DRAWING
Hazardous area Non-hazardous area
CLASS I DIV I GROUP B, C, D
MGS-314-C
MGS-314D-C
MGS-314L-C
18"
A flame path seal-off shall be installed
within 18 in. of enclosure
Wiring to be in accordance with National Electrical Code (NEC)
Pertinent parts of the 500 Series of Article 5 or local codes as applicable.
5
PENBERTHY MODEL MGS-314L SERIES LEVEL CONTROL SWITCH
INSTALLATION, OPERATION AND MAINTENANCE INSTRUCTIONS
FIGURE 3
Control drawing CSA approved intrinsically safe for MGS-314L (7E742-008)
TWO-WIRE ENTITY CONTROL DRAWING
Non-hazardous areaHazardous area
Use CSA certified safety barriers:
rated for Class I DIV 1
Group A, B, C, D
MODEL MGS-314L-C
NO or NC
TB1
COM
Vmax = 40Vdc
Imax = 150mA
Ci = 0nF
Li = 0mH
Cleads
Lleads
OR
THREE-WIRE ENTITY CONTROL DRAWING
Use CSA certified safety barriers:
rated for Class I DIV 1
Group A, B, C, D
MODEL MGS-314L-C
MAG. SWITCH
NO
TB1 NC
COM
Vmax = 40Vdc
Imax = 150mA
Ci = 0nF
Li = 0mH
Cleads
Lleads
INTRINSIC
SAFETY
BARRIER
R < 1Ω
Non-hazardous areaHazardous area
INTRINSIC
SAFETY
BARRIER
MULTIPLE
CHANNEL
Unused NO or NC lead shall be blind terminated and insulated.
The intrinsic safety barrier parameters must meet the following
requirements:
Voc < 40V or Isc < 150mA; Ca > Cleads; La > Lleads
User wiring
One multiple channel intrinsic safety barrier must be used.
The barrier parameters must meet the following requirements:
Vt < 40V or It < 150mA; Ca > Cleads; La > Lleads
User wiring
R < 1Ω
MGS-314L-C Connections
blue
red
black
green
NO
NC
C
Case
ground
Installation shall confirm to the manufacturer's instructions supplied
with the intrinsic safety barrier as well as the National Electric Code
and ANSI/ISA-RP 12.6 or CSA C22 "Installation of intrinsically safe
instrument systems in hazardous (classified) locations."
Maximum non-hazardous area voltage must not exceed 250 Vrms or Vdc.
For I.S. installation, temperature shall not exceed 225°F (107°C).
6
PENBERTHY MODEL MGS-314L SERIES LEVEL CONTROL SWITCH
INSTALLATION, OPERATION AND MAINTENANCE INSTRUCTIONS
FIGURE 4
Control drawing ATEX/IECEx certified explosion-proof for MGS-314L (7E741-010)
CONTROL DRAWING
Hazardous area Non-hazardous area
EX D IIB
MGS-314-A
MGS-314D-A
MGS-314L-A
A flame path seal-off shall be installed
directly to threaded entry of enclosure
Wiring to be in accordance with National Electrical Code (NEC)
Pertinent parts of the 500 Series of Article 5 or local codes as applicable.
7
PENBERTHY MODEL MGS-314L SERIES LEVEL CONTROL SWITCH
INSTALLATION, OPERATION AND MAINTENANCE INSTRUCTIONS
FIGURE 5
Control drawing ATEX/IECEx certified intrinsically safe for MGS-314L (7E742-010)
TWO-WIRE ENTITY CONTROL DRAWING
Hazardous area
Use suitably certified safety
barriers for Ex iα IIC
MODEL
MGS-314-A
MGS-314L-A
or ½ MGS-314D-A
MAG. SWITCH
NO or NC
TB1
COM
Vmax = 40Vdc
Imax = 150mA
Ci = 0nF
Li = 0mH
Cleads
Lleads
THREE-WIRE ENTITY CONTROL DRAWING
Hazardous area
Use suitably certified safety
barriers for Ex iα IIC
MODEL
MGS-314-A
MGS-314L-A
or ½ MGS-314D-A
MAG. SWITCH
Vmax = 40Vdc
Imax = 150mA
Ci = 0nF
Li = 0mH
NO
TB1 NC
COM
Cleads
Lleads
Non-hazardous area
INTRINSIC
BARRIER
OR
Non-hazardous area
SAFETY
R < 1Ω
INTRINSIC
SAFETY
BARRIER
MULTIPLE
CHANNEL
Unused NO or NC lead shall be blind terminated and insulated.
The intrinsic safety barrier parameters must meet the following
requirements:
Voc < 40V or Isc < 150mA; Ca > Cleads; La > Lleads
User wiring
One multiple channel intrinsic safety barrier must be used.
The barrier parameters must meet the following requirements:
Vt < 40V or It < 150mA; Ca > Cleads; La > Lleads
User wiring
R < 1Ω
MGS-314-A and MGS-314L-A Connections
blue
red
black
green
Case
ground
MGS-314D-A Connections
white
blue
NO
black
green
NC
2
1
C
Case
ground
NO
2
2
NC
1
C
1
violet
orange
red
Installation shall confirm to the manufacturer's instructions supplied
with the intrinsic safety barrier as well as the National Electric Code
and ANSI/ISA-RP 12.6 or CSA C22 "Installation of intrinsically safe
instrument systems in hazardous (classified) locations."
Maximum non-hazardous area voltage must not exceed 250 Vrms or Vdc.
For I.S. installation, temperature shall not exceed 225°F (107°C).
8
Neither Emerson, Emerson Automation Solutions, nor any of their affiliated entities assumes responsibility for the selection, use or maintenance of any product.
Responsibility for proper selection, use, and maintenance of any product remains solely with the purchaser and end user.
Penberthy is a mark owned by one of the companies in the Emerson Automation Solutions business unit of Emerson Electric Co. Emerson Automation Solutions,
Emerson and the Emerson logo are trademarks and service marks of Emerson Electric Co. All other marks are the property of their respective owners.
The contents of this publication are presented for informational purposes only, and while every effort has been made to ensure their accuracy, they are not to be
construed as warranties or guarantees, express or implied, regarding the products or services described herein or their use or applicability. All sales are governed by
our terms and conditions, which are available upon request. We reserve the right to modify or improve the designs or specifications of such products at any time without
notice.
Emerson.com/FinalControl
9
Loading...
