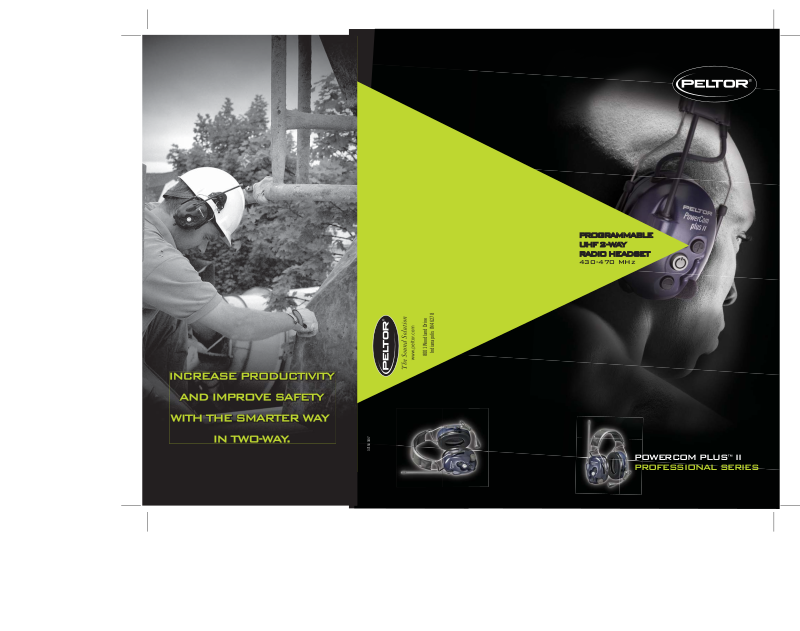

Peltor Powercom Plus II User Manual
MORE COPYMORE COPY
HEREHERE
8001 Woodland Drive
Indianapolis IN 46278
PROGRAMMABLEPROGRAMMABLE
UHF UHF 2-WAY WAY
RADIO HEADSETRADIO HEADSET
430-470 MHz
37154 3/07
POWERCOM PLUS™ II
PROFESSIONAL SERIES
PELTOR® POWERCOM PLUS™ II
SPECIFICATIONS
PROFESSIONAL SERIES
UHF TWO-WAY RADIO HEADSET.
EXCLUSIVE ALL-IN-ONE
COMMUNICATION
NO MORE WIRES OR
EXPENSIVE BELT RADIOS
CHECK OUT
THESE ADVANTAGES:
•
Compatible with existing in plant UHF 2-way radio systems
•
Custom programmable to user specifications
•
Earcup microphones pick-up warning signals and
prevent “wearer isolation”
•
Removable and rechargeable battery pack included
or uses 2 “AA” batteries
•
Noise canceling boom microphone
•
Programmable hands-free voice activated PTT
•
Attenuation test data conform to OSHA requirements
•
MUST BE PROGRAMMED. Some frequencies require
FCC or Industry Canada license.
Stop complicating communications. Simplify them
with the PowerCom Plus II Radio Headset from Peltor.
For more information on the smarter way in two-way
visit www.powercomplusoffer.com, call 1-800-225-9038 or
e-mail peltor_communications@aearo.com
ADVANTAGES:
Model Freq
MT53H7A4720
Headband model
MT53H7B4720
Neckband model
MT53H7P3E4720
Hardhat mount model
FL6CS
FL6CT
TK56
M995
FL5503
MT90-01
OCTAVE BAND ATTENUATION DATA (dB) - ANSI S3.19 TEST DATA
CSA
Class:
NRR
B
25 dB
A
25 dB
A
24 dB
Cell phone cable, 2.5 mm mini stereo plug
Receive only patch cord for entertainment devices, 3.5mm stereo plug
Remote ring finger Push-to-talk button, 48" straight cable (shown below)
Boom microphone wind sock
Remote lapel PTT, 12" straight cable
Throat microphone
Mean
sd
Mean
sd
Mean
sd
ACCESSORIES
125
18.6
4.3
19.1
2.6
18.1
3.1
250
23.6
3.1
22.3
2.3
21.7
2.9
500
31.8
2.8
31.7
2.7
31.5
2.8
1000
36.6
2.2
34.7
2.4
35.5
2.7
2000
31.2
2.4
33.5
2.9
30.7
2.7
3150
36.4
3.6
37.9
2.5
36.8
2.7
4000
39.5
2.7
40.8
3.1
39.7
2.5
6300
38.3
3.6
38.8
2.5
38.6
2.1
8000
39.0
2.6
40.4
2.9
39.0
2.8
GENERAL SPECIFICATIONS UHF
Channel Capacity
Weight (Without Batteries)
Battery life LOW power @ 5/5/90 duty cycle 36 hours
using 2 standard high capacity AA batteries
Battery life HI power @ 5/5/90 duty cycle 30 hours
using 2 standard high capacity AA batteries
FCC description To Be Determined
IC description
Approvals/ratings Intrinsically Safe **
TRANSMITTER SPECIFICATION UHF
Frequency range 430-470 MHz
Channel Spacing 12.5/25 kHz
Coded Squelch Settings 83 Digital, 38 analogue
Channel raster 6.25/12.5/25 kHz
Freq stability +/- 2ppm
Power 10 mW/20 mW/200 mW
Modulation Limiting 12.5 kHz +/- 2.5 kHz
Modulation Limiting 25 kHz +/- 5 kHz
FM Hum & Noise 12.5 kHz -34 dB
FM Hum & Noise 25 kHz -40 dB
Radiated emissions <1 GHz < 0.25 uW
Radiated emissions, 1-4 GHz < 1 uW
Adjacent channel power, 12.5 kHz -60 dBc
Adjacent channel power, 25 kHz -70 dBc
Audio response 300-3000 Hz +/- 2 dB
Audio Distortion 3%
FM Modulation 16K0F3E, 8K50F3E
RECEIVER SPECIFICATION UHF
Frequency range 430-470 MHz
Channel Spacing 12.5/25 kHz
Coded Squelch Settings 83 Digital, 38 analogue
Channel raster 6.25/12.5/25 kHz
Freq stability +/- 1ppm
Sensitivity (12 dB SINAD) -122 dBm typical
Intermodulation 70 dB
Adjacent channel selectivity 12.5 kHz 60 dB
Adjacent channel selectivity 25 kHz 70 dB
Spurious rejection 70 dB
Rated audio 10 mW
Audio distortion 3%
Hum and noise 12.5 kHz -35 dB
Hum and noise 25 kHz -35 dB
Radiated spurious emission <1 GHz < 2 nW
Radiated spurious emission 1-4 GHz < 20 nW
INTR
INSICALLY SAFE APPROVALS
**Factory Mutual (FM) Class I Groups C & D; Class II, Groups, E, F & G; Class III,
Canadian Standards Association (CSA) Class I Groups A, B, C & D; Class II, Group G; Class II
30 Channels
14 oz/400 g
To Be Determined
