pellenc FIXION 2 User Manual

Download

Page 1

Quartier Notre-Dame

84120 Pertuis (FRANCE)

Tél : +33 (0)4 90 09 47 00

Fax : +33 (0)4 90 09 64 09

www.pellenc.com

29_133084_B 05/2018

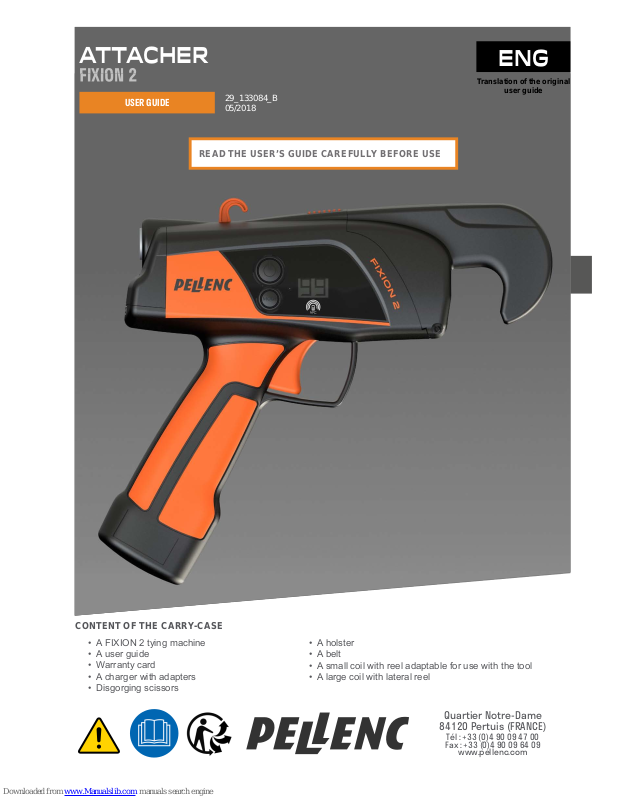

USER GUIDE

ATTACHER

Translation of the original

user guide

ENG

READ THE USER’S GUIDE CAREFULLY BEFORE USE

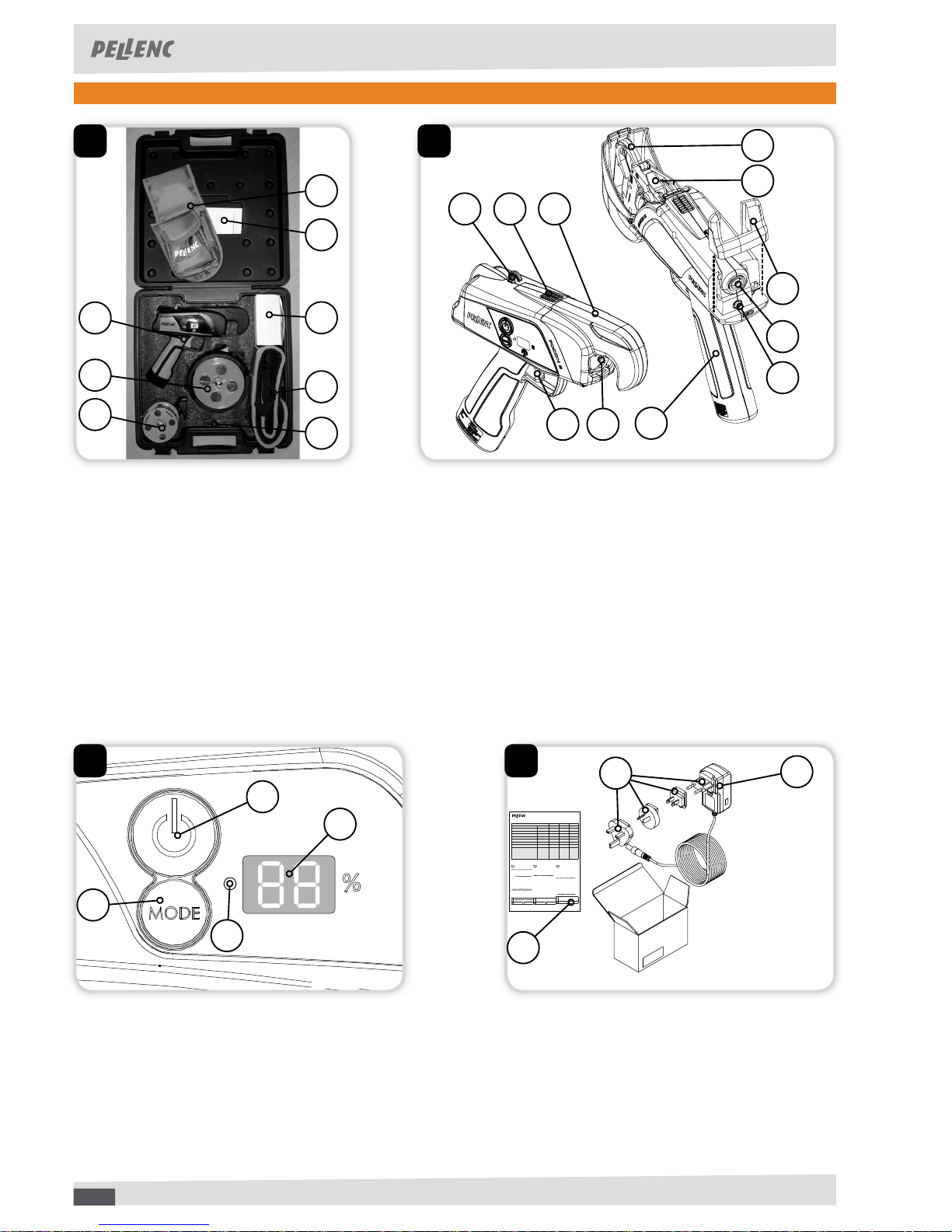

CONTENT OF THE CARRY-CASE

• A FIXION 2 tying machine

• A user guide

• Warranty card

• A charger with adapters

• Disgorging scissors

• A holster

• A belt

• A small coil with reel adaptable for use with the tool

• A large coil with lateral reel

Page 2

Page 3

USER GUIDE Fixion 2

29_133084_B

TABLE OF CONTENTS

SAFETY INSTRUCTIONS .....................................................................4

INTRODUCTION ........................................................................................ 4

GENERAL SAFETY INSTRUCTIONS FOR THE TOOL .............................................................. 5

DESCRIPTION AND TECHNICAL CHARACTERISTICS ...............................................8

TECHNICAL PROPERTIES ................................................................................. 9

PREPARATION BEFORE FIRST USE OF THE TOOL ...............................................10

SETTING UP BELT AND HOLSTER ..........................................................................10

PUTTING LATERAL DISPENSER FITTED WITH THE LARGE COIL ONTO THE BELT. ......................................10

PUTTING ADAPTABLE DISPENSER FITTED WITH THE SMALL COIL ONTO THE TYING MACHINE. ..........................11

FIRST USE OF THE TOOL ................................................................... 12

TYING MACHINE ON/OFF ................................................................................12

ADJUSTING THE TIGHTNESS OF THE TIE ....................................................................12

END OF COIL .........................................................................................12

RELOAD THE LARGE COIL ...............................................................................14

RELOAD THE SMALL COIL ............................................................................... 15

INSERT THE CORD INTO THE TYING MACHINE ...............................................................16

USE ................................................................................................17

CHARGING THE TOOL .....................................................................19

(INSTRUCTIONS BEFORE CHARGING BUILT-IN BATTERY) .......................................................19

THE DISPLAY SHOWING REMAINING BUILT-IN BATTERY CAPACITY ...............................................19

CHARGING THE BUILT-IN BATTERY ........................................................................19

MAINTENANCE .......................................................................... 22

CHARGER ............................................................................................22

BUILT-IN BATTERY .....................................................................................22

MISC. MAINTENANCE ..................................................................................22

BUILT-IN BATTERY REPLACEMENT .........................................................................23

WHEN NOT IN USE .....................................................................................23

INCIDENTS .............................................................................24

SUMMARY OF CHARGE INDICATOR AND BEEP MESSAGES ......................................................24

PELLENC WARRANTY AND AFTER SALES SERVICE .............................................. 25

"EC" STATEMENT OF COMPLIANCE ......................................................... 26

Page 4

USER GUIDE Fixion 2

29_133084_B

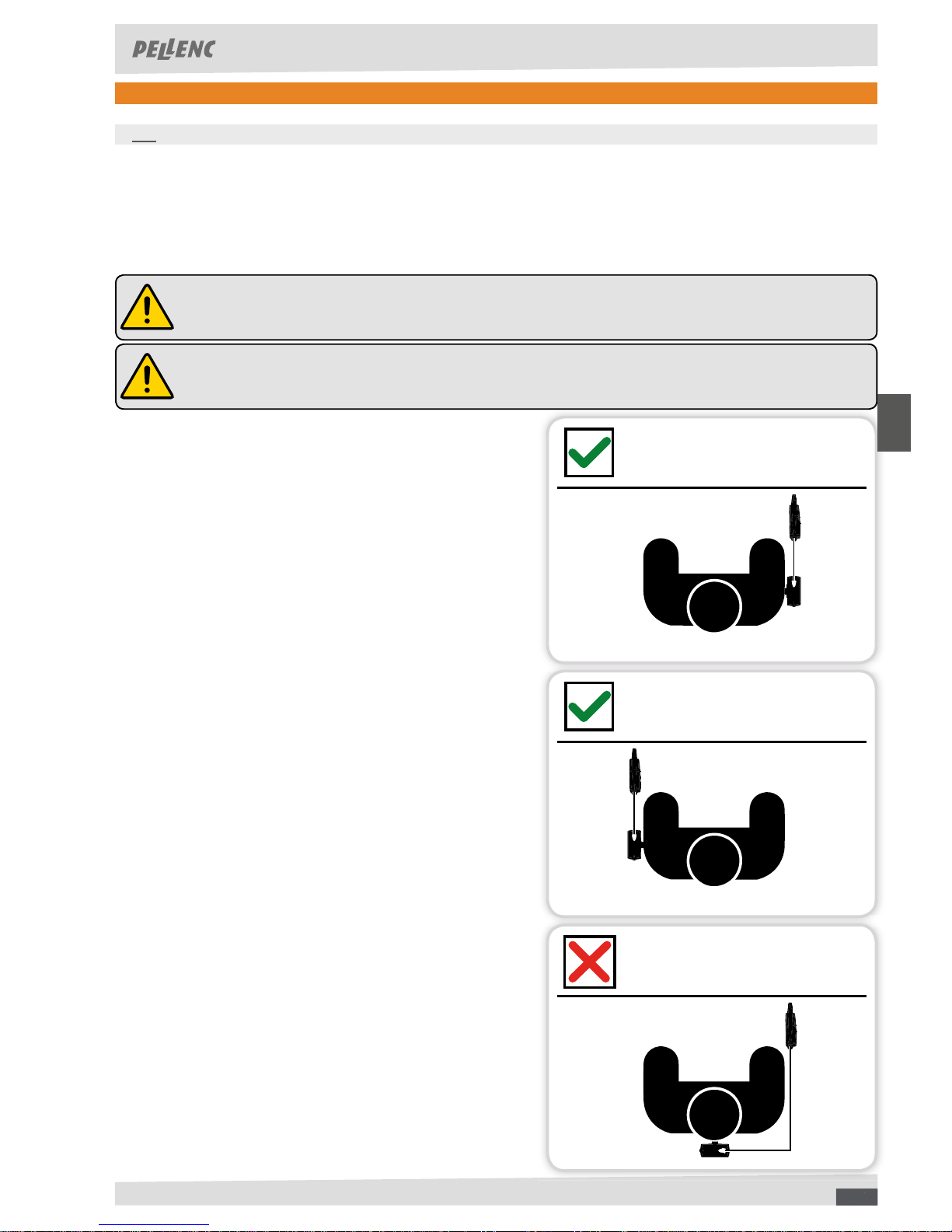

ʚ INTRODUCTION

■ SAFETY INSTRUCTIONS

Dear Customer,

Thank you for buying the Pellenc FIXION 2 attacher. Correctly used and maintained, this tool will give a satisfactory

performance for years to come.

ENVIRONMENTAL PROTECTION Your equipment comprises numerous materials which can be valorised or recycled. Entrust these to your reseller or to an approved service centre so that they can be processed.

Comply with the regulations in force in your country as concerns environmental protection associated with your activity.

All through this user guide you will nd advisory notes and information entitled: REMARK, CAUTION / WARNING.

A REMARK provides additional information, claries a point or explains a step to be followed in detail.

The CAUTION and WARNING advisories are used to dene a procedure which, if neglected or incorrectly performed,

may lead to serious damage to the equipment and/or personal injury.

This advisory: G indicates that if the procedures or instructions are not complied with, any damage will not be covered by the warranty and the owner will be responsible for the repair costs.

Safety indications are also given on the tool; they remind you of the safety precautions to be taken. Identify and read these indications before using the tool. Immediately replace any indications that may become partially illegible or deteriorated.

Refer to the «SAFETY INDICATIONS» heading in order to identify the location of the safety indications on the tool.

No part of this manual may be reproduced without the written consent of PELLENC. The illustrations given in this manual are for information purposes and are in no way contractual. PELLENC reserves the right to make any

modication or improvement to its products as deemed necessary without informing customers already in possession

of a similar model. This manual forms an integral part of the tool and must accompany the tool if it changes hands.

CAUTION You must read the whole of this user guide before using the tool or before carrying out servicing operations. Comply scrupulously with the instructions and illustrations given in this document.

Page 5

USER GUIDE Fixion 2

29_133084_B

WORK AREA SAFETY

a) Keep the work area clean and well lit. Cluttered or dark areas invite accidents. b) Do not operate power tools in an explosive atmosphere, for example in the presence of ammable

liquids, gases, or dust. Power tools create sparks, which can ignite dust or fumes. c) Keep children and bystanders away while operating the power tool. Distractions can cause you to lose

control of the tool.

■ SAFETY INSTRUCTIONS

ELECTRICAL SAFETY

a) The power tool connector must be adapted to the socket. Never modify the connector in any way whatsoever. Do not use adapter plugs with earthed (grounded) power tools. Unmodied plugs and suitable sockets reduce

the risk of electric shock.

b) Avoid contact with earthed surfaces such as pipes, radiators, cookers, and refrigerators. There is an

increased risk of electric shock if your body is in direct contact with the ground. c) Do not expose power tools to rain or damp conditions. The entry of water into a power tool increases the

risk of electric shock.

d) Do not mishandle the power cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges, and moving parts. Damaged or entangled cords increase the risk

of electric shock.

e) Use an extension cord suitable for outdoor use when operating power tools outdoors. Use a cord

suitable for outdoor to reduce the risk of electric shock.

f) Use a power supply protected by a residual current device (RCD) when the power tool is operated in a damp location. Use of a RCD reduces the risk of electric shock.

NOTE: The term “Residual Current Device” (RCD) can be replaced by “Ground Fault Circuit Interrupter” (GFCI) or “Earth Leakage Circuit Breaker” (ELCB).

ʚ GENERAL SAFETY INSTRUCTIONS FOR THE TOOL

CAUTION Read all the safety measures, instructions,

illustrations and specications provided with this power tool. Failure to comply with the following instructions risks causing electric shock, re and/or serious injury.

RETAIN ALL THE SAFETY MEASURES AND INSTRUCTIONS FOR LATER READING.

The term “power tool” in the safety instructions refers to your mains-powered tool (with power cable) or your battery-powered tool (without power cable).

Page 6

USER GUIDE Fixion 2

29_133084_B

PERSONAL SAFETY

a) Stay alert, watch what you are doing, and use common sense when operating the power tool. Do not use a

power tool when you are tired or under the inuence of drugs, alcohol, or medication. A moment of inattention when using a power tool can result in serious personal injury.

b) Use personal protective equipment. Always wear eye protection. Safety equipment such as dust masks, non-slip safety shoes, helmets, or ear protection used at the appropriate times reduces injuries.

c) Avoid accidental starting of the tool. Make sure the switch is in the off position before you connect the tool to the power source and/or battery pack, pick it up, or carry it. Carrying a power tool with your nger on

the switch or connecting a power tool with the switch in the ‘on’ position can cause accidents. d) Remove any adjusting wrench before switching the electric tool on. A wrench left attached to a rotating

part can cause injury. e) Do not rush. Keep proper footing and balance at all times. This provides better control of the power tool in

unexpected situations.

f) Dress appropriately . Do not wear loose clothing or jewellery. Keep hair and clothing away from moving parts. Loose clothing, jewellery or long hair can get caught in moving parts.

g) If devices are provided for connecting dust extraction and collection equipment, ensure that these are connected and properly used. Use dust collectors to reduce the risk caused by dust.

h) Be vigilant and do not neglect the safety principles of the tool under the pretext that you are used to using it. A split second of inattention can lead to serious injury.

USE AND CARE OF THE POWER TOOL

a) Do not force the power tool. Use the power tool suited for the job. The adapted power tool does the work better

and more safely at the speed it was built to operate at.

b) Do not use the power tool if the switch does not allow it to be switched on and off. Power tools that

cannot be controlled by a switch are dangerous and must be repaired.

c) Unplug the tool from the socket or remove the battery (if possible) before any adjustment, change of accessory or storage. These preventive safety measures reduce the risk of accidentally starting the power tool.

d) When not in use, keep power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate it. Power tools are dangerous when operated by inexperienced

users.

e) Maintenance of the power tool and its accessories is mandatory. Check that the moving parts are not out of alignment or jammed, that there are no broken parts or that there is no other condition which could affect the operation of the power tool. If damaged, repair the power tool before using it. Many accidents are

due to poorly maintained power tools.

f) Keep the cutting elements sharp and clean. Properly maintained cutting tools with sharp cutting elements are less likely to jam and are easier to control.

g) Use the power tool, accessories, blades, etc. in accordance with these instructions, taking into account the working conditions and the work to be done. Using the power tool for operations other than those specied

can result in hazardous situations.

h) Keep the handles and gripping surfaces must dry , clean and free of oil and grease. Slippery handles and gripping surfaces make it impossible to safely handle and control the tool in unexpected situations.

■ SAFETY INSTRUCTIONS

Page 7

USER GUIDE Fixion 2

29_133084_B

■ SAFETY INSTRUCTIONS

USING BATTERY-OPERATED TOOLS AND SAFETY PRECAUTIONS.

a) Recharge only with the charger specied by the manufacturer. A charger suitable for a specic battery pack may create a re hazard when used with another type of battery pack.

b) Only use the tools with specically designated battery packs. Use of any other battery pack may create a risk of injury and re.

c) When a battery pack is not being used, store it away from metal objects such as paper clips, coins, keys, nails, screws and other small items that can create a connection between the terminals. A short-circuit

between the battery terminals may cause burns or re.

d) If in bad condition, a liquid may be ejected from the battery; avoid all contact. In the event of accidental contact, clean with water. If the liquid gets into your eyes, seek medical help. The liquid ejected from the

batteries can cause irritation and burns.

e) Do not use a battery pack or battery-operated tool that is damaged or modied. Damaged or modied batteries can have unpredictable behaviour causing re, explosion or risk of injury.

f) Do not expose a battery pack or battery-operated tool to re or excessive temperatures. Exposure to re or a temperature above 130° C (265° F) may cause an explosion.

g) Follow all charging instructions and do not charge the battery pack or battery-powered tool outside

the temperature range specied in the instructions. Incorrect charging or charging at temperatures outside the specied temperature range may damage the battery and increase the risk of re.

MAINTENANCE

a) Have the power tool serviced by a qualied technician, using only identical spare parts. This ensures the

continued safety of the power tool. b) Never carry out maintenance work on damaged battery packs. Batteries should only be serviced by the

manufacturer or authorised service providers.

END OF LIFE MANAGEMENT OF THE TOOL

a) When the tool reaches the end of its useful life, PELLENC provides an information sheet for equipment end of life. This information sheet provides instructions for the safe withdrawal of the components from service.

Page 8

DOC_29_17_004A

DOC_29_18_005A

12 13

1819

138206-A

Route de Cavaillon CS10047 - 84122 PERTUIS CEDEX (FRANCE) Tél/電話 : (33) 04 90 09 47 00 - Fax/ファックス : (33) 04 90 09 64 09

e-mail/E－メール : [email protected]

www.pellenc.com

Notice d'instruction

Avertissement de sécurité

Cet appareil n’est pas prévu pour être utilisé par des personnes (y compris les enfants), dont les capacités physiques, sensorielles ou mentales sont réduites, ou des personnes dénuées

, par l’intermédiaire d’une personne responsable de leur sécurité, d’une surveillance ou d’instructions préalables.

Mesures de sécurité 1– Ce chargeur doit être utilisé à l’intérieur, dans un endroit sec, à

l’écart d’une source de chaleur (>+5 °C < 45 °C) et du soleil direct et sur un support non combustible. 2– Pendant son fonctionnement, la température de l’appareil peut atteindre 60 moins de 1,5 mètre de l’appareil et de la batterie. 3– Ne pas introduire dans l’appareil d’objets métalliques tels que trombones, pièces, clés, clous, vis ou autres petits objets métalliques pouvant créer un court-circuit entre ses composants.

4– Ne pas gêner son refroidissement. 5– Ne pas exposer l’appareil aux micro-ondes et hautes pressions. 6– Ne pas immerger l’appareil dans l’eau. 7– L’appareil doit être protégé de tout choc et doit être positionné et

calé pendant les phases de transport. 8– En cas de fumée suspecte, mettre l’appareil à l’extérieur du local ou du véhicule, le plus loin possible de toute matière combustible. 9– Si le cordon de sortie est coupé ou endommagé, ramener l’appareil complet au distributeur agréé auprès duquel il a été acheté.

10– Ce chargeur charge uniquement la batterie du Fixion 2 11–

réglementation sur les déchets.

12– Boîtier fragile contenant des dispositifs électroniques.

Signaux de sécurité

PROTECTION DE L’ENVIRONNEMENT

Votre appareil contient de nombreux matériaux valorisables dans un centre service agréé pour que son traitement soit effectué. Lire le manuel d'utilisation.

Pour utilisation intérieure uniquement.

FRE

FRE - ENG - GER - SPA - ITA - POR - DUT - FIN - DAN - GRE - HUN - NOR - POL - SLO - SWE - CZE - TUR KOR

JAPAN AUSTRALIA / NEW ZEALAND USA

Réf. constructeur / Manufacturer ref. / Art.-Nr. Hersteller / Ref. constructor / Rif. costruttore / 제조업체 조회 번호:

CB1205

製造者品番 : CB1205

CB1205 CB1205

Réf. Pellenc / Pellenc ref. / Art.-Nr. Pellenc / Ref. Pellenc / Rif. Pellenc / Pellenc 조회 번호 133140

ペランク品番 : 133140

133140 133140

Puissance / Power / Leistung / Potencia / Potenza / 전력 6.3 W

電力 : 6.3 W

6.3 W 6.3 W

Tension d'alimentation nominale / Rated supply voltage / Nennspannung / Tensión de alimentación nominal / Tensione di alimentazione nominale / 정격 공급 전압

100 - 240 VAC 50/60 Hz

名目入力電源 : 100 - 240 VAC 50/60 Hz

100 - 240 VAC 50/60 Hz 100 - 240 VAC 50/60 Hz

Courant d’alimentation maxi / Supply current / Stromstärke / Corriente de alimentación / Corrente di alimentazione / 최대 공급 전류

0.15 A 入力電流 : 0,15 A

0.15 A 0.15 A

Tension de sortie maxi / Max output voltage / Max. Ausgangsspannung / Tensión de salida máxima / Tensione di uscita max / 최대 출력 전압

12.6 VDC 最大出力電圧 : 12.6 VDC

12.6 VDC 12.6 VDC

Courant de sortie / Output current / Ausgangsstrom / Corriente de salida / Corrente di uscita / 출력 전류

0.5 A ± 5 % 出力電流 : 0.5 A ± 5 %

0.5 A ± 5 % 0.5 A ± 5 %

Compatibilité batterie / Battery compatibility / Batteriekompatibilität / Compatibilidad batería / Compatibilità batteria / 배터리 호환성

Fixion 2

適合バッテリー : Fixion 2

Fixion 2 Fixion 2

Conformité / Compliance / Übereinstimmung mit Normen / Conformidad / Conformità /

규정 준수

EN60950-1 :2006+A11 :2009+A1 :2010+A12 :2011+A2 :2013 EN55032 :2015 EN61000-3-2 :2014 EN61000-3-3 :2013 EN55024 :2010+A1 :2015 K60950-1 (2011-12)

J61558-1(H26) J61558-2-16(H26) J55014-1(H20)

AS/NZS61558-1 :2008+A1 AS/NZS61558-2-16 :2010+A1+A2+A3

E479180

Operating instructions

Safety warning

This device is not intended for use by anyone (including children) with reduced physical, sensory or mental capabilities, nor by anyone lacking in experience or knowledge, except if they are supervised or have received prior instructions from a person responsible for their safety.

Safety measures 1– This charger must be used indoors, in a dry place, away from a

heat source (>+5 °C or 41 °F < 45°C or 113°F) and direct sunlight, on a non-combustible support. 2– When in operation, the device's temperature can reach 60°C (4ft 11 1⁄16 in) of the device and battery. 3– Do not introduce any metal objects into the device such as paper clips, coins, keys, nails, screws or other small metal objects likely to short circuit its components.

4– Do not interfere with its cooling cycle. 5– Do not expose the device to microwaves or high pressure. 6– Do not immerse the device in water. 7– The device must be protected against shock and must be well

positioned and secured for transport. 8– In the event of suspicious fumes, place the device outside the premises or vehicle, as far from any combustible material as possible. 9– If the output cord is torn or damaged, bring the entire device back to the authorised distributor it was purchased from.

10– This charger only charges batteries for Fixion 2 11– At the end of its life, the device must be returned to the

authorised distributor it was purchased from to be recycled in compliance with waste regulations.

12– Fragile case, contains electronic devices.

Safety signals

ENVIRONMENTAL PROTECTION

Your device contains numerous recoverable or recyclable materials. Return it to your dealer or, failing this, to an approved servicing centre to be treated.

Read the user guide For indoor use only.

ENG

Gebrauchsanleitung

Warnhinweis

Dieses Gerät ist nicht dazu geeignet, von Personen bedient zu werden (u.a. Kindern), deren physischen, sensorischen oder mentalen Fähigkeiten eingeschränkt sind, sowie Personen ohne Erfahrung oder Kenntnisse, außer sie werden von einer für ihre Sicherheit zuständigen Person überwacht bzw. wurden zuvor von ihr eingewiesen.

Sicherheitsmaßnahmen 1– Das Ladegerät muss in einem trockenen Innenraum in

sicherer Entfernung von Hitzequellen (< 45°C) und vor direkter Sonneneinstrahlung geschützt auf einem nicht brennbaren Untergrund betrieben werden. 2– Während des Betriebs kann das Gerät eine Temperatur von 60°C erreichen. Es dürfen sich keine brennbaren Gegenstände in einem 3– Keine Metallgegenstände in das Gerät stecken, wie z.B. Büroklammern, Münzen, Schlüssel, Nägel, Schrauben oder kleine Metallgegenstände, da diese einen Kurzschluss auslösen können.

4– Die Kühlung nicht behindern. 5– Das Gerät weder Mikrowellen noch einem hohen Druck aussetzen. 6– Das Gerät nicht in Wasser tauchen. 7– Das Gerät muss vor Stößen geschützt sein und bei einem

Transport korrekt gelagert und verkeilt werden. 8– Bei verdächtigem Rauch das Gerät aus dem Raum oder dem Fahrzeug bringen und es so weit wie möglich von brennbaren Gegenständen entfernen. 9– Sollte das Ausgangskabel durchtrennt oder beschädigt sein, das komplette Ladegerät zum Vertragshändler zurückbringen, bei dem es gekauft wurde.

10– 11– Nach abgelaufener Lebensdauer, das Gerät gemäß den

Vorschriften für Abfallrecycling an den Vertragshändler einsenden, bei dem es gekauft wurde.

12–

Sicherheitszeichen

UMWELTSCHUTZ

Ihr Gerät enthält zahlreiche verwertbare bzw. recycelbare

Werkstoffe. Übergeben Sie es Ihrem Vertragshändler

oder einem Kundendienstzentrum zur ordnungsgemäßen

Behandlung.

Benutzerhandbuch lesen

Nur für eine Verwendung in Innenräumen.

GER

DOC_29_17_006A

USER GUIDE Fixion 2

29_133084_B

■ DESCRIPTION AND TECHNICAL CHARACTERISTICS

Complete carry-case 1– Holster 2– User guide and warranty card 3– Charger unit with adapters 4– Belt 5– Disgorging scissors 6– Small coil with reel adaptable for use with

the tool

7– Large coil with lateral reel 8– Fixion 2 tying machine

Fixion 2 tying machine 9– Hanging hook 10– Lock button for detachable dispenser 11– Swivel dispenser 12– Attachment hook 13– Upper guide 14– Guard 15– Inlet for tying cord 16– Charging connector 17– Handle with built-in battery (lithium-ion battery) 18– Twister 19– Operating trigger

Fixion 2 display 20– Tool on/off button 21– Gauge display 22– Power on LED for tool. 23– “MODE” button (1 to 4 twist selector)

Fixion 2 charger 24– Connector adapters 25– Li-lon battery charger 26– Charger manual

Page 9

USER GUIDE Fixion 2

29_133084_B

■ DESCRIPTION AND TECHNICAL CHARACTERISTICS

Noise value measured according to standard EN 62841-1

Acoustic power level measured (uncertainty of K=3 dB)

=81 dB maximum

Level of acoustic pressure measured at the work station (uncertainty of K=3 dB)

=70 dB maximum

Total vibration values (triax vector sum) determined in accordance with EN 62841-1. (Uncertainty K=1.5 m/s²)

ah < 2.5 m/s² maximum

ʚ TECHNICAL PROPERTIES

Max tying capacity 25 mm

Power supply voltage of tying machine 10.9 V

Charger supply voltage see requirement on charger

Average charger power see requirement on charger

Li-lon battery capacity 38 Wh 3.5 Ah

Charging time 8 hrs

Tying machine operating capacity before recharging up to 15,000 ties

Large coil cord length (carried by user) about 200 m/coil

Corresponding no. of ties on large coil around 1500 ties

Small coil cord length (carried on tool) about 60 m/coil

Corresponding no. of ties on small coil around 450 ties

Weight of tying machine alone 800 g.

Weight of tying machine with adaptable reel and small coil 990 g.

Weight of whole assembly worn on belt (lateral reel with large coil) 640 g.

Page 10

DOC_29_18_009A

DOC_29_18_010A

DOC_29_18_011A

USER GUIDE Fixion 2

29_133084_B

■ PREPARATION BEFORE FIRST USE OF THE TOOL

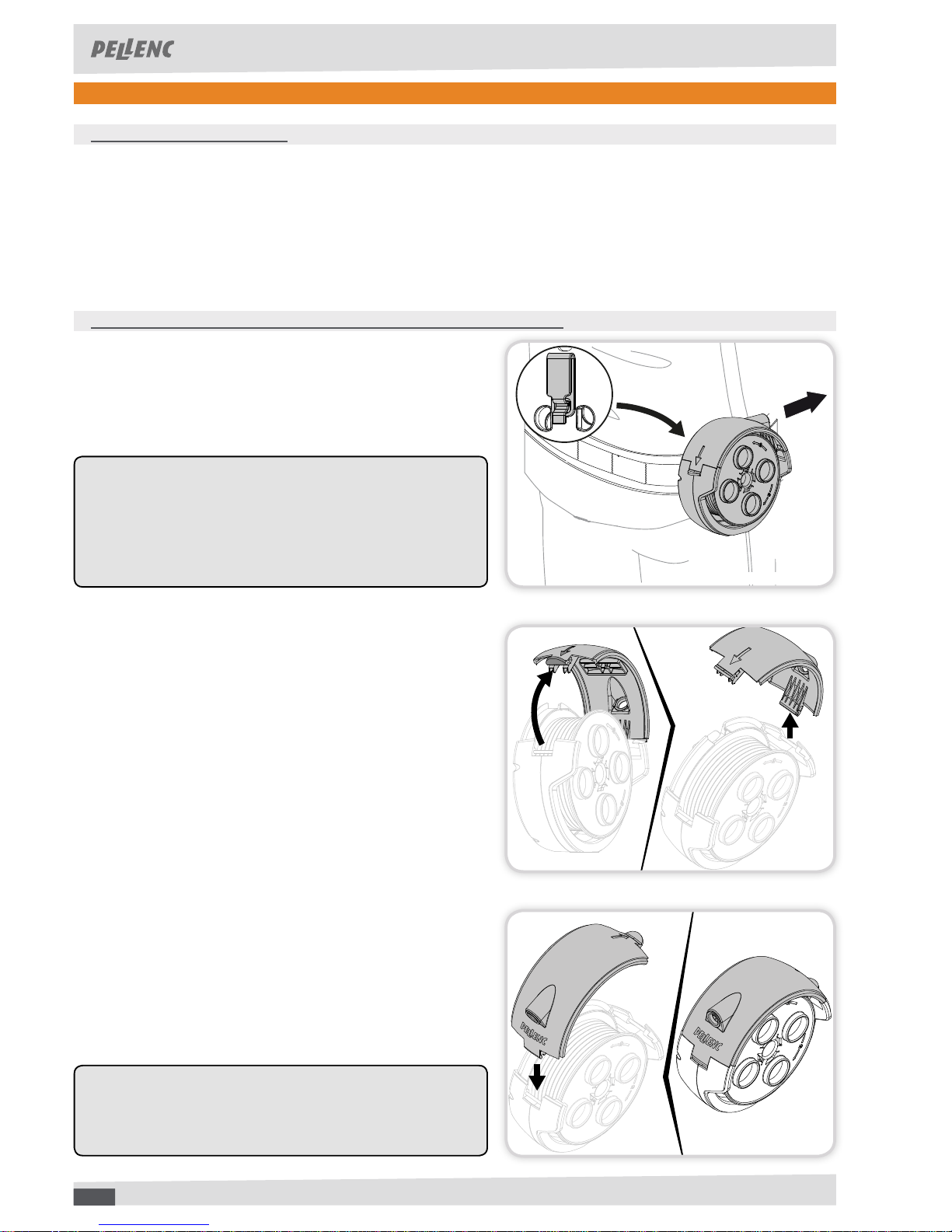

ʚ SETTING UP BELT AND HOLSTER

- Remove the belt (4) from the carry-case.

- Put the holster (1) in place on the belt (4), on the left or right side according to whether you are left or right-handed.

- Place the belt (4) at your back, around your waist.

- Adjust the length of the belt (4) to t you.

- To switch the cover over to the left-handed version:

Open the reel cover. Unclip the cover.

- Clip the reel tted with the large coil onto the belt.

NOTE: The reel cover is placed on the user’s right side by default. This is so that the reel clips are on the right of the belt, with the cord outlet towards the front.

- Reverse the cover and clip it onto the reel.

- Close the cover.

NOTE:

In this conguration, the reel clips are on the left of the

belt, with the cord outlet towards the front.

ʚ PUTTING LATERAL DISPENSER FITTED WITH THE LARGE COIL ONTO THE BELT.

Page 11

DOC_29_17_012A

DOC_29_17_013A

CLIc

USER GUIDE Fixion 2

29_133084_B

■ PREPARATION BEFORE FIRST USE OF THE TOOL

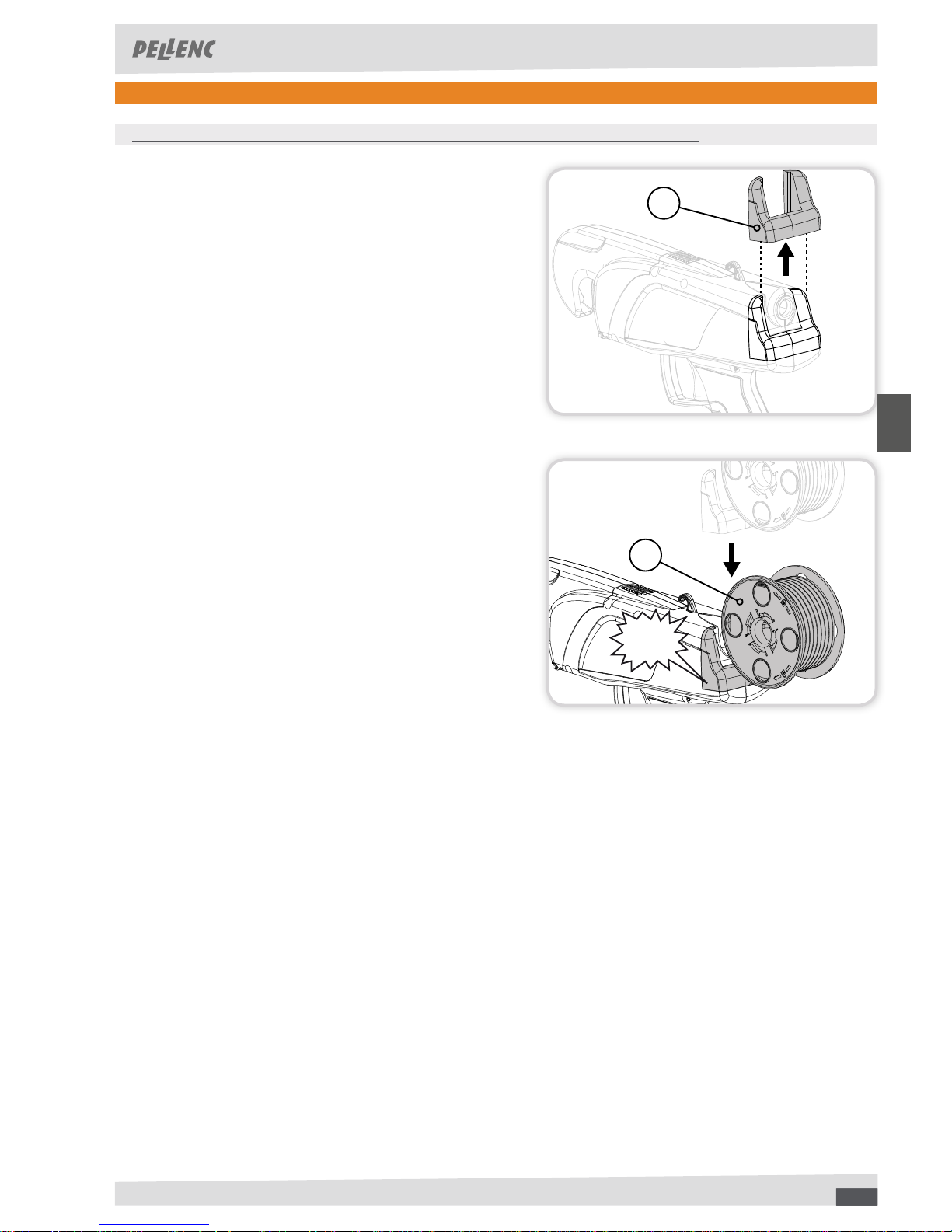

ʚ PUTTING ADAPTABLE DISPENSER FITTED WITH THE SMALL COIL ONTO THE TYING MACHINE.

- Remove the guard (14) on the back of the tying machine.

- Place the guard (14) into the slot reserved inside the carrycase.

- Put the small coil in place with the adaptable dispenser (6) instead of the guard (14).

Page 12

MODE

DOC_29_17_015A

MODE

DOC_29_17_014A

USER GUIDE Fixion 2

29_133084_B

■ FIRST USE OF THE TOOL

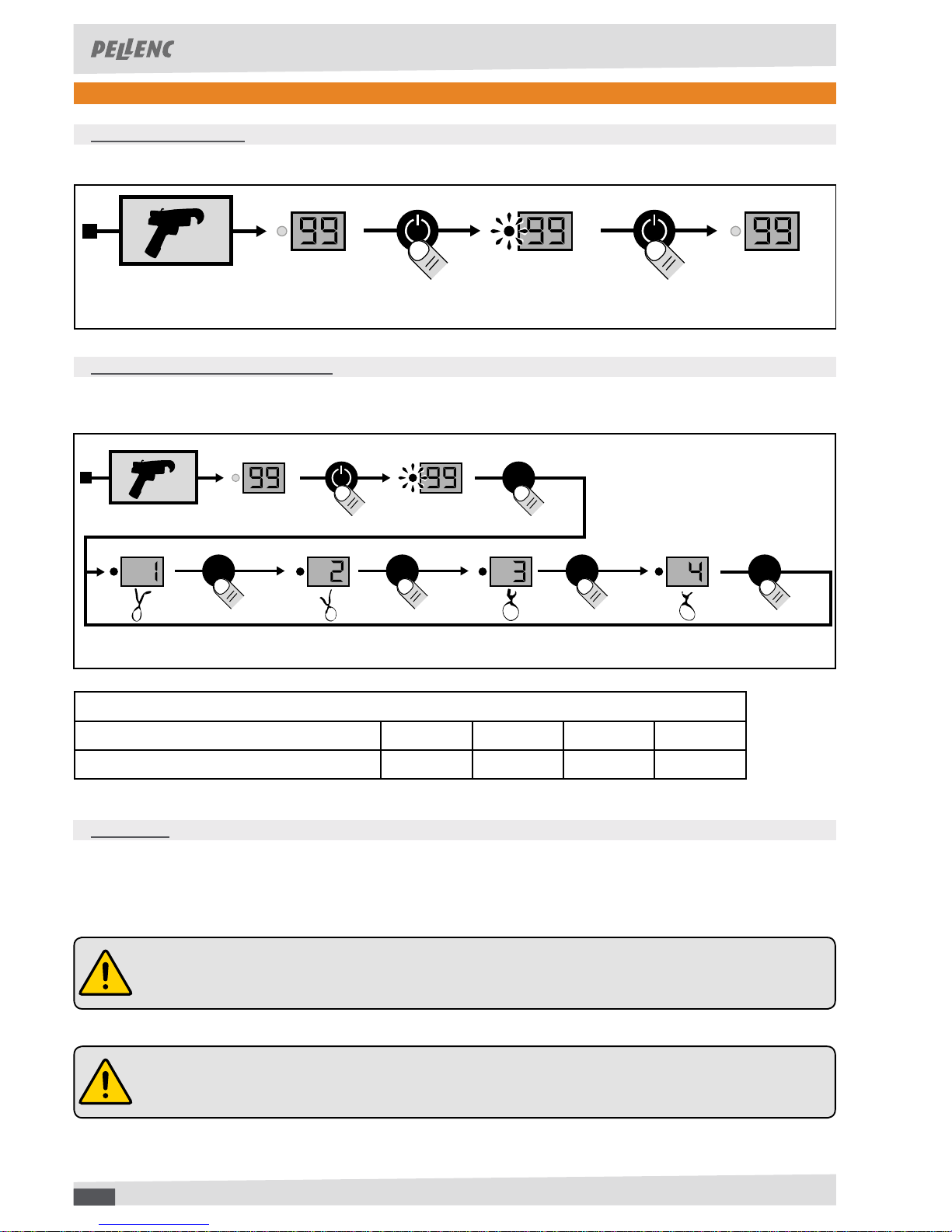

ʚ ADJUSTING THE TIGHTNESS OF THE TIE

ʚ TYING MACHINE ON/OFF

You can adjust the tightness of the tie to suit the type of wood you have to tie in place, by using the MODE button (23).

Before starting work, check the load level of your coil. When the marker for the end of the cord appears (there is no more cord in the coil-holder) and there is only around ten centimetres of cord visible at the back of the tying machine, stop tying.

ʚ END OF COIL

The tying machine is started and stopped with the on/off button (20).

TAKE CARE: DO NOT ALLOW THE TYING MACHINE TO RUN WITHOUT CORD, AS YOU RISK DAMAGING IT.

TAKE CARE: THESE OPERATIONS MUST BE DONE EACH TIME THE COIL IS EMPTIED.

Table of equivalences

“MODE” button 1 2 3 4 Number of twists 3 5 7 8.5

Page 13

DOC_29_17_019A

CLIC

DOC_29_17_020A

CLac

DOC_29_17_021A

DOC_29_17_018A

DOC_29_17_016A

DOC_29_17_017A

USER GUIDE Fixion 2

29_133084_B

■ FIRST USE OF THE TOOL

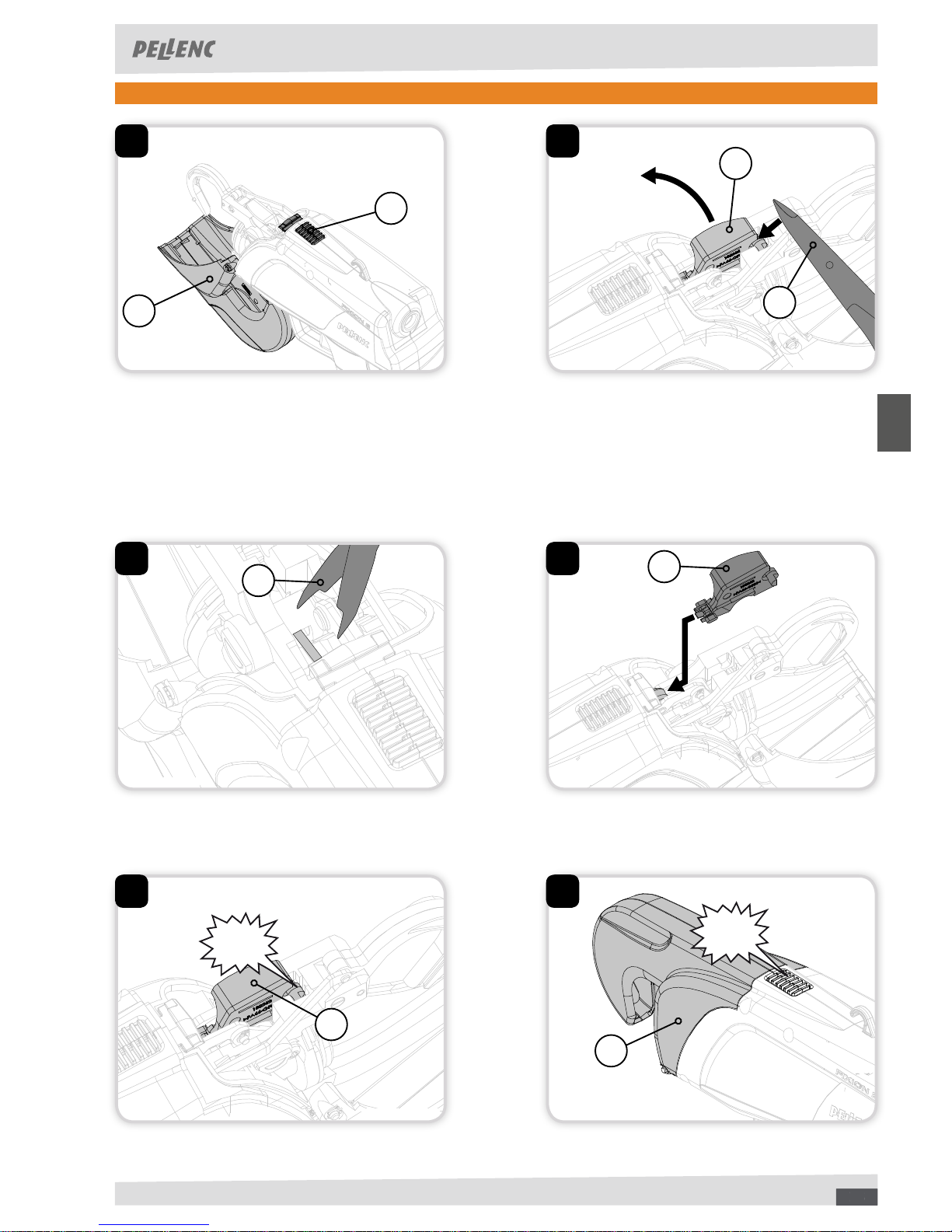

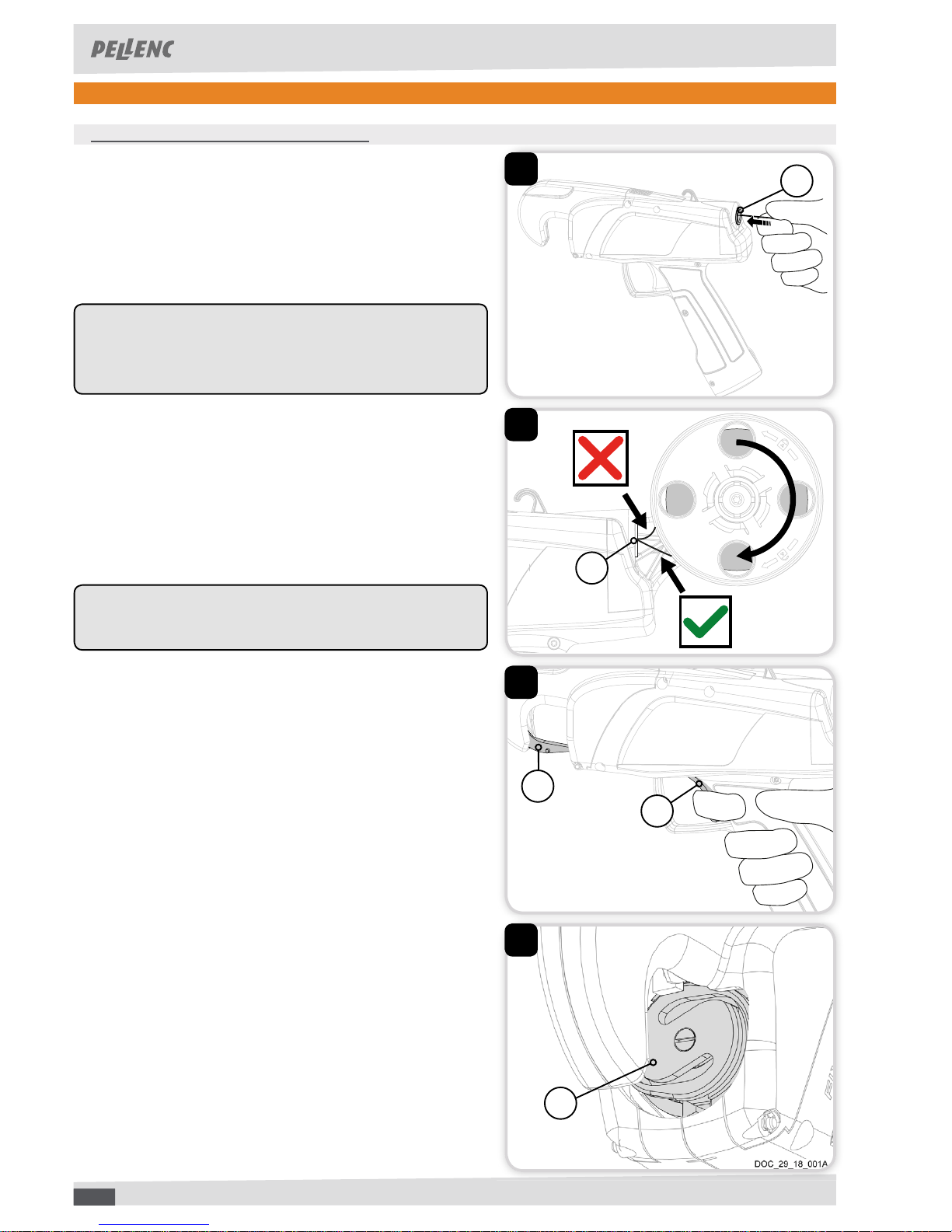

- Turn off the tying machine (on/off button (20), see page 12).

- Extract the remaining cord with the disgorging scissors (5).

- Insert the upper guide (13) to the end stop, under the support roller.

- Clip the upper guide (13) into position.

- Remove the upper guide (13) levering it out with the disgorging scissors (5).

- Close the swivel dispenser (11) again.

- Turn off the tying machine (on/off button (20), see page 12).

- Open the swivel dispenser (11) with the lock/ unlock button (10).

Page 14

DOC_29_18_015A

DOC_29_18_012A

DOC_29_18_013A

CLac

DOC_29_18_014A

USER GUIDE Fixion 2

29_133084_B

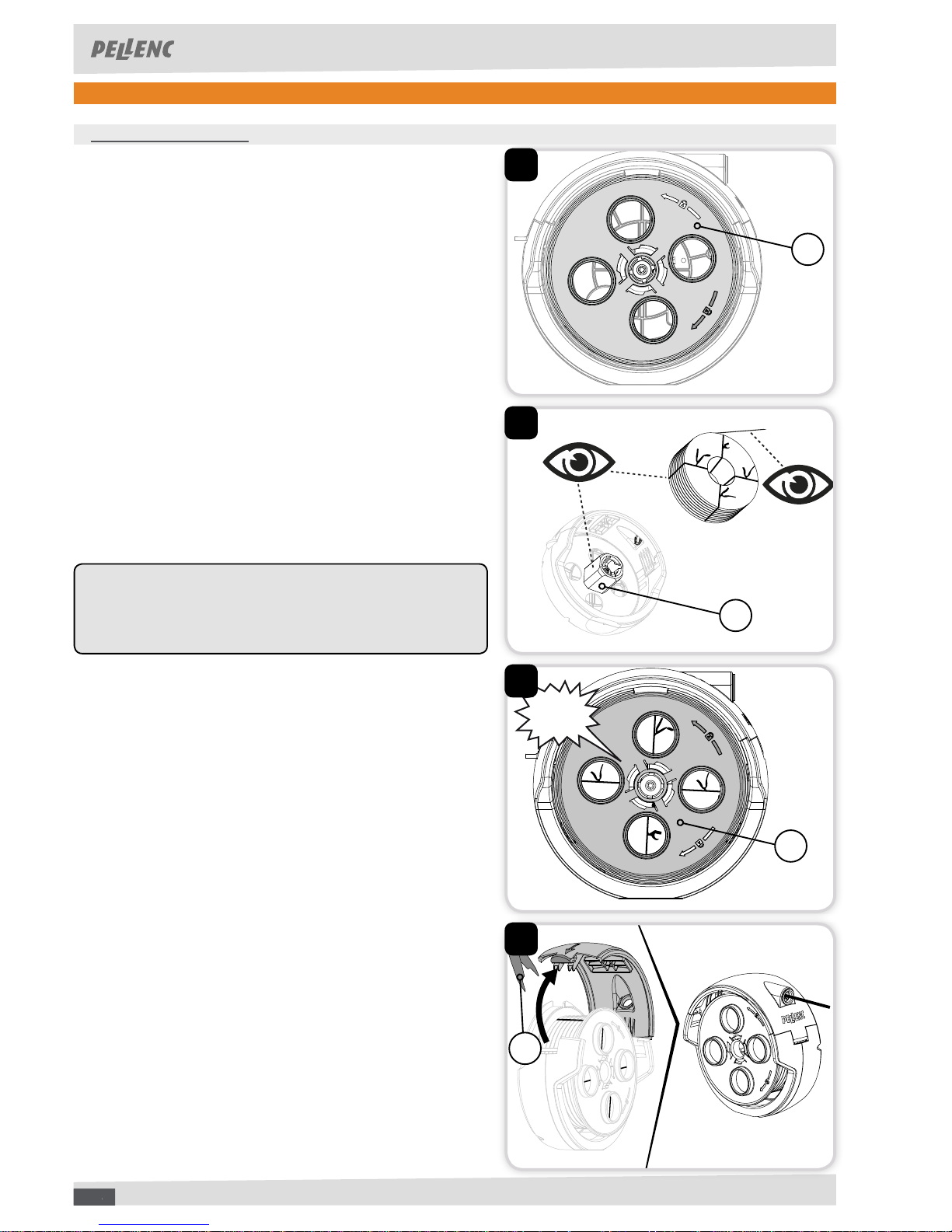

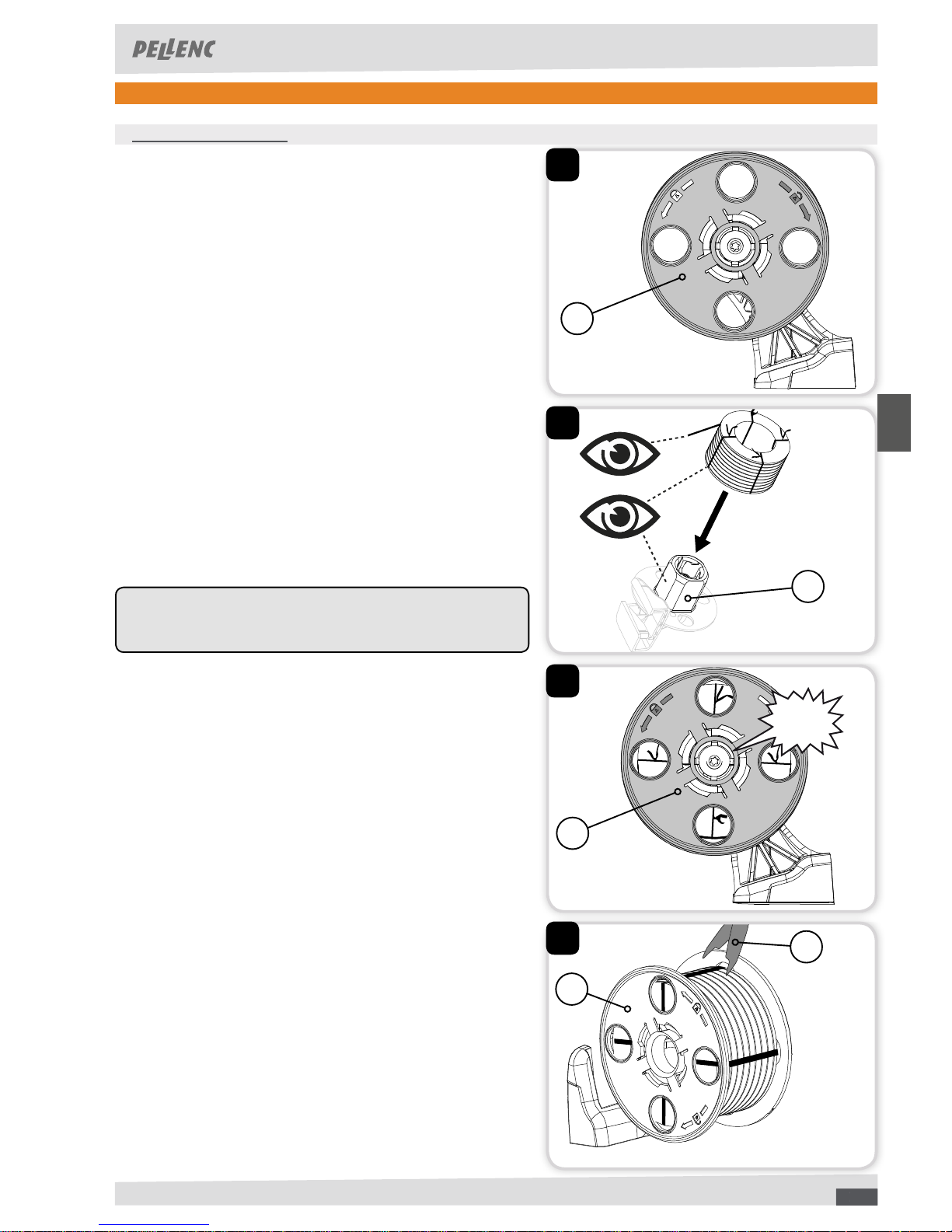

ʚ RELOAD THE LARGE COIL

■ FIRST USE OF THE TOOL

- Block the rear ange and turn the front ange clockwise to

unlock it.

- Remove the front ange from the lateral dispenser (7).

- Put the tie coil in place: Match up the 4 straps with the 4

ats on the hub of the lateral dispenser (7) and make sure

the end of the tie is coming out in the right direction.

- Replace the front ange on the hub of the lateral

dispenser (7).

- Block the rear ange and turn the front ange anti-

clockwise to lock it.

- Open the cover of the reel and pass the cord through the opening.

- Cut and remove the 4 straps with the disgorging scissors (5).

- Close the cover and unwind the cord to the desired length.

NOTE: The coil must unwind clockwise through the outlet opening of the lateral dispenser (7).

Page 15

DOC_29_17_026A

DOC_29_18_019A

DOC_29_18_017A

CLac

DOC_29_18_016A

USER GUIDE Fixion 2

29_133084_B

■ FIRST USE OF THE TOOL

ʚ RELOAD THE SMALL COIL

- Block the rear ange and turn the front ange clockwise to

unlock it.

- Remove the front ange from the adaptable dispenser (6).

- Put the tie coil in place: Match up the 4 straps with the 4

ats on the hub of the adaptable dispenser (6) and make

sure the end of the tie is coming out in the right direction.

- Replace the front ange on the hub of the adaptable

dispenser (6).

- Block the rear ange and turn the front ange anti-

clockwise to lock it.

- Cut and remove the 4 straps with the disgorging scissors (5).

NOTE: The coil must unwind clockwise.

Page 16

DOC_29_18_006A

DOC_29_17_040A

DOC_29_18_020A

USER GUIDE Fixion 2

29_133084_B

ʚ INSERT THE CORD INTO THE TYING MACHINE

■ FIRST USE OF THE TOOL

- Check that no scrap of cord remains trapped in the twister (18), make one empty tie to test it, and remove this tie.

- Start the tying machine going (see page 12).

- Press the trigger (19) (a single press) to push the tie through to the hook (12).

Large coil:

- Insert the tie, at, into the opening (15) of the tying machine until the tie cord reaches the end stop.

A² Small coil:

- Insert the tie, at, into the opening (15) of the tying machine until the tie cord reaches the end stop.

- Make sure the tie is inserted from below and not from above.

NOTE: The coil must unwind clockwise through the outlet opening of the lateral dispenser (7).

NOTE: The coil must unwind clockwise.

Page 17

DOC_29_17_043A

DOC_29_17_044A

DOC_29_17_045A

USER GUIDE Fixion 2

29_133084_B

■ FIRST USE OF THE TOOL

ʚ USE

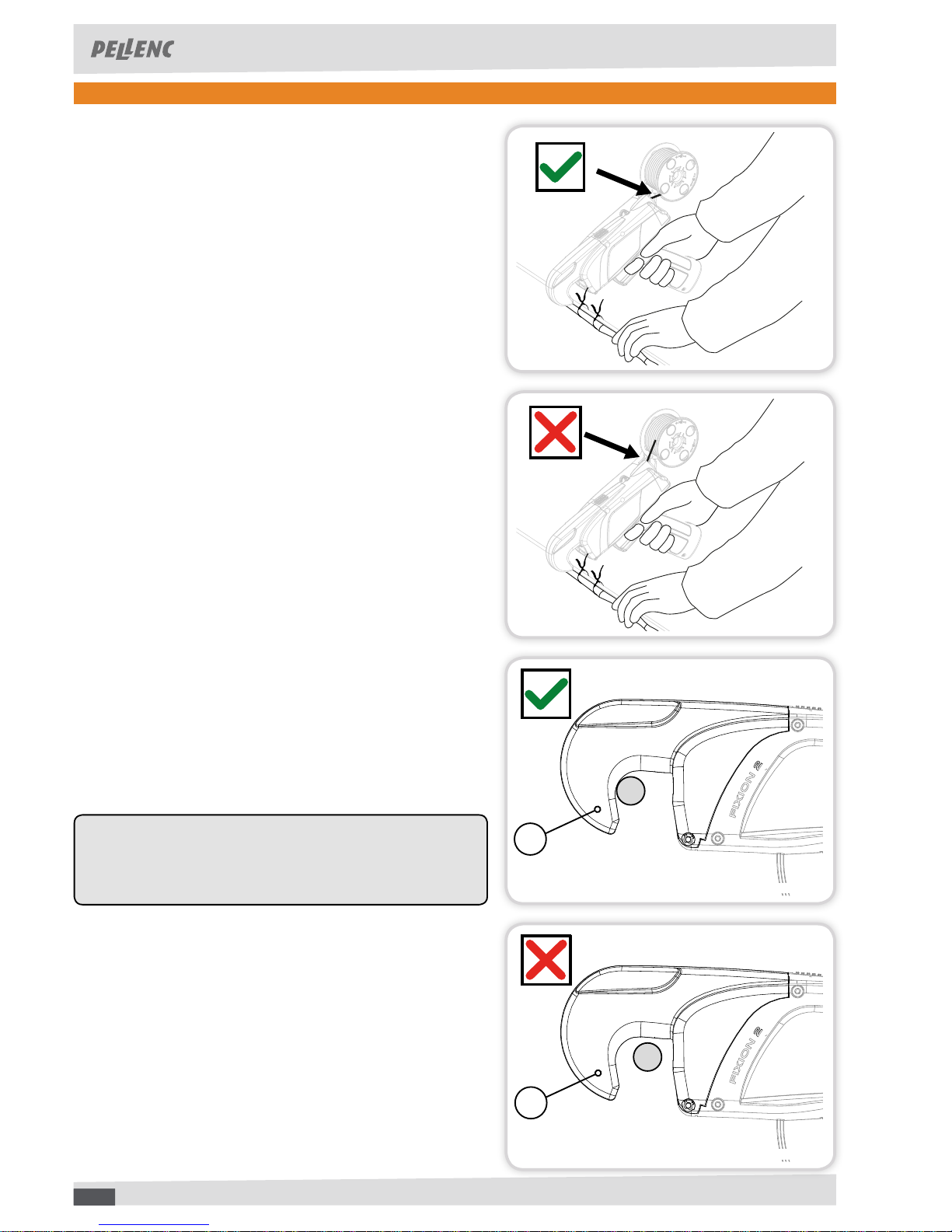

- Correct position when using the large coil (view from above, with a right-handed user).

TAKE CARE: THE CORD MUST NOT BE HELD AT THE TYING MACHINE INTAKE.

TAKE CARE: AVOID ANY MALFUNCTION BY MAKING SURE THE CORD IS NOT BENT AT THE TYING MACHINE INTAKE OPENING.

It takes a few hours handling to become familiar with the tying machine. The tying process is not automatic. To ensure your tool is working properly, and you are comfortable with it, always comply with the following conditions:

- When you use the large coil, keep the assemblies properly aligned: Reel / cord / tying machine

- When you use the small coil, check that the tie has been properly inserted into the intake opening of the tying machine.

- Correct position when using the large coil (view from above, with a left-handed user).

- Incorrect position when using the large coil (view from above, with a user carrying the reel on the back).

Page 18

DOC_29_17_046A

DOC_29_17_047A

DOC_29_18_003A

DOC_29_18_002A

USER GUIDE Fixion 2

29_133084_B

- Correct position of the cord when using the small coil.

■ FIRST USE OF THE TOOL

- Incorrect position of the cord when using the small coil.

- Correct position of wood in the tying machine.

- Incorrect position of wood in the tying machine.

NOTE: The wood must be positioned against the swivel dispenser (11) so the twister (18) can attach the tie correctly on the metal wire.

Page 19

°C

T > 25°C T < 10°C 10 > T > 25°C

DOC_29_17_029A

DOC_29_17_041A

USER GUIDE Fixion 2

29_133084_B

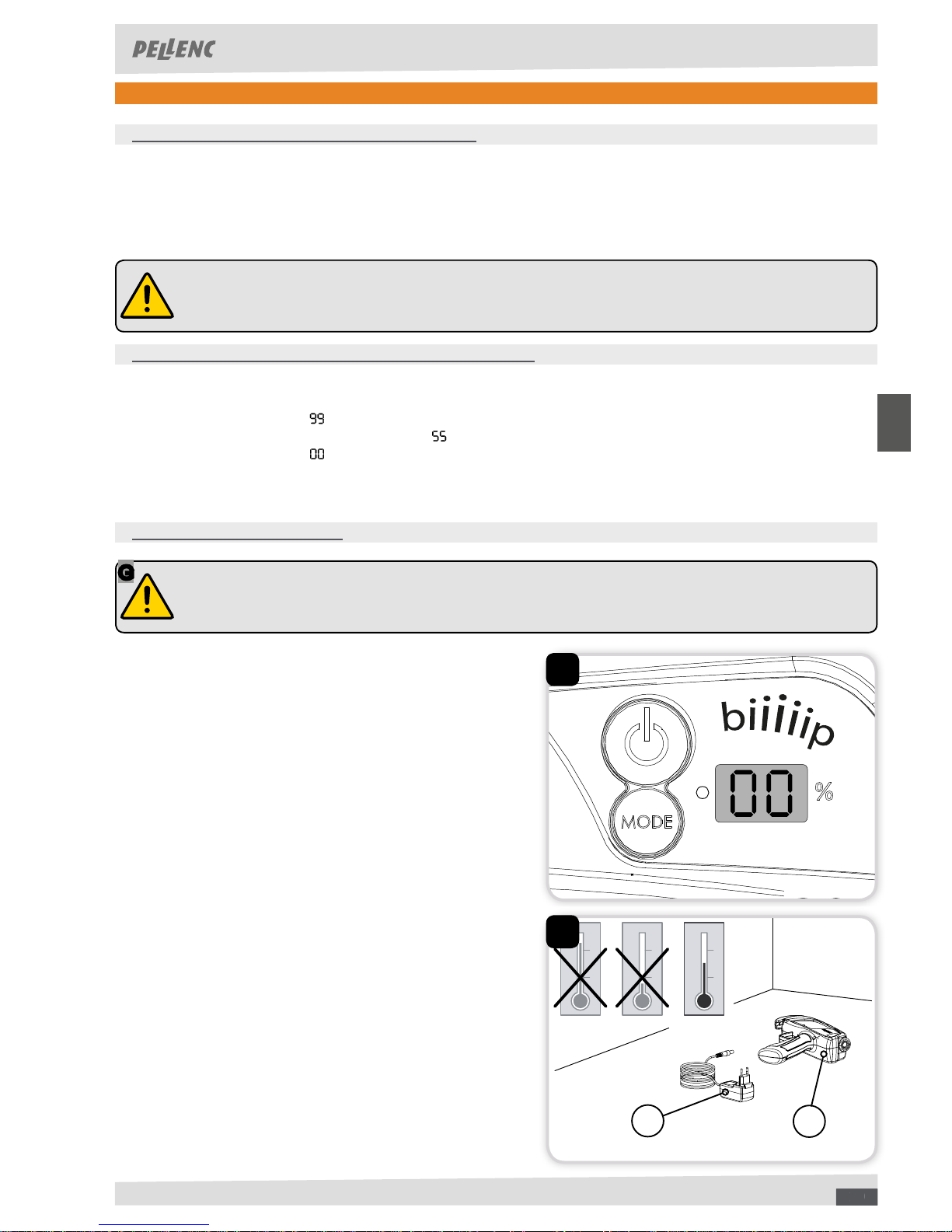

- Place the charger (25) and tying machine (8) in a dry, ventilated and dust-free room at 10-25°C.

■ CHARGING THE TOOL

- When the battery is discharged, the tool stops automatically. The gauge display is off and the buzzer

beeps (see "MESSAGES TABLE" page 24).

TAKE CARE: BEFORE USING THE BATTERY FOR THE FIRST TIME AT THE START OF A NEW SEASON, IT MUST BE FULLY CHARGED (99% STEADY).

- Only the battery supplied with the charger must be used. Failing to comply with this instruction leads to premature deterioration of the battery, and increases the risk of physical injury.

- Pellenc declines all responsibility if the charger is used for an application other than that specied.

ʚ (INSTRUCTIONS BEFORE CHARGING BUILT-IN BATTERY)

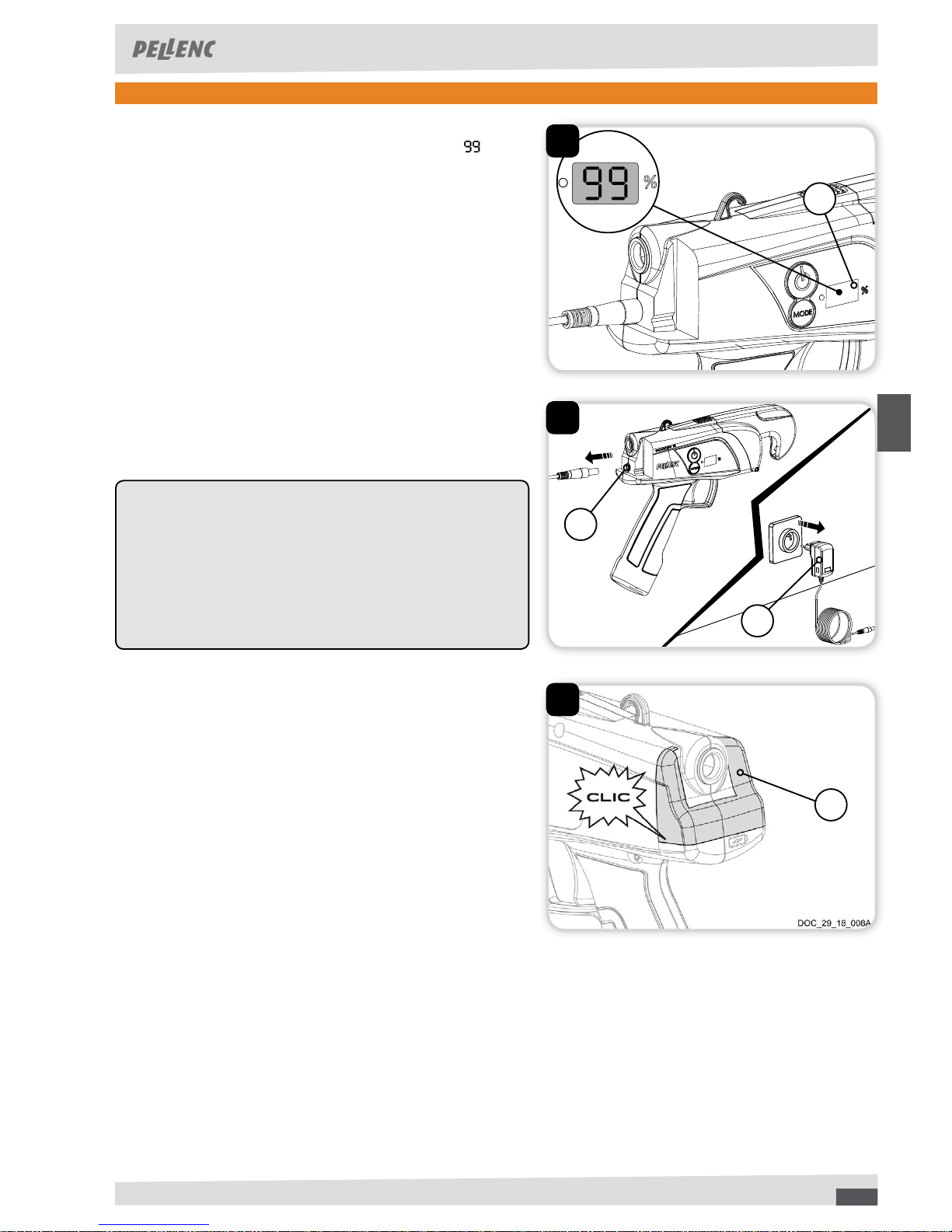

ʚ THE DISPLAY SHOWING REMAINING BUILT-IN BATTERY CAPACITY

The battery is equipped with a gauge display (21) which allows you to see the remaining capacity. The capacity is shown as a percentage.

• If the display (21) shows , the battery is fully charged.

• If after a day's work, the display (21) shows there is no need to recharge the battery.

• If the display (21) shows , or very close to it, it must be recharged at once.

• The battery gauge (21) must be used like a fuel gauge on a car.

ʚ CHARGING THE BUILT-IN BATTERY

TAKE CARE: THE TOOL BATTERY MUST BE CHARGED ONLY USING THE TNS30W-126050 CHARGER SUPPLIED IN THE CARRYCASE.

Page 20

DOC_29_17_030A

DOC_29_17_031A

DOC_29_17_032A

USER GUIDE Fixion 2

29_133084_B

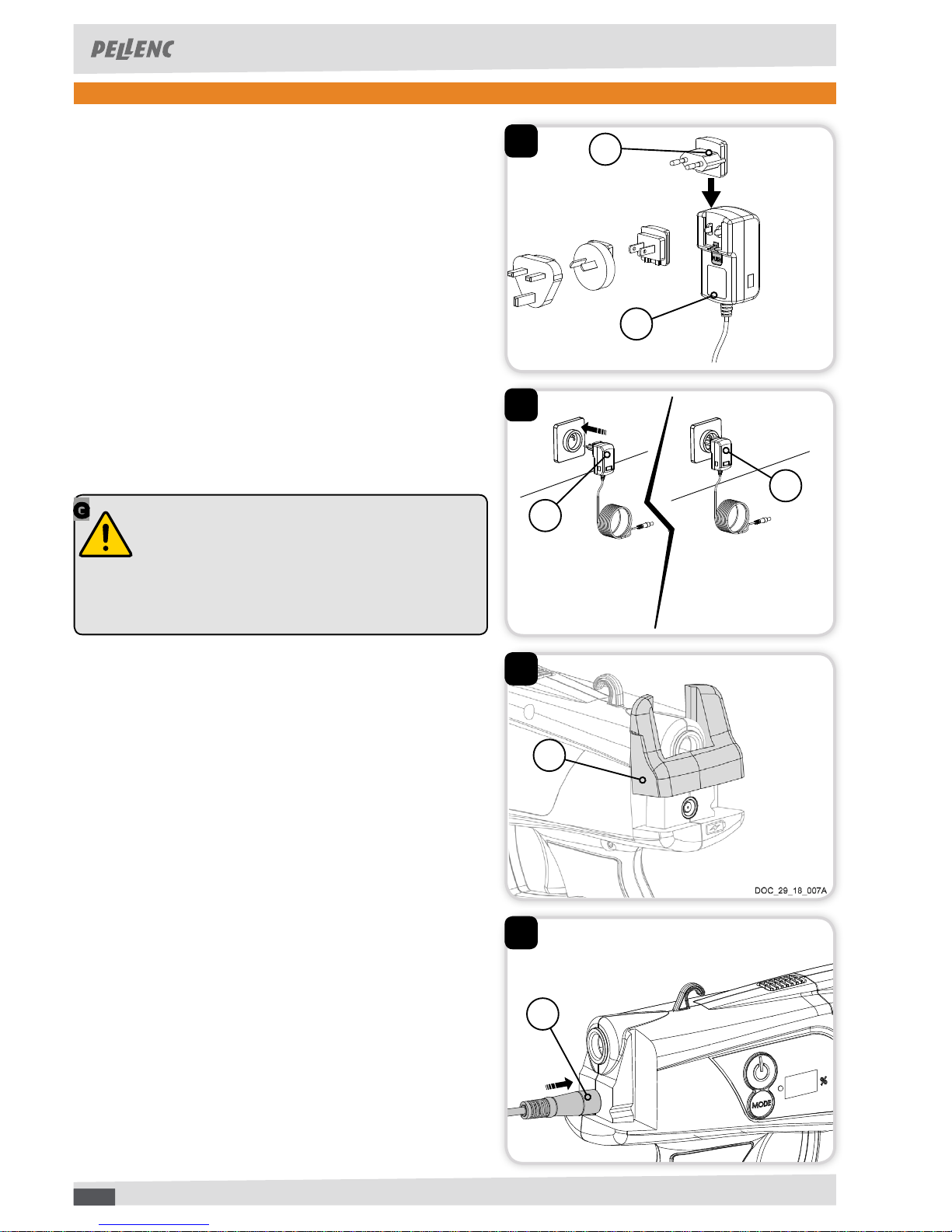

- Use the correct adaptor (24) on the charger (25) according to your own country's standard. Press on the “PUSH” button to remove an adapter.

■ CHARGING THE TOOL

TAKE CARE: BEFORE CONNECTING THE CHARGER TO THE MAINS, CHECK THAT THE MAINS SUPPLY COMPLIES WITH THE SPECIFICATIONS GIVEN ON THE CHARGER (SEE "SPECIFICATIONS" ON PAGE 9).

- Connect the charger connector (25) to the mains. The charger LED lights up green.

- Connect the charging cord to the tying machine's charging connector (16). The charger LED turns red.

- Partly detach the guard (14) (or the adaptable dispenser

(6)). If the adaptable spout (6) is tted, make sure the tie

has been withdrawn from the tool intake opening.

Page 21

DOC_29_17_033A

DOC_29_17_034A

USER GUIDE Fixion 2

29_133084_B

■ CHARGING THE TOOL

- Once the battery is charged, disconnect the charging lead

on the battery rst, then the charger mains connector (25).

NOTE: After a long storage period (new battery, winter storage etc.), when you disconnect the charger, the charge level indicator may display a value of less than 99%. This is a normal phenomenon which can reoccur for up to 5 charge cycles with normal use between each charge.

- When the gauge display (21) ashes, the battery is

charging. Charging is complete when the message appears steadily on the gauge display (21).

- Replace the guard (14) on the back of the tying machine (or the adaptable dispenser (6)).

Page 22

USER GUIDE Fixion 2

29_133084_B

■ MAINTENANCE

ʚ CHARGER

This does not need any particular maintenance, but must be kept in a dry, ventilated, dust-free place, away from heat. If the indicator light does not come on when charging:

- Disconnect the charger power connector.

- Check the mains supply.

- Reconnect. If the charger still does not work, return the complete equipment in its original packaging to a certied

repair service.

ʚ BUILT-IN BATTERY

ʚ MISC. MAINTENANCE

TAKE CARE: NEVER TRY TO OPEN ONE OF THE COMPONENTS OTHER THAN THOSE SPECIFIED IN THIS MANUAL.

- Do not leave the tying machine on the ground or exposed to the elements.

- At least once a year, or every 200,000 ties, return your tying machine in its original packaging to an approved repair shop, for a proper overhaul to ensure a long life for your tool.

TAKE CARE: DO NOT OIL THE CENTRAL PART WHERE THE CORD PASSES THROUGH, AS THIS COULD CAUSE A MALFUNCTION.

TAKE CARE: NEVER TRY TO OPEN ONE OF THE COMPONENTS OTHER THAN THOSE SPECIFIED IN THIS MANUAL.

Spares references:

Fixion 2 wearing parts kit Ref. 140588

Go to your dealer to change this kit.

If your tying machine no longer works:

- Checking nothing is blocking the passage of the tie: Repeat the procedure in the “end of coil” section pages 12 - 13.

- Check the battery charge level.

- Press the tool on/off button.

- If the tying machine still does not work, return the complete equipment in its original packaging to a certied repair service.

Make sure your tying machine continues to work properly by cleaning it often. To do this:

- Keep the tie passage clean, by using compressed air through the front part and inside the machine. Avoid using solvents such as trichlorethylene, white spirit, petrol, etc. If necessary, remove the upper guide (13) and hold the

trigger (19) for about 3 seconds to release the rod in its max upper position. Once cleaning is nished, press the

trigger (19) to return the tie hook (12) to its initial position, and replace the upper guide (13).

Page 23

USER GUIDE Fixion 2

29_133084_B

ʚ WHEN NOT IN USE

- Store the tying machine and charger in their original carry-case, away from heat, dust and moisture, and check the tool is turned off (power indicator light on the tool off).

- In order to conserve a long battery life and prevent deterioration, the battery must be charged when stored and recharged every 24 months if it is not used.

- For more information, consult your approved repairer or contact us.

ʚ BUILT-IN BATTERY REPLACEMENT

TAKE CARE: THE BATTERY MUST BE REPLACED ONLY BY AN APPROVED DISTRIBUTOR.

■ MAINTENANCE

TAKE CARE: NEVER ATTEMPT TO DISMANTLE THE TYING MACHINE, UNDER PENALTY OF CANCELLATION OF THE WARRANTY. CONTACT YOUR AUTHORISED REPAIR PERSON.

Page 24

USER GUIDE Fixion 2

29_133084_B

■ INCIDENTS

TAKE CARE: NEVER ATTEMPT TO DISMANTLE THE TYING MACHINE, UNDER PENALTY OF CANCELLATION OF THE WARRANTY. CONTACT YOUR AUTHORISED REPAIR PERSON.

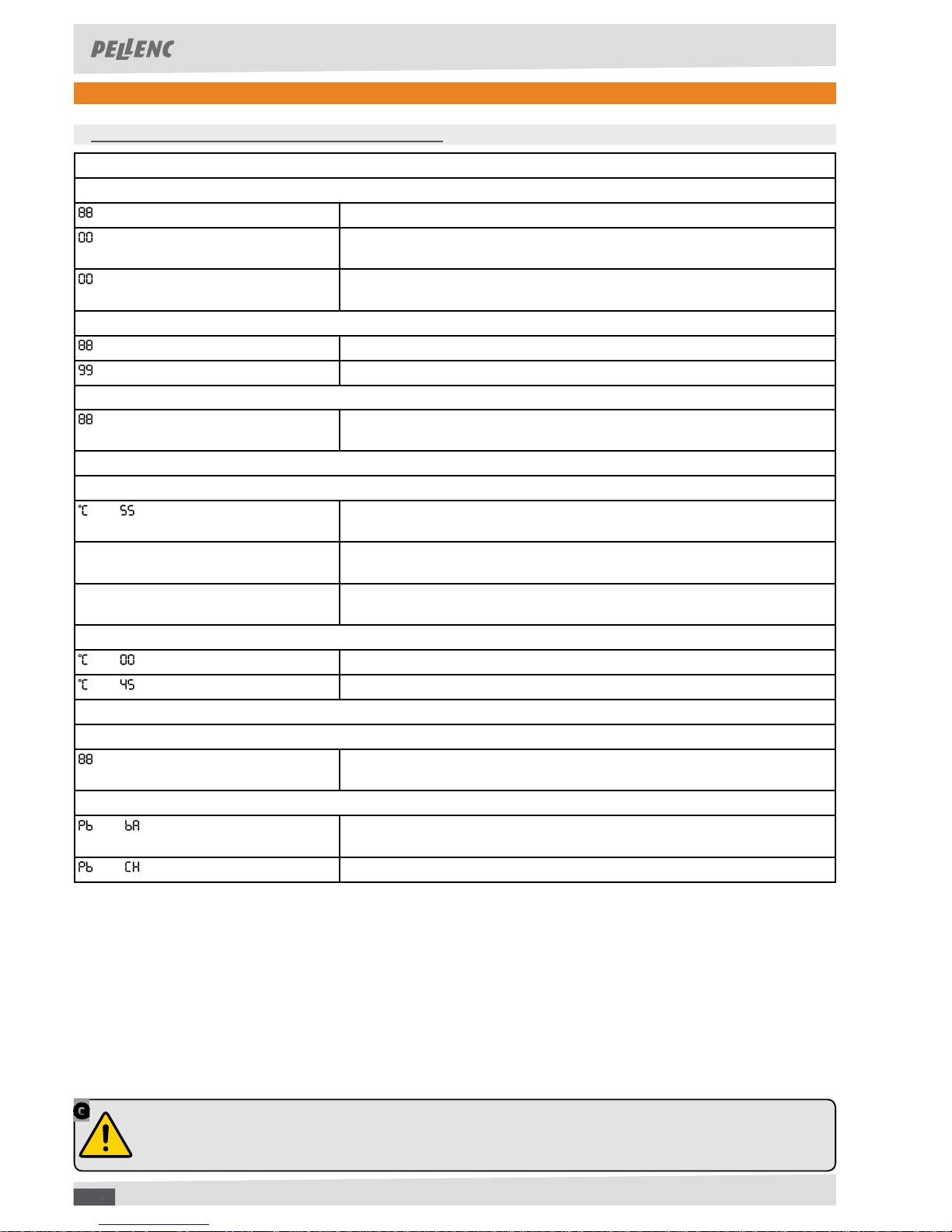

ʚ SUMMARY OF CHARGE INDICATOR AND BEEP MESSAGES

If your tool no longer works:

1– Turn off the tool with the off button (power indicator light off). 2– Check the battery is charged, as shown on the gauge display. 3– Checking nothing is blocking the passage of the tie: Repeat the procedure in the “end of coil” section pages 12 - 13. 4– Clean the tool (see page 22). 5– Turn on the tool with the on button (power indicator light on). 6– Press the trigger. 7– If the tool does not work, return the complete equipment in its original packaging to a certied repair service.

NORMAL MESSAGES

USAGE

xed

Battery charge level (0 to 99)

with 1 beep per minute

Battery empty, recharge immediately

ashing with 1 beep every 10

seconds

Stop using, recharge immediately

CHARGING

ashing every 4 seconds

Battery charge level (0 to 99)

xed

Charging complete

STORAGE

ashing

Auto discharge indicator after 10 days unused (nal threshold <30%).

DEGRADED MODE MESSAGES

USAGE

and alternately

Stop the tool; the battery temperature is too high

Long beep and 1 short beep Stop the tool: intensity is too high

Long beep and 4 short beeps Stop the tool; the tool temperature is too high

CHARGING

and alternately

Charge interrupted: Battery temperature too low

and alternately

Charge interrupted: Battery temperature too high

FAULT MESSAGES

USAGE

and beeps every 2 minutes for 24

hours

Voltage too low after 3 hours of non-use. Recharge battery immediately

CHARGING

and alternating and continuous

beep

Battery problem

and alternately

Charger problem

Page 25

USER GUIDE Fixion 2

29_133084_B

■ PELLENC WARRANTY AND AFTER SALES SERVICE

I. Legal warranty

A. Warranty against latent defects

Apart from the commercial warranty provided for under Article II, Article 1641 of the Civil Code provides that «the seller is bound to a warranty on account of latent defects

of the object sold which render it unt for the use for which it was intended, or which would impair said use to the extent that the buyer would not have acquired it, or would

only have given a lesser price for it, had he known of them».

Article 1648 of the Civil Code «The action resulting from latent defects must be brought by the purchaser within two years after the discovery of the defect. «

B. Legal warranty of conformity

Article L.217-4 of the Consumer Code «The seller delivers goods in conformity with the contract and is liable for defects of conformity existing upon delivery.

The seller is also liable for any lack of compliance resulting from the packaging, assembly or installation instructions whenever its contractual liability is engaged in this regard or the latter are carried out under its responsibility

Article L.217-5 of the Consumer Code «The goods are comply with the contract:

1) If they are suitable for the purpose usually expected of similar goods and, where applicable:

- If it matches the description given by the seller and possess the qualities that were presented to the buyer in the form of a sample or model;

- If it has the qualities that a buyer can reasonably expect given the public statements made by the seller, the producer or its representative, especially in advertising or labelling;

2. Or, if it has the characteristics dened by mutual agreement of the parties or is t for any particular purpose that the buyer made known to the seller and that the latter

accepted.

Article L.217-12 of the Consumer Code «legal action resulting from lack of conformity lapses two years after delivery of the goods».

II. Pellenc Commercial Warranty

A. Contents

1. General Information

In addition to legal warranties, client users benet from the commercial warranty on PELLENC products covering the exchange and replacement of parts recognised out

of use, caused by machining defects, assembly defects or material defects, whatever the cause.

The warranty forms an inseparable whole with the product sold by PELLENC.

2. Spare Parts

The commercial warranty also covers original PELLENC spare parts, excluding labour and to the exclusion of certain parts of each product provided at delivery.

B. Duration of the warranty

1. General Information

PELLENC products are guaranteed under the commercial warranty as from delivery to the customer for a period of two (2) years for products connected to a PELLENC battery, and for a period of one (1) year for other PELLENC products.

2. Spare Parts

PELLENC spare parts replaced under the product warranty are guaranteed under the commercial warranty as from delivery of he PELLENC product to the customer for a period of two (2) years for products connected to a PELLENC battery, and for a period of one (1) year for other PELLENC products.

In the case of products connected to a Pellenc battery, parts that are replaced in the under the product warranty after the 12th month of use, are covered for a period of one (1) year.

C. Warranty exclusions

Excluded from the commercial warranty are products that have been subject to abnormal use, or were used under conditions and for purposes other than those for which they were manufactured, especially in the case of non-compliance with conditions stipulated in this user manual.

It does not apply in case of shock, fall, neglect, lack of supervision or maintenance or in case of transformation of the product. Also excluded from the warranty are products

that have been subject to tampering, alteration or modication by the client user.

Wear parts and/or consumables cannot be covered by the warranty.

III. Implementation of the commercial warranty

1. Product commissioning and commissioning declaration

The DISTRIBUTOR undertakes to complete the computer commissioning declaration form, no later than eight days after the delivery of the property to the user customer,

in order to activate the latter on the www.pellenc.com website under «warranties and training» in the «extranet» menu, using the identier previously provided to them

by PELLENC.

Failing that, commissioning declaration will not be effective and implementation of the PELLENC commercial warranty will not occur. As a consequence thereof, the

DISTRIBUTOR must ensure the nancial burden of its intervention under the warranty without being able to pass on the cost to the client user. The DISTRIBUTOR shall also undertake to complete the warranty card or the certicate of warranty and commissioning for self-propelled equipment provided with the

product after having the client user sign and date it.

IV. Paid after-sales service

A. General Information

Malfunctions, breakdowns, breakages resulting from misuse, neglect or improper maintenance by the client user as well as malfunctions resulting from normal wear of the product are subject to the payment of after-sales service, even during the period of the legal and commercial warranty. After-sales service repairs that fall outside of the legal and commercial warranty also include maintenance, adjustments, diagnostics of all types, and cleaning without the present list being exhaustive.

B. Wear parts and consumables

Wear parts and consumables also fall within the after-sales service.

C. Spare Parts

Paid after-sales service also covers original PELLENC spare parts, excluding labour and outside the legal and commercial warranty period.

In case of replacement of original PELLENC spare parts in the context of after-sales service, said latter are covered by a warranty of one year as from the installation date.

Page 26

USER GUIDE Fixion 2

29_133084_B

■ "EC" STATEMENT OF COMPLIANCE

WE HEREBY DECLARE THAT THE MACHINE HEREINAFTER REFERRED TO AS :

GENERIC DENOMINATION TYING MACHINE FUNCTION INTENDED FOR ATTACHING VINE SHOOTS COMMERCIAL NAME FIXION 2 TYPE FIXION 2 MODEL FIXION 2

SERIAL No.

29S00001 - 29S49999 29T00001 - 29T49999 29U00001 - 29U49999

COMPLIES WITH THE RELEVANT PROVISIONS OF THE MACHINERY DIRECTIVE (2006/42/EC)

IS IN CONFORMITY WITH THE FOLLOWING OTHER DIRECTIVES AND/OR RELEVANT PROVISIONS :

- 2014/53/EU RED Directive

- 2014/30/EU EMC Directive

- 2003/10/EC Noise Directive

- 2002/44/EC Vibrations Directive

- 2011/65/EU ROHS Directive

- 2012/19/EU WEEE Directive

- 1907/2006 REACH Regulation

- 2006/66/EC Directive relative to batteries and accumulators

THE FOLLOWING HARMONIZED EUROPEAN STANDARDS WERE USED :

- EN 62841-1 : 2015

THE FOLLOWING OTHER STANDARDS AND TECHNICAL SPECIFICATIONS HAVE BEEN USED :

- IEC 62133-2 : 2017

Vibration level at the maximum operating ratin

Total vibration values (triax vector sum) determined in accordance with EN 62841-1. (Uncertainty K=1.5 m/s²)

ah <2.5 m/s² max.

Sound level at the maximum operating ratin

Noise value measured according to standard EN 62841-1 Acoustic power level measured (uncertainty of K=3 dB)

= 81 dB maximum

Level of acoustic pressure measured at the work station (uncertainty of K=3 dB)

= 70 dB maximum

CONCLUDED AT PERTUIS, DATED 30/05/2018 JEAN MARC GIALIS Deputy Managing Director

MANUFACTURER PELLENC ADDRESS Quartier Notre Dame

84120 Pertuis (FRANCE)

PERSON/ENTITY AUTHORISED TO COMPILE THE TECHNICAL DOSSIER

PELLENC

ADDRESS Quartier Notre Dame

84120 Pertuis (FRANCE)

Page 27
