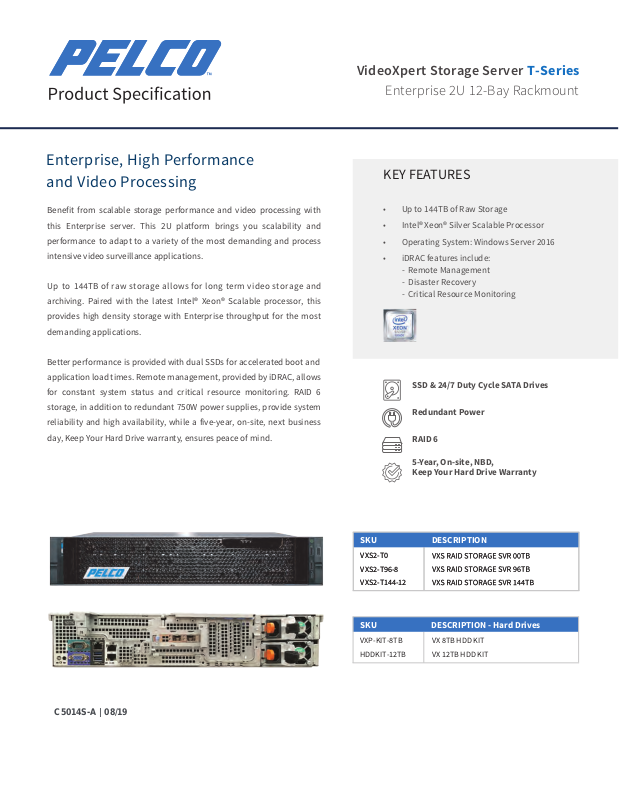

Pelco VXS2-T96-8 Specsheet
Enterprise, High Performance
C5014S-A | 08/19
and Video Processing
VideoXpert Storage Server T-Series
Enterprise 2U 12-Bay Rackmount
KEY FEATURES
Benefit from scalable storage performance and video processing with
this Enterprise server. This 2U platform brings you scalability and
performance to adapt to a variety of the most demanding and process
intensive video surveillance applications.
Up to 1
archiving. Paired with the latest Intel® Xeon® Scalable processor, this
provides high density storage with Enterprise throughput for the most
demanding applications.
Better performance is provided with dual SSDs for accelerated boot and
application load times. Remote management, provided by iDRAC, allows
for constant system status and critical resource monitoring. RAID 6
storage, in addition to redundant 750W power supplies, provide system
reliability and high availability, while a five-year, on-site, next business
day, Keep Your Hard Drive warranty, ensures peace of mind.
TB of raw storage allows for long term video storage and
• Up to 1 TB of Raw Storage
• Intel® Xeon® Silver Scalable Processor
• Operating System: Windows Server 2016
• iDRAC features include:
- Remote Management
- Disaster Recovery
- Critical Resource Monitoring
SSD & 24/7 Duty Cycle SATA Drives
Redundant Power
RAID 6
5-Year, On-site, NBD,
Keep Your Hard Drive Warranty
SKU
SKU
VXS2-T0
VXS2-T0
VXS2-T96-8
VXS2-T96-8
VXS2-T144-12
VXS2-T144-12
SKU
VXP-KIT-8TB
HDDKIT-12TB
DESCRIPTION
DESCRIPTION
DESCRIPTION - Hard Drives
VX 8TB HDD KIT
VX 12TB HDD KIT
CERTIFIED | PURPOSE BUILT | GUARANTEED
SYSTEM
MECHANICAL
Processor
Processor Passmark Intel® Xeon® Silver 4210: 12,020
Maximum Storage
Operating System Windows Server 2016
Memory 32GB (4x 8GB)
RAID Controller
Networking
Expansion Slots (1) x16 full-height, (2) x8 low profile PCle slots (in default configuration)
USB(s) Rear (2) USB 3.0, Front (2) USB 2.0, Internal (1) USB 3.0
Video Outputs (1) VGA
Remote Management iDRAC Basic
Manufacturer PELCO
Warranty 5-Year, On-site, NBD, Keep Your Hard Drive Warranty
Form Factor
Rack Support
Hard Drive Bays
Hard Drives Supported
Power Supply(s) (2) 750W (100-240VAC) 80 Plus Platinum
Power Information Input Power 330W / 1126 BTU/h - Max Potential 650W / 2178 BTU/h
Operating Temperature
Operating Humidity
Dimensions (WxDxH)
Max. Weight
(1)Intel® Xeon® Silver 4210 Scalable Processor (10 Cores, 20 Threads, 2.20 GHz)
Up to 1 TB
RAID OS RAID 1; Data RAID 6
PERC H740P (8GB NV Cache, RAID 6)
(2) 1GbE RJ45 Ports; (2) 10GbE SFP+
2U Rackmount
Sliding Rack Rail with Cable Management Arm
(12) 3.5" Hot Swappable Bays & (2) M.2 SSD Slots
PCIe NVMe & SATA
(Min) 50°F - (Max) 95°F [(Min) 10°C - (Max) 35° C]
5 ~ 90% (non-condensing)
19" (482.6mm) x 28.15" (646mm) x 3.4" (86.8mm)
65.43 lbs. (29.68 kg)
VideoXpert Storage Server T-Series
Enterprise 2U 12-Bay Rackmount
MODEL
VXS2-T: 1Gb
VXS2-T: 10Gb
RECORDING THROUGHPUT
Up to 700 Mbps
Up to 1000 Mbps
PLAYBACK THROUGHPUT
Up to 175 Mbps
Up to 175 Mbps
Pelco, Inc
625 W. Alluvial, Fresno, California 93711 United States
(800) 289-9100 Tel
(800) 289-9150 Fax
+1 (559) 292-1981 International Tel
+1 (559) 348-1120 International Fax
www.pelco.com
