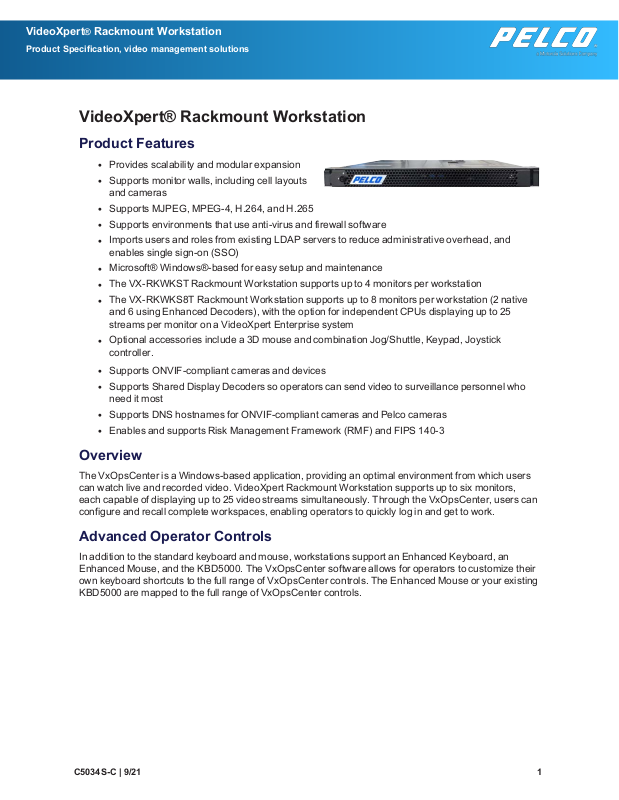

VideoXpert® Rackmount Workstation
Product Specification, video management solutions
VideoXpert® Rackmount Workstation
Product Features
l
Provides scalability and modular expansion
l
Supports monitor walls, including cell layouts
and cameras
l
Supports MJPEG, MPEG-4, H.264, and H.265
l
Supports environments that use anti-virus and firewall software
l
Imports users and roles from existing LDAP servers to reduce administrative overhead, and
enables single sign-on (SSO)
l
Microsoft® Windows®-based for easy setup and maintenance
l
The VX-RKWKST Rackmount Workstation supports up to 4 monitors per workstation
l
The VX-RKWKS8T Rackmount Workstation supports up to 8 monitors per workstation (2 native
and 6 using Enhanced Decoders), with the option for independent CPUs displaying up to 25
streams per monitor on a VideoXpert Enterprise system
l
Optional accessories include a 3D mouse and combination Jog/Shuttle, Keypad, Joystick
controller.
l
Supports ONVIF-compliant cameras and devices
l
Supports Shared Display Decoders so operators can send video to surveillance personnel who
need it most
l
Supports DNShostnames for ONVIF-compliant cameras and Pelco cameras
l
Enables and supports Risk Management Framework (RMF) and FIPS 140-3
Overview
The VxOpsCenter is a Windows-based application, providing an optimal environment from which users
can watch live and recorded video. VideoXpert Rackmount Workstation supports up to six monitors,
each capable of displaying up to 25 video streams simultaneously. Through the VxOpsCenter, users can
configure and recall complete workspaces, enabling operators to quickly log in and get to work.
Advanced Operator Controls
In addition to the standard keyboard and mouse, workstations support an Enhanced Keyboard, an
Enhanced Mouse, and the KBD5000. The VxOpsCenter software allows for operators to customize their
own keyboard shortcuts to the full range of VxOpsCenter controls. The Enhanced Mouse or your existing
KBD5000 are mapped to the full range of VxOpsCenter controls.
C5034S-C | 9/21 1
KBD5000 Jog/Shuttle,
Keypad, and Joystick
Enhanced 3D
Mouse
VideoXpert® Rackmount Workstation
Product Specification, video management solutions
Technical Specifications
Hardware
Item
Processor Intel® Core i7-9700K
Memory 16 GB DDR4
Operating System Windows® 10 IoT Enterprise
SSD Storage 256 GB
USBPorts
USB Type-A 3.1 Gen1 2x front
USB Type-C 3.1 Gen2 1x front, 2x rear
Description
Video
Item Description
Video system
Memory 4 GB GDDR6
- VX-RKWKST:NVIDIA T600 (1x)
- VX-RKWKS8T:NVIDIA T600 (2x)
C5034S-C | 9/21 2
VideoXpert® Rackmount Workstation
Product Specification, video management solutions
Item Description
Video Outputs
Display Support (live and playback)
1
Memory will support up to 20 synchronized playback streams across all monitors.
2
For VX-RKWKS8T, distribute directly connected monitors equally between the two video cards.
1, 2
- VX-RKWKST: Mini DisplayPort (DP++)1.4 (4x)
- VX-RKWKS8T:Mini DisplayPort (DP++)1.4 (8x)
-4K monitors: up to 2 monitors directly connected
- 1080p monitors: up to 4 monitors directly
connected
- 25 streams per monitor, up to 64 streams total
across all directly connected monitors
Networking
Item Description
Interface 1 Gigabit Ethernet (1000Base-T), 10 Gigabit
Ethernet (10GBase-T)
IPversion IPv4 and IPv6
Front Panel
Item Description
Buttons Power
Indicators
Unit Status White, amber (behind bezel)
Hard Disk Status White (behind bezel)
Power
Item Description
Power Input 100 to 240 VAC 50/60 Hz ±5%, autoranging
Power Supply Internal—1 included, 2 maximum
Power Consumption 550 W, 7.4 A / 3.7 A (maximum)
1
Purchase the additional power supply, part number VX3930-PS.
1
C5034S-C | 9/21 3
VideoXpert® Rackmount Workstation
Product Specification, video management solutions
Environmental
Item Description
Operating Temperature 10° to 35°C (50° to 95°F) at unit air intake (front)
Non-Operating Temperature –40° to 65°C (–40° to 149°F)
Operating Relative Humidity 10% to 85%, non-condensing
Non-Operating Relative Humidity 10% to 90%, non-condensing
Operating Vibration 0.26 GRMS
Note:The temperature at the unit air intake can be significantly higher than room temperature.
Temperature is affected by rack configuration, floor layout, air conditioning strategy, and other
issues. To prevent performance failure and unit damage, make sure the temperature at the unit is
continuously within the operating temperature range.
Physical
Item Description
Construction Steel and plastic cabinet
Finish
Front Panel Black with metallic silver
Chassis Silver
Dimensions (D x W x H) 57.75 x 48.2 x 4.28 cm (22.73 x 18.97 x 1.68 in)
Mounting (RU) 1 RU
Unit Weight 12.42 kg (27.38 lb)
Certifications
Item Description
CE Class A
FCC, Part 15 Class A
ICES-003 Class A
UL/cUL Listed X
RCM X
CCC X
C5034S-C | 9/21 4
VideoXpert® Rackmount Workstation
Product Specification, video management solutions
Item Description
KC X
NOM X
Security
VideoXpert includes the following security features:
l
Client authentication
l
Passwords stored with cryptographic protection
l
Configurable roles and permissions
l
User action reports
l
TLS-based encryption over HTTPS
l
Support running with antivirus
l
Ability to encrypt exports
l
Synchronized system clocks using NTP
l
Supports video and data encryption using AES-128-256 through third-party disk encryption
software.
l
Incorporates FIPS 140-3 validated cryptographic modules
l
FISMA/NIST Configuration Guidance – This guide will help organizations documenting the
system through their RMF process with information about:
–
How to categorize the system
–
Which NIST-based security controls are applicable
–
How VX implements NIST-based security controls
l
FISMA/NIST Compliance Testing – VideoXpert is installed on a FISMA representative system
with applicable DISA STIGs (Defense Information Systems Agency, Secure Technical
Implementation Guidelines) and tested for functionality. Applicable STIGS include:
–
Microsoft Windows 10 for VxOpsCenter and VxToolbox
–
Microsoft .Net Framework 4
–
Microsoft Internet Explorer 11
–
Microsoft Windows Firewall and Advanced Security
–
Postgres Database 9.x
l
Conforms to SB327 requirements (and international iterations of such) by enforcing default
password changes upon initial configuration.
Model Numbers
l
VX-RKWKST Rackmount Workstation enabling the use of up to four monitors; EU, US, and UK
power cords included
l
VX-RKWKS8T Rackmount Workstation with an additional graphics card, enabling the use of up to
eight monitors; EU, US, and UK power cords included
C5034S-C | 9/21 5
VideoXpert® Rackmount Workstation
Product Specification, video management solutions
Supplied Accessories
l
Keyboard
l
Mouse
l
Rackmount kit
l
Power cords (US, UK, and EU)
Optional Power Accessories
l
PWRCRD-S-AR Standard power cord, Argentina
l
PWRCRD-S-AU Standard power cord, Australia
l
PWRCRD-S-EU Standard power cord, Europe
l
PWRCRD-S-UK Standard power cord, United Kingdom
l
PWRCRD-S-US Standard power cord, United States
l
PWRCRD-R-AR Round power cord, Argentina
l
PWRCRD-R-AU Round power cord, Australia
l
PWRCRD-R-EU Round power cord, Europe
l
PWRCRD-R-UK Round power cord, United Kingdom
l
VX3930-PS Spare power supply
Optional Accessories
l
3DX-600-3DMOUSE Enhanced 3D Mouse and Joystick
l
KBD5000 Keyboard with Jog/Shuttle, Keypad, and Joystick
l
PMCL622 Full High-Definition LED Monitor, 22"
l
PMCL624 Full High-Definition LED Monitor, 24"
l
PMCL632 Full High-Definition LED Monitor, 32"
l
PMCL643K 4K Ultra-High-Definition LED Monitor, 43"
l
PMCL649K 4K Ultra-High-Definition LED Monitor, 49"
l
PMCL655K 4K Ultra-High-Definition LED Monitor, 55"
l
PMCL665K 4K Ultra-High Definition LED Monitor, 65"
C5034S-C | 9/21 6
VideoXpert® Rackmount Workstation
Product Specification, video management solutions
Pelco, Inc.
625 W. Alluvial Ave., Fresno, California 93711 United States
(800) 289-9100 Tel
(800) 289-9150 Fax
+1 (559) 292-1981 International Tel
+1 (559) 348-1120 International Fax
www.pelco.com
Pelco, the Pelco logo, and other trademarks associated with Pelco products referred to in this publication are trademarks of Pelco,
Inc. or its affiliates. ONVIF and the ONVIF logo are trademarks of ONVIF Inc. All other product names and services are the property of
their respective companies. Product specifications and availability are subject to change without notice.
© Copyright 2021, Pelco, Inc. All rights reserved.
