VideoXpertEnterprise v 3.8 Software
Product Specification video management solutions
VideoXpertEnterprise v 3.8 Software
Scalable Video Management and Surveillance Software

Product Features

l Enterprise Grade Surveillance Management
System that combines multiple threat assessment systems into a single, easy-to-use interface for assessing, investigating, and responding to incidents
user, while more powerful keyboard shortcuts allow the security expert the ability to rapidly navigate through video and other information effortlessly
l Supports MJPEG, MPEG-4, H.264, and H.265
l Enterprise Monitor Wall functionality is built-in, and allows any video to be pushed to any monitor
connected to the system, manually or as part of a powerful and easy-to-use Rules Engine UI
l Independent scalability and redundancy of each system component ensures VideoXpert Enterprise
is always the right size, and always fault tolerant
l Delivers the fastest video call ups and smoothest video experience in the market today
l Offers beautiful and fast dewarping navigation with Pelco’s Optera® and Evo® cameras
l Support for Pelco Camera Link tracking tracks PTZs to panoramic Optera views in an instant
l Provides seamless transition from VideoXpert
TM
Professional
l Provides migration paths for Endura® and Digital Sentry® systems
l Supports environments that use anti-virus and firewall software
l Imports users and roles from existing LDAP servers to reduce administrative overhead, and enables
single sign-on (SSO)
l Microsoft® Windows®-based for easy setup and maintenance
l Check on VMS and camera health using SNMP (VxSNMPis available as a free, separate
download)
l Capable of listening for ASCII commands on a serial and Ethernet port simultaneously (ASCII
Service is available as a free, separate download)
l Includes Event Monitor Service feature, capable of polling for alarms from devices and performing
specified actions when an alarm state change occurs (VideoXpert Event Monitor Service is available as a free, separate download)
l Ability to expose video streams to third-party clients, with customizable RTSP endpoints that allow
a client application connection to a VideoXpert System stream via the VxConnect service (VxConnect is available as a free separate download)
l VxPortal web based client allows viewing and exporting video without installing any software
l VxToolbox provides a simple interface for all configuration, from adding a new camera to the system
to managing licenses, configuring the system, and peforming backups
C4037S-I | 03/20 1
VideoXpertEnterprise v 3.8 Software
Product Specification video management solutions
l Extensible architecture brings native and third-party information systems into a centralized and
interactive user experience for everything from Access control to License Plate Recognition
l Organize your cameras and other devices however you want – with a traditional folder device tree,
or with tags and tag sets, and seamlessly switch between both for amazingly fast device searches
l Edge Storage Auto Gap Fill functionality detects when a gap in local camera recording occurs, and
automatically downloads video and audio (if present) to fill the gap
l Supports ONVIF-compliant cameras and devices
l Supports DNShostnames for ONVIF-compliant cameras and Pelco cameras
l Enables and supports Risk Management Framework (RMF) and FIPS 140-3
l Use the powerful VxOpsCenter Client to interact with your surveillance system, or check remotely
on any computer using the available web browser client
l All-new, optional GIS mapping engine provides lightning-fast interaction between global maps, site
maps, and different floors within a map, while providing instant access to every camera on the map, alarm information, and much more
l Available in a software-only solution, for measured performance or convenient migration of
customer-owned hardware
l See real-time motion and Pelco camera analytics alarm (Pelco Basic, Enhanced, and Advanced
Analytics Suites) as an overlay on cameras in real-time, playbacks, and exports; and search recorded video based on alarm type and severity

Overview

VideoXpert is a video management solution designed to fit surveillance operations of any size. Whether your operation has 100 cameras or 10,000, VideoXpert presents a solution to display, record, and manage your video resources. But VideoXpert Enterprise is more than a VMS. It is an enterprise-level video and data management solution designed to combine input from multiple systems, for a cohesive, real-time understanding of events taking place in your environment.
VideoXpert Enterprise products are available as software distributions that you can install on your own hardware, even existing video management hardware. This allows you to repurpose your own hardware and bring existing systems forward into VideoXpert Enterprise.
VideoXpert servers can be clustered to provide redundancy and scalability within a single environment, enabling the system to grow in tune with your surveillance needs. As you add cameras, users, or recording devices, you can add servers and storage, enabling the system to support the additional resources and perform to your expectations. VideoXpert Enterprise can even aggregate other VideoXpert systems, tying multiple VideoXpert systems into a single interface. Through aggregation, administrators can build and maintain a concerted video management system containing multiple sites.
Designed for Windows platforms, VideoXpert is easy to install, quick to setup, and should be familiar to most users. The system supports unicast and multicast transmission modes, making it easy to adapt to your current network scheme. Simplified interfaces ensure that users can adopt and use the system with relative ease. From the VxToolbox utility, you can configure the system, manage the database of devices, configure users and permissions, and assign cameras to recording devices. Through VxOpsCenter software, operators gain access to high quality video and powerful investigative tools.
VideoXpert can integrate with physical security systems and other building systems to deliver situational awareness and control. Built around open standards, VideoXpert includes a complete application programing interface (API), software development kits (SDKs), and dedicated technical support, allowing other systems’ manufacturers to develop interfaces leveraging VideoXpert’s capabilities. VideoXpert also
C4037S-I | 03/20 2
VideoXpertEnterprise v 3.8 Software
Product Specification video management solutions
supports third-party IP cameras, allowing users to choose across hundreds of camera options from Pelco and third-party partners when configuring a system.
VideoXpert consists of four major software components: Core, Media Gateway, VxOpsCenter, and Storage Server. The Core performs central management operations, maintaining the system database, administering user rights and permissions, routing traffic, and other central operations. The Media Gateway handles all requests for video, ensuring that users at all levels of network access, LAN, WAN and even cellular, receive the right type of video for their application. VxOpsCenter Client is the operator console, providing an intuitive, but powerful interface from which users can access and investigate video throughout the system. The Storage Server (VXS) records video and delivers recorded video to users.

Core

VideoXpert Core is the heart of the VideoXpert system, it maintains the database of cameras, recording devices, users, and permissions. Core works with VxToolbox, from which you can configure and manage the system. Through VxToolbox, you can administer user accounts and permissions, determining the system functions and devices users can access. You can create and assign “tags” to quickly organize cameras and devices within the system. You can also configure and respond to events within the system.

Media Gateway

The Media Gateway routes video traffic to appropriate users as requested. The Media Gateway:
l Routes the video to the workstation in a Multicast environment
l Accesses the video in a Unicast environment
l Transcodes the video for low-bandwidth connected VxOpsCenter clients
Like Core servers, Media Gateways can be added to VideoXpert modularly. You can add Media Gateways to the system as the media delivery needs increase.

VxPortal

VxPortal is a powerful web-based client which can be used for live, playback, and PTZ. It can also activate relays, acknowledge events, de-warp Optera cameras, create bookmarks, edit camera names and numbers, and start easy exports. VxPortal uses standard web ports, making it easy to provide remote access to your VideoXpert system via MJPEG and H.264.

VxOpsCenter, Workstations, and Enhanced Decoders

The VxOpsCenter is a Windows-based application, providing an optimal environment from which users can watch live and recorded video. With the support of VX Workstations and Enhanced Decoders, the VxOpsCenter supports up to eight monitors, each capable of displaying up to 25 video streams simultaneously. Through the VxOpsCenter, users can configure and recall complete workspaces, enabling operators to quickly log in and get to work.
The application provides mechanisms to sort cameras by tags and other criteria, making it easy for users to find the cameras they need. Users can switch between live and recorded video on the fly, ensuring a seamless viewing experience. With appropriate permissions, users can also share workspaces and even use the same tabs simultaneously, enabling collaboration within your surveillance operations.
The VxOpsCenter also provides an Investigation Mode, through which users can create playlists from multiple video clips encompassing important scenes from an investigation. Users can export and encrypt their investigations, storing clips relevant to their investigation independent of the system’s network video storage for evidentiary safe-keeping and quick access.
C4037S-I | 03/20 3
VideoXpertEnterprise v 3.8 Software
Product Specification video management solutions
The VxOpsCenter supports modular plugins, exposing additional functionality for operators as required by your surveillance operations. The Mapping plugin enables operators to arrange and find cameras on maps. Through mapping, operators can find and the camera providing the view they need, when they need it. The VideoXpert Plates plugin exposes license plate numbers, to track vehicles as they come and go.
VideoXpert mapping enables operators to arrange and find cameras on maps. Through mapping, operators can find and the camera providing the view they need, when they need it. Access Control support in VideoXpert mapping allows users to view the status of doors in the building, and allows them to control the door locks.

Storage

VideoXpert Storage (VXS)is a high-performance software application. Through the user of camera drivers, the VXS can support many camera models from almost all camera vendors. VXS supports warm-standby or hot-standby failover configurations so that it can be configured for high-availability, ensuring that your data is always retained and accessible. To make the most of your available disk space, VXS has a flexible scheduling engine which allows you to extend the retention of data on your system without sacrificing the quality of the video that matters most to you.
VideoXpert Storage natively supports third-party IP cameras via ONVIF S, G, Q, and T, and via driver packages, so you can bring your cameras into VideoXpert without expensive translation interfaces.
You can configure Storage through VxToolbox, making it easy to set recording schedules and assign cameras to your storage servers. Storage supports motion, alarm, and bump-on-alarm style recording, so you can always capture events relevant to your environment at high quality. You can set different retention times per camera or camera group. Storage also supports redundant recording, by assigning cameras to multiple recorders, ensuring that VideoXpert continues recording video even if a single Storage server falls offline.

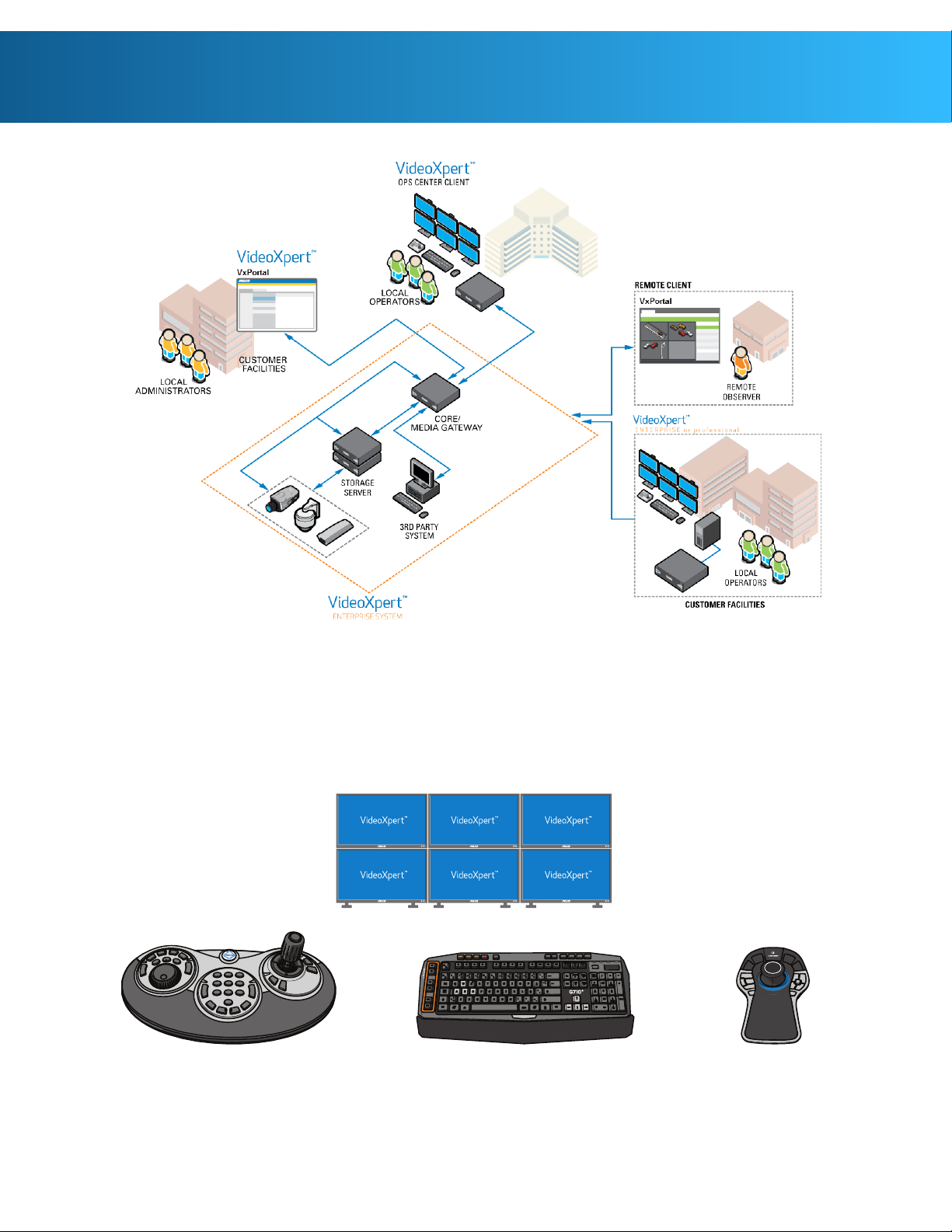

System Topology When Using VideoXpertAggregation
VideoXpert Enterprise with Aggregation allows for expansion at any level of your security environment. Your system begins with a single server running Core and Media Gateway software. Your system can use dedicated VxOpsCenter Clients to view live and recorded video, or it can use VxPortal, which fully utilizes HTML5 browser technology to deliver a similarly rich experience with no client software required. As your surveillance needs grow, you can add servers to expand modularly within a single environment, or you can aggregate multiple VideoXpert Enterprise systems to provide a single point of access for distributed video management networks.
C4037S-I | 03/20 4
KBD5000 Jog/Shuttle, Keypad, and Joystick
Enhanced Keyboard
Enhanced 3D Mouse
VideoXpertEnterprise v 3.8 Software
Product Specification video management solutions

Advanced Operator Controls

In addition to the standard keyboard and mouse, workstations support an Enhanced Keyboard, an Enhanced Mouse, and the KBD5000. The Enhanced keyboard includes programmable keys to which operators can map shortcuts to their favorite tabs and workspaces. The new Enhanced Mouse or your existing KBD5000 are mapped to the full range of VxOpsCenter controls
C4037S-I | 03/20 5
VideoXpertEnterprise v 3.8 Software
Product Specification video management solutions

Technical Specifications

Minimum System Requirements
CMG 1-Unit
Item
Height
Processor Intel® Xeon®
Silver 4210
Memory 64 GB DDR4
ECC
Operating System
Microsoft® Windows® Server 2016
Minimum
960 GB 480 GB 120 GB 200 GB
Storage
IP version IPv4 and IPv6
Video System
Matrox G200eR2 Graphics
Interface 1GbE Network
ports (2x), 10GbE SFP+ ports (2x), and Dedicated iDRAC port
CMG 2-Unit
Height Media Gateway OpsCenter Storage
Intel® Xeon® E3-1275 v3
32 GB DDR3ECC
Microsoft® Windows® Server 2012 or 2016
3
Intel HDGraphics P4700 or better VGA interface
Gigabit Ethernet (1000Base-T)
1
8 GB DDR3 8 GB DDR3
2
32 GB DDR3 ECC
Windows 7 SP1 or later (64-bit)or Windows 10 (64­bit)
Microsoft® Windows® Server 2012 or
3
2016
4
1
Software-only systems tested without antivirus software installed.
2
Minimum Memory required for OpsCenter workstations with VxToolbox installed is 16 GB.
3
Although server OS is supported, VxOpsCenter is not supported in the server OS.
4
VxS models are designed to be configured remotely through a web UI.

VideoXpert Player

The VxPlayer decrypts, validates, and plays-back secured exports from VideoXpert. You can download the player directly from VideoXpert along with an exported video file or you can download it from Pelco.com. The following sections specify the minimum system requirements for non-VideoXpert machines running the VxPlayer.

Hardware Requirements

l Dual Core i5 2.67 GHZ
l 4 GB RAM
l 200+ GB of free HDD space or more
C4037S-I | 03/20 6
VideoXpertEnterprise v 3.8 Software
Product Specification video management solutions
l GPU that supports OpenGL 3.0 or higher
l 1024 x 768 or higher screen resolution
l 100/1000 Ethernet Network Interface Card
l Sound Card

Software Requirements

l Windows 10 Pro 64-bit
l .NET 4.6.1 or higher
l OpenGL 3.0 or higher
l Direct3D 9 or higher

Security

VideoXpert includes the following security features:
l Client authentication
l Passwords stored with cryptographic protection
l Configurable roles and permissions
l User action reports
l TLS-based encryption over HTTPS
l Support running with antivirus
l Ability to encrypt exports
l Synchronized system clocks using NTP
l Supports video and data encryption using AES-128-256 through third-party disk encryption
software.
l Incorporates FIPS 140-3 validated cryptographic modules
l FISMA/NIST Configuration Guidance – This guide will help organizations documenting the system
through their RMF process with information about:
– How to categorize the system
– Which NIST-based security controls are applicable
– How VX implements NIST-based security controls
l FISMA/NIST Compliance Testing – VideoXpert is installed on a FISMA representative system with
applicable DISA STIGs (Defense Information Systems Agency, Secure Technical Implementation Guidelines) and tested for functionality. Applicable STIGS include:
– Microsoft Windows 10 for VxOpsCenter and VxToolbox
– Microsoft Windows Server 2016 for VideoXpert Core and Media Gateway
– Microsoft .Net Framework 4
– Microsoft Internet Explorer 11
– Microsoft Windows Firewall and Advanced Security
– Postgres Database 9.x for VXCore and Media Gateway, and for VxStorage
l Conforms to SB327 requirements (and international iterations of such) by enforcing default
password changes upon initial configuration.
C4037S-I | 03/20 7
VideoXpertEnterprise v 3.8 Software
Product Specification video management solutions

Supported Languages

The VxToolbox, VxPortal, and VxOpsCenter interfaces are available in the following languages:
l Arabic
l Brazilian Portuguese
l Bulgarian
l Croatian
l Czech
l German
l French
l Hungarian
l Italian
l Korean
l Polish
l Romanian
l Russian
l Simplified Chinese
l Spanish for Latin America
l Turkish

Software Licenses

Use the following table to create a model number for your VideoXpert Enterprise software package. Your model number consists of the distribution you want to choose and the model/software product you want to install. For example, an Enterprise Core license is modeled “E1-COR-SW”. For VideoXpert Storage and Aggregation features, you must use camera licenses; each camera utilizing Storage or Aggregation will consume a single license.
Note:
VxOpsCenter software does not require a license. You can install the software on any
workstation meeting the system requirements.
Each camera/encoder on a VideoXpert system requires a channel license. To enable upgrades to VideoXpert software, an active software upgrade plan (SUP) is also required.
Due to the complexity of network and system design for larger distributions, VideoXpert Enterprise with aggregation requires either training certification, or that the installation be performed by Pelco Professional Services. While not required for Enterprise distributions, it is strongly recommended that system installers and administrators be Pelco-certified.
Model Description
E1-COR-SW Core software license
E1-MGW-SW Media Gateway software license
C4037S-I | 03/20 8
VideoXpertEnterprise v 3.8 Software
Product Specification video management solutions
Model Description
E1-VXS-SW Storage software license
E1-1C 1 camera license for VideoXpert Enterprise, plus one year SUP
E1-1C-SUP1 Extension to current channel license (SUP); entitles you to upgrades for one
year.One per channel is required.
E1-1C-SUP3 Extension to current channel license (SUP); entitles you to upgrades for three
years.One per channel is required.
U1-AGG-1C Optional one-camera license for VideoXpert Enterprise to aggregate into another
VideoXpert Enterprise system. Professional services are recommended.
E1-NSM-1UP
Enables VxEnterprise to use the Endura NSM5200/NSM5300 as a storage device with up to 100 channels.
E1-NSM-1UP-50
Enables VxEnterprise to use the Endura NSM5200/NSM5300 as a storage device with up to 50 channels.
E1-NSM-1UP-25
Enables VxEnterprise to use the Endura NSM5200/NSM5300 as a storage device with up to 25 channels.
VX-ASCII ASCII Service
VX-EVENT-MON Event Monitoring Service to network I/O devices
VX-SNMP SNMP Monitoring
VX-CONNECT VxConnect to relay RTSP

Optional Accessories

l VX-A4-SDD Shared Display Decoder with US, Europe, and United Kingdom power cords
l VX-A3-ACC Accessory Server with US, Europe, and United Kingdom power cords
l VX-A4-DEC Enhanced Decoder (D10U) with US, Europe, and United Kingdom power cords
l 3DX-600-3DMOUSE Enhanced 3D Mouse and Joystick
l Y-U0023-G910KBD Enhanced Keyboard
l A1-KBD-3D-KIT2 Enhanced Keyboard and 3D Mouse Combination Kit
l KBD5000 Keyboard with Jog/Shuttle, Keypad, and Joystick
l PMCL622 Full High-Definition LED Monitor, 22"
l PMCL624 Full High-Definition LED Monitor, 24"
l PMCL632 Full High-Definition LED Monitor, 32"
l PMCL643K 4K Ultra-High-Definition LED Monitor, 43"
l PMCL649K 4K Ultra-High-Definition LED Monitor, 49"
l PMCL655K 4K Ultra-High-Definition LED Monitor, 55"
l PMCL665K 4K Ultra-High Definition LED Monitor, 65"
l VXP-KIT-4TB 4 TB hard disk drive with carrier for Eco 2 or Flex 2 Servers only
l VXP-KIT-8TB 8 TB hard disk drive with carrier for 2nd generation Power 2 Servers only
C4037S-I | 03/20 9
VideoXpertEnterprise v 3.8 Software
Product Specification video management solutions
Pelco, Inc.
625 W. Alluvial, Fresno, California 93711 United States
(800) 289-9100 Tel (800) 289-9150 Fax +1 (559) 292-1981 International T el +1 (559) 348-1120 International F ax
www.pelco.com
Pelco, the Pelco logo, and other trademarks associated with Pelco products referr ed to in thispublication are trademarks of Pelco, Inc. or its affiliates. ONVIF and the ONVIF logo are trademarks of ONVIF Inc. Allother product names and services are the proper ty of their respective companies. Product specifications and availability are subject to change without notice.
© Copyright 2020, Pelco, Inc. All rights reserved.
Loading...
