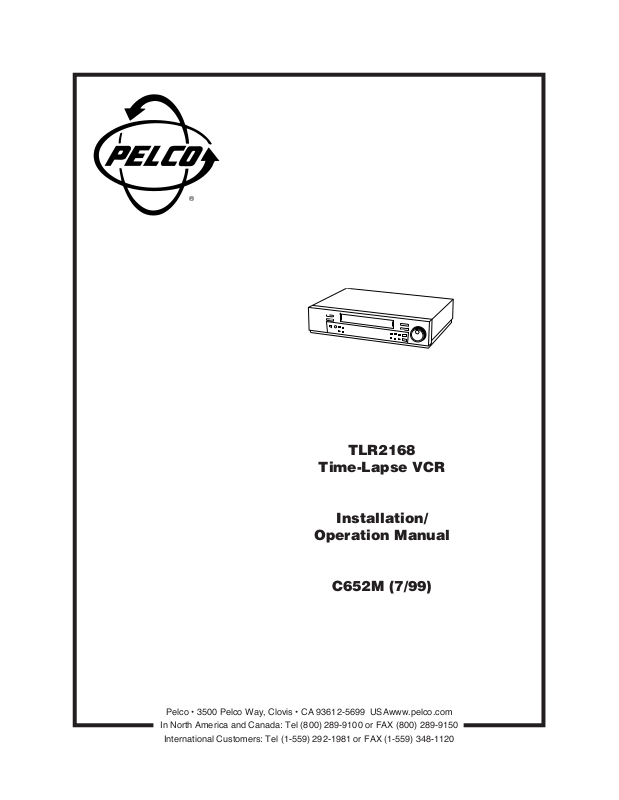

Pelco VCR C652M User Manual

TLR2168
Time-Lapse VCR
Installation/
Operation Manual
C652M (7/99)
Pelco • 3500 Pelco Way, Clovis • CA 93612-5699 USAwww.pelco.com
In North America and Canada: Tel (800) 289-9100 or FAX (800) 289-9150
International Customers: Tel (1-559) 292-1981 or FAX (1-559) 348-1120

CONTENTS

Section Page
1.0 GENERAL ..................................................................................................5
1.1 SAFEGUARDS, WARNINGS, CAUTION, AND CARE ......................6
1.2 REGULATORY NOTICES.................................................................. 8
1.3 UNPACKING INSTRUCTIONS .......................................................... 8
2.0 OVERVIEW ................................................................................................ 9
2.1 INTRODUCTION TO TIME-LAPSE RECORDERS ...........................9
2.2 TLR2168 FEATURES AND FUNCTIONS ..........................................9
3.0 QUICK START .......................................................................................... 11
3.1 BASIC START................................................................................... 11
3.2 ADDITIONAL ITEMS ........................................................................ 11
4.0 INSTALLATION .........................................................................................12
4.1 PRE-INSTALLATION CAUTIONS.....................................................12
4.1.1 Securing the VCR Controls .................................................... 12
4.1.2 Monitor Tips ...........................................................................12
4.2 INSTALLATION .................................................................................12
4.3 CONNECTING THE VCR TO A MULTIPLEXER ..............................14
5.0 CONTROLS ..............................................................................................15
5.1 FRONT PANEL ................................................................................. 15
5.2 FLUORESCENT DISPLAY ............................................................... 16
5.3 REAR PANEL ...................................................................................17
6.0 PROGRAMMING ......................................................................................19
6.1 GENERAL PROGRAMMING INSTRUCTIONS ................................19
6.2 QUICK GUIDE TO TLR2168 MENU STRUCTURE..........................20
6.3 MAIN MENU ..................................................................................... 21
6.4 DISPLAY MENU ...............................................................................21
6.4.1 Display Mode .........................................................................21
6.4.2 Time Date Size ...................................................................... 21
6.5 TIME DATE SEARCH MENU ...........................................................22
6.6 TIMER PROGRAM MENU ...............................................................23
6.7 RECORDING SET UP MENU ..........................................................23
6.8 REAR TERMINAL MENU .................................................................24
6.9 MAINTENANCE MENU ....................................................................25
6.10 FIRST TIME SET UP MENU.............................................................26
6.10.1 Day and Time Display Modes ..............................................27
6.10.2 Set the Day and Time ..........................................................28
7.0 LOADING/UNLOADING/PROTECTING THE TAPE CASSETTE.............30
7.1 LOADING ..........................................................................................30
7.2 UNLOADING ....................................................................................30
7.3 PREVENTING ACCIDENTAL ERASURE .........................................30
8.0 RECORDING ............................................................................................31
8.1 MANUAL RECORDING .................................................................... 31
8.1.1 Recording Mode ....................................................................32
8.1.2 Record Check Function .........................................................32
8.1.3 Audio Recording ....................................................................32
8.1.4 Repeat Recording ..................................................................32
8.1.4.1 Number of Tape Uses ..............................................33
8.1.4.2 Recommended Number of Tape Uses ..................... 33
8.1.5 Series Recording ................................................................... 34
8.1.6 One-Shot/Interval Recording ................................................. 34
8.1.7 Synchronous Recording ........................................................35
2 Pelco Manual C652M (7/99)
Section Page
8.2 TIMER RECORDING ........................................................................ 36
8.2.1 Programming Procedure ........................................................ 36
8.2.2 Special DW Settings ..............................................................36
8.2.3 Avoid Mistakes When Using the Timer ..................................37
8.3 ALARM RECORDING ......................................................................37
8.3.1 Alarm Recording Connection .................................................38
8.3.2 External Time Clock Adjustment ............................................38
8.3.3 Programming For Alarm Recording .......................................39
8.3.4 Emergency Recording ...........................................................40
8.3.5 Alarm Record Time Display ...................................................40
8.4 RECORDING AFTER A POWER FAILURE ...................................... 40
9.0 PLAYBACK ...............................................................................................41
9.1 PLAYBACK PROCEDURE ...............................................................41
9.2 SPECIAL EFFECTS PLAYBACK ...................................................... 42
9.3 LOCATING THE START OF ALARM RECORDINGS .......................44
9.4 ADJUSTMENT DURING PLAYBACK ...............................................45
8.3.5.1 Reset The Alarm Recording List ..............................40
9.1.1 Playback Mode ...................................................................... 42
9.1.2 Audio Playback ......................................................................42
9.1.3 End Of Tape ...........................................................................42
9.2.1 Shuttle Ring ........................................................................... 43
9.2.2 Direct Shuttle Ring .................................................................43
9.2.3 Still Picture .............................................................................44
9.2.4 Frame-by-Frame Playback .................................................... 44
9.3.1 Index Search .......................................................................... 44
9.3.2 Skip Search ...........................................................................45
9.4.1 Tracking Adjustment ..............................................................45
9.4.2 Picture Quality Adjustment.....................................................46
9.4.3 Vertical Adjustment ................................................................ 46
10.0 ADDITIONAL FUNCTIONS AND FEATURES ..........................................47
10.1 COUNTER ........................................................................................ 47
10.1.1 Counter Memory ..................................................................47
10.1.2 Tape Counter ....................................................................... 47
10.1.3 Counter Reset ...................................................................... 47
10.2 MEMORY BACKUP IN CASE OF POWER FAILURE ......................47
10.3 POWER FAILURE TIME DISPLAY ...................................................47
10.4 ELAPSED TIME DISPLAY ................................................................ 48
11.0 TESTING ..................................................................................................49
11.1 INITIAL SYSTEM TESTING .............................................................49
11.2 REGULAR SYSTEM TESTING ........................................................ 49
12.0 TROUBLESHOOTING ..............................................................................50
12.1 SELF-DIAGNOSTIC FUNCTION AND WARNING DISPLAY ........... 50
12.2 BEFORE CALLING FOR SERVICE .................................................51
13.0 SPECIFICATIONS ....................................................................................52
14.0 WARRANTY AND RETURN INFORMATION ........................................... 54
Pelco Manual C652M (7/99) 3

LIST OF ILLUSTRATIONS

Figure Page
1 Typical System Setup .......................................................................13
2 Connecting VCR To Multiplexer ........................................................14
3 Front View .........................................................................................15
4 Fluorescent Display .......................................................................... 16
5 Rear View .........................................................................................17
6 Not Used
7 Menu Tree.........................................................................................20
8 Main Menu ........................................................................................21
9 Display Menu ....................................................................................21
10 Time Date Search Menu ...................................................................22
11 Timer Program Illustration ................................................................. 23
12 Recording Set Up Menu ...................................................................23
13 Rear Terminal Menu ..........................................................................24
14 Maintenance Menu ...........................................................................25
15 First Time Set Up Menu ....................................................................26
16 Display Mode 1 .................................................................................27
17 Display Mode 2 .................................................................................27
18 Manual Recording Steps ..................................................................31
19 Connecting VCRs in Series ..............................................................34
20 Synchronous Recording Sequence .................................................. 35
21 Connection for Synchronous Recording ..........................................35
22 Switching From Normal To Alarm Mode And Back ...........................37
23 Alarm Recording Connection ............................................................38
24 Time Clock Adjustment Connection ..................................................38
25 Playback Controls .............................................................................41
26 SHUTTLE Ring Speed Settings ........................................................ 43
27 Direct SHUTTLE Ring Speed Settings ............................................. 43
28 Index Searching ................................................................................44
29 Skip Searching ..................................................................................45
30 Tracking Adjustment .........................................................................45
31 Picture Quality Adjustment ................................................................46
32 Vertical Picture Adjustment ............................................................... 46

LIST OF TABLES

Table Page
A Not Used
B Call Out/Tape End ............................................................................. 24
C Recording Times in Hours ................................................................32
D When Tape End is Reached .............................................................32
E Recommended Number of Tape Uses .............................................. 33
F Numbers of VCRs and Cameras ...................................................... 36
G Timer Recording Troubleshooting ..................................................... 37
H Audio Playback Availability ............................................................... 42
I End of Tape Actions .......................................................................... 42
J Warning Display and Actions ............................................................ 50
REVISION HISTORY
Manual # Date Comments
C652M 12/98 Original version.
7/99 Removed material on optional remote control.
4 Pelco Manual C652M (7/99)

1.0 GENERAL

WARNING
RISK OF ELECTRIC SHOCK
DO NOT OPEN
WARNING:
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
TO REDUCE THE RISK OF ELECTRIC SHOCK
DO NOT REMOVE COVER (OR BACK)
NO USER-SERVICEABLE PARTS INSIDE
The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated dangerous voltage within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the equipment.
AVERTISSEMENT
DANGER D’ÉLECTROCUTION
NE PAS OUVRIR
AVERTISSEMENT: POUR ÉLIMINER TOUT RISQUE
D’ÉLECTROCUTION, NE PAS OUVRIR LE COUVERCLE (OU LA PARTIE ARRIÈRE). AUCUNE PIECE RÉPARABLE PAR L’UTILISATEUR NE SE TROUVE À L’INTÉRIEUR. POUR TOUTE INTERVENTION D’ENTRETIEN OU DE RÉPARATION SE CONFIER AUX TECHNICIENS QUALIFIÉS.
La flèche symbolisant l’éclair dans un triangle équilateral a pour objet de tirer l’attention de l’utilisateur sur le fait, qu’il y a des tensions dangereuses non-isolées à l’intérieur de l’enceinte du produit qui peuvent être suffisamment impor­tantes pour conduire au risque d’électrocution.
Le point d’exclamation au sein d’un triangle équilateral a pour objet de tirer l’attention de l’utilisateur sur le fait qu’il y a des instructions de mise en service et d’entretien (de réparation) dans les fiches descriptives de l’appareil qui doivent obligatoirement être respectées.
WARNING:
TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE.
CAUTION:
TO PREVENT ELECTRIC SHOCK DO NOT USE THE POLARIZED PLUG WITH AN EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE.
AVERTISSEMENT:
AFIN D’ÉVITER TOUT RISQUE D’INCENDIE OU D’ÉLECTROCUTION, NE PAS EXPOSER CET APPAREIL À LA PLUIE NI À L’HUMIDITÉ.
ATTENTION:
POUR PRÉVENIR LES CHOCS ÉLECTRIQUES NE PAS UTILISER CETTE FICHE POLARISÉE AVEC UN PROLONGATEUR, UNE PRISE DE COURANT OU UNE AUTRE SORTIE DE COURANT, SAUF SI LES LAMES PEUVENT ÊTRE INSÉRÉES À FOND SANS EN LAISSER AUCUNE PARTIE À DÉCOUVERT.
Pelco Manual C652M (7/99) 5

1.1 SAFEGUARDS, WARNINGS, CAUTION, AND CARE

Observe the following WARNINGS before installing and using this product. Follow all warnings and instructions marked on the VCR.
Instructions
Read all the safety and operating instructions before operating the VCR. Keep the instructions for future reference. Follow all operating and use instructions. Heed all warnings on the equipment and in the operating instructions.
Installation/Servicing
Installation and servicing should be done by qualified service personnel only and conform to all local codes. Do not try to service this VCR yourself. Opening or removing covers may expose you to dangerous voltage or other hazards.
Damage Requiring Service
Unplug the VCR from the wall outlet and refer servicing to qualified service person­nel under the following conditions:
1. When the power cord or plug is damaged.
2. If liquid has been spilled, or objects have fallen into the VCR.
3. If the VCR does not operate normally when following the operating instruc­tions.
Adjust only those controls covered by the operating instructions. Improper adjustment of other controls may cause damage and will often require exten­sive work by a qualified technician to restore the VCR to normal operation.
4. If the VCR was dropped or the cabinet damaged.
5. When the VCR shows a distinct change in performance—this indicates a need for service.
Replacement Parts
Be sure the service technician uses only replacement parts Pelco recommends, or which have the same characteristics as the original part. Unauthorized substitu­tions may cause fire, electric shock, or other hazards.
Safety Check
Upon completion of any service or repair to the VCR, ask the service technician to perform safety checks to determine whether it is in safe operating condition.
Water/Moisture/Condensation
Do not use this VCR near water. It is designed for indoor use only and must not be installed where exposed to rain and moisture.
Do not place objects containing water, such as drinks, on top of the VCR.
If the VCR is exposed to a rapid increase in temperature (such as warming a cold room or after moving it from a cold location to a warm one), condensation may form on the tape transport mechanism inside the VCR. To prevent damage to the VCR or tapes, plug the VCR into the AC outlet and turn the power on for about two hours. Do not play back or record on the VCR during this time.
Condensation is likely to occur when:
1. The VCR is moved from a cold room to a warm room or from outdoors to indoors.
2. A cold room is heated quickly.
3. The humidity is very high.
Avoid using the VCR where cold air (such as from an air conditioner) will blow directly on it.
6 Pelco Manual C652M (7/99)
Cleaning
Unplug the VCR from the wall outlet before cleaning. Do not use liquid or aerosol cleaners. Clean with a soft cloth slightly moistened with mild detergent and water. Wipe dry. NEVER USE PETROLEUM-BASED SOLUTIONS.
Attachments
Do not use attachments not recommended by Pelco as they may cause hazards.
Accessories
Do not place the VCR on an unstable cart, stand, tripod, bracket, or table. The VCR may fall, seriously injuring a person or damaging the equipment. Use only with a cart, stand, tripod, bracket, or table recommended by Pelco, or sold with the VCR. Follow Pelco’s instructions when mounting equipment, and use a mounting acces­sory recommended by Pelco.
Use care when moving equipment on a cart. Quick stops, excessive force, and uneven surfaces may overturn the VCR and cart combination.
Do Not Place Anything Heavy On The VCR
Heavy objects placed on the VCR will cause damage.
Ventilation
Slots and openings in the cabinet provide ventilation and ensure reliable operation of the VCR and protect it from overheating. Do not block or cover these openings. Never place the VCR near or over a radiator or heat register. Do not place it in a built-in installation such as a rack unless proper ventilation is provided or Pelco’s instructions have been followed. There are many ventilation holes on the bottom of the VCR—for maximum ventilation, place it on a hard level surface only.
Power Sources
Operate this VCR only from the type of power source indicated on the marking label. If you are unsure of the type of power supply, consult your equipment dealer or local power company.
WARNING:
The in­cluded power cord is used for 120 VAC, 60 Hz. Never connect to any outlet or power sup­ply having a different voltage or frequency.
Grounding or Polarization
This VCR is equipped with a three-wire grounding-type plug—a plug having a third (grounding) pin. This plug only fits into a grounding-type outlet. This is a safety feature. If you cannot insert the plug into the outlet, contact an electrician to replace the obsolete outlet. Do not defeat the safety purpose of the grounding-type plug.
Power Cord Protection
Do not damage the power cord; it may cause fire or shock hazard. Route the power cord so it is not likely to be walked on or pinched by items placed on or against it. Pay particular attention to the cord at the wall plug or convenience receptacle and the point where it connects to the VCR. When unplugging the power cord, grasp the plug and remove it carefully.
Lightning/Power Surges
Unplug the VCR from the wall outlet for its added protection during a lightning storm or when it is unused for long periods. This prevents damage to the VCR from lightning and power line surges. Pelco recommends using conditioned-output uninterruptible power supplies (UPS) and/or surge protected outlets to maximize protection of the VCR.
When Not In Use
When you finish operating the VCR, always unload the cassette and turn off the power.
Overloading
Do not overload wall outlets and extension cords as this increases the risk of fire and electric shock.
Object and Liquid Entry
Never push objects of any kind into the VCR through openings. They may touch dangerous voltage points or short out parts that could result in a fire or electric shock. It can also cause extensive damage to the mechanism. Never spill liquid of any kind on the VCR.
Pelco Manual C652M (7/99) 7
Care Of Video Cassette Tape
1. Avoid violent vibration or shock.
2. Do not place near a strong magnetic field (near a motor, transformer, or magnet).
3. Never place or store in direct sunlight.
4. Avoid dusty places.
5. Place the cassette in the cassette case and store vertically.
6. Never store tapes in a high humidity location.

1.2 REGULATORY NOTICES

NOTE: This equipment has been tested and found to comply with the limits of a
Class B digital device, pursuant to part 15 of the FCC rules. These limits are de­signed to provide reasonable protection against harmful interference in a residen­tial installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However there is no guarantee that the interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be deter­mined by turning the equipment off and on, the user is encouraged to try and cor­rect the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and the receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party responsible for com­pliance could void the user’s authority to operate the equipment.
INFORMATION
This Class B digital apparatus meets all requirements of the Canadian Interference Causing Equipment Regulations.
INFORMATION
Cet appareil numérique de la classe B respecte toutes les exigences du Réglement sur le matériel brouilleur du Canada.

1.3 UNPACKING INSTRUCTIONS

Unpack and inspect all parts carefully.
Be sure to save the shipping carton, boxes and inserts. They are the safest mate­rial in which to make future shipments.
If an item appears to have been damaged in shipment, replace it properly in its box and contact the factory at 1-800-289-9100 or 1-559-292-1981 for a replacement. (International customers fax 1-559-348-1120 for authorization and instructions.)
If an item needs to be returned to the factory for repair, consult the WARRANTY AND RETURN section of this manual for instructions.
8 Pelco Manual C652M (7/99)

2.0 OVERVIEW

2.1 INTRODUCTION TO TIME-LAPSE RECORDERS

Time-lapse recording permits longer than ordinary recording times. The primary reason for using time-lapse recording in a CCTV security system is that a single VCR tape can be used for an extended period of time beyond the standard record­ing time. The following explains how time-lapse recording works.
The actual recording on VCRs is a series of still pictures or fields. Standard con­sumer VHS recorders store 60 fields (30 frames) per second. A T-120 cassette lasts just two hours in this mode (SP mode). You can get slightly longer recording times (six hours) using the extended recording mode (EP mode). You can record even longer on a T-160 cassette in these modes: two hours and 40 minutes in SP mode and eight hours in EP mode. (Refer to the table in Section 8.1.1 for actual recording times in different modes.)
Time-lapse VCRs, however, use microprocessor-based techniques to record fewer fields per second than a normal VHS machine and extend recording time. This negates the need to change the tape every two hours—and also substantially re­duces viewing time when the recording is played back, another important consider­ation.
In normal VCR operation, all video head scans (60 per second) are recorded. But in time-lapse mode the tape runs more slowly and records pictures periodically. In 12­hour mode, a normal time-lapse machine records 10 fields per second, and in 24­hour mode, it stores just five fields per second (for up to 12 and 24 hours on a tape, respectively). Longer times are possible by slowing the recording rate further.
At normal speed a picture is recorded every 1/60 of a second so there is little change over five frames. In longer time-lapse modes, however, a field is recorded intermittently over a longer period of time so changes are apparent from field to field.
The time-lapse recording can be played back at normal two-hour tape speed, which makes for rapid review—one of the time-lapse recorder’s most important advan­tages. Action on the tape, however, appears faster than normal.
As an advanced feature, time-lapse recorders (like the TLR2168) can automati­cally switch from time-lapse to real-time recording when an alarm condition occurs. This is important since the primary purpose of recording an event is identification, and real-time recording provides more detail.

2.2 TLR2168 FEATURES AND FUNCTIONS

The TLR2168 time-lapse video recorder is a powerful surveillance tool designed for industrial and security recording. In addition to ordinary two-hour (SP – standard play) and six-hour (EP – extended play) recording modes, its time-lapse modes permit recording of 18, 24, 48, 72, 96, 120, or 168 hours. (Linear modes are desig­nated as L18H and L24H.) You can extend recording up to 64,800 hours (for T-120 tape) using one-shot recording with a three-minute time interval. The TLR2168 features frame-by-frame playback and high-speed playback of longer recordings. It is a six-head machine that can play back tapes recorded on virtually any VCR.
Audio Recording–Audio recorded in 2H, 6H, or L(inear)18H, L24H mode is played back only in its respective mode.
Resolution And Image Quality–This VCR has a high-quality circuit allowing more than 330 lines in B/W (black and white) mode, and more than 300 lines in color mode.
Pelco Manual C652M (7/99) 9
High Density Recording - H·D<EP>–High density recording records three times more fields than normal density (SP). It reduces the time interval between pictures and makes for smoother time-lapse recording.
Tape Remaining Indicator–A bar indicator shows how much tape is left and/or that the tape has approximately three minutes (in 2H mode) left.
Automatic Head Cleaning–The VCR automatically removes foreign matter from the heads when a cassette is inserted for continuous smooth operation.
Easy Setup Using A Monitor –The on-screen menus simplify setup programming. You can select these menus even without inputting a video signal.
Easy Cueing With Alarm Recording–Index signals are automatically added at the beginning of alarm recording for easy cueing. You can confirm alarm starting time in the playback video on the monitor or in the alarm list on the Maintenance menu.
Time And Date Search System–You can search for a specific hour/minute and date to accurately locate an image on tape.
External Time Clock Adjustment–You can reset the on-screen clock to the near­est hour by applying a signal to the RST (reset) IN terminal at the rear of the VCR.
Record Check–You can confirm correct recording by pressing the PLAY button during recording.
Automatic Head Azimuth Selection–The VCR can automatically select playback heads for normal VHS-compatible time-lapse recordings, or older time-lapse re­cordings made using two same-azimuth video heads. Same-azimuth time-lapse recordings use VHS cassettes but cannot be played normally by VHS-compatible VCRs.
NOTE:
The battery backup is for memory only–the VCR does not continue recording if the power goes out. If you want to keep re­cording during an outage, make sure the VCR system is on your UPS (uninterruptible power supply) system.
Special Playback Features–These include still images, speed search, reverse playback, frame-by-frame viewing in both directions, slow-motion, and high-speed viewing.
JOG Dial/SHUTTLE Ring–You can use these controls to search for the desired image. You can adjust the playback speed with the SHUTTLE ring and search for an image frame-by-frame with the JOG dial.
Recording Options–This versatile system offers a variety of recording options, including daily and weekly timer recording, repeat, and alarm recording.
Protection Against Power Failures—Recording data (including date, time, and timer setup) is stored in backup memory, so the system can resume recording after a power failure. The monitor displays the time of the failure.
Digital <ELAPSED TIME> Display–The elapsed time of recording and playback is stored in non-volatile memory. You can use the elapsed time display as a guide to when to do periodic maintenance.
Tape Use Counter–This counter displays how many times you have recorded on a tape. This helps you decide when you need to replace a tape.
Daylight Saving Time Setting–A daylight saving time setting is available. You can set the clock forward an hour by programming the menu.
10 Pelco Manual C652M (7/99)

3.1 BASIC START

3.0 QUICK START

NOTE:
This section is intended for people experienced in working with time-lapse recorders and installing CCTV systems.
1. Decide where to locate the VCR. Do all system hookups first (camera, multi­plexer, etc.) if you are installing the VCR in a location where you cannot ac­cess its rear panel.
2. Connect the VCR to other equipment (Sections 4.2 and 4.3).
3. Plug in the VCR and press the POWER button. You should see the time and date displayed on the monitor.
4. To reset the time/date (First Time Set Up menu), see Section 6.10.2. Skip if you do not want to reset the time/date.
5. Put in a T-120 or T-160 tape. Refer to Table C for recording times. Set the appropriate tape length if you want the approximate tape remaining indicator to work correctly (Section 6.10.2). If not, skip.
6. Put the VCR in the recording mode you want by pressing the REC/PLAY (+) and (-) buttons. Watch the fluorescent display. Set to 2H, L24H, 48H – 168H, or 0H mode for recording at SP speed. Set to 6H, L18H, 48H – 168H, or 0H for EP speed.
7. Press REC to begin recording.
8. Press STOP to stop. Turn the SHUTTLE ring right to fast forward and left to rewind. Press PLAY to play back the tape.
9. Refer to Section 11.1 for initial system testing information.

3.2 ADDITIONAL ITEMS

You can also incorporate the following programming steps for more than a basic quick setup.
1. If desired, set the tape end, quasi v-sync, playback head select, and buzzer options (Section 6.10) on the First Time Set Up menu.
2. If desired, set the display mode and time/date size options (Section 6.4) in the Display menu.
3. If desired, in the Timer Program menu (Section 6.6), program for timer record­ing (Section 8.2 ).
4. If desired, in the Recording Set Up menu (Section 6.7), program for alarm recording mode and duration (Section 8.3.3), emergency recording (Section
8.3.4), and one-shot recording (Section 8.1.6).
5. If desired, in the Rear Terminal menu (Section 6.8), program for call out (Sec­tion 8.1.5 for series recording), clock out (Section 8.1.7 for synchronous re­cording), operation of the mode out terminal, and operation mode of the REC IN terminal.
Pelco Manual C652M (7/99) 11

4.0 INSTALLATION

4.1 PRE-INSTALLATION CAUTIONS

1. Provide secure power to system components. Prevent overloading or short­ing by dedicating power circuits to the surveillance equipment. Restrict ac­cess to the surveillance system circuit breakers, switches, and equipment power cords.
2. Surveillance system components must be operationally compatible. Time-lapse recording speeds and dwell times of any accessory switching equipment must be compatible with each other.
3. The TLR2168 time-lapse VCR provides several alarm recording speeds so it is important that alarm triggering of components be operationally compatible. Refer to Section 2.1 for information on time-lapse recording.
4. Complete all system hookups (camera, multiplexer, etc.) before installing the VCR in a location where you cannot access its rear panel.

4.1.1 Securing the VCR Controls

Protect surveillance equipment to forestall tampering. We recommend putting the recorder in a secure VCR cabinet. Pelco offers such units–the RM2000, which is a rack kit for a single VCR, and the RM2004, which is a rack kit for four VCRs.

4.1.2 Monitor Tips

Pelco recommends using a CCTV monitor.
Some monitors may cause picture vibration or picture distortion at the top or bottom of the image during still or normal playback. (Refer to Section 9.4.3 for information.)
A television may be unable to provide a stable picture without vibration or distortion.

4.2 INSTALLATION

1. Remove the VCR and all cables from the box.
2. Place the VCR in a suitable location.
If the location is unsecured, refer to Section 4.1.1 for information about
products to lock up the VCR.
Do all system hookups (camera, multiplexer, etc.) before installing the
VCR in a location where you cannot access its rear panel,
3. If installing in a rack, place the VCR in the rack before making cable and power connections. Refer to the documentation included with the rack kit for specific installation instructions.
4. If you are not using a switcher, refer to Figure 1.
Connect the camera (video output) to the rear of the VCR (video input
BNC). Connect the VCR (video output BNC) to the monitor (video input).
Connect the alarm input to the VCR (SET IN and GND [ground] termi-
nals).
If you are using a 600 microphone, connect it to the VCR (MIC IN jack).
Connect the VCR (audio output connector) to the monitor (audio input).
5. If you are using a switcher, refer to Section 4.3.
12 Pelco Manual C652M (7/99)
ALARM DEVICE
CCTV CAMERA
ALARM OUTPUT FROM DEVICE
SET
IN
VIDEO OUTPUT FROM CAMERA
VIDEO
IN
MIC
600
MIC IN
SET RSTINREC GND ALM MODE CLK CALL
IN
AUDIO
OUTMIC
AUDIO OUT
OUT
RESET
REMOTE
OUTIN
VIDEO
VIDEO OUT
AUDIO IN

Figure 1. Typical System Setup

VIDEO IN
AUDIO IN
MONITOR
Pelco Manual C652M (7/99) 13

4.3 CONNECTING THE VCR TO A MULTIPLEXER

Figure 2 shows how to connect the VCR to an MX4000 Series Genex™ Multi­plexer.
CALL
ALMINRECSET RST
GND
MODE
CLK
OUT
RESET
IN OUT
MIC
AUDIO
IN
REMOTE
OUT
VIDEO
TIME-LAPSE VCR
COAXIAL CABLE
B
For Automatic Speed T racking (“B” lines in Figure 2)
This lets the VCR control the multiplexer’s recording speed. It is the most efficient recording method.
1. Connect the VCR’s CLK output to the multiplexer’s head switching (HS) input to synchronize camera switching.
2. Connect the multiplexer’s ground terminal to the VCR’s GND terminal.
COAXIAL CABLE
SPOT
MAIN
AUX
SVHS
VCR
OUT IN
SVHS
A
IN COM OUT
ALARMS
1 2 3 4 5 67 8 91011 14151612 13
NN OCCS
H
120 VAC 60 Hz
MX4000 GENEX™ SERIES MULTIPLEXER
For Alarm Recording (“A” lines in Figure 2)
This is to start and stop recording when there are alarms.
1. Connect the multiplexer’s normally open (NO) relay ter­minal to the VCR’s SET IN (alarm input) terminal.
2. Connect the multiplexer’s common C terminal to the VCR’s GND terminal.
NOTE:
Cameras and monitors are connected to the multiplexer. Figure 2 shows the connection between the VCR
and an MX4000 Series Genex™ Multiplexer. Refer to the multiplexer manual for additional component connections.

Figure 2. Connecting VCR To Multiplexer

14 Pelco Manual C652M (7/99)

5.1 FRONT PANEL

5.0 CONTROLS

21
POWER
EJECT
VIDEO
B/W
COLOR
18
POSITION/
SHARP
SOFT
VERTICAL
TRACKING
ADJUST
1517
16
1. POWER button
Press for on; press again for off. The POWER indicator illuminates when the VCR is turned on.
2. EJECT button
Press to remove the cassette.
3. Cassette loading slot
Insert the cassette in this slot to load it.
4. STOP button
Press to halt all tape-related functions.
5. REC (record) button
Press to begin recording.
6. JOG dial
Use to advance the tape frame-by-frame and to program the menus.
7. SHUTTLE ring
Use to adjust the playback speed and to program the menus. Turn this ring to the right to advance the tape or to forward search. Turn it to the left to rewind a tape or to reverse search. You can also use it to clear the alarm list, power loss list, and timer recording. It also lets you pro­gram or exit the menus after setup.
8. PLAY button
Press to play back a previously recorded tape.
9. PAUSE/SHUTTLE HOLD button
Press this button during recording to temporarily stop tape movement. Press again to resume recording. When it is pressed during playback, tape movement stops and a still field is displayed. Press again to restore normal playback. Pressing and holding this button after turning the SHUTTLE ring allows continuous high-speed playback even if the SHUTTLE ring is released.
10.COUNTER MEMORY/SKIP/INDEX button
Press this button to switch among counter memory (fluo­rescent display shows M), skip search (displays SKIP), and index search (displays INDEX).
Counter Memory: Turn the SHUTTLE ring to the right and the tape rewinds to the 00000 counter position and stops (Section 10.1.1).
Skip Search: The VCR fast forwards or rewinds until it locates an index signal and then plays back for
3
FLUORESCENT DISPLAY
11. TIMER REC button
12. REC/PLAY MODE buttons
13. COUNTER RESET button
14. DISPLAY button
15. POSITION/VERTICAL ADJUST buttons (+/-)
16. TRACKING buttons (+/-)
17. PICTURE control
18. VIDEO switch
54
REC
STOP
COUNTER MEMORY/
DISPLAY
REC/PLAY
COUNTER
MODE
RESET
13
14
PLAY
SKIP/INDEX
PAUSE/
SHUTTLE HOLD
TIMER REC
9
11
12
10
6
SHUTTLE
JOG/ADJUST
CLEAR/ ENTER/
REW
8
7
FF
about four seconds in 2H or 6H mode, doing this until it reaches the end or beginning of the tape (Section
9.3.2 ).
• Index Search: During fast forward or rewind, the VCR searches for alarm index signals. When it finds one, the VCR plays back the tape and stays in still mode (Section 9.3.1).
Press to make a timed recording.
• Set to 2H, L24H, 48H - 168H, or 0H mode to set the recording speed in SP (standard play) mode. Set to 2H, L24H, 24H, 48H - 168H, or 0H mode to set the playback speed in SP mode.
• Set to 6H, L18H, 48H - 168H, or 0H mode to set the recording speed in EP (extended play) mode. Set to 6H, L18H, 48H - 168H, or 0H mode to set the play­back speed in EP mode.
Press to reset the counter to 00000.
Press to display the Main menu. Press again to show the time display.
• Pressing the (+) button moves the day and time dis­play to the right. Pressing the (-) button moves the day and time display down the screen. The display cannot be adjusted if a warning is displayed.
• Pressing either button minimizes vertical jitter in the still mode or during fast playback. Refer to Section
9.4.3 for details.
Press these buttons if noise is present during playback, reverse playback, or slow playback.
Use this control to adjust picture quality between soft and sharp.
Use the switch to select color or black and white re­cording and playback.

Figure 3. Front View

Pelco Manual C652M (7/99) 15

5.2 FLUORESCENT DISPLAY

12
M PL
1. M (counter memory) indicator
Illuminates during rewind for counter memory mode.
2. PL (power loss) indicator
Illuminates when there is a power failure during record­ing.
3. ALARM indicator
Flashes during alarm recording and stays on when the alarm recording is finished.
4. INDEX indicator
Flashes during recording of the date/hour index at the change of the hour, and during recording of the alarm index signal. It lights during an index search.
5. MODE display
Displays the selected recording or playback mode. Dur­ing an index search, it displays the index number. It will also indicate the playback head selection—SH or AH— three seconds after the playback starts or if the playback mode is changed. In the First Time Set Up menu, if the PB HEAD selection is set to L/L or R/R, then SH will be illuminated. If set to AUTO, then AH will be illuminated. (Refer to “PB HEAD SELECT” in Section 6.10 for more information.)
3456798
ALARM
INDEX
MODE
SP EP SKIP
EMGCY
LOCK
H
FDC
8. Repeat indicator
Illuminated when TAPE END in the First Time Set Up menu is set to REPEAT or ALARM•PROT.
9. Cassette status indicator
Illuminates when you insert the tape. The light advances, stops, or flashes corresponding to the movement of the tape.
10. Timer recording indicator
Illuminates when the TIMER REC button is set to ON.
11. Tape remaining indicator
Indicates the approximate tape position (S = start, E = end).
12. REC indicator
Illuminates during recording.
13. PLAY indicator
Illuminates during playback.
14. EMGCY (emergency recording) indicator
Illuminates when EMERGENCY REC in the Recording Set Up menu is set to ON.
SE
PLAY
EG
A
REC
B
NOTE:
SH or AH lights during playback in SP mode ONLY.
6. SKIP indicator
Illuminates during skip search.
7. Record mode indicator
EP illuminated means the VCR is either recording or play­ing back a tape recorded in EP mode. SP means the same, but for SP mode.

Figure 4. Fluorescent Display

15. LOCK indicator
Illuminates when the lock feature is in use.
16. Counter display
Indicates the relative position of the tape.
16 Pelco Manual C652M (7/99)

5.3 REAR PANEL

NOTE:
WARNING:
The included power cord is used for 120 VAC, 60 Hz. Never connect the power cord to any
outlet or power supply having a different voltage or frequency.
1
2
SET RSTINREC GND ALM MODE CLK CALL
IN
3
6
4
5
OUTÉMIC
AUDIO
87
OUT
VIDEO
9
OUTIN
A
RESET
REMOTE
EDC BFG
Make sure the power cord is unplugged before making any rear terminal connections.
1. AC power socket
The power cord plugs into this socket. Insert the cord firmly.
2. SET IN terminal
(Alarm) input terminal to start alarm recording. Connect the alarm sensor here.
3. RST (reset) IN terminal
Input terminal to stop alarm recording when ALARM REC DURATION in the Recording Set Up menu is set to MAN1. Connect the alarm reset switch here. You can also use this terminal to set the on-screen clock when set to any mode other than MAN1.
4. REC IN terminal
Input terminal to start/stop recording. You can also use this terminal for series recording (refer to Section 8.1.5) or syn­chronous recording (refer to Section 8.1.7).
5. GND (ground) OUT terminal
Connect the ground lead here when a lead connected to other terminals requires a ground.
6. ALM (alarm) OUT terminal
Output terminal to an external device to indicate an alarm is being recorded.
7. MODE OUT terminal
Output terminal to indicate the VCR’s mode of operation, which can be selected by setting the MODE OUT in the Rear Terminal menu.
8. CLK (clock) OUT terminal
Output terminal to control an external camera switcher, such as the MX4000 Series Genex™ Multiplexer.
9. CALL OUT terminal
Output terminal to indicate when the tape finishes record­ing or that there was a problem during recording.
10. RESET button
Press to erase the present time, alarm recording list, power loss list, and the number of tape uses. Power to the VCR is cut off while the button is pressed. If there is a tape in the VCR and the button is released, the power indicator will light and the tape will fast forward for a few seconds. The VCR will then turn off.
11. REMOTE jack
The remote control unit is not supplied.
12. VIDEO OUT connector
Output connector for video signal (BNC connector).
13. VIDEO IN connector
Input connector for video signal (BNC connector).
14. AUDIO OUT connector
Audio output connector (RCA pin).
15. AUDIO IN connector
Audio input connector (RCA pin).
16. MIC IN jack
Input jack for a microphone rated at 600-ohms impedance.

Figure 5. Rear View
