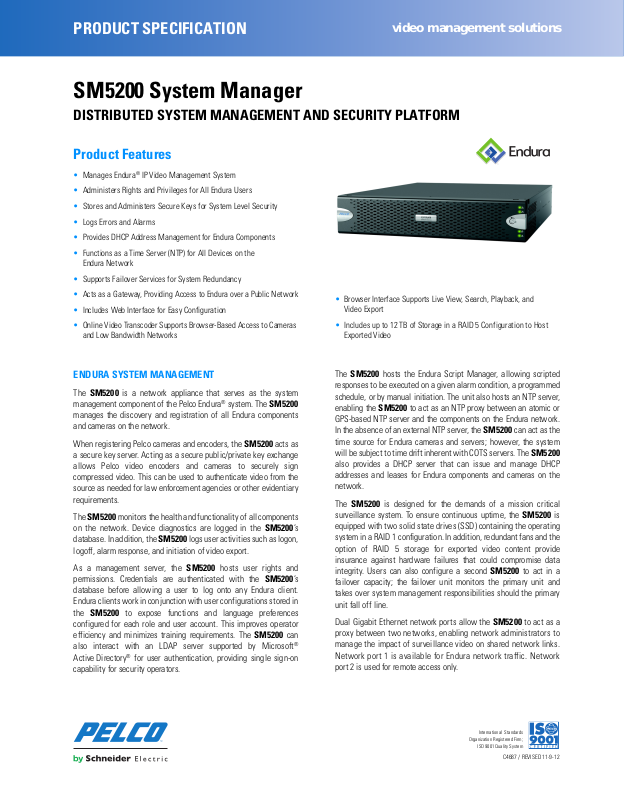

PRODUCT SPECIFICATION

video management solutions

SM5200 System Manager

DISTRIBUTED SYSTEM MANAGEMENT AND SECURITY PLATFORM

Product Features

• Manages Endura

• Administers Rights and Privileges for All Endura Users

• Stores and Administers Secure Keys for System Level Security

• Logs Errors and Alarms

• Provides DHCP Address Management for Endura Components

• Functions as a Time Server (NTP) for All Devices on the

Endura Network

• Supports Failover Services for System Redundancy

• Acts as a Gateway, Providing Access to Endura over a Public Network

• Includes Web Interface for Easy Configuration

• Online Video Transcoder Supports Browser-Based Access to Cameras

and Low Bandwidth Networks

®

IP Video Management System

• Browser Interface Supports Live View, Search, Playback, and

Video Export

• Includes up to 12 TB of Storage in a RAID 5 Configuration to Host

Exported Video

ENDURA SYSTEM MANAGEMENT

The SM5200 is a network appliance that serves as the system
management component of the Pelco Endura
manages the discovery and registration of all Endura components
and cameras on the network.

When registering Pelco cameras and encoders, the SM5200 acts as
a secure key server. Acting as a secure public/private key exchange
allows Pelco video encoders and cameras to securely sign
compressed video. This can be used to authenticate video from the
source as needed for law enforcement agencies or other evidentiary
requirements.

The SM5200 monitors the health and functionality of all components
on the network. Device diagnostics are logged in the SM5200’s
database. In addition, the SM5200 logs user activities such as logon,
logoff, alarm response, and initiation of video export.

As a management server, the SM5200 hosts user rights and
permissions. Credentials are authenticated with the SM5200’s
database before allowing a user to log onto any Endura client.
Endura clients work in conjunction with user configurations stored in
the SM5200 to expose functions and language preferences
configured for each role and user account. This improves operator
efficiency and minimizes training requirements. The SM5200 can
also interact with an LDAP server supported by Microsoft
Active Directory® for user authentication, providing single sign-on
capability for security operators.

®

system. The SM5200

The SM5200 hosts the Endura Script Manager, allowing scripted
responses to be executed on a given alarm condition, a programmed
schedule, or by manual initiation. The unit also hosts an NTP server,
enabling the SM5200 to act as an NTP proxy between an atomic or
GPS-based NTP server and the components on the Endura network.
In the absence of an external NTP server, the SM5200 can act as the
time source for Endura cameras and servers; however, the system
will be subject to time drift inherent with COTS servers. The SM5200
also provides a DHCP server that can issue and manage DHCP
addresses and leases for Endura components and cameras on the
network.

The SM5200 is designed for the demands of a mission critical
surveillance system. To ensure continuous uptime, the SM5200 is
equipped with two solid state drives (SSD) containing the operating
system in a RAID 1 configuration. In addition, redundant fans and the
option of RAID 5 storage for exported video content provide
insurance against hardware failures that could compromise data
integrity. Users can also configure a second SM5200 to act in a
failover capacity; the failover unit monitors the primary unit and
takes over system management responsibilities should the primary
unit fall off line.

Dual Gigabit Ethernet network ports allow the SM5200 to act as a
proxy between two networks, enabling network administrators to

®

manage the impact of surveillance video on shared network links.
Network port 1 is available for Endura network traffic. Network
port 2 is used for remote access only.

International Standards

Organization Registered Firm;

ISO 9001 Quality System

C4687 / REVISED 11-9-12

TECHNICAL SPECIFICATIONS

WEB INTERFACE FOR REMOTE ACCESS

The SM5200 provides a browser-based interface for remote video viewing with minimal overhead.* Administrators with appropriate permissions
can enable or disable remote access through the browser interface and limit the bandwidth available from the server to remote browsers. This allows
administrators to effectively manage the impact on shared networks. For security purposes, all remote access is initiated using HTTPS over a
configurable, secure port. Administrators can also grant or limit user access to remote live view, search, playback, and export functions.

A browser-based status dashboard provides vital diagnostic information on the health of the system. Administrators with the proper credentials can
remotely view the status of the hardware and configure the SM5200 through a Web browser. Integrated SNMP services can also provide network
administrators with hardware and software status information.

For video viewing through the Web browser, the SM5200 includes an online, real-time software transcoder. The transcoder can convert up to 16 high
resolution, high bit rate IP streams from megapixel cameras into lower resolution, lower bit rate frames for transmission across low bandwidth
networks. By utilizing the JPEG format, the SM5200 viewing interface is compatible with any industry-standard Web browser and does not require
a browser-specific plug-in to view video.

Up to 16 streams of live video footage can be viewed across network bandwidths as low as 256 kbps. On networks limited to 128 kbps, users can
view up to four feeds in a 2x2 window. Users with appropriate credentials can also search for recorded video on Pelco NSM5200 units by camera,
time, date, and recording triggers (manual, continuous, motion, or alarm). Search results can be viewed in a 1x1 interface with standard play, pause,
fast-forward, and rewind functions, as well as a scrub bar to quickly pinpoint the segment of video required for an investigation.

Recorded video segments can also be exported through the Web interface. Video clips exported from the Endura network are automatically stored
on the SM5200’s integrated storage array for safekeeping and future download. Videos are stored in the proprietary PEF format. This is the native
format of the cameras involved and ensures that videos retain their original resolution and authentication signatures, supporting their use for
evidentiary purposes.

This Endura distributed, network-based product is available only to certified dealers/integrators. Please contact your local sales representative for details on certification applications and
requirements. Additional information on Endura products and certifications may be found at http://www.pelco.com/endura.

*The Pelco Web Viewer is designed for light to moderate Endura users. When accessing Endura in installations with 1,500 cameras or more, the WS5200 client

software should be used.

TECHNICAL SPECIFICATIONS

SYSTEM

Processor 2nd Generation Intel® Core™ i7
Operating System Embedded Linux
User Interface Web Interface
Internal Memory 8 GB
Internal System Drives 6, 3.5-inch drive bays
Internal Storage Capacity

Operating System SSD RAID1*
Export Footage Storage Up to 12 TB in RAID5

USB Ports

Front 1 USB 2.0
Rear 2 USB 2.0; 2 USB 3.0

*Drives 1 and 2 are SSD drives operating in a RAID 1 array, mirroring

the operating system.

†

Drives 3 to 6 are HDDs operating in a JBOD or RAID 5 configuration,
depending on the number of drives present in the array.

®

†

NETWORK

Interface 2 Gigabit Ethernet RJ-45 ports (1000Base-T)

REMOTE CLIENT REQUIREMENTS

Supported Web Browsers Microsoft® Internet Explorer® 9, Mozilla®

Note: The Pelco Web Viewer is designed for light to moderate Endura users.
When accessing Endura in installations with 1,500 cameras or more, the
WS5200 client software should be used.

®

Firefox

8, Google Chrome™ 17 or later

PELCO WEB VIEWER COMPATIBILITY

Live View and playback/export features of the Pelco Web Viewer are not
available from all Endura components. The table below lists the Pelco Web
Viewer features available from legacy cameras, current cameras, encoders,
and recorders.

Device Live View Playback/Export

ENC5308/ENC5316

Through DVR53xx

NVR5000 N/A

NVR5100 N/A

NET53xxT •

NET54xxT •

NSM5200 N/A •

®

Sarix

Third-Party Cameras

Through UDI5000-CAM

UDI5000-MTRX •

•

•

•

ENDURA COMPONENT COMPATIBILITY NOTES

The SM5200 is compatible with current and legacy Endura system
components. Please note minimum software version requirements where
applicable:

Current Endura Components

• WS5200/WS5070: Must be upgraded to version 2.5.3.10286 or later to
configure operator access to the Pelco Web Viewer.

• WS5000/WS5050/WS5060: Compatible with the SM5200 when used as
a replacement for the SM5000. The user interface must be upgraded to
leverage the web browser and transcoding capabilities of the SM5200.

• VCD5202: No compatibility restrictions. When using the VCD5202 with
the KBD5000 keyboard, user passwords are restricted to alphanumeric
characters unless using a USB keyboard to log on.

• WS5200-MAP: No compatibility restrictions. The Endura Mapping server
installer is not required to use WS5200-MAP with the SM5200.

• NET5402R-HD: No compatibility restrictions.

Legacy Endura Components

• WS5000/WS5060/WS5070: There are no compatibility restrictions
when using the SM5200 as a replacement for the SM5000. You must
upgrade to the WS5200/WS5070 to utilize the SM5200’s remote access
capabilities.

• GW5000/NET5301TC: No compatibility restrictions. The GW5000 and
NET5301TC can continue to be used for their respective functions
independently of the SM5200’s remote access capabilities.

• VCD500x: User passwords must be alphanumeric unless using a USB
keyboard to log on.

• NET5301R: No compatibility restrictions.

• NVR51xx/SEB51xx: No compatibility restrictions. Footage on NVR51xx
units cannot be queried for remote search, playback, or export from the
SM5200.

• DVR53xx: No compatibility restrictions. Footage on DVR53xx cannot be
queried for search, playback, or export from the SM5200.

• DVR51xx: No compatibility restrictions in EnduraEnabled environments.
Footage on EnduraEnabled DVR51xx units cannot be queried for search,
playback, or export from the SM5200.

TECHNICAL SPECIFICATIONS

Pelco and the Pelco logo are registered t rademarks of Pelco, Inc.

All product names and services identified t hroughout this document are trademarks or registered

trademarks of their respective companies. The a bsence of a trademark or registered trademark

from this document does not constitute a waiver of intellectual property rights.

Product specifications and availability subject to change without notice.

©Copyright 2012, Pelco, Inc. All rights reserved.

MODELS

Model numbers for the SM5200 consist of the base model, the amount of
video storage, and the country in which the unit will be used. For example, a
unit with 12 TB of video storage with a power cord for use in the United
Kingdom is SM5200-12-UK.

Model Video Storage Country Code

US = North America
EU = Europe

SM5200

3 TB

12 TB

UK = United Kingdom
CN = China
AU = Australia
AR = Argentina

OPTIONAL ACCESSORIES

SM5200-SSD-40GB Replacement 40 GB SSD for operating system
SM5200-HDD-3TB Replacement 3 TB HDD for data storage

SUPPLIED ACCESSORIES

Power Cord 1 based on country designation; all cables are

Bezel Keys 2
Rack Mount Kit Brackets, rails, and hardware for mounting in

SM5200-LIT Documentation and resource disc
USB Flash Drive 1 for system migration

*Units shipped to China do not include a power cord; a CCC approved power
cord must be used to power this equipment when used in China.

3-prong, molded connector. 1.8 m (6 ft)*

2 RU rack

POWER

Power Input 100 to 240 VAC, 50/60 Hz, autoranging
Power Supply Internal
Power Consumption Operating Maximum

110 VAC / 60 Hz 223.0 W, 2.03 A, 761.4 BTU/H
115 VAC / 60 Hz 215.5 W, 1.87 A, 735.7 BTU/H
220 VAC / 60 Hz 204.1 W, 0.93 A, 696.8 BTU/H

FRONT PANEL INDICATORS/FUNCTIONS

Buttons Power
Indicators

Power Blue
Unit Status Green, amber, red
Network Port 1 Green, amber, red
Network Port 2 Green, amber, red
Software Status Green, amber, red
Drive Status (6X) Green, amber, red

ENVIRONMENTAL

Operating Temperature 10° to 35°C (50° to 95°F)
Storage Temperature –40° to 65°C (–40° to 149°F)
Operating Humidity 20% to 80%, noncondensing
Maximum Humidity Gradient 10% per hour
Operating Altitude –15 to 3,048 m (–50 to 10,000 ft)
Operating Vibration 0.25 G at 3 Hz to 200 Hz at a rate of

0.5 octave/minute

Note: The temperature at the unit air intake can be significantly
higher than room temperature. Temperature is affected by rack
configuration, floor layout, air conditioning strategy, and other issues.
To prevent performance failure and unit damage, make sure the
temperature at the unit is continuously within the operating
temperature range.

PHYSICAL

Dimensions 50.8 x 43.4 x 8.9 cm

(20.0" D x 17.1" W x 3.5" H)
Mounting Rack or desktop (feet)
Weight Unit Shipping

SM5200-03 17.1 kg (37.8 lb) 20.5 kg (45.1 lb)
SM5200-12 18.9 kg (41.8 lb) 22.3 kg (49.1 lb)

CERTIFICATIONS/RATINGS/PATENTS

• CE, Class A; meets EN50130-4 standard requirements

• FCC, Class A

• UL/cUL Listed

•C-Tick

• S-Mark for Argentina

•CCC

•KCC

• U.S. Patent D527,390

STANDARDS/ORGANIZATIONS

• Pelco is a member of the MPEG-4 Industry Forum

• Pelco is a member of the Universal Plug and Play (UPnP) Forum

• Pelco is a member of the Universal Serial Bus (USB) Implementers Forum

• Pelco is a contributor to the International Standards for Organization/

Electrotechnical Commission (ISO/IEC) Joint Technical Committee 1
(JTC1), “Information Technology,” Subcommittee 29, Working Group 11

• Compliance, ISO/IEC 14496 standard (also known as MPEG-4)

• Compliance, International Telecommunication Union (ITU)

Recommendation G.711, “Pulse Code Modulation (PCM) of Voice
Frequencies”

NOTICE: Judgment as to the suitability of the products for users’ purposes is solely
the users’ responsibility. Users should refer to the Operation manuals for cautionary
statements regarding user selected options and how they might affect video quality.
Users shall determine the suitability of the products for th eir own int ende d application,
picture rate and picture quality. In the event users inten d to use the video for e videntiary
purposes in a judicial proceeding or oth e r wise, us er s sh ould consult with their attorney
regarding any particular requirements for such use.

Pelco by Schneider Electric

3500 Pelco Way, Clovis, California 93612-5699 United States

USA & Canada Tel [phone] Fax [phone]
International Tel [phone] Fax [phone]
www.pelco.com
