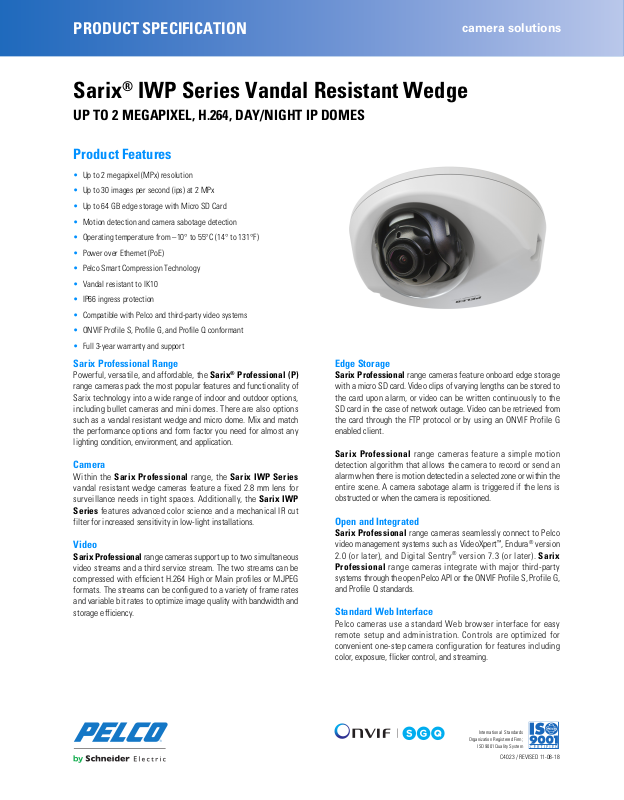

PRODUCT SPECIFICATION
Sarix® IWP Series Vandal Resistant Wedge
UP TO 2 MEGAPIXEL, H.264, DAY/NIGHT IP DOMES
Product Features
• Up to 2 megapixel (MPx) resolution
• Up to 30 images per second (ips) at 2 MPx
• Up to 64 GB edge storage with Micro SD Card
• Motion detection and camera sabotage detection
• Operating temperature from –10° to 55°C (14° to 131°F)
• Power over Ethernet (PoE)
• Pelco Smart Compression Technology
• Vandal resistant to IK10
• IP66 ingress protection
• Compatible with Pelco and third-party video systems
• ONVIF Profile S, Profile G, and Profile Q conformant
• Full 3-year warranty and support
camera solutions
Sarix Professional Range
Powerful, versatile, and affordable, the Sarix® Professional (P)
range cameras pack the most popular features and functionality of
Sarix technology into a wide range of indoor and outdoor options,
including bullet cameras and mini domes. There are also options
such as a vandal resistant wedge and micro dome. Mix and match
the performance options and form factor you need for almost any
lighting condition, environment, and application.
Camera
Within the Sarix Professional range, the Sarix IWP Series
vandal resistant wedge cameras feature a fixed 2.8 mm lens for
surveillance needs in tight spaces. Additionally, the Sarix IWP
Series features advanced color science and a mechanical IR cut
filter for increased sensitivity in low-light installations.
Video
Sarix Professional range cameras support up to two simultaneous
video streams and a third service stream. The two streams can be
compressed with efficient H.264 High or Main profiles or MJPEG
formats. The streams can be configured to a variety of frame rates
and variable bit rates to optimize image quality with bandwidth and
storage efficiency.
Edge Storage
Sarix Professional range cameras feature onboard edge storage
with a micro SD card. Video clips of varying lengths can be stored to
the card upon alarm, or video can be written continuously to the
SD card in the case of network outage. Video can be retrieved from
the card through the FTP protocol or by using an ONVIF Profile G
enabled client.
Sarix Professional range cameras feature a simple motion
detection algorithm that allows the camera to record or send an
alarm when there is motion detected in a selected zone or within the
entire scene. A camera sabotage alarm is triggered if the lens is
obstructed or when the camera is repositioned.
Open and Integrated
Sarix Professional range cameras seamlessly connect to Pelco
video management systems such as VideoXpert™, Endura® version
2.0 (or later), and Digital Sentry
Professional range cameras integrate with major third-party
systems through the open Pelco API or the ONVIF Profile S, Profile G,
and Profile Q standards.
®
version 7.3 (or later). Sarix
Standard Web Interface
Pelco cameras use a standard Web browser interface for easy
remote setup and administration. Controls are optimized for
convenient one-step camera configuration for features including
color, exposure, flicker control, and streaming.
International Standards
Organization Registered Firm;
ISO 9001 Quality System
C4023 / REVISED 11-08-18
Page 2
TECHNICAL SPECIFICATIONS
4.72
(1.86)
3.50 (1.38)
5.20
(2.04)
Ø 11.00
(4.33)
BACK BOX FEATURES
VALUES IN PARENTHESES ARE INCHES; ALL OTHERS ARE CENTIMETERS.
Surface Mount
• RAL 9003
• IP66 Ingress Protection
• IK10 (20J) Impact Resistance
CAMERA
Imaging Device MPx Sensor Maximum Resolution
2 MPx 1/2.8-inch 1920 x 1080 (2 MPx)
1 MPx 1/3-inch 1280 x 960 (1.2 MPx)
Imager Type CMOS
Imager Readout Progressive scan
Electronic Shutter Range 1/5 ~ 1/30,000 sec (1 MPx),
1/5 ~ 1/25,000 sec (2 MPx)
Wide Dynamic Range 75 dB, 90 dB (Backlight Compensation On)
White Balance Range 2,000° to 10,000°K
Noise Reduction Yes (ON/OFF selectable)
Minimum Illumination
MPx Sensitivity
Color Mono
33 ms 200 ms 33 ms 200 ms
2 MPx f/1.8 0.25 lux 0.02 lux 0.10 lux 0.01 lux
1 MPx f/1.8 0.05 lux 0.02 lux 0.10 lux 0.01 lux
Mechanical IR Cut Filter Yes (AUTO/MANUAL selectable), with different set points on lux
Signal to Noise Ratio
≥50 dB
LENS
Lens Type Built-in; fixed
Focal Length f/1.8, 2.8 mm
Field of View* Lens
2.8 mm
*Field of view may vary with changes in resolution settings.
Angle of
View
Diagonal 126° 136°
Horizontal 100° 117°
Vertical 74° 64°
1 MPx 2 MPx
Page 3
TECHNICAL SPECIFICATIONS
VIDEO
Video Streams Up to 2 simultaneous streams, plus service stream; the secondary stream is variable based on the setup of the primary stream
Video Overlay Camera name, time, date, and customizable text with multiple supported languages
Available Resolutions MPx Width Height Aspect Ratio
2.1 1920 1080 16:9
1.9 1600 1200 4:3
1.2 1280 960 4:3
0.9 1280 720 16:9
0.5 800 600 4:3
0.3 640 480 4:3
0.1 320 240 4:3
0.1 320 180 16:9
Frame Rates MPx Images per Second (ips)
2 MPx 30 (full), 20, 25, 16.67, 15, 12.5, 10, 5, 1
1 MPx 30 (full), 20, 25, 16.67, 15, 12.5, 10, 5, 1
Note: Available frame rates are selectable for each independent stream depending on the coding, resolution, and stream
configuration.
Video Encoding H.264 High, Main, and Baseline profiles; and MJPEG
Bit Rate Control Constant bit rate (CBR), constrained variable bit rate (CVBR) with configurable maximum value
Corridor Mode Electronic image flip and mirror: 180°, 90° and 270° (H.264 only)
Service Stream 640 x 480 or 640 x 352; 2 ips, JPEG
Window Blanking 4 configurable windows
PELCO’S SMART COMPRESSION TECHNOLOGY
Pelco’s Smart Compression Technology lowers bandwidth and storage
requirements by up to 70%. Our technology allows the user to make
intelligent decisions regarding storage savings and image quality.
Pelco’s Smart Compression Technology dynamically analyzes motion
occurring within live video in real-time, to intelligently compress the
information you don’t need, while retaining details with clear quality in the
areas that are important in the scene. By enabling Dynamic GOP, an added
feature of Smart Compression, the number of I-frames are automatically
reduced in scenes with low motion. Based on the complexity of scenes and
motion occurring, such as a store room that has limited entry and exit, up to
70% bandwidth savings can be achieved.
AUDIO
Streaming Bi-directional
Input Line in and out
Encoding G.711 A-law/G.711 U-law
ELECTRICAL
Network Port RJ-45 connector for 100Base-TX
Power Input PoE (IEEE 802.3af) Class 2
Power Consumption 4 W (1.2 MPx), 4.3W (2 MPx)
Local Storage Up to 64 GB on Micro SDHC or SDXC card
ENVIRONMENTAL
Operating Temperature –10° to 55°C (14° to 131°F)
Storage Temperature –40° to 60°C (–40° to 140°F)
Operating Humidity 5% to 90%, RH noncondensing
GENERAL
Construction Metal body; polycarbonate bubble
Ingress Protection IP66
Type 4X
Vandal Resistance IK10 (20J impact) per IEC 62262
Finish RAL 9003; satin texture
Pan/Tilt Adjustment Manual
Pan 20°
Tilt 110°
Rotate 360°
Unit Weight 0.40 kg (.88 lb)
Shipping Weight 0.60 kg (1.32 lb)
NETWORK
Supported Protocols TCP/IP, UDP/IP (unicast, multicast IGMP),
ICMP, IPv4, IPv6, SNMP v2c/v3, HTTP, HTTPS,
SSL, SSH, SMTP, FTP, RTSP, UPnP, DNS, NTP,
RTP, RTCP, LDAP (client), QoS, GB28181,
802.1X
Users
Unicast 1 administrator, up to 4 viewers
Multicast Unlimited users H.264
Security Access Multiple user access levels with password
protection
Page 4
TECHNICAL SPECIFICATIONS
14.00 (5.51)
3.50
(1.38)
4.60
(1.81)
8.30
(3.27)
18.00 (7.09)
0.30
(0.12)
12.00
(4.72)

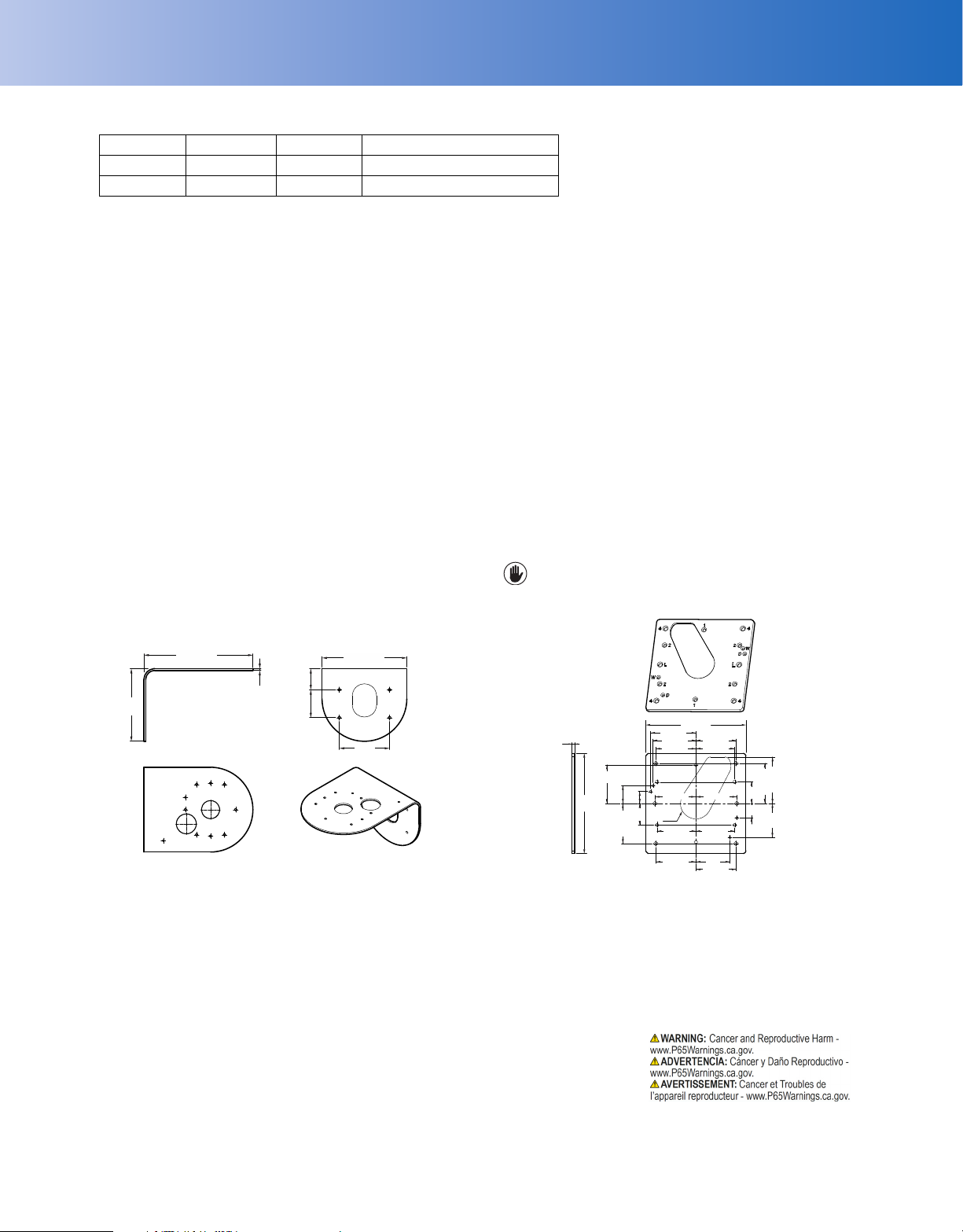

IMPPMB-1I WALL MOUNT BRACKET
D = Mini Dome
L = L Shape
W = Wedge Dome
1 = Singe Gang
2 = Dobuble Gang
4 = 4S
10.70 (4.21)
4.28 (1.69)
4.28 (1.69)
4.13
(1.62)
3.61
(1.42)
4.28 (1.69)
2.30
(0.90)
2.30
(0.90)
1.28
(0.50)
1.92
(0.75)
1.52
(0.60)
4.28 (1.69)
4.28 (1.69)
3.64
(1.43)
4.58 (1.80)
4.28 (1.69)
4.97 (1.95)
4.15 (1.63)
4.15 (1.63)
4.37 (1.72) 4.37 (1.72)
4.15 (1.63)
4.84 (1.90)
10.70
(4.21)
0.30
(0.12)
Ø 3.30
(1.30)
IMPEBAP BOX ADAPTER
SYSTEM MODEL NUMBERS*
Resolution Lens Model Number Description
1 MPx 2.8 mm IWP121-1ES Sarix Pro Vandal Resistant Wedge Dome
2 MPx 2.8 mm IWP221-1ES Sarix Pro Vandal Resistant Wedge Dome
*System options contain a back box/mount, camera, and clear dome.
INTEGRATION
Video Management VideoXpert;
Endura version 2.0 (or later);
Digital Sentry 7.3 (or later);
Third-party VMS through Pelco API, ONVIF
Profile S, Profile G, and Profile Q
Mobile Application Pelco Mobile
Analytics Simple motion detection and camera
Local Storage Capture 1-, 5- or 10-second video clips on
Camera Discovery
and Firmware Discover cameras upgrade firmware upgrade
Web Browser Support Microsoft
Multilingual User Interface English, French, German, Italian, Portuguese,
sabotage detection
camera sabotage, motion detection, or alarm
input; record video continuously in the case of
network outage with option to overwrite;
access video through FTP protocol and ONVIF
Profile G
using the Pelco Device Utility 2 version 2.2 or
later; or Pelco Utilities
®
Internet Explorer® 9.0, Apple®
®
Safari
7.0.6, Mozilla® Firefox®31.0,
®
Google
Chrome™ 37.0.2062.124 m and later
Arabic, Russian, Spanish, Turkish, Korean,
Simplified Chinese
CERTIFICATIONS*
• CE - EN 55022 (Class A), EN 50130-4, EN 60950-1
• FCC (Class A) - 47 CFR Part 15
• UL and cUL Listed - UL 60950-1, CAN/CSA-C22.2 No. 60950-1-07
• UL/IEC 60950-22
• ICES-003 (Class A)
•RCM
•KC
• ONVIF Profile S, Profile G, and Profile Q conformant
*
At the time of this publication, certifications are pending. Consult
the factory or www.pelco.com for the current status of certifications.
RECOMMENDED MOUNTS
IMPPMB-1I Indoor dome wall bracket for indoor models
(requires IMPEBAP adapter)
OPTIONAL ACCESSORIES
IMPEBAP 4S electrical box adapter
IWPWPC RJ45 waterproof connector kit
VALUES IN PARENTHESES ARE INCHES; ALL OTHERS ARE
CENTIMETERS
Color: RAL 9003
