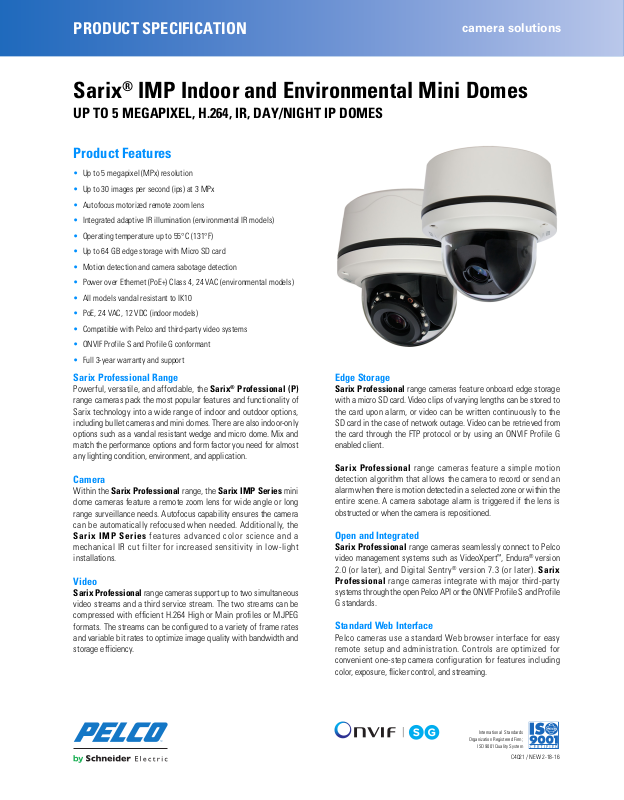

PRODUCT SPECIFICATION

camera solutions

Sarix® IMP Indoor and Environmental Mini Domes

UP TO 5 MEGAPIXEL, H.264, IR, DAY/NIGHT IP DOMES

Product Features

• Up to 5 megapixel (MPx) resolution

• Up to 30 images per second (ips) at 3 MPx

• Autofocus motorized remote zoom lens

• Integrated adaptive IR illumination (environmental IR models)

• Operating temperature up to 55°C (131°F)

• Up to 64 GB edge storage with Micro SD card

• Motion detection and camera sabotage detection

• Power over Ethernet (PoE+) Class 4, 24 VAC (environmental models)

• All models vandal resistant to IK10

• PoE, 24 VAC, 12 VDC (indoor models)

• Compatible with Pelco and third-party video systems

• ONVIF Profile S and Profile G conformant

• Full 3-year warranty and support

Sarix Professional Range

Powerful, versatile, and affordable, the Sarix® Professional (P)
range cameras pack the most popular features and functionality of
Sarix technology into a wide range of indoor and outdoor options,
including bullet cameras and mini domes. There are also indoor-only
options such as a vandal resistant wedge and micro dome. Mix and
match the performance options and form factor you need for almost
any lighting condition, environment, and application.

Camera

Within the Sarix Professional range, the Sarix IMP Series mini
dome cameras feature a remote zoom lens for wide angle or long
range surveillance needs. Autofocus capability ensures the camera
can be automatically refocused when needed. Additionally, the
Sarix IMP Series features advanced color science and a
mechanical IR cut filter for increased sensitivity in low-light
installations.

Video

Sarix Professional range cameras support up to two simultaneous

video streams and a third service stream. The two streams can be
compressed with efficient H.264 High or Main profiles or MJPEG
formats. The streams can be configured to a variety of frame rates
and variable bit rates to optimize image quality with bandwidth and
storage efficiency.

Edge Storage

Sarix Professional range cameras feature onboard edge storage

with a micro SD card. Video clips of varying lengths can be stored to
the card upon alarm, or video can be written continuously to the
SD card in the case of network outage. Video can be retrieved from
the card through the FTP protocol or by using an ONVIF Profile G
enabled client.

Sarix Professional range cameras feature a simple motion
detection algorithm that allows the camera to record or send an
alarm when there is motion detected in a selected zone or within the
entire scene. A camera sabotage alarm is triggered if the lens is
obstructed or when the camera is repositioned.

Open and Integrated

Sarix Professional range cameras seamlessly connect to Pelco

video management systems such as VideoXpert™, Endura® version

2.0 (or later), and Digital Sentry® version 7.3 (or later). Sarix
Professional range cameras integrate with major third-party
systems through the open Pelco API or the ONVIF Profile S and Profile
G standards.

Standard Web Interface

Pelco cameras use a standard Web browser interface for easy
remote setup and administration. Controls are optimized for
convenient one-step camera configuration for features including
color, exposure, flicker control, and streaming.

International Standards

Organization Registered Firm;

ISO 9001 Quality System

C4021 / NEW 2-18-16

TECHNICAL SPECIFICATIONS

13.70
(5.39)

13.97
(5.50)

7.60

(2.99)

13.70
(5.39)

13.97
(5.50)

7.60

(2.99)

14.00 (5.51)

3.50

(1.38)

4.60

(1.81)

8.30

(3.27)

0.30

(0.12)

12.00
(4.72)

M4M4

M4

M4

M4M4M3M3

19.80 (7.80)

0.73

(0.29)

6.63

(2.61)

4.60

6.85

(2.70)

8.30 (3.27)

Ø

(5.91)

Ø 22.20

(8.74)

D = Mini Dome
L = L Shape

W = Wedge Dome
1 = Singe Gang
2 = Dobuble Gang
4 = 4S

10.70 (4.21)

4.28 (1.69)

4.28 (1.69)

4.13

(1.62)

3.61

(1.42)

4.28 (1.69)

2.30

(0.90)

2.30

(0.90)

1.28

(0.50)

1.92

(0.75)

1.52

(0.60)

4.28 (1.69)

4.28 (1.69)

3.64

(1.43)

4.58 (1.80)

4.28 (1.69)

4.97 (1.95)

4.15 (1.63)

4.15 (1.63)

4.37 (1.72) 4.37 (1.72)

4.15 (1.63)

4.84 (1.90)

10.70
(4.21)

0.30

(0.12)

Ø 3.30

(1.30)

9.85

7.80

(3.07)

Ø 14.70

(5.79)

BACK BOX FEATURES

VALUES IN PARENTHESES ARE INCHES; ALL OTHERS ARE CENTIMETERS.

Indoor Surface Mount

• Plastic body and trim ring; polycarbonate bubble

• White, RAL 9003

• IK10 (20J) Impact Resistance

• PoE, 24 VAC, 12 VDC

Environmental Surface Mount

• Aluminum body and trim ring; polycarbonate bubble

• Telegray, RAL 9022

• IP66 Ingress Protection

• Type 4X

• IK10 (20J) Impact Resistance

• 24 VAC and PoE+ Class 4 only

IMPICM-1I AND IMPICM-1ER IN-CEILING MOUNT

(1.81)

8.80 (3.46)

IMPPMB-1I WALL MOUNT BRACKET

18.00 (7.09)

IMPPM-1I AND IMPPM-1ER PENDANT ADAPTER

1-1/2” NPT

(3.88)

15.00

IMPEBAP BOX ADAPTER
