PRODUCT SPECIFICATION
camera solutions
Spectra® IV IP Series Network Dome System
DIGITAL PAN/TILT/ZOOM HIGH-SPEED DOME
Product Features
• Ability to Control and Monitor Video Over IP Networks
• Simultaneous IP and Analog Video and Control
• Autotracking
• 3 Simultaneous Video Streams: Dual MPEG-4 and MJPEG
• Supported Protocols: TCP/IP, UDP/IP (Unicast, Multicast IGMP), UPnP,
DNS, DHCP, RTP, and NTP
• Multilevel Password Protection
• 3 Autofocus, High Resolution Integrated Camera/Optics Packages
• Horizontal Zone and Window Blanking
• Sensitivity Down to 0.00018 Lux (36X Models)
• On-Screen Compass and Tilt Display
• Web Browser, Endura
• Bidirectional Full-Duplex Audio
®
, and Third-Party Network Interface
Spectra® IV IP dome systems incorporate all of the features and
functions of Spectra IV (including analog), while allowing you to
control and monitor video over an IP network from virtually
anywhere in the world. Spectra IV IP is a high-speed dome with a
built-in 100Base-TX network interface for live streaming to any
network application. The dome system also features open
architecture connectivity for third-party software recording solutions
allowing integration into virtually any IP-based system. It is also
®
compatible with Digital Sentry
video management systems. As
with all Pelco IP camera solutions, Spectra IV IP is Endura
™
to record, manage, configure, and view multiple live
Enabled
streams. When connected to an Endura
®
network-based video
security system, the dome system has access to EnduraStor™ and
EnduraView™ for optimized image quality and bandwidth efficiency.
Spectra IV IP is one of the only solutions on the market that allows
you to view and control analog video while viewing, recording, and
controlling network IP video. There is no need to abandon your
current analog infrastructure if you are making the move to network
video as a recording solution. Continue to monitor and control video
in the analog domain while recording video in the network domain,
and let Spectra IV IP’s professional compression method do the
work for you without the need for external encoders.
Spectra IV IP features the same ease of installation and ease of
maintenance that you have come to expect from Spectra IV. Each
dome system consists of a back box, a dome drive, and a lower
dome. These three system components are interchangeable with
other Spectra IV IP dome systems, making retrofitting and
application adjustments simple.
As with all Spectra dome systems, Spectra IV IP features several
back box options. All back boxes feature built-in memory, which can
be used to store camera and location-specific dome settings,
including labels, presets, patterns, and zones.
All cameras in Spectra IV IP dome drives feature an EXview HAD
imager for increased sensitivity and LowLight™ technology allowing
the cameras to compensate for scenes where minimal light is
present. Both the 29X and the 36X cameras feature built-in motion
detection and advanced 128X wide dynamic range (WDR) that
enables the system to compensate for scenes where dramatic
contrasts in lighting are present. The 36X day/night camera’s
electronic image stabilization digitally reduces blurring of the
camera image due to vibration caused by external sources, such as
wind and traffic.
™
International Standards
Organization Registered Firm;
ISO 9001 Quality System
C3443 / REVISED 12-21-12
TECHNICAL SPECIFICATIONS
CAMERA/OPTICS
Day/Night (36X) Day/Night (29X) Day/Night (23X)
Signal Format NTSC (DD436)
Scanning System Interlace/Progressive selectable Interlace/Progressive selectable 2:1 Interlace
Image Sensor
Effective Pixels
NTSC
PAL
Horizontal Resolution
NTSC
PAL
Lens f/1.4 (focal length, 3.3 ~ 119 mm) f/1.4 (focal length, 3.4 ~ 98.6 mm) f/1.6 (focal length, 3.6 ~ 82.8 mm)
Zoom 36X optical, 12X digital 29X optical, 12X digital 23X optical, 12X digital
Zoom Speed (optical range) 3.2/4.6/6.6 seconds 3.2/4.6/6.6 seconds 2.9/4.2/5.8 seconds
Horizontal
Angle of view
Focus
Maximum Sensitivity at 35 IRE
NTSC/EIA
PAL/CCIR
Sync System Internal/AC line lock, phase adjustable
White Balance Automatic with manual override Automatic with manual override Automatic with manual override
Shutter Speed
NTSC
PAL
Iris Control Automatic iris control with manual
Gain Control Automatic/OFF Automatic/OFF Automatic/OFF
Video Output 1 Vp-p, 75 ohms 1 Vp-p, 75 ohms 1 Vp-p, 75 ohms
Video Signal-to-Noise >50 dB >50 dB >50 dB
Wide Dynamic Range 128X 128X —
Electronic Image Stabilization Integrated/Selectable — —
Auto Sharpness Integrated/Selectable Integrated/Selectable —
Video Motion Detection Integrated Integrated —
PAL (DD436-X)
1/4-inch EXview HAD
768 (H) X 494 (V)
752 (H) X 582 (V)
>540 TV Lines
>540 TV Lines
57.2° at 3.3 mm wide zoom;
1.7° at 119 mm telephoto zoom
Automatic with manual override
0.55 lux at 1/60 sec (color)
0.018 lux at 1/2 sec (color)
0.00018 lux at 1/2 sec (B-W)
0.45 lux at 1/50 sec (color)
0.015 lux at 1/1.5 sec (color)
0.00015 lux at 1/1.5 sec (B-W)
using remote control, V-Sync
Automatic (electronic iris)/Manual
1/2 ~ 1/30,000
1/1.5 ~ 1/30,000
override
™
NTSC (DD429)
PAL (DD429-X)
1/4-inch EXview HAD
768 (H) X 494 (V)
752 (H) X 582 (V)
>540 TV Lines
>540 TV Lines
55.8° at 3.4 mm wide zoom;
1.7° at 98.6 mm telephoto zoom
Automatic with manual override
0.55 lux at 1/60 sec (color)
0.018 lux at 1/2 sec (color)
0.00018 lux at 1/2 sec (B-W)
0.45 lux at 1/50 sec (color)
0.015 lux at 1/1.5 sec (color)
0.00015 lux at 1/1.5 sec (B-W)
Internal/AC line lock, phase adjustable
using remote control, V-Sync
Automatic (electronic iris)/Manual
1/2 ~ 1/30,000
1/1.5 ~ 1/30,000
Automatic iris control with manual
override
NTSC (DD423)
PAL (DD423-X)
1/4-inch EXview HAD
768 (H) X 494 (V)
752 (H) X 582 (V)
540 TV Lines
540 TV Lines
54° at 3.6 mm wide zoom;
2.5° at 82.8 mm telephoto zoom
Automatic with manual override
0.65 lux at 1/60 sec (color)
0.15 lux at 1/60 sec (B-W)
0.55 lux at 1/50 sec (color)
0.12 lux at 1/50 sec (B-W)
Internal/AC line lock, phase adjustable
using remote control, V-Sync
Automatic (electronic iris)/Manual
1/2 ~ 1/30,000
1/1.5 ~ 1/30,000
Automatic iris control with manual
override
TECHNICAL SPECIFICATIONS
VIDEO
Analog NTSC/PAL
Digital Compression MJPEG, MPEG-4 (available only with
Video Streams 3, simultaneous
Video Resolutions NTSC PAL
4CIF 704 x 480 704 x 576
2CIF 704 x 240 704 x 288
CIF 352 x 240 352 x 288
QCIF 176 x 120 176 x 144
Bit Rate Configurable
MPEG-4 30 ips, 2 Mbps for primary stream, 1 Mbps for
MJPEG 15 ips, 3 Mbps, MJPEG
Web User Interface Pelco Device Utility interface for viewing
Users 5 simultaneous users MJPEG and MPEG-4
Minimum System Requirements
Processor Intel
Operating System Windows
Memory 512 MB RAM
Network Interface Card 100 megabits
Web Browser Internet Explorer 5.5 (or later);
Monitor Minimum of 1024 x 768 resolution, 16- or
Firmware Upgrade Pelco Device Utility or Endura Application
Supported Protocols TCP/IP, UDP/IP (unicast, multicast IGMP),
®
Microsoft
Internet Explorer®)
secondary stream; implements EnduraView
HTTP, requires Java Runtime Environment
™
(JRE
)
unicast; unlimited number of users using
multicast (MPEG-4 only)
®
Pentium® 4 microprocessor, 1.6 GHz
®
98, Windows 2000, Windows XP
(or later), or Mac
Mozilla
®
OS X 10.3.9 (or later)
®
Firefox® 1.5 (or later)
32-bit pixel color resolution
UPnP, DNS, DHCP, RTP, NTP
ENDURA
SYSTEM
INTERNET
SPECTRA IV IP
WEB
BROWSER
IMPORTANT NOTE: PLEASE READ. The network implementation is shown as a general represe ntation only and is not intended
to show a detailed network topology. Your actual network will differ, requiring changes or perhap s additional network equipment
to accommodate the system as illustrated. Please contact your local Pelco Representative to discuss your specific re quirements.
3rd PARTY
INTEGRATION
TECHNICAL SPECIFICATIONS
DOME DRIVE FEATURES
36X and 29X Models
• 256 Presets
• ±0.1° Preset Accuracy
• Electronic Image Stabilization (36X model)
• Image Enhancement (36X model)
• Multilingual Menus (English, Spanish, Portuguese, Italian, French,
German, Russian, Polish, Turkish, and Czech)
• RJ-45 Data Port for Software Update and Setup
• On-Screen Compass, Tilt, and Zoom Display
• Password Protection
• 400°/sec Pan Preset Speed and 200°/sec Tilt Preset Speed
• Rotating Discreet Liner with Sealed Fixed Bubble
• Window Blanking: Up to 8, Four-Sided, User-Defined Shapes
• 8 Zones (configurable in size) Can Be Labeled with up to 20 Characters
Each or Set to Output Blank Video
• 7 Alarm Inputs
• 1 Auxiliary (Form C) Relay Output and 1 Open Collector Auxiliary Output
(can be alternately configured to operate upon alarm)
• Configurable Locations of Labels and On-Screen Displays
• Action on Alarm: Alarms Can Be Individually Configured for 3 Priority
Levels, to Initiate a Stored Pattern, or to Go to an Associated Preset
When Received
• Resume After Alarm: Allows the Dome to Return to a Previously
Configured State After Alarm Acknowledgement or to its Previous
Position Before Alarm
• Multiple Park and Power-Up Action
• Patterns: Up to 8, On-Screen, User-Defined Configurable Patterns;
Includes Pan, Tilt, Zoom, and Preset Functions
• Proportional Pan/Tilt: Continually Decreases Pan/Tilt Speeds in Proportion
to Depth of Zoom
• Variable Scan Speed: Scan Speed Can Be Configurable Between
1 to 40°/sec
• Pan Motion Allows 0.1° to 150°/sec Pan Speed
• Configurable Limit Stops for Auto/Random/Frame Scan Modes
• Autosensing Protocol (Coaxitron
Sensormatic
Translator Card
• Digital Position and Zoom Control and Feedback Through Pelco D Protocol
• Built-in Menu System for Setup of Configurable Functions
• “Auto Flip” Rotates Dome 180° at Bottom of Tilt Travel
• Configurable Zoom Speeds
• Freeze Frame During Presets
• Low Lux Noise Reduction
®
, Vicon®); Accepts Other Control Protocols with Optional
®
, RS-422 Pelco P and Pelco D,
23X Models
• 64 Presets
• ±0.1° Preset Accuracy
• Multilingual Menus (English, Spanish, Portuguese, Italian, French,
German, Russian, Polish, Turkish, and Czech)
• RJ-45 Data Port for Software Update and Setup
• On-Screen Compass, Tilt, and Zoom Display
• Password Protection
• 400°/sec Pan Preset Speed and 200°/sec Tilt Preset Speed
• Rotating Discreet Liner with Sealed Fixed Bubble
• Window Blanking: Up to 4, Four-Sided, User-Defined Shapes
• 8 Zones (configurable in size) Can Be Labeled with up to 20 Characters
Each or Set to Output Blank Video
• 1 Alarm Input
• 1 Auxiliary (Form C) Relay Output
• Configurable Locations of Labels and On-Screen Displays
• Patterns: 1 On-Screen, User-Defined Configurable Pattern; Includes Pan,
Tilt, Zoom, and Preset Functions
• Proportional Pan/Tilt: Continually Decreases Pan/Tilt Speeds in Proportion
to Depth of Zoom
• Variable Scan Speed: Scan Speed Can Be Configurable Between
1 to 40°/sec
• Pan Motion Allows 0.1° to 150°/sec Pan Speed
• Autosensing Protocol (Coaxitron, RS-422 Pelco P and Pelco D,
Sensormatic, Vicon); Accepts Other Control Protocols with Optional
Translator Card
• Digital Position and Zoom Control and Feedback through Pelco D Protocol
• Built-in Menu System for Setup of Configurable Functions
• “Auto Flip” Rotates Dome 180° at Bottom of Tilt Travel
• Freeze Frame During Presets

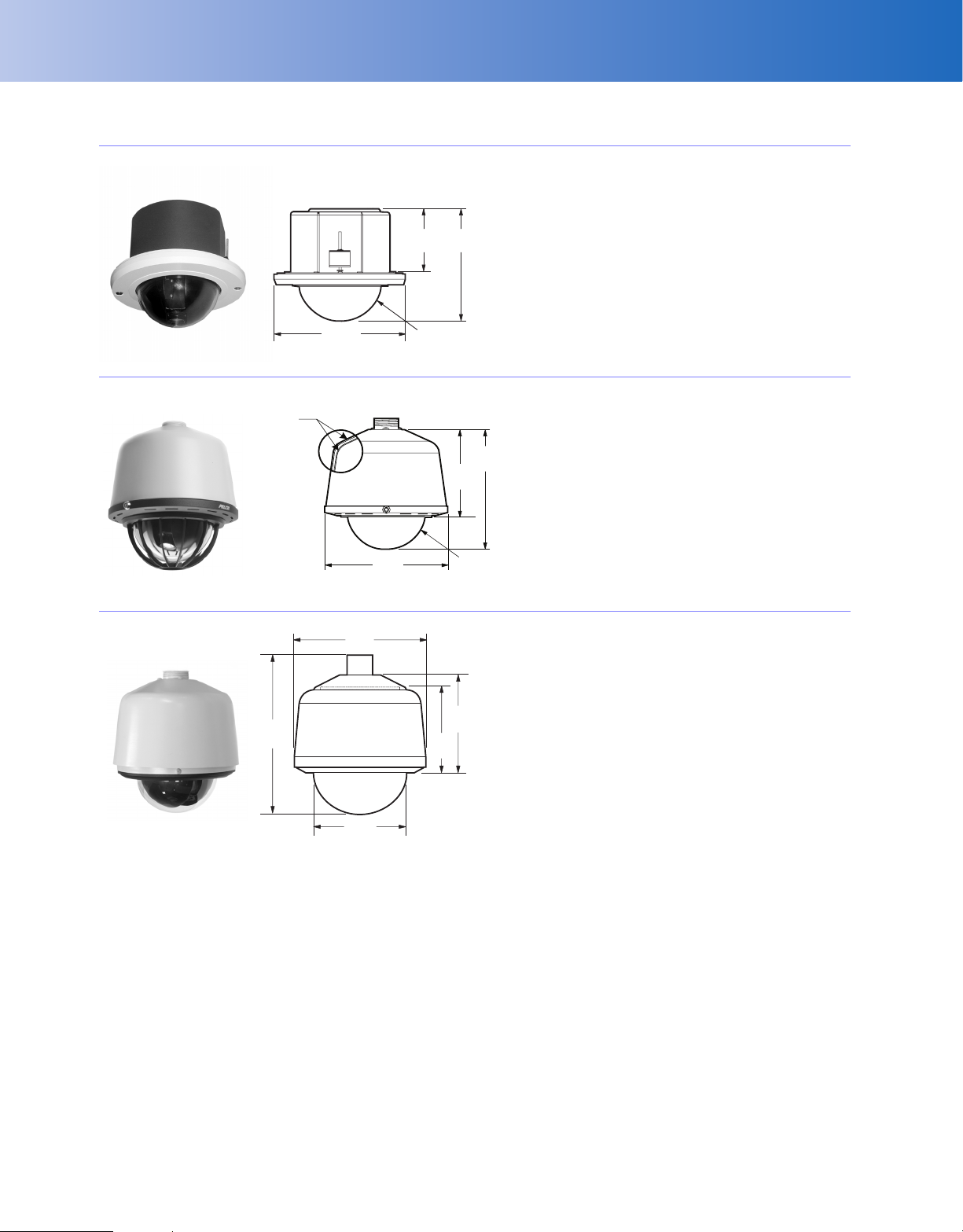

TECHNICAL SPECIFICATIONS
BACK BOX FEATURES
(ENVIRONMENTAL DOME
WITH SUN SHROUD SHOWN)
5.2
(13.2)
3.5
(8.8)
10.6
(26.9)
7.5 (19.0)
5.9 (15.0)
8.2 (20.8)
5.9 (15.0)
8.6 (21.8)
In-Ceiling (Indoor)
• Built-in Memory Stores Camera/Dome Settings
• Single Back Box for Suspended or Hard Ceiling Applications
• Requires 5.25-Inch Space Above Ceiling and 3.25 Inches Below
• Minimum Ceiling Thickness 0.5-Inch; Maximum 1.75 Inches
• Quick Disconnect to Dome Drive
• Aluminum Construction
• Suitable for Use in Environmental Air Handling Spaces
Standard and Environmental Pendant
• Standard and Environmental Models
• Built-in Memory Stores Camera/Dome Settings
• Standard Pendant Available in Black or Gray Finish; Environmental
Pendant Gray Finish Only
• Quick Disconnect to Dome Drive
• Aluminum Construction
• Environmental Model Includes Sun Shield, Fan, and Heater
9.9 (25.2)
4.4
(11.0)
4.3
(10.9)
5.9 (15.0)
8.6 (21.8)
NOTE: VALUES IN PARENTHESES ARE CENTIMETERS;
ALL OTHERS ARE INCHES.
Environmental In-Ceiling
• Built-in Memory Stores Camera/Dome Settings
• Single Back Box for Hard Ceiling Applications
• Requires 4.4-Inch Space Above Ceiling and 4.3 Inches Below
• Includes Heater and Fan
• Minimum Ceiling Thickness 0.5-Inch; Maximum 1.75 Inches
• Quick Disconnect to Dome Drive
• Aluminum Construction
TECHNICAL SPECIFICATIONS
BACK BOX FEATURES
24.77
(9.75)
DUAL WALL
CONSTRUCTION
24.64
(9.70)
13.34
(5.25)
Ø6.13
(Ø15.57)
21.59
(8.5)
19.05
(7.5)
25.65
(10.1)
Ø15.57
(Ø 6.13)
Heavy-Duty In-Ceiling (Indoor)
Available only with 29X and 36X models
• Built-in Memory Stores Camera/Dome Settings
• Single Back Box for Hard Ceiling Applications
• Requires 5.25-Inch Space Above Ceiling and 3.25 Inches Below
• Quick Disconnect to Dome Drive
• Reinforced Mounting System
• Heavy-Duty Polycarbonate Dome Bubble
• Aluminum Trim Ring with Barrel-Type Key Locks
• Optional Protective Cage
Heavy-Duty Pendant
Available only with 29X and 36X models
• Standard and Environmental Models
• Built-in Memory Stores Camera/Dome Settings
• Quick Disconnect to Dome Drive
• Dual Wall Construction
• Heavy-Duty Polycarbonate Dome Bubble
• Aluminum Trim Ring with Barrel-Type Key Locks
• Optional Protective Cage
• Environmental Model Includes Sun Shield, Fan, and Heater
21.64
(8.52)
27.69
(10.90)
14.99
(5.90)
NOTE: VALUES IN PARENTHESES ARE CENTIMETERS;
ALL OTHERS ARE INCHES.
14.80
(5.83)
17.15
(6.75)
Stainless Steel Pendant
Available only with 29X and 36X models
• Standard and Environmental Models
• Built-in Memory Stores Camera/Dome Settings
• Quick Disconnect to Dome Drive
• All Stainless Steel Construction
• Includes Sun Shield, Fan, and Heater
TECHNICAL SPECIFICATIONS
GENERAL
Construction
Back Box
In-Ceiling Aluminum
Pendant Aluminum
Heavy-Duty Aluminum
Stainless Steel 316 stainless steel; gray, polyurethane
powder coated finish
Dome Drive Aluminum, thermo plastic
Lower Dome
In-Ceiling Acrylic
Pendant Acrylic
Heavy-Duty Polycarbonate, 0.09-inch thick
Stainless Steel Acrylic
Light Attenuation
Smoked f/0.5 light loss
Clear Zero light loss
Chrome f/2.0 light loss
Gold f/2.0 light loss
Cable Entry (back box)
In-Ceiling 0.75-inch conduit fitting
Pendant Through 1.5-inch NPT pendant mount
Weight (approximate) Unit Shipping
In-Ceiling 5.2 lb (2.4 kg) 8 lb (3.6 kg)
Environmental In-Ceiling 6.2 lb (2.8 kg) 10 lb (4.5 kg)
Standard Pendant 6.5 lb (3.0 kg) 11 lb (5.0 kg)
Environmental Pendant 7.6 lb (3.5 kg) 12 lb (5.4 kg)
Heavy-Duty In-Ceiling* 7.3 lb (3.3 kg) 12 lb (5.4 kg)
Heavy-Duty Pendant* 9.8 lb (4.5 kg) 16 lb (7.3 kg)
Heavy-Duty Environmental
Pendant* 9.8 lb (4.5 kg) 16 lb (7.3 kg)
Stainless Steel 10.1 lb (4.6 kg) 16 lb (7.3 kg)
Environment
In-Ceiling Indoor
Environmental In-Ceiling Outdoor
Pendant, Standard and
Environmental Indoor/outdoor
Heavy-Duty In-Ceiling Indoor
Heavy-Duty Pendant,
Standard & Environmental Indoor/outdoor
Stainless Steel Indoor/outdoor
Operating Temperature
In-Ceiling 32° to 122°F (0° to 50°C)
Standard Pendant (Assumes no wind chill factor)
Maximum 113°F (45°C) absolute maximum; 95°F (35°C)
sustained maximum
Minimum 25°F (–4°C) sustained minimum
Environmental In-Ceiling
and Environmental Pendant (Assumes no wind chill factor)
Maximum 140°F (60°C) absolute maximum; 122°F
(50°C) sustained maximum
Minimum –60°F (–51°C) absolute minimum; prevents
icing at sustained minimum of –50°F (–45°C);
de-ices 0.1 inch (2.5 mm) within 3 hours after
power-up
Heavy-Duty In-Ceiling 32° to 122°F (0° to 50°C)
Heavy-Duty Pendant 32° to 122°F (0° to 50°C) absolute maximum;
32° to 122°F (0° to 50°C) sustained maximum
Heavy-Duty
Environmental Pendant (Assumes no wind chill factor)
Maximum 140°F (60°C) absolute maximum; 122°F
(50°C) sustained maximum
Minimum –60°F (–51°C) absolute minimum; minimal
icing at sustained minimum of –50°F (–45°C);
prevents icing at sustained minimum of –40°F
(–40°C); de-ices 0.1 inch (2.5 mm) within
3 hours after power-up
Stainless Steel (Assumes no wind chill factor)
Maximum 140°F (60°C) absolute maximum; 122°F
(50°C) sustained maximum
Minimum –60°F (–51°C) absolute minimum; minimal
icing at sustained minimum of –50°F (–45°C);
prevents icing at sustained minimum of –40°F
(–40°C); de-ices 0.1 inch (2.5 mm) within
3 hours after power-up
Effective Projected Area (EPA) 20.5 square in ches (without mount) 47 square
inches (with IWM Series mount)
MECHANICAL
(Dome Drive Only)
Pan Movement 360° continuous pan rotation
Vertical Tilt Unobstructed +2° to –92°
Manual Pan/Tilt Speeds
Pan 0.1° to 80°/sec manual operation,
150°/sec Turbo
Tilt 0.1° to 40°/sec manual operation
Preset Speeds
Pan 400°/sec
Tilt 200°/sec
For variable-speed operation, an appropriate
controller is required. (With nonvariable
speed control, Spectra IV IP pan/tilt speed is
20°/sec)
AUDIO
Streaming Bidirectional: full or half duplex
Input/Output Terminal block, analog for microphone and
speaker; 600-ohm differential; 1 Vp-p
maximum signal level
Compression G.711 PCM 8 bit, 8 kHz mono at 64 kbit/s
ELECTRICAL
Ports RJ-45 connector for 100Base-TX
Auto MDI/MDI-X
Autonegotiate/Manual setting
Cabling Type Cat5 or better for 100Base-TX
Input Voltage 18 to 32 VAC; 24 VAC nominal
22 to 27 VDC; 24 VDC nominal
Input Power
24 VAC 23 VA nominal (without heater);
73 VA nominal (with heater)
24 VDC 0.7 A nominal (without heater);
3 A nominal (with heater)
Fuse 1.25 A
Auxiliary Outputs 2
Alarm Inputs 7
CERTIFICATIONS/RATINGS/PATENTS
• CE, Class B
• FCC, Class B
• UL/cUL Listed
•C-Tick
• U.S. Patents 5,931,432; 6,793,415 B2; 6,802,656 B2; 6,821,222 B2;
7,161,615 B2
Meets the following standards:
• NEMA Type 4X, IP66 when installed properly (BB4N-F-E, BB4N-PB,
BB4N-PG, BB4N-PG-E, BB4NHD-PG, BB4NHD-PG-E, and BB4N-PSG-E)
• NEMA Type 1, IP40 (BB4N-F and BB4NHD-F)
*Add 2 lb (0.90 kg) to the total weight if the system includes a lower dome cage.
RELATED PRODUCTS
OPTIONAL ACCESSORIES
HD-KEYS 1 set of keys for heavy-duty lower dome.
IPS-CABLE Remote monitor cable and software kit
consisting of the Spectra IV remote monitor
interface cable and necessary software for
use with a PC. Refer to www.pelco.com for a
list of compatible devices.
IPS-RDPE-2 Remote data port. 24 VAC, wall/pole mount
video/data breakout box. Allows ground-level
control/configuration when used with the
IPS-CABLE.
LD5F-2* Flush in-ceiling lower dome with chrome
bubble (f/2.0 light loss).
LD5F-3* Flush in-ceiling lower dome with gold bubble
(f/2.0 light loss).
LD53PB-2* Pendant lower dome with black trim and
chrome bubble (f/2.0 light loss).
LD53PB-3* Pendant lower dome with black trim and gold
bubble (f/2.0 light loss).
* Not recommended for outdoor use due to possible light reflections.
RECOMMENDED MOUNTS
In-Ceiling Domes
SD5-P 2' x 2' drop ceiling panel, aluminum
construction; replaces 2' x 2' ceiling tile
SCA1 Support rails for BB4N-F; for use in ceiling tile
applications
Pendant Domes
BB5-PCA-BK Pendant conduit adapter, black
BB5-PCA-GY Pendant conduit adapter, gray
IWM Series Wall mount, with or without integral 24 VAC,
100 VA transformer; black or gray finish; can
be adapted for corner, parapet or pole
application
MRCA Ceiling mount, black
PP4348 Parapet roof mount
PP350/PP351 Parapet wall/roof mount
SWM Series Compact wall mount, black or gray finish; can
be adapted for corner or pole applications
IDM4012SS Stainless steel wall mount with feedthrough
capabilities
RECOMMENDED POWER SUPPLIES
MCS Series Indoor, 24 VAC power supply
WCS Series Outdoor, 24 VAC power supply
Refer to individual power supply specifications for more information.
SYSTEM AND COMPONENT MODELS
SYSTEM MODEL NUMBERS
Back
Typ e
In-Ceiling,
Indoor
In-Ceiling,
Environmental*
Pendant,
Standard
Pendant,
Environmental*
Heavy-Duty
In-Ceiling,
Indoor
Heavy-Duty
Pendant, Indoor
Heavy-Duty
Pendant,
Environmental*
Stainless Steel
Pendant,
Environmental*
Box Color
Black
Black
Black
Light Gray
Light Gray
Light Gray
Stainless
Steel
Lower
Dome
Smoked
Clear
Smoked
Clear
Smoked
Clear
Smoked
Clear
Smoked
Clear
Smoked
Clear
Smoked
Clear
Smoked
Clear
Smoked
Clear
*Environmental dome systems include a heater and fan, and the environmental pendant also includes a sun shield.
Cage
36X Day/Night
(NTSC)
36X Day/Night
(PAL)
29X Day/Night
(NTSC)
29X Day/Night
SD4N36-F0 SD4N36-F0-X SD4N29-F0 SD4N29-F0-X SD4N23-F0 SD4N23-F0-X
SD4N36-F1 SD4N36-F1-X SD4N29-F1 SD4N29-F1-X SD4N23-F1 SD4N23-F1-X
SD4N36-F-E0 SD4N36-F-E0-X SD4N29-F-E0 SD4N29-F-E0-X SD4N23-F-E0 SD4N23-F-E0-X
SD4N36-F-E1 SD4N36-F-E1-X SD4N29-F-E1 SD4N29-F-E1-X SD4N23-F-E1 SD4N23-F-E1-X
SD4N36-PB-0 SD4N36-PB-0-X SD4N29-PB-0 SD4N29-PB-0-X SD4N23-PB-0 SD4N23-PB-0-X
SD4N36-PB-1 SD4N36-PB-1-X SD4N29-PB-1 SD4N29-PB-1-X SD4N23-PB-1 SD4N23-PB-1-X
SD4N36-PG-0 SD4N36-PG-0-X SD4N29-PG-0 SD4N29-PG-0-X SD4N23-PG-0 SD4N23-PG-0-X
SD4N36-PG-1 SD4N36-PG-1-X SD4N29-PG-1 SD4N29-PG-1-X SD4N23-PG-1 SD4N23-PG-1-X
SD4N36-PG-E0 SD4N36-PG-E0-X SD4N29-PG-E0 SD4N29-PG-E0-X SD4N23-PG-E0 SD4N23-PG-E0-X
SD4N36-PG-E1 SD4N36-PG-E1-X SD4N29-PG-E1 SD4N29-PG-E1-X SD4N23-PG-E1 SD4N23-PG-E1-X
No
SD4N36-HF0 SD4N36-HF0-X SD4N29-HF0 SD4N29-HF0-X
Yes
SD4N36-HCF0 SD4N36-HCF0-X SD4N29-HCF0 SD4N29-HCF0-X
No
SD4N36-HF1 SD4N36-HF1-X SD4N29-HF1 SD4N29-HF1-X
Yes
SD4N36-HCF1 SD4N36-HCF1-X SD4N29-HCF1 SD4N29-HCF1-X
No
SD4N36-HP0 SD4N36-HP0-X SD4N29-HP0 SD4N29-HP0-X
Yes
SD4N36-HCP0 SD4N36-HCP0-X SD4N29-HCP0 SD4N29-HCP0-X
No
SD4N36-HP1 SD4N36-HP1-X SD4N29-HP1 SD4N29-HP1-X
Yes
SD4N36-HCP1 SD4N36-HCP1-X SD4N29-HCP1 SD4N29-HCP1-X
No
SD4N36-HPE0 SD4N36-HPE0-X SD4N29-HPE0 SD4N29-HPE0-X
Yes
SD4N36-HCPE0 SD4N36-HCPE0-X SD4N29-HCPE0 SD4N29-HCPE0-X
No
SD4N36-HPE1 SD4N36-HPE1-X SD4N29-HPE1 SD4N29-HPE1-X
Yes
SD4N36-HCPE1 SD4N36-HCPE1-X SD4N29-HCPE1 SD4N29-HCPE1-X
SD4N36-PSGE0 SD4N36-PSGE0-X SD4N29-PSGE0 SD4N29-PSGE0-X
SD4N36-PSGE1 SD4N36-PSGE1-X SD4N29-PSGE1 SD4N29-PSGE1-X
(PAL)
23X Day/Night
(NTSC)
23X Day/Night
(PAL)
SYSTEM AND COMPONENT MODELS
COMPONENT MODEL NUMBERS
Back Box* Dome Drive Lower Dome
BB4N-F In-ceiling, black, with back box
memory
BB4N-F-E In-ceiling, black, environmental, with
back box memory
BB4N-PB Pendant mount, black, standard, with
back box memory
BB4N-PG Pendant mount, gray, standard, with
back box memory
BB4N-PG-E Pendant mount, gray, environmental,
with back box memory
BB4NHD-F Heavy-duty, in-ceiling, gray, with back
box memory
BB4NHD-PG Heavy-duty, pendant, gray, with back
box memory
BB4NHD-PG-E Heavy-duty, environmental pendant,
gray, with back box memory
BB4N-PSG-E Stainless steel, environmental
pendant, gray 316 SS, with back box
memory
Note: For environmental applications you must order an environmental back box.
*Environmental models include a heater and fan, and the environmental pendant also includes a sun shield.
†
Use the pendant lower domes with the environmental in-ceiling and environmental pendant back boxes.
DD423 Day/Night (NTSC) camera (23X)
DD423-X Day/Night (PAL) camera (23X)
DD429 Day/Night (NTSC) camera (29X)
DD429-X Day/Night (PAL) camera (29X)
DD436 Day/Night (NTSC) camera (36X)
DD436-X Day/Night (PAL) camera (36X)
†
LDHQF-0 Smoked, in-ceiling
LDHQF-1 Clear, in-ceiling
LDHQPB-0 Smoked, pendant, black
LDHQPB-1 Clear, pendant, black
LD53HDF-0 Smoked, in-ceiling, heavy-duty
LD53HDF-1 Clear, in-ceiling, heavy-duty
LD53HDCF-0 Smoked, in-ceiling, heavy-duty
with cage
LD53HDCF-1 Clear, in-ceiling, heavy-duty
with cage
LD53HDPB-0 Smoked, pendant, heavy-duty
LD53HDPB-1 Clear, pendant, heavy-duty
LD53HDCPB-0 Smoked, pendant, heavy-duty,
with cage
LD53HDCPB-1 Clear, pendant, heavy-duty,
with cage
LD53PSB-0 Smoked, pendant, black trim
ring, 316 SS
LD53PSB-1 Clear, pendant, black trim ring,
316 SS
Pelco by Schneider Electric
3500 Pelco Way, Clovis, California 93612-5699 United States
USA & Canada Tel (800) 289-9100 Fax (800) 289-9150
International Tel +1 (559) 292-1981 Fax +1 (559) 348-1120
www.pelco.com www.pelco.com/community
Pelco, the Pelco logo, and other trademarks associ ated with Pelco products referred
to in this publication are trademarks of Pelco, Inc. or its affiliates. ONVIF and th e
ONVIF logo are trademarks of ONVIF Inc. All other prod uct names and
Product specifications and availability are subjec t to change without notice.
services are the property of their respective comp anies.
©Copyright 2012, Pelco, Inc. All rights reserved.
Loading...
