Pelco RM2196 User Manual

RM2100/2196

VCR Rack Mount Kit

Installation/Operation Manual

C806M (3/97)

Pelco • 3500 Pelco Way, Clovis, CA 93612-5699 • USA • [phone] or (1-559) 292-1981

FAX [phone] or (1-559) 292-3827

CONTENTS

Section Page

1.0 GENERAL .................................................................................................. 1

1.1 IMPORTANT SAFEGUARDS AND WARNINGS ............................... 1

1.2 UNPACKING INSTRUCTIONS. ......................................................... 2

2.0 DESCRIPTION ........................................................................................... 3

3.0 ASSEMBLY .................................................................................................3

4.0 INSTALLATION .......................................................................................... 4

5.0 SPECIFICATIONS ..................................................................................... 4

6.0 CARE AND MAINTENANCE ..................................................................... 5

7.0 WARRANTY AND RETURN INFORMATION ............................................6

LIST OF ILLUSTRATIONS

Figure Page

1 RM2100/2196 Exploded Assembly ....................................................3

2 RM2100/2196 Dimension Drawing .................................................... 4

REVISION HISTORY

Manual # Date Comments

C806M 3/97 Original manual.

ii

2 Pelco Manual C806M (3/97)

1.0 GENERAL

1.1 IMPORTANT SAFEGUARDS AND WARNINGS

Prior to installation and use of this product, the following WARNINGS should be
observed.

1. Installation and servicing should only be done by qualified service and instal­lation personnel.

2. Installation shall be done in accordance with all local and national electrical
and mechanical codes utilizing only approved materials.

3. Use only installation methods and materials capable of supporting four times
the maximum specified load.

The product and/or manual may bear the following marks:

This symbol indicates that dangerous voltage constituting a
risk of electric shock is present within this unit.

This symbol indicates that there are important operating and
maintenance instructions in the literature accompanying this
unit.

CAUTION:

RISK OF

ELECTRIC SHOCK.

DO NOT OPEN.

TO REDUCE THE RISK OF ELECTRICAL SHOCK,

DO NOT REMOVE COVER. NO USER-

SERVICEABLE PARTS INSIDE. REFER SERVICING

TO QUALIFIED SERVICE PERSONNEL.

CAUTION:

Please thoroughly familiarize yourself with the information

in this manual prior to installation and operation.

Pelco Manual C806M (3/97) 3

1.2 UNPACKING INSTRUCTIONS.

Unpack and inspect all parts carefully.

The following items are supplied:

1 RM2100/2196 Manual
1 Side Panel, left
1 Side Panel, right
1 Base
1 Cross Bar
1 Front Panel w/Smoked Lexan Window and Locking Knob
2 Keys

Be sure to save the shipping carton and any inserts. They are the safest material in
which to make future shipments.

If an item appears to have been damaged in shipment, replace it properly in its
carton and contact the factory at [phone] or [phone] for a replace­ment. (International customers fax [phone] for authorization and instruc­tions.)

If an item needs to be returned to the factory for repair, consult the WARRANTY
AND RETURN section of this manual for instructions.

4 Pelco Manual C806M (3/97)

2.0 DESCRIPTION

NOTE:

The RM2100/2196 is de­signed for front loading VCRs only
and will fit any standard 19 inch
(48.26 cm) rack.

3.0 ASSEMBLY

NOTE:

both side panels should be in posi­tion, perpendicular to the base,
before the cross bar is snapped into
place.

For ease of assembly,

The RM2100/2196 VCR Rack Mount Kit has been specifically designed to provide
rack mounting and security for GYYR™ Model TLC2100 and TLC2196 time-lapse
video recorders. The design of the RM2100/2196 VCR Rack Mount allows the cus­tomer complete removal of the front panel for easier installation and better access
to the VCR. A locking knob on the front panel allows access to the VCR with or
without the key. The RM2100/2196 can be easily mounted using four (4) 10-32 x 3/
8" pan head screws (not supplied).

Refer to Figure 1 during assembly.

1. Place the base (3) on a flat, stable surface. Allow the front to overhang the end
of the surface.

2. Interlock the side panels (1 & 2), one panel at a time. Lift the base and insert
the (5) tabs for the corresponding side panel into the base and rotate the side
panel up.

3. Secure the cross bar (4) to complete the assembly. Make sure the cutout on
the cross bar faces front.

a. Line up the middle tab at the ends of the cross bar with the slots on top of

the side panels.

b. Push in the middle tab (A) on the cross bar away from the side panel,

while pushing down, until the tab snaps into the slot on the side panel.

c. Repeat step b for the other end of the cross bar.

Do not install front panel at this time.

The VCR Rack Mount is ready to install.

Figure 1. RM2100/2196 Exploded Assembly

Pelco Manual C806M (3/97) 5

4.0 INSTALLATION

REMINDER:

The RM2100/2196
requires a minimum rack opening
of 7.00" (17.78 cm).

CAUTION:

The front panel is not
permanently attached to the rack
mount and is therefore not sup­ported when unlatched.

1. With the front panel off, find a suitable opening in the console and insert the
VCR rack mount carefully.

2. Holding the mount in place, align the holes on the rack and start each of the
(4) 10-32 screws. Tighten the screws.

3. Make all necessary connections to the VCR and slide it into the opening until
the rear feet of the VCR rest against the lip at the back of the base.

The front panel can now be installed by placing the tabs in their corresponding slots
on the base panel and engaging the latch.

5.0 SPECIFICATIONS

The RM2100/2196 requires a minimum rack opening of 7.00" (17.78 cm).

Dimensions

VCR Compartment
Dimensions: 5.75" H x 17.15" W x 13.80" D (14.61 cm x 43.56 cm x 35.05 cm)
Overall
Dimensions: 7.00" H x 19.00" W x 14.40" D (17.78 cm x 48.26 cm x 36.58 cm)
Window
Dimensions: 4.00" x 18.00" (10.16 cm x 45.72 cm)

Construction

Rack mount: 16-gauge cold rolled steel
Front Panel: 16-gauge cold rolled steel with 1/4" (.63 cm) thick Smoked

Lexan Window w/ locking latch
Finish: Black polyester powder coat
Unit Weight: 7.188 lb (3.26 kg)
Maximum
Load Capacity: 25 lb (11.25 kg)

NOTE: VALUES IN PARENTHESES ARE CENTIMETERS;

ALL OTHERS ARE INCHES

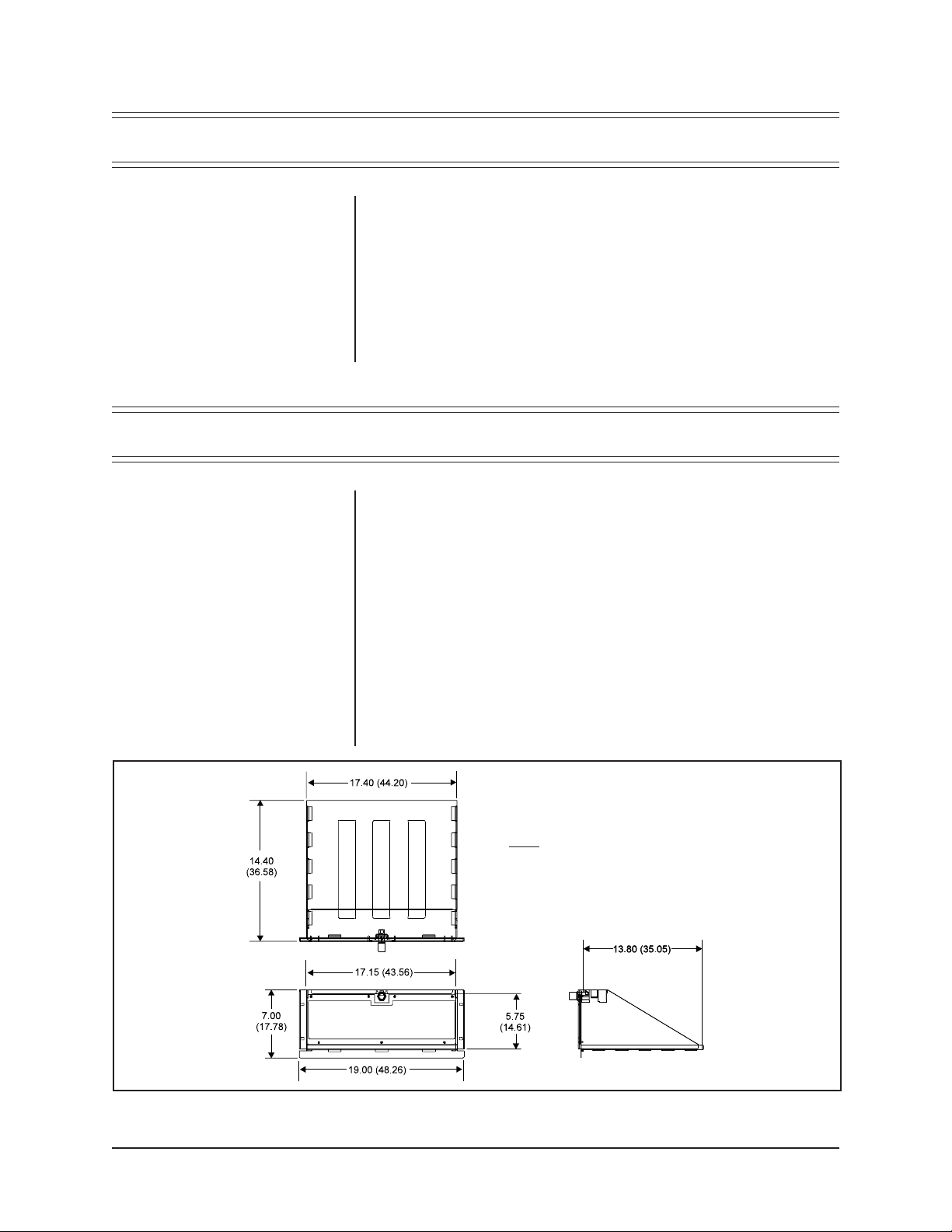

Figure 2. RM2100/2196 Dimension Drawing

6 Pelco Manual C806M (3/97)

6.0 CARE AND MAINTENANCE

It is recommended that only an antistatic, non-abrasive cleaner be used for clean­ing the front panel.

Pelco Manual C806M (3/97) 7

7.0 WARRANTY AND RETURN INFORMATION

WARRANTY

Pelco will repair or replace, without charge, any merchandise proved defective in material or
workmanship for a period of one year after the date of shipment.

Exceptions to this warranty are as noted below:

Pelco, the Pelco logo, Camclosure, Esprit,
Genex, Legacy, and Spectra are registered
trademarks of Pelco.
Endura and ExSite are trademarks of Pelco.

© Copyright 1997, Pelco. All rights reserved.

• Five years on FT/FR8000 Series fiber optic products.

• Three years on Genex

• Three years on Camclosure

CC3751H-2, CC3651H-2X, MC3651H-2, and MC3651H-2X camera models, which have a five­year warranty.

• Two years on standard motorized or fixed focal length lenses.

• Two years on Legacy

dome products.

• Two years on Spectra

continuous motion applications.

• Two years on Esprit

• Eighteen months on DX Series digital video recorders, NVR300 Series network video

recorders, and Endura

• One year (except video heads) on video cassette recorders (VCRs). Video heads will be

covered for a period of six months.

• Six months on all pan and tilts, scanners or preset lenses used in continuous motion applications

(that is, preset scan, tour and auto scan modes).

Pelco will warrant all replacement parts and repairs for 90 days from the date of Pelco shipment.
All goods requiring warranty repair shall be sent freight prepaid to Pelco, Clovis, California. Repairs
made necessary by reason of misuse, alteration, normal wear, or accident are not covered under
this warranty.

Pelco assumes no risk and shall be subject to no liability for damages or loss resulting from the
specific use or application made of the Products. Pelco’s liability for any claim, whether based on
breach of contract, negligence, infringement of any rights of any party or product liability, relating
to the Products shall not exceed the price paid by the Dealer to Pelco for such Products. In no event
will Pelco be liable for any special, incidental or consequential damages (including loss of use, loss
of profit and claims of third parties) however caused, whether by the negligence of Pelco or
otherwise.

The above warranty provides the Dealer with specific legal rights. The Dealer may also have
additional rights, which are subject to variation from state to state.

If a warranty repair is required, the Dealer must contact Pelco at [phone] or [phone]
to obtain a Repair Authorization number (RA), and provide the following information:

1. Model and serial number

2. Date of shipment, P.O. number, Sales Order number, or Pelco invoice number

3. Details of the defect or problem
If there is a dispute regarding the warranty of a product which does not fall under the warranty
conditions stated above, please include a written explanation with the product when returned.
Method of return shipment shall be the same or equal to the method by which the item was received
by Pelco.

RETURNS

In order to expedite parts returned to the factory for repair or credit, please call the factory at (800)
289-9100 or [phone] to obtain an authorization number (CA number if returned for credit,
and RA number if returned for repair).

All merchandise returned for credit may be subject to a 20% restocking and refurbishing charge.
Goods returned for repair or credit should be clearly identified with the assigned CA or RA number

and freight should be prepaid. Ship to the appropriate address below.
If you are located within the continental U.S., Alaska, Hawaii or Puerto Rico, send goods to:

If you are located outside the continental U.S., Alaska, Hawaii or Puerto Rico and are instructed
to return goods to the USA, you may do one of the following:
If the goods are to be sent by a COURIER SERVICE, send the goods to:

Service Department
Pelco
3500 Pelco Way
Clovis, CA 93612-5699

Pelco
3500 Pelco Way
Clovis, CA 93612-5699 USA

If the goods are to be sent by a FREIGHT FORWARDER, send the goods to:

Pelco c/o Expeditors
473 Eccles Avenue
South San Francisco, CA 94080 USA
Phone: [phone]
Fax: [phone]

®

Series products (multiplexers, server, and keyboard).

®

and fixed camera models, except the CC3701H-2, CC3701H-2X,

®

, CM6700/CM6800/CM9700 Series matrix, and DF5/DF8 Series fixed

®

, Esprit®, ExSite™, and PS20 scanners, including when used in

®

and WW5700 Series window wiper (excluding wiper blades).

™

Series distributed network-based video products.
