Pelco PP200 installation manual

INSTALLATION

PP200 Parapet Mount

C247M-B (1/11)

Important Safety Instructions

Prior to installation and use of this product, the following warnings should be observed.

1. Installation and servicing should only be done by qualified service personnel and conform to all local codes.

2. Installation shall be done in accordance with all local and national electrical and mechanical codes utilizing only approved materials.

3. Use only installation methods and materials capable of supporting four times the maximum specified load.

4. Use stainless steel hardware to fasten the mount to outdoor surfaces.

5. To prevent damage from water leakage when installing a mount outdoors on a roof or wall, apply sealant around the bolt holes between the mount and
mounting surface.

The product and/or manual may bear the following marks:

This symbol indicates that dangerous voltage constituting a risk of electric shock is present
within this unit.

CAUTION:

This symbol indicates that there are important operating and maintenance instructions in the
literature accompanying this unit.

Please thoroughly familiarize yourself with the information in this manual prior to installation and operation.

RISK OF ELECTRIC SHOCK.

DO NOT OPEN.

Description

Pelco’s PP200 parapet adapter mount has been engineered to eliminate the expense and hazard of installing and servicing surveillance accessory equipment
mounted on parapets. The PP200 is designed to attach to the PA2000, PA2010, or other pan/tilt adapters.

The PP200 mounts on the inside of a parapet that is at least 18 inches (45.72 cm) high. The mount rotates 360 degrees, allowing the equipment to be
installed and serviced safely from the rooftop. The mount’s unique design allows it to be positioned anywhere on the parapet, including corners. This
adapter mount will support up to 175 pounds (78.75 kg).

Pelco Parts List

The PP200 Parapet Mount kit contains the following items:

Qty Description

1 PP200 parapet adapter

1 Flange and tube assembly
2 Wall mounting brackets (1 upper and 1 lower with strap)
2 Threaded U-bolts, 5/16-18-UNC x 3.5-inch I.D. with flat washers and nuts

1 Adapter mounting hardware

4 Hex nuts, 5/16-18
4 Split lock washers, 5/16
4 Hex screws, 5/16-18 x 1-inch

User-Supplied Parts

Sixteen fasteners to secure the PP200 to the parapet wall (such as lag screws or concrete fasteners) are not supplied. At a minimum, 3/8-inch diameter
fasteners are recommended.

Installation

Refer to Figure 1 to perform the following steps:

1. Slip the upper wall mounting brackets onto the tube assembly. Do not tighten the upper mounting bracket U-bolt at this time.

2. Install the lower wall mounting bracket:
a. Slip the lower mounting bracket with the strap (attached to the adapter) onto the tube assembly.

b. Seat the bottom of the tube against the strap.

c. Tighten the lower mounting bracket U-bolt until it is snug (do not overtighten).

3. Hold the PP200 adapter mount against the parapet, and position it as far down as possible so the gusset clears the top of the parapet by 1 or 2 inches.

4. Slide the upper mounting bracket up to the edge of the parapet or as close to the edge as practical.

5. Tighten the upper mounting bracket U-bolt until it is snug (do not overtighten), and then mark the drill pattern through the mounting holes on both
brackets.

6. Drill the mounting holes and insert 16 fasteners (not supplied) to secure the mount to the parapet.

7. After the PP200 mount is attached securely to the parapet, loosen the two U-bolts so the tube can rotate freely.

8. Attach the mount for the equipment (for example, PA2000, PA2010, or other mount) to the top of the PP200 adapter mount, and then install the
equipment using the hex screws, hex nuts, and four split lock washers (not supplied).

9. Rotate the equipment over the parapet and lock securely into position by tightening the two U-bolts.

NOTE: When service of equipment is required, simply loosen the two U-bolts and rotate the equipment for easy accessibility.

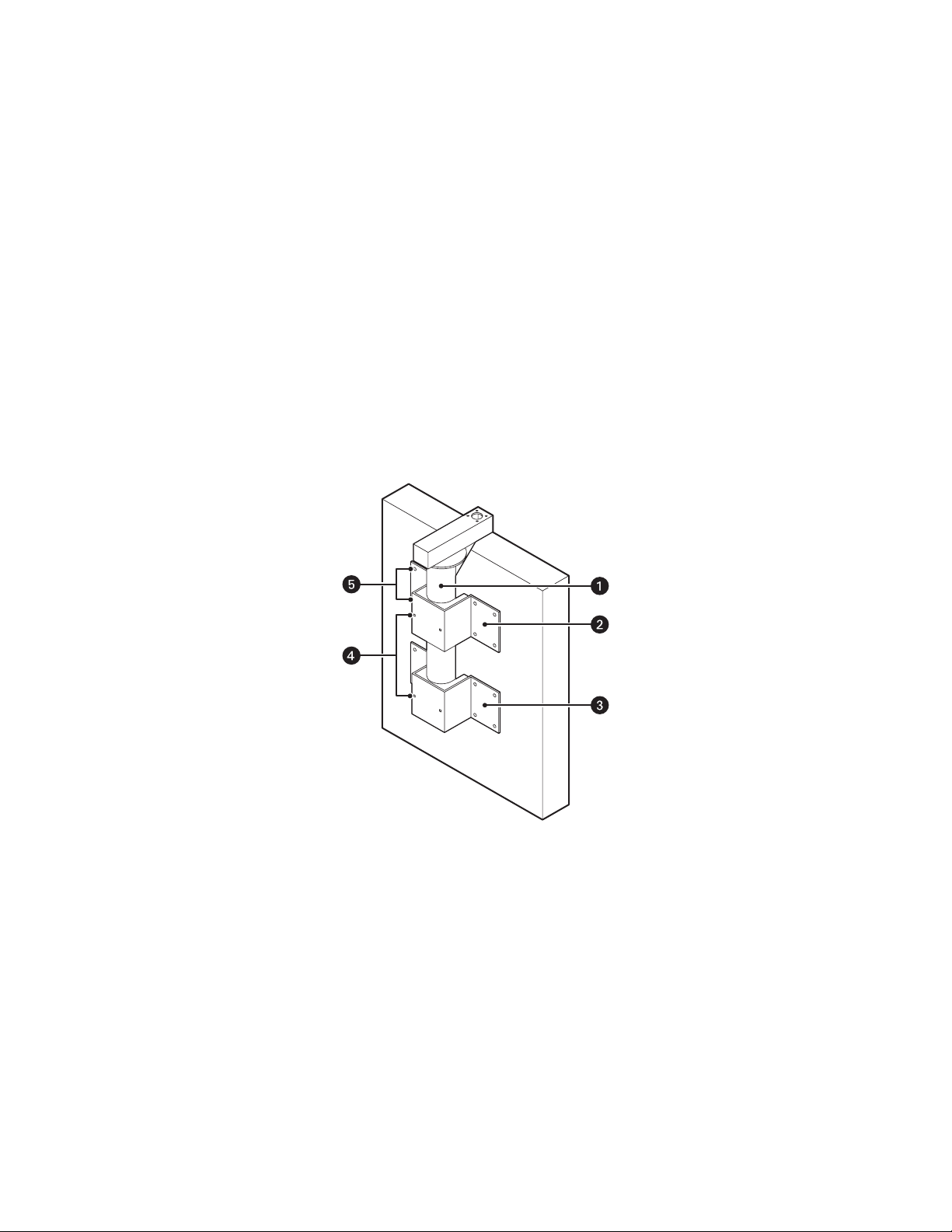

Figure 1. PP200 Installation

ì

Flange with Tube Assembly

î

Upper Wall Mounting Bracket

ï

Lower Wall Mounting Bracket

ñ

Threaded U-Bolts

ó

16 Fasteners (not supplied)

2 C247M-B (1/11)

Specifications

PP200 Parapet adapter mount for use with PA2000, PA2010, or other pan/tilt adapters; position equipment anywhere on the

parapet, including corners; minimum parapet height is 18 inches (45.72 cm)

Positioning Adjustment 360°

Suggested Mounting Method Secure to parapet with 16 suitable fasteners (minimum 3/8-inch diameter recommended, not supplied)

Adapter Mounting Method Four 5/16-inch hex screws, hex nuts, and split lock washers (supplied)

Maximum Load 175 lb (78.75 kg)

Construction Aluminum

Finish Polyester powder coat

Weight 11 lb (4.95 kg)

Ø0.344 (Ø0.848) 1/4-20
PEM NUT, 4X

0.795 (2.02)

1.59 (4.04)

5.50

Ø0.38 (Ø0.97), 8X

6.00

(15.24)

0.50

(1.27)

3.31

(8.41)

15.00

(38.10)

2.81

(7.14)

TYP

5.00

(12.70)

TYP

Ø1.375 (3.48), 1X

27.00

(68.50)

11.00

(27.94)

19.50

(49.53)

(13.97)

NOTE: VALUES IN PARENTHESES ARE CENTIMETERS; ALL OTHERS ARE INCHES.

1.50 (3.81)

1.59 (4.04)

2.50

(6.35)

C247M-B (1/11) 3
