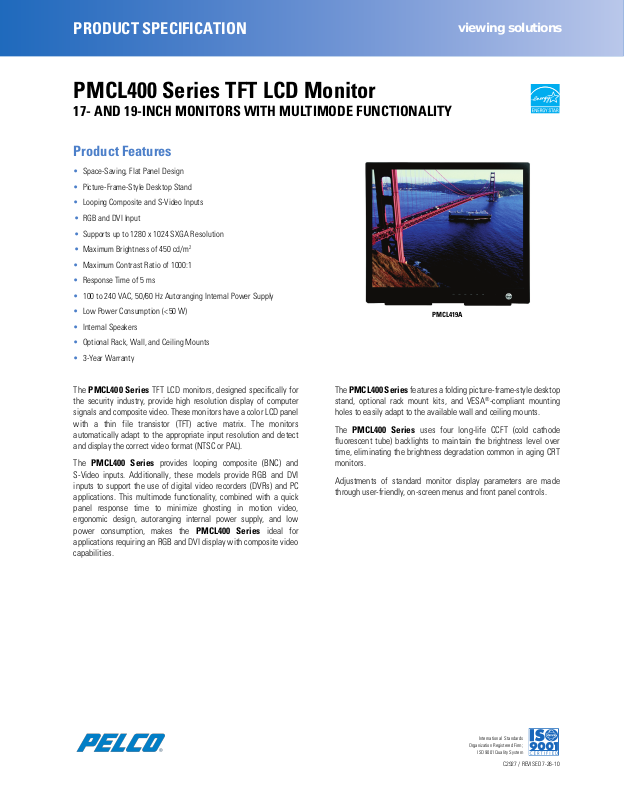

PRODUCT SPECIFICATION

PMCL419A

PMCL400 Series TFT LCD Monitor

17- AND 19-INCH MONITORS WITH MULTIMODE FUNCTIONALITY

viewing solutions

Product Features

• Space-Saving, Flat Panel Design

• Picture-Frame-Style Desktop Stand

• Looping Composite and S-Video Inputs

• RGB and DVI Input

• Supports up to 1280 x 1024 SXGA Resolution

• Maximum Brightness of 450 cd/m

• Maximum Contrast Ratio of 1000:1

• Response Time of 5 ms

• 100 to 240 VAC, 50/60 Hz Autoranging Internal Power Supply

• Low Power Consumption (<50 W)

• Internal Speakers

• Optional Rack, Wall, and Ceiling Mounts

• 3-Year Warranty

The PMCL400 Series TFT LCD monitors, designed specifically for
the security industry, provide high resolution display of computer
signals and composite video. These monitors have a color LCD panel
with a thin file transistor (TFT) active matrix. The monitors
automatically adapt to the appropriate input resolution and detect
and display the correct video format (NTSC or PAL).

The PMCL400 Series provides looping composite (BNC) and
S-Video inputs. Additionally, these models provide RGB and DVI
inputs to support the use of digital video recorders (DVRs) and PC
applications. This multimode functionality, combined with a quick
panel response time to minimize ghosting in motion video,
ergonomic design, autoranging internal power supply, and low
power consumption, makes the PMCL400 Series ideal for
applications requiring an RGB and DVI display with composite video
capabilities.

2

The PMCL400 Series features a folding picture-frame-style desktop
stand, optional rack mount kits, and VESA
holes to easily adapt to the available wall and ceiling mounts.

The PMCL400 Series uses four long-life CCFT (cold cathode
fluorescent tube) backlights to maintain the brightness level over
time, eliminating the brightness degradation common in aging CRT
monitors.

Adjustments of standard monitor display parameters are made
through user-friendly, on-screen menus and front panel controls.

®

-compliant mounting

International Standards

Organization Registered Firm;

ISO 9001 Quality System

C2927 / REVISED 7-26-10

TECHNICAL SPECIFICATIONS

Pelco, the Pelco logo, and other tradem arks associated with Pelco products referred to in this publication are trademarks

of Pelco, Inc. or its affiliates. All other product names and services are the property of their resp ective companies.

Product specifications and availability are subject to change without notice.

©Copyright 2010, Pelco, Inc. All rights reserved.

MODELS

PMCL417A 17-inch (432 mm) active TFT LCD monitor
PMCL419A 19-inch (483 mm) active TFT LCD monitor

GENERAL

Viewing Area

PMCL417A 338 x 270 mm
PMCL419A 376 x 301 mm

Pixel Pitch

PMCL417A 0.264 x 0.264 mm

PMCL419A 0.294 x 0.294 mm
Brightness 450 cd/m
Contrast Ratio 1000:1
Backlight Type 4 CCFL
Viewing Angle (H/V) 160°/160°
Response Time 5 ms
Native Resolution 1280 x 1024 SXGA
Panel Aspect Ratio 5:4
Panel Life 50,000 hours
Tilt 0° to 30°
Display Colors 16.7 million
Speakers Integrated, 2 x 2 W
Front Panel Controls Power, source/enter, menu/exit,

Indicators LED, power on/off

2

up/down, vol+/–

ELECTRICAL

Power Consumption <50 W
Input Voltage 100 to 240 VAC, 50/60 Hz
Input Interfaces

Video 2 BNC, looping; 1 S-Video, looping; 1 RGB;

Audio 2 (L/R) RCA, looping; 1 PC
Horizontal Frequency 31 kHz to 80 kHz
Vertical Frequency 56 Hz to 75 Hz
Sync Format NTSC/PAL

1 DVI

PHYSICAL

Dimensions

PMCL417A 2.4" D x 14.9" W x 13.4" H

(6.1 x 37.8 x 34.1 cm)

PMCL419A 2.4" D x 16.4" x W x 14.5" H

(6.1 x 41.5 x 36.9 cm)

Unit Weight

PMCL417A 10.8 lb (4.9 kg)
PMCL419A 12.6 lb (5.7 kg)

Shipping Weight

PMCL417A 16 lb (7 kg)
PMCL419A 18 lb (8 kg)

RECOMMENDED MOUNTS

Wall Mounts PMCL-WM, PMCL-WMT, PMCL-WM1A
Ceiling Mounts PMCL-CM, PMCL-CMP
Rack Mounts PMCL-17ARM, PMCL-19ARM
Note: The PMCL400 Series are VESA MIS-D, 100/75, C-compliant monitors

equipped with a 100 x 100 mm mounting hole pattern.

CERTIFICATIONS

• CE, Class B

• FCC, Class B

• UL/cUL Listed

•C-Tick

•S-Mark

•CCC

• GOST-R

ENVIRONMENTAL

Operating Temperature 32° to 104°F (0° to 40°C)
Storage Temperature –4° to 140°F (–20° to 60°C)
Operating Humidity 20% to 80%, noncondensing
Storage Humidity 10% to 90%, noncondensing
