PRODUCT SPECIFICATION
PMCL Series Mounts
WALL/CEILING/RACK MOUNTS, MONITORS
Product Features
• Articulating Arm Wall Mount
• Fixed and Tilt Wall Mount for 300/400/500 Series Monitors
• VESA-Compliant Wall and Ceiling Mounts
• Rack Mounts for 300 and 400 Series LCD Monitors
• Can Be Used with Pelco Series LCD Monitors
• Unique Tilt/Swivel Head Design Ensures Optimum Viewing Angle
• Easy to Install
• Aluminum or Steel Construction
• For Indoor Applications Only
viewing solutions
Pelco’s family of monitor mounts has been designed for use with
®
VESA
-compliant monitors. Mounts for the PMCL 300/400/500
Series monitors include several wall and ceiling mounts. Three rack
mounts are available for 300/400/500 Series monitors. Many of the
mounts feature a unique tilt/swivel capability, which allows an LCD
monitor to be swiveled 360 degrees for portrait or landscape viewing
and tilted 35 degrees up or down. This tilt/swivel quality ensures the
proper viewing angle in any application. Made from heavy-duty
aluminum, these mounts are designed to support up to 90 pounds in
any indoor installation.
The PMCL-WM and PMCL-WMT are two-piece wall mounts. One
piece attaches to the rear of any monitor, and the other piece fastens
to a wall. The monitor then slides into the V-shaped piece on the
wall, making installation quick and easy.A setscrew secures the two
sections together. The PMCLNBWMF flat wall mount,
PMCLNBWMT tilt/swivel mount, and PMCLNBWMS articulating
arm wall mounts are designed for use with the LCD monitors. All of
these mounts support a minimum mounting pattern of 200 x 200 mm
and a weight capacity of 79.38 kg (175 lb).
The PMCL-WM1A is an articulating arm wall mount that is
equipped with convenient tilt/swivel articulating arms for greater
viewing flexibility. The PMCL-WM1A is designed for use with the
300/400 Series LCD, PMCL524BL, and PMCL532BL monitors. The
PMCLNBWMS is a scissor-style articulating arm wall mount
PMCL-WM1A ARTICULATING ARM WALL MOUNT
AND PMCL SERIES MONITOR
offering 10 degrees of tilt. The PMCLNBWMS is designed for use
with the PMCL532BL, PMCL542BL, PMCL546BL, and
PMCL555BL monitors.
The tilt/swivel PMCL-CMP allows an LCD monitor to be mounted
from the ceiling. It is equipped with an adjustable 15- to 30-inch
(38 to 76 cm) telescoping pole. The PMCL-CM is a similar ceiling
mount that does not include a pole. This mount allows a customer to
purchase any length of 1.5-inch NPT threaded pipe for use in
applications with higher ceilings. Both of these ceiling mounts can
also be used with Pelco’s MRCA ceiling mount.
The PMCL-V200 is an adapter plate that attaches to the
PMCL-WM, PMCL-WMT, PMCL-WM1A, PMCL-CM, and
PMCL-CMP. This adapter plate allows the mounts to be used with
the PMCL532BL larger format monitor. It also accommodates
monitors with 200 x 200 mm hole patterns.
There are two rack mount kits for installing monitors in standard
19-inch (48 cm) equipment racks: the PMCL-17ARM and
PMCL-19ARM, which accommodate the 17-inch (43 cm) and
19-inch (48 cm) monitors, respectively. These mounts allow the
monitor to tilt up or down for optimum viewing.
International Standards
Organization Registered Firm;
ISO 9001 QualitySystem
C2219 / REVISED 6-10-15
TECHNICAL SPECIFICATIONS
WALL MOUNTS
MODELS
PMCL-WM Fixed wall mount
PMCL-WMT Tilt/swivel wall mount
PMCL-WM1A Tilt/swivel articulating arm wall mount
PMCLNBWMF Flat wall mount for 32-inch or larger monitors
PMCLNBWMT Tilt mount for 32-inch or larger monitors
PMCLNBWMS Scissor-style articulating arm wall mount for
32-inch or larger monitors
MECHANICAL
Swivel Adjustment
PMCL-WMT , PMCL-WM1A 360°
PMCLNBWMS 45°
Tilt Adjustment
PMCL-WMT , PMCL-WM1A 35°
PMCLNBWMT,
PMCLNBWMS 10°
CERTIFICATIONS
UL/cUL Listed PMCL-WMT, PMCL-WM1A, PMCLNBWMT,
PMCLNBWMF, and PMCLNBWMS only
GENERAL
Suggested Mounting Method Mounting hardware is not supplied.
PMCL-WM, PMCL-WMT Secure to solid surface with four 1/4-inch
PMCL-WM1A Secure to solid surface with three 5/16-inch
PMCLNBWMF, Secure to wall studs with a minimum of four
PMCLNBWMT lag bolts. Two wall studs are required for
PMCLNBWMS Secure to wall studs with a minimum of four
Maximum Load
PMCL-WM 15.88 kg (35.00 lb)
PMCL-WMT , PMCL-WM1A
PMCLNBWMF,
PMCLNBWMT,
PMCLNBWMS 79.38 kg (175.00 lb)
Construction
PMCL-WM, PMCL-WMT,
PMCL-WM1A Aluminum
PMCLNBWMF,
PMCLNBWMT,
PMCLNBWMS Steel
Finish Black polyester powder coat
Weight Unit Shipping
PMCL-WM 0.73 kg (1.60 lb) 1.36 kg (3.0 lb)
PMCL-WMT 1.38 kg (3.05 lb) 2.72 kg (6.0 lb)
PMCL-WM1A 1.61 kg (3.55 lb) 2.72 kg (6.0 lb)
PMCLNBWMF 5.44 kg (12.00 lb) 7.03 kg (15.5 lb)
PMCLNBWMT 6.80 kg (15.00 lb) 8.62 kg (19.0 lb)
PMCLNBWMS 18.14 kg (40.00 lb) 19.05 kg (42.0 lb)
diameter x 2-inch wedge anchors.
In applications where wall studs are
encountered, use four 1/4-inch diameter x
2-inch lag bolts or two lag bolts and two
1/4-inch diameter x 2-inch toggle bolts.
diameter x 2-inch wedge anchors or use three
5/16-inch diameter x 2-inch lag bolts in
applications where wall studs are
encountered.
mounting. Use a minimum of two lag bolts for
each wall stud.
5/16-inch diameter x 3-inch lag bolts. Use a
flat washer for each lag bolt. Two wall studs
are required for mounting. Use a minimum of
two lag bolts for each wall stud. It is
recommended that two people be involved in
installing this mount.
40.82 kg (90.00 lb)
TECHNICAL SPECIFICATIONS
10.03
(3.95)
7.49
(2.95)
3.31
(1.31)
18.28
(7.20)
PMCL-WM
PMCL-WMT
3.950
(10.033)
2.950
(7.500)
10.03
(3.95)
7.49
(2.95)
3.792
(9.632)
7.13
(2.81)
5.69
(2.24)
6.33
(2.49)
7.60
(2.99)
Ø 0.72
(0.28)
3.950
(10.033)
2.950
(7.500)
7.197
(18.280)
NOTE: VALUES IN PARENTHESES ARE INCHES; ALL OTHERS ARE CENTIMETERS.
2.809
(7.135)
2.240
(5.690)
2.492
(6.330)
2.989
(7.592)
Ø 0.283
(0.719)
TECHNICAL SPECIFICATIONS
PMCL-WM1A
10.033
(3.950)
7.500
(2.950)
9.632
(3.792)
10.033
(3.950)
7.500
(2.950)
55.44
(21.83)
52.90
(20.83)
18.280
(7.197)
84.45
(33.25)
60.96
(24.00)
45.72
(18.00)
40.64
(16.00)
14.24
(5.61)
7.135
(2.809)
5.690
(2.240)
6.330
(2.492)
19.86
(7.82)
Ø 0.88
(0.35)
7.592
(2.989)
Ø 0.719
(0.293)
12.70
(5.00)
2.43
(0.96)
28.80
(11.34)
PMCLNBWMF
Ø 0.83
81.50
(32.09)
(0.33)
NOTE: VALUES IN PARENTHESES ARE INCHES; ALL OTHERS ARE CENTIMETERS.
TECHNICAL SPECIFICATIONS
PMCLNBWMT
10°
84.45
(33.25)
60.96
(24.00)
45.72
(18.00)
40.64
(16.00)
5.00
(1.97)
PMCLNBWMS
54.30
(21.38)
(21.59)
54.83
52.73
(20.76)
8.15
(3.21)
65.30
(25.71)
14.24
(5.61)
80.08
(31.53)
70.81
(27.88)
76.68
(30.19)
84.30
(33.19)
Ø 0.83
(0.32)
87.14
(34.31)
19.86
(7.82)
67.13
(26.43)
Ø 0.95
(0.375)
12.70
(5.00)
10°
28.80
(11.34)
40.38
(15.90)
35.61
(14.02)
NOTE: VALUES IN PARENTHESES ARE INCHES; ALL OTHERS ARE CENTIMETERS.
TECHNICAL SPECIFICATIONS

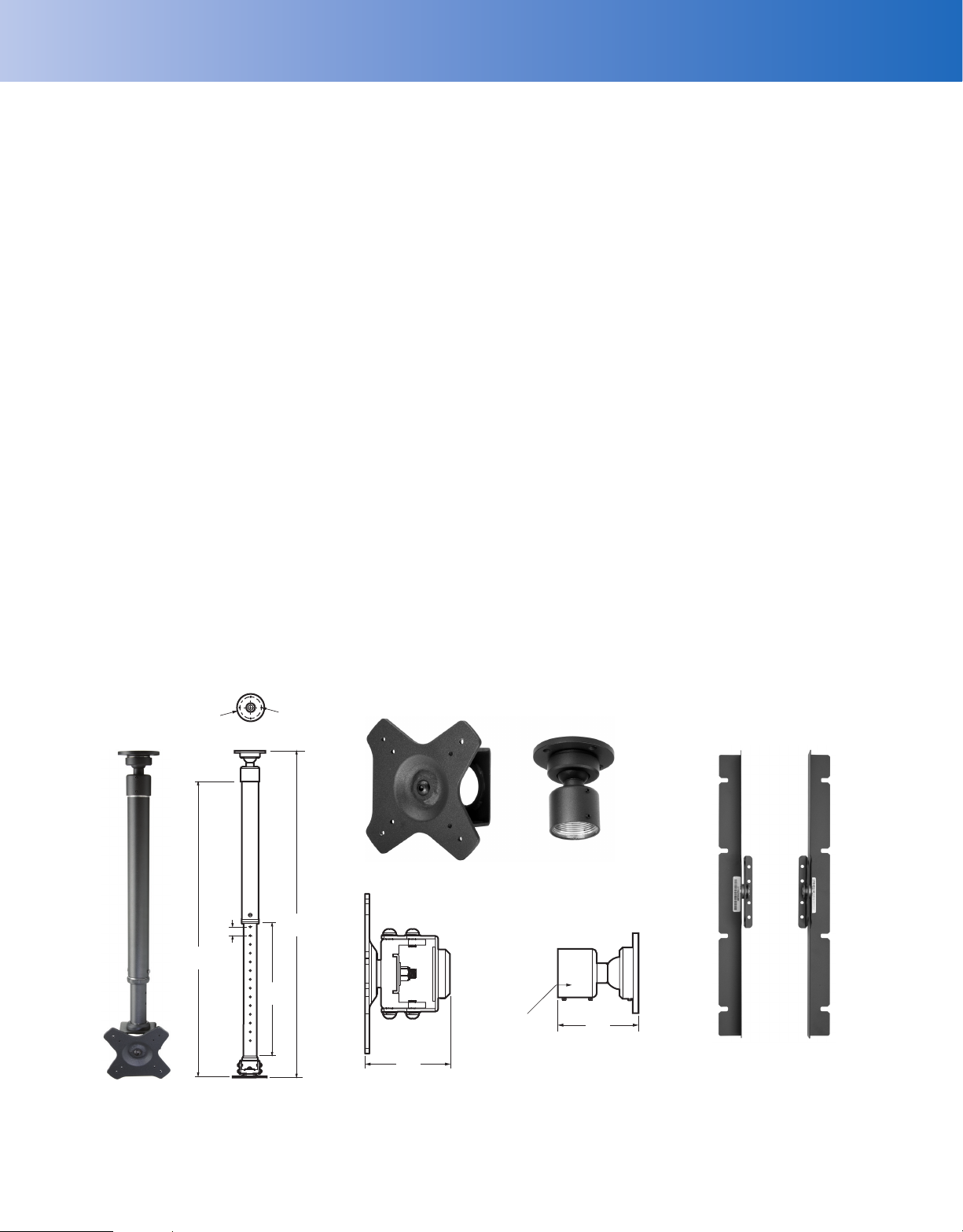

CEILING MOUNTS
MODELS
PMCL-CM Ceiling mount and VESA head for
LCD monitors
PMCL-CMP Ceiling mount and VESA head with
telescoping pole for LCD monitors
MECHANICAL
Swivel Adjustment 360°
Tilt Adjustment 90°
GENERAL
Suggested Mounting Method
Wood Beam 2, 1/4 x 2 in. wood screws (not supplied)
Metal I-Beam 4, 1/4-20 x 1 in. machine screws (not
supplied)
Concrete 4, 1/4 x 1.75 in. concrete wedge anchors (not
supplied)
Maximum Load 40.82 kg (90 lb)
Construction Aluminum
Finish Black polyester powder coat
Weight Unit Shipping
PMCL-CM 1.22 kg (2.70 lb) 2.27 kg (5.00 lb)
PMCL-CMP 2.29 kg (5.05 lb) 3.63 kg (8.00 lb)
CERTIFICATIONS
• UL/cUL Listed
RACK MOUNTS
MODELS
PMCL-17ARM Kit for mounting a 17 in. (43 cm) monitor in a
48 cm (19 in.) equipment rack
PMCL-19ARM Kit for mounting a 48 cm (19 in.) monitor in a
48 cm (19 in.) equipment rack
Note: The kits include two brackets, eight M4X0.7 screws, and one
installation manual.
GENERAL
Construction Mild steel
Finish Black polyester powder coat
Dimensions
PMCL-17ARM 4.96 x 48.00 x 35.33 cm
(1.95" D x 18.90" W x 13.91" H)
PMCL-19ARM 4.96 x 48.00 x 39.79 cm
(1.95" D x 18.90" W x 15.67" H)
Unit Weight 0.50 kg (1.10 lb)
Shipping Weight Consult the factory
PMCL-CMP
Ø 3.500
(8.890)
31.500
(80.010)
13X 1.000
(2.540)
Ø 0.187
(0.475)
PMCL-CM
38.740
(98.400)
15.135
(38.443)
1 1/2 STANDARD
NPT THREAD
9.436
(3.715)
8.954
(3.525)
NOTE: VALUES IN PARENTHESES ARE INCHES; ALL OTHERS ARE CENTIMETERS.
PMCL-19ARM
TECHNICAL SPECIFICATIONS
ADAPTER
MODEL
PMCL-V200 Converts 200 x 200 mm to 100 x 100 mm
VESA pattern. (Required for use with the
PMCL532BL and Pelco monitor mounts with
200 x 200 mm VESA pattern.)
GENERAL
Suggested Mounting Method
PMCL-V200 Secure to PMCL mount using
10-32 x 0.75-inch Phillips screws (supplied)
Construction
PMCL-V200 Aluminum
Finish Black polyester powder coat
Weight Unit Shipping
PMCL-V200 1.00 lb (0.45 kg) 3.00 lb (1.36 kg)
20.003
(7.875)
14.117
(5.558)
10.033
(3.950)
7.500
(2.950)
20.003
14.117
10.033
(3.950)
7.500
(2.950)
PMCL-V200
(7.875)
(5.558)
NOTE: VALUES IN PARENTHESES ARE INCHES; ALL OTHERS ARE CENTIMETERS.
TECHNICAL SPECIFICATIONS
LCD MOUNT SELECTION GUIDE
Compatible Monitors
Model Description
PMCL317B
PMCL319BL
PMCL417HB
PMCL419HB
PMCL524FL
PMCL532BL
PMCL542BL
PMCL546BL
PMCL-WM Fixed Wall Mount • • • • • •*
PMCL-WMT Tilt/Swivel Wall Mount • • • • • •*
PMCL-WM1A Tilt/Swivel Articulating Arm Wall Mount • • • • • •*
PMCL-CM Ceiling Mount • • • • • •*
PMCL-CMP Ceiling Mount with Pole • • • • • •*
PMCL-17ARM 17-inch Monitor Rack Mount • •
PMCL-19ARM 19-inch Monitor Rack Mount • •
PMCL-V200 200 x 200 mm Adapter Plate •
PMCLNBWMF Flat Wall Mount • • • •
PMCLNBWMT Tilt Wall Mount • • • •
PMCLNBWMS Scissor-style Articulating Arm Wall Mount • • • •
*PMCL-V200 adapter plate needed.
PMCL555BL
