PRODUCT SPECIFICATION
EM22/MM22 Mount
camera solutions
CEILING/PEDEST
Product Features
AL/WALL MOUNT, MEDIUM DUTY, ENCLOSURE
• Economical
• Indoor/Outdoor
• Supports up to 40 lb (18.14 kg)
• Sturdy Construction
• For Use with Medium Duty Enclosures
• Fully Adjustable Swivel Head
• Wall or Pedestal/Ceiling Mounting Applications
• EM22 Can Be Adapted for Pole Applications with Use of
A100 Adapter
P

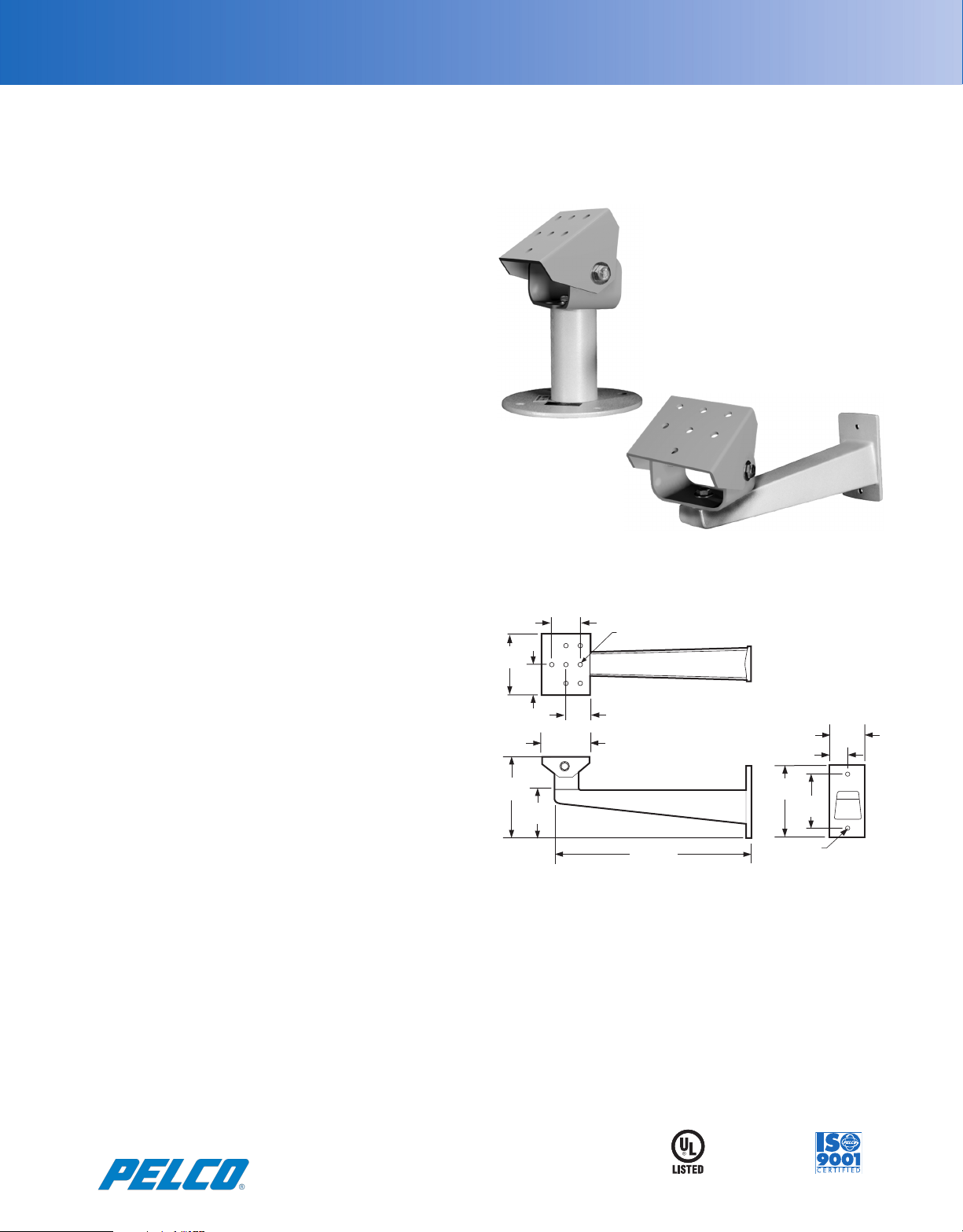

The EM22 and MM22 have been designed and engineered for use
with various Pelco enclosures. The EM22 mounts to a wall or other
vertical surface and features a cast-aluminum wall arm which
minimizes undesired horizontal movement. The MM22 is a pedestal/
ceiling mount and can be mounted on any flat surface.
Both units feature a fully adjustable swivel head, allowing 360-degree
horizontal movement. Fabricated from corrosion-resistant aluminum,
each unit will support loads up to 40 lb (18.14 kg).
3.47
(8.81)
1.74
(4.42)
MM22
2.00
(5.08)
3.00
(7.62)
1.50
(3.81)
Ø 0.27 (0.68), 7X
EM22
1.50 (3.81)
3.00
(7.62)
In addition, the EM22 can be adapted for pole mount applications
when used with the PA100 mount adapter.
7.00
(17.78)
4.16
(10.57)
16.50
(41.91)
EM22
NOTE: VALUES IN PARENTHESES ARE CENTIMETERS;
ALL OTHERS ARE INCHES.
6.00
(15.24)
Ø 0.34 (0.86), 2X
International Standards
Organization Registered Firm;
ISO 9001 Quality System
C227 / REVISED 7-31-08
4.50
(11.43)
TECHNICAL SPECIFICATIONS
MODELS
EM22 Medium duty wall mount for enclosures and
light- to medium- weight cameras; manually
adjustable swivel head
MM22 Medium duty ceiling/pedestal mount for
enclosures and light- to medium-weight
cameras; manually adjustable swivel head
RELATED PRODUCTS
PA100 Pole mount adapter for EM22 mount:
minimum pole diameter 1.5 inches (3.8 cm);
stainless steel straps supplied; strap length
28.5 inches (72.39 cm).
MECHANICAL
Pan Adjustment 360°
Tilt Adjustment 75°
Camera/Enclosure
Mounting 2 each 1/4-20 x 5/8" mounting bolts, split
washers and flat washers
Locking Method 3/8-16 hex head bolts
GENERAL
Construction
EM22 Cast-aluminum wall arm with aluminum
adjustable head
MM22 Aluminum billet with aluminum adjustable
head
Finish Gray polyester powder coat
Maximum Load 40 lb (18.14 kg)
Unit Weight
EM22 3.05 lb (1.39 kg)
MM22 2.60 lb (1.18 kg)
PA100 0.86 lb (0.39 kg)
Shipping Weight
EM22 4 lb (1.81 kg)
MM22 4 lb (1.81 kg)
PA100 2 lb (0.90 kg)

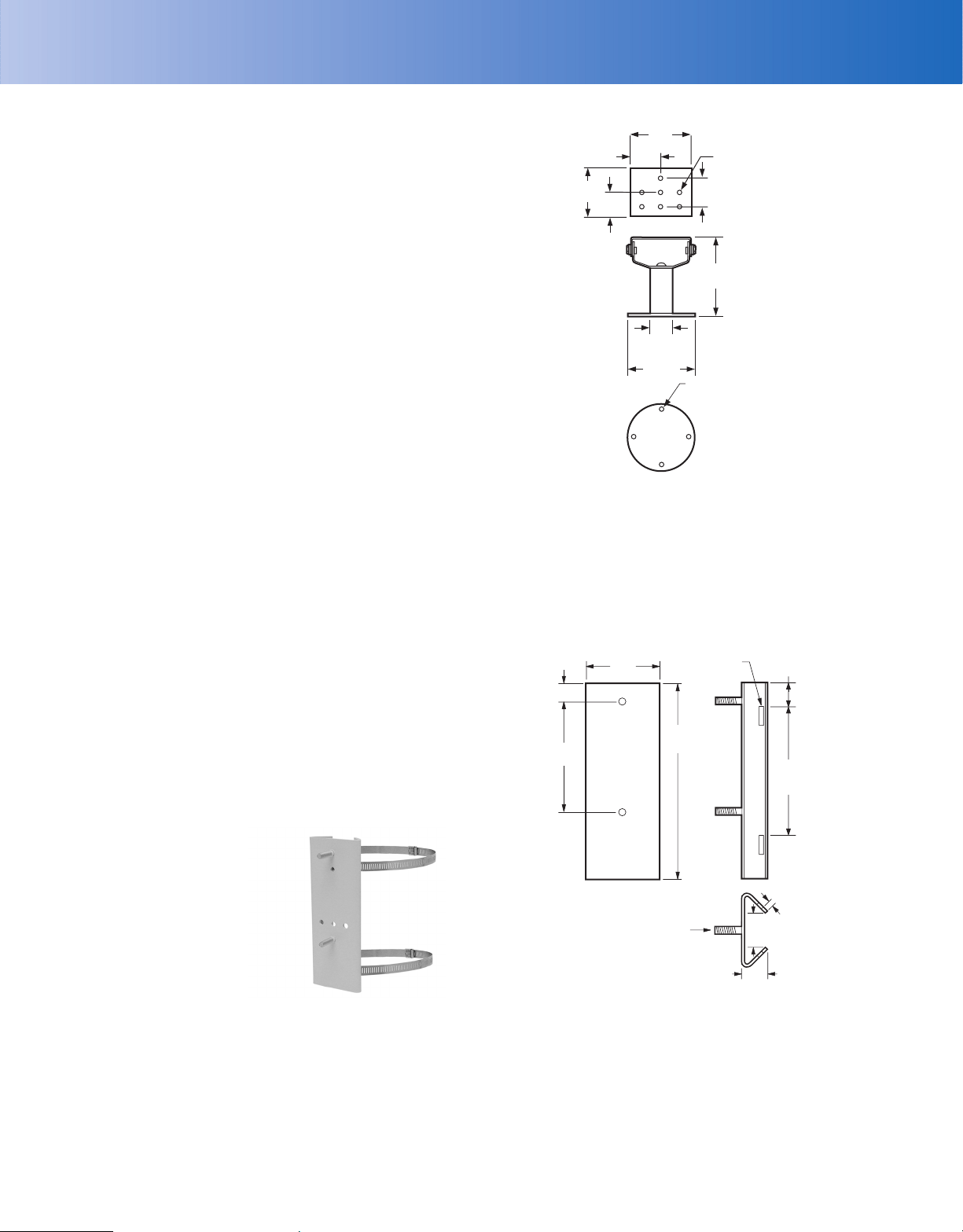

0.75
(1.91)
3.00
(7.62)
1.50
(3.81)
3.00
(7.62)
1.74
(4.42)
3.47
(8.81)
Ø 2.00
(5.08)
Ø6.00
(15.24)
MM22
Ø 0.27 (0.68), 7X
2.00
(5.08)
7.09
(18.01)
Ø 0.37 (0.93), 4X
EQ SP ON A
4.75 (12.06) BC
0.25 X 0.75 SLOT
(0.64 X 1.91), 4X
1.00
(2.54)
CERTIFICATIONS
• UL Listed
Pelco, Inc.
625 W. Alluvial, Fresno, California 93711 USA
USA & Canada Tel: (800) 289-9100 • FAX: (800) 289-9150
International Tel: +1 (559) 292-1981 • FAX: +1 (559) 348-1120
www.pelco.com
PA100
POLE ADAPTER
8.00
4.50
(11.43)
5/16-18 X 1-1/4 STUD, 2X
PA100
NOTE: VALUES IN PARENTHESES ARE CENTIMETERS;
ALL OTHERS ARE INCHES.
Product specifications and availability subject to change without notice.
(20.32)
(13.34)
1.36
(3.5)
±0.15
1.06
(2.70)
Pelco and the Pelco logo are registered trademarks of Pelco, Inc.
©Copyright 2008, Pelco, Inc. All rights reserved.
5.25
