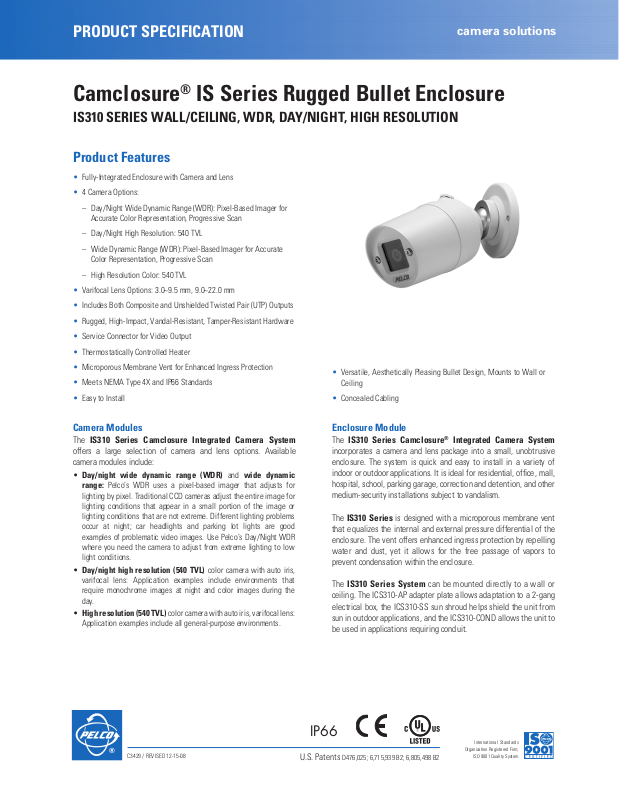

Page 1
PRODUCT SPECIFICATION
®
Camclosure
IS310 SERIES WALL/CEILING, WDR, DAY/NIGHT, HIGH RESOLUTION
Product Features
• Fully-Integrated Enclosure with Camera and Lens
• 4 Camera Options:
– Day/Night Wide Dynamic Range (WDR): Pixel-Based Imager for
Accurate Color Representation, Progressive Scan
– Day/Night High Resolution: 540 TVL
– Wide Dynamic Range (WDR): Pixel-Based Imager for Accurate
Color Representation, Progressive Scan
– High Resolution Color: 540 TVL
• Varifocal Lens Options: 3.0~9.5 mm, 9.0~22.0 mm
• Includes Both Composite and Unshielded Twisted Pair (UTP) Outputs
• Rugged, High-Impact, Vandal-Resistant, Tamper-Resistant Hardware
• Service Connector for Video Output
• Thermostatically Controlled Heater
• Microporous Membrane Vent for Enhanced Ingress Protection
• Meets NEMA Type 4X and IP66 Standards
• Easy to Install
IS Series Rugged Bullet Enclosure
• Versatile, Aesthetically Pleasing Bullet Design, Mounts to Wall or
Ceiling
• Concealed Cabling
camera solutions
Camera Modules
The
IS310 Series Camclosure Integrated Camera System
offers a large selection of camera and lens options. Available
camera modules include:
•
Day/night wide dynamic range (WDR)
Pelco’s WDR uses a pixel-based imager that adjusts for
range:
lighting by pixel. Traditional CCD cameras adjust the entire image for
lighting conditions that appear in a small portion of the image or
lighting conditions that are not extreme. Different lighting problems
occur at night; car headlights and parking lot lights are good
examples of problematic video images. Use Pelco’s Day/Night WDR
where you need the camera to adjust from extreme lighting to low
light conditions.
Day/night high resolution (540 TVL)
•
varifocal lens: Application examples include environments that
require monochrome images at night and color images during the
day.
High resolution (540 TVL)
•
Application examples include all general-purpose environments.
color camera with auto iris, varifocal lens:
and
wide dynamic
color camera with auto iris,
Enclosure Module
®
The
IS310 Series Camclosure
incorporates a camera and lens package into a small, unobtrusive
enclosure. The system is quick and easy to install in a variety of
indoor or outdoor applications. It is ideal for residential, office, mall,
hospital, school, parking garage, correction and detention, and other
medium-security installations subject to vandalism.
The
IS310 Series
that equalizes the internal and external pressure differential of the
enclosure. The vent offers enhanced ingress protection by repelling
water and dust, yet it allows for the free passage of vapors to
prevent condensation within the enclosure.
The
IS310 Series System
ceiling. The ICS310-AP adapter plate allows adaptation to a 2-gang
electrical box, the ICS310-SS sun shroud helps shield the unit from
sun in outdoor applications, and the ICS310-COND allows the unit to
be used in applications requiring conduit.
is designed with a microporous membrane vent
Integrated Camera System
can be mounted directly to a wall or
C3429 / REVISED 12-15-08
IP66
U.S. Patents
D476,025; 6,715,939 B2; 6,805,498 B2
International Standards
Organization Registered Firm;
ISO 9001 Quality System
Page 2
TECHNICAL SPECIFICATIONS
GENERAL
Construction Aluminum base and cover, steel camera
mounting bracket
Finish Light gray polyester powder coat
Unit Weight 1.45 lb (0.66 kg)
Shipping Weight 2.0 lb (0.90 kg)
ELECTRICAL
Input Voltage* 12 VDC or 24 VAC (±10%), autosensing
Synchronization Internal or AC line lock
Power Consumption
Camera <3 W (DW/CW models)
<4 W (DN/CH models)
Heaters 10 W when active; thermostatically controlled
*24 VAC power is recommended when installing any Camclosure Integrated
Camera System under fluorescent lighting conditions.
MECHANICAL
Pan/Tilt/Adjustment
Manual 180° pan; 180° tilt
VIDEO
Signal System NTSC or PAL
Video Output
Composite 1 Vp-p, 75 ohms
UTP 1 Vp-p, 100 ohms
Video Connectors 1 composite BNC and 1 UTP
Service Connector 3-conductor, 2.5 mm connector for video
output to optional IS-SC cable
7.14
(18.14)
4.26
(10.82)
2.01
(5.10)
1.31
(3.32)
NOTE: VALUES IN PARENTHESES ARE CENTIMETERS;
ALL OTHERS ARE INCHES.
2.87
(7.29)
3.50
(8.89)
2.76
(7.01)
ENVIRONMENTAL
Environment Low temperature, indoor/outdoor
Operating Temperature -50° to 122°F (-46° to 50°C);
Thermostat Operation Heater is thermostatically controlled to
de-ices to -25°F (-4°C)
activate ON at 50°F (10°C) and OFF at
80°F (27°C)
CERTIFICATIONS/RATINGS/PATENTS
• CE, Class B
• FCC, Class B
• UL /cUL Listed
• C-Tick
• GOST
• Meets NEMA Type 4X and IP66 standards
• ISTA Shipping Standard
• U.S. Patents D475,025; 6,715,939 B2; 6,805,498 B2
Page 3
TECHNICAL SPECIFICATIONS
CAMERA SPECIFICATIONS
Imaging Device 1/3-inch pixel based imager 1/3-inch interline color CCD 1/3-inch pixel based imager 1/3-inch interline color CCD
Picture Elements 720 (H) x 540 (V) NTSC: 768 (H) x 494 (V)
Dynamic Range
(DW/CW only)
Scanning System 2:1 interlace/
Horizontal Resolution NTSC: 504 TV lines
Signal-to-Noise Ratio >53 dB >50 dB >53 dB >50 dB
Minimum
Illumination
Day/Night Operation
Day
Night
Filter Switch
Threshold
Gain Control Auto (36 dB maximum) Auto/Manual (DIP switch) Auto (36 dB maximum) Auto/Manual (DIP switch)
Exposure Auto (1/15–1/22,000) Auto (1/60–1/100,000) Auto (1/15–1/22,000) Auto (1/60–1/100,000)
White Balance Auto or manual (DIP switch),
Backlight
Compensation
102 dB typical
120 dB maximum
progressive (DIP switch)
PAL: 504 TV lines
Color (day): 0.8 lux
SENS 8X: 0.2 lux
B-W (night): 0.08 lux
SENS 8X: 0.02 lux
(f/1.0, 40 IRE, AGC on, 75%
scene reflectance, 3.0~9.5 mm
lens)
Infrared (IR) cut filter
No filter
Dusk 4 lux
Dark 1 lux
2800°K–7500°K
Auto ON/OFF (DIP switch) Auto ON/OFF (DIP switch)
Day/Night
Wide Dynamic Range
Varifocal, Auto Iris
(DW Series)
Day/Night
High Resolution
Varifocal, Auto Iris
(DN Series)
PAL: 752 (H) x 582 (V)
— 102 dB typical
2:1 interlace 2:1 interlace/
NTSC: 540 TV lines
PAL: 540 TV lines
Color (day): 0.15 lux
B-W (night): 0.015 lux
(f/1.0, 40 IRE, AGC on, 75%
scene reflectance, 3.0~9.5 mm
lens)
Infrared (IR) cut filter and optical
low pass filter
Optical low pass filter
0.15 lux — —
Auto or manual (DIP switch),
2500°K–9500°K
Wide Dynamic Range
Varifocal, Auto Iris
(CW Series)
720 (H) x 540 (V) NTSC: 768 (H) x 494 (V)
120 dB maximum
progressive (DIP switch)
NTSC: 504 TV lines
PAL: 504 TV lines
Color (day): 0.8 lux
SENS 8X: 0.2 lux
(f/1.0, 40 IRE, AGC on, 75%
scene reflectance, 3.0~9.5 mm
lens)
——
Auto or manual (DIP switch),
2800°K–7500°K
PAL: 752 (H) x 582 (V)
—
2:1 interlace
NTSC: 540 TV lines
PAL: 540 TV lines
0.3 lux
(f/1.0, 40 IRE, AGC on, 75%
scene reflectance, 3.0~9.5 mm
lens)
Auto or manual (DIP switch),
2500°K–9500°K
High Resolution
Varifocal, Auto Iris
(CH Series)
LENS SPECIFICATIONS
Varifocal with Auto Iris
Series DW/CW Series DN/CH Series
Focal Length 3.0~9.5 mm 9.0~22.0 mm 3.0~9.5 mm 9.0~22.0 mm
Format Size 1/3-inch 1/3-inch 1/3-inch 1/3-inch
F-Number (f) 1.0–1.7 1.5–3.0 1.0–1.7 1.5–3.0
Operation
Iris
Focus
Zoom
Angle of View*
Horizontal
Diagonal
Vertical
*Focal length specifications presume a 10% horizontal and 4% vertical monitor overscan.
Auto
Manual
Manual
100.4° to 31.6°
131.6° to 39.6°
72.8° to 23.8°
Auto
Manual
Manual
32.4° to 13.6°
41.4° to 17.2°
23.8° to 10.2°
Auto
Manual
Manual
95.0° to 30.2°
123.6° to 37.6°
69.0° to 22.6°
Auto
Manual
Manual
30.6° to 13.0°
39.2° to 16.4°
22.6° to 9.8°
Page 4
SYSTEM MODELS AND RELATED PRODUCTS
SYSTEM MODEL NUMBERS
Camera Type Lens Type NTSC PAL
Color Day/Night
with WDR
Color Day/Night
Color WDR
Color, High Resolution
RECOMMENDED POWER SUPPLIES
TF2000 Power supply for one 24 VAC camera, 20 VA
MCS Series Multiple 24 VAC camera power supply, indoor
MCS*E Series Multiple 24 VAC camera power supply, indoor
WCS Series Single/multiple 24 VAC camera power supply,
OPTIONAL ACCESSORIES
ICS310-AP Adapter plate for a 2-gang electrical box
ICS310-COND Conduit adapter; can be adapted to any
ICS310-SS Sun shroud for outdoor applications
IS-SC 4-foot service/monitor cable; compatible with
3.0~9.5 mm with auto iris IS310-DWV9
9.0~22.0 mm with auto iris IS310-DWV22
3.0~9.5 mm with auto iris IS310-DNV9 IS310-DNV9X
9.0~22.0 mm with auto iris IS310-DNV22 IS310-DNV22X
3.0~9.5 mm with auto iris IS310-CWV9
9.0~22.0 mm with auto iris IS310-CWV22
3.0~9.5 mm with auto iris IS310-CHV9 IS310-CHV9X
9.0~22.0 mm with auto iris IS310-CHV22 IS310-CHV22X
outdoor
vertical or horizontal mounting surface
any standard monitor BNC connector
Pelco, Inc. Worldwide Headquarters:
3500 Pelco Way, Clovis, California 93612-5699 USA
USA & Canada
International
www.pelco.com
Tel: (800) 289-9100 • FAX: (800) 289-9150
Tel: +1 (559) 292-1981 • FAX: +1 (559) 348-1120
Pelco, the Pelco logo, and Camclosure are registered trademarks of Pelco, Inc.
Product specifications and availability subject to change without notice.
©Copyright 2008, Pelco, Inc. All rights reserved.
