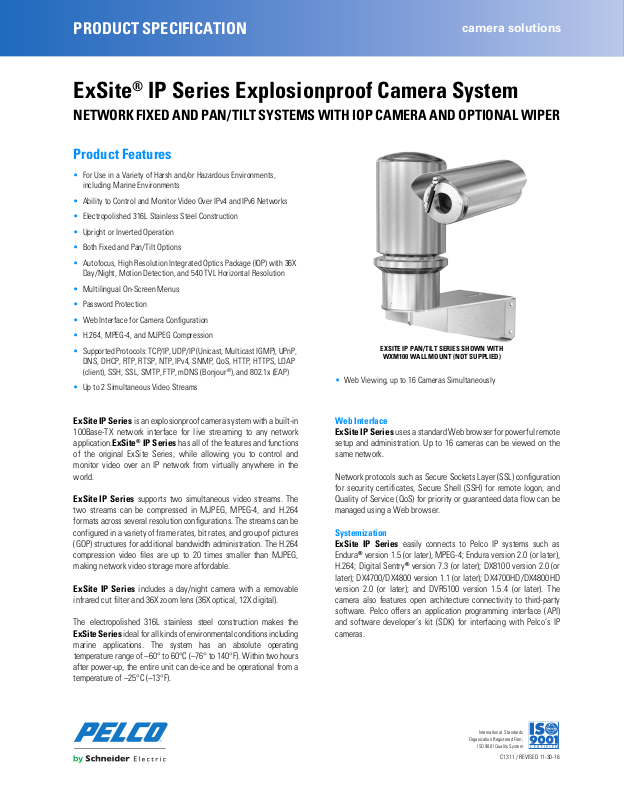

PRODUCT SPECIFICATION	camera solutions

ExSite® IP Series Explosionproof Camera System

NETWORK FIXED AND PAN/TILT SYSTEMS WITH IOP CAMERA AND OPTIONAL WIPER

Product Features

•For Use in a Variety of Harsh and/or Hazardous Environments, including Marine Environments

•Ability to Control and Monitor Video Over IPv4 and IPv6 Networks

•Electropolished 316L Stainless Steel Construction

•Upright or Inverted Operation

•Both Fixed and Pan/Tilt Options

•Autofocus, High Resolution Integrated Optics Package (IOP) with 36X Day/Night, Motion Detection, and 540 TVL Horizontal Resolution

•Multilingual On-Screen Menus

•Password Protection

•Web Interface for Camera Configuration

•H.264, MPEG-4, and MJPEG Compression

•Supported Protocols: TCP/IP, UDP/IP (Unicast, Multicast IGMP), UPnP, DNS, DHCP, RTP, RTSP, NTP, IPv4, SNMP, QoS, HTTP, HTTPS, LDAP (client), SSH, SSL, SMTP, FTP, mDNS (Bonjour®), and 802.1x (EAP)

•Up to 2 Simultaneous Video Streams

ExSite IP Series is an explosionproof camera system with a built-in 100Base-TX network interface for live streaming to any network application.ExSite® IP Series has all of the features and functions of the original ExSite Series, while allowing you to control and monitor video over an IP network from virtually anywhere in the world.

ExSite IP Series supports two simultaneous video streams. The two streams can be compressed in MJPEG, MPEG-4, and H.264 formats across several resolution configurations. The streams can be configured in a variety of frame rates, bit rates, and group of pictures (GOP) structures for additional bandwidth administration. The H.264 compression video files are up to 20 times smaller than MJPEG, making network video storage more affordable.

ExSite IP Series includes a day/night camera with a removable infrared cut filter and 36X zoom lens (36X optical, 12X digital).

The electropolished 316L stainless steel construction makes the ExSite Series ideal for all kinds of environmental conditions including marine applications. The system has an absolute operating temperature range of –60° to 60°C (–76° to 140°F). Within two hours after power-up, the entire unit can de-ice and be operational from a temperature of –25°C (–13°F).

EXSITE IP PAN/TILT SERIES SHOWN WITH

WXM100 WALL MOUNT (NOT SUPPLIED)

• Web Viewing, up to 16 Cameras Simultaneously

Web Interface

ExSite IP Series uses a standard Web browser for powerful remote setup and administration. Up to 16 cameras can be viewed on the same network.

Network protocols such as Secure Sockets Layer (SSL) configuration for security certificates, Secure Shell (SSH) for remote logon, and Quality of Service (QoS) for priority or guaranteed data flow can be managed using a Web browser.

Systemization

ExSite IP Series easily connects to Pelco IP systems such as Endura® version 1.5 (or later), MPEG-4; Endura version 2.0 (or later), H.264; Digital Sentry® version 7.3 (or later); DX8100 version 2.0 (or later); DX4700/DX4800 version 1.1 (or later); DX4700HD/DX4800HD version 2.0 (or later); and DVR5100 version 1.5.4 (or later). The camera also features open architecture connectivity to third-party software. Pelco offers an application programming interface (API) and software developer’s kit (SDK) for interfacing with Pelco’s IP cameras.

International Standards

Organization Registered Firm;

ISO 9001 Quality System

C1311 / REVISED 11-30-16

TECHNICAL SPECIFICATIONS

PRODUCT FEATURES

All Models

•Sun Shroud, Heater/Window Defroster, and Blower Included

•Configurable Locations of Labels and On-Screen Displays

•7 Alarm Inputs

•3 Relay Outputs

•Built-in Menu System for Setup of Configurable Functions

•Autofocus with Manual Override

•Auto Iris with Manual Override

•NTSC/PAL

•Reliable, Maintenance-Free Brushless DC Stepper Motor and Timing Belt Transmissions for Smooth and Accurate Positioning

Fixed Models

• Manual 200° Pan and 180° Tilt Adjustments

VALUES IN PARENTHESES ARE INCHES; ALL OTHERS ARE CENTIMETERS.

FIXED

13.03									29.21 (11.5 )
(5.13)

12.47

(4.91)

26.8

(10.5

1.91

(0.75 NPT )

33.27 (13.1)

4 PLCS. TYP.

10MM - 1.5MM X 14MM ON A 4.75-INCH DIA. B.C. EQUALLY SPACED

8.52

(3.354)

Pan/Tilt Models

•Variable Speed Pan: 0.1° to 40°/Second with Proportional Pan

•360° Continuous Pan Rotation

•Tilt Range of +90° to –90° from Horizontal

•±0.1° Preset Accuracy

•Preset Positioning, Patterns, Multiple Scan Modes

•Configurable Power-up Mode

•Configurable Park

•80 Presets with Custom Camera Settings and Labels

•8 Zones (configurable in size) Can Be Labeled with Up to 20 Characters Each or Set to Output Blank Video

•Action on Alarm: Alarms can be individually configured for 3 priority levels, to initiate a stored pattern, or to go to an associated preset when received

•Resume After Alarm: Allows the pan/tilt to return to a previously configured state after alarm acknowledgment or to its previous position before alarm

•Patterns: Up to 4, on-screen, user-defined configurable patterns; includes pan, tilt, zoom, and preset functions

•Proportional Pan/Tilt: Continually decreases pan and tilt speeds in proportion to depth of zoom

•Variable Scan Speed: Scan speed can be configurable between 1° and 40°/sec

•Configurable Limit Stops for Auto/Random/Frame Scan Modes

Note: Please contact Pelco for information on the dimensions of the flameproof joints.

PAN/TILT

29.21 (11.5)

33.37 (13.14)

13.03

(5.13)

12.47

(4.91)

42.01

(16.54)

1.91

0.75 NPT )

14.07

(5.54)

18.08

(7.12)

4 PLCS. TYP.

10MM - 1.5MM X 14MM ON A 4.75-INCH DIA. B.C. EQUALLY SPACED

8.52

(3.354)

TECHNICAL SPECIFICATIONS

CAMERA/OPTICS

	Day/Night (36X)
Signal Format	NTSC, PAL
Scanning System	2:1 interlace
Image Sensor	1/4-inch progressive scan CCD
Effective Pixels
NTSC	768 (H) x 494 (V)
PAL	752 (H) x 582 (V)
Horizontal Resolution
NTSC	540 TV lines
PAL	540 TV lines
Lens	f/1.4 (focal length, 3.3 ~ 119 mm optical)
Zoom	36X optical, 12X digital
Configurable Zoom Speed	2.9/4.2/5.8 seconds
(Optical Range)
Horizontal
Angle of View	57.2° at 3.3 mm wide zoom;
	2.5° at 82.8 mm telephoto zoom
Focus	Automatic with manual override
Maximum Sensitivity	0.55 lux at 1/60 sec shutter (color)
NTSC*
	0.018 lux at 1/2 sec shutter (color);
	0.055 lux at 1/60 sec shutter (B-W);
	0.0018 lux at 1/ 2 sec shutter (B-W)
PAL*	0.45 lux at 1/50 sec shutter (color);
	0.015 lux at 1/1.5 sec shutter (color);
	0.045 lux at 1/50 sec shutter (B-W);
	0.0015 lux at 1/1.5 sec shutter (B-W)
Sync System	Internal/AC line lock, phase adjustable using
	remote control, V-Sync
White Balance	Automatic with manual override
Shutter Speed	Automatic (electronic iris)/manual
NTSC	1/2 ~ 1/30,000
PAL	1/1.5 ~ 1/30,000
Iris Control	Automatic Iris Control with manual override
Gain Control	Automatic/OFF
Video Output	1 Vp-p, 75 ohms
Video Signal-to-Noise Ratio	>50 dB

*All values measured at 27 dB gain.
