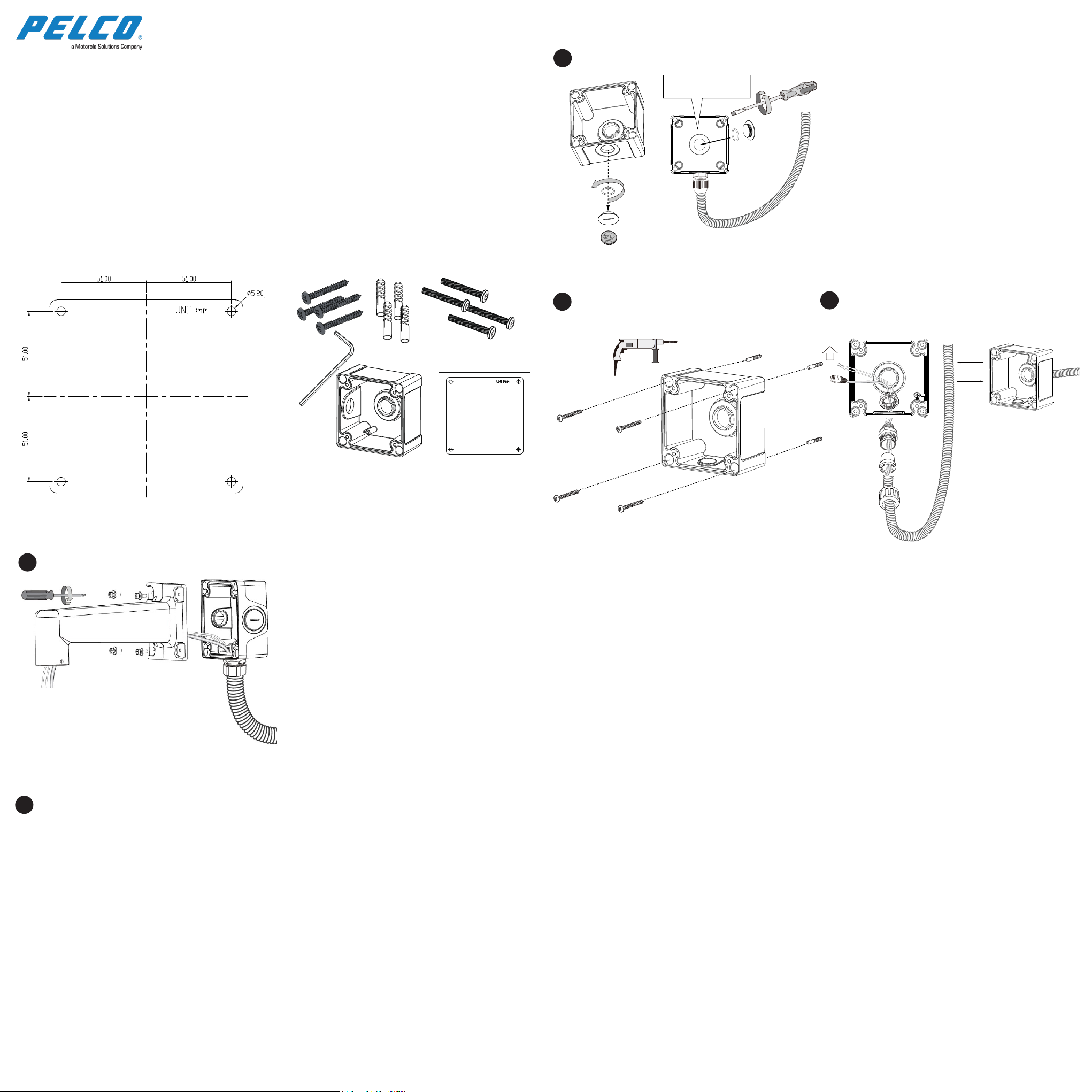

Mounting Dimensions
IMV-WMJB
Junction Box
Installation Guide
C6695M
Package Contents
Installation
A 3/4" conduit is required for routing the cables with waterproof
1
connection. The cable gland and conduit are user-supplied.
If using the bottom hole,
seal the center hole.
If you use the bottom hole, install the seal plug
to the unused hole in the center.
Secure SRXV-WMP Wall Arm to box using the hex socket screws.
4
Attach the included alignment sticker to a preferred position.
2
Drill holes on the wall and install the junction box. If space
behind the wall allows, you may also pass cables through the
wall.
Install the cable gland and pass cables through it.
3
OR
3/4”
Refer to the accessories' and camera's QIG for more information.
5
Pelco, Inc.
625 W. Alluvial, Fresno, California 93711 United States
USA & Canada
International
www.pelco.com
Tel (800) 289-9100 Fax (800) 289-9150
Tel +1 (559) 292-1981 Fax +1 (559) 348-1120
