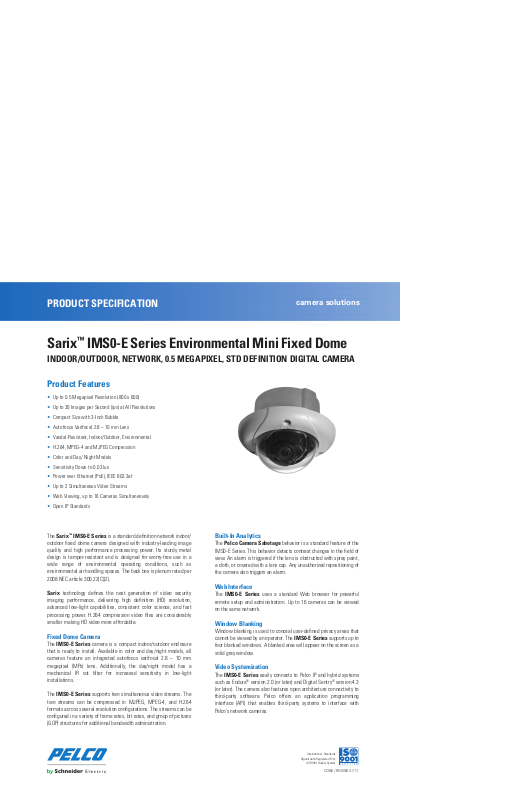

PRODUCT SPECIFICATION
camera solutions
Sarix™ IMS0-E Series Environmental Mini Fixed Dome
INDOOR/OUTDOOR, NETWORK, 0.5 MEGAPIXEL, STD DEFINITION DIGITAL CAMERA
Product Features
• Up to 0.5 Megapixel Resolution (800 x 600)
• Up to 30 Images per Second (ips) at All Resolutions
• Compact Size with 3-Inch Bubble
• Autofocus Varifocal 2.8 ~ 10 mm Lens
• Vandal-Resistant, Indoor/Outdoor, Environmental
• H.264, MPEG-4 and MJPEG Compression
• Color and Day/ Night Models
• Sensitivity Down to 0.03 lux
• Power over Ethernet (PoE), IEEE 802.3af
• Up to 2 Simultaneous Video Streams
• Web Viewing, up to 16 Cameras Simultaneously
• Open IP Standards
™
The
outdoor fixed dome camera designed with industry-leading image
quality and high performance processing power. Its sturdy metal
design is tamper-resistant and is designed for worry-free use in a
wide range of environmental operating conditions, such as
environmental air handling spaces. The back box is plenum rated per
2008 NEC article 300.22(C)(2).
Sarix
imaging performance, delivering high definition (HD) resolution,
advanced low-light capabilities, consistent color science, and fast
processing power. H.264 compression video files are considerably
smaller making HD video more affordable.
IMS0-E Series
Sarix
technology defines the next generation of video security
is a standard definition network indoor/
Fixed Dome Camera
The
IMS0-E Series
that is ready to install. Available in color and day/night models, all
cameras feature an integrated autofocus varifocal 2.8 ~ 10 mm
megapixel (MPx) lens. Additionally, the day/night model has a
mechanical IR cut filter for increased sensitivity in low-light
installations.
The
IMS0-E Series
two streams can be compressed in MJPEG, MPEG-4, and H.264
formats across several resolution configurations. The streams can be
configured in a variety of frame rates, bit rates, and group of pictures
(GOP) structures for additional bandwidth administration.
camera is a compact indoor/outdoor enclosure
supports two simultaneous video streams. The
Built-In Analytics
The
Pelco Camera Sabotage
IMS0-E Series. This behavior detects contrast changes in the field of
view. An alarm is triggered if the lens is obstructed with spray paint,
a cloth, or covered with a lens cap. Any unauthorized repositioning of
the camera also triggers an alarm.
behavior is a standard feature of the
Web Interface
The
IMS0-E Series
remote setup and administration. Up to 16 cameras can be viewed
on the same network.
uses a standard Web browser for powerful
Window Blanking
Window blanking is used to conceal user-defined privacy areas that
cannot be viewed by an operator. The
four blanked windows. A blanked area will appear on the screen as a
solid gray window.
IMS0-E Series
supports up to
Video Systemization
The
IMS0-E Series
such as Endura
(or later). The camera also features open architecture connectivity to
third-party software. Pelco offers an application programming
interface (API) that enables third-party systems to interface with
Pelco’s network cameras.
easily connects to Pelco IP and hybrid systems
®
version 2.0 (or later) and Digital Sentry® version 4.3
International Standards
Organization Registered Firm;
ISO 9001 Quality System
C2982 / REVISED 3-7-11
Page 2
TECHNICAL SPECIFICATIONS
GENERAL
Imaging Device 1/3-inch (effective)
Imager Type CMOS
Imager Readout Progressive scan
Maximum Resolution
800 x 600
Signal-to-Noise Ratio 50 dB
Auto Iris Lens Type DC drive
Electronic Shutter Range 1 ~ 1/100,000 sec
Wide Dynamic Range 60 dB
White Balance Range 2,000° to 10,000°K
Sensitivity f/1.3; 2,850°K; SNR >24 dB
Color (1x/33 ms) 0.50 lux
Color SENS (15x/500 ms) 0.12 lux
Mono (1x/33 ms) 0.25 lux
Mono SENS (15x/500 ms) 0.03 lux
Dome Attenuation Clear dome, zero light loss
Construction
Back Box Alodine aluminum
Bubble Polycarbonate plastic
Finish Light gray powder coat
Weight
Unit 0.6 kg (1.4 lb)
Shipping 1.0 kg (2.2 lb)
Available Languages Chinese, English, French, German, Italian,
Portuguese, Russian, Spanish, and Turkish
ELECTRICAL
Port RJ-45 connector for 100Base-TX
Cable Type Cat5 or better for 100Base-TX
Power Input PoE (IEEE 802.3af class 3)
Power Consumption* 7.4 W nominal
Service Port External 3-connector, 2.5 mm provides
Accessory Port Connects Pelco accessories
*Does not include optional accessories connected to the accessory port.
Auto MDI/MDI-X
NTSC/PAL video output
MECHANICAL
Pan/Tilt Adjustment Manual
Pan 355°
Tilt 180°
Rotate 220°
ENVIRONMENTAL
Operational Temperature –20° to 50°C (–4° to 122°F)
Thermostat Operation Heater is thermostatically controlled to
Operational Humidity 20% to 80%, noncondensing
Impact Resistance IK10++ per EN62262 (50J)
Shock and Vibration Meets EN50155 Category 1, Class B;
operate below 5°C (41°F)
IEC60068: 2-6 and 2-27
NOTE: VALUES IN PARENTHESES ARE INCHES; ALL OTHERS ARE CENTIMETERS.

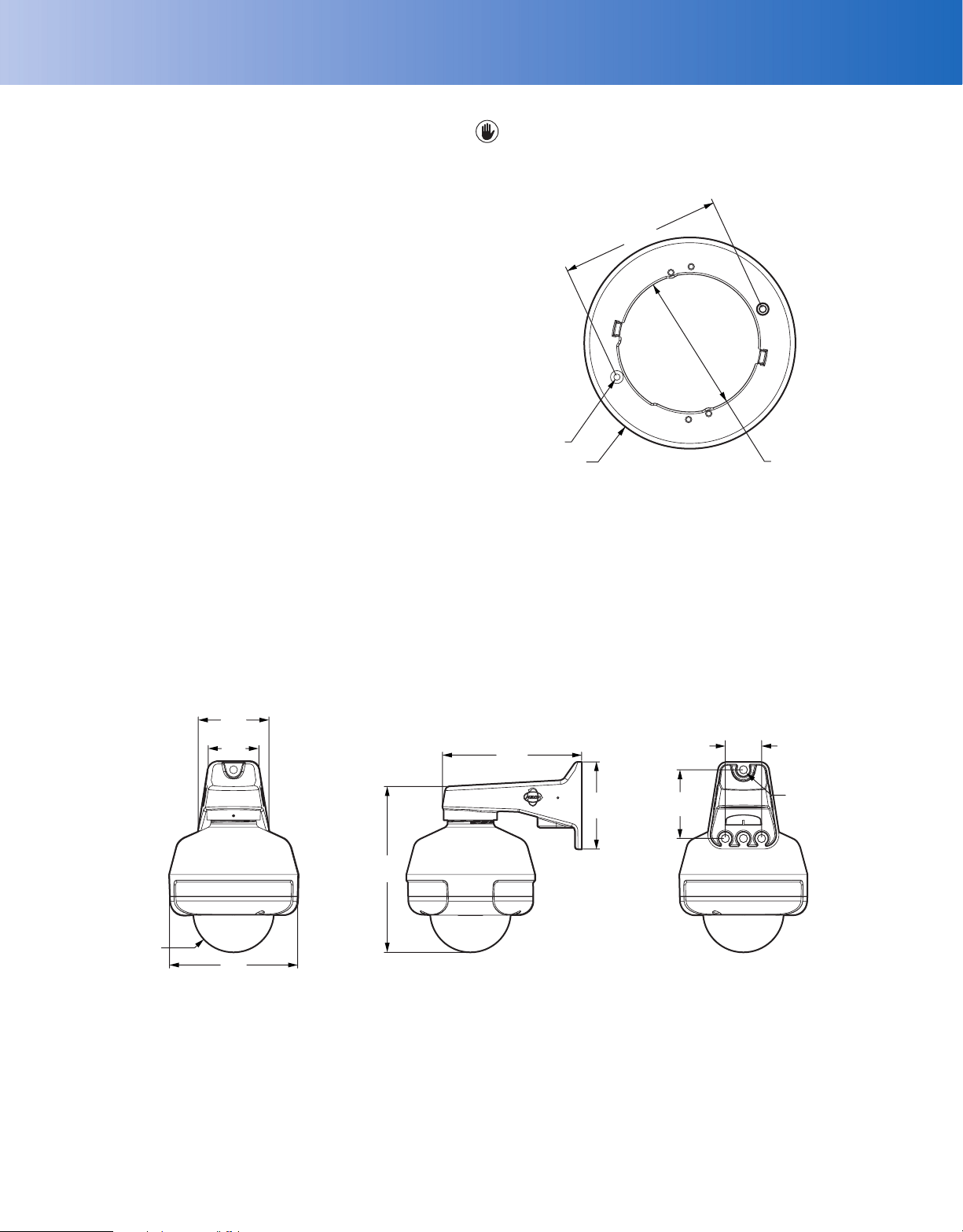

IN-CEILING
10.06
(3.96)
4.52
(1.78)
10.52
(4.14)
Ø 8.61
(3.39)
SURFACE
(Mounting Ring is Available as an Accessory)
Ø 8.61
(3.39)
PENDANT
(Mount is Available as an Accessory)
15.11
(5.95)
13.08
(5.15)
13.71
(5.40)
13.46
(5.30)
Ø 2.69
(1.06)
11.43
(4.50)
THREADED STANDARD
1-1/2 N.P.T. EXTERNAL
1.32
(0.52)
Ø 8.61
(3.39)
Page 3
TECHNICAL SPECIFICATIONS
VIDEO
Video Encoding H.264 base profile, MPEG-4, and MJPEG
Video Streams Up to 2 simultaneous streams; the second
Frame Rate Up to 30, 25, 24, 15, 12.5, 12, 10, 8, 7. 5, 6, 5,
Available Resolutions
Additional Resolutions 640 x 512, 640 x 352, 480 x 368, 480 x 272,
Supported Protocols TCP/IP, UDP/IP (Unicast, Multicast IGMP),
Users
Unicast Up to 20 simultaneous users depending on
Multicast Unlimited users H.264
Security Access Password protected
Software Interface Web browser view and setup, up to
Pelco System Integration Endura 2.0 (or later) or
Open IP Integration Pelco IP camera API
Minimum System Requirements
Processor Intel® Pentium® 4 microprocessor, 1.6 GHz
Operating System Microsoft® Windows® XP, Windows Vista®,
Memory 512 MB RAM
Network Interface Card 100 megabits, minimum
Monitor Minimum of 1024 x 768 resolution, 16- or
Web Browser* Internet Explorer® 7.0 (or later) or Mozilla®
Media Player† Pelco Media Player or QuickTime® 7.6.5 for
*Internet Explorer is not supported by Mac OS X 10.4.
†
This product is not compatible with QuickTime version 7.6.4 for Windows XP
or Windows Vista. If you have this version installed on your PC, you will
need to upgrade to QuickTime version 7.6.5.
stream is variable based on the setup of the
primary stream
4, 3, 2, 1 (dependent upon coding, resolution,
and stream configuration)
Resolution MJPEG H.264 Base Profile MPEG-4
Aspect
MPx Width Height
0.5 800 600 4:3 30 ips 5.8 Mbps 25 ips 2.0 Mbps N/A N/A
0.3 640 480 4:3 30 ips 3.7 Mbps 30 ips 1.6 Mbps 30 ips 1.7 Mbps
0.1 320 240 4:3 30 ips 0.9 Mbps 30 ips 0.4 Mbps 30 ips 0.4 Mbps
320 x 256, 320 x 176, 4CIF (704 x 489 and
704 x 576), and CIF (352 x 240 and 352 x 288)
UPnP, DNS, DHCP, RTP, RTSP, NTP, IPv4,
SNMP v2c/v3, QoS, HTTP, HTTPS, LDAP
(client), SSH, SSL, SMTP, FTP, mDNS
®
), and 802.1x (EAP)
(Bonjour
resolution settings (2 guaranteed streams)
16 cameras
Digital Sentry 4.3 (or later)
or Mac® OS X 10.4 (or later)
32-bit pixel color resolution
Firefox® 3.5 (or later); Internet Explorer® 8.0
(or later) is recommended for configuring
analytics
Windows XP, Windows Vista, or QuickTime
7.6.4 for Mac OS X 10.4
Maximum
Ratio
IPS
Recommended
Bit Rate
Maximum
IPS
Recommended
Bit Rate
Maximum
IPS
Recommended
Bit Rate
LENS
2.8 mm
10.0 mm
Field of View
in Degrees
Horizontal 91 76 73
Vertical 50 56 58
Horizontal 25 21 20
Vertical 14 16 16
16:9 4:3 5:4
Aspect Ratio
Page 4
TECHNICAL SPECIFICATIONS
MODELS
IMS0C10-1E Sarix environmental indoor/outdoor mini fixed
IMS0DN10-1E Sarix environmental indoor/outdoor mini fixed
dome network camera, 0.5 MPx, color,
2.8 ~ 10 mm varifocal lens, clear dome
dome network camera, 0.5 MPx, day/night,
2.8 ~ 10 mm varifocal megapixel lens, clear
dome
CERTIFICATIONS/RATINGS/PATENTS
• CE, Class A
• FCC, Class A
• UL/cUL Listed
• C-Tick
• KCC*
• Meets NEMA Type 4 and IP66 standards
• Patents are pending
*As of the date of this publication, these certifications are pending.
Please consult the factory, our Web site at
most recent B.O.S.S.
®
update for the current status of certifications.
www.pelco.com
, or the
OPTIONAL ACCESSORIES
LDIMVE-0 Smoked bubble
IM-VESM Surface mount ring
IM-VEPM Pendant mount, light gray
WMVE-SR Wall mount, light gray
IM-VECM Corner mount, light gray
IM-VE4S 4S electrical box (deep) adapter plate
ALM-1 External alarm accessory
AUD-1 External audio accessory
POE20U560G Single port PoE injector
PA101 Pole adapter for use with WMVE-SR wall
mount
NOTE: VALUES IN PARENTHESES ARE INCHES; ALL OTHERS ARE CENTIMETERS.
4S ELECTRICAL BOX (DEEP) ADAPTER PLATE
(Available as an Accessory)
12.12
(4.77)
Ø 0.48
(0.19)
Ø 15.75
(6.20)
Ø 10.67
(4.20)
WALL MOUNT
(Available as an Accessory)
7.41
(2.92)
4.98
(1.96)
Ø 8.61
(3.39)
Pelco by Schneider Electric
3500 Pelco Way, Clovis, California 93612-5699 United States
USA & Canada
International
www.pelco.com
Tel (800) 289-9100 Fax (800) 289-9150
Tel +1 (559) 292-1981 Fax +1 (559) 348-1120
13.46
(5.30)
17.45
(6.87)
16.59
(6.53)
3.81
(1.50)
9.40
(3.70)
Pelco, the Pelco logo, and other trademarks associated with Pelco products referred
to in this publication are trademarks of Pelco, Inc. or its affiliates. All other
product names and services are the property of their respective companies.
Product specifications and availability are subject to change without notice.
7.21
(2.84)
©Copyright 2011, Pelco, Inc. All rights reserved.
Ø 0.86
(0.34)
