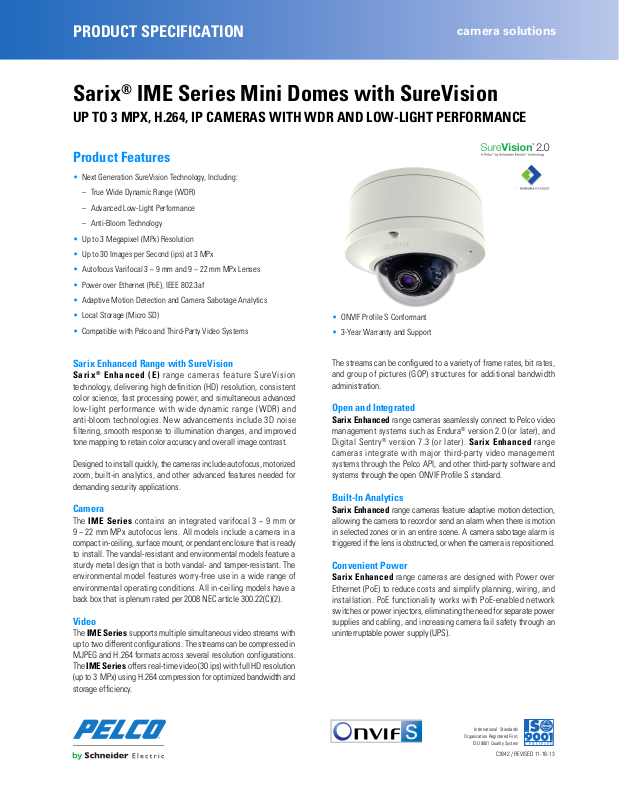

Sarix® IME Series Mini Domes with SureVision
UP TO 3 MPX, H.264, IP CAMERAS WITH WDR AND LOW-LIGHT PERFORMANCE
Product Features
• Next Generation SureVision Technology, Including:
– True Wide Dynamic Range (WDR)
– Advanced Low-Light Performance
– Anti-Bloom Technology
• Up to 3 Megapixel (MPx) Resolution
• Up to 30 Images per Second (ips) at 3 MPx
• Autofocus Varifocal 3 ~ 9 mm and 9 ~ 22 mm MPx Lenses
• Power over Ethernet (PoE), IEEE 802.3af
• Adaptive Motion Detection and Camera Sabotage Analytics
• Local Storage (Micro SD)
• Compatible with Pelco and Third-Party Video Systems
• ONVIF Profile S Conformant
• 3-Year Warranty and Support
Sarix Enhanced Range with SureVision
Sarix® Enhanced (E) range cameras feature SureVision
technology, delivering high definition (HD) resolution, consistent
color science, fast processing power, and simultaneous advanced
low-light performance with wide dynamic range (WDR) and
anti-bloom technologies. New advancements include 3D noise
filtering, smooth response to illumination changes, and improved
tone mapping to retain color accuracy and overall image contrast.
Designed to install quickly, the cameras include autofocus, motorized
zoom, built-in analytics, and other advanced features needed for
demanding security applications.
Camera
The IME Series contains an integrated varifocal 3 ~ 9 mm or
9 ~ 22 mm MPx autofocus lens. All models include a camera in a
compact in-ceiling, surface mount, or pendant enclosure that is ready
to install. The vandal-resistant and environmental models feature a
sturdy metal design that is both vandal- and tamper-resistant. The
environmental model features worry-free use in a wide range of
environmental operating conditions. All in-ceiling models have a
back box that is plenum rated per 2008 NEC article 300.22(C)(2).
Video
The IME Series supports multiple simultaneous video streams with
up to two different configurations. The streams can be compressed in
MJPEG and H.264 formats across several resolution configurations.
The IME Series offers real-time video (30 ips) with full HD resolution
(up to 3 MPx) using H.264 compression for optimized bandwidth and
storage efficiency.
The streams can be configured to a variety of frame rates, bit rates,
and group of pictures (GOP) structures for additional bandwidth
administration.
Open and Integrated
Sarix Enhanced range cameras seamlessly connect to Pelco video
management systems such as Endura
Digital Sentry® version 7.3 (or later). Sarix Enhanced range
cameras integrate with major third-party video management
systems through the Pelco API, and other third-party software and
systems through the open ONVIF Profile S standard.
®
version 2.0 (or later), and
Built-In Analytics
Sarix Enhanced range cameras feature adaptive motion detection,
allowing the camera to record or send an alarm when there is motion
in selected zones or in an entire scene. A camera sabotage alarm is
triggered if the lens is obstructed, or when the camera is repositioned.
Convenient Power
Sarix Enhanced range cameras are designed with Power over
Ethernet (PoE) to reduce costs and simplify planning, wiring, and
installation. PoE functionality works with PoE-enabled network
switches or power injectors, eliminating the need for separate power
supplies and cabling, and increasing camera fail safety through an
uninterruptable power supply (UPS).
International Standards
Organization Registered Firm;
ISO 9001 Quality System
C3942 / REVISED 11-18-13
Page 2
TECHNICAL SPECIFICATIONS
14.35
(5.65)
8.18
(3.22)
10.08
(3.97)
14.40
(5.67)
11.94
(4.70)
8.18
(3.22)
14.83
(5.84)
15.62 (6.15)
9.78 (3.85)
COMPONENT FEATURES
VALUES IN PARENTHESES ARE INCHES; ALL OTHERS ARE CENTIMETERS.
4.24
(1.67)
16.50 (6.50)
8.18 (3.22)
6.27
(2.47)
11.76
(4.63)
Indoor, In-Ceiling
• Single Back Box for Suspended or Hard Ceiling Applications
• Requires 8.26 cm (3.25 in.) Space Above Ceiling
• Minimum Ceiling Thickness 0.64 cm (0.25 in.); Maximum Ceiling Thickness
4.45 cm (1.75 in.)
• 3/4 in. NPT or 25 mm Conduit Attachments on Side and Top of Back Box
• Microphone
• Plenum Rated Back Box
• Alodine Aluminum Construction
• White Back Box is Standard; Black is Available
Indoor, Surface Mount
• Attaches to Single-Gang Electrical Box
• Microphone
• Polycarbonate/ABS Construction
• White Back Box is Standard; Black is Available
7.44
(2.93)
3.61
(1.42)
19.18 (7.55)
9.78 (3.85)
15.80 (6.22)
9.78 (3.85)
5.64
(2.22)
11.74
(4.62)
Indoor, Pendant
• Microphone
• 3/4 in. NPT or 25 mm Conduit/Pipe Attachment
• Polycarbonate/ABS Construction
• White Back Box is Standard; Black is Available
Environmental/Vandal-Resistant, In-Ceiling
• Single Back Box for Suspended or Hard Ceiling Applications
• Requires 8.26 cm (3.25 in.) Space Above Ceiling
• Minimum Ceiling Thickness 0.97 cm (0.38 in.); Maximum Ceiling Thickness
3.81 cm (1.50 in.)
• 3/4 in. NPT or 25 mm Conduit Attachments on Side and Top of Back Box
• Microphone on Vandal-Resistant Models
12.54
(4.94)
• Vandal-Resistant Model Meets IP56
• Environmental Model Meets IP66 and NEMA Type 4X
• Meets IK10++ (50J)
• Plenum Rated Back Box
• Alodine Aluminum Construction
• Light Gray Finish
Environmental/Vandal-Resistant, Surface Mount
• Attaches to Standard 4 in. Square Outlet Box and Standard 2-Gang
Electrical Box
• 3/4 in. NPT or 25 mm Conduit Attachments on Side and Top of Back Box
• Microphone on Vandal-Resistant Models
• Vandal-Resistant Model Meets IP56
• Environmental Model Meets IP66 and NEMA Type 4X
• Meets IK10++ (50J)
• Alodine Aluminum Construction
• Light Gray Finish
Environmental/Vandal-Resistant, Pendant
• 1-1/2 in. NPT Thread for Use with Pelco Wall Mounts
• Microphone on Vandal-Resistant Models
• Vandal-Resistant Model Meets IP56
• Environmental Model Meets IP66 and NEMA Type 4X
• Meets IK10++ (50J)
• Alodine Aluminum Construction
• Light Gray Finish
Page 3
TECHNICAL SPECIFICATIONS
CAMERA
Imaging Device 1/3-inch
Imager Type CMOS
Imager Readout Progressive scan
Highest Resolution
3 MPx 2048 x 1536
2 MPx 1920 x 1080
1 MPx 1280 x 1024
0.5 MPx 800 x 608
Signal-to-Noise Ratio >60 dB
Electronic Shutter Range
True Wide Dynamic Range Up to 100 dB*
White Balance Range 2,000° to 10,000°K
Sensitivity
Sensitivity 9 ~ 22 mm f/1.6; 2,850°K; SNR >20 dB
Day/Night Capabilities Yes
Mechanical IR Cut Filter Yes, (ON/OFF/AUTO selectable), with
*Sensor level is not inclusive of SureVision image processing.
3 ~ 9 mm f/1.2; 2,850°K; SNR >20 dB
Color (33 ms) 0.1 lux
Color (500 ms) 0.005 lux
Mono (33 ms) 0.05 lux
Mono (500 ms) 0.0013 lux
Color (33 ms) 0.4 lux
Color (500 ms) 0.009 lux
Mono (33 ms) 0.09 lux
Mono (500 ms) 0.002 lux
1 ~ 1/77,000 sec
different set points on lux
LENS
Lens Type Built-in; varifocal
Focal Length f/1.2, 3 ~ 9 mm, or f/1.6, 9 ~ 22 mm
Focus Autofocus, motorized
Zoom Remote
Auto Iris Type DC drive P-iris lens
Field of View in Degrees
Lens
3 ~ 9 mm
9 ~ 22 mm
Focal
Length
Wide 4:3 105 84 63
Tel e 4 :3 38 3 0 23
Wide 16:9 97 84 47
Tele 16:9 35 30 17
Wide 4:3 38 30 23
Tele 4:3 15 12 8.9
Wide 16:9 35 30 17
Tele 16:9 14 12 6.6
Mode Diagonal Horizontal Vertical
AUDIO
Streaming Bidirectional: full or half duplex
Input/Output Line level/external microphone input;
Compression G.711 PCM 8 bit, 8 kHz mono at 64 kbit/s
600-ohm differential, 1 Vp-p max. signal level;
built-in microphone (indoor and
-resistant models)
vandal
VIDEO
Video Streams Multiple simultaneous streams with up to
Available Resolutions Two configurable streams as follows:
Camera Model MPx Mbps Width Height
3 MPx 3.0 9.2 2048 1536 4:3
2 MPx 1.9 5.7 1600 1200 4:3
1 MPx 1.2 3.8 1280 960 4:3
3 MPx and 2 MPx 1080p 6 1920 1080 16:9
1 MPx 720p 2.9 1280 720 16:9
Note: Default mbps values are based on High profile (30 ips; default IP GOP
length).
Frame Rate Up to 30, 25, 15, 12.5, 10, 5, 1 (depending on
Video Encoding H.264 High, Main, or Base profiles; and
Bit Rate Control Constrained variable bit rate (CVBR),
Service Stream JPEG stream; the aspect ratio will be
2 different configurations plus service
stream; the secondary stream is variable
based on the setup of the primary stream
0.5
0.5 2 800 608 4:3
MPx
0.3 1.5 640 480 4:3
0.08 0.5 320 240 4:3
0.5
0.5 1.7 800 448 16:9
MPx
0.2 1.2 640 352 16:9
0.06 0.4 320 176 16:9
the coding, resolution, and stream
configuration)
MJPEG
constant bit rate (CBR), and variable bit rate
(VBR) with target range
consistent with the independent streams
Aspect
Ratio
Page 4
TECHNICAL SPECIFICATIONS
NETWORK
Supported Protocols TCP/IP, UDP/IP (Unicast, Multicast IGMP),
Note: IPv6 supports mixed IPv4 and IPv6 installations, but not IPv6-only
deployments.
Users
Unicast Up to 20 simultaneous users depending on
Multicast Unlimited users H.264
Security Access Password protected
Software Interface Web browser view and setup
UPnP, DNS, DHCP, RTP, RTSP, NTP, IPv4, IPv6,
SNMP v2c/v3, QoS, HTTP, HTTPS, LDAP
(client), SSH, SSL, SMTP, FTP, ARP, ICMP, and
802.1x (EAP)
the resolution settings
ELECTRICAL
Network Port RJ-45 connector for 100Base-TX
Accessory Port Micro B USB connector for Pelco accessories
Cable Type Cat5 or better for 100Base-TX
Input Power PoE (
Power Consumption* 8.5 W nominal
Current Consumption 350 mA maximum
Local Storage Micro SD
Alarm
Unsupervised Detects open or closed alarm state
Supervised Detects open and short alarm state with
Input 3.5 VDC maximum, 3.5 mA maximum
Relay Output ±32 VDC maximum, 150 mA maximum
*Does not include optional accessories connected to accessory port.
Auto MDI/MDI-X
IEEE 802.3af, Class 3)
external 1-kohm resistor
MECHANICAL
Dome Attenuation
Clear f/0.0 light loss
Smoked f/1.0 light loss
Pan/Tilt Adjustment Manual
Pan 355°
Tilt 180°
Rotation 360°
ENVIRONMENTAL
Operating Temperature
Indoor/Vandal-Resistant –10° to 50°C (14° to 122°F)
Environmental –40° to 50°C (–40° to 122°F)
†
Thermostatically controlled active heating and cooling elements are
used to achieve operating temperature range. A blower (fan) is used
to achieve operating temperatures to 50°C (122°F). Active heating
elements are used to achieve operating temperatures below
–10°C (14°F).
Cold Start
Indoor/Vandal-Resistant –10°C (14°F)
Environmental –20°C (–4°F)
Storage Temperature –10° to 60°C (14° to 140°F)
Operating Humidity
Indoor/Vandal-Resistant 20 to 80%, RH noncondensing
Environmental 10 to 95%, RH condensing
Storage Humidity 20 to 80%, RH noncondensing
Impact Resistance K10++ (50J) per IEC 62262 (environmental/
Shock and Vibration EN50155 Category 1, Class B; IEC 60068:2-6
vandal-resistant models)
and 2-27 (environmental/vandal-resistant
models)
†
†
PHYSICAL
Weight Unit Shipping
Indoor, In-Ceiling 1.2 kg (2.6 lb) 1.6 kg (3.6 lb)
Indoor, Surface Mount 1.0 kg (2.0 lb) 1.4 kg (3.0 lb)
Indoor, Pendant 1.0 kg (2.1 lb) 1.4 kg (3.1 lb)
Environmental, In-Ceiling 1.4 kg (3.1 lb) 1.9 kg (4.1 lb)
Environmental, Surface Mount 1.5 kg (3.3 lb) 2.0 kg (4.3 lb)
Environmental, Pendant 1.3 kg (2.9 lb) 1.8 kg (3.9 lb)
Vandal-Resistant, In-Ceiling 1.4 kg (3.1 lb) 1.9 kg (4.1 lb)
Vandal-Resistant, Surface Mount 1.5 kg (3.3 lb) 2.0 kg (4.3 lb)
Vandal-Resistant, Pendant 1.3 kg (2.9 lb) 1.8 kg (3.9 lb)
Product Box Dimensions (approximate) 22.2 x 32.9 x 17.6 cm
(8.75" D x 12.94" W x 6.94" H)
Page 5
TECHNICAL SPECIFICATIONS
SOFTWARE FEATURES
• Multilingual menus in user interface: English, French, Italian, German,
Spanish, Portuguese, Russian, Chinese, Turkish
• 16 window blanks, configurable in size
• Password protection
• Snapshot with JPEG capture at 2016 x 1523 resolution
• Text overlays for camera name, time, date
MINIMUM SYSTEM REQUIREMENTS
Processor Intel® Core™ i3 processor, 2.4 GHz
Operating System Microsoft
Memory 4 GB RAM
Network Interface 100 megabits (or greater)
Monitor Minimum of 1024 x 768 resolution,
Web Browser* Internet Explorer
Media Player
†
*Internet Explorer is not supported by Mac OS X 10.4.
†
This product is not compatible with QuickTime version 7.6.4 for
Windows XP or Windows Vista. If you have this version installed on your
PC, you will need to upgrade to QuickTime version 7.6.5.
®
Windows® 7 (32- and 64-bit), or
®
Window Vista
; or Mac® OS X 10.4 (or later)
16- or 32-bit pixel color resolution
®
Firefox
®
7.0 (or later) or Mozilla®
3.5 (or later); Internet Explorer 8.0 (or
later) is recommended for configuring
analytics
Pelco Media Player or QuickTime® 7.6.5 for
Windows 7, XP, or Vista; or QuickTime 7.6.4
for Mac OS X 10.4 (or later)
ANALYTICS
Required Systems for Pelco Analytics
Pelco Interface WS5200 Advanced System Management
Software on an Endura 2.0 (or later) system
Open API The Pelco API can transmit behavior alarm
data to third-party applications, available at
pdn.pelco.com
INTEGRATION
Pelco System Integration Endura 2.0 (or later)
Open API Pelco API or ONVIF Profile S
Mobile Application Integrated with Pelco Mobile Application
Digital Sentry 7.3 (or later)
DX4700/DX4800
CERTIFICATIONS/RATINGS/PATENTS
• CE, Class A
• FCC, Class A
• UL/cUL Listed
•KCC
•C-Tick
•CB
• Meets NEMA Type 4X, IP66 rating (Environmental),
and IP56 (Vandal-Resistant)
• Compliant with applicable immunity sections of EN 50155, EN 50121-3-2,
and EN 50121-4
®
•Cisco
Medianet Media Services Proxy 2.0 compatible
• ONVIF Profile S Conformant
•MTBF
≥ 200,000 POH (Reporting standard is RELEX Modeling)
RECOMMENDED MOUNTS
WMVE-SR Wall mount, light gray; for use with
WMVE-SW Wall mount, white; for use with indoor
PA101 Pole adapter for use with WMVE-SR wall
environmental and vandal-resistant pendant
mount options
pendant mount options
mount
OPTIONAL ACCESSORIES
IPCT01 Pelco IP camera tester
ALM-1 External alarm accessory
POE20U560G Single port PoE injector
IMELLD1-0I Lower dome assembly, smoked, in-ceiling,
white
IMELLD1-0BI Lower dome assembly, smoked, in-ceiling,
black
IMELD1-0S Lower dome assembly, smoked, surface
mount/pendant, white
IMELD1-0BS Lower dome assembly, smoked, surface
mount/pendant, black
IMELD1-0V Lower dome (bubble only), smoked,
environmental/vandal-resistant
IMELD1-1V Lower dome (bubble only), clear,
environmental/vandal-resistant
‡
Contact Pelco Product Support for more information about the use of
the Pelco IP camera tester with cameras.
‡
Page 6
TECHNICAL SPECIFICATIONS
MODELS
Type Lens Mount Color Resolution Model
0.5 MPx IMES19-1I
1 MPx (720p) IME119-1I
2 MPx (1080p) IME219-1I
3 MPx (1080p) IME319-1I
0.5 MPx IMES19-1S
1 MPx (720p) IME119-1S
2 MPx (1080p) IME219-1S
3 MPx (1080p) IME319-1S
0.5 MPx IMES19-1P
1 MPx (720p) IME119-1P
2 MPx (1080p) IME219-1P
3 MPx (1080p) IME319-1P
0.5 MPx IMES19-1EI
1 MPx (720p) IME119-1EI
2 MPx (1080p) IME219-1EI
3 MPx (1080p) IME319-1EI
0.5 MPx IMES19-1ES
1 MPx (720p) IME119-1ES
2 MPx (1080p) IME219-1ES
3 MPx (1080p) IME319-1ES
0.5 MPx IMES19-1EP
1 MPx (720p) IME119-1EP
2 MPx (1080p) IME219-1EP
3 MPx (1080p) IME319-1EP
0.5 MPx IMES19-1VI
1 MPx (720p) IME119-1VI
2 MPx (1080p) IME219-1VI
3 MPx (1080p) IME319-1VI
0.5 MPx IMES19-1VS
1 MPx (720p) IME119-1VS
2 MPx (1080p) IME219-1VS
3 MPx (1080p) IME319-1VS
0.5 MPx IMES19-1VP
1 MPx (720p) IME119-1VP
2 MPx (1080p) IME219-1VP
3 MPx (1080p) IME319-1VP
3 MPx (1080p)
Indoor
Environmental
Vandal-Resistant
Indoor
Environmental
Vandal-Resistant
3 ~ 9 mm Focal Range
3 ~ 9 mm Focal Range
3 ~ 9 mm Focal Range
9 ~ 22 mm Focal Range
9 ~ 22 mm Focal Range
9 ~ 22 mm Focal Range
In-Ceiling
White
Black 3 MPx (1080p) IME319-B1I
Surface Mount
White
Black 3 MPx (1080p) IME319-B1S
Pendant
White
Black 3 MPx (1080p) IME319-B1P
In-Ceiling
Surface Mount
Light Gray
Pendant
In-Ceiling
Surface Mount
Light Gray
Pendant
In-Ceiling
Surface Mount
Pendant
White
Black IME3122-B1I
White IME3122-1S
Black IME3122-B1S
White IME3122-1P
Black IME3122-B1P
In-Ceiling
Surface Mount IME3122-1ES
Pendant IME3122-1EP
In-Ceiling IME3122-1VI
Light Gray
Surface Mount IME3122-1VS
Pendant IME3122-1VP
IME3122-1I
IME3122-1EI
Pelco by Schneider Electric
3500 Pelco Way, Clovis, California 93612-5699 United States
USA & Canada Tel (800) 289-9100 Fax (800) 289-9150
International Tel +1 (559) 292-1981 Fax +1 (559) 348-1120
www.pelco.com www.pelco.com/community
Pelco, the Pelco logo, and other trademarks associa ted with Pelco products referred
to in this publication are trademarks of Pelco, Inc. or its affiliate s. ONVIF and the
ONVIF logo are trademarks of ONVIF Inc. All ot her product names and
Product specifications and availability are subject to change without notice.
services are the property of their respective companies.
©Copyright 2013, Pelco, Inc. All rights reserved.
Loading...
