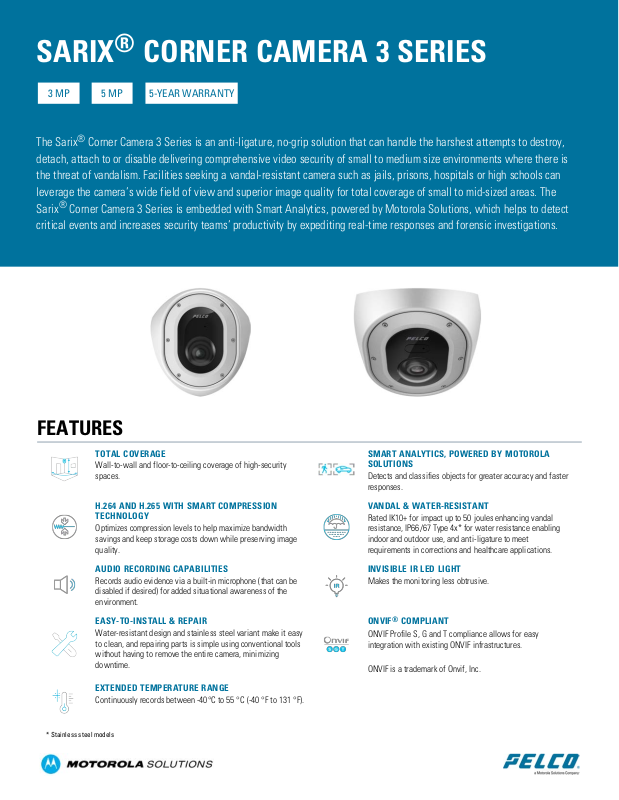

Pelco IBD332-1, IBD332-1SS, IBD532-1, IBD532-1SS specification sheets

SARIX

3 MP 5 MP 5-YEAR WARRANTY

The Sarix®Corner Camera 3 Series is an anti-ligature, no-grip solution that can handle the harshest attempts to destroy,
detach, attach to or disable delivering comprehensive video security of small to medium size environments where there is
the threat of vandalism. Facilities seeking a vandal-resistant camera such as jails, prisons, hospitals or high schools can
leverage the camera’s wide field of view and superior image quality for total coverage of small to mid-sized areas. The
Sarix®Corner Camera 3 Series is embedded with Smart Analytics, powered by Motorola Solutions, which helps to detect
critical events and increases security teams’ productivity by expediting real-time responses and forensic investigations.

CORNER CAMERA 3 SERIES

®

FEATURES

TOTAL COVERAGE

Wall-to-wall and floor-to-ceiling coverage of high-security
spaces.

H.264 AND H.265 WITH SMART COMPRESSION TECHNOLOGY

Optimizes compression levels to help maximize bandwidth
savings and keep storage costs down while preserving image
quality.

AUDIO RECORDING CAPABILITIES

Records audio evidence via a built-in microphone (that can be
disabled if desired) for added situational awareness of the
environment.

EASY-TO-INSTALL &REPAIR

Water-resistant design and stainless steel variant make it easy
to clean, and repairing parts is simple using conventional tools
without having to remove the entire camera, minimizing
downtime.

EXTENDED TEMPERATURE RANGE

Continuously records between -40°C to 55 °C (-40 °F to 131 °F).

SMART ANALYTICS, POWERED BY MOTOROLA SOLUTIONS

Detects and classifies objects for greater accuracy and faster
responses.

VANDAL &WATER-RESISTANT

Rated IK10+ for impact up to 50 joules enhancing vandal
resistance, IP66/67 Type 4x* for water resistance enabling
indoor and outdoor use, and anti-ligature to meet
requirements in corrections and healthcare applications.

INVISIBLE IR LED LIGHT

Makes the monitoring less obtrusive.

ONVIF®COMPLIANT

ONVIF Profile S, G and T compliance allows for easy
integration with existing ONVIF infrastructures.

ONVIF is a trademark of Onvif, Inc.

* Stainless steel models

SPECIFICATIONS

IMAGE PERFORMANCE 3.0 MP 5.0 MP

Image Sensor 1/2.8” progressive scan CMOS

Max Resolution (H x V)
and Aspect Ratio

Dynamic
Range

Max Frame
Rate

Bandwidth Management Pelco Smart Compression Technology; Idle scene mode

3D Noise Reduction Filter Yes

WDR Off: 83 dB

WDR On: 126 dB

WDR Off: (50 Hz/60 Hz) 25 fps/30 fps

WDR On: (50 Hz/60 Hz) 20 fps/20 fps

LENS AND IR ILLUMINATION

Lens 2.3 mm

IR Illumination Max Distance

Minimum Illumination 0.027 lux in color mode, 0.014 lux in monochrome mode, 0 lux with IR

Horizontal Angle of View
Based on Aspect Ratio

Vertical Angle of View Based
on Aspect Ratio

Max Aperture F2.2

1

High power 940 nm LED. IR illumination power may be reduced at higher operating temperatures.

(4:3) 2048 x 1536
(16:9) 1920 x 1080

1

15 m (49 ft)

(4:3) 135°
(16:9) 133°

(4:3) 95°
(16:9) 74°

(4:3) 2592 x 1944
(16:9) 2560 x 1440

IMAGE CONTROL

Image Compression Method H.264 Pelco Smart Compression, H.265 Pelco Smart Compression, Motion JPEG

Streaming Multi-stream H.264, Multi-stream H.265, Motion JPEG, Pelco Smart Compression Technology

Motion Detection Pixel motion: Selectable sensitivity and threshold. Classified object detection

Electronic Shutter Control Automatic, Manual (1/7 to 1/8196 sec)

Day/Night Control Automatic, Manual

Flicker Control 60 Hz, 50 Hz

White Balance Automatic, Manual

Backlight Compensation Adjustable

Privacy Zones Up to 64 zones

NETWORK

Network 100BASE-TX, RJ45 Connector, CAT5e Cabling

ONVIF ONVIF compliance version 21.06, Profile S, Profile T, Profile G (www.onvif.org)

Security Password protection, HTTPS encryption, digest authentication, WS authentication, user access log, 802.1x port based authentication

Protocols IPv6, IPv4, HTTP, HTTPS, SOAP, DNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMPv2, ICMP, DHCP, Zeroconf, ARP, HSTS

Streaming Protocols RTP/UDP, RTP/UDP multicast, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/RTSP/HTTPS/TCP, HTTP

Device Management Protocols SNMP v2c, SNMP v3

PERIPHERALS

USB Port USB 2.0

Onboard Storage microSD/microSDHC/microSDXC slot – video speed class card required. Class V10 or better recommended. 512 GB card tested.

[e-mail]|pelco.com 2

AUXILIARY I/O

Audio Compression Method G.711 PCM 8 kHz, Opus

Audio Input/Output Line level I/O or built-in microphone

External I/O Terminals Alarm In, Alarm Out

MECHANICAL

Dimensions (LxWxH) 163 mm x 163 mm x 121 mm; 6.4” x 6.4” x 4.8”

Weight 3.21 kg (7.2 lbs)

Minimum Mounting Height

Dome Bubble Polycarbonate

Body Stainless steel / Cold rolled steel

Housing Corner mount, vandal resistant

Finish Bead blasted and electro-polished / Cast, powder coated, Pantone 427C

Recording LED Yes

Built-in Microphone Yes

2.75 m (9')

ELECTRICAL

Power Consumption 13 W max (11 W with no IR or IR disabled)

Power Source VDC: 12 V ± 10%, 12 W min VAC: 24 V ± 10%, 13 VA min PoE: IEEE802.3af Class 3 compliant

RTC Backup Battery 3V manganese lithium

ENVIRONMENTAL

Operating Temperature -40 °C to +55 °C (-40 °F to 131 °F)

IR Illuminator Behavior The IRilluminator will operate at 50% power if the temperature is 50 °C (122 °F) or higher.

Storage Temperature -10 °C to +70 °C (14 °F to 158 °F)

Humidity 0 - 95% non-condensing

CERTIFICATIONS

Certifications/Directives UL, cUL, CE, ROHS, Reach (SVHC), RCM, BIS, UKCA

Safety UL 62368-1, CSA 62368-1, IEC/EN 62368-1, IEC 62471 (with -IR option)

Environmental UL/CSA/IEC 60950-22, IEC 60529 IP66 and IP67 Weather Rating, NEMA 4X for stainless steel enclosure only, IK10+ Impact Rating

Electromagnetic Emissions FCC Part 15 Subpart B Class B, IC ICES-003 Class B, EN 55032 Class B, EN 61000-6-3, EN 61000-3-2, EN 61000-3-3

Electromagnetic Immunity EN 55035, EN 61000-6-1

[e-mail]|pelco.com 3

ANALYTICS SPECIFICATIONS

SUPPORTED ANALYTICS EVE NT S*

Objects in Area The event is triggered when the selected object type moves into the region of interest.

Object Loitering The event is triggered when the selected object type moves into the region of interest, then stays for an extended amount of time.

Objects Crossing Beam

Object Appears or Enters Area The event is triggered by each object that enters the region of interest and can also be used to count objects.

Object Not Present in Area The event is triggered when no objects are present in the region of interest.

Objects Enter Area The event is triggered when the specified number of objects have entered the region of interest.

Objects Leave Area The event is triggered when the specified number of objects have left the region of interest.

Object Stops in Area The event is triggered when an object moves into a region of interest and then stops moving for the specified threshold time.

Direction Violated The event is triggered when an object moves in the prohibited direction of travel.

Tamper Detection The event is triggered when the scene unexpectedly changes.

*

Pelco Smart Analytics powered by Motorola Solutions.

The event is triggered when the specified number of objects have crossed the directional beam that is configured over the camera’s
field of view. The beam can be unidirectional or bidirectional.

OUTLINE DIMENSIONS

SARIXCORNER CAMERA 3 SERIES

(IBD332-1/IBD332-1SS/IBD532-1/IBD532-1SS)

SARIX CORNERCAMERA3 SERIES WITH CONDUIT BOX

(IBD332-1/IBD332-1SS/IBD532-1/IBD532-1SS WITH CNBX-1001)

[X.X] INCHES

X MM

[e-mail]|pelco.com 4

ORDERING INFORMATION

MP WDR ANALYTICS LENS IR BODY FINISH

IBD332-1 3.0 ✓ ✓ 2.3 mm ✓ White Cold Rolled Steel Powder Coat

IBD332-1SS 3.0 ✓ ✓ 2.3 mm ✓ Stainless Steel Bead Blasted & Polished

IBD532-1 5.0 ✓ ✓ 2.3 mm ✓ White Cold Rolled Steel Powder Coat

IBD532-1SS 5.0 ✓ ✓ 2.3 mm ✓ Stainless Steel Bead Blasted & Polished

OPTIONAL CAMERA ACCESSORIES

CNBX-1001 Conduit gang box, powder coated aluminum die-cast, white (accepts 12.7 mm/0.5 " or 19.05 mm/0.75"conduit pipe)
IBD3-FP Replacement faceplate for white cold rolled corner camera models
IBD3-FPSS Replacement faceplate for stainless steel corner camera models

SUPPORT

Learn more and find additional documentation at pelco.com or email [e-mail] for specific product support.

Nov 2022| C5058-S| Rev 2
