Page 1
C1472SM-A (2/07)
HS4514 Series
High Security Enclosure
MAINTENANCE
Regularly scheduled maintenance is not required. Clean the outer surface of the enclosure with a nonabrasive cleaning cloth and antistatic cleaner. Clean
the viewing window with a mild nonabrasive soap and water to maintain picture clarity. Do not use kerosene or similar substances that may damage the
surface.
EXPLODED ASSEMBLY DIAGRAM
23
14
17
21
6
31
24
12
25
27
13
3
30
28
9
48
1
25
26
5
2
17
10
18
7
16

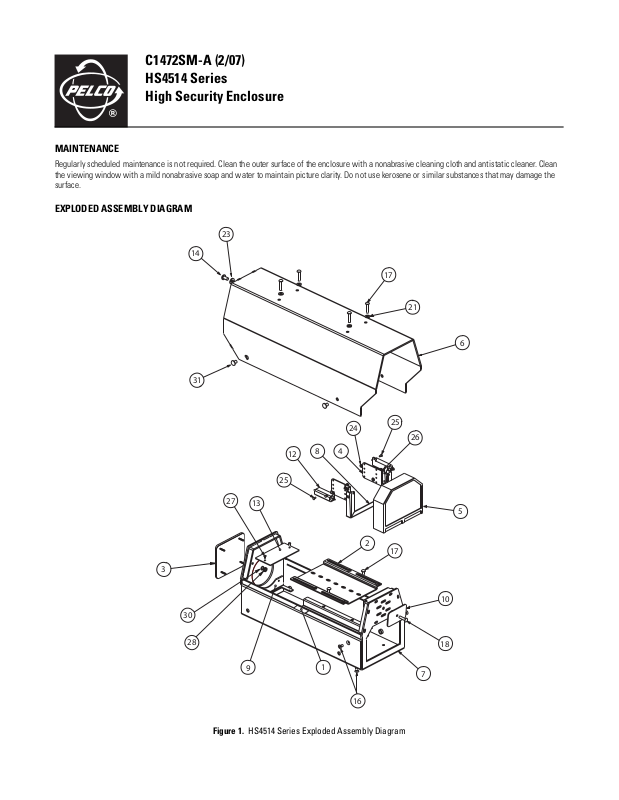

Figure 1. HS4514 Series Exploded Assembly Diagram
Page 2
Table A. HS4514 Series Exploded Assembly Parts List
Item Quantity Description Part Number
1 1 Gasket GS01-0003-0348
2 1 Camera sled EH45004118COMP
3 1 Rear block-off plate HS454013COMP
4 2 Heater bracket EH47004011COMP
5 1 Window MF00-0250-005A
6 1 Lid HS451000WA
7 1 Body HS451001WA
8 1 Window back-up bracket HS454004COMP
9 1 Circuit board bracket HS454006COMP
10 1 Front block-off plate HS454009COMP
12 2 Heater, 120 VAC or 230 VAC HTR80220
2 Heater, 24 VAC HTR20024
13 1 Circuit board PA05-0003-00B0
14 1 Screw, 1/4-20 x 1/2” pan head, Phillips ZH1/420X.375SPP
16 4 Screw, 10-32 x 3/8”, flat head, Phillips ZH10-32X.375CFS
17 6 Screw, 10-32 x 3/8”, pan head, Phillips ZH10-32X.375SPP
18 1 Screw, 10-32 x 3/4”, pan head, Phillips ZH10-32X.750SPP
21 4 Nylon washer ZH200X437X62N
23 1 Washer, 3/16” ZH260X562X65C
24 6 Nut, 4-40, hex ZH4-40NUTSH
25 4 Screw, 4-40 x 1/4”, pan head, Phillips ZH4-40X.250SPP
26 2 Lock washer, #4 ZH4LWSIS
27 2 Sheet metal screw, 1/4”, #4, pan head, Phillips ZH4X.250BPP
28 4 Nut, 6-32, hex ZH6-32NUTSH
30 4 Internal tooth lock washer, #6 ZH6LWSIS
31 4 Screw, 1/4-20 x 3/4”, Tampruf, #10 ZH1/4-20X.75SRT
32 1 Steel eyebolt, 1/4-20 x 1.00”, 3/4” ID (not shown) ZH76-0603-0313
33 1 Vinyl Tubing, clear (not shown) WR06-1011-0021
Page 3
PRODUCT WARRANTY AND RETURN INFORMATION
WARRANTY
Pelco will repair or replace, without charge, any merchandise proved defective in material or
workmanship for a period of one year after the date of shipment.
Exceptions to this warranty are as noted below:
• Five years on fiber optic products and TW3000 Series unshielded twisted pair transmission
products.
• Three years on Spectra
• Three years on Genex
• Three years on Camclosure
CC3701H-2X, CC3751H-2, CC3651H-2X, MC3651H-2, and MC3651H-2X camera models,
which have a five-year warranty.
• Three years on PMCL200/300/400 Series LCD monitors.
• Two years on standard motorized or fixed focal length lenses.
• Two years on Legacy
dome products.
• Two years on Spectra III
continuous motion applications.
• Two years on Esprit and WW5700 Series window wiper (excluding wiper blades).
• Two years (except lamp and color wheel) on Digital Light Processing (DLP
The lamp and color wheel will be covered for a period of 90 days. The air filter is not
covered under warranty.
• Eighteen months on DX Series digital video recorders, NVR300 Series network video
recorders, and Endura
• One year (except video heads) on video cassette recorders (VCRs). Video heads will be
covered for a period of six months.
• Six months on all pan and tilts, scanners or preset lenses used in continuous motion
applications (that is, preset scan, tour and auto scan modes).
Pelco will warrant all replacement parts and repairs for 90 days from the date of Pelco
shipment. All goods requiring warranty repair shall be sent freight prepaid to Pelco, Clovis,
California. Repairs made necessary by reason of misuse, alteration, normal wear, or accident
are not covered under this warranty.
Pelco assumes no risk and shall be subject to no liability for damages or loss resulting from
the specific use or application made of the Products. Pelco’s liability for any claim, whether
based on breach of contract, negligence, infringement of any rights of any party or product liability, relating to the Products shall not exceed the price paid by the Dealer to Pelco for such
Products. In no event will Pelco be liable for any special, incidental or consequential damages
(including loss of use, loss of profit and claims of third parties) however caused, whether by
the negligence of Pelco or otherwise.
The above warranty provides the Dealer with specific legal rights. The Dealer may also have
additional rights, which are subject to variation from state to state.
®
IV products.
®
Series products (multiplexers, server, and keyboard).
®
and fixed camera models, except the CC3701H-2,
®
, CM6700/CM6800/CM9700 Series matrix, and DF5/DF8 Series fixed
™
, Esprit®, ExSite™, and PS20 scanners, including when used in
®
) displays.
™
Series distributed network-based video products.
If a warranty repair is required, the Dealer must contact Pelco at (800) 289-9100 or
(559) 292-1981 to obtain a Repair Authorization number (RA), and provide the following
information:
1. Model and serial number
2. Date of shipment, P.O. number, Sales Order number, or Pelco invoice number
3. Details of the defect or problem
If there is a dispute regarding the warranty of a product which does not fall under the
warranty conditions stated above, please include a written explanation with the product when
returned.
Method of return shipment shall be the same or equal to the method by which the item was
received by Pelco.
RETURNS
In order to expedite parts returned to the factory for repair or credit, please call the factory at
(800) 289-9100 or (559) 292-1981 to obtain an authorization number (CA number if returned for
credit, and RA number if returned for repair).
All merchandise returned for credit may be subject to a 20% restocking and refurbishing
charge.
Goods returned for repair or credit should be clearly identified with the assigned CA or RA
number and freight should be prepaid. Ship to the appropriate address below.
If you are located within the continental U.S., Alaska, Hawaii or Puerto Rico, send goods to:
Service Department
Pelco
3500 Pelco Way
Clovis, CA 93612-5699
If you are located outside the continental U.S., Alaska, Hawaii or Puerto Rico and are instructed
to return goods to the USA, you may do one of the following:
If the goods are to be sent by a COURIER SERVICE, send the goods to:
Pelco
3500 Pelco Way
Clovis, CA 93612-5699 USA
If the goods are to be sent by a FREIGHT FORWARDER, send the goods to:
Pelco c/o Expeditors
473 Eccles Avenue
South San Francisco, CA 94080 USA
Phone: 650-737-1700
Fax: 650-737-0933
The materials used in the manufacture of this document and its components are compliant to the requirements of Directive 2002/95/EC.
This equipment contains electrical or electronic components that must be recycled properly to comply with Directive 2002/96/EC of the European Union
regarding the disposal of waste electrical and electronic equipment (WEEE). Contact your local dealer for procedures for recycling this equipment.
REVISION HISTORY
Manual # Date Comments
C1472SM 7/98 Original version.
C1472SM-A 2/07 Updated parts list per ECO 05-13433. Replaced HS4510000 with MF00-0250-005A.
Pelco, the Pelco logo, Camclosure, Esprit, ExSite, Genex, Legacy, and Spectra are registe red trademarks of Pelco. ©Copyright 2007, Pelco. All rights reserved.
Endura, and Spectra III are trademarks of Pelco.
DLP is a registered trademark of Texas Instruments, Inc.
7/99 Added and removed parts per ECO 98-4208. Updated manual to new style.
