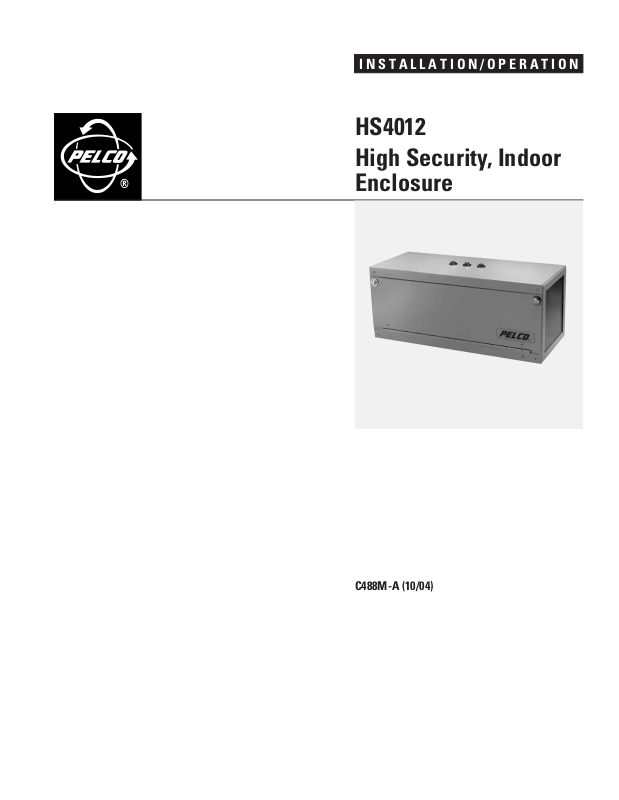

Pelco HS4012 User Manual

INSTALLATION/OPERATION

HS4012
High Security, Indoor

®

Enclosure

C488M-A (10/04)

Important Safety Instructions

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9. Only use attachments/accessories specified by the manufacturer.

10. Installation should be done only by qualified personnel and conform to all local codes.

11. Unless the unit is specifically marked as a NEMA Type 3, 3R, 3S, 4, 4X, 6, or 6P enclosure, it is designed for indoor use only and it must not
be installed where exposed to rain and moisture.

12. Use only installation methods and materials capable of supporting four times the maximum specified load.

Description

The HS4012 high security indoor video surveillance enclosure is designed to provide a high degree of protection against vandalism. Tamperproof
fasteners secure the sides of the enclosure, restricting access to unauthorized personnel.

The following hardware is supplied with the enclosure to mount the camera:

Quantity

2 1/4-20 X 3/8-inch Phillips pan head screws

Description

2 C488M-A (10/04)

Installation

1. Look through the window of the enclosure and locate the retaining screws for the camera sled (refer to Figure 1). Open the side of the
enclosure where the retaining screws are positioned. Using the tamperproof tool (supplied), remove the two tamperproof screws and flat
washers that secure the side of the enclosure.

WASHER

TAMPER-PROOF

SCREW

SIDE

RETAINING

SCREW

CAMERA

SLED

Figure 1. Front View of HS4012 Enclosure

2. Using the supplied 5/32-inch Allen wrench, loosen the two hex head screws on the side of the camera sled. Lift the camera sled from the
track and then remove it from the enclosure.

3. Attach the camera and lens to the camera sled using the two supplied 1/4-20 x 3/8-inch Philips pan head screws. Position the camera and
lens on the sled so that the lens does not hit the enclosure window when the camera sled is reinstalled.

4. Reinstall the camera sled with camera and lens on the track inside the enclosure. Tighten the two retaining screws to secure the camera
sled.

5. Attach the enclosure to an appropriate mount using the instructions provided with the mount.

6. Remove the knockouts located on the back of the enclosure. Install knockout fittings (not supplied) in the knockouts and then run all the
cables/wiring for the camera and lens through the fittings. Refer to Tables A and B for coaxial cable and wire gauge requirements.

7. Turn on the power and then check that the camera and lens are operating properly. Ensure all wiring is properly positioned away from sides
of the enclosure and then close and fasten the side of the enclosure with the flat washers and tamperproof screws previously removed in
step 1.

Table A. Video Coaxial Cable Requirement

Cable Type Maximum Distance

RG59/U
RG6/U
RG11/U

750 ft (229 m)
1,000 ft (305 m)
1,500 ft (457 m)

Minimum cable requirements:
75 ohms impedance
All-copper center conductor
All-copper braided shield with 95% braid coverage

C488M-A (10/04) 3
