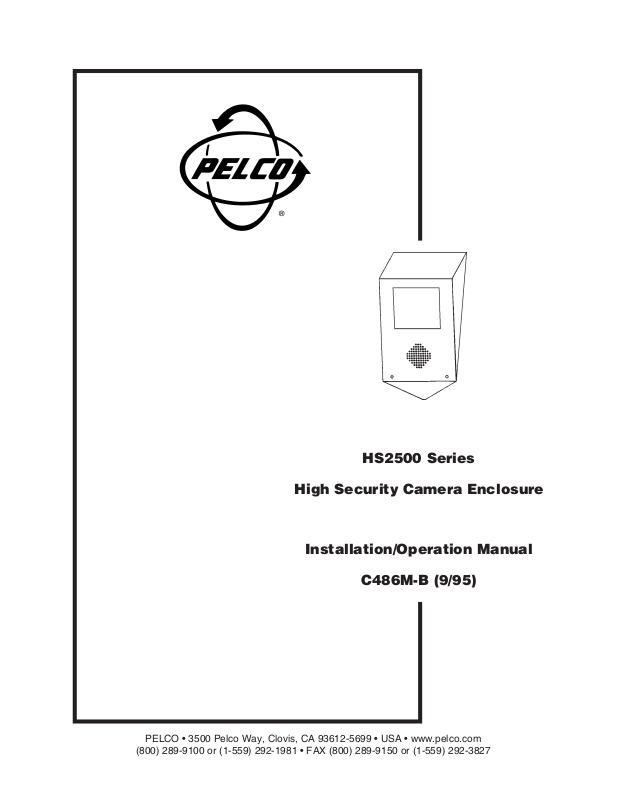

HS2500 Series
High Security Camera Enclosure
Installation/Operation Manual
C486M-B (9/95)
PELCO • 3500 Pelco Way, Clovis, CA 93612-5699 • USA • www.pelco.com
PELCO Manual C486M-B (9/95) 9
(800) 289-9100 or (1-559) 292-1981 • FAX (800) 289-9150 or (1-559) 292-3827
TABLE OF CONTENTS
Section Page
1.0 WARNINGS ........................................................................................................................................1
2.0 SCOPE ............................................................................................................................................... 2
3.0 DESCRIPTION ................................................................................................................................... 2
4.0 INSTALLATION ...................................................................................................................................2
4.1 MOUNTING ..............................................................................................................................2
4.2 OPTIONAL WINDOW INSTALLATION ..................................................................................... 2
4.3 OPTIONAL HK8000/HK8024 HEATER KIT INSTALLATION .................................................... 3
4.4 CAMERA/LENS INSTALLATION ..............................................................................................3
4.5 TAMPER SWITCH WIRING ......................................................................................................4
5.0 CARE AND MAINTENANCE ..............................................................................................................4
6.0 MODELS ............................................................................................................................................ 5
6.1 OPTIONS..................................................................................................................................5
7.0 SPECIFICATIONS .............................................................................................................................. 5
8.0 EXPLODED ASSEMBLY DIAGRAM .................................................................................................. 7
9.0 MECHANICAL PARTS LIST ...............................................................................................................7
10.0 WARRANTY AND RETURN INFORMATION..................................................................................... 8
Pelco, the Pelco Logo, Camclosure, Esprit, Genex, Legacy, and Spectra are registered trademarks of Pelco. © Copyright 1995, Pelco. All rights reserved.
Endura and ExSite are trademarks of Pelco.
ii PELCO Manual C486M-B (9/95)
LIST OF ILLUSTRATIONS
Figure Page
1 HK8000/HK8024 Heater Kit Wiring Diagram ...................................................................................... 3
2 HK8000/HK8024 Heater Kit Installation ............................................................................................. 4
3 HS2500 Dimension Drawing .............................................................................................................. 6
4 HS2500 Enclosure Exploded Assembly Diagram .............................................................................. 7
REVISION HISTORY
Manual # Date Comments
C486M 6/92 Original version.
C486M-A 3/95 Updated to incorporate ECO 95-043 (1/95) which dealt with
changing over to a switch impervious to the speaker
magnet. Affected sections were 4.5, 7.0 and 9.0. Manual
also updated to new format.
C486M-B 9/95 Updated to incorporate ECO 95-100 which dealt with
standardization of the tamper switch (same switch now
used in both enclosure models). Specifications and part
references updated where applicable to reflect change.
PELCO Manual C486M-B (9/95) iii
(This page intentionally left blank.)
iv PELCO Manual C486M-B (9/95)
INSTALLATION/OPERATION MANUAL
MODEL HS2500 HIGH SECURITY
CAMERA ENCLOSURE
1.0 WARNINGS
Prior to installation and use of this product, the following
WARNINGS should be observed.
1. Installation and servicing should only be done by
Qualified Service Personnel and conform to all
Local codes.
2. Unless the unit is specifically marked as a NEMA
Type 3, 3R, 3S, 4, 4X, 6, or 6P enclosure, it is
designed for indoor use only and it must not be
installed where exposed to rain and moisture.
3. The weight of the camera/lens and enclosure shall
not exceed 20 lbs (9.07 kg) — subject to specific
pan/tilt unit.
The product bears the following marks:
This symbol indicates that dangerous voltage
constituting a risk of electric shock is present
within this unit.
4. Only use replacement parts recommended by
PELCO.
5. After replacement/repair of this unit’s electrical
components, conduct a resistance measurement
between line and exposed parts to verify the exposed
parts have not been connected to line circuitry.
6. The installation method and materials should be
capable of supporting four (4) times the weight of
the enclosure, pan/tilt, camera and lens combination.
This symbol indicates that there are important
operating and maintenance instructions in the
literature accompanying this unit.
CAUTION:
TO REDUCE THE RISK OF ELECTRICAL
SHOCK, DO NOT REMOVE COVER. NO
USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
RISK OF ELECTRIC SHOCK.
CAUTION:
DO NOT OPEN.
Please thoroughly familiarize yourself with the information in this manual
prior to installation and operation.
PELCO Manual C486M-B (9/95) 1
2.0 SCOPE
4.1 MOUNTING
The information within this manual covers the installation of the HS2500 High Security Camera Enclosure.
3.0 DESCRIPTION
The HS2500 is a high security camera enclosure designed for indoor use in applications such as elevators,
parking garages, stairwells, detention cells or other areas requiring maximum protection from vandalism. The
HS2500 fits flush to the ceiling in a corner, but can be
mounted lower on the wall and still retain it’s effectiveness. The enclosure is supplied with an impact-resistant clear Lexan window. Options include a smoked
window, thermostatically controlled heater kit (120
VAC/24 VAC) and 3-1/2" (8.89 cm) square, 12 watt, 8
ohm speaker for optional audio surveillance.
Constructed of medium gauge steel, the HS2500 will
accept many of the smaller CCD cameras with fixed
focal length lenses and auto-iris lenses. There is no exposed mounting hardware securing the HS2500 to its
mounting surface. Opening the enclosure can only be
accomplished by removing the tamper-resistant screws
from the bottom and lifting the hinged cover.
4.0 INSTALLATION
Before installing the HS2500 to a wall, make certain
that the mounting surface is able to support the full
weight of the enclosure plus the camera and lens.
To mount the enclosure to a wall, follow the steps outlined below.
1. Open the enclosure by unscrewing the two tampruf
screws at the bottom and lifting the cover. A special
socket tool is provided (fits 1/4" square drive).
2. Using the mounting bracket as a template, mark
and drill holes in the mounting surface.
3. Attach the enclosure with the required fasteners.
4. Route the required cables through the back.
5. If you have purchased the optional smoked window and/or heater kit, proceed to Sections 4.2 and/
or 4.3.
6. Mount the camera/lens to the tilt table according
to the instructions in Section 4.4.
4.2 OPTIONAL WINDOW
INSTALLATION
The HS2500 is provided with a clear Lexan 1/4" (.63
cm) thick viewing window. An optional smoked window is available.
Instructions for installing the optional smoked window
are as follows:
The tilt table and tilt table mounting brackets may be
removed to provide adequate clearance for mounting
the enclosure.
NOTE: The six (6) fasteners required to secure the HS2500 to a wall (minimum 3/8"
(.95 cm) diameter recommended) are not supplied.
2 PELCO Manual C486M-B (9/95)
1. Open the enclosure by unscrewing the two tampruf
screws at the bottom and lifting the cover.
2. Remove the four (4) 1/4-20 elastic locknuts and 1/4"
flat washers retaining the window.
3. Remove the window.
4. Remove the protective coatings from the new window and place the window over the four (4) 1/4-20
studs.
5. Replace the hardware and close the cover.
4.3 OPTIONAL HK8000/HK8024
HEATER KIT INSTALLATION
The HK8000 and HK8024 heater kits require 117 VAC
or 24 VAC respectively, and both provide 80 watts of
heat which is thermostatically controlled to activate ON
at 40°F (4.44°C) and OFF at 60°F (15.56°C)
The following cable sizes are the minimum recommended for use with heater kits.
120 VAC Operation 24 VAC Operation
22 Awg-400 ft (121.92 m) 20 Awg-35 ft (10.67 m)
20 Awg-650 ft (198.12 m) 18 Awg-60 ft (18.29 m)
18 Awg-1,100 ft (335.28 m) 16 Awg-80 ft (24.38 m)
To install the HK8000/HK8024, perform the following
steps:
1. Open the cover.
4.4 CAMERA/LENS INSTALLATION
Once the enclosure has been secured to the mounting
surface you can install the camera/lens. Follow the steps
outlined below.
NOTE: The tilt table bracket and tilt table
may be removed from the enclosure to aid in
camera/lens installation.
1. Loosen the tilt table mounting bolts.
2. Securely attach the camera/lens to the desired location on the tilt table.
3. Make all necessary electrical connections (video,
camera power, etc.)
4. Position the tilt table at the desired location and
angle, then tighten the 1/4-20 fasteners to secure
the tilt table in place.
2. Attach the heater pads to each side of the tilt table
bracket (see Figure 2).
3. Press the PC board assembly into the four (4) holes
provided in the tilt table bracket.
4. Wire according to the diagram shown in Figure 1.
1
2
3
4
5
6
7
8
9
10
WHT
WHT
WHT
WHT
5. Close the lid to ensure that there is no interference.
6. Provide power to the camera and check for adequate video image.
7. Secure the cover with the 1/4-20 “Tampruf” screws
provided.
AC HI INPUT
AC NT INPUT
GROUND
HEATER
40 WATTS
HEATER
40 WATTS
PC BOARD ASSY
Figure 1. HK8000/HK8024 Heater Kit Wiring Diagram
PELCO Manual C486M-B (9/95) 3
4.5 TAMPER SWITCH WIRING
5.0 CARE AND MAINTENANCE
The HS2500 is equipped with a tamper switch mounted
on the access door. This switch can be used as an alarm
closure to trigger an audible alarm and/or visual display on a monitor, indicating unauthorized intrusion of
the enclosure.
The tamper switch comes with wiring connections consisting of 1/4" (.63 cm) quick connect terminals. It still
offers a “NORMALLY OPEN” and a “NORMALLY
CLOSED” contact as indicated on the switch body. In
addition, a “pull to cheat” feature allows the technician
to disable the audible alarm (in the case of the HS2500/
SPKR model) while having the door open for maintenance.
Maintenance performed at regularly scheduled intervals will help prolong the operational life and appearance of the equipment.
Clean the Lexan window with a mild non-abrasive detergent in water and a soft cloth regularly to help maintain picture clarity. For a heavily soiled window, use
vinyl cleaner.
CAUTION: When a single power source is
used for both the camera and accessories, the
camera power consumption must be taken into
consideration when determining the wire gauge.
Also, make certain that all electrical connections are done properly and meet electrical
codes.
Figure 2. HK8000/HK8024 Heater Kit Installation
4 PELCO Manual C486M-B (9/95)
6.0 MODELS
HS2500 High security corner mount en-
closure designed to fit flush with
the ceiling. For use in applications such as elevators, parking
garages, stairwells, detention
cells, etc.
HS2500/SPKR Same as HS2500 except supplied
with factory pre-wired 3-1/2"
(8.89 cm) square speaker for audio surveillance
6.1 OPTIONS
HK8000 Thermostatically controlled
heater kit, 120 VAC. Activates
ON at 40°F (4.44°C) and OFF
at 60°F (15.56°C) and provides
80 watts of heat
HK8024 Same as HK8000 except 24 VAC
operation
HSSPKR Speaker, 3-1/2" (8.89 cm)
square, 12 watts, 8 ohms
Tamper Switch: Plunger type door switch with
(Both models) “pull to cheat” feature N.O/N.C.
contacts clearly marked on body
of switch. DM electrical rating:
10A, 125V.
Security: Tamper-resistant screws. N.O./
N.C. switch contact on cover.
Optional speaker for audio surveillance.
ELECTRICAL
Cable Entry: Four (4) 1/2" (1.27 cm) conduit
openings on mounting surface
(access through back).
Electrical
Connection: One six-position terminal block
Tamper Switch 1/4" (.63 cm) quick connect.
(Both models) N.O./N.C. clearly marked on
switch body.
10A, maximum switching current.
125V, maximum switching voltage.
HS250010106 Smoked window, 1/4" (.63 cm)
thick, impact and abrasion-resistant Lexan
7.0 SPECIFICATIONS
MECHANICAL
NOTE: Items mentioned apply to both mod-
els of enclosure except where noted.
Window: 1/4" (.63 cm) thick impact and
abrasion-resistant clear Lexan
Camera Mounting: Adjustable tilt table
Maximum Camera/
Lens Size: Accepts camera/lens combina-
tions up to
10.0" L x 3.0" W x 3.0" H
(25.4 L x 7.62 W x 7.62 cm H)
Enclosure
Mounting: Six (6) .390" (.99 cm) diameter
holes on protected rear surface
PELCO Manual C486M-B (9/95) 5
GENERAL
Unit Weight: 13 lbs (5.85 kg)
Construction
Material: Formed/welded 14 gauge
0.074" (.187 cm) steel
Finish: Poly vinyl powder coat
Dimensions: See Figure 3
Environment: Indoor
This equipment contains electrical or electronic components that must be recycled properly to comply with Directive 2002/96/EC of the European Union
regarding the disposal of waste electrical and electronic equipment (WEEE). Contact your local dealer for procedures for recycling this equipment.
Temperature Range: -66°F to 212°F
(-54.44° to 100°C)
Security: Tamper-resistant screws; N.O./
N.C. switch contact on cover.
Optional speaker for audio surveillance.
(Product specifications subject to change
without notice.)
Figure 3. HS2500 Dimension Drawing
6 PELCO Manual C486M-B (9/95)
8.0 EXPLODED ASSEMBLY DIAGRAM
Figure 4. HS2500 Enclosure Exploded Assembly Diagram
9.0 MECHANICAL PARTS LIST
The following parts list corresponds to the exploded assembly diagram in Figure 4.
Item No. Qty Description Part Number
11Bracket, switch (both models, not shown) HS25004213COMP
21Tilt table HS20004007COMP
31Window, Lexan, 6 x 6.5 x .25 (15.2 x 16.5 x .63 cm), MR5 HS250010006
41Back box HS25001001WA
51Cover, front HS25004002COMP
62Bracket, tilt HS25004004COMP
71Bracket, latch HS25004005COMP
81Hinge, cover HS25004009COMP
91Plate, grill, block-off HS80004115COMP
10 1 Tamper switch (both models, not shown) SWI1DM401
11 2 Screw, 1/4-20 x 1/2", round, tampruf #10, SS ZH1/4-20X.50SRT
(not shown)
12 1 Socket, tampruf #10, 1/4" drive (not shown) ZTSOCKET10
13 1 6-position terminal block (not shown) TRB6-141
PELCO Manual C486M-B (9/95) 7
10.0 WARRANTY AND RETURN
INFORMATION
WARRANTY
Pelco will repair or replace, without charge, any merchandise proved
defective in material or workmanship for a period of one year after the date
of shipment.
Exceptions to this warranty are as noted below:
• Five years on FT/FR8000 Series fiber optic products.
• Three years on Genex
keyboard).
• Three years on Camclosure® and fixed camera models, except the
CC3701H-2, CC3701H-2X, CC3751H-2, CC3651H-2X, MC3651H-2,
and MC3651H-2X camera models, which have a five-year warranty.
• Two years on standard motorized or fixed focal length lenses.
• Two years on Legacy
DF5/DF8 Series fixed dome products.
• Two years on Spectra®, Esprit®, ExSite™, and PS20 scanners, includ-
ing when used in continuous motion applications.
• Two years on Esprit® and WW5700 Series window wiper (excluding
wiper blades).
• Eighteen months on DX Series digital video recorders, NVR300
Series network video recorders, and Endura
network-based video products.
• One year (except video heads) on video cassette recorders (VCRs).
Video heads will be covered for a period of six months.
• Six months on all pan and tilts, scanners or preset lenses used in
continuous motion applications (that is, preset scan, tour and auto scan
modes).
Pelco will warrant all replacement parts and repairs for 90 days from the
date of Pelco shipment. All goods requiring warranty repair shall be sent
freight prepaid to Pelco, Clovis, California. Repairs made necessary by
reason of misuse, alteration, normal wear, or accident are not covered
under this warranty.
Pelco assumes no risk and shall be subject to no liability for damages or
loss resulting from the specific use or application made of the Products.
Pelco’s liability for any claim, whether based on breach of contract,
negligence, infringement of any rights of any party or product liability,
relating to the Products shall not exceed the price paid by the Dealer to
Pelco for such Products. In no event will Pelco be liable for any special,
incidental or consequential damages (including loss of use, loss of profit
and claims of third parties) however caused, whether by the negligence
of Pelco or otherwise.
The above warranty provides the Dealer with specific legal rights. The
Dealer may also have additional rights, which are subject to variation from
state to state.
If a warranty repair is required, the Dealer must contact Pelco at (800)
289-9100 or (559) 292-1981 to obtain a Repair Authorization number
(RA), and provide the following information:
1. Model and serial number
2. Date of shipment, P.O. number, Sales Order number, or Pelco invoice
number
3. Details of the defect or problem If there is a dispute regarding the
warranty of a product which does not fall under the warranty conditions
stated above, please include a written explanation with the product
when returned.
Method of return shipment shall be the same or equal to the method by
which the item was received by Pelco.
®
Series products (multiplexers, server, and
®
, CM6700/CM6800/CM9700 Series matrix, and
™
Series distributed
RETURNS
In order to expedite parts returned to the factory for repair or credit, please
call the factory at (800) 289-9100 or (559) 292-1981 to obtain an
authorization number (CA number if returned for credit, and RA number
if returned for repair).
All merchandise returned for credit may be subject to a 20% restocking
and refurbishing charge.
Goods returned for repair or credit should be clearly identified with the
assigned CA or RA number and freight should be prepaid. Ship to the
appropriate address below.
If you are located within the continental U.S., Alaska, Hawaii or Puerto
Rico, send goods to:
Service Department
Pelco
3500 Pelco Way
Clovis, CA 93612-5699
If you are located outside the continental U.S., Alaska, Hawaii or Puerto
Rico and are instructed to return goods to the USA, you may do one of the
following:
If the goods are to be sent by a COURIER SERVICE, send the goods to:
Pelco
3500 Pelco Way
Clovis, CA 93612-5699 USA
If the goods are to be sent by a FREIGHT FORWARDER, send the goods
to:
Pelco c/o Expeditors
473 Eccles Avenue
South San Francisco, CA 94080 USA
Phone: 650-737-1700
Fax: 650-737-0933
8 PELCO Manual C486M-B (9/95)
Loading...
