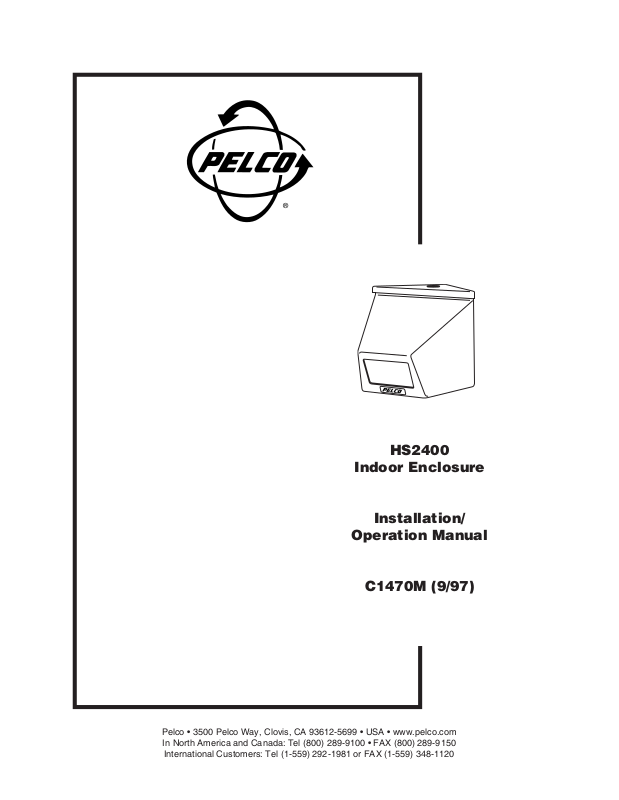

Pelco HS2400 User Manual

®

HS2400

Indoor Enclosure

Installation/

Operation Manual

C1470M (9/97)

Pelco • 3500 Pelco Way, Clovis, CA 93612-5699 • USA • www.pelco.com
In North America and Canada: Tel [phone] • FAX [phone]

International Customers: Tel [phone] or FAX [phone]

CONTENTS

Section Page

1.0 GENERAL .................................................................................................. 1

1.1 IMPORTANT SAFEGUARDS AND WARNINGS ............................... 1

1.2 UNPACKING INSTRUCTIONS ..........................................................2

1.3 RECOMMENDED TOOLS .................................................................2

2.0 DESCRIPTION .......................................................................................... 3

3.0 INSTALLATION ..........................................................................................4

3.1 FLUSH CEILING OR MID-WALL CORNER MOUNT ........................ 4

4.0 MAINTENANCE .........................................................................................6

5.0 MECHANICAL PARTS LIST ...................................................................... 7

6.0 SPECIFICATIONS .....................................................................................8

7.0 WARRANTY AND RETURN INFORMATION ...........................................10

LIST OF ILLUSTRATIONS

Figure Page

1 HS2400 Dimension Drawing .............................................................. 9

LIST OF TABLES

Table Page

AVideo Coaxial Cable Wiring Distances .............................................. 5

B 24 VAC Wiring Distances ................................................................... 5

REVISION HISTORY

Manual # Date Comments

C1470M 9/97 Original version.

ii

12 Pelco Manual C1470M (9/97)

1.0 GENERAL

1.1 IMPORTANT SAFEGUARDS AND WARNINGS

Prior to installation and use of this product, the following WARNINGS should be
observed.

1. Installation and servicing should only be done by Qualified Service Personnel
and conform to all Local codes.

2. Unless the unit is specifically marked as a NEMA Type 3, 3R, 3S, 4, 4X, 6, or
6P enclosure, it is designed for indoor use only and it must not be installed
where exposed to rain and moisture.

3. Only use replacement parts recommended by Pelco.

4. After replacement/repair of this unit’s electrical components, conduct a resis­tance measurement between line and exposed parts to verify the exposed
parts have not been connected to line circuitry.

5. The installation method and materials should be capable of supporting four
(4) times the weight of the enclosure, pan/tilt, camera and lens combination.

The product and/or manual may bear the following marks:

This symbol indicates that dangerous voltage constituting a
risk of electric shock is present within this unit.

This symbol indicates that there are important operating and
maintenance instructions in the literature accompanying this
unit.

CAUTION:

RISK OF

ELECTRIC SHOCK.

DO NOT OPEN.

TO REDUCE THE RISK OF ELECTRICAL SHOCK,

DO NOT REMOVE COVER. NO USER-

SERVICEABLE PARTS INSIDE. REFER SERVICING

TO QUALIFIED SERVICE PERSONNEL.

CAUTION:

Please thoroughly familiarize yourself with the information

in this manual prior to installation and operation.

Pelco Manual C1470M (9/97) 1

1.2 UNPACKING INSTRUCTIONS

Unpack and inspect all parts carefully.

The following parts are supplied:

1 Camera enclosure
1 5/32-inch tamper-resistant hex key
1 1/4-20 x .5" bolt
1 1/4" flat washer
1 1/4" split lock washer

Be sure to save the shipping carton and any inserts. They are the safest material in
which to make future shipments.

If an item appears to have been damaged in shipment, replace it properly in its
carton and contact the factory at 1-800-289-9100 or 1-559-292-1981 for a replace­ment. (International customers fax [phone] for authorization and instruc­tions.)

If an item needs to be returned to the factory for repair, consult the WARRANTY
AND RETURN section of this manual for instructions.

1.3 RECOMMENDED TOOLS

Pelco does not supply basic tools needed for the installation process. The following
tools are recommended:

Hand tools
Drill
Coaxial cable stripper
BNC crimp tool
Wire cutter
Wire stripper

2 Pelco Manual C1470M (9/97)

2.0 DESCRIPTION

The HS2400 medium-security camera housing provides a low-cost, tamper-resistant
corner mount for fixed camera applications. The HS2400 is designed to be installed
flush against a ceiling. The smaller frontal area and reduced overall size create an
unobtrusive enclosure that is ideal for today’s smaller cameras. The HS2400 will
accommodate Pelco box cameras with vari-focal lenses that do not exceed 8 inches
(20.32 cm) in total length. Three conduit knockouts allow wires to be brought into
the housing from the rear sides or the top.

Pelco Manual C1470M (9/97) 3

3.0 INSTALLATION

Before mounting the HS2400, make certain that the mounting surface is capable of
supporting four (4) times the weight of the enclosure plus camera and lens.

Determine the location of the enclosure and means of delivering all necessary ca­bling before beginning the installation process. Knockouts that will accommodate
1/2-inch (1.27 cm) conduit have been provided on both wall mounting surfaces and
the ceiling surface.

3.1 FLUSH CEILING OR MID-WALL CORNER MOUNT

To install the HS2400:

1. Remove the two (2) tamper-resistant screws on the underside of the housing
(using the hex key that is provided) and separate the cover from the mounting
bracket. Remove the tilt table assembly.

2. Using the mounting bracket as a template, mark on the mounting surface
eight holes for mounting the enclosure and, as required, holes for cabling. Drill
the holes.

3. Attach the enclosure with eight 1/4-20 fasteners (not supplied).

4. Route cabling to the enclosure. Refer to Table A for the type of video coaxial
cable to use. If your camera will use 24 VAC power, refer to Table B to deter­mine the size of wire to use. If you are using conduit, attach it to the enclosure.

5. Mount the camera and lens to the tilt table assembly with the 1/4" bolt, flat
washer and split locker washer that are provided. Install the completed as­sembly onto the mounting bracket.

6. Make all camera and lens connections and adjust the tilt table assembly and
camera lens as necessary.

7. Replace the cover. Check that all components clear the cover and that cam­era angle and lens adjustments are satisfactory. When all adjustments are
complete, secure the cover with the hex key that is provided.

4 Pelco Manual C1470M (9/97)

Table A. Video Coaxial Cable Wiring Distances

Cable Type* Maximum Distance

RG59 750 ft (229 m)

RG 6 1,000 ft (305 m)

RG11 1,500 ft (457 m)

* Minimum cable requirements:

75 ohms impedance
All-copper center conductor
All-copper braided shield with 95% braid coverage

Table B. 24 VAC Wiring Distances

The following are the recommended maximum distances for 24 VAC applications
and are calculated with a 10-percent voltage drop. (10-percent is generally the
maximum allowable voltage drop for AC-powered devices.)

EXAMPLE:

An enclosure that re­quires 80 vA and is installed 35 feet
(10 m) from the transformer would
require a minimum wire gauge of
20 Awg.

NOTE:

Distances are calculated
in feet; values in parentheses are
meters.

Wire Gauge

22 20 18 16 14 12 10

10 178 283 451 716 1142 1811 2880

(54) (86) (137) (218) (348) (551) (877)

20 89 141 225 358 571 905 1440

(27) (42) (68) (109) (174) (275) (438)

30 59 94 150 238 380 603 960

(17) (28) (45) (72) (115) (183) (292)

40 44 70 112 179 285 452 720

(13) (21) (34) (54) (86) (137) (219)

50 35 56 90 143 228 362 576

(10) (17) (27) (43) (69) (110) (175)

60 29 47 75 119 190 301 480

(8) (14) (22) (36) (57) (91) (146)

70 25 40 64 102 163 258 411

(7) (12) (19) (31) (49) (78) (125)

80 22 35 56 89 142 226 360

(6) (10) (17) (27) (43) (68) (109)

90 19 31 50 79 126 201 320

(5) (9) (15) (24) (38) (61) (97)

100 17 28 45 71 114 181 288

(5) (8) (13) (21) (34) (55) (87)

110 16 25 41 65 103 164 261

(4) (7) (12) (19) (31) (49) (79)

120 14 23 37 59 95 150 240

Total vA consumed

(4) (7) (11) (17) (28) (45) (73)

130 13 21 34 55 87 139 221

(3) (6) (10) (16) (26) (42) (67)

140 12 20 32 51 81 129 205

(3) (6) (9) (15) (24) (39) (62)

150 11 18 30 47 76 120 192

(3) (5) (9) (14) (23) (36) (58)

160 11 17 28 44 71 113 180

(3) (5) (8) (13) (21) (34) (54)

170 10 16 26 42 67 106 169

(3) (4) (7) (12) (20) (32) (51)

180 9 15 25 39 63 100 160

(2) (4) (7) (11) (19) (30) (48)

190 9 14 23 37 60 95 151

(2) (4) (7) (11) (18) (28) (46)

200 8 14 22 35 57 90 144

(2) (4) (6) (10) (17) (27) (43)

Maximum distance from transformer to load

Pelco Manual C1470M (9/97) 5

4.0 MAINTENANCE

Clean the window regularly to help maintain picture clarity. Use a soft cloth and a
mild nonabrasive detergent.

6 Pelco Manual C1470M (9/97)

5.0 MECHANICAL PARTS LIST

Item No. Qty Description Part Number

11 Mounting plate HS24004002COMP

21 Front cover HS24001000WA

31 Window HS240010000

42 Button-head tamper-resistant screw ZH1/4-20X.50TSS

55 Nut, 4-40 ZH4-40NUTSH

65 Flat washer ZH125X312X32S

71 Tilt table support leg DF54001COMP

81 Tilt table DF54002COMP

92 Nut, 1/4-20 ZH1/4-20NUTCH

10 2 Split lock washer, 1/4" ZH1/4LWSSL

11 2 Fender washer ZH255X1.50X62

12 1 5/32-inch tamper-resistant hex key ZTHEXKEY5/32

Pelco Manual C1470M (9/97) 7

6.0 SPECIFICATIONS

MECHANICAL

Camera Mounting: Adjustable tilt table

Maximum
Camera/Lens
Size: Accommodates camera/lens combinations

(including BNC connector) up to:

8.0" L x 4.0" W x 4.0" H (20.32 cm x 10.16 cm x 10.16 cm)

Viewing Window: 1/2" (1.27 cm) thick, optically clear Lexan™ plastic that is

Window
Viewing Area: 4.25" x 2.56" (10.8 cm x 6.50 cm)

Cable Entry: Ø.875-inch (2.22 cm) knockout access through rear walls and

Enclosure
Mounting: Eight (8) Ø.250-inch (.635 cm) mounting holes on protected

GENERAL

Construction: 10-gauge steel

Finish: Gray polyester powder coat

Dimensions: See Figure 1

Environment: Indoor

Unit Weight: 17.90 lbs (8.12 kg)

Shipping Weight: 19.30 lbs (8.76 kg)

Rating: NEMA 1

impact and scratch resistant

top. Knockouts accept 1/2-inch (1.27 cm) conduit.

rear surfaces

(Design and product specifications subject to change without notice.)

8 Pelco Manual C1470M (9/97)

(9.53)

4.00

(10.16)

3.75

1.50

(3.81)

13.00 (33.02)

6.50

(16.51)

10.25 (26.04)

NOTE: VALUES IN PARENTHESES ARE CENTIMETERS; ALL OTHERS ARE INCHES

Figure 1. HS2400 Dimension Drawing

(21.92)

4.25

(10.80)

8.63

Pelco Manual C1470M (9/97) 9

7.0 WARRANTY AND RETURN INFORMATION

WARRANTY

Pelco will repair or replace, without charge, any merchandise proved defective in material or
workmanship for a period of one year after the date of shipment.

Exceptions to this warranty are as noted below:

Pelco, the Pelco logo, Camclosure, Esprit,
Genex, Legacy, and Spectra are registered
trademarks of Pelco.
Endura and ExSite are trademarks of Pelco.

© Copyright 1997, Pelco. All rights reserved.

• Five years on FT/FR8000 Series fiber optic products.

• Three years on Genex

• Three years on Camclosure
CC3751H-2, CC3651H-2X, MC3651H-2, and MC3651H-2X camera models, which have a five­year warranty.

• Two years on standard motorized or fixed focal length lenses.

• Two years on Legacy
dome products.

• Two years on Spectra
continuous motion applications.

• Two years on Esprit

• Eighteen months on DX Series digital video recorders, NVR300 Series network video

recorders, and Endura

• One year (except video heads) on video cassette recorders (VCRs). Video heads will be
covered for a period of six months.

• Six months on all pan and tilts, scanners or preset lenses used in continuous motion applications
(that is, preset scan, tour and auto scan modes).

Pelco will warrant all replacement parts and repairs for 90 days from the date of Pelco shipment.
All goods requiring warranty repair shall be sent freight prepaid to Pelco, Clovis, California. Repairs
made necessary by reason of misuse, alteration, normal wear, or accident are not covered under
this warranty.

Pelco assumes no risk and shall be subject to no liability for damages or loss resulting from the
specific use or application made of the Products. Pelco’s liability for any claim, whether based on
breach of contract, negligence, infringement of any rights of any party or product liability, relating
to the Products shall not exceed the price paid by the Dealer to Pelco for such Products. In no event
will Pelco be liable for any special, incidental or consequential damages (including loss of use, loss
of profit and claims of third parties) however caused, whether by the negligence of Pelco or
otherwise.

The above warranty provides the Dealer with specific legal rights. The Dealer may also have
additional rights, which are subject to variation from state to state.

If a warranty repair is required, the Dealer must contact Pelco at [phone] or [phone]
to obtain a Repair Authorization number (RA), and provide the following information:

1. Model and serial number

2. Date of shipment, P.O. number, Sales Order number, or Pelco invoice number

3. Details of the defect or problem

If there is a dispute regarding the warranty of a product which does not fall under the warranty
conditions stated above, please include a written explanation with the product when returned.
Method of return shipment shall be the same or equal to the method by which the item was received
by Pelco.

RETURNS

In order to expedite parts returned to the factory for repair or credit, please call the factory at (800)
289-9100 or [phone] to obtain an authorization number (CA number if returned for credit,
and RA number if returned for repair).

All merchandise returned for credit may be subject to a 20% restocking and refurbishing charge.
Goods returned for repair or credit should be clearly identified with the assigned CA or RA number

and freight should be prepaid. Ship to the appropriate address below.
If you are located within the continental U.S., Alaska, Hawaii or Puerto Rico, send goods to:

If you are located outside the continental U.S., Alaska, Hawaii or Puerto Rico and are instructed
to return goods to the USA, you may do one of the following:
If the goods are to be sent by a COURIER SERVICE, send the goods to:

Service Department
Pelco
3500 Pelco Way
Clovis, CA 93612-5699

Pelco
3500 Pelco Way
Clovis, CA 93612-5699 USA

If the goods are to be sent by a FREIGHT FORWARDER, send the goods to:

Pelco c/o Expeditors
473 Eccles Avenue
South San Francisco, CA 94080 USA
Phone: [phone]
Fax: [phone]

®

Series products (multiplexers, server, and keyboard).

®

and fixed camera models, except the CC3701H-2, CC3701H-2X,

®

, CM6700/CM6800/CM9700 Series matrix, and DF5/DF8 Series fixed

®

, Esprit®, ExSite™, and PS20 scanners, including when used in

®

and WW5700 Series window wiper (excluding wiper blades).

™

Series distributed network-based video products.

10 Pelco Manual C1470M (9/97)
