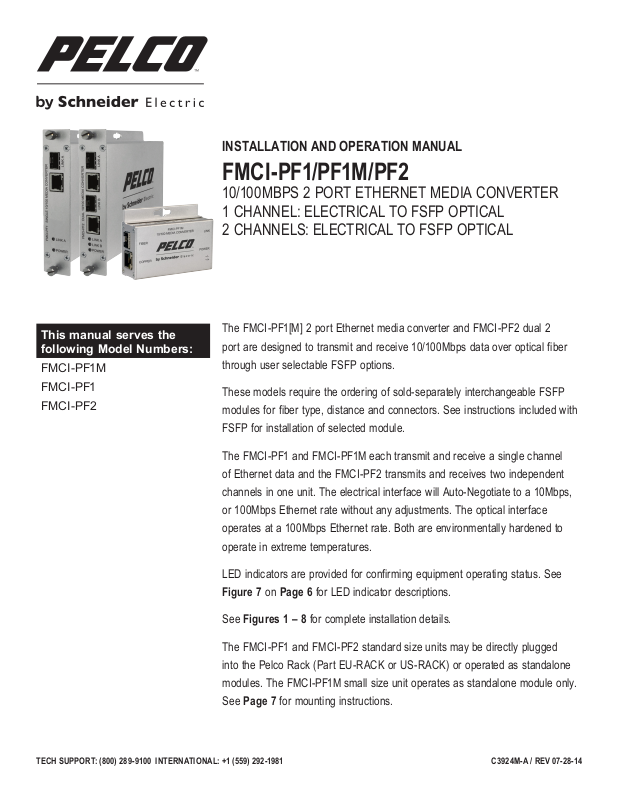

INSTALLATION AND OPERATION MANUAL

FMCI-PF1/PF1M/PF2

10/100MBPS 2 PORT ETHERNET MEDIA CONVERTER
1 CHANNEL: ELECTRICAL TO FSFP OPTICAL
2 CHANNELS: ELECTRICAL TO FSFP OPTICAL

This manual serves the
following Model Numbers:

FM CI-PF1M

FM CI-PF1

FMCI-PF2

The FMCI-PF1[M] 2 port Ethernet media converter and FMCI-PF2 dual 2

port are designed to transmit and receive 10/100Mbps data over optical fiber

through user selectable FSFP options.

These models require the ordering of sold-separately interchangeable FSFP

modules for fiber type, distance and connectors. See instructions included with

FSFP for installation of selected module.

The FMCI-PF1 and FMCI-PF1M each transmit and receive a single channel

of Ethernet data and the FMCI-PF2 transmits and receives two independent

channels in one unit. The electrical interface will Auto-Negotiate to a 10Mbps,

or 100Mbps Ethernet rate without any adjustments. The optical interface

operates at a 100Mbps Ethernet rate. Both are environmentally hardened to

operate in extreme temperatures.

LED indicators are provided for confirming equipment operating status. See

Figure 7 on Page 6 for LED indicator descriptions.

See Figures 1 – 8 for complete installation details.

The FMCI-PF1 and FMCI-PF2 standard size units may be directly plugged

into the Pelco Rack (Part EU-RACK or US-RACK) or operated as standalone

modules. The FMCI-PF1M small size unit operates as standalone module only.

See Page 7 for mounting instructions.

TECH SUPPORT: [phone] INTERNATIONAL: [phone]

C3924M-A / REV 07-28-14

IMPORTANT SAFETY INSTRUCTIONS

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other.
A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the
provided plug does not fit into your outlet consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the points where they exit
from the apparatus.

11. Only use attachments/accessories specified by the manufacturer.

12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use
caution when moving the cart/apparatus combination to avoid injury from tip-over.

13. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as
power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed
to rain or moisture, does not operate normally, or has been dropped.

14. Apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases shall be placed on the
apparatus.

15. WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

16. Installation should be done only by qualified personnel and conform to all local codes.

17. Unless the unit is specifically marked as a NEMA Type 3, 3R, 3S, 4, 4X, 6, or 6P enclosure, it is designed for indoor use only and it must
not be installed where exposed to rain and moisture.

18. Use only installation methods and materials capable of supporting four times the maximum specified load.

19. A CCC-approved power cord must be used to power this equipment when used in China.

20. CAUTION: These servicing instructions are for use by qualified service personnel only. To reduce the risk of electric shock do not
perform any servicing other than that contained in the operating instructions unless you are qualified to do so.

The product and/or manual may bear the following marks:

This symbol indicates that dangerous voltage constituting a risk of electric shock is present within this unit.

This symbol indicates that there are important operating and maintenance instructions in the literature accompanying this unit.

CAUTION:

RISK OF ELECTRIC SHOCK.

DO NOT OPEN.

TECH SUPPORT: [phone] INTERNATIONAL: [phone] C3924M-A / REV 07-28-14

INSTALLATION AND OPERATION MANUAL FMCI-PF1/PF1M/PF2

FIGURE 1 – FMCI-PF1 STANDARD SIZE UNIT

OPTICAL FIBER

DETERMINED BY

SELECTION OF

FSFP MODULE

CAT 5 e/6

BLACK WITH WHITE STRIPE
BLACK

Power Supply:
Surface Mount: 8-15 VDC @ 2W
Rack Mount: From Rack

FIGURE 2 – FMCI-PF1 STANDARD SIZE UNIT

RE AR PA NELFRONT PANEL

NOTE: Remove Electrical

Connector for Rack
Mount Units
