Description
The Esprit® SE IP Series positioning system features a built-in, Web-based viewer for live video streaming to a standard Web browser
(for example, Microsoft® Internet Explorer® or Mozilla® Firefox®).
The system features open architecture connectivity to third-party software. Pelco offers an application programming interface (API) and software
development kit (SDK) that enables third-party systems to interface with Pelco's IP systems. The Esprit SE IP Series is also compatible with
®
, DX Series, and Digital Sentry® systems to record, manage, configure, and view multiple live streams.
Endura
System Model Numbers
Enclosure TypeFormat
Enclosure with integrated optics
package (IOP)
Enclosure with wiper and
integrated optics package (IOP)
Enclosure with pressurized
integrated optics cartridge (IOC)
Enclosure with wiper and
pressurized integrated optics
cartridge (IOC)
1 Tube of Loctite
1 RJ-45 female-to-female coupler
3 10-32 x 1/2-inch flathead screws
2 Clamp connectors
3 1/4-20 nuts and washers
®
thread compound
INSTALLATION TOOLS AND PARTS NOT SUPPLIED
Qty Description
1Network cable
1 Phillips screwdriver
1 Standard flat head screwdriver
1 Esprit SE IP mount
1 Mounting hardware
C1327M (9/12)5
Product Overview
Name
Pan/Tile Assembly
ì
Power ModuleModels available with input voltage of 24 VAC or with a selectable power source of 120/230 VAC
î
Power Module BowlProtects the transformer and wiring
ï
Aux 2 WiresConnects one relay that can be used to control an external circuit
ñ
Network PortConnects the system to the IP network
ó
Power WiresSupplies power to the system
r
Male System ConnectorConnects the power supply to the pan/tilt
s
120/230 Voltage Selector(Models with 120/230 VAC only) Selects the appropriate power voltage for the installation
t
Female System ConnectorConnects the pan/tilt assembly to the power module
u
Description
Includes a receiver, driver, and enclosure with an integrated optics package (IOP) or a pressurized integrated
optics cartridge (IOC)
6C1327M (9/12)
Installation
A
33.0°
B
CD
A
33.0
B
CD

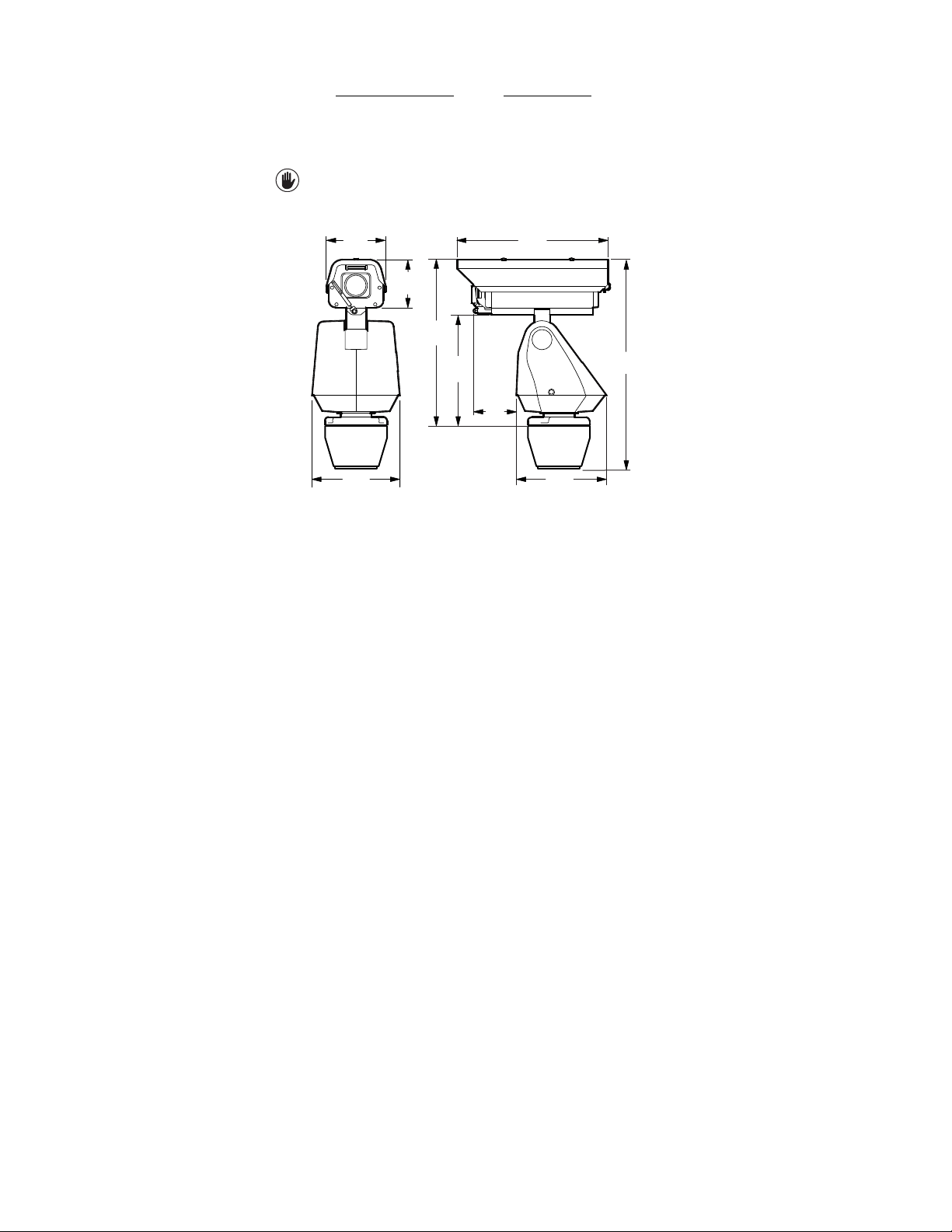

OVERHEAD CLEARANCE PROVISIONS
When installing the Esprit SE IP system, allow for sufficient clearance between the top of the unit and overhead obstructions. This will prevent
interference when the enclosure is driven to its maximum elevation of 33 degrees.
Figure 1. Clearan ce for Overhead Obstruction
Without WiperWith Wiper
A
B
C
D
42.5 cm
(16.6 inches)
23.9 cm
(9.4 inches)
18.1 cm
(7.1 inches)
10.7 cm
(4.2 inches)
42.9 cm
(16.9 inches)
24.6 cm
(9.7 inches)
19.2 cm
(7.6 inches)
11.7 cm
(4.6 inches)
C1327M (9/12)7
INSTALLING THE POWER MODULE
1. Remove the transformer from the base of the power module by loosening the four Phillips captive screws and lifting the module.
Figure 2. Removing the Transformer Module
ì
Phillips Captive Screws
î
Transformer
ï
Base
2. Attach the base of the system to an Esprit SE IP mount:
®
a.Apply a drop of Loctite
(supplied).
WARNING: Failure to apply Loctite to the mounting holes may increase the risk of damage to the unit.
b.Align the mounting holes on the base with the holes on the mount.
thread compound (supplied) to each of the three mounting holes and 10-32 x 1/2-inch flathead screws
8C1327M (9/12)
c.Attach the base of the system to the mount using the three flathead screws and washers (supplied).
Figure 3. Attaching the Base to a Mount
ì
10-32 x 1/2-inch Flathead Screws
î
Base
ï
Mount
3. Make all cable and wire connections, and then route the wires and network cable through the center of the Esprit SE IP mount.
4. Reinstall the transformer module into the base. The transformer module can be positioned in the mount base in only one orientation.
5. Models with 120/230 VAC only: Set the 120/230 voltage selector switch on the transformer to the appropriate voltage.
Figure 4. Reinstalling the Transformer Module
ì
Voltage Selector Switch
6. Install the Esprit SE IP mount; refer to the installation manual supplied with the mount for instructions.
C1327M (9/12)9
CONNECTING THE NETWORK CABLE AND WIRES
1. Attach the supplied RJ-45 female-to-female couplier to the network cable attached to the power module.
2. Connect the other end of the couplier to a network cable (not supplied).
3. Connect the power wires using the two supplied clamp connectors.
Tab le A. 24 VAC Wiring
WireDescription
White wireInput (AC Line)
White wireAC Neutral
Green wireGround
Table B. 120/230 VAC Wiring
WireDescription
Black wireInput (AC Line)
White wireAC Neutral
Green wireGround
4. (Optional) Connect the wiring for AUX2.
Table C. AUX2 Wiring
WireDescription
Red wireAuxiliary
Black wireGround
5. Turn on the power. If the LED turns red, turn off the power, and proceed with installation.
10C1327M (9/12)
INSTALLING THE PAN AND TILT MODULE
1. Connect the male system connector, located on the bottom of the pan/tilt, to the female system connector, located on the transformer
module.
2. Align the screw hole of the pan/tilt with the screw hole of the power module.
3. Attach the pan/tilt to the base with three 1/4-20 nuts and washers (supplied).
Monitor: Minimum of 1024 x 768 resolution, 16- or 32-bit pixel color resolution
Web browser: Internet Explorer
analytics
Media player: Pelco Media Player or QuickTime
(or later)
NOTES:
•Pelco Media Player is recommended for control, smoothness, and reduced latency as compared to QuickTime.
•This product is not compatible with QuickTime version 7.6.4 for Windows XP or Windows Vista. If you have this version installed on your PC,
you will need to upgrade to QuickTime version 7.6.5.
•Network and processor bandwidth limitations might cause the video stream to pause or appear pixelated when additional Web-interface
users connect to the camera. Decrease the images per second (ips), resolution, compression, or bit rate settings of the Web interface video
streams to compensate for network or processor limitations.
Windows® XP, Windows Vista®, Windows 7® or Mac® OS X 10.4
®
8.0 (or later) or Mozilla® Firefox® 3.5 (or later); Internet Explorer 8.0 (or later) is recommended for configuring
®
7.6.5 for Windows XP, Windows Vista, and Windows 7; or QuickTime 7.6.4 for Mac OS X 10.4
ACCESSING THE IP DEVICE
The first time you access the camera, the live video page appears. By default, you are viewing the video as a public user and only have access to
the single stream live view.
If, for security purposes, users should not be allowed to view video without first logging on to the camera, change the permissions for public
users.
LOGGING ON TO THE CAMERA
1. Open the Web browser.
2. Type the camera’s IP address in the browser address bar.
NOTE: If you do not know the camera’s IP address, you can locate it using the Pelco Device Utility software.
3. Click the Login button in the navigation bar; a dialog box opens.
4. Type your user name and password.
NOTE: If you are logging on to the camera as the administrator for the first time, the default user name and password are admin
(all lowercase). For security purposes, be sure to change the password after you log on for the first time.
5. Click Log In.
12C1327M (9/12)
Live Video Page
The live video page allows you to manage the way you view live video and capture images. You can also view live video from this page and
access menus on the navigation bar (based on user permissions).
NOTE: The PTZ controls are viewable only after you have logged on to the device.
LIVE VIDEO PAGE ICONS
Viewable icons are based on user permissions.
Select Stream: Selects the viewable video stream that displays in live view (Primary, Secondary, QuickView, or Event) and selects
unicast or multicast and throttle settings.
Maximize Viewing Area: Scales the image to the full size of the browser. To resize the video pane to normal view, click the
Show Toolbar button in the upper-right corner of the window.
Show Toolbar: Returns the window to normal view. This icon is only available after the window has been set to maximize the
viewing area.
Open Stream in New Window: Opens the video in a scalable, independent window. Opening the video in a separate window allows
you to view the video while other applications are running. This window can be minimized, maximized, or closed using the title bar
buttons of the active window. The window can also be resized by dragging the lower-right corner of the window.
Take a Snapshot: Captures the image displayed in the video pane and saves it as a JPEG file.
Center Viewing Area*: Centers the camera on an area in the video pane. To center a viewing area, click the desired location in the
video pane.
Pan and Tilt*: Controls the pan and tilt functions. Click and drag the mouse to the left or right to pan the camera. Click and drag the
mouse up or down to tilt the camera.
*These icons are always available when using the Pelco Media Player. If you are using QuickTime
QuickView Stream is selected.
®
, these icons are available only when the
C1327M (9/12)13
