PRODUCT SPECIFICATION

camera solutions

ES40E/ES41E Series IP Positioning System

ES40E/ES41E ESPRIT® SE IP, H.264, DIGITAL STANDARD AND PRESSURIZED MODELS

Product Features

• Receiver, Pan/Tilt, and Enclosure with Integrated Optics Package

(IOP) or Pressurized Integrated Optics Cartridge (IOC), NTSC/PAL

• Tilt Range of +34° to –83° from Horizontal

• Ability to Control and Monitor Video Over IPv4 and IPv6 Networks

• H.264, MPEG-4, and MJPEG Compression

• Multilevel Password Protection

• Autotracking

• Horizontal Zone and Window Blanking

• On-Screen Compass and Tilt Display

• 256 Configurable Preset Positions

• Open IP Standards

Pelco’s ES40E/ES41E Esprit® SE IP Positioning System features a
receiver, pan/tilt, enclosure, and either an Integrated Optics Package
(IOP) or a pressurized Integrated Optics Cartridge (IOC) in a single,
easy-to-install system. Options include IOP or IOC models with or
without wiper.

The ES41E Series includes a window wiper. The wiper is completely
integrated into the enclosure and does not interfere with the viewing
range of the system. The wiper can be configured to delay between
wipes and to automatically shut off after a specified period. The
wiper design also allows for easy replacement of the wiper blade.

A built-in heater, window defroster/defogger, sun shroud, and
insulation blanket are standard features on the ES40E/ES41E units,
which also include open collector auxiliary output that functions for
two seconds before deactivating.

Esprit SE IP systems incorporate all of the features and functions of
Esprit SE, while allowing you to control and monitor video over an IP
network from virtually anywhere in the world. Esprit SE IP is a
high-speed positioning system with a built-in 100Base-TX network
interface for live streaming to any network application.

Esprit SE IP supports two simultaneous video streams. The two
streams can be compressed in H.264, MPEG-4, and MJPEG formats
across several resolution configurations. The streams can be
configured in a variety of frame rates, bit rates, and group of pictures
(GOP) structures for additional bandwidth administration. The H.264
compression video files are up to 20 times smaller than MJPEG,
making network video storage more affordable.

Web Interface

Esprit SE IP uses a standard Web browser for powerful remote setup

and administration.

Network protocols such as Secure Sockets Layer (SSL) configuration
for security certificates, Secure Shell (SSH) for remote login, and
Quality of Service (QoS) for priority or guaranteed data flow can be
managed using a Web browser.

Video Systemization

Esprit SE IP easily connects to Pelco IP and hybrid systems such as

®

version 1.5 (or later), MPEG-4; Endura version 2.0 (or later),

Endura
H.264; Digital Sentry
later); DX4700/DX4800 Series 1.1 (or later); DX4700HD/DX4800HD
Series v2.0 (or later); and DVR5100 version 1.5.4 (or later). The camera
also features open architecture connectivity to third-party software.
Pelco offers an application programming interface (API) and software
developer’s kit (SDK) for interfacing with Pelco’s IP cameras.

®

version 7.3 (or later); DX8100 version 2.0 (or

International Standards

Organization Registered Firm;

ISO 9001 Quality System

C2929 / REVISED 3-27-15

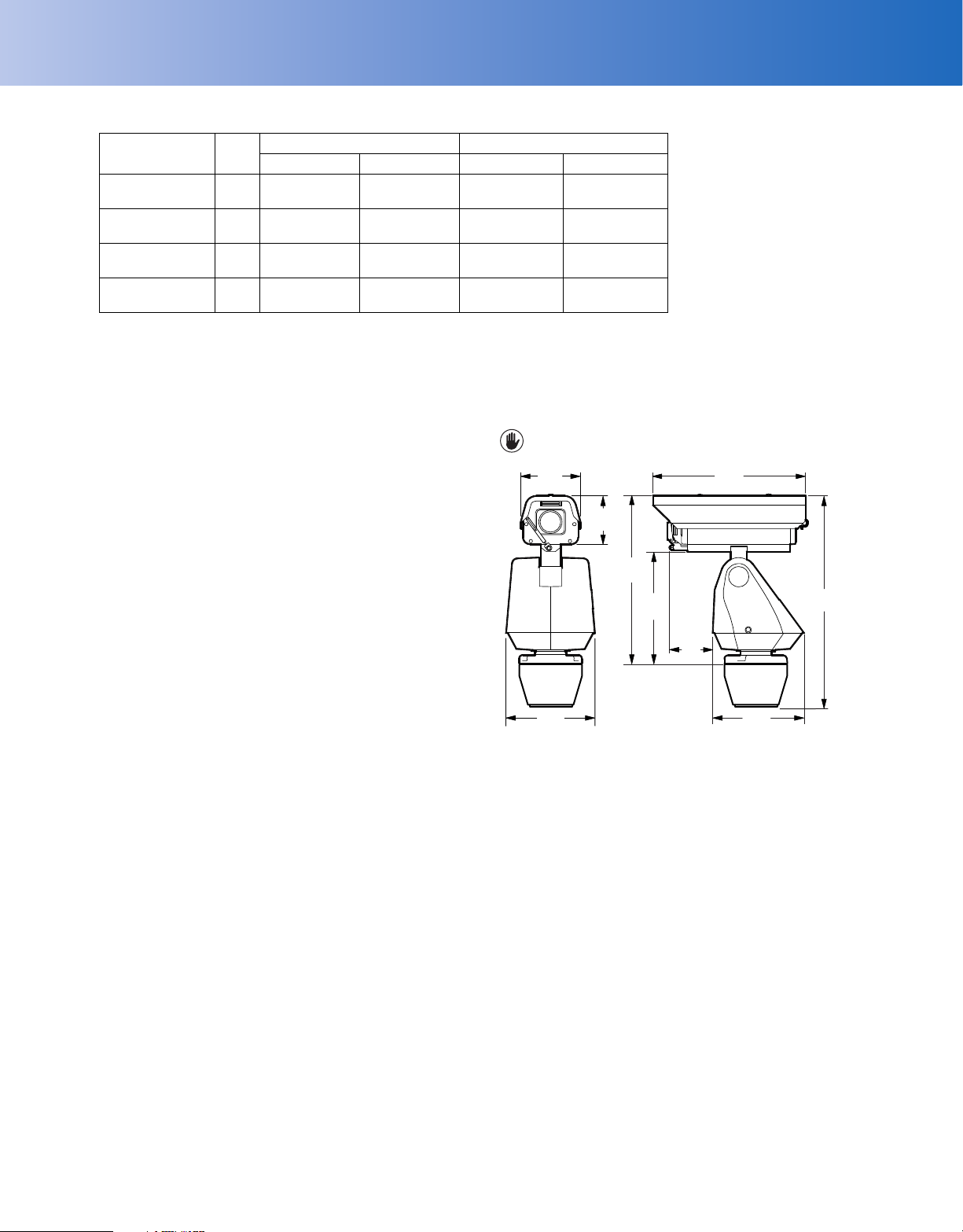

VIDEO

Video Encoding H.264 base profile, MPEG-4, and MJPEG
Video Streams Up to 2 simultaneous streams; the second

Frame Rate Up to 30, 25, 24, 15, 12.5, 12, 10, 8, 7. 5, 6, 5,

Available Resolutions Resolution JPEG H.264 Base Profile MPEG-4

stream is variable based on the setup of the
primary stream

4, 3, 2, 1 (dependent upon coding, resolution,
and stream configuration)

Width Height Format

Maximum

IPS

Recommended

Bit Rate

Maximum

IPS

Recommended

Bit Rate

Maximum

IPS

Recommended

704 480 NTSC 30 ips 5.4 Mbps 30 ips 1.9 Mbps 30 ips 2.0 Mbps

352 240 NTSC 30 ips 1.3 Mbps 30 ips 0.5 Mbps 30 ips 0.6 Mbps

704 576 PAL 25 ips 5.4 Mbps 25 ips 1.9 Mbps 25 ips 2.0 Mbps

Bit Rate

Supported Protocols TCP/IP, UDP/IP (Unicast, Multicast IGMP),

UPnP, DNS, DHCP, RTP, RTSP, NTP, IPv4, IPv6*,
SNMP, QoS, HTTP, HTTPS, LDAP (client), SSH,
SSL, SMTP, FTP, and 802.1x (EAP)

Users

Unicast Up to 20 simultaneous users depending on

resolution settings (2 guaranteed streams)

Multicast Unlimited users H.264 or MPEG-4
Security Access Password protected
Software Interface Web browser view and setup, up to

16 cameras

Pelco System Integration Endura 1.5 or later (MPEG-4) or Endura 2.0 or

later (H.264); Digital Sentry 7.3 IP bundle 3 or
later; DX8100 Series 2.0 or later;
DX4700/DX4800 Series 1.1 or later;
DX4700HD/DX4800HD Series v2.0 or later;

and DVR5100 version 1.5.4 or later
Open API Pelco API or ONVIF v1.02
Minimum System Requirements

Processor Intel
Operating System Microsoft

®

Pentium® 4 microprocessor, 1.6 GHz

®

Windows® XP, Windows Vista®,

Windows 7, or Mac

®

OS X 10.4 (or later)
Memory 512 MB RAM
Network Interface Card 100 megabits (or greater)
Monitor Minimum of 1024 x 768 resolution, 16- or

32-bit pixel color resolution

Web Browser Internet Explorer

Firefox

Media Player

†

Pelco Media Player or QuickTime® 7.6.5 for

®

3.0 (or later)

®

7.0 (or later) or Mozilla®

Windows XP, Windows Vista, or QuickTime

7.6.4 for Mac OS X 10.4

*Supports mixed IPv4 and IPv6 installations, but not IPv6-only deployments.

†

This product is not compatible with QuickTime version 7.6.4 for Windows XP

or Windows Vista. If you have this version installed on your PC, you will
need to upgrade to QuickTime version 7.6.5.
