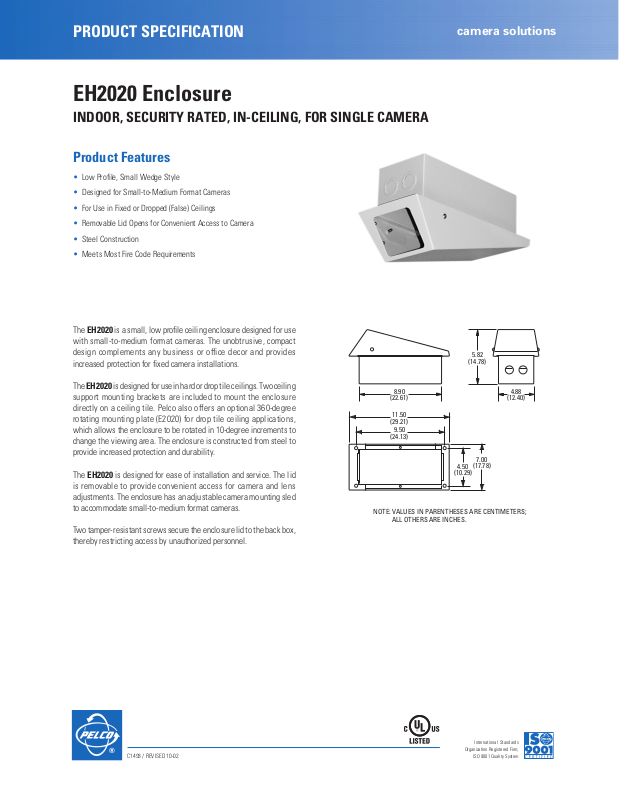

Pelco EH2020 Specsheet
PRODUCT SPECIFICATION
EH2020 Enclosure
INDOOR, SECURITY RATED, IN-CEILING, FOR SINGLE CAMERA
camera solutions
Product Features
• Low Profile, Small Wedge Style
• Designed for Small-to-Medium Format Cameras
• For Use in Fixed or Dropped (False) Ceilings
• Removable Lid Opens for Convenient Access to Camera
• Steel Construction
• Meets Most Fire Code Requirements
The
EH2020
is a small, low profile ceiling enclosure designed for use
with small-to-medium format cameras. The unobtrusive, compact
design complements any business or office decor and provides
increased protection for fixed camera installations.
The
EH2020
is designed for use in hard or drop tile ceilings. Two ceiling
support mounting brackets are included to mount the enclosure
directly on a ceiling tile. Pelco also offers an optional 360-degree
rotating mounting plate (E2020) for drop tile ceiling applications,
which allows the enclosure to be rotated in 10-degree increments to
change the viewing area. The enclosure is constructed from steel to
provide increased protection and durability.
The
EH2020
is designed for ease of installation and service. The lid
is removable to provide convenient access for camera and lens
adjustments. The enclosure has an adjustable camera mounting sled
to accommodate small-to-medium format cameras.
Two tamper-resistant screws secure the enclosure lid to the back box,
thereby restricting access by unauthorized personnel.
5.82
(14.78)
8.90
(22.61)
11.50
(29.21)
9.50
(24.13)
7.00
(17.78)
4.50
(10.29)
NOTE: VALUES IN PARENTHESES ARE CENTIMETERS;
ALL OTHERS ARE INCHES.
4.88
(12.40)
C1493 / REVISED 10-02
International Standards
Organization Registered Firm;
ISO 9001 Quality System
TECHNICAL SPECIFICATIONS
MODEL
EH2020 Small, low profile, security-rated ceiling
enclosure
MECHANICAL
Camera Mounting Adjustable bracket capable of supporting a
maximum weight of 10 lb (4.53 kg)
Maximum Camera
and Lens Size Accepts camera and lens combinations*
(including BNC connector) up to:
3.0" H x 2.8" W x 8.0" L
(7.62 x 7.11 x 20.32 cm)
Ceiling Mounting Upper section flange-mounted to fixed ceiling
or ceiling tile. Two soft-ceiling mounting
brackets provided. Can also be mounted in
E2020 rotating mounting plate for false
ceiling applications
Cable Entry Two 0.875-inch (2.22 cm) diameter conduit
knockouts on front and rear of back box
Security Two tamper-resistant screws (hollow Allen
wrench supplied)
*Assumes lens is fully extended.
GENERAL
Construction
Body 0.047-inch (1.19 mm) thick, seam-welded
18 gauge cold rolled steel
Viewing Window 0.188-inch (4.8 mm) thick Lexan
®
Color White epoxy polyester powder coat
Environment Indoor; 32° to 120°F (0° to 49°C)
Unit Weight
EH2020 3.5 lb (1.6 kg)
E2020 3.9 lb (1.8 kg)
Shipping Weight
EH2020 5.0 lb (2.3 kg)
E2020 6.0 lb (2.7 kg)
CERTIFICATIONS/RATINGS
• UL /cUL Listed
OPTIONAL ACCESSORIES
E2020 360° rotating mounting plate; rotates in 10°
increments and features “locking” capability
to secure enclosure positioning. Replaces
2 ft x 2 ft (61 cm x 61 cm) ceiling tile; can be
used in 2 ft x 4 ft (61 cm x 122 cm) ceiling tile
with additional T-rail for support. Constructed
of aluminum with textured white polyester
powder coat finish.
E2020 ROTATING MOUNTING PLATE
Pelco, Inc. Worldwide Headquarters:
3500 Pelco Way, Clovis, California 93612-5699 USA
USA & Canada
International
www.pelco.com
Tel: (800) 289-9100 • FAX: (800) 289-9150
Tel: +1 (559) 292-1981 • FAX: +1 (559) 348-1120
2X 4.75
(12.07)
2X 4.60
(11.68)
18.00
(45.72)
2X 1.44
(3.66)
2.03
(5.16)
NOTE: VALUES IN PARENTHESES ARE CENTIMETERS;
ALL OTHERS ARE INCHES.
2X 1.90
(4.83)
0.25 (0.64) LONG
16.60 (42.16) B.C.
36 X 10°
4X 0.213 FOR 8-32
SELF-CLINCHING NUT
2.03
(5.16)
Product specifications and availability subject to change without notice.
16.60
(42.16)
Pelco and the Pelco logo are registered trademarks of Pelco, Inc.
Lexan is a registered trademark of the General Electric Company.
©Copyright 2002, Pelco, Inc. All rights reserved.
