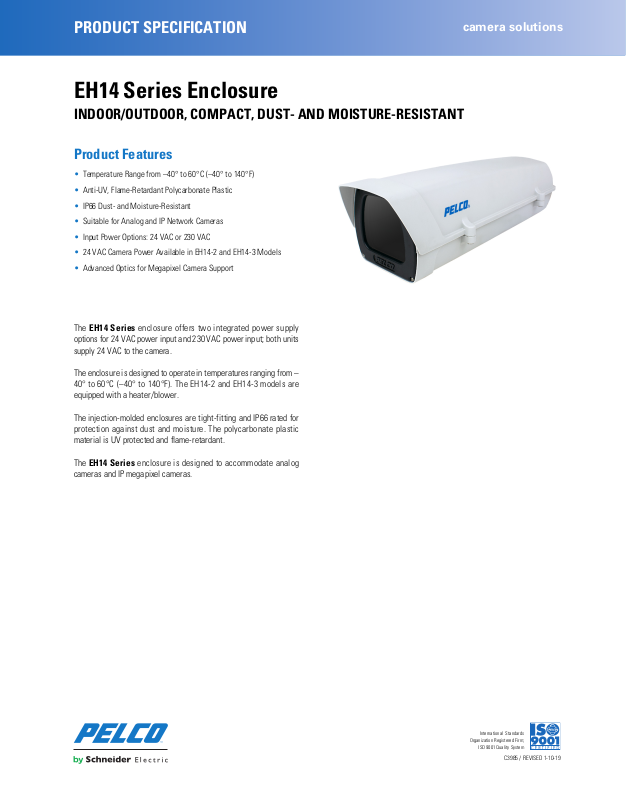

Pelco EH14-3, EH14-2, EH14, EH14-NC Specsheet

PRODUCT SPECIFICATION

EH14 Series Enclosure

INDOOR/OUTDOOR, COMPACT, DUST- AND MOISTURE-RESISTANT

Product Features

• Temperature Range from –40° to 60°C (–40° to 140°F)

• Anti-UV, Flame-Retardant Polycarbonate Plastic

• IP66 Dust- and Moisture-Resistant

• Suitable for Analog and IP Network Cameras

• Input Power Options: 24 VAC or 230 VAC

• 24 VAC Camera Power Available in EH14-2 and EH14-3 Models

• Advanced Optics for Megapixel Camera Support

camera solutions

The EH14 Series enclosure offers two integrated power supply options for 24 VAC power input and 230 VAC power input; both units supply 24 VAC to the camera.

The enclosure is designed to operate in temperatures ranging from – 40° to 60°C (–40° to 140°F). The EH14-2 and EH14-3 models are equipped with a heater/blower.

The injection-molded enclosures are tight-fitting and IP66 rated for protection against dust and moisture. The polycarbonate plastic material is UV protected and flame-retardant.

The EH14 Series enclosure is designed to accommodate analog cameras and IP megapixel cameras.

International Standards

Organization Registered Firm;

ISO 9001 QualitySystem

C3985 / REVISED 1-10-19

TECHNICAL SPECIFICATIONS

MODELS

Model Number

Basic Enclosure

24 VAC with

24 VAC

Camera Power

(maximum 8 W)

230 VAC with

24 VAC

Camera Power

(maximum 8 W)

Heater/Blower

Max. Power

Consumption*

EH14 • 0 W

EH14-2 • • • 30 W

EH14-3 • • • 25 W

*Maximum Power Consumption does not include camera wattage.

GENERAL

Construction Polycarbonate plastic, UV protected and

Finish Gray polyester powder coat Environment Indoor/outdoor Operating Temperature –40° to 60°C (–40° to 140°F) Storage Temperature –50° to 75°C (–46° to 167°F) Weight Unit Shipping

EH14 1.0 kg (2.2 lb) 2.2 kg (4.7 lb) EH14-2 1.1 kg (2.4 lb) 2.3 kg (5.1 lb) EH14-3 1.4 kg (3.1 lb) 2.6 kg (5.7 lb)

flame-retardant

MECHANICAL

Camera and Lens Size Accepts camera and lens combinations

(including all wiring) up to

27.94 x 8.25 x 10.16 cm (11.00" L x 3.25" W x 4.00" H)

Viewing Window

EH14 Glass EH14-2 Glass

EH14-3 Optical grade Lexan™ Latching 2 captivated Torx T25 screws Face Plate 4 Phillips screws Cable Entry 2 adjustable 0.5-inch NPT liquid-tight glands

†

Assumes lens is fully extended.

†

ELECTRICAL

Input Power 24 VAC or 230 VAC Input Voltage

24 VAC ±10% VAC

230 VAC ±10% VAC

CERTIFICATIONS/PATENTS

• CE, Class A

• Meets NEMA Type 4 and IP66 standards

RECOMMENDED MOUNTS

Wall

EM2400 Medium duty wall mount; maximum load

18.14 kg (40 lb) feedthrough (tilt angle of ±90°)

Pipe/Pole

EM1109, EM2400 with PA101 (Pole Adapter) Medium duty mounts for pipe/pole

VALUES IN PARENTHESES ARE INCHES; ALL OTHERS ARE CENTIMETERS.

applications; maximum load 18.14 kg (40 lb); fit poles with 7.62 cm (3-inch) to

20.32 cm (8-inch) diameters

OPTIONAL ACCESSORIES

Power Supplies (Indoor/Outdoor 24 VAC)

WCS1-4 Outdoor, 1 output, 4 A (100 VA) capacity WCS4-20B Outdoor, 4 outputs, 20 A (480 VA) capacity MCS4-2B Indoor, 4 outputs, 2 A (48 VA) capacity MCS8-5B Indoor, 8 outputs, 5 A (120 VA) capacity MCS16-10 Indoor, 16 outputs, 10 A (240 VA) capacity MCS16-10SB Sames as above except with circuit breakers MCS16-20 Indoor, 16 outputs, 20 A (480 VA) capacity MCS16-20SB Sames as above except with circuit breakers
