Pelco EH1000 Specsheet

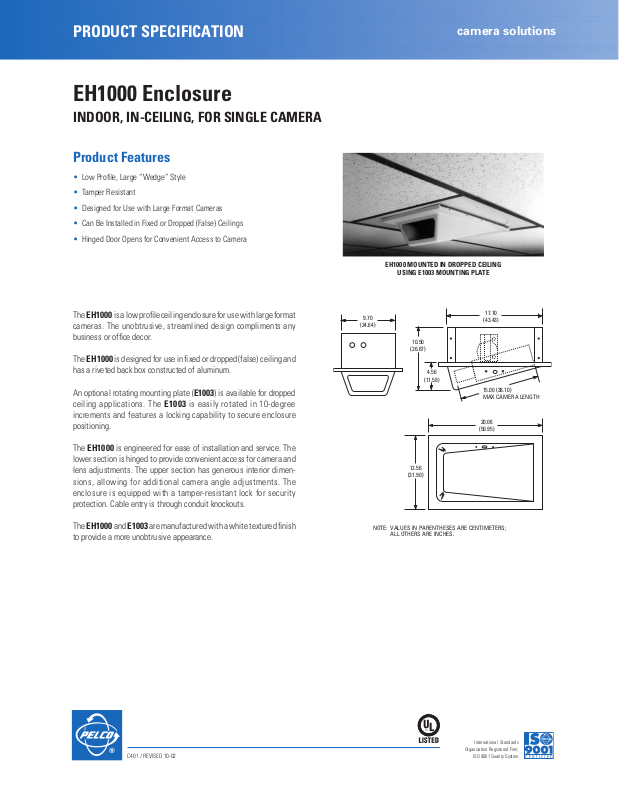

PRODUCT SPECIFICATION
EH1000 Enclosure
INDOOR, IN-CEILING, FOR SINGLE CAMERA
camera solutions
Product Features
• Low Profile, Large “Wedge” Style
• Tamper Resistant
• Designed for Use with Large Format Cameras
• Can Be Installed in Fixed or Dropped (False) Ceilings
• Hinged Door Opens for Convenient Access to Camera
The
EH1000
is a low profile ceiling enclosure for use with large format
cameras. The unobtrusive, streamlined design compliments any
business or office decor.
The
EH1000
is designed for use in fixed or dropped (false) ceiling and
has a riveted back box constructed of aluminum.
An optional rotating mounting plate (
ceiling applications. The
E1003
) is available for dropped
E1003
is easily rotated in 10-degree
increments and features a locking capability to secure enclosure
positioning.
The
EH1000
is engineered for ease of installation and service. The
lower section is hinged to provide convenient access for camera and
lens adjustments. The upper section has generous interior dimensions, allowing for additional camera angle adjustments. The
enclosure is equipped with a tamper-resistant lock for security
protection. Cable entry is through conduit knockouts.
EH1000 MOUNTED IN DROPPED CEILING
USING E1003 MOUNTING PLATE
9.70
(24.64)
10.50
(26.67)
4.56
(11.58)
12.56
(31.90)
17.10
(43.43)
15.00 (38.10)
MAX CAMERA LENGTH
20.06
(50.95)
The
EH1000
and
E1003
are manufactured with a white textured finish
to provide a more unobtrusive appearance.
C401 / REVISED 10-02
NOTE: VALUES IN PARENTHESES ARE CENTIMETERS;
ALL OTHERS ARE INCHES.
International Standards
Organization Registered Firm;
ISO 9001 Quality System
TECHNICAL SPECIFICATIONS
MODEL
EH1000 Low profile ceiling enclosure
MECHANICAL
Camera Mounting Adjustable bracket capable of supporting a
Maximum
Camera and Lens Size Accepts camera and lens combinations*
Ceiling Mounting Upper section flange-mounted to fixed ceiling
Cable Entry Conduit knockouts on upper back box; two on
Lock Key lock
*Assumes lens is fully extended.
maximum of 10 lb (4.53 kg)
(including BNC connector) up to:
4.50" H x 6.50" W x 15.00" L
(11.43 x 16.51 x 38.10 cm)
or E1003 rotating mounting plate for false
ceilings
each end
GENERAL
Construction
Upper section 5052H32 aluminum
Lower section Vacuum-formed ABS plastic
Viewing Window Lucite
Color
Upper section Alodine
Lower section White textured
Environment Indoor; 32° to 120°F (0° to 49°C)
Unit Weight
EH1000 5.16 lb (2.34 kg)
E1003 3.1 lb (1.41 kg)
Shipping Weight
EH1000 8 lb (3.6 kg)
E1003 5 lb (2.25 kg)
®
SAR (Super Abrasion Resistant)
acrylic
CERTIFICATIONS/RATINGS
• UL Listed
• Meets NEMA Type 1 standards
OPTIONAL ACCESSORIES
E1003 360° rotating mounting plate; rotates in 10°
EH664004COMP Replacement lock with two keys.
4-40 STANDOFF
4X EQ SP ON A 22.16 (56.29) BC
Ø 22.00 (55.88)
10°
increments and features locking capability
to secure enclosure positioning. Replaces
2 ft x 2 ft (61 cm x 61 cm) ceiling tile; can be
used in 2 ft x 4 ft (61 cm x 122 cm) ceiling tile
with additional T-rail for support. Constructed
of aluminum with textured white polyester
powder coat finish.
Ø 0.125 (0.32) 36X
10° APART ON A 21.00 (53.34) BC
10-32 PEM NUT 8X
0.31 (0.79)
E1003 ROTATING MOUNTING PLATE
Pelco, Inc. Worldwide Headquarters:
3500 Pelco Way, Clovis, California 93612-5699 USA
USA & Canada
International
www.pelco.com
Tel: (800) 289-9100 • FAX: (800) 289-9150
Tel: +1 (559) 292-1981 • FAX: +1 (559) 348-1120
17.15
(43.56)
9.00
(22.86)
6.00
(16.51)
9.80
(24.89)
11.00
(27.94)
NOTE: VALUES IN PARENTHESES ARE CENTIMETERS;
ALL OTHERS ARE INCHES.
E1003 DIMENSION DRAWING
Pelco and the Pelco logo are registered trademarks of Pelco, Inc.
Product specifications and availability subject to change without notice.
Lucite is a registered trademark of DuPont.
©Copyright 2002, Pelco, Inc. All rights reserved.
18.50
(46.99)
23.75
(60.33)
SQ.
