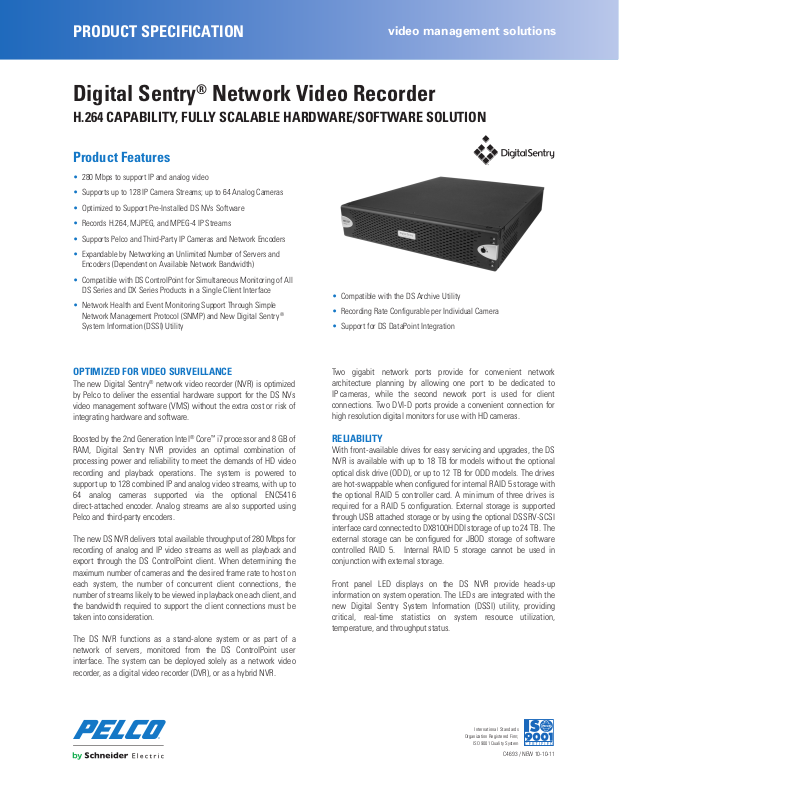

PRODUCT SPECIFICATION
video management solutions
Digital Sentry® Network Video Recorder
H.264 CAPABILITY, FULLY SCALABLE HARDWARE/SOFTWARE SOLUTION
Product Features
• 280 Mbps to support IP and analog video
• Supports up to 128 IP Camera Streams; up to 64 Analog Cameras
• Optimized to Support Pre-Installed DS NVs Software
• Records H.264, MJPEG, and MPEG-4 IP Streams
• Supports Pelco and Third-Party IP Cameras and Network Encoders
• Expandable by Networking an Unlimited Number of Servers and
Encoders (Dependent on Available Network Bandwidth)
• Compatible with DS ControlPoint for Simultaneous Monitoring of All
DS Series and DX Series Products in a Single Client Interface
• Network Health and Event Monitoring Support Through Simple
Network Management Protocol (SNMP) and New Digital Sentry
System Information (DSSI) Utility
®
• Compatible with the DS Archive Utility
• Recording Rate Configurable per Individual Camera
• Support for DS DataPoint Integration
OPTIMIZED FOR VIDEO SURVEILLANCE
The new Digital Sentry
by Pelco to deliver the essential hardware support for the DS NVs
video management software (VMS) without the extra cost or risk of
integrating hardware and software.
Boosted by the 2nd Generation Intel
RAM, Digital Sentry NVR provides an optimal combination of
processing power and reliability to meet the demands of HD video
recording and playback operations. The system is powered to
support up to 128 combined IP and analog video streams, with up to
64 analog cameras supported via the optional ENC5416
direct-attached encoder. Analog streams are also supported using
Pelco and third-party encoders.
The new DS NVR delivers total available throughput of 280 Mbps for
recording of analog and IP video streams as well as playback and
export through the DS ControlPoint client. When determining the
maximum number of cameras and the desired frame rate to host on
each system, the number of concurrent client connections, the
number of streams likely to be viewed in playback on each client, and
the bandwidth required to support the client connections must be
taken into consideration.
The DS NVR functions as a stand-alone system or as part of a
network of servers, monitored from the DS ControlPoint user
interface. The system can be deployed solely as a network video
recorder, as a digital video recorder (DVR), or as a hybrid NVR.
®
network video recorder (NVR) is optimized
®
Core™ i7 processor and 8 GB of
Two gigabit network ports provide for convenient network
architecture planning by allowing one port to be dedicated to
IP cameras, while the second nework port is used for client
connections. Two DVI-D ports provide a convenient connection for
high resolution digital monitors for use with HD cameras.
RELIABILITY
With front-available drives for easy servicing and upgrades, the DS
NVR is available with up to 18 TB for models without the optional
optical disk drive (ODD), or up to 12 TB for ODD models. The drives
are hot-swappable when configured for internal RAID 5 storage with
the optional RAID 5 controller card. A minimum of three drives is
required for a RAID 5 configuration. External storage is supported
through USB attached storage or by using the optional DSSRV-SCSI
interface card connected to DX8100HDDI storage of up to 24 TB. The
external storage can be configured for JBOD storage of software
controlled RAID 5. Internal RAID 5 storage cannot be used in
conjunction with external storage.
Front panel LED displays on the DS NVR provide heads-up
information on system operation. The LEDs are integrated with the
new Digital Sentry System Information (DSSI) utility, providing
critical, real-time statistics on system resource utilization,
temperature, and throughput status.
International Standards
Organization Registered Firm;
ISO 9001 Quality System
C4693 / NEW 10-10-11
Page 2
TECHNICAL SPECIFICATIONS
OPEN ARCHITECTURE
The cornerstone of Digital Sentry design, a fully Open Architecture, is
provided through ONVIF compliance and support for a large number
of IP-specific drivers. Users can choose specific IP cameras or
encoders to fit their application.
DSSRV
DX4700/DX4800
IP CAMERAS
Eliminate the risk of deferred support that comes with VMS software
from one vendor and a general purpose hardware platform from
another. Replace it with the assurance of an integrated platform built
specifically for the rigors of IP video recording. Make the
performance, reliability, and Open Architecture of DS NVs running on
DS NVR the core foundation of your video management solution.
ANALOG CAMERAS
VIDEO ENCODER
TCP/IP
IP CAMERAS
SUPERVISORGUARDGUARD
ANALOG CAMERAS
ENC5416
DSSRV
SYSTEM
ADMINISTRATOR
DX8100
IP CAMERAS
DS CONTROLPOINT CLIENTS
IMPORTANT NOTE. PLEASE READ. The network implementation is shown as a general representation
only and is not intended to show a detailed network topology. Your actual network will differ, requiring
changes or perhaps additional network equipment to accommodate the system as illustrated. Please contact
your local Pelco Representative to discuss your specific requirements.
Page 3
TECHNICAL SPECIFICATIONS
SYSTEM
®
Processor 2nd Generation Intel
Operating System Windows 7 Ultimate 64-bit SP1
Internal Memory 8 GB RAM
User Interface DS ControlPoint
Internal Storage (JBOD or RAID 5*)
DSSRV 500 GB, 3 TB, 6 TB, 9 TB, 12 TB, 15 TB, or
DSSRV-DVD 500 GB, 3 TB, 6 TB, 9 TB, or 12 TB
RAID Level Internal RAID 5 (requires DS-SRV-RAID
External Storage Up to 24 TB JBOD or RAID 5 through
System Drives
DSSRV 6, 3.5-inch hard drive bays
DSSRV-DVD 4, 3.5-inch hard drive bays
Optical Drive DVD±RW with DSSRV-DVD
*The minimum configuration for an internal RAID 5 is three hard disk drives.
One hard disk drive of the RAID 5 configuration is used for parity, reducing
net storage capacity by the value of one hard disk drive.
†
Requires an optional DSSRV-RAID controller card. The internal RAID 5
requires reimaging of the system with the recovery DVD (supplied).
Non-DVD units require reimaging from a bootable 8 GB USB key (not
supplied).
18 TB
controller card for hot-swappable drives)
DX8100HDDI (requires optional
DSSRV-SCSI card)
REMOTE CLIENT PC REQUIREMENTS
Processor 2nd Generation Intel
Memory 4 GB or higher
Operating System Windows XP Professional SP2,
‡
While the DS ControlPoint client can be run at the server, doing so can
impact performance of the DSSRV. For optimum performance, run DS
ControlPoint at a client station.
integrated graphics
Windows Vista (32 or 64 bit),
Windows 7 (32 or 64 bit)
Core™ i7
‡
®
Core™ i7 processor with
†
NETWORK
Interface 2 Gigabit Ethernet RJ-45 (1000Base-T)
Auxiliary Interfaces
USB Ports 1 front (USB 2.0)
4 rear (2 USB 3.0; 2 USB 2.0)
CONNECTIONS
Video Out 2 DVI-D connectors
Audio Out 1, 1/8-inch audio jack connector
FRONT PANEL INDICATORS/FUNCTIONS
Buttons Power
Indicators
Unit Status Green, amber, red
Primary Network Green, amber, red
Secondary Network Green, amber, red
Software Status Green, amber, red (based on diagnostics)
Hard Disk Status Green, red, off (behind bezel)
ENVIRONMENTAL
Operating Temperature 10° to 35°C (50° to 95°F)
Storage Temperature –40° to 65°C(–40° to 149°F)
Operating Humidity 20% to 80%, noncondensing
Maximum Humidity Gradient 10% per hour
Operating Altitude –15 to 3,048 m (–50 to 10,000 ft)
Operating Vibration 0.25 G at 3 Hz to 200 Hz at a rate of
Note:
The temperature at the unit air intake can be significantly higher than
room temperature. Temperature is affected by rack configuration, floor layout,
air conditioning strategy, and other issues. To prevent performance failure and
unit damage, make sure the temperature at the unit is continuously within the
operating temperature range.
0.5 octave/minute
PHYSICAL
Dimensions 50.8 x 43.4 x 8.9 cm
Weight Unit Shipping
DSSRV-005 11.8 kg (26 lb) 20.9 kg (46 lb)
DSSRV-030 11.8 kg (26 lb) 20.9 kg (46 lb)
DSSRV-060 12.7 kg (28 lb) 21.8 kg (48 lb)
DSSRV-090 13.6 kg (30 lb) 22.7 kg (50 lb)
DSSRV-120 14.5 kg (32 lb) 23.6 kg (52 lb)
DSSRV-150 15.4 kg (34 lb) 24.5 kg (54 lb)
DSSRV-180 16.3 kg (36 lb) 25.4 kg (56 lb)
DSSRV-005DVD 12.7 kg (28 lb) 21.8 kg (48 lb)
DSSRV-030DVD 13.6 kg (30 lb) 22.7 kg (50 lb)
DSSRV-060DVD 14.5 kg (32 lb) 23.6 kg (52 lb)
DSSRV-090DVD 15.4 kg (34 lb) 24.5 kg (54 lb)
DSSRV-120DVD 16.3 kg (36 lb) 25.4 kg (56 lb)
(20" D x 17.1" W x 3.5" H)
POWER
Power Input 100 to 240 VAC, 50/60 Hz, autoranging
Power Supply Internal
Power Consumption Operating Maximum
100 VAC / 50 Hz 222.0 2.22 758.0
110 VAC / 50 Hz 224.0 2.02 759.4
110 VAC / 60 Hz 223.0 2.03 761.4
115 VAC / 50 Hz 217.0 1.89 740.8
115 VAC / 60 Hz 215.5 1.87 735.7
220 VAC / 50 Hz 213.0 0.97 727.2
220 VAC / 60 Hz 204.1 0.93 696.8
240 VAC / 50 Hz 211.9 0.88 723.4
240 VAC / 60 Hz 207.6 0.86 708.8
Watts Amperes BTU/H
Page 4
TECHNICAL SPECIFICATIONS
MODELS
The following table describes the DSSRV and DSSRV-DVD model numbers.
For example, the model number for a 12 TB, DSSRV device with a
United Kingdom power cord is DSSRV-120-UK. The model number for a 6 TB,
DSSRV-DVD device with an Australian power cord is DSSRV-060DVD-AU.
Note:
Units shipped to China do not include power cords.
Model Storage Country Code
NVR Without Optical Disk Drive
DSSRV-005 500 GB
DSSRV-030 3 TB
DSSRV-060 6 TB
DSSRV-090 9 TB
DSSRV-120 12 TB
DSSRV-150 15 TB
US = North America
EU = Europe
UK = United Kingdom
CN = China
AU = Australia
AR = Argentina
DSSRV-180 18 TB
NVR With Optical Disk Drive
DSSRV-005DVD 500 GB
DSSRV-030DVD 3 TB
DSSRV-060DVD 6 TB
DSSRV-090DVD 9 TB
DSSRV-120DVD 12 TB
US = North America
EU = Europe
UK = United Kingdom
CN = China
AU = Australia
AR = Argentina
SUPPLIED ACCESSORIES
Power Cord 1 USA standard, 1 based on country
USB Keyboard and Mouse 1
Bezel key 2
Rack Mount Kit Brackets, rails, and hardware for mounting in
DSSRV-LIT Documentation, resource and recovery discs
designation; all cables are 3 prong, molded
connector, 1.8 m (6 ft)
Note:
Units shipped to China do not include
power cords.
a 2 RU rack
CERTIFICATIONS/RATINGS
• CE, Class A; meets EN50130-4 standard requirements
• FCC, Class A
• UL/cUL Listed
• C-Tick
• CCC*
• KCC*
• S-Mark*
*As of the date of this publication, these certifications are pending. Please
consult the factory, our Web site
®
update for the current status of certifications.
B.O.S.S.
www. pelco.com
, or the most recent
STANDARDS/ORGANIZATIONS
• Pelco is a member of the MPEG-4 Industry Forum
• Pelco is a member of the Universal Plug and Play (UPnP) Forum, Steering
Committee
• Pelco is a member of the Universal Serial Bus (USB) Implementers Forum
• Pelco is a contributor to the Internal Standards for Organization/
Electrotechnical Commission (ISO/IEC) Joint Technical Committee 1
(JTC1), “Information Technology,” Subcommittee 29, Working Group 11
• Compliance, ISO/IEC 14496 standard (also known as MPEG-4)
• Compliance, International Telecommunication Union (ITU)
Recommendation G.711, “Pulse Code Modulation (PCM) of Voice
Frequencies”
• Pelco is a member of the ONVIF Open Industry Forum
OPTIONAL ACCESSORIES
DS-SW-CAM DSSRV models include eight licenses for
ENC5416 Direct-attached analog encoder
ENC5400-2PORT 2-port host card (analog)
ENC5400-4PORT 4-port host card (analog)
DSSRV-RAID LSI 3Ware 9750-8i RAID controller card
DSSRV-SCSI Adaptec® SCSI Card 29320LPE
KBD5000 Desktop keyboard with control pods provides
Pelco by Schneider Electric
3500 Pelco Way, Clovis, California 93612-5699 United States
USA & Canada
International
www.pelco.com
Tel (800) 289-9100 Fax (800) 289-9150
Tel +1 (559) 292-1981 Fax +1 (559) 348-1120
Pelco and third-party IP cameras. Additional
DS-SW-CAM licenses can be purchased
separately.
connects 2 ENC5416
connects 4 ENC5416
lens, iris and focus control; playback and
menu navigation; and monitor control of one
DS ControlPoint tear-off tab. Tear-off tabs are
selected through mouse control.
Notice: Judgment as to the suitability of the products for users’ purposes is solely the
users’ responsibility. Users should refer to the Operation manuals for cautionary
statements regarding user selected options and how they might affect video quality.
Users shall determine the suitability of the products for their own intended application,
picture rate and picture quality. In the event users intend to use the video for
evidentiary purposes in a judicial proceeding or otherwise, users should consult with
their attorney regarding any particular requirements for such use.
Pelco, the Pelco logo, and other trademarks associated with Pelco products referred
to in this publication are trademarks of Pelco, Inc. or its affiliates. All other
product names and services are the property of their respective companies.
Product specifications and availability are subject to change without notice.
©Copyright 2011, Pelco, Inc. All rights reserved.
Loading...
