Pelco DS NVS User Manual

OPERATION/CONFIGURATION

DS NVR and DS NVs System Software

C3663M-B (11/09)

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Installing the Windows Operating System. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

DS NVs Software Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

DSAdmin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

DSAdmin Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Adding and Configuring Servers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Adding and Configuring a VAU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Network Storage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Video Storage Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Adding and Configuring Cameras . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

User Administration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Camera Groups . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Adding and Configuring Zones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Cameras Directory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Configuration Parameters. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Throttle Exempt Addresses. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Email Notification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Server/VAU Software Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Digital Sentry Client/Admin Software. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

TCP/IP Addresses. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

DSAdmin Directory Tree . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Configuring Serial Ports. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Configuring Storage Locations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Configuring IP Cameras . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

General. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Motion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

On Screen Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Time-lapse Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Motion Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

PTZ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Creating Users . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Setting Up Account Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Assigning Permissions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Available Permissions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Assigning Camera Permissions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Managing Users Across Multiple Systems. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Configuring Zones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Digital Sentry Client Software. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Running Digital Sentry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Video Pane Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Recording Mode Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Quick Review . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Zooming Into Video . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Digital PTZ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Creating Local Groups . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Camera Sequencing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Copying Local Configuration Information to Other Computers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Video Controls Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Manual Recording . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Cameras Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Print/Export Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Exporting a Video Clip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Image Details Tab. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Event History Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Searching for Logged Events . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Playing Back a Logged Event . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

C3663M-B (11/09) 3

Recorded Video Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Searching for Recorded Video . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Playing Back Recorded Video . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Search Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Smart Search . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Client Manager . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Changing Passwords . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Viewing the Message Log . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Viewing Reports. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Client Startup Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Adding and Deleting Systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Viewing Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

Alarm Assessment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Playing Back Current Alarms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Acknowledging Alarms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

PTZ Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

4 C3663M-B (11/09)

List of Illustrations

1 DSAdmin Directory Tree . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

2 Add System Dialog Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

3 Serial Ports Tab Within General Tab. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

4 Port Settings Tab for Serial Input Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

5 Storage Locations Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

6 IP Cameras Tab with List of Connected IP Cameras. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

7 IP Camera Window for Configuring IP Cameras. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

8 Network Storage Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

9 Video Storage Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

10 General Tab Within Cameras Tab. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

11 Motion Tab for Motion Settings and Masks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

12 On Screen Display Tab for Configuring Video Text. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

13 Time-Lapse Storage Tab for Scheduling Continuous Recordings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

14 Motion Storage Tab for Scheduling Motion Recording . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

15 PTZ Tab for Configuring PTZ Cameras, Presets, and Tours. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

16 Account Management Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

17 Change Password Dialog Box. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

18 User Rights Tab for Assigning User Permissions to Functions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

19 Camera Assignments Tab for Assigning Camera Permissions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

20 Multiple Systems Tab. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

21 User Details Window for System Administration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

22 Camera Groups Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

23 Add Zone Dialog Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

24 Cameras Tab for Assigning Cameras to Zones. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

25 Digital Inputs Tab for Assigning Input Points to Zones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

26 Video Motion Tab for Triggering Cameras in Zone. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

27 Serial Input Tab for Sending Text Strings That Trigger Recordings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

28 Add Email Account(s) Window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

29 Configuration Parameters Window for Miscellaneous Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

30 Throttle Exempt Addresses Window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

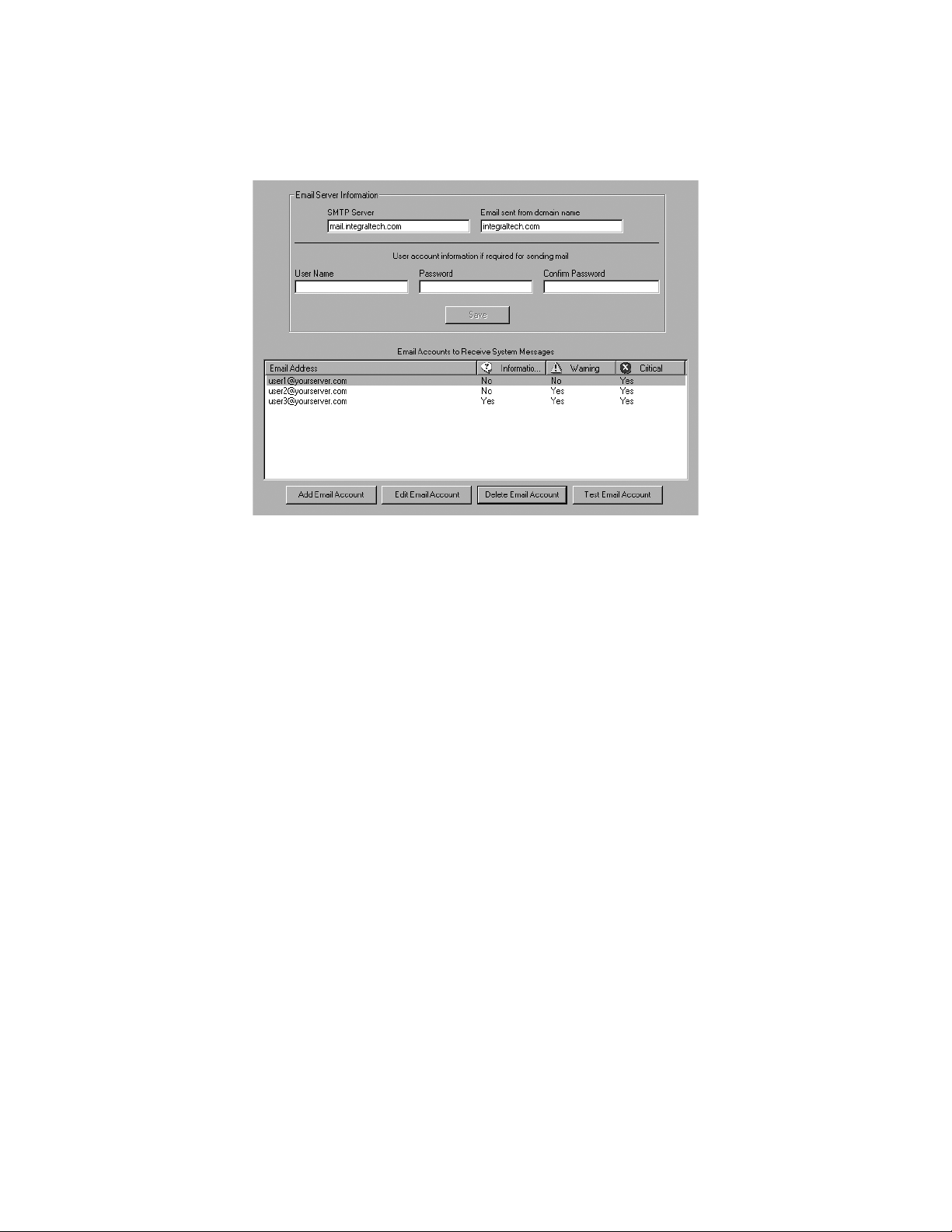

31 Email Notification Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

32 Digital Sentry Main Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

33 Quick View of Recorded Video . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

34 Local Group Configuration Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

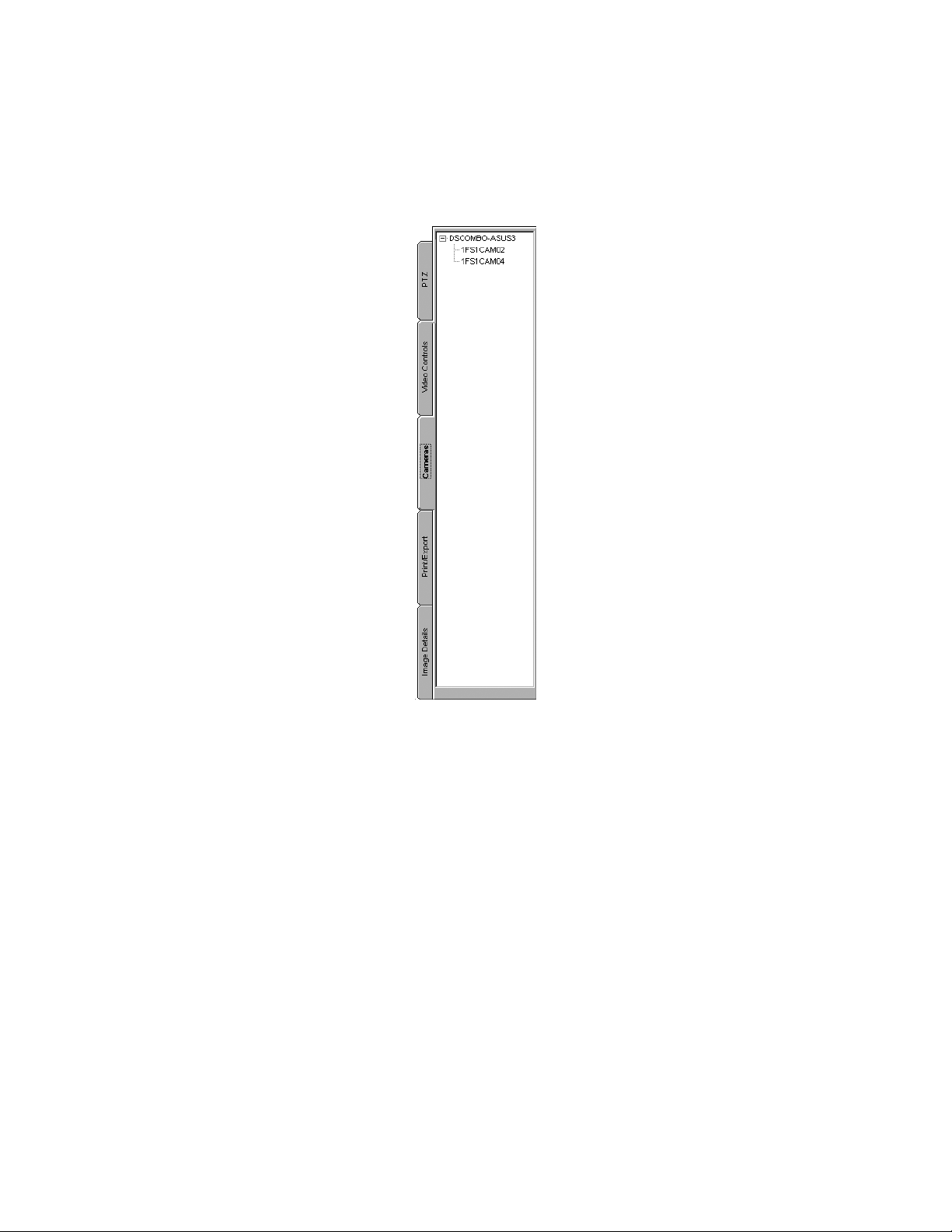

35 Cameras Tab for Viewing Live Video . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

36 Export Video Clip Window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

37 Event History With Event Time Lines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

38 Recorded Video with Time Line of All Captured Video . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

39 Video Search Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

40 Client Manager Window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

41 Digital Sentry Message Log History. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

42 Digital Sentry Messages Window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

43 Video Pane Configurations for Alarm Events . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

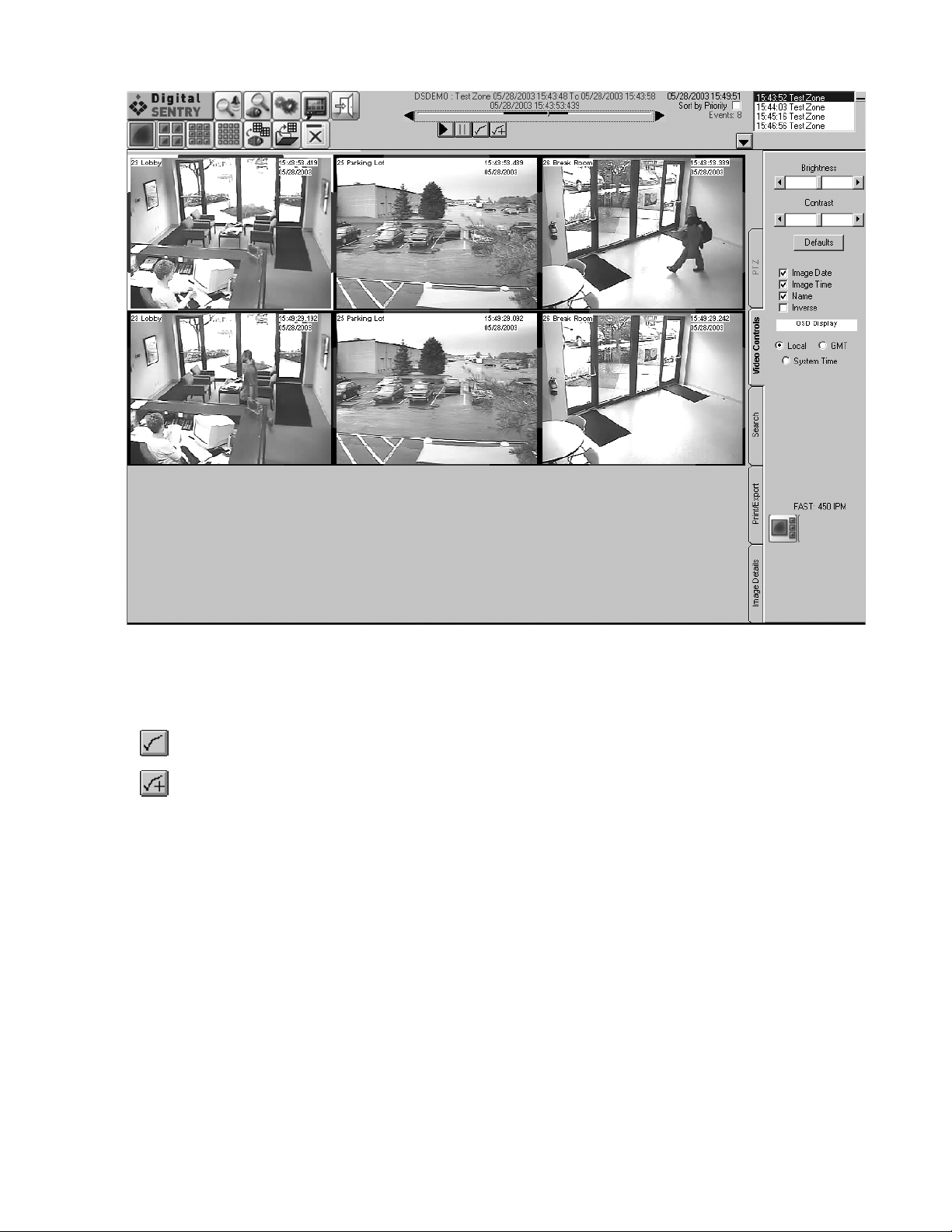

44 Example of Window with Record Event and Live Video . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

45 PTZ Control Tab. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

C3663M-B (11/09) 5

6 C3663M-B (11/09)

Introduction

DS NVR and DS NVs are network video recorders that use Integral Digital Sentry® as the video monitoring and management software. DS NVR is an all-inclusive, stand-alone video recorder. DS NVs is a software-only solution that can be installed on an existing server, as described in the following sections.

For information on installing DS NVR, refer to the Integral Digital Sentry Installation manual (C3662M).

INSTALLING THE WINDOWS OPERATING SYSTEM

To install Microsoft® Windows® XP Professional or Windows Server® 2003 on the DS NVs server computer, complete the following steps:

1. Insert the Windows installation CD and restart the computer.

2. Press Enter to set up Windows.

3. Press F8 if you agree with the licensing information.

4. Press D to delete any existing partitions, and then L to confirm.

5. Press C to create a partition. Enter 20000MB (20 GB) as the size and press Enter.

6. Press Enter to start the installation.

7. Choose the “Format Partition Using the NTFS File System” option.

8. When prompted, enter “dsserviceuser” as the Administrator password.

9. When finished, open Administrative Tools, Computer Management, and then Disk Management. Rename the Partition 1 volume label to SYSTEM.

10. Create an extended partition on the remainder of the drive; this is the first DATA partition.

11. Change the CD-ROM drive letter to “R.”

12. On the extended partition, create a logical drive formatted using NTFS.

13. Partition 2 and any other partitions are data drives. Create a logical drive to fill the rest of the drive and name it DATA.

14. Install any required drivers from the motherboard CD.

15. Install the latest Windows Updates, including Service Pack 2 (SP2) for Windows XP Professional or Service Pack 1 (SP1) for Windows Server 2003.

16. Change the computer name and IP address in Windows.

17. In User Manager, create a new Windows user name “dsserviceuser” with the password “dsserviceuser.” Ensure that the user has administrative privileges. This can also be done as part of the operating system installation.

18. Windows XP Professional only: Open Control Panel and then User Accounts. Select “Change the Way Users Log On and Off,” and then clear the “Use the Welcome Screen” check box.

19. In Administrative Tools, open Local Security Policy. Expand “Local Policies and User Rights Assignments,” and then open “Log On as a Service.” Click Add User or Group.

20. Windows XP Professional only: From the Start menu, select Run. Type “control userpasswords2” and click OK. Select “User Must Enter a User Name and Password,” and then click Advanced. Select “Require User to Press Ctrl-Alt-Delete.”

21. Create the following directory:

C:\Program Files\Integral\Database

22. Run the SETUP.EXE file on the Server/VAU CD and follow the on-screen instructions.

23. Run the SETUP.EXE file on the Client/Admin CD and follow the on-screen instructions.

C3663M-B (11/09) 7

DS NVS SOFTWARE INSTALLATION

DS NVs software can be installed on a computer that meets the following minimum requirements:

• Industry-standard, Intel® platform, server-grade motherboard

• Dual-Core Intel Xeon® Processor (32-input system) or Intel Pentium® 4 3.2 GHz Processor (16-input system or smaller)

NOTE: If you are streaming between 4 and 32 H.264 cameras, Pelco recommends that you meet the following system requirements:

CPU Speed: Intel Core™2 Quad Q9400 at 2.66 GHz (4 CPUs) VGA Card Spec: NVIDIA® GeForce® 9600 GT (512 MB, minimum) Computer Memory: 4 GB of RAM

• 2 GB RAM

• Dual Gigabit network interface cards (NICs)

• Windows XP Embedded (XPe), Windows XP Professional, or Windows Server 2003 operating system

• 7200 rpm hard drive (minimum of one); can be SCSI or SATA*

• Drive controller card

•CD-RW

• Stand-alone system: 20 GB available storage for operating system and applications

• Distributed system: 160 GB available storage for operating system, applications, and video storage

*If all video is stored on the DS NVs server, you must add the appropriate quantity, speed, and size of drives required to meet the storage

requirement. If the video is stored on an external storage subsystem, you must also install a suitable SCSI Card.

†

The transmission I/O rate of the drive controller card is important. For best performance, select a system that has a robust controller card, especially if you have a high camera count (20 to 32 IP cameras) or when using high-throughput cameras (such as IPIX®).

†

SERVER/VAU SOFTWARE INSTALLATION

To install Digital Sentry Server/VAU software on the DS NVs server, complete the following steps:

1. Insert the Digital Sentry Server/VAU CD.

2. Run SETUP.EXE from the CD.

3. Select the desired language and click OK.

4. When you are asked if the “dsserviceuser” account has been created, click Yes.

5. The Welcome screen appears. Click Next.

6. If you accept the user agreement, click Yes.

7. Select one of the following component types and click Next:

• DMS plus Extended Local Storage (VSAN): Installs the server, MSDE, and VSAN components.

• Extended Local Storage (VSAN): Installs the VSAN component.

• SAVR or DS XPress plus Extended Local Storage (VSAN): Installs the server, VideoServer, MSDE, and VSAN components.

• VAU: Installs the VideoServer component.

8. If you have changed the default “dsserviceuser” password, enter and verify the new password, and then click OK to begin the file installation.

9. Enter the license key generated for the component’s product ID.

10. If you selected the VAU or Extended Local Storage (VSAN) installation, enter the name or IP address of the server that the VAU or VSAN is connected to.

11. When you are prompted to restart the computer, click Finish.

8 C3663M-B (11/09)

DIGITAL SENTRY CLIENT/ADMIN SOFTWARE

To install the Digital Sentry client software on a computer, insert the CD and follow the on-screen instructions. Select either of the following options, or you can select both for a simultaneous installation.

• Digital Sentry Admin Program: Allows you to configure the DS NVs server.

• Digital Sentry Client Program: Allows you to monitor live video and search for recorded video.

TCP/IP ADDRESSES

The DS NVs server must have two NICs: one to communicate with the IP camera network; and the other to communicate with other computers, such as client computers used to remotely monitor the system. Each NIC has a unique TCP/IP address, and the DSAdmin software must recognize the address of the NIC used to communicate with other computers.

When you first run DSAdmin (refer to DSAdmin on page 10), check the TCP/IP address assigned to the VAU. If the TCP/IP address is applicable to the IP camera network, switch the network cables plugged in to each NIC and restart the system. Then run DSAdmin again to verify that the TCP/IP address assigned to the computer network is displayed.

C3663M-B (11/09) 9

DSAdmin

This section describes DSAdmin, the application that configures Digital Sentry software and the DS hardware. The following topics are discussed in this section:

• Overview of DSAdmin and its directory tree

• Adding and configuring servers, VAUs, and cameras

• User administration

• Creating camera groups and zones

• Enabling e-mail notification

DSADMIN OVERVIEW

DSAdmin is the administration program that configures DS NVR or DS NVs for daily use. DSAdmin is used to select DS servers, VAUs, and cameras, along with recording frame rates, video settings, motion masks, and recording schedules. DSAdmin also allows you to set up zones, serial input devices, and other important elements of the DS system.

To run the DSAdmin program, select it from the Start menu and ente computer appears in the gray title bar and the Folder Items area. The Server List field contains a path to a local .INI file containing a list of servers to which it can be connected by the client.

NOTE: If the logon information entered during DSAdmin startup does not match the logon information for the available systems, you are also a

sked to enter logon information for those systems.

r your logon information. When DSAdmin first runs, the name of the client

DSADMIN DIRECTORY TREE

A DS system is a collection of servers, VAUs, and cameras, which the DSAdmin program organizes into a directory tree. This tree illustrates the relationship between all the DS parts and allows you to add, subtract, or modify any of them.

Refer to the sample tree in Figure 1. At the top of the tree is a directory named after the client system (in this case, DSCOMBO). Under DSCOMBO is the Available Systems directory, which contains a list of all available servers to which the client can connect. In Figure 4, t is DSCLIENT.

Under each server are several directories containing all of the cameras, VAUs, zones, and other hardware and configurations that through the selected server.

he available system

are available

Figure 1. DSAdmin Directory Tree

10 C3663M-B (11/09)

ADDING AND CONFIGURING SERVERS

Complete the following steps to make a DS server available to your client computer:

1. Click the client directory at the top of the tree to display the Available Systems directory.

2. Right-click Available Systems and choose Add System. This opens the Add System dialog box (refer to Figure 2).

Figure 2. Add System Dialog Box

3. In the System Name field, enter a name for the DS server you want to make available.

4. Enter the static IP address of the DS server. If the server will not be connected to a network during operation, enter 127.0.0.

5. Enter a reconnect interval. If the client becomes disconnected from the server, it will try to reconnect after the indicated a (in seconds).

6. If you want the client to automatically connect to the server wh

7. Click Save to add the server to the Available Systems list.

mount of time

enever the Digital Sentry client software is started, click Auto Connect.

NOTE: Click the server in the directory tree to configure a server that you have made available to the client. This displays the server

nfiguration information, which allows you to view or change the name, IP address, and reconnect interval for the server. If you do not select

co Auto Connect, you can click Connect to connect to the server. You can refresh a connection to a server at any time by right-clicking on the server name in the directory tree and selecting Refresh.

ADDING AND CONFIGURING A VAU

Perform the following steps to add a VAU to a server:

1. Right-click the VAUs directory under the appropriate server in the directory tree.

2. Select Add VAU. This opens the Add VAU window. Enter the following information for each VAU connected to the DS server:

• VAU computer name

• Static IP address

• Video Server port

3. Click Save. On a server/VAU combination system, this i be entered in the VAU directory.

4. To configure the VAU, click its name in the directory tree. The following tabs will be displayed:

• VAU

• Serial P

• Stora

• Audio Channels: N

• IP

• Del

Info: Not used with DS NVR and DS NVs.

orts: Configures PTZ cameras and other devices connected to each COM port.

ge Locations: Configures the local and remote storage locations connected to the DS system.

ot used with DS NVR and DS NVs.

Cameras: Configures the IP cameras connected to the VAU.

ete VAU: Deletes a VAU from the system.

nformation is the same as the system configuration information, and it might already

CAUTION: The Delete VAU function removes all data for that VAU. This includes all recorded video, unless it is the only VAU added to the

ver. If only one VAU is added, its data must be deleted manually. If a large amount of data is stored on a VAU, deleting the VAU can require as

ser much as one hour to complete. Performance might also be reduced during the deletion process. By default, the permission to delete a VAU is not granted to new users.

C3663M-B (11/09) 11

CONFIGURING SERIAL PORTS

Perform the following steps to configure serial ports on a VAU:

1. Click the VAU in the directory tree and select the Serial Ports tab.

2. Highlight a COM port and click Add to activate it.

3. Highlight the COM port in the assigned ports list.

4. Enter serial input information on the following six tabs:

• General: Co

ntains required information (refer to Figure 3):

Figure 3. Serial Ports Tab Within General Tab

– Interface Type: Options include Monitor, Card Reader, or PTZ.

– PTZ Typ

– Maximum Line Size:

– End of

– Description: A descrip

– A

12 C3663M-B (11/09)

e: The make and model of the PTZ camera connected to the selected port (if PTZ is selected for the Interface Type).

Select the type from the drop-down arrow; only one PTZ type can be selected per COM port. To update the drop-down arrow, click Get Types every time you want to configure the PTZ type.

NOTE: For IP PTZ cameras, the PTZ Type is configured on the PTZ tab. Refer to Adding and Configuring Cameras on details.

The maximum size of a string coming from the alarm panel. A string longer than this many characters

usually indicates an error.

Line Characters (First, Second, and Third): A character, such as a carriage return, that indicates a line is complete.

tion of the COM port.

ctive: Activates the COM port.

page 17 for

• Port Settings: Enter the alarm panel settings here, including the COM port to which it is connected, the baud rate, parity, and stop

bits (refer to Figure 4).

Figure 4. Port Settings Tab for Serial Input Devices

• Reset Text: Enter all text string segments that the alarm panel sends to indicate that an alarm is reset. The instance of one of these

segments in a string is recognized as an alarm reset. After you enter each segment, click Add.

• Required Text: En

similar strings for the same alarm, only the string with one of these segments is recognized. After you enter the text, click Add.

• Alarm Text: Enter all text string segments that the alarm panel sends to indicate that an alarm is occurring. The instance of one of

these segments in a string is recognized as an alarm. These segments are used to trigger recording in certain zones that you will configure (refer to Adding and Configuring Zones on page 30). After you enter the text, click Add.

• Normal Text: Similar to Alarm Text, but video does not automatically appear for these alarms even if automatic alarm viewing is

configured.

ter text string segments that must be present for Digital Sentry to recognize an alarm. If the panel sends multiple

CONFIGURING STORAGE LOCATIONS

The Storage Locations tab (refer to Figure 5) displays local hard drives on the VAU and all activated network storage locations. Local hard drives available for storage of video files are listed under Local Storage, along with their total size, unused space, and minimum free space maintained (in MB). Perform the following steps to assign a drive for local storage of video:

1. Select the drive, and then Activate Storage Location.

2. Make sure the drive is detected and available by selecting it. Look for the word Online or Offline displayed below the list. DSAdmin searches for the drives each time a connection is created or refreshed.

Figure 5. Storage Locations Tab

Activated network storage locations appear on the right side of the Storage Locations tab. To archive video stored on the VAU to the network storage locations every 15 minutes, select Copy To Network Storage Location. You can also view information about each network storage location by selecting it in the list. The following section describes how the network storage locations are configured on the Network Storage page.

C3663M-B (11/09) 13

CONFIGURING IP CAMERAS

The IP Cameras tab (refer to Figure 6) allows you to configure IP cameras connected to the VAU through the TCP/IP network port. A limited number of IP cameras can be connected to a VAU, and a valid manufacturer-specific license must be installed for each. The top of the tab displays the number of licenses installed for each camera manufacturer.

Figure 6. IP Cameras Tab with List of Connected IP Cameras

To configure an IP camera, click Add IP Camera, and then select the camera model from the drop-down arrow. This opens the IP Camera window (refer to Figure 7), which contains the following configuration information and options:

Figure 7. IP Camera Window for Configuring IP Cameras

14 C3663M-B (11/09)

• The top of the window displays the location of the camera input automatically selected for the IP camera. By default, the final input on the final input device (or “board”) is selected for the IP camera. Because up to 32 cameras can exist on any board, and up to four boards can exist on any VAU, the input selected for the IP camera might not actually exist. If you want to use the automatically selected camera input for an analog camera, manually select the IP camera’s input by clicking Change Assigned Input, and then select a new input.

• The Camera Name field allows you to enter the desired name of the IP camera that will appear in video panes, searches, lists, and so forth.

• Consult the camera manufacturer's documentation for information on frame rate, resolution, and quality information. This can var camera manufacturers and models.

• The Compression Type drop-down arrow H.264. Only certain compression types can be used with each supported IP camera model. For more information, refer to the latest release notes for each supported camera model at www.pelco.com/software/downloads/digitalsentry.

• If you cannot access MPEG video because it is performance, so select this option only if you cannot view MPEG video from the camera.

• The Stream Number field allows you to select the video stream to capture from a camera that provides multiple streams.

• In the bottom section of the window enter the TCP/IP Address and other information configured for the camera on your network. Some IP

ras use a TCP or UDP notification for motion events; the event port number is the TCP or UDP port used for that notification and must

came be a different number for each camera. To view information about the camera using a Web page generated by the manufacturer, click the IP Camera Configuration Web Page button. (Internet Explorer® must be the default browser for this to work.) With some cameras, you might need to install additional software provided by the camera manufacturer.

lists the types of compression supported on Digital Sentry systems: MJPEG, MPEG-4, H.263, and

blocked by a firewall or router, select RTSP Tunneling. This can reduce system and network

y between

NOTE: If you select Auto Image Size in the IP Camera Configur

When the configuration is complete, make sure Activ To delete an existing IP camera from the VAU, click Delete IP Camera.

To change the configuration of an existing IP camera, click Edit IP Came this does not delete stored video recorded from the camera, but you cannot search and play back the video using Digital Sentry client software.

NETWORK STORAGE

Digital Sentry video files can be saved on storage devices available over a network connection. If you archive video over a network, video files remain on the local hard drives until they are complete, and then they are copied to the network device. Video files are complete at the end of a 15-minute segment.

The Network Storage page (refer to Figure 8) allows you to configure network storage locations. Complete the following steps to add a network storage location:

1. Click “Add Storage Location not in list.” This opens the “Add an Archive Storage Location” dialog box.

ation Web page, you cannot modify the camera’s image quality in DS.

e is selected, and then click OK. To configure an existing IP camera, click Edit IP Camera.

ra. To delete an existing IP camera from the VAU, click Delete IP Camera;

Figure 8. Network Storage Page

C3663M-B (11/09) 15

2. Enter a uniform naming convention (UNC) share name for the storage location. A valid UNC share name begins with two backward slashes and contains the network name of the storage unit in which it is installed.

3. Enter a minimum amount of free space (in MB) that you want the storage location to maintain.

4. If you want to enable caching, arrays.

5. Click Save. The storage location is then in location, select Activate Storage Location.

After a network storage location is activated, it appears on the Storage Locations tab of each VAU. You can then select all activat storage locations for the VAU to copy files to.

To edit the UNC share name for a network storage location, select it an network storage location, select it and click “Delete a Storage Location.”

VIDEO STORAGE OPTIONS

The Video Storage Options directory (refer to Figure 9) allows you to configure the length of time that video is stored on a DS system before it is automatically deleted.

select Use Caching. Caching is typically used to increase performance on storage devices that employ RAID

cluded in the list of locations assigned to the selected computer. To begin saving video to the

ed network

d click “Edit UNC Path for Storage Location.” To completely remove a

Figure 9. Video Storage Options

The Video Storage Options section configures the storage options available for each camera. The value you select for the “First storage option” and “Second storage option” will appear in the drop-down menus on the camera configuration pages. For example, if you keep the default storage options (10 and 30 days), the Retain Video drop-down arrow on the Motion Storage tab for all cameras will contain options to store video as long as possible: 10 days or 30 days.

The Video Storage Options section also allows you to configure how lo 0 (zero) days, the alarm video will be saved for the same amount of time you select for motion video on the Motion Storage tab. Otherwise, the alarm video will be saved for the number of days you select in the Video Storage Options section.

Alternatively, you can select the “Force video to be deleted after” option in the Video Storage Options section. To do this, select the check and enter the number of days. This option overrides the other video storage options.

You can also enter an “Expected number of day(s).” If vide is displayed.

NOTES:

• Activating or modifying the “Force video to be deleted after” op recorded before you modify this option follows the setting configured at the time the video was recorded.

• On some systems, a message might reached. If this occurs, reconfigure the camera record settings or storage rules, or add more storage capacity to the system.

continually appear stating that video is being deleted before the anticipated storage duration is

o is deleted (because of lack of space) before this number of days, a warning message

ng alarm video is saved before it is automatically deleted. If you select

box

tion affects only the video recorded after you make the change. Any video

16 C3663M-B (11/09)

ADDING AND CONFIGURING CAMERAS

After you add cameras to a system, you can configure them by clicking the respective name under any of the Cameras directories in which they are shown.

NOTE: If you click a Cameras directory, any configuration changes are app “Apply To All Cameras in Folder.” This feature is not available on the Motion tab; it is unlikely that a user would want the identical motion mask on multiple cameras.

lied to all cameras in that directory. After you make the changes, click

GENERAL

The General tab allows you to configure several camera settings (refer to Figure 10):

Figure 10. General Tab Within Cameras Tab

Features

• Edit IP Camera Settings: Refer to Configuring IP Cameras on page 14.

• Frame Rate: actually set the frame rate; it only establishes the Fast, Medium, and Slow settings used on the Time-lapse Storage and Motion Storage tabs. Select the frame rate per minute for each speed setting; the rate per second is automatically updated.

• Associated Audio

• Maximum V camera begins recording an alarm or motion event, you may want to record a certain amount of time before the event. The Maximum Video Buffer value limits the amount of video that can be inserted at the beginning of any recorded event. This value is limited by the amount of RAM available in the VAU. Refer to the Motion tab description in this section for information about setting pre-alarm and pre-motion recording values for individual cameras.

• IP Camera Co

• Motion Detection: Selec Detection in IP Camera” to enable the motion detection settings that are configured directly on the IP camera (refer to Motion on page 18).

• Cov

• CameraPort Name: Th

• Camera Name: T

• Description: Th

• VA

• Input De

Changes on the General tab are implemented at the next time interval: 0 (zero), 15, 30, or 45 minutes after the hour.

ert Camera: Identifies this camera as covert when assigning camera permissions in the User Administration procedure.

U: The VAU to which the camera’s input device is connected.

The number of images recorded per second and per minute by the selected camera. This field on the General tab does not

Channel: Not used with DS NVR and DS NVs.

ideo Buffer: The maximum amount of time (in seconds) you can save video for pre-alarm or pre-motion recording. If the

nfiguration Web Page: Refer to Configuring IP Cameras on page 14.

t Use Integral Motion Detection to enable settings on the Motion tab. Alternatively, you can select “Use

e default name of the camera input. You cannot change this name.

he name of the camera as it appears in the client software. You can change this name as desired.

e camera’s location or other identifying information.

vice Name and Input #: The type of video input device and the input number to which the camera is connected.

C3663M-B (11/09) 17

+ 39 hidden pages
