Pelco C636M-E User Manual
INSTALLATION MANUAL
DX9100 Digital Video
Recorder & DX9100
®
Viewstation
C636M-E (4/05)
CONTENTS
Section Page
IMPORTANT SAFETY INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
REGULATORY NOTICES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
MODELS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
FRONT VIEW (RECORDER) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
BACK VIEW (RECORDER) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
FRONT VIEW (VIEWSTATION) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
BACK VIEW (VIEWSTATION) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
INSTALLATION GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
MOUNTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
CONNECTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
WIRING ALARMS AND RELAYS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
POWER UP THE EQUIPMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
PROGRAMMING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
VIEWSTATION NETWORK CONFIGURATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
CHANGING THE VIEWSTATION’S IDENTIFICATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
CHANGING THE VIEWSTATION’S IP ADDRESS AND SUBNET MASK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
CHANGING THE RECORDER’S IDENTIFICATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
TIME SYNCHRONIZATION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
SETTING DATE/TIME PROPERTIES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
CLIENT CONFIGURATION UTILITY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
RECORDER INITIALIZATION OPTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
SERVER STATE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
DATABASE BACKUP AND REPAIR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
ADVANCED RECORDER OPTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
DATABASE RESTORATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
CONFIGURING STANDARD ALARM AND RELAY PROPERTIES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
CAMERA RECORDING PROPERTIES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
CONTINUOUS RECORDING SCHEDULE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
DAILY RECORDING SCHEDULE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
WEEKLY RECORDING SCHEDULE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
MOTION DETECTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
CHANNEL SETUP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
DEFINING USERS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
EDIT EXISTING USERS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
ADDING A NEW USER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
DELETING A USER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
ADVANCED FEATURES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
I/O INTERFACE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
I/O HANDLER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
I/O MANAGER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
CONNECTING AN ALARM UNIT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
ALARM UNIT CONFIGURATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
I/O MANAGER FOR ALARM UNIT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
CONNECTING A RELAY UNIT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
RELAY UNIT CONFIGURATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
I/O MANAGER FOR RELAY UNIT. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
CONNECTING A CM9760-CC1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
CONNECTING A CM6800 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
DATA TRANSLATOR CONFIGURATION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
I/O MANAGER FOR DATA TRANSLATOR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
DVR MANAGEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
2 C636M-E (4/05)
DATA TRANSLATOR CONNECTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
CONFIGURING THE DATA TRANSLATOR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
RELAY UNIT CONNECTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
CONFIGURING THE RELAY UNIT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
FOREIGN LANGUAGE PROGRAMMING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
SPECIFICATIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
WARRANTY AND RETURN INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
C636M-E (4/05) 3
LIST OF ILLUSTRATIONS
Figure Page
1. DX9100 System Overview ................................................................................................................................................................................ 9
2. Front View of Recorder ....................................................................................................................................................................................11
3. Back View of Recorder .................................................................................................................................................................................... 12
4. Front View of Viewstation ...............................................................................................................................................................................13
5. Back View of Viewstation ............................................................................................................................................................................... 14
6. DX9100 Rack Mount Installation .................................................................................................................................................................... 18
7. Hasp Key Message ..........................................................................................................................................................................................19
8. System Connections ........................................................................................................................................................................................ 20
9. Alarm and Relay Wiring .................................................................................................................................................................................. 21
10. Viewstation Network Identification Page ....................................................................................................................................................... 24
11. Viewstation Identification Changes Dialog Box.............................................................................................................................................. 24
12. Viewstation Network Connections Window ................................................................................................................................................... 25
13. Viewstation Local Area Connection Status Dialog Box .................................................................................................................................. 25
14. Viewstation Local Area Connection Properties Dialog Box ............................................................................................................................ 26
15. Viewstation Internet Protocol (TCP/IP) Properties Dialog Box ........................................................................................................................ 26
16. Server Configuration Utility Dialog Box .......................................................................................................................................................... 27
17. Server Identification Dialog Box ..................................................................................................................................................................... 27
18. Date & Time Page............................................................................................................................................................................................ 29
19. Time Zone Page ............................................................................................................................................................................................... 29
20. Client Configuration Login Dialog Box ............................................................................................................................................................ 30
21. Client Configuration Utility .............................................................................................................................................................................. 30
22. Export to Server Dialog Box ............................................................................................................................................................................ 31
23. DX9116H Frame Rate and Resolution ............................................................................................................................................................. 32
24. DX9116F Frame Rate and Resolution ..............................................................................................................................................................32
25. License Information Dialog Box ...................................................................................................................................................................... 32
26. Server State ..................................................................................................................................................................................................... 34
27. Configuration Options ..................................................................................................................................................................................... 34
28. Error Alert ........................................................................................................................................................................................................ 34
29. Advanced Options ........................................................................................................................................................................................... 36
30. Database Backup and Repair Confirmation .................................................................................................................................................... 36
31. System Tray ..................................................................................................................................................................................................... 37
32. Server Service Manager Window ................................................................................................................................................................... 37
33. Stop SQL Dialog Box 1 .................................................................................................................................................................................... 37
34. Stop SQL Dialog Box 2 .................................................................................................................................................................................... 37
35. Start/Continue Window .................................................................................................................................................................................. 38
36. My Computer Window .................................................................................................................................................................................... 38
37. Databases Window ......................................................................................................................................................................................... 39
38. Rename MSSQL .............................................................................................................................................................................................. 39
39. C Drive Databases Window ............................................................................................................................................................................ 40
40. MSSQL Folders ................................................................................................................................................................................................ 40
41. Start/Continue Window .................................................................................................................................................................................. 41
42. Database Backups Window ............................................................................................................................................................................ 41
43. Explorer Windows ........................................................................................................................................................................................... 42
44. Restore Utility Dialog Box ............................................................................................................................................................................... 42
45. System Tray ..................................................................................................................................................................................................... 42
46. Server Service Manager Window ................................................................................................................................................................... 43
47. Stop SQL Dialog Box 1 .................................................................................................................................................................................... 43
48. Stop SQL Dialog Box 2 .................................................................................................................................................................................... 43
49. Start/Continue Window .................................................................................................................................................................................. 43
50. Replace Database Dialog Box ......................................................................................................................................................................... 44
51. Restore Confirmation Dialog Box .................................................................................................................................................................... 44
52. Operation Completed Dialog Box .................................................................................................................................................................... 44
53. Maintenance Dialog Box ................................................................................................................................................................................. 44
54. Finished Scan Dialog Box ................................................................................................................................................................................ 45
55. Finished Merging Dialog Box .......................................................................................................................................................................... 45
4 C636M-E (4/05)
56. I/O Ports Driver Dialog Box ............................................................................................................................................................................. 46
57. Alarm Modes/Relay Intervals Dialog Box ....................................................................................................................................................... 46
58. Camera Properties Dialog Box ........................................................................................................................................................................ 47
59. Select Channel Dialog Box .............................................................................................................................................................................. 48
60. Continuous Recording Schedule Page ............................................................................................................................................................ 48
61. Continuous Daily Recording Schedule Page ................................................................................................................................................... 49

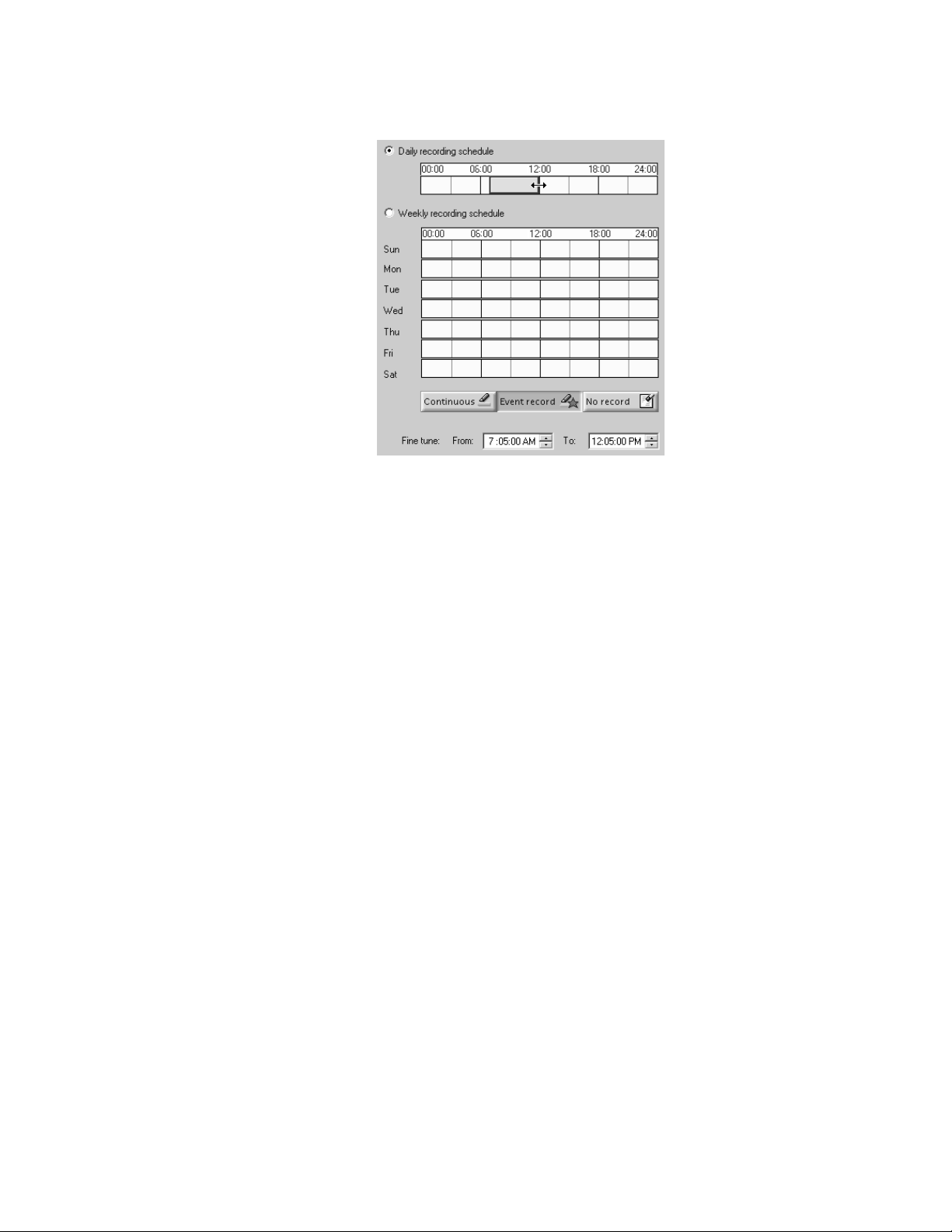

62. Daily Event Recording Page ............................................................................................................................................................................ 50
63. Continuous Weekly Recording Schedule Page ............................................................................................................................................... 51
64. Weekly Event Recording Schedule Page......................................................................................................................................................... 51
65. Motion Detection Page ................................................................................................................................................................................... 52
66. Camera Video Setup Page ...............................................................................................................................................................................53
67. User Access Dialog Box .................................................................................................................................................................................. 55

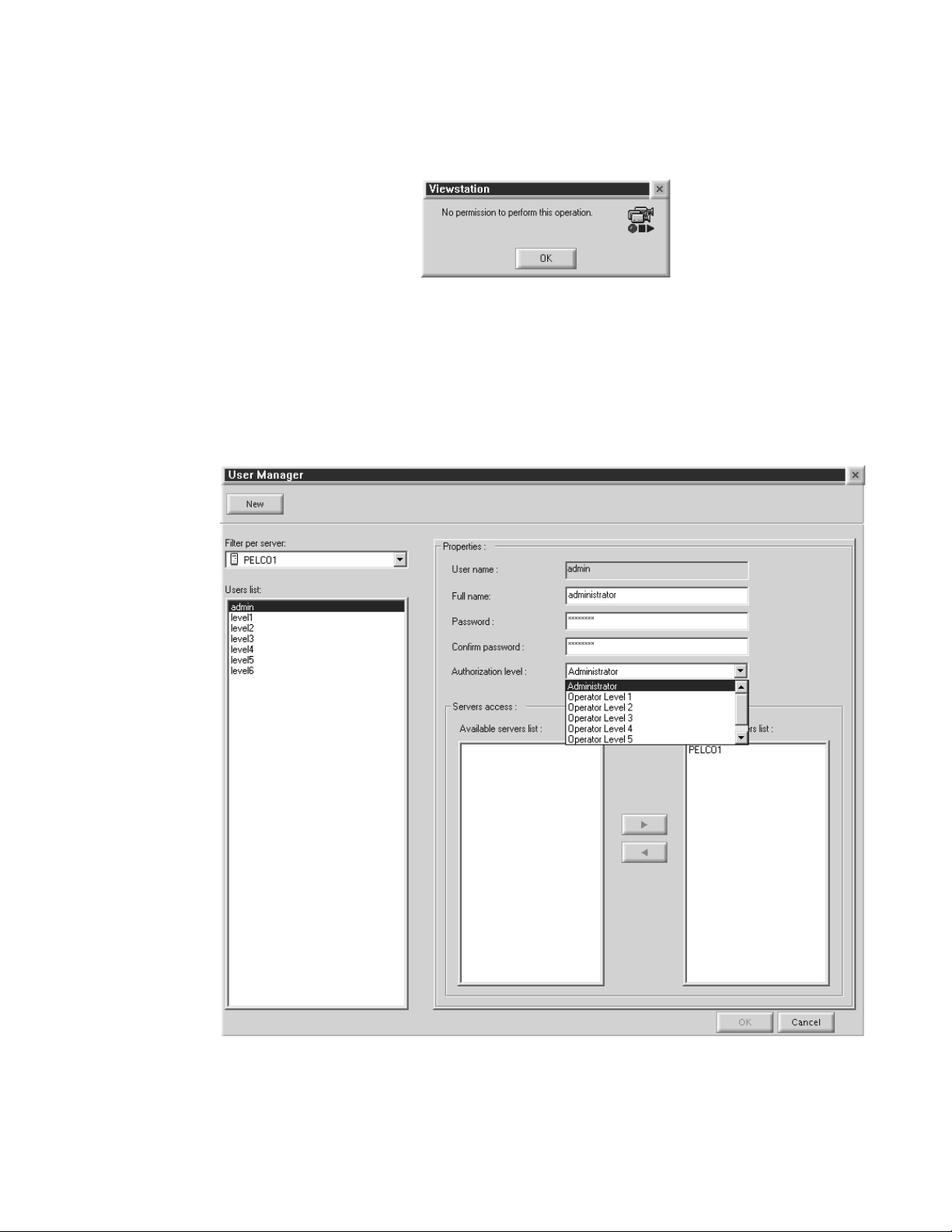

68. User Manager Dialog Box ............................................................................................................................................................................... 55
69. Connecting a CM9760-ALM ............................................................................................................................................................................ 58

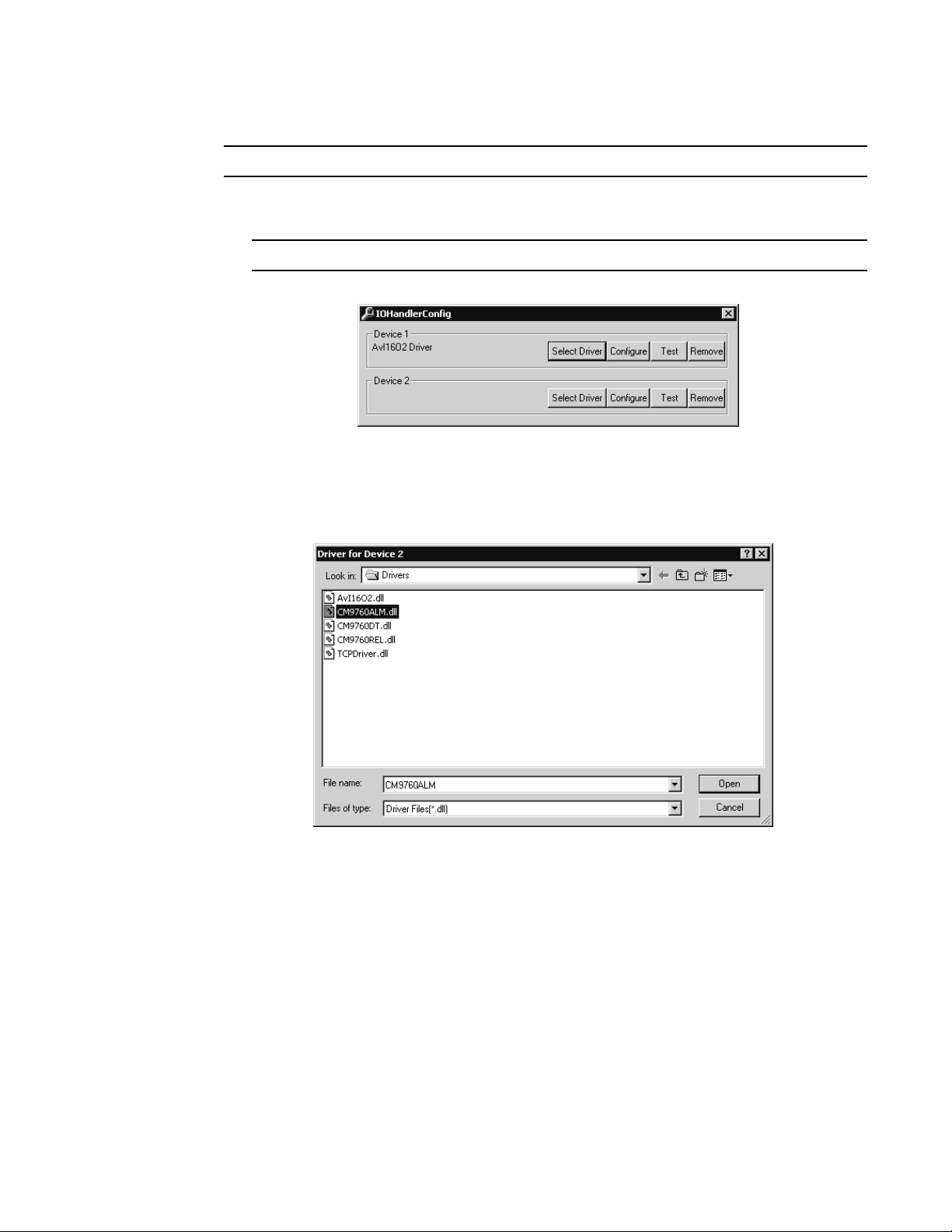

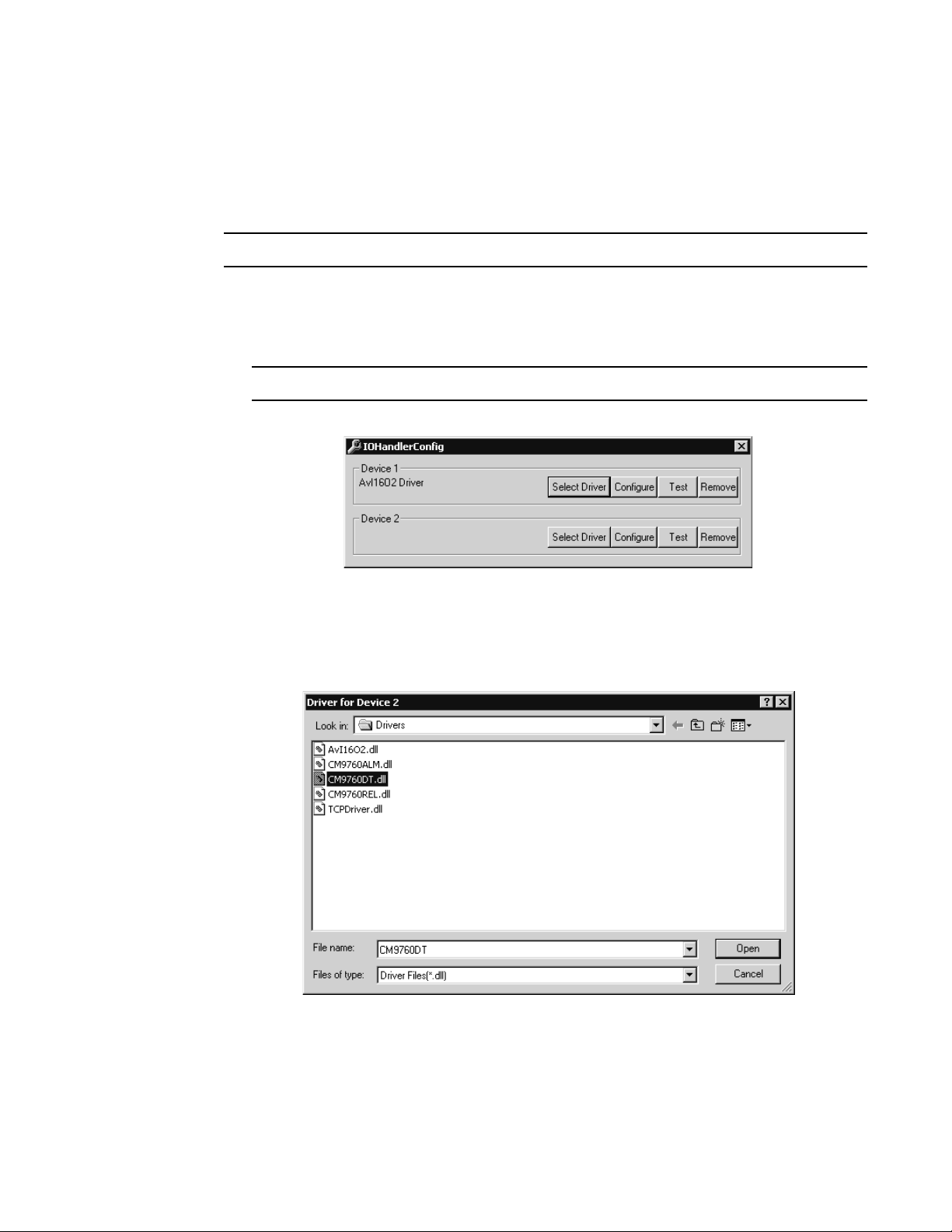

70. Alarm I/O Handler Configuration Dialog Box .................................................................................................................................................. 59
71. CM9760 Alarm Driver Dialog Box ................................................................................................................................................................... 59
72. Device 2 Alarm Driver Dialog Box ................................................................................................................................................................... 60
73. CM9760 Alarm Configuration Dialog Box ....................................................................................................................................................... 60
74. Dialog Box to Configure External 1 Source ..................................................................................................................................................... 61
75. Sample Configuration for External 1 Source ................................................................................................................................................... 62
76. Dialog Box to Configure External 2 Source ..................................................................................................................................................... 63
77. Connecting a CM9760-REL .............................................................................................................................................................................. 64

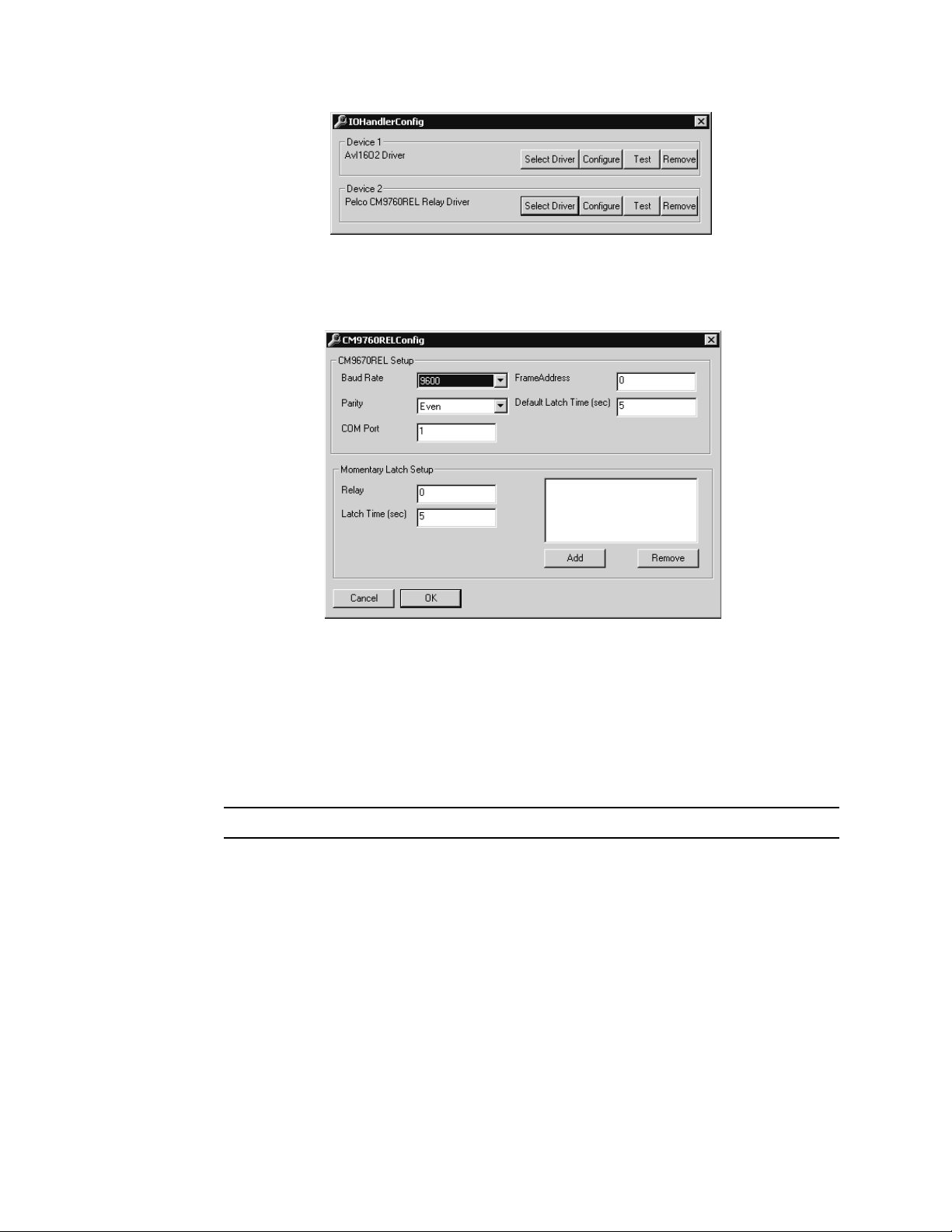

78. Relay I/O Handler Dialog Box .......................................................................................................................................................................... 65
79. CM9760 Relay Driver Dialog Box .................................................................................................................................................................... 65
80. Device 1 Relay Driver Dialog Box .................................................................................................................................................................... 66
81. CM9760 Relay Configuration Dialog Box ........................................................................................................................................................ 66

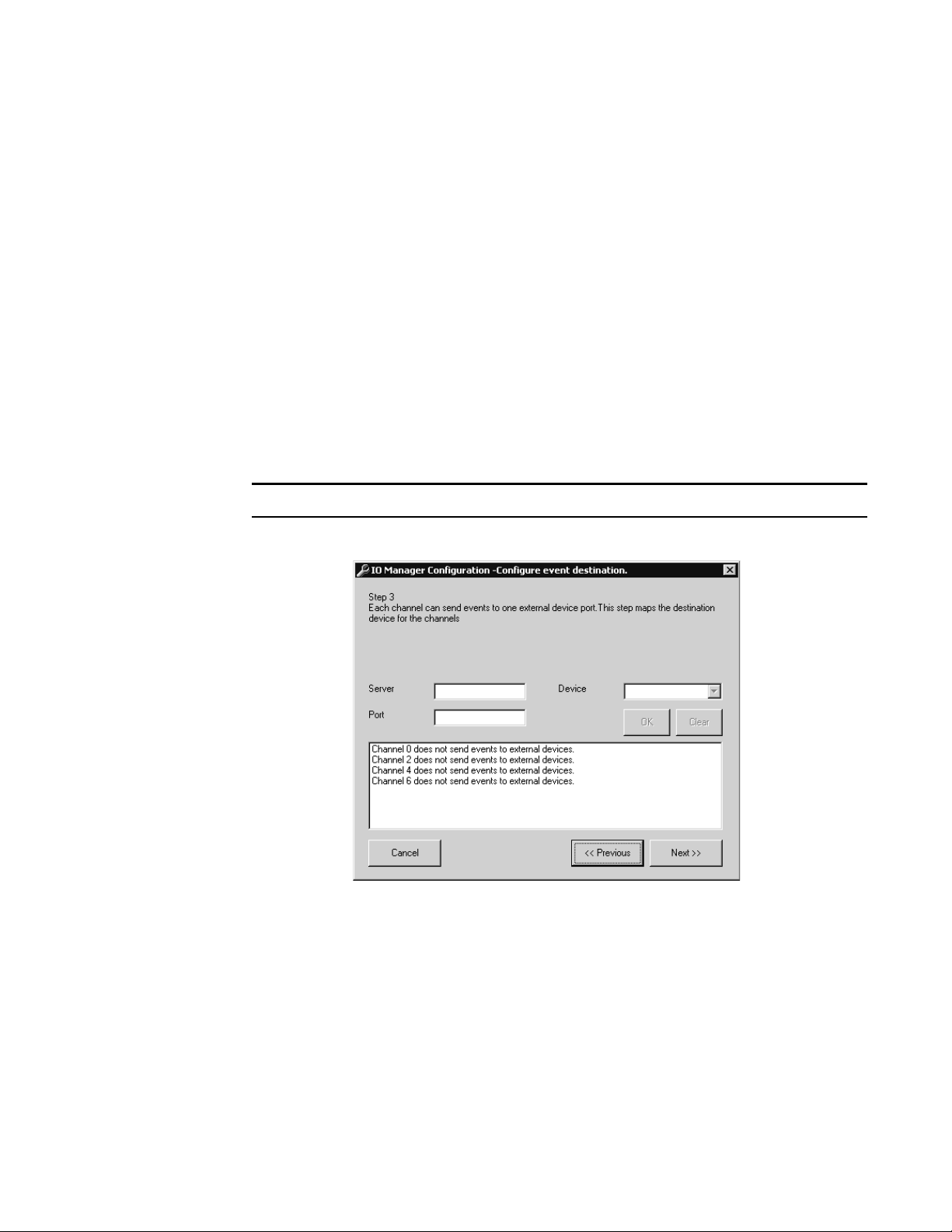

82. Relay Unit Step 3 Screen ................................................................................................................................................................................ 67
83. Dialog Box to Configure Relay Event Type ...................................................................................................................................................... 69

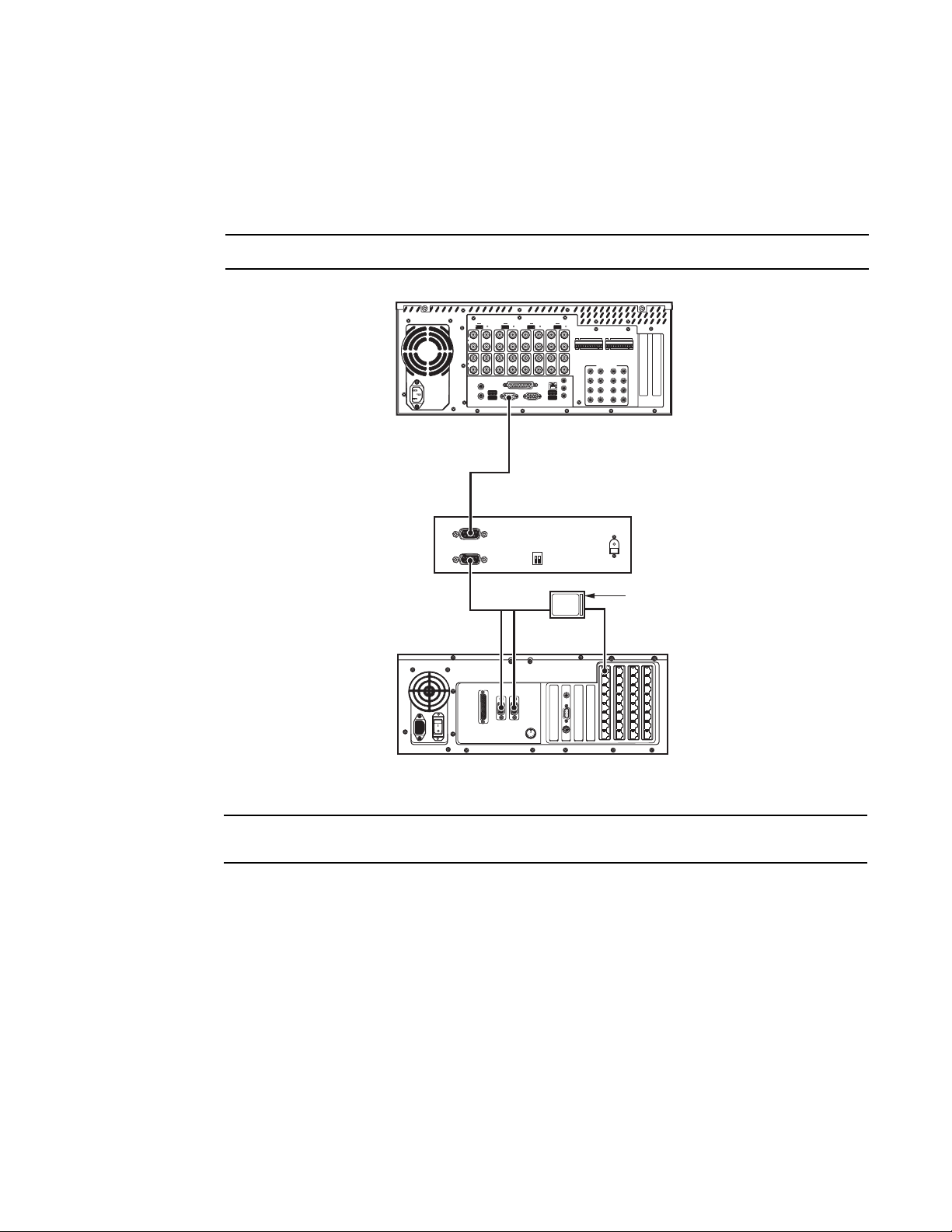

84. Connecting a CM9760-CC1 ............................................................................................................................................................................. 69
85. Connecting a CM6800 ..................................................................................................................................................................................... 70
86. Data Translator I/O Handler Configuration Dialog Box ...................................................................................................................................71
87. CM9760 Data Translator Driver Dialog Box .................................................................................................................................................... 71
88. Device 1 Data Translator Driver Dialog Box ....................................................................................................................................................72
89. CM9760 Relay Configuration Dialog Box ........................................................................................................................................................ 72
90. Dialog Box to Configure Data Translator......................................................................................................................................................... 73
91. Dialog Box to Configure Data Translator Event Type ......................................................................................................................................74

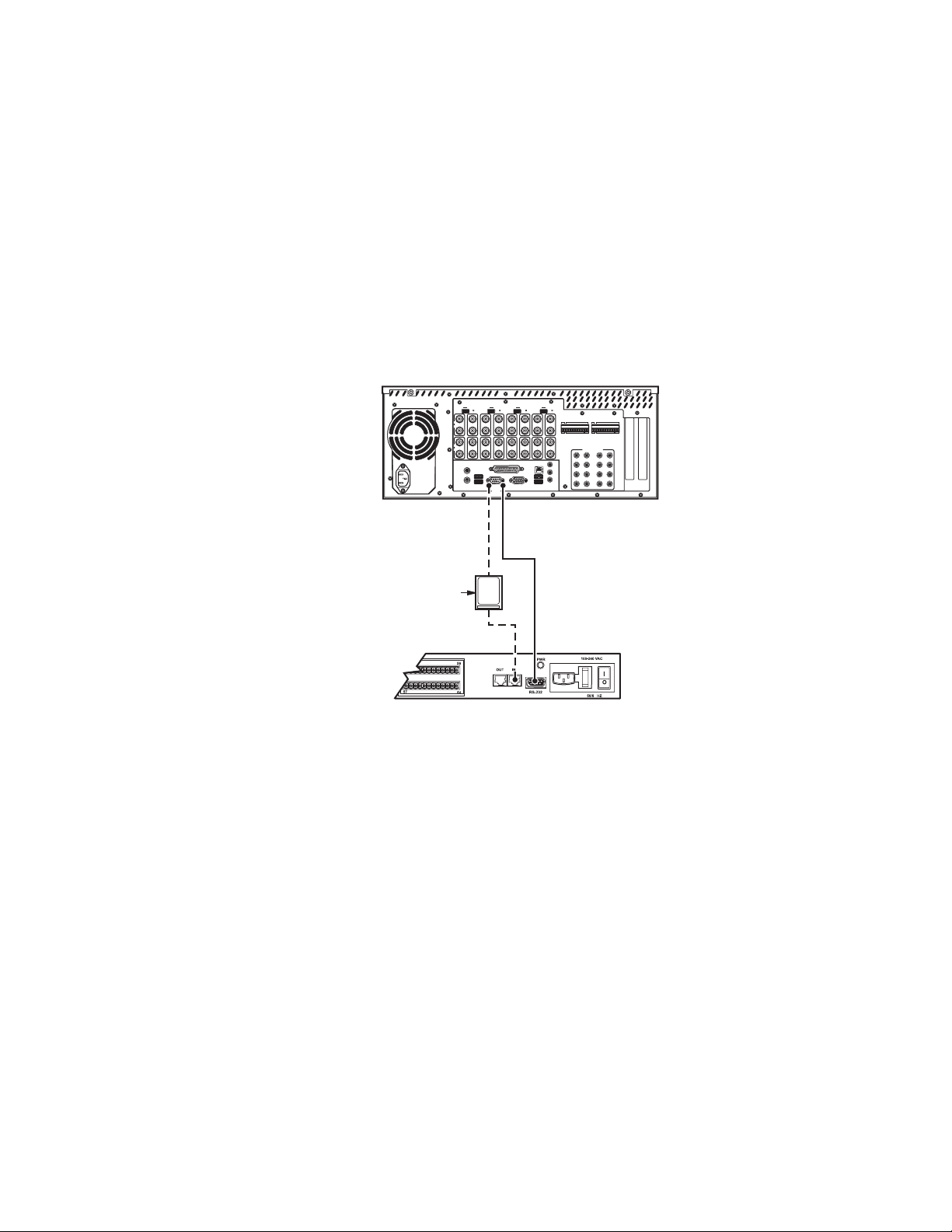

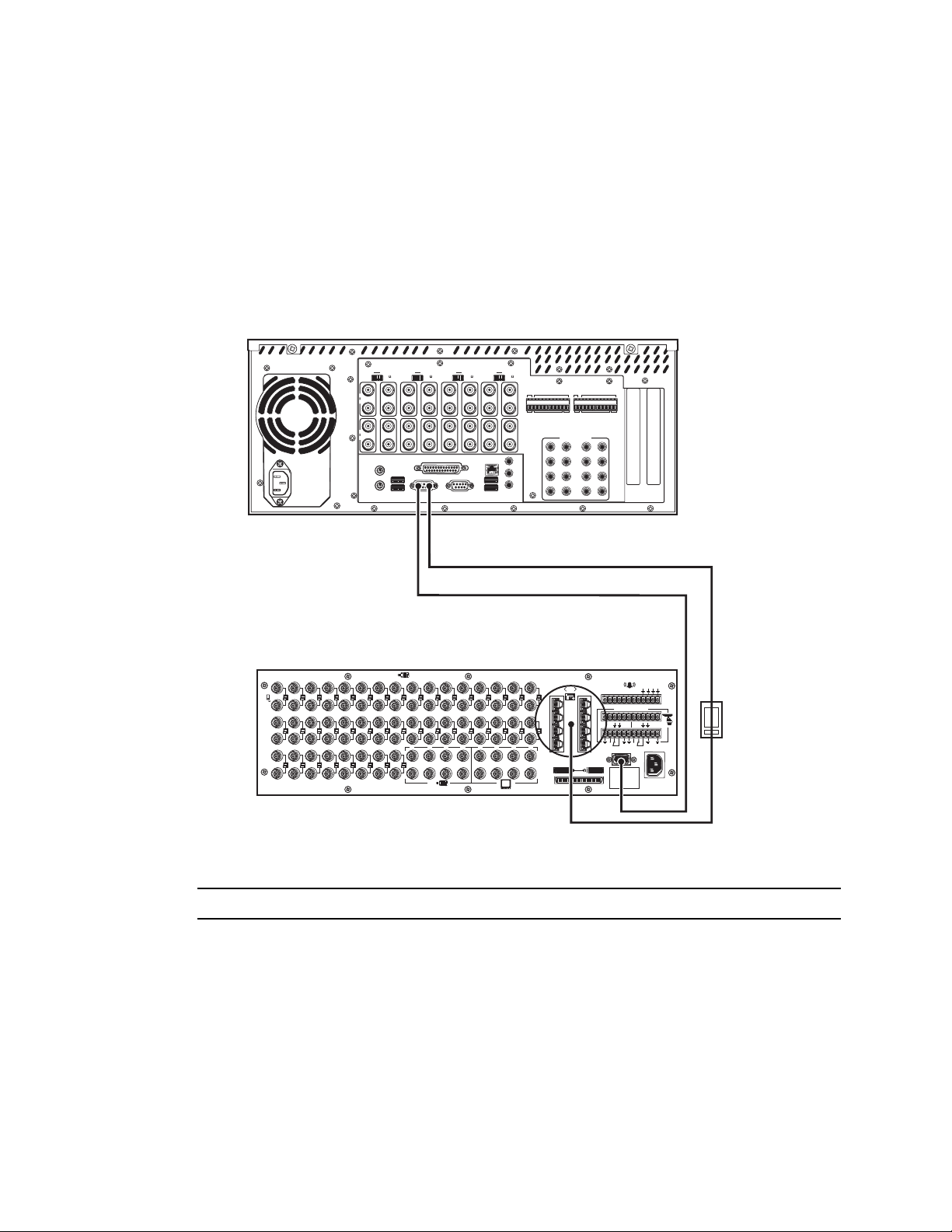

92. Connecting a CM9760-DT for DVR Management ........................................................................................................................................... 75

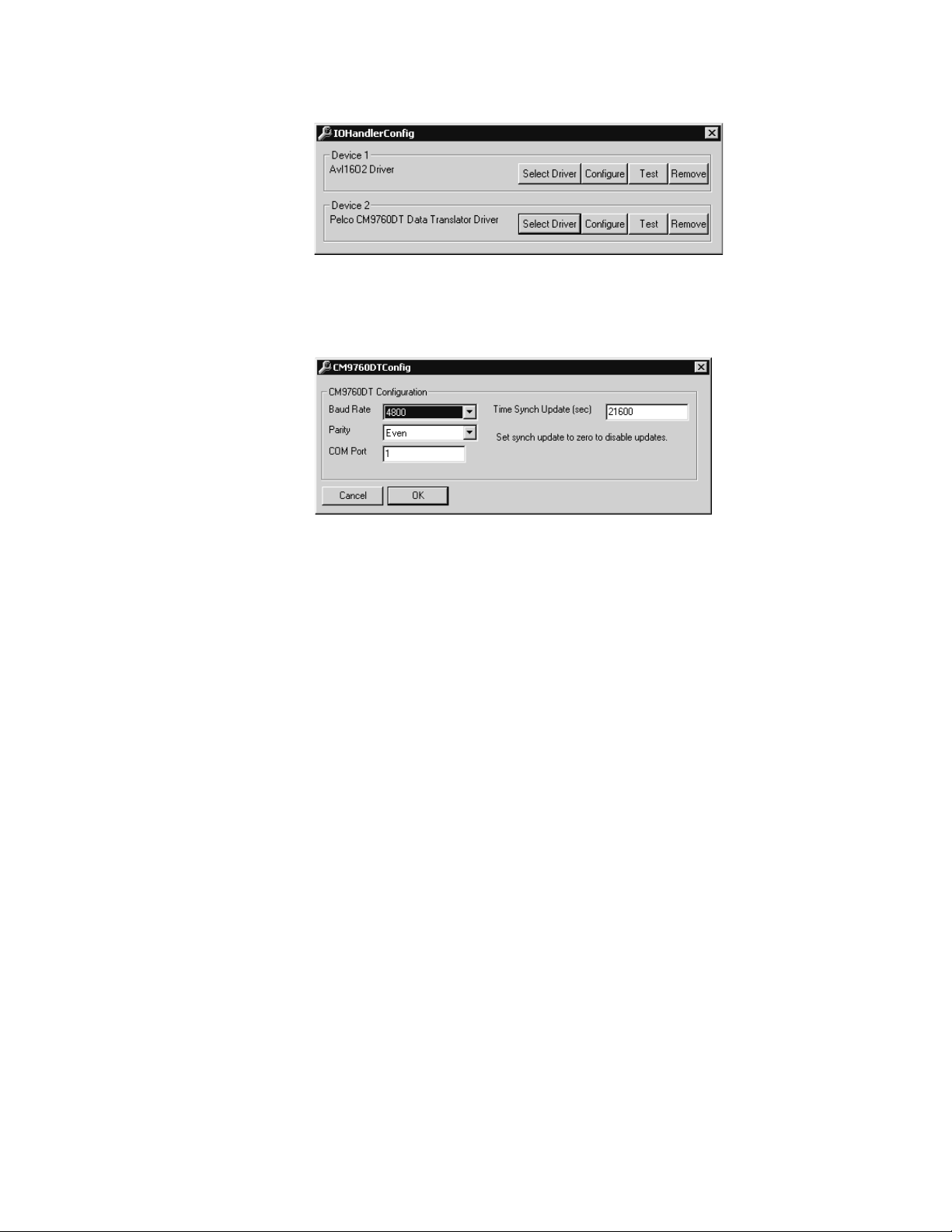

93. Data Translator Configuration Dialog Box....................................................................................................................................................... 76
94. Data Translator Driver Dialog Box ................................................................................................................................................................... 76
95. Data Translator Driver Settings Dialog Box .................................................................................................................................................... 76
96. CM9760-DT Configuration .............................................................................................................................................................................. 77
97. Connecting a CM9760-REL for DVR Management ......................................................................................................................................... 78
98. Relay Unit Configuration Dialog Box ............................................................................................................................................................... 79
99. Relay Unit Driver Dialog Box ........................................................................................................................................................................... 79
100. Relay Unit Driver Settings Dialog Box ............................................................................................................................................................ 79
101. CM9760-REL Configuration Dialog Box .......................................................................................................................................................... 80
102. Change System Location ................................................................................................................................................................................. 81
103. Select System Location ................................................................................................................................................................................... 82
C636M-E (4/05) 5
LIST OF TABLES
Table Page
A. Server State Symbols ...................................................................................................................................................................................... 34
B. Channel Setup ................................................................................................................................................................................................. 54
C. User Access Rights .......................................................................................................................................................................................... 56
6 C636M-E (4/05)
IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers)
that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider
than the other. A grounding plug has two blades and a third grounding prong. The wide blade or the third prong are
provided for your safety. If the provided plug does not fit into your outlet consult an electrician for replacement of the
obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the points
where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a
cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
13. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way,
such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
14. Apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases shall be
placed on the apparatus.
15. WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.
16. Installation should be done only by qualified personnel and conform to all local codes.
17. Use only installation methods and materials capable of supporting four times the maximum specified load.
The socket-outlet shall be installed near the equipment and shall be easily accessible.
CAUTION: These servicing instructions are for use by qualified service personnel only. To reduce the risk of electric shock do
not perform any servicing other that contained in the operating instructions unless you are qualified to do so.
CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type. Dispose of
used batteries according to the instructions provided by the battery manufacturer.
Only use replacement parts recommended by Pelco.DESCRIPTION
C636M-E (4/05) 7
REGULATORY NOTICES
DX9100DVR Series
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not
cause harmful interference, and (2) this device must accept any interference received, including interference that may cause
undesired operation.
RADIO AND TELEVISION INTERFERENCE
This equipment has been tested and found to comply with the limits of a Class B digital device, pursuant to part 15 of the FCC
rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated
in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and
used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the
interference at his own expense.
In order to maintain compliance with FCC regulations shielded cables must be used with this equipment. Operation with
non-approved equipment or unshielded cables is likely to result in interference to radio and television reception.
DX9100VSR
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not
cause harmful interference, and (2) this device must accept any interference received, including interference that may cause
undesired operation.
RADIO AND TELEVISION INTERFERENCE
This equipment has been tested and found to comply with the limits of a Class A digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required
to correct the interference at his own expense.
Changes and modifications not expressly approved by the manufacturer or registrant of this equipment can void your authority
to operate this equipment under Federal Communications Commission’s rules.
This Class A digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe A est conforme á la norme NMB-003 du Canada.
8 C636M-E (4/05)
DESCRIPTION
The DX9100 system consists of at least one digital video recorder (DVR) and one viewstation.
The DX9100 digital video recorder has these features:
• 16 video inputs
• Internal hard disk storage drive
• Compatibility with existing DX9000 recorders with C1.1 software
• Compatibility with DX9100VS viewstations
• 16 alarm inputs and 2 relay outputs
• USB connectors
Thousands of cameras can be recorded and viewed at the same time when multiple DX9100 recorders and DX9100
viewstations are linked to each other through a local area network (LAN) or wide area network (WAN).
The DX9100VS viewstation has these features:
• Simultaneous viewing of live or recorded video can be seen from as many as four cameras.
• Live video can be marked for later review by the user or by using the motion detection feature.
• Scan feature allows the user to search recorded video for movement of a specific object.
•Video files can be saved in MPEG format to a compact disk, hard drive, or anywhere on the network.
•A current video frame can be printed on a standard PC printer.
IMPORTANT NOTE. PLEASE READ. The network implementations in this document are shown as general representations
only and are not intended to show detailed network topologies. Your actual network will differ, requiring changes or perhaps
additional network equipment to accomodate the systems as illustrated. Please contact your local Pelco Representative to
discuss your specific requirements.
VIEWSTATION 1
VIEWSTATION 2
VIEWSTATION 3
ETHERNET SWITCH
RECORDER 1
RECORDER 2
RECORDER 3
Figure 1. DX9100 System Overview
C636M-E (4/05) 9
MODELS
DX9100VSR Viewstation; rack mountable
DX9116H-500 Digital video recorder; records at 7.5 or 15 images per second (ips) at CIF resolution; 500 GB internal
storage
DX9116H-750 Same as the DX9116H-500 except has 750 GB internal storage
DX9116H-1000 Same as the DX9116H-500 except has 1,000 GB internal storage
DX9116H-1250 Same as the DX9116H-500 except has 1,250 GB internal storage
DX9116H-1500 Same as the DX9116H-500 except has 1,500 GB internal storage
DX9116F-500 Digital video recorder; records at 7.5, 15, or 30 ips at CIF resolution or at 7.5 or 15 ips at 2CIF resolution;
500 GB internal storage
DX9116F-750 Same as the DX9116F-500 except has 750 GB internal storage
DX9116F-1000 Same as the DX9116F-500 except has 1,000 GB internal storage
DX9116F-1250 Same as the DX9116F-500 except has 1,250 GB internal storage
DX9116F-1500 Same as the DX9116F-500 except has 1,500 GB internal storage
10 C636M-E (4/05)
FRONT VIEW (RECORDER)
Power LED
HDD (Hard Disk Drive) LED
Handle (2)
Rack Ear (2)
Fan Ventilation
Lock (2 Keys Supplied)
Power Button
Fan (2)
Figure 2. Front View of Recorder
C636M-E (4/05) 11
BACK VIEW (RECORDER)
Video Looping Output Coaxial Connector (16)
Video Input Coaxial Connector (16)
Video Termination Switch (4)
Alarm Inputs (16) and Relay Outputs (2)
Audio Inputs (Reserved for Future Use)
RJ-45 Network Connector
USB Port for HASP USB Key
VGA Connector
RS-232 Connector
Parallel Port (Not Used)
PS/2 Connectors (Keyboard/Mouse)
Power Input (100-240 VAC)
14
Term
Loop
In
12
Out
In
9101112 13 14 15 16
Out
912
75
Term
HI-Z
Loop
3
58
75
Term
HI-Z
Loop
45678
13 16
75
Term
HI-Z
Loop
75
HI-Z
Rel AlarmInputs Rel AlarmInputs
112345678Com
15 913
26 1014
37 1115
48 1216
2
AUDIO INPUTS
Figure 3. Back View of Recorder
910111213141516Com
12 C636M-E (4/05)
FRONT VIEW (VIEWSTATION)
Power LED
HDD (Hard Disk Drive) LED
Key Lock (2 Keys Supplied)
Fan Ventilation
Handles
Rack Ears
Fan
Power Button
DVD-RW/CD-RW
3.5-Inch Floppy Drive
Figure 4. Front View of Viewstation
C636M-E (4/05) 13
BACK VIEW (VIEWSTATION)
Power Input (100-240 VAC)
PS/2 Connectors (Keyboard/Mouse)
Secondary RJ-45 Network Connector
USB Ports
RS-232 Connector (COM 1)
Parallel Port
Primary RJ-45 Network Connector
Audio Inputs (Line In, Line Out/Headphone, Microphone In)
VGA Connectors
Modem Connectors
RS-232 Connector (COM 2)
Figure 5. Back View of Viewstation
14 C636M-E (4/05)
INSTALLATION
Make sure all parts are present for each unit.
Recorder
1 Recorder
2 Power cords (1 USA standard and 1 European standard)
2 Brackets
2 Rack ears
2 Rear mounting rails
2 Front mounting rails
2 Keys
1 Windows® 2000 license label (on unit)
1 pcAnywhere™ package
1 Resource CD
1 USB HASP key
Viewstation
1Viewstation
2 Power cords (1 USA standard and 1 European standard)
1 PS/2 keyboard
1 PS/2 mouse
1 Analog video output adapter cable
1 Modem cable
2 Brackets
2 Rack ears
2 Rear mounting rails
2 Front mounting rails
2 Keys
1 Windows 2000 license label (on unit)
1 pcAnywhere package
1 Resource CD
6 Screws, 8-32 x .250-inch, pan head
4 Screws, 10-32 x .250-inch, flat head
4 Screws, 10-32 x .750-inch, Phillips, pan head with washers
8 Screws, 10-32 x .375-inch, flat head
6 Screws, 8-32 x .375-inch, pan head with washers
4 Screws, 10-32 x .375-inch, flat head
6 Screws, 8-32 x .250-inch, pan head
4 Screws, 10-32 x .250-inch, flat head
4 Screws, 10-32 x .750-inch, Phillips, pan head with washers
8 Screws, 10-32 x .375-inch, flat head
6 Screws, 8-32 x .375-inch, pan head with washers
4 Screws, 10-32 x .375-inch, flat head
C636M-E (4/05) 15
INSTALLATION GUIDELINES
Follow these guidelines for the best system performance.
• The DX9100 recorders require connection to an uninterruptible power supply (UPS) to ensure no corruption of data during
a power loss.
• The DX9100 system must be installed in a climate-controlled room. The temperature range should be 41° to 85°F (5° to 29°C).
• All network devices that will transport DX9100 video must be capable of moving multicast traffic.
• Pelco recommends that the DX9100 recorder be installed in a ventilated rack enclosure.
• When securing the recorder to the rack enclosure, do not lift the recorder by the handles only.
• Make sure the rack enclosure is properly grounded.
• Pelco recommends that a spare phone line be installed and connected to a primary DX9100 viewstation to allow the
Pelco Technical Support Group to dial into the site upon customer request. Pelco personnel will not make changes unless
authorized by the customer. This phone line can be protected by a password to prevent unauthorized access.
Lack of adherence to these guidelines gives Pelco discretion in honoring product warranty.
16 C636M-E (4/05)
MOUNTING
The DX9100 recorder and viewstation are supplied with the necessary parts for mounting into an industry standard 19-inch
(48.26 cm) wide equipment rack. The units can also be placed on a flat surface, such as a shelf.
CAUTION: The units should be installed in an air-conditioned room where the temperature is maintained between
41° and 86°F (5° and 29°C). Allow one rack unit (1.75 inches or 4.5 cm) of space between each unit on the rack for
air circulation.
C636M-E (4/05) 17
To install the unit into an equipment rack:
1. Attach the two brackets to both sides of the unit.
2. Attach the mounting rails to the equipment rack.
3. Place the unit onto the mounting rails. It should slide in and out of the rack easily.
4. Fasten the rack ears to the equipment rack.
RECORDER/VIEWSTATION
(4) SCREWS,
10-32 X .750-INCH
PHILLIPS, PAN HEAD
WITH WASHERS
FRONT MOUNTING RAIL
RACK
RACK EAR
REAR MOUNTING RAIL
BRACKET
(SIDE VIEW)
(6) SCREWS, 8-32 X .250-INCH
PAN HEAD
(6) SCREWS,
8-32 X .375-INCH,
PAN HEAD WITH
WASHERS
(4) SCREWS,
10-32 X .375-INCH
FLAT HEAD
(8) SCREWS,
10-32 X .375-INCH,
FLAT HEAD
SLOTTED HOLES
TOWARDS FRONT
OF UNIT
Figure 6. DX9100 Rack Mount Installation
TAPERED ENDS
TOWARDS REAR
OF UNIT
18 C636M-E (4/05)
CONNECTIONS
Refer to Figure 8.
1. Connect the viewstation to the recorder via an Ethernet switch. Use shielded network cables.
NOTE: Use a shielded cable, similar to Belden 1533P, that meets or exceeds the support requirements for ANSI/TIA/EIA
568B.2 Cat 5e.
2. Connect a monitor, keyboard, and mouse to the viewstation.
3. Connect cameras to the video input coaxial connectors on the recorders, and then set the termination switches to Term
(75 ohms). This is the factory default.
4. Connect looping video sources, such as monitors, to the video output coaxial connectors on the recorder and then set the
switches to Loop (HI-Z). You can then terminate at the final devices.
5. Connect a CM9760-REL, CM9760-ALM, or CM9760-DT to the RS-232 COM port. Refer to the
6. Wire alarms and relays. Refer to the
7. Plug the HASP (Hardware Against Software Piracy) USB key into the bottom right USB port on the recorder. A red light on
the key indicates that it is working properly. The key contains the product license and its configured permissions. The
following message appears if you do not plug in the HASP key:
8. Connect a monitor, keyboard, and mouse to the recorder. You can remove them after setup is complete.
9. Connect all power cords.
NOTE: The audio inputs on the rear of the recorder are reserved for future use.
Wiring Alarms and Relays
Figure 7. Hasp Key Message
section.
Advanced Features
section.
C636M-E (4/05) 19
MAXIMUM OF 16
10/100/1000 BASE-T ETHERNET INTERFACE:
ALLOWS MULTIPLE VIEWSTATIONS
AND RECORDERS
(INTO THE BOTTOM RIGHT USB PORT)
Figure 8. System Connections
20 C636M-E (4/05)
WIRING ALARMS AND RELAYS
The DX9100 provides 16 alarm inputs and two relay outputs. Each alarm input and relay output can be matched to a video
input. For example, alarm input 5 can match video input 3 and relay 1.
You can connect wires from the sensors to the respective alarm inputs on the connectors on the back panel of the DX9100.
Each sensor requires two wires. Follow the example below.
1. Connect a wire from Alarm 1 to alarm input 1.
2. Connect a wire from Alarm 1 to one of the Com terminals.
3. Connect a wire from Alarm 2 to alarm input 2.
4. Connect a wire from Alarm 2 to one of the Com terminals.
5. Connect wires to relay output 1.
Rel Alarm Inputs Rel Alarm Inputs
12345678Com 910111213141516Com
RELAY
OUTPUT
1
ALARM 1
RELAY
OUTPUT
2
ALARM 2
RELAY
OUTPUT
1
12345678
DOOR
NORMALLY
CLOSED
Figure 9. Alarm and Relay Wiring
Alarm sensors can be either N.O. (normally open) or N.C. (normally closed) contacts. The DX9100 is set to normally open as a
factory default. To change the default to normally closed, refer to the
Configuring Standard Alarms and Relay Properties
section.
C636M-E (4/05) 21
POWER UP THE EQUIPMENT
After you make all of the connections, turn on the recorder first and then the viewstation. The recorder applications start
automatically. There are four applications that should be running in order for the recorder to work:
• SQL Server Service Manager ( appears in system tray)
• Server Attendant
• Recording Server
•Time Synchronizer (
NOTE: The Time Synchronizer icon should also appear in the viewstation’s system tray to ensure that the recorder and
viewstation have the same time.
The pcAnywhere
™
recorders or viewstations.
appears in system tray)
application is preinstalled on all recorders and viewstations. You can use this application to access remote
22 C636M-E (4/05)
PROGRAMMING
VIEWSTATION NETWORK CONFIGURATION
After you make all connections, you have to configure the viewstation to work on the network. To configure the viewstation,
you need the following information. You can obtain this information from your network administrator.
• Unique viewstation name: (Examples are Pelcovs1, Pelcovs2, Pelcovs3, etc. This is the default naming scheme.)
• Unique IP address: (Examples are 100.0.0.201, 100.0.0.202, 100.0.0.203, etc. This is the default addressing scheme.)
• Network subnet mask: This must be the same on all recorders and viewstations. (For example, 255.0.0.0 is the default.)
• Computer workgroup name: This must be the same on all recorders and viewstations. (For example, DX9000_GROUP is
Each viewstation is identified by a logical IP address over a local area network (LAN). Each requires a unique IP address
for communication using TCP/IP protocol. The IP address identifies a system’s location on the network and must be
globally unique and have a uniform format.
the default.)
C636M-E (4/05) 23
CHANGING THE VIEWSTATION’S IDENTIFICATION
To change the default computer name or workgroup:
1. Close all windows on the viewstation desktop.
2. Right-click My Computer and then go to Properties.
3. Click the Network Identification tab. The following page appears.
Figure 10. Viewstation Network Identification Page
4. Click Properties. The following dialog box appears.
Figure 11. Viewstation Identification Changes Dialog Box
5. Enter the new computer name or workgroup.
6. Click OK.
7. Restart.
24 C636M-E (4/05)
CHANGING THE VIEWSTATION’S IP ADDRESS AND SUBNET MASK
To change the viewstation’s IP address:
1. Close all windows on the viewstation desktop.
2. Right-click My Network Places and then go to Properties. The following window appears.
Figure 12. Viewstation Network Connections Window
3. Double-click Local Area Connection. The following dialog box appears.
Figure 13. Viewstation Local Area Connection Status Dialog Box
C636M-E (4/05) 25
4. Click Properties. The following dialog box appears.
Figure 14. Viewstation Local Area Connection Properties Dialog Box
5. Make sure the “Show icon in taskbar when connected” checkbox is selected.
6. Double-click Internet Protocol (TCP/IP). The following dialog box appears.
Figure 15. Viewstation Internet Protocol (TCP/IP) Properties Dialog Box
7. Enter the IP address (for example, 100.0.0.201). The last three digits must be different for each viewstation (for example,
201, 202, 203, etc.).
8. Enter the subnet mask.
NOTE: You may also have to enter your default gateway address and your DNS server address(es).
9. Click OK, close all windows, and then restart the viewstation.
26 C636M-E (4/05)
Loading...
