CX9500/CX9504 Receivers
®
Coaxitron
System
Installation/Operation Manual
C505M-B (4/97)
Pelco • 3500 Pelco Way • Clovis, CA 93612-5699 • USA • www.pelco.com
(800) 289-9100 or (1-559) 292-1981 • FAX (800) 289-9150 or (1-559) 292-3827
International customers call (1-559) 292-1981 or FAX (1-559) 348-1120
CONTENTS
Section Page
1.0 GENERAL .................................................................................................. 1
1.1 IMPORTANT SAFEGUARDS AND WARNINGS ............................... 1
2.0 DESCRIPTION .......................................................................................... 2
2.1 MODELS ............................................................................................2
3.0 INSTALLATION ..........................................................................................3
3.1 SELECTING THE CORRECT RECEIVER FOR
YOUR APPLICATION ........................................................................ 3
3.1.1 The CX9500 Coaxitron VIS Control System ..........................3
3.1.2 The CX9504 4-Wire RS-485 Control System ........................ 4
3.2 CONNECTING THE RECEIVER ....................................................... 5
3.2.1 Connector Assembly .............................................................. 6
4.0 OPERATION ..............................................................................................7
5.0 CX9500 RECEIVER BOARD DESCRIPTIONS ......................................... 8
5.1 MOTHER BOARD ............................................................................. 8
5.2 OPTION BOARD ............................................................................... 9
5.3 UNIVERSAL AC POWER SUPPLY ................................................... 9
5.3.1 Transformer and Power Supply Circuits ................................ 9
5.3.2 Logic and Latch Circuits ........................................................ 9
5.3.3 Pan and Tilt Drive Circuit ....................................................... 9
5.3.4 Lens Power Supply Circuit ..................................................... 9
5.4 VARIABLE SPEED POWER SUPPLY............................................... 9
5.4.1 Power Supply and Camera Transformer Circuit .................... 9
5.4.2 Motor Driver Circuits ............................................................. 10
6.0 FIRMWARE DESCRIPTIONS................................................................... 13
6.1 BAUD RATES ...................................................................................13
6.2 PROGRAMMED AUX FUNCTIONS .................................................13
7.0 SPECIFICATIONS ....................................................................................14
8.0 WARRANTY AND RETURN INFORMATION ...........................................16
18 Pelco Manual C505M-B (4/97)
ii
LIST OF ILLUSTRATIONS
Figure Page
1 Typical Coaxitron Application .............................................................3
2 Typical RS-485 Control Applications .................................................. 4
3 Receiver Connector Locations ........................................................... 5

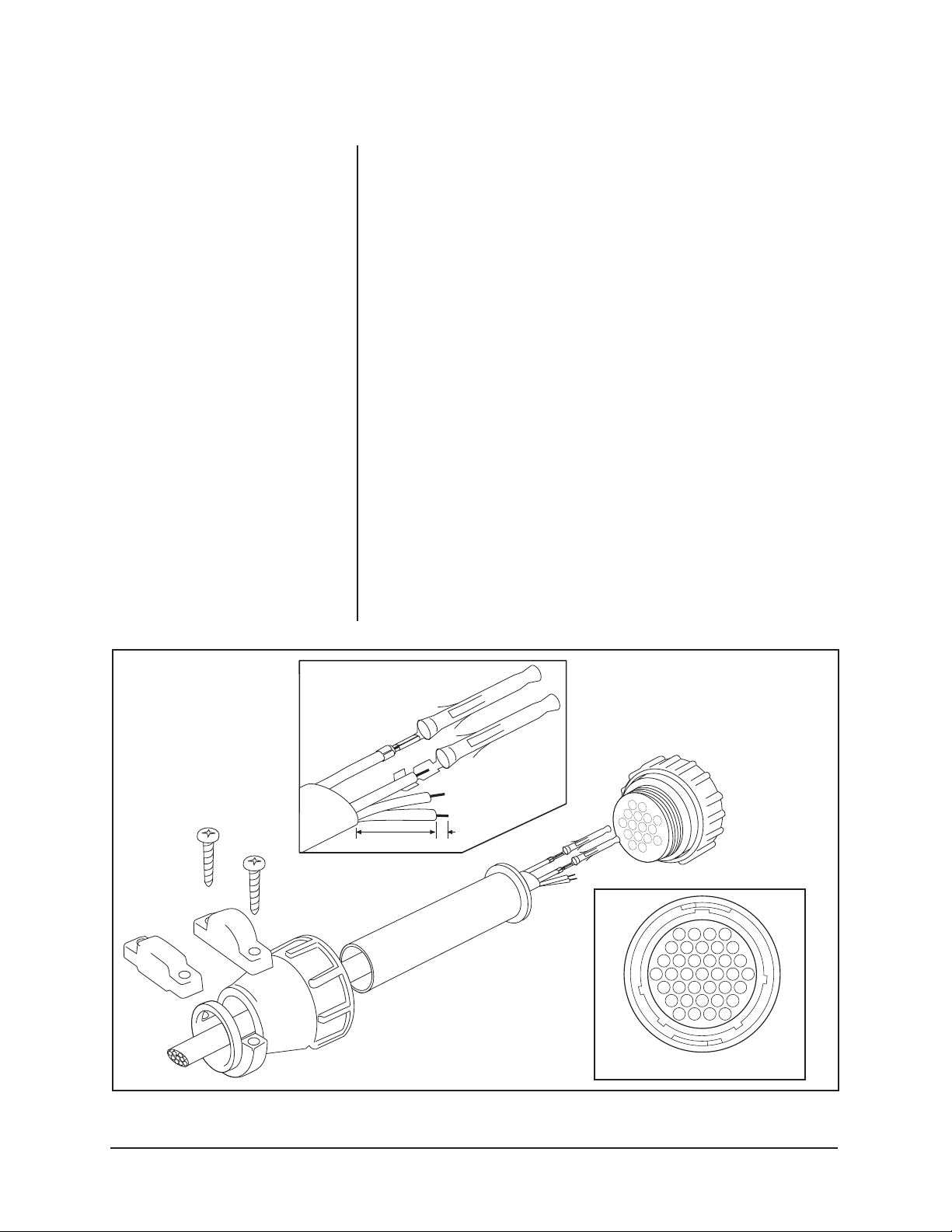

4 Connector Assembly .......................................................................... 6
5 Receiver Board Locations .................................................................. 8
6 Options Board Address Settings ....................................................... 10
7 Universal Power Supply Board ......................................................... 11
8 Variable Speed Power Supply Board................................................ 11
9 CM9500 Series Receiver/Driver Dimension Drawing ....................... 15
LIST OF TABLES
Table Page
A CPC 37-PIN Connector Pinouts ........................................................ 5
B Strapping Configurations for Universal AC Power Supply ................ 12
C Variable Speed Power Supply and Camera Transformer
Strapping Configurations .................................................................. 12
REVISION HISTORY
Manual # Date Comments
C505M 6/93 Original version
C505M-A 4/95 Updated to latest format and incorporated ECO's 94-507,
C505M-B 4/97 Updated to new format. Removed proprietary informa-
95-001 and 95-002.
tion. Updated connector assembly instructions and
illustrations. Revised Figure 3.
Pelco Manual C505M-B (4/97) 19
iii
(This page intentionally left blank.)
20 Pelco Manual C505M-B (4/97)
iv
1.0 GENERAL
1.1 IMPORTANT SAFEGUARDS AND WARNINGS
Prior to installation and use of this product, the following WARNINGS should be
observed.
1. Installation and servicing should only be done by Qualified Service Personnel
and conform to all Local codes.
2. Unless the unit is specifically marked as a NEMA Type 3, 3R, 3S, 4, 4X ,6 or
6P enclosure, it is designed for Indoor use only and it must not be installed
where exposed to rain and moisture.
4. Only use replacement parts recommended by Pelco.
5. After replacement/repair of this unit’s electrical components, conduct a resistance measurement between line and exposed parts to verify the exposed
parts have not been connected to line circuitry.
The product may bear the following marks:
This symbol indicates that dangerous voltage constituting a
risk of electric shock is present within this unit.
This symbol indicates that there are important operating and
maintenance instructions in the literature accompanying this
unit.
CAUTION:
RISK OF
ELECTRIC SHOCK.
DO NOT OPEN.
TO REDUCE THE RISK OF ELECTRICAL SHOCK,
DO NOT REMOVE COVER. NO USER-
SERVICEABLE PARTS INSIDE. REFER SERVICING
TO QUALIFIED SERVICE PERSONNEL.
CAUTION:
Please thoroughly familiarize yourself with the information
in this manual prior to installation and operation.
Pelco Manual C505M-B (4/97) 1
2.0 DESCRIPTION
The Coaxitron® System 9500 receivers are available in two control formats and
work with all Coaxitron controls. The control formats are as follows:
1. CX9500 Coaxitron control
2. CX9504 RS-485 4-wire control
Standard features for all receivers include:
• Full PTZ (Pan/tilt and Zoom) Coaxitron control
• 8 programmable auxiliary functions
• Adjustable lens voltages
• 24 VAC, 120 VAC and 230 VAC camera voltages
• Indoor/outdoor model; integrated mount versions available for Legacy® series
pan/tilts
• 24, 120, 230 VAC input voltages
• Self-test diagnostics built into firmware
• Composite sync generation in the absence of camera video
NOTE:
Any feature and/or option
listed must be supported by the controller being used for the corresponding receiver function or option to
work properly.
2.1 MODELS
• Auto/Random scan
These models each support several options such as:
• 32 Presets with no labels
• Universal AC fixed speed power supply
• Variable Speed DC power supply
• Coaxitron or RS-485 control
The last number of the base model number designates the control type: Coaxitron
(CX9500) is the most elementary and the last is the 4-wire RS-485 (CX9504).
The suffix will be RX for indoor/outdoor enclosure.
The remainder of the model number is in the form of extensions that designate any
optional feature. These features are:
• PP 32 presets senses
• VS Variable speed
2 Pelco Manual C505M-B (4/97)
