WARNING:
TO PREVENT RISK OF FIRE OR SHOCK, DO NOT EXPOSE THIS CAMERA TO RAIN OR MOISTURE.
PRECAUTION:
DO NOT REMOVE ANY COVER WHILE THE CAMERA IS OPERATING.
PAL: USE ONLY RECOMMENDED POWER SUPPLY, 220 TO 240 VAC, 50 Hz.
CAUTION:
LENS MOUNT OF THE CAMERA IS “CS” MOUNT. CAMERA LENS MOUNT IS SHALLOW, SOME CAMERA
LENSES MAY BOTTOM OUT AND DAMAGE THE CCD IMAGER.
DO NOT TOUCH THE CCD GLASS SURFACE.
THE CAMERA MUST BE INSTALLED NEAR A SOCKET OUTLET, WHICH COULD BE EASILY ACCESSIBLE.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER
(OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
GRAPHIC SYMBOL EXPLANATION
The lighting flash with an arrow-head symbol within an equilateral triangle is intended to
alert the user to the presence of uninsulated “dangerous voltage” within the product's
enclosure, which may be of sufficient magnitude to constitute a risk of electric shock to
persons.
The exclamation point within an equilateral triangle is intended to alert the user to the
presence of important operating and maintenance (servicing) instructions in the literature
accompanying the appliance.
4C2944M-F (1/09)
Important Safety Instructions
1. Read Instructions. All the safety and operating instructions should be read before the camera is operated.
2. Retain Instructions. The safety and operating instructions should be retained for future reference.
3. Heed Warnings. All warnings on the camera and in the operating instructions should be adhered to.
4. Follow Instructions. All operating and use instructions should be followed.
5. Cleaning: Unplug the power unit from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for
cleaning.
6. Attachments: Do not use attachments not recommended by your appliance dealer, as they may cause hazards.
7. Water and Moisture: Do not use the camera in any location in which it may be exposed to water or moisture. (For example, dripping,
splashing, or liquid near equipment etc.)
8. Accessories: Do not place the camera on an unstable cart, stand, tripod, bracket, or table. The camera may fall,
causing serious injury to a child or adult, and serious damage to the camera. Use only with mounting accessories
recommended by your appliance dealer or sold with the camera. Any mounting of the camera should follow your
appliance dealer's instructions.
The camera must be installed in a location or on a piece of equipment that can withstand three times the total
weight of the camera, including the lens, camera, mount, adapter, etc.
9. Any appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the
appliance and cart combination to overturn.
10. Ventilation: The camera should never be placed near or over a radiator or heat register. The camera should not be placed in a built-in
installation such as a bookcase or rack unless proper ventilation is provided or your appliance dealer's instructions have been adhered to.
11. Power Sources: The camera should be operated only from the type of power source indicated on the rating plate. If you are not sure of the
type of power supply for your installation site, consult your appliance dealer or local power company.
12. Power Cord Protection: Power supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or
against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the camera.
13. Lightning: For added protection for the camera during a lightning storm, or when it is left unattended and unused for long periods of time,
unplug it from the wall outlet and disconnect the cable system. This will prevent damage to the camera due to lightning and power line surges.
14. Overloading: Do not overload the wall outlet and extension cord, as this can result in a risk of fire or electric shock.
15. Object and Liquid Entry: Never push objects of any kind into the camera through openings, as they may touch dangerous voltage points or
short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the camera.
16. Servicing: Do not attempt to service the camera yourself, as opening or removing covers may expose you to dangerous voltage or other
hazards. Refer all servicing to qualified service personnel.
17. Damage Requiring Service: Unplug the power unit from the wall outlet. Refer servicing to qualified service personnel under the following
conditions.
a.When the power supply cord or plug is damaged.
b.If liquid has been spilled or objects have fallen into the camera.
c.If the camera has been exposed to rain or water.
d.If the camera does not operate normally by following the operating instructions. Adjust only those controls that are covered by the
operating instructions, as an improper adjustment of other controls may result in damage and will often require extensive work by a
qualified technician to restore the camera to its normal operation.
e.If the camera has been dropped or the cabinet has been damaged.
f.When the camera exhibits a distinct change in performance. This indicates a need for service.
S3125A
18. Replacement Parts: When replacement parts are required, be sure the service technician has used replacement parts specified by a
qualified dealer or that have the same characteristics as the original part.
Unauthorized substitutions may result in fire, electric shock, or other hazards.
19. Safety Check: Upon completion of any service or repairs to the camera, ask the service technician to perform safety checks to determine
that the camera is in proper operating condition.
C2944M-F (1/09)5
Regulatory Notices
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
RADIO AND TELEVISION INTERFERENCE
This equipment has been tested and found to comply with the limits of a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However there is no guarantee that the interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and the receiver.
•Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
•Consult the dealer or an experienced radio/TV technician for help.
You may also find helpful the following booklet, prepared by the FCC: “How to Identify and Resolve Radio-TV Interference Problems.” This
booklet is available from the U.S. Government Printing Office, Washington D.C. 20402.
Changes and Modifications not expressly approved by the manufacturer or registrant of this equipment can void your authority to operate this
equipment under Federal Communications Commission’s rules.
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
EQUIPMENT HANDLING PRECAUTIONS
To avoid damaging your camera, observe the following precautions:
1. The camera has threaded mounting locations on the top and bottom of the case. Use only a standard photographic mounting bolt with a
1/4-20 UNC thread.
2. Do not touch the surface of the optical filter. If the filter is dusty or is accidentally touched, use clean, compressed air or lens cleaning paper
to clean it.
3. Do not expose the camera imager to direct sunlight as this may impair camera performance. Always keep the lens mount cap in place until
you install the lens.
4. Do not use this camera outdoors without an appropriate enclosure. Do not install near flammable gas or corrosive chemical fumes.
5. Use clean, soft cloths to clean the camera case. If necessary, use a cloth moistened with a neutral detergent diluted with water; then dry
with a dry cloth. Never use alcohol, benzene, or other volatile solutions.
6C2944M-F (1/09)
Description
The C10DN Series camera is Pelco’s smallest day/night camera. Its day/night technology provides outstanding performance over a wide range of
lighting conditions. The camera also uses a removable infrared (IR) cut filter to switch between color and black-white (B-W) modes as
environmental lighting conditions change.
On-screen programmable menus can be accessed using the side panel controls. Use these menus to customize camera settings for the specific
application.
The C10DN Series camera has a standard CS mount and can be used with fixed, manual, or DC drive auto iris lenses. The auto iris is controlled
through a standard 4-pin square connector that is included with all Pelco auto iris lenses.
The C10DN Series camera is quick and easy to install and is ideal for Pelco’s DomePak
MODELS
C10DN-61/3-inch high resolution day/night, CCD camera, 24 VAC or 12 VDC, NTSC format
C10DN-6X1/3-inch high resolution day/night, CCD camera, 24 VAC or 12 VDC, PAL format
C10DN-7X1/3-inch high resolution day/night, CCD camera, 220–240 VAC, PAL format
OPTIONAL ACCESSORIES
C10-UMC10 series universal wall/ceiling/rail mounting kit.
LDC100Auto iris drive converter; converts a DC drive auto iris lens to a video drive auto iris lens. Compatible with all lens size formats.
PCMA40Lens adapter; adapts standard C-mount lenses to CS-mount cameras.
®
and ImagePak® fixed camera dome/enclosure packages.
REQUIRED TOOLS
•Small Phillips screwdriver for connector cover
•Small flat tip screwdriver for serial termination
•Allen wrench (1.5 mm) for back focus adjustment
•Neutral density filter (ND3) for auto iris adjustment
C2944M-F (1/09)7
Camera Layout
ì Camera Mount: Use the top or bottom mount hole. The maximum thread depth is 0.25 inches (6.4 mm); refer to Camera Mounting on
page 10.
C10DN-7X BACK
Figure 1. C10DN Series Camera
î Back Focus Locking Screw: Use a 1.5-mm Allen wrench to adjust the back focus (refer to Lens Focusing on page 25). Back focus is set
at the factory for a standard CS-mount back focus distance.
ï Lens Mount: Mount a standard CS-mount lens to the C10DN Series camera (refer to Lens Mounting on page 9). To use a C-mount lens,
install a C- or CS-mount adapter.
ñ Auto Iris Lens Connector: Insert the 4-pin connector from the DC drive auto iris lens into this connector (refer to Lens Mounting on
page 9).
ó Setup Button: Use this five-position button to configure the camera through the setup menus (refer to Accessing the Setup Menus on
page 15).
r Ground Screw: Use this screw terminal as a ground.

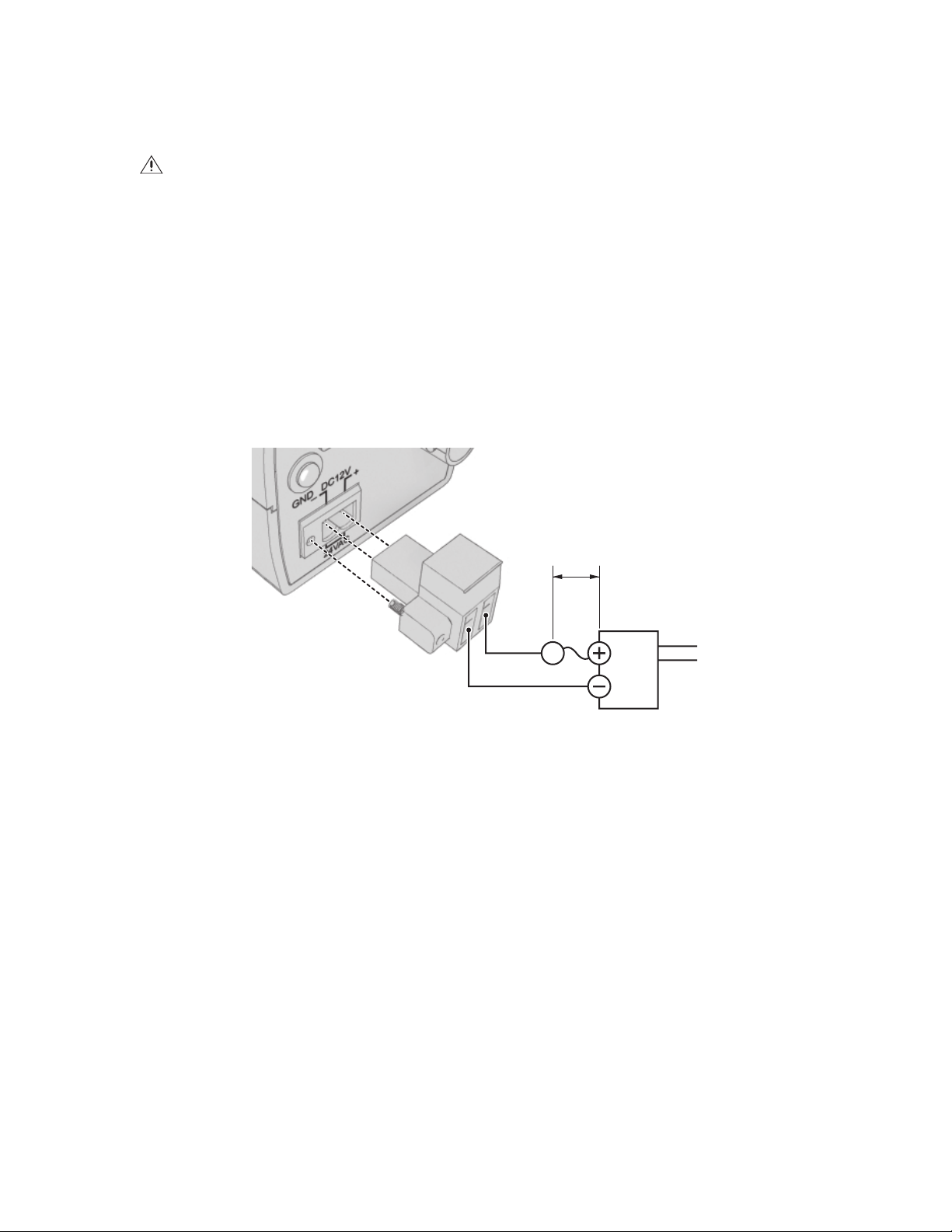

s Power Connector (refer to Connecting Power on page 11):
•C10DN-6/6X, Terminal Block: Use the 2-pin terminal block to connect either 12 VDC or 24 VAC power.
•C10DN-7X, Power Cord: A 2-terminal type cord for 220–240 VAC.
t Video Output Connector: Connect a coaxial video cable to this BNC connector to output the video image (refer to Connecting Video on
page 10).
8C2944M-F (1/09)
Installation
LENS MOUNTING
The C10DN Series camera supports both manual and auto iris lenses, either fixed focal length or varifocal. It also supports both DC and video
drive lenses. It automatically senses an auto iris lens as soon as you plug in the connector. The camera has a standard CS mount that can accept
a C-mount lens with a PCMA40 lens adapter.
After mounting a DC drive auto iris lens, but before using the camera, perform the dc drive auto iris automatic adjustment procedure (refer to
DC Iris Level on page 20). Also perform this procedure each time you change the lens.
WIRING AN AUTO IRIS LENS
Auto iris lenses are controlled through the 4-pin drive connector (type D4-152N). Figure 2 identifies the pin connections for the auto iris lens
connector on the side of the camera.
MOUNTING THE LENS
To mount the lens onto the camera refer to Figure 3, and then complete the following steps:
1. Make sure the lens will not touch the camera imager when installed.
2. Use clean, compressed air or a clean, dry lens cloth to make sure there is no dust or other foreign matter between the lens and the camera
imager.
3. C-mount lens: Screw the adapter onto the lens.
4. Screw the lens onto the lens mount.
CS-MOUNT LENS
C/CS-MOUNT ADAPTER
(FOR C-MOUNT LENS ONLY)
AUTO IRIS LENSCABLE
AND CONNECTOR (OPTIONAL)
Figure 3. Mounting Lens to Camera
5. Auto iris lens: Connect the 4-pin connector from the lens to the connector on the side of the camera.
6. Perform the lens focusing procedure before using the lens (refer to Lens Focusing on page 25).
C2944M-F (1/09)9
CAMERA MOUNTING
The C10DN Series camera can be mounted from either the top or bottom, depending on the type of camera mount used in your installation. Use a
standard 1/4-20 screw. The maximum thread depth (top) is 0.188 inches (4.7 mm). To extend the thread depth (top) to 0.25 inches (6.4 mm), use
the camera mount spacer (supplied). The maximum thread depth (bottom) is 0.25 inches (6.4 mm).
The C10DN Series camera can be fitted with most Pelco lenses and mounted into most Pelco domes and enclosures, resulting in the greatest
possible number of combinations. This means you can find a solution for nearly any application.
When selecting a lens, dome, or enclosure for this camera, consider how the physical dimensions of each component may affect camera
installation and operation.
NOTE: To simplify lens and enclosure selection, Pelco offers ImagePak options for the C10DN Series camera. Select the lens and the dome or
enclosure. Pelco will build and test it for you. Contact Pelco or your dealer for more information.
CONNECTING VIDEO
Connect a coaxial video cable to the BNC connector on the back of the camera. Refer to Table A for the type of video coaxial cable to use.
If white spots appear in the video image, one or more pixels on the camera imager may be defective. This condition is common to CCD camera
imagers. To correct this condition, refer to Save as Custom on page 24.
Table A. Video Coaxial Cable Requirements
Cable Type*Maximum Distance
RG59/U750 ft (229 m)
RG6/U1,000 ft (305 m)
RG11/U1,500 ft (457 m)
*Cable requirements:
75-ohm impedance
All-copper center conductor; steel-center
conductor cable may result in poor performance
All-copper braided shield with 95% braid coverage
10C2944M-F (1/09)
