INSTALLATION
Spectra III™ EVS
Pendant Back Box
C2493M (12/05)
Important Safety Instructions
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9. Only use attachments/accessories specified by the manufacturer.
10. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when
moving the cart/apparatus combination to avoid injury from tip-over.
11. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord
or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not
operate normally, or has been dropped.
12. Installation should be done only by qualified personnel and conform to all local codes.
13. Unless the unit is specifically marked as a NEMA Type 3, 3R, 3S, 4, 4X, 6, or 6P enclosure, it is designed for indoor use only and it must not be installed
where exposed to rain and moisture.
14. Use only installation methods and materials capable of supporting four times the maximum specified load.
15. Use stainless steel hardware to fasten the mount to outdoor surfaces.
16. To prevent damage from water leakage when installing a mount outdoors on a roof or wall, apply sealant around the bolt holes between the mount and
mounting surface.
17. CAUTION: These servicing instructions are for use by qualified service personnel only. To reduce the risk of electric shock do not perform any servicing
other that contained in the operating instructions unless you are qualified to do so.
18. Only use replacement parts recommended by Pelco.
The product and/or manual may bear the following marks:
This symbol indicates that dangerous voltage constituting a risk of electric shock is present within this unit
This symbol indicates that there are important operating and maintenance instructions in the literature
accompanying this unit.
CAUTION:
RISK OF ELECTRIC SHOCK.
DO NOT OPEN.
2 C2493M (12/05)
Installation
.
Install the mount for the pendant dome. Refer to the instructions
1
supplied with the mount.
Open the hinged door to the back box. Push the tab lock towards the
2
wall of the unit and lift the door open. Pull power, alarm/auxiliary, and
network cable into the back box.
The following are the recommended maximum distances for 24 VAC
applications and are calculated with a 10 percent voltage drop.
(Ten percent is generally the maximum allowable voltage drop for
AC-powered devices.)
Tot a lVA20 AWG
(0.5 mm
36 79 ft
(24 m)
88 32 ft
(9 m)
NOTE: Input power for the dome is 24 VAC only. Power consumption
is 36 VA per dome for indoor models and 88 VA for outdoor models.
Use a 24 VAC transformer with a minimum output of 36 VA per dome
for indoor applications and a minimum of 88 VA per dome for outdoor
applications.
Screw the back box onto the mount. For outdoor installations, apply
3
thread compound (provided) to the threads on the back box.
2
)
18 AWG
(1.0 mm2)
125 ft
(38 m)
51 ft
(15 m)
16 AWG
(1.5 mm2)
199 ft
(60 m)
81 ft
(24 m)
14 AWG
(2.5 mm2)
316 ft
(96 m)
129 ft
(39 m)
C2493M (12/05) 3

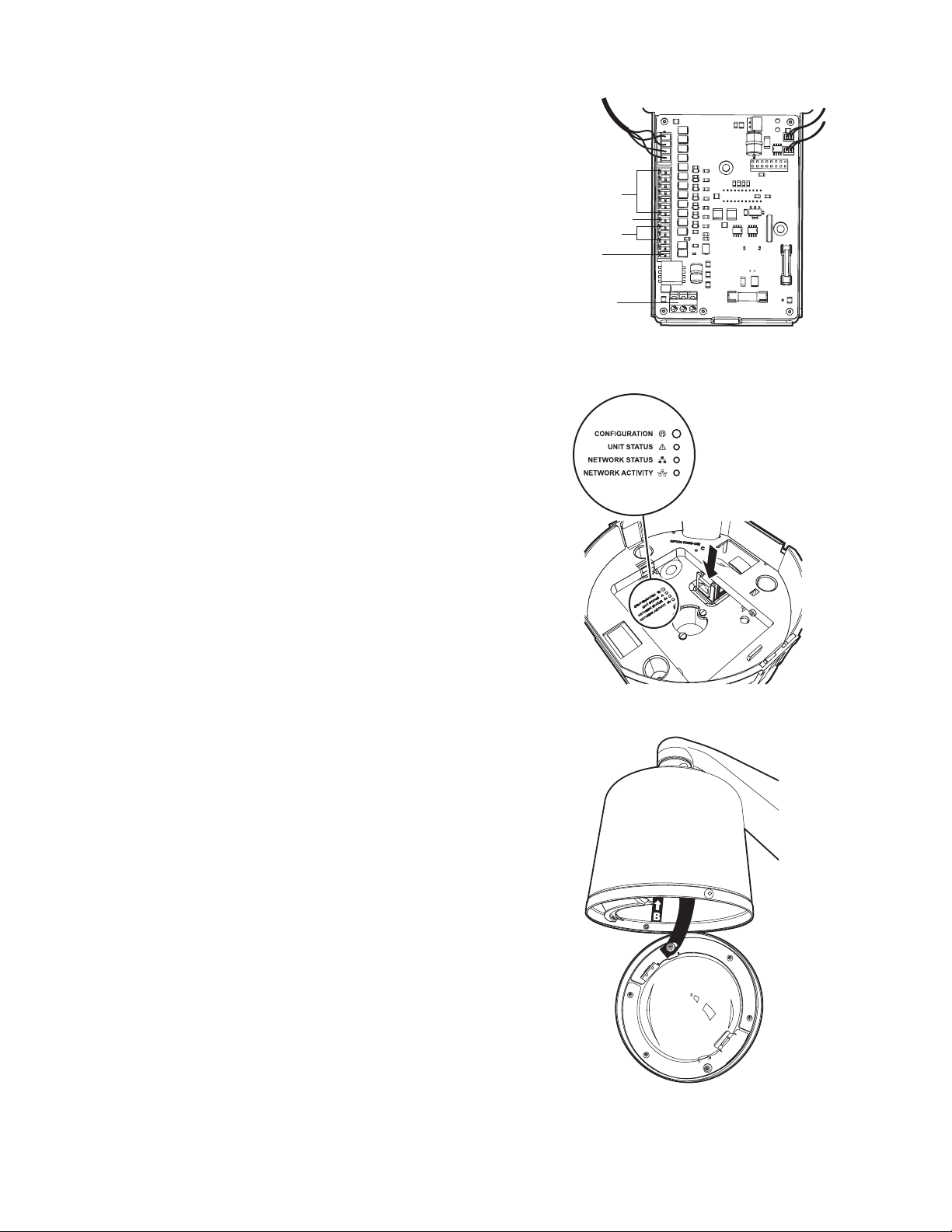

Connect the power wires to the circuit board inside the back box.
4
Connect any alarm and auxiliary circuits. Turn on the power to the
system. The green LED on the door indicates system power is on.
NOTE: Aux 1 – Maximum 2 A at low voltage (<40 V)
Connect a 10/100/1000BaseT network Cat5e (or better) cable to the
5
RJ-45 network connector located inside the back box. Check the LED
indicators located inside the back box to check unit status, network
status, and network activity.
Unit Status LED
Green Unit is functioning normally.
Amber Unit is in configuration mode.
Red Unit is in an error condition.
Network Status LED
Off Unit is not connected to the network.
Amber Unit is connected to a 100BaseT network.
Red Unit is connected to a 10BaseT network.
ALARMS
ALARM COM
AUX1
AUX COM
POWER
Network Activity LED
The LED flashes whenever the unit is sending or receiving network data.
Close the door to the back box. Attach the back box leash to the
6
lower dome.
4 C2493M (12/05)
SW1-1 is set to the ON position.
All other switches are set to the OFF position.
No DIP switch settings are required for the system. Before installing the
7
dome drive verify that switch SW1-1 (SW1, switch 1) is set to the ON
position and all other switches are set to the OFF position.
The switches set the dome drive for Pelco’s D protocol, address 1,
8
7
6
5
4
3
2
1
SW2
on on
1
SW3
ON
8
7
6
5
4
3
2
1
SW1
2400 baud, and no termination.

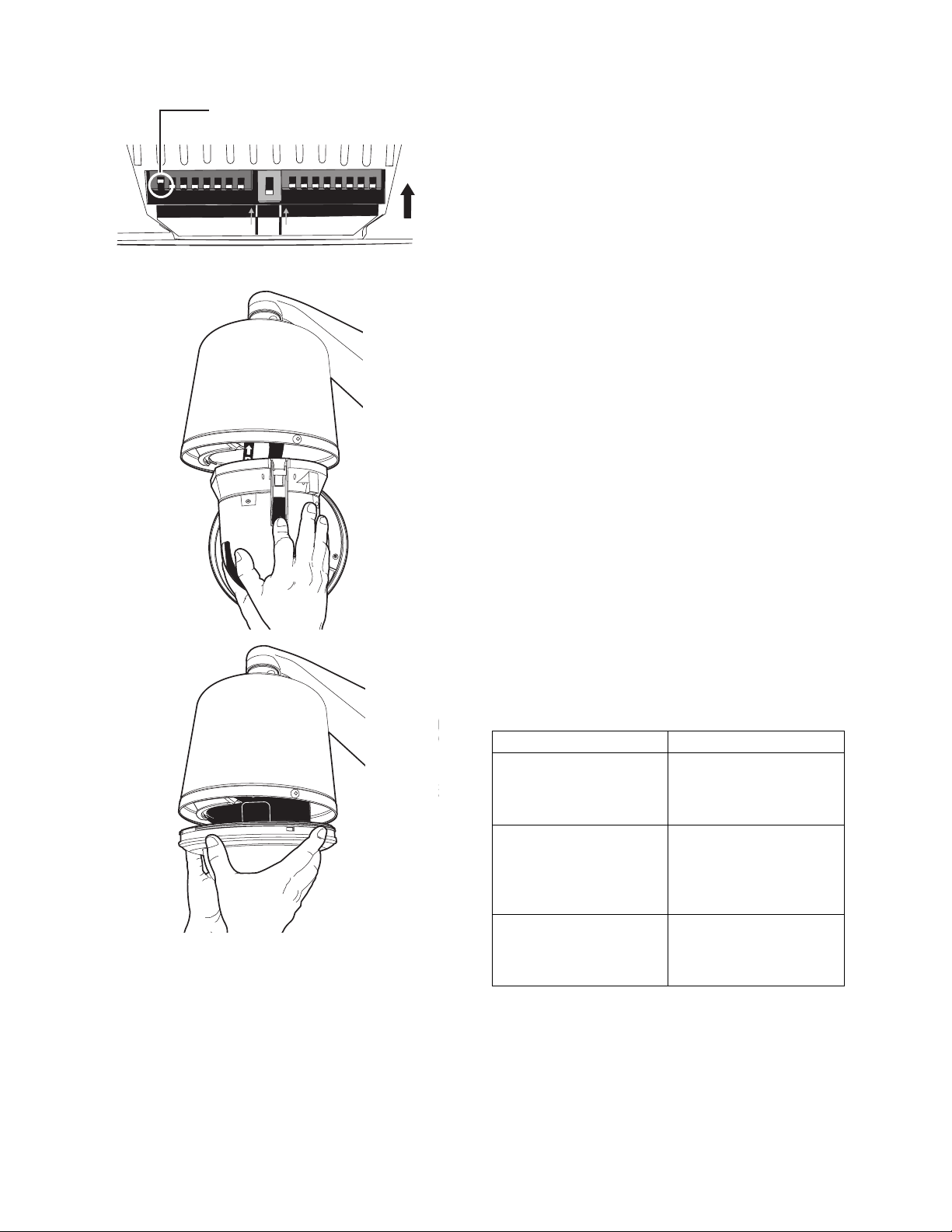

Install the dome drive. Line up the blue (A) and red (B) tabs with the blue
8
(A) and red (B) labels. Push in the tabs. Insert one side and then the
other side. Continue pushing on the ends of the tabs until both sides
click into place.
A
Install the lower dome. Tighten the Phillips pan head screws to secure
9
the lower dome to the back box.
To operate or program your Spectra III EVS dome drive, refer to the
following manuals:
Information Required Where to Find Information
Spectra’s programmable
features, commands, and menu
structure
Spectra III Operation/
Programming manual supplied
with the dome drive or available
at www.pelco.com
How to control the dome drive
and access preset 95 with the
WS5050
™
Endura
WS5000 Advanced
System Software Operation
manual supplied with the
WS5050 workstation or
available at www.pelco.com
How to control the dome drive
and access preset 95 with the
VCD5000
Endura VCD5000 Video Control
Display Operation manual
supplied with the VCD5000 or
available at www.pelco.com
C2493M (12/05) 5
Specifications
SYSTEM
Processor PowerPC® 405EP
Operating System Linux
User Interface Remote operation via WS5050 or
®
VCD5000
ELECTRICAL
Input Voltage 18-30 VAC; 24 VAC nominal
Input Power 36 VA nominal (without heaters)
88 VA nominal (with heaters)
Fuse 1.25 A
Auxiliary Outputs 1
Alarm Inputs 7
VIDEO
Video Standards NTSC/PAL/EIA/CCIR composite
Video Coding MPEG-4
Video Streams 2, simultaneous
Video Resolutions NTSC PAL
4CIF 704 x 480 704 x 576
2CIF 704 x 240 704 x 288
CIF 352 x 240 352 x 288
QCIF 176 x 120 176 x 144
Video Inputs/Connectors 2, BNC, looping, 75¾, 1 Vp-p
Video Switch Hi-Z, 75¾
VIDEO ACTIVITY DETECTION
Zones 3 plus background zone
Zone Types Any shape, user-definable in 16 x 16 pixel
blocks
Sensitivity Adjustable
GENERAL
Construction
Back Box Aluminum
Dome Drive Aluminum, thermo plastic
Bubble Acrylic
Light Attenuation
Smoked 1/2 F-stop light loss
Clear Zero light loss
Chrome and Gold 2 F-stops light loss
Cable Entry (Back Box) Through 1.5-inch NPT pendant mount
Weight (approximate) Unit Shipping
Back Box
Standard Pendant 4.1 lb (1.86 kg) 6 lb (2.72 kg)
Environmental Pendant 4.4 lb (2.00 kg) 6 lb (2.72 kg)
Dome Drive 2.4 lb (1.09 kg) 4 lb (1.81 kg)
Lower Dome 0.6 lb (0.27 kg) 2 lb (0.90 kg)
Environment Indoor/outdoor
Operating Temperature
Standard Pendant 32° to 140°F (0° to 60°C) absolute
maximum operating temperature; 32° to
122°F (0° to 50°C) sustained maximum
operating temperature
Environmental Pendant (Assumes no wind chill factor; for
detailed test conditions, contact Pelco.)
Maximum 140°F (60°C) absolute maximum;
122°F (50°C) sustained maximum
Minimum -60°F (-51°C) absolute minimum; minimal
icing at sustained minimum of
50°F (-45°C); prevents icing at sustained
minimum of -40°F (-40°C); de-ices
0.1 inch (2.5 mm) within 3 hours after
power-up
Effective Projected Area (EPA) 92 square inches (without mount);
138 square inches (with IWM Series
mount)
ENVIRONMENTAL PENDANT STANDARD PENDANT
13.0
(33.02)
6.00
(15.24)
9.4
(23.87)
NOTE: VALUES IN PARENTHESES ARE CENTIMETERS; ALL OTHERS ARE INCHES.
6 C2493M (12/05)
6.00
(15.24)
8.7
(22.09)
13.0
(33.02)
