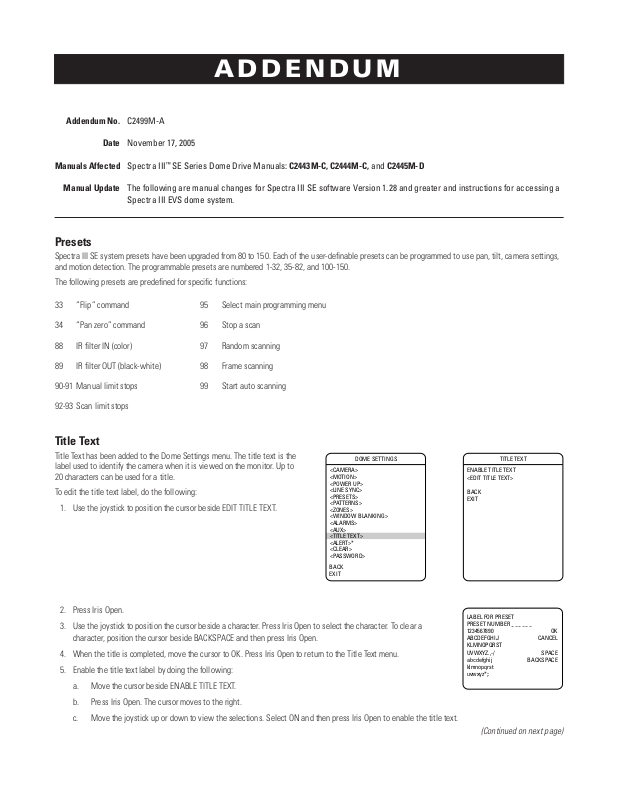

ADDENDUM

Addendum No. C2499M-A

Date November 17, 2005

Manuals Affected Spectra III

™

SE Series Dome Drive Manuals: C2443M-C, C2444M-C, and C2445M-D

Manual Update The following are manual changes for Spectra III SE software Version 1.28 and greater and instructions for accessing a

Spectra III EVS dome system.

Presets

Spectra III SE system presets have been upgraded from 80 to 150. Each of the user-deﬁnable presets can be programmed to use pan, tilt, camera settings, and motion detection. The programmable presets are numbered 1-32, 35-82, and 100-150.

The following presets are predeﬁned for speciﬁc functions:

33 “Flip” command 95 Select main programming menu

34 “Pan zero” command 96 Stop a scan

88 IR ﬁlter IN (color) 97 Random scanning

89 IR ﬁlter OUT (black-white) 98 Frame scanning

90-91 Manual limit stops 99 Start auto scanning

92-93 Scan limit stops

Title Text

Title Text has been added to the Dome Settings menu. The title text is the label used to identify the camera when it is viewed on the monitor. Up to 20 characters can be used for a title.

To edit the title text label, do the following:

1. Use the joystick to position the cursor beside EDIT TITLE TEXT.

DOME SETTINGS

BACK EXIT

TITLE TEXT

ENABLE TITLE TEXT <EDIT TITLE TEXT>

BACK EXIT

2. Press Iris Open.

3. Use the joystick to position the cursor beside a character. Press Iris Open to select the character. To clear a character, position the cursor beside BACKSPACE and then press Iris Open.

4. When the title is completed, move the cursor to OK. Press Iris Open to return to the Title Text menu.

5. Enable the title text label by doing the following:

a. Move the cursor beside ENABLE TITLE TEXT.

b. Press Iris Open. The cursor moves to the right.

c. Move the joystick up or down to view the selections. Select ON and then press Iris Open to enable the title text.

LABEL FOR PRESET PRESET NUMBER 1234567890 OK ABCDEFGHIJ CANCEL KLMNOPQRST UVWXYZ.,-/ SPACE abcdefghij BACKSPACE klmnopqrst uvwxyz*;:

------

(Continued on next page

Label Position

The Title Text label can be positioned anywhere on the monitor. This feature allows you to customize the appearance of your monitor screen.

To move the Title Text label, do the following:

1. Use the joystick to position the cursor beside a label.

2. Press Iris Open.

3. Use the joystick to move the label up, down, left, and/or right.

4. Press Iris Open.

PRESET LABEL 2 (SECS) ZONE LABEL 2 (SECS) ZOOM 2 (SECS) AZIMUTH/ELEVATION 2 (SECS) DIRECTION OFF ALARM MESSAGE 2 (SECS)

<LABEL POSITIONS> RESTORE FACTORY DEFAULTS

BACK EXIT

5. Repeat steps 1 through 4 to position other labels.

6. Position the cursor next to Save and Exit. Press Iris Open to save the settings and exit the menu.

Spectra III EVS

If your dome drive is used in a Spectra III EVS Series (Endura from an Endura WS5050 Workstation or VCD5000 video console display.

To access the main programming menu from a WS5050:

1. Right-click in the video pane of the Spectra dome system.

2. Click Preset and then click Select Preset.

3. Enter 95 and then click OK.

To access the main programming menu from a VCD5000:

1. Enter 95 for the preset action. The shortcuts menu appears.

2. Press the Preset button on the KBD5000.

™

) dome system, the following instructions tell you how to access the main programming menu

DISPLAY SETUP

LABEL POSITION

[ZONE LABEL-------] [PRESET LABEL-------] [ALARM 1-------] [ALERT MESSAGE-------] [TITLE TEXT-------]

SAVE AND EXIT CANCEL AND EXIT HELP

XXX

o/-XXXo

NE XXX.XX

Worldwide Headquarters • 3500 Pelco Way • Clovis, California 93612 USA • www.pelco.com

USA & Canada • Tel: 800/289-9100 • Fax: 800/289-9150

International • Tel: 1-559/292-1981 • Fax: 1-559/348-1120

OPERATION/PROGRAMMING

Spectra III™ SE Series

Models DD53M22 & DD53M22-X

C2443M-C (1/04)

OPERATION/PROGRAMMING MANUAL

MODELS DD53M22 & DD53M22-X

22X LowLight

™

MONOCHROME TECHNOLOGY

CONTENTS

WELCOME ................................................................................................................................................................................................ 5

GETTING STARTED .......................................................................................................................................................................... 5

HOW TO OPERATE YOUR DOME SYSTEM .............................................................................................................................................. 6

ACCESSING MAIN MENU (PRESET 95) .......................................................................................................................................... 7

CM6700/CM6800 ................................................................................................................................................................... 7

KBD200A/KBD300A (DIRECT MODE ONLY) ........................................................................................................................... 7

CM9500 .................................................................................................................................................................................. 7

CM9740/CM9760 ................................................................................................................................................................... 7

KBD4000/KBD4002 (GENEX® MULTIPLEXER) ........................................................................................................................ 8

MPT9500 ................................................................................................................................................................................ 8

PELCONET™ ........................................................................................................................................................................... 8

LANGUAGE .............................................................................................................................................................................................. 11

SYSTEM INFORMATION .......................................................................................................................................................................... 12

DISPLAY SETUP ....................................................................................................................................................................................... 13

<LABEL POSITION> ......................................................................................................................................................................... 14

DOME SETTINGS .....................................................................................................................................................................................15

<CAMERA> ..................................................................................................................................................................................... 15

TYPE OF LIGHTING ................................................................................................................................................................ 15

AUTO FOCUS ......................................................................................................................................................................... 15

ZOOM LIMIT .......................................................................................................................................................................... 16

ZOOM SPEED .........................................................................................................................................................................16

LOW LIGHT LIMIT .................................................................................................................................................................. 16

<ADVANCED CAMERA SETTINGS> ............................................................................................................................................... 17

SHUTTER SPEED .................................................................................................................................................................... 17

AGC LIMIT ............................................................................................................................................................................. 17

AUTO IRIS .............................................................................................................................................................................. 18

AUTO SHARPNESS ................................................................................................................................................................19

BACKLIGHT COMPENSATION (BLC) ...................................................................................................................................... 20

VIDEO LEVEL .......................................................................................................................................................................... 20

<MOTION SETTINGS> .................................................................................................................................................................... 21

AUTO FLIP .............................................................................................................................................................................. 21

PROPORTIONAL PAN ............................................................................................................................................................. 21

PARK TIME ............................................................................................................................................................................ 22

SCAN SPEED ......................................................................................................................................................................... 23

PRESET FREEZE FRAME ........................................................................................................................................................ 23

LIMIT STOPS ..........................................................................................................................................................................24

AZIMUTH ZERO ..................................................................................................................................................................... 25

<POWER UP> .................................................................................................................................................................................. 26

POWER UP ACTION ............................................................................................................................................................... 26

<LINE SYNC> .................................................................................................................................................................................. 27

<PRESETS> ..................................................................................................................................................................................... 28

<PATTERNS>................................................................................................................................................................................... 30

<ZONES> ........................................................................................................................................................................................ 31

2 C2443M-C (1/04)

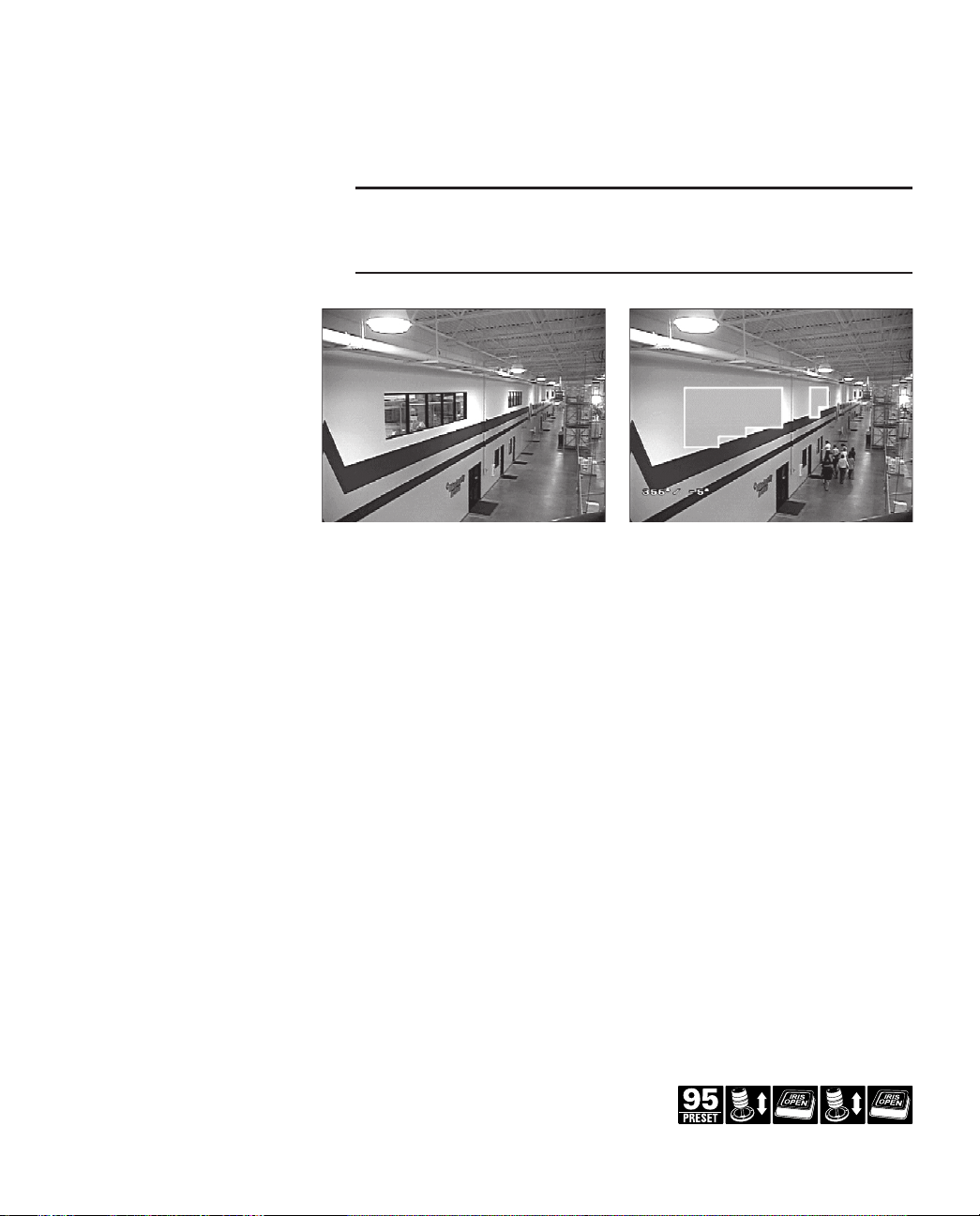

<WINDOW BLANKING> ................................................................................................................................................................. 32

REVERSE ................................................................................................................................................................................ 34

BLANK ALL ABOVE/BLANK ALL BELOW ............................................................................................................................... 34

<ALARMS> ..................................................................................................................................................................................... 35

<AUX> ............................................................................................................................................................................................. 38

<ALERT> ......................................................................................................................................................................................... 39

REPEAT................................................................................................................................................................................... 39

ACK ACTION .......................................................................................................................................................................... 40

ACTIVATE AUX ....................................................................................................................................................................... 40

CURRENT READING .............................................................................................................................................................. 40

ALERT RESET ......................................................................................................................................................................... 40

<CLEAR> ......................................................................................................................................................................................... 41

<PASSWORD> ................................................................................................................................................................................ 42

RESET, CYCLE POWER, REBOOT ............................................................................................................................................................. 43

RESET CAMERA .................................................................................................................................................................... 43

CYCLE CAMERA POWER ....................................................................................................................................................... 43

REBOOT SYSTEM .................................................................................................................................................................. 43

SOFTWARE/LANGUAGE FILE UPLOAD ................................................................................................................................................... 44

UPLOAD ICON .................................................................................................................................................................................44

SPECIFICATIONS ...................................................................................................................................................................................... 45

REGULATORY NOTICES ........................................................................................................................................................................... 46

C2443M-C (1/04) 3

4 C2443M-C (1/04)

WELCOME

Thank you for purchasing Pelco’s premier integrated dome system, Spectra III SE. Your new system features a high resolution, monochrome camera with programmable dome drive software.

This manual is designed to be a reference tool for the operation and programming of your system. Inside you will find information about Spectra III SE’s features and commands, as well as a detailed menu tree.

Getting Started

You will need to install your dome system before using this manual. Refer to the installation packet supplied with the back box for installation instructions.

Once installed apply power to the Spectra III SE dome system. The system will start a configuration sequence. When configuration is done, the following information is displayed:

Pelco Spectra III SE *Version X.XX D Address: 1 P Address: 2 Comm 2400, N, 8, 1

CONFIGURE DONE

This information will remain on the monitor until dome operation begins.

Refer to the following pages to learn how to operate and program your dome system.

* Pressurized Spectra III SE dome systems require software version 1.25 or higher to monitor

temperature, pressure, and dew point.

C2443M-C (1/04) 5

HOW TO OPERATE YOUR DOME SYSTEM

Operation How to Control

Pan and Tilt Move joystick or press the direction keys left/right and up/down.

Zoom Far To zoom far, do the following:

1. Press the Zoom Tele button or turn the joystick clockwise until zoom stops at the 32X zoom limit.

2. Release the button or joystick for one second.

3. To continue zooming (digitally), press the button or turn the joystick clockwise again until you have the

picture you want or reach the digital zoom1 limit.

Zoom Wide Press the Zoom Wide button or turn the joystick counterclockwise.

Scanning

Stop Scan Preset 96 Random Scan Preset 97 Frame Scan Preset 98 Auto Scan Preset 99

Presets Refer to the documentation supplied with the control system.

Patterns

Refer to the documentation supplied with the control system.

Zones Refer to the

Alarms Refer to the

Auto Flip Tu rn on or off in the programming menu. Refer to the

Digital zoom magnifies the image electronically and the picture may appear pixilated. The larger the digital zoom limit the

Zones

section and to the documentation supplied with the control system.

Alarms

section in this manual.

Auto Flip

section in this manual.

greater the reduction in resolution.

The dome cannot do electronic zoom in a pattern. Optical zoom will operate in a pattern.

6 C2443M-C (1/04)

Accessing Main Menu (Preset 95)

You can call up the main menu on your monitor by programming (setting or creating) preset 95 (preset 28 if in AD32-preset mode).

Programming preset 95 for Pelco’s controllers varies according to the type of controller you are using. Instructions for programming preset 95 are given below for various Pelco controllers.

CM6700/CM6800

1. Enter the number of the Spectra dome system and press the CAM key.

2. Enter 95 and hold the PRESET key for two seconds.

3. In the Edit Preset menu, arrow to SET and press the ACK key. The main menu appears.

KBD200A/KBD300A (DIRECT MODE ONLY)

1. Enter 95.

2. Hold the PRESET key (approximately five seconds) until the main menu appears on the screen.

CM9500

1. Enter the number of the Spectra dome system and press the CAM key. The Main menu appears.

2. Highlight SETUP in the Main menu and press the SELECT key.

3. Highlight CAM in the Setup menu and press the SELECT key.

4. Highlight PRESET in the Camera menu and press the SELECT key.

5. Enter 95 and press the F1 key. The main menu appears.

CM9740/CM9760

1. Press the ESCAPE key to open the Main menu. Select DEF. The Define Submenu appears.

2. Enter your four-digit PIN

3. Enter 95 and select PRST. The main menu appears on the monitor.

4. Select the Quit icon to return to the default menu.

C2443M-C (1/04) 7

if this is your first time entering this mode.

(Continued on next page)

KBD4000/KBD4002 (GENEX® MULTIPLEXER)

1. Press the SPOT MONITOR key.

2. Enter 95, then hold the PRESET key (approximately five seconds) until the main menu appears on the screen.

MPT9500

Standard Coaxitron Mode

1. Enter 95 and press the PRESET SET key.

2. Position the asterisk in the YES row and press the F1 key. The main menu appears.

Extended Coaxitron or RS-485 Mode

1. Enter 95 and press the PRESET SET key.

2. Press the F2 key. The main menu appears.

PelcoNet

™

1. Check the Set box.

2. Click the preset 95 button. The main menu appears.

8 C2443M-C (1/04)

Presets

SPECTRA III

LANGUAGE ENGLISH

<SYSTEM INFORMATION> <DISPLAY SETUP> <DOME SETTINGS> ACK ALERT**

EXIT

RESET CAMERA CYCLE CAMERA POWER

REBOOT SYSTEM

DOME SETTINGS

BACK EXIT

PRESET NUMBER 1 * * * PRESET NOT DEFINED * * *

POWER UP ACTION AUTO

BACK EXIT

AUTO FLIP PROPORTIONAL PAN PARK TIME (MINUTES) PARK ACTION SCAN SPEED DEG/S PRESET FREEZE FRAME

CAMERA

TYPE OF LIGHTING AUTO FOCUS ZOOM LIMIT

BACK EXIT

DISPLAY SETUP

PRESET LABEL (2 SECS) ZONE LABEL (2 SECS) ZOOM (2 SECS) AZIMUTH/ELEVATION (2 SECS) DIRECTION (2 SECS) ALARM MESSAGE (2 SECS)

<LABEL POSTION> RESTORE FACTORY DEFAULT

BACK EXIT

FREE MEMORY LAST RESET AZIMUTH ZERO OFFSET MOTOR ACTIVE CAMERA ACTIVE FPGA VERSION X VIDEO LEVEL NORMAL CAMERA XXXX-XXXX

BACK EXIT

18304

POWER ON

YES YES

DOME DRIVE MODEL BACK BOX MEMORY SOFTWARE VERSION BIOS VERSION FONT VERSION

COMM D ADDRESS P ADDRESS CM9500 MODE 32 PRESETS PROTOCOL

DD53M22

AVAILABLE

XX.X XX.X XX.X

2400, N, 8, 1

2 OFF OFF

SYSTEM INFORMATION

<ADDITIONAL> BACK EXIT

LIMIT STOPS <SET MANUAL STOPS> <CLEAR MANUAL STOPS> <SET SCAN STOPS> <CLEAR SCAN STOPS>

LINE SYNC ON LINE SYNC PHASE 0

BACK EXIT

ZONE NUMBER 1 * * * ZONE NOT DEFINED * * *

<EDIT ZONE> ZONE ENABLED ZONE BLANKING

BACK EXIT

PATTERN NUMBER 1 <PROGRAM PATTERN> <CLEAR PATTERN>

BACK EXIT

REFERENCE INFORMATION PATTERN USAGE 0% REMAINING 100%

STYLE GRAY

BLANK ALL ABOVE OFF BLANK ALL BELOW OFF

BACK EXIT

RESUME OFF SEQUENCE (SECS) 5 RESET DELAY (SECS) 0

BACK EXIT

AUX 1 MODE DWELL TIME (SECS)

AUX 2 MODE DWELL TIME (SECS)

BACK EXIT

CLEAR ALL ZONES CLEAR ALL PRESETS CLEAR ALL PATTERNS CLEAR ALL WINDOW BLANKING

RESTORE FACTORY DEFAULTS

BACK EXIT

ENABLE PASSWORD <EDIT PASSWORD>

BACK EXIT

ADVANCED SETTINGS

WINDOW NUMBER 1

ENABLE WINDOW NO REVERSE CLEAR WINDOW

BACK EXIT

ALARM NUMBER

ALARM PRIORITY ALARM ACTION ACTIVATE AUX ALARM CONTACT

BACK EXIT

ADDITIONAL

LANGUAGE 1

LANGUAGE 6

OUTDOOR

X176

MEDIUM

ZOOM SPEED LOW LIGHT LIMIT

SHUTTER SPEED AGC LIMIT

AUTO IRIS AUTO IRIS LEVEL AUTO IRIS PEAK

AUTO SHARPNESS SHARPNESS LEVEL

BACKLIGHT COMP

VIDEO LEVEL

BACK

EXIT

AUTO

OFF

HIGH

ON ON

NONE

AUTO

MOTION

BACK EXIT

POWER UP LINE SYNC

PRESETS

REFERENCE INFORMATION AZIMUTH ELEVATION ZOOM CUSTOM CAMERA SETTINGS

BACK EXIT

PATTERNS ZONES

LOW

NONE

N/O

WINDOW BLANKING

SET WINDOWS

NORMAL

ALARMS

ALARM SETTINGS

ALERT**

TEMPERATURE

DEWPOINT

PRESSURE

REFRESH

BACK EXIT

0°C 0°F 0°C 0°F

0.0 PSIG

0.0 BAR

CURRENT READING**

REPEAT ACK ACTION

RESET ALERT

BACK EXIT

CONSTANT

ALWAYS ON ACTIVATE AUX <CURRENT READING>

AUX CLEAR PASSWORD

1234567890 ABCDEFGHIJ KLMNOPQRST UVWXYZ.,-/ abcdefghij klmnopqrst uvwxyz*;:

CANCEL

SPACE

BACKSPACE

EDIT THE PASSWORD

----------

OFF

ENGLISH X.XX

ITALIANO X.XX

LABEL POSITION

[[ZONE LABEL------] [PRESET LABEL------] [ALARM LABEL------] [ALERT MESSAGE------]**

SAVE AND EXIT CANCEL AND EXIT HELP

XXXO/-XXX0 NE XXX.XX

PRESSURIZED** X.XX

The following presets are reserved for special functions.

QUICK START GUIDE – SYSTEM SETUP

Preset Function

33 Flip command 90-91 Manual limit stops 92-93 Scan limit stops 95 Select main programming menu 96 Stop a scan 97 Random scanning 98 Frame scanning 99 Start auto scanning

NOTE: For American Dynamics controllers with only 32 presets, switch SW3-1 on the dome drive to the ON position. When SW3-1 is ON, preset

99 becomes 32 92 becomes 25 98 becomes 31 91 becomes 24 97 becomes 30 90 becomes 23 96 becomes 29 89 becomes 22 95 becomes 28 88 becomes 21

93 becomes 26 If the limit stops are turned off, presets 23-26 can be used as regular presets.

Quick Programming Guide

Access main menu (preset 95). See the

(Preset 95)

section.

Use the joystick* to position the cursor beside menu selection.

Press Iris Open, the submenu/cursor moves to the right.

Move the joystick up or down to view selections.

Press Iris Open to make selection.

Press Iris Close to cancel selection.

Accessing Main Menu

C2443M-C (1/04) 9

* If your controller does not have a joystick, use the up or down key.

** This setting only applies to Pressurized Spectra III SE dome systems with software

version 1.25 or higher. Spectra III systems that are not pressurized or pressurized systems that do not have dome drive software version 1.25 or higher will not display this menu item.

Software version 1.25 or higher includes the software to monitor temperature, pressure, and dew point for Pressurized Spectra III SE systems.

LANGUAGE

EXIT

SPECTRA III

LANGUAGE ENGLISH

<SYSTEM INFORMATION> <DISPLAY SETUP> <DOME SETTINGS> ACK ALERT*

RESET CAMERA CYCLE CAMERA POWER REBOOT SYSTEM

* This setting only applies to

Pressurized Spectra III SE dome systems with software version

1.25 or higher.

The language for the on-screen menus is selectable. Available languages include English, Spanish, French, German, Italian, and Portuguese. The factory default language is English.

To change the display language:

1. Use the joystick to position the cursor beside LANGUAGE.

2. Press Iris Open. The cursor moves to the right, beside the current, selected language.

3. Move the joystick up or down to view selections. Press Iris Open to enter selection. All on-screen menus are changed to the selected language.

C2443M-C (1/04) 11

Quick Programming Guide

(See page 9)

SYSTEM INFORMATION

EXIT

SPECTRA III

LANGUAGE ENGLISH <SYSTEM INFORMATION>

<DISPLAY SETUP> <DOME SETTINGS> ACK ALERT*

RESET CAMERA CYCLE CAMERA POWER REBOOT SYSTEM

BACK EXIT

DOME DRIVE MODEL DD53M22 BACK BOX MEMORY AVAILABLE SOFTWARE VERSION XX.X BIOS VERSION XX.X FONT VERSION XX.X COMM 2400, N, 8, 1 D ADDRESS 1 P ADDRESS 2 CM9500 MODE OFF 32 PRESETS OFF PROTOCOL C

PRESSURIZED* X.XX <ADDITIONAL>

SYSTEM INFORMATION

BACK EXIT

FREE MEMORY 18304 LAST RESET POWER ON AZIMUTH ZERO OFFSET 0

MOTOR ACTIVE YES CAMERA ACTIVE YES FPGA VERSION X VIDEO LEVEL NORMAL CAMERA XXXX-XXXX

LANGUAGE 1 ENGLISH X.XX LANGUAGE 2 ESPANOL X.XX LANGUAGE 3 PORTUGUES X.XX LANGUAGE 4 DEUTSCH X.XX LANGUAGE 5 FRANCAIS X.XX LANGUAGE 6 ITALIANO X.XX

ADDITIONAL

The system Information screen displays dome drive model, software version, available memory, and other diagnostic information.

System settings cannot be changed using this screen. This screen is for reference only.

Use the following steps to display the System Information screen:

1. Use the joystick to position the cursor beside SYSTEM INFORMATION.

2. Press Iris Open. The SYSTEM INFORMATION window opens.

* This setting only applies to

Pressurized Spectra III SE dome systems with software version

1.25 or higher.

12 C2443M-C (1/04)

DISPLAY SETUP

BACK EXIT

PRESET LABEL 2 (SECS) ZONE LABEL 2 (SECS) ZOOM 2 (SECS) AZIMUTH/ELEVATION 2 (SECS) DIRECTION OFF ALARM MESSAGE 2 (SECS)

<LABEL POSITIONS> RESTORE FACTORY DEFAULTS

DISPLAY SETUP

EXIT

SPECTRA III

LANGUAGE ENGLISH

<SYSTEM INFORMATION> <DISPLAY SETUP> <DOME SETTINGS> ACK ALERT*

RESET CAMERA CYCLE CAMERA POWER REBOOT SYSTEM

* This setting only applies to

Pressurized Spectra III SE dome systems with software version

1.25 or higher.

Display setup allows you to program how labels are displayed on the monitor. The following labels are available:

PRESET LABEL - Identifies preset. ZONE LABEL - Identifies zone. ZOOM RATIO - Identifies the amount of magnification. AZIMUTH1/ELEVATION2 - Amount of pan from 0° and the amount of tilt from 0° horizontal. DIRECTION - Displays compass direction. ALARM MESSAGE - Displays activated alarm.

A preset label is displayed when a preset is called. A zone label is displayed when the system moves into a zone. The zoom ratio label is displayed when zoom is activated. Azimuth/elevation and direction labels are displayed when pan/tilt is activated. An alarm message appears on the monitor when an alarm occurs.

The following settings are available for each label:

OFF - Label is not displayed when activated. CONSTANT - The label is continually displayed when activated. 2 SECONDS - The label is displayed for 2 seconds after activation. 5 SECONDS - The label is displayed for 5 seconds after activation. 10 SECONDS - The label is displayed for 10 seconds after activation.

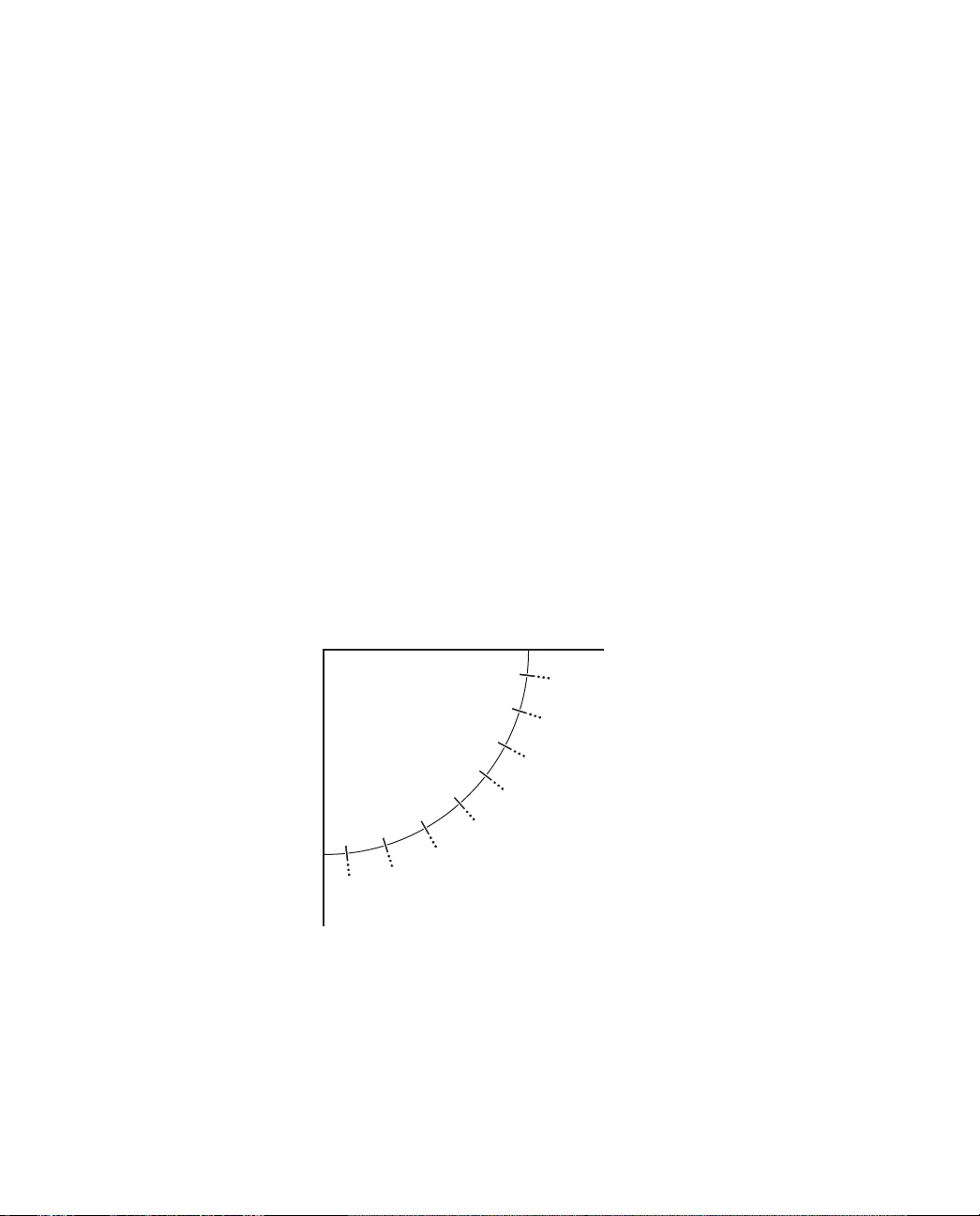

Azimuth is the pan angle from 0° to 359°.

Elevation is the tilt position from 0° (horizon) to -90°.

C2443M-C (1/04) 13

Quick Programming Guide

(See page 9)

+ 34 hidden pages
