Pelco HD3515, C2400M-B User Manual

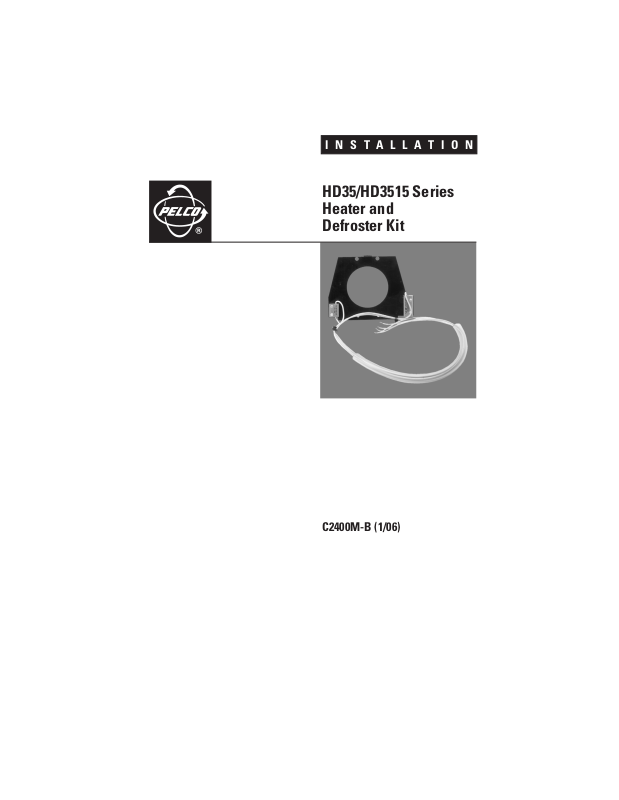

INSTALLATION

HD35/HD3515 Series
Heater and
Defroster Kit

C2400M-B (1/06)

Important Safety Instructions

Prior to installation and use of this product, the following WARNINGS should be observed.

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Do not use this apparatus near water.

5. Do not install near any heat sources such as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce heat.

6. Only use attachments/accessories specified by the manufacturer.

7. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold
with the apparatus. When a cart is used, use caution when moving the cart/apparatus
combination to avoid injury from tip-over.

8. Refer all servicing to qualified service personnel. Servicing is required when the apparatus
has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been
spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or
moisture, does not operate normally, or has been dropped.

9. Apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids,
such as vases shall be placed on the apparatus.

WARNING:

10.
moisture.

11. Installation should be done only by qualified personnel and conform to all local codes.

12. Unless the unit is specifically marked as a NEMA Type 3, 3R, 3S, 4, 4X, 6, or 6P enclosure, it is
designed for indoor use only and it must not be installed where exposed to rain and moisture.

13. AN ALL-POLE MAINS SWITCH with a contact separation of at least 3 mm in each pole shall
be incorporated in the electrical installation of the building.

CAUTION:

14.
To reduce the risk of electric shock do not perform any servicing other than contained in the
operating instructions unless you are qualified to do so.

15. Use only replacement parts recommended by Pelco.

The product and/or manual may bear the following marks:

Please thoroughly familiarize yourself with the information in this manual prior to installation and
operation.

To reduce the risk of fire or electric shock, do not expose this apparatus to rain or

These servicing instructions are for use by qualified service personnel only.

This symbol indicates that dangerous voltage
constituting a risk of electric shock is present
within this unit.

This symbol indicates that there are important
operating and maintenance instructions in the
literature accompanying this unit.Please
thoroughly familiarize yourself with the
information in this manual prior to installation
and operation.

CAUTION:

RISK OF ELECTRIC SHOCK.

DO NOT OPEN.

2 C2400M-B (1/06)

Description

Heater and defroster kits in the HD35/HD3515 Series are designed for enclosures in the EH3500
Series and EH3515L Legacy
only in the EH3508 Series and EH3512 Series. The HD3515 heater and defroster kit is designed for
enclosures only in the EH3515 Series and EH3515L Legacy Series.

These kits contain a thermostatically controlled heater and a continuous-duty defroster. The heater
turns on when the temperature drops to 50°F (10°C) and turns off when the temperature reaches 80°F
(27°C).

The heater and defroster are attached to a bracket that replaces the window brackets currently used
to hold the viewing window in place. Because of this bracket, the viewing window size is reduced to
a two-inch (5.08 cm) diameter circle.

The HD3515 heater and defroster kit contains two heaters. You install one heater in the front of the
enclosure and the other heater in the rear of the enclosure. The rear heater is attached to a rear heater
bracket, and the rear heater bracket attaches to the rear of the enclosure. If you are also installing a
blower kit, you install the rear heater bracket between the blower and rear of the enclosure.

®

Series. The HD35 heater and defroster kit is designed for enclosures

MODELS

HD35-1 Heater and defroster kit for EH3508 and EH3512 enclosures; 120 VAC; 25 watts
HD35-2 Heater and defroster kit for EH3508 and EH3512 enclosures; 24 VAC; 20 watts
HD35-3 Heater and defroster kit for EH3508 and EH3512 enclosures; 230 VAC; 43 watts
HD3515-1 Heater and defroster kit for EH3515 and EH3515L enclosures; 120 VAC; 25 watts
HD3515-2 Heater and defroster kit for EH3515 and EH3515L enclosures; 24 VAC; 20 watts
HD3515-3 Heater and defroster kit for EH3515 and EH3515L enclosures; 230 VAC; 43 watts

C2400M-B (1/06) 3
